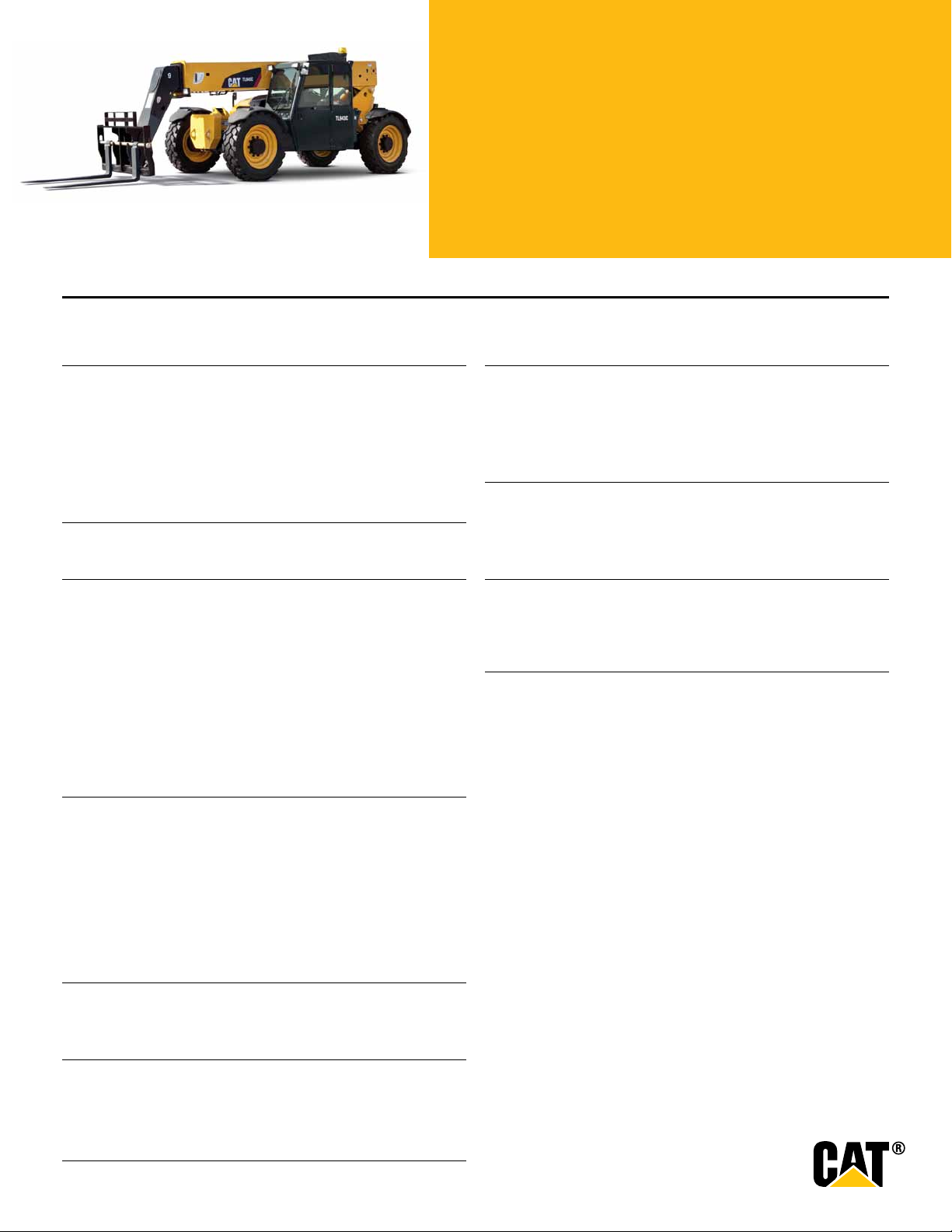

Page 1
®
Cat
TL943C
Telehandler
Specifications
Engine Boom Performance
Model Cat® C3.4B Tier 4 Interim Boom Up 13.9 Seconds
Gross Power (Basic) 83 kW 111.3 hp Boom Down 10.2 Seconds
Maximum Torque (Standard) 450 Nm at 1400 rpm 332 lb-f t Tele In 16.8 Seconds
Bore 99 mm 3.9 in Tele Out 14.9 Seconds
Stroke 110 mm 4.3 in
Displacement 3.4 L 207 .5 cu in
Weights
Operating Weight 12 032 kg 26,525 lb
Axles
• Trunnion mounted planetary 55 degree steer axles.
• Integral steer cylinder.
• High bias limited slip differential on front axle.
Operating Specifications Brakes
Rated Load Capacity 4082 kg 9,000 lb • Service Brakes are inboard wet disc brakes on front and rear axles.
Maximum Lift Height 13.1 m 4 3 ft • Parking Brakes are spring-applied hydraulic release on front axle.
Maximum Forward Reach 9.6 m 31.5 ft
Frame Leveling 10°
Top Travel Speed 32.7 kph 20.3 mph
Capacity at Max Height 3175 kg 7,000 lb
Capacity at Max Reach 54 4 kg 1,20 0 lb
Turning Radius over Tires 3.7 m 12 ft
Drawbar Pull (Loaded) 115.7 kN 26,000 lb
Hydraulic System
Variable displacement load sensing axial piston pump
System Operating Pressure 276 bar 4,000 psi
Auxiliary Hydraulic Pressure 207 bar 3,000 psi
Auxiliary Hydraulic Flow 38 L /min 10 gal/min
at Boom Head
• Auxiliary Hydraulic Circuit used for all attachments equipped
with cylinders or other hydraulic components. Consists of valves,
controls and hydraulic lines.
Service Refill Capacities
Fuel Tank 144 L 38 gal
Hydraulic System 157 L 41.5 gal
Tires
Standard 370 /75-28 Duraforce MT
Optional 370/ 75-28 Foam Filled
13.00 x 24 Foam Filled
13.00 x 24 12 PR
Light on dash indicates when brake is on.
Work Tools
Hydraulic Includes Includes
IT Coupler Auxiliary Electrics Auxiliary Electrics
Pallet Forks (2) 1525 mm, (2) 6 0 in, 2.36 in x 6 in
Lumber Forks (2) 1525 mm, (2) 60 in, 1.75 in x 7 in
Cubing Forks (2) 1220 mm, (2) 48 in, 2 in x 2 in
Carriages:
Standard Tilt 1270 mm 50 in
Wide Tilt 1829 mm 72 in
Side Shift 1220 mm 48 in
Standard Rotate 1270 mm 50 in
Wide Rotate 1829 mm 72 in
Swing 100°, 1829 mm, 4 028 kg 100°, 72 in, 9,000 lb
Dual Fork
Positioning 1270 mm 50 in
60 mm x 150 mm
(2) 1220 mm, (2) 48 in, 2.36 in x 4 in
60 mm x 10 0 mm
(2) 1220 mm, (2) 48 in, 2.36 in x 5 in
60 mm x 125 mm
45 mm x 180 mm
(2) 1829 mm, (2) 72 in, 2 in x 6 in
50 mm x 150 mm
50 mm x 5 0 mm
Capacity, 2268 kg Swung Capacity, 5,000 lb Swung
Transmission Speeds
Forward 4 speed
Reverse 3 speed
Page 2
-2.4 m (-8 ft)
3.7 m
(12 ft)
4.9 m
(16 ft)
6.1 m
(20 ft)
7.3 m
(24 ft)
8.5 m
(28 ft)
9.7 m
(32 ft)
10.9 m
(36 ft)
2.4 m
(8 ft)
1.2 m
(4 ft)
0 m
(0 ft)
A
C
E
B
D
F
20°
8.5 m (28 ft)
9.7 m (32 ft)
10.9 m (36 ft)
12.1 m (40 ft)
13.4 m (44 ft)
14.6 m (48 ft)
7.3 m (24 ft)
6.1 m (20 ft)
4.9 m (16 ft)
3.7 m (12 ft)
2.4 m (8 ft)
1.2 m (4 ft)
0 m (0 ft)
-1.2 m (-4 ft)
40°
50°
60°
69°
0°
10°
30°
-6°
544 kg (1,200 lb)
907 kg (2,000 lb)
1360 kg (3,000 lb)
1814 kg (4,000 lb)
2267 kg (5,000 lb)
3175 kg (7,000 lb)
4082 kg (9,000 lb)
-10
10
20
30
40
50
60
70
80
TL943

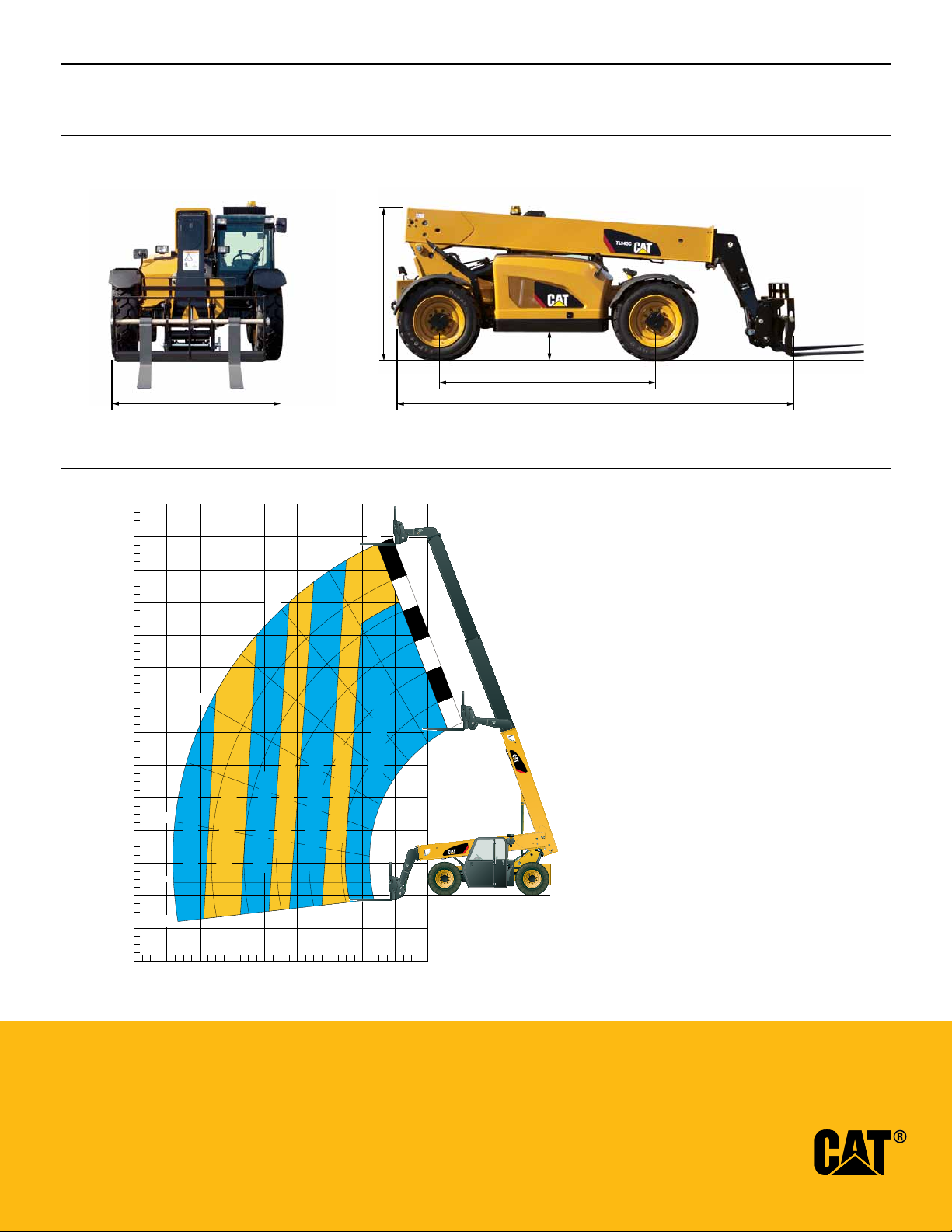

TL943C Telehandler
Dimensions
All dimensions are approximate.
2. 42 m (95 .3 in)
Load Chart and Dimensions
m (9 5.5 in ) 2. 43
48 3 mm (19 in)
3. 35 m (132 i n)
6.2 5 m (24 6 in)
14.6 m (48 ft)
13.4 m (44 ft)
12.1 m (40 ft)
10.9 m (36 ft)
9.7 m (32 ft)
8.5 m (28 ft)
60°
50°
40°
69°
F
E
D
C
B
7.3 m (24 ft)
30°
A
6.1 m (20 ft)
4.9 m (16 ft)
3.7 m (12 ft)
2.4 m (8 ft)
1.2 m (4 ft)
0 m (0 ft)
-1.2 m (-4 ft)
20°
10°
544 kg (1,200 lb)
0°
-6°
2267 kg (5,000 lb)
1814 kg (4,000 lb)
1360 kg (3,000 lb)
907 kg (2,000 lb)
4082 kg (9,000 lb)
3175 kg (7,000 lb)
80
70
60
50
40
30
20
10
-10
TL9 4 3
-2.4 m (-8 ft)
10.9 m 9.7 m 8.5 m 7.3 m 6.1 m 4.9 m 3.7 m 2.4 m 1.2 m 0 m
(36 ft) (32 ft) (28 ft) (24 ft) (20 ft) (16 ft) (12 ft) (8 ft) (4 ft) (0 ft)
For m ore compl ete inf ormati on on Cat pr oducts , dealer se rvices , and indu stry s olutio ns, vis it us on the w eb at ww w.cat .com
©2 01 2 Cat erp ill ar
All rights reserved .
Prin ted in U. S.A .
Mate rials and s pecifica tions ar e subject t o change wi thou t notice . Featur ed machine s in phot os may inclu de addit ional
equip ment. S ee your Ca t dealer fo r availabl e option s.
CAT, CAT ERPI LLA R, SA FET Y.CAT.C OM, the ir respec tive log os, “Ca terpil lar Yellow ” and the PO WER E DGE trad e dress,
as well a s corpor ate and pro duct iden tit y used here in, are tr ademark s of Cate rpillar a nd may not be u sed wit hout per missio n.
-10
10
20
30
40
50
60
80
70
TL943
IMPORTANT
Rated lift capacities shown are with machine
equipped with carriage and pallet forks. The
machine must be level on a firm surface with
undamaged, properly inflated tires. Machine
specifications and stability are based on rated
lift capacities at specific boom angles and
boom lengths. (If specifications are critical,
the proposed application should be discussed
with your dealer.)
DO NOT exceed rated lift capacity loads, as
unstable and dangerous machine conditions
will result.
DO NOT tip the machine forward to determine
the allowable load.
Use only approved attachments with
proper material handler model/attachment
load capacity charts displayed in the
operator’s cab. OSHA requires all rough
terrain forklift operators be trained
according to OSHA 29 CFR 1910.178 (1).
Due to continuous product improvements,
machine specifications and/or equipment
changes may be made without prior
notification. This machine meets or exceeds
ANSI/ITSDF B56.6-2005 as originally
manufactured for intended applications.
AEHQ6747-00 (03-2012)
