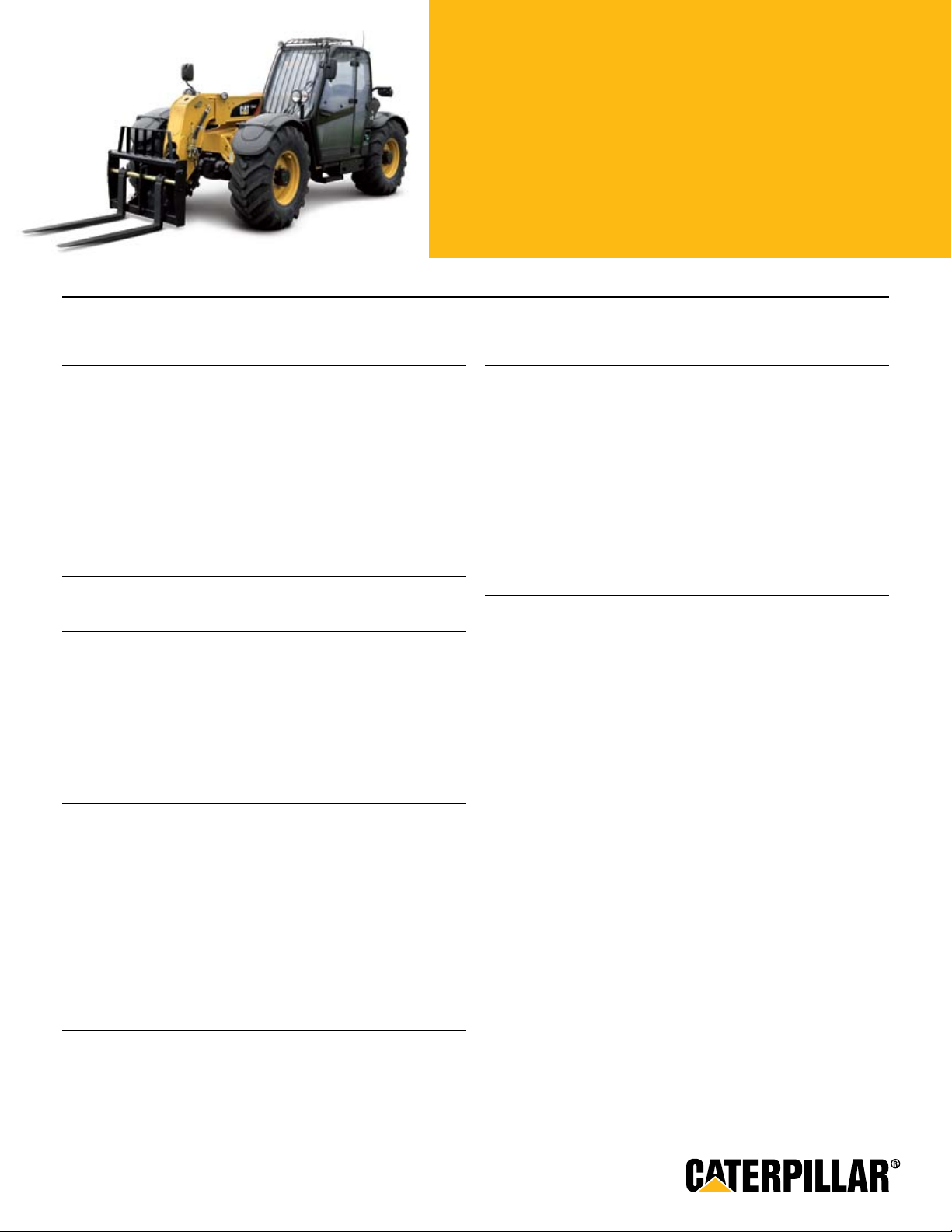

Specifications
®
Cat
TH407
Telehandler
Engine
Engine Model (Standard) Cat® C4.4 Mechanical DITAAC
Engine Model (Optional) Cat
Gross Power (Standard) 74.5 kW 100 hp
Gross Power (Optional) 93.1 kW 125 hp
Maximum Torque (Standard) 410 Nm at 1400 rpm
Maximum Torque (Optional) 496 Nm at 1400 rpm
Bore 105 mm 4.13 in
Stroke 127 mm 4.99 in
Displacement 4.4 L 268.5 cu in
®
C4.4 Electronic DITAAC-ACERT
Weights
Operating Weight 7700 kg 16,9 80 lb
Operating Specifications
Rated Load Capacity 3700 kg 8,100 lb
Maximum Lift Height 7.30 m 24 ft
Maximum Forward Reach 3.76 m 12 ft 3 in
Top Travel Speed 40 kph 25 mph
Capacity at Max Height 2000 kg 4,400 lb
Capacity at Max Reach 1500 kg 3,300 lb
Turning Radius over Tires 3.70 m 12 ft 1 in
Service Refill Capacities
Fuel Tank 150 L 39.63 gal
Hydraulic Tank 90 L 23.78 gal
Tires
Standard 15.5/80-24 16PR
Optional 400/ 80 R24 Power CL
44 0/80 R24 Power CL
460/ 70 R24 XMCL
500/ 70 R24 XMCL
15.50 x 25 SGL
Brakes
• Service brakes are inboard wet disc brakes on front axle
• Parking brakes are wet disc spring-applied hydraulic release
Hydraulic System
Maximum System Pressure 250 bar 3,625 psi
®
Maximum Pump Flow 150 L /min 39.63 gal /min
Pump Type Variable displacement
load sensing axial piston pump
Auxiliary Hydraulic Supply 80 L /min 21.13 gal/min
(Intermittent)
Auxiliary Hydraulic Supply 60 L /min 15.85 gal/min
(Continuous)
• Auxiliary Hydraulic Circuit used for all at tachments
equipped with cylinders or other hydraulic components.
Consists of valves, controls, and hydraulic lines.
Transmission Speeds
Forward — 1 7 kph 4.3 mph
Forward — 2 12 kph 7.45 mph
Forward — 3 21 kph 13 mph
Forward — 4 32 kph 19.8 mph
Forward — 5 40 kph 25 mph
Reverse — 1 7 kph 4.3 mph
Reverse — 2 12 kph 7.45 mph
Reverse — 3 21 kph 13 mph
Boom Performance
Boom Up 7.5 Seconds
Boom Down 5.1 Seconds
Tele In 4.8 Seconds
Tele Out 5.7 Seconds
Tilt Forward (dump) 3 Seconds
Tilt Backward 3 Seconds
Combined — Up and Out 11.5 Seconds
Combined — Down and In 6.6 Seconds
Drawbar Pull 74.5 kW 8500 kg 18,740 lb
Drawbar Pull 93.1 kW 8900 kg 19,620 lb
Instruments
• Engine speed, boom angle, machine speed, operation hours,
% of continuous flow selected, gear selected and direction
Page 2
8.5 m (28 ft)
7.3 m (24 ft)
6.1 m (20 ft)
4.9 m (16 ft)
3.7 m (12 ft)
2.4 m (8 ft)
1.2 m (4 ft)
0 m (0 ft)
-1.2 m (-4 ft)
3.7 m
(12 ft)
4.9 m
(16 ft)
2.4 m
(8 ft)
1.2 m
(4 ft)
-1.2 m
(4 ft)
0 m
(0 ft)
3000 kg (6,600 lb)
3700 kg (8,150 lb)
2000 kg (4,400 lb)
1500 kg (3,300 lb)
2500 kg (5,500 lb)
60°
50°
40°
30°
20°
10°
0°
67.5°
2000 kg (4,400 lb)
8.5 m (28 ft)
7.3 m (24 ft)
6.1 m (20 ft)
4.9 m (16 ft)
3.7 m (12 ft)
2.4 m (8 ft)
1.2 m (4 ft)
0 m (0 ft)
-1.2 m (-4 ft)
3.7 m
(12 ft)
4.9 m
(16 ft)
2.4 m
(8 ft)
1.2 m
(4 ft)
3000 kg (6,600 lb)
3628 kg (8,000 lb)
2000 kg (4,400 lb)
1500 kg (3,300 lb)
2500 kg (5,500 lb)
60°
50°
40°
30°
20°
10°
0°
2000 kg (4,400 lb)

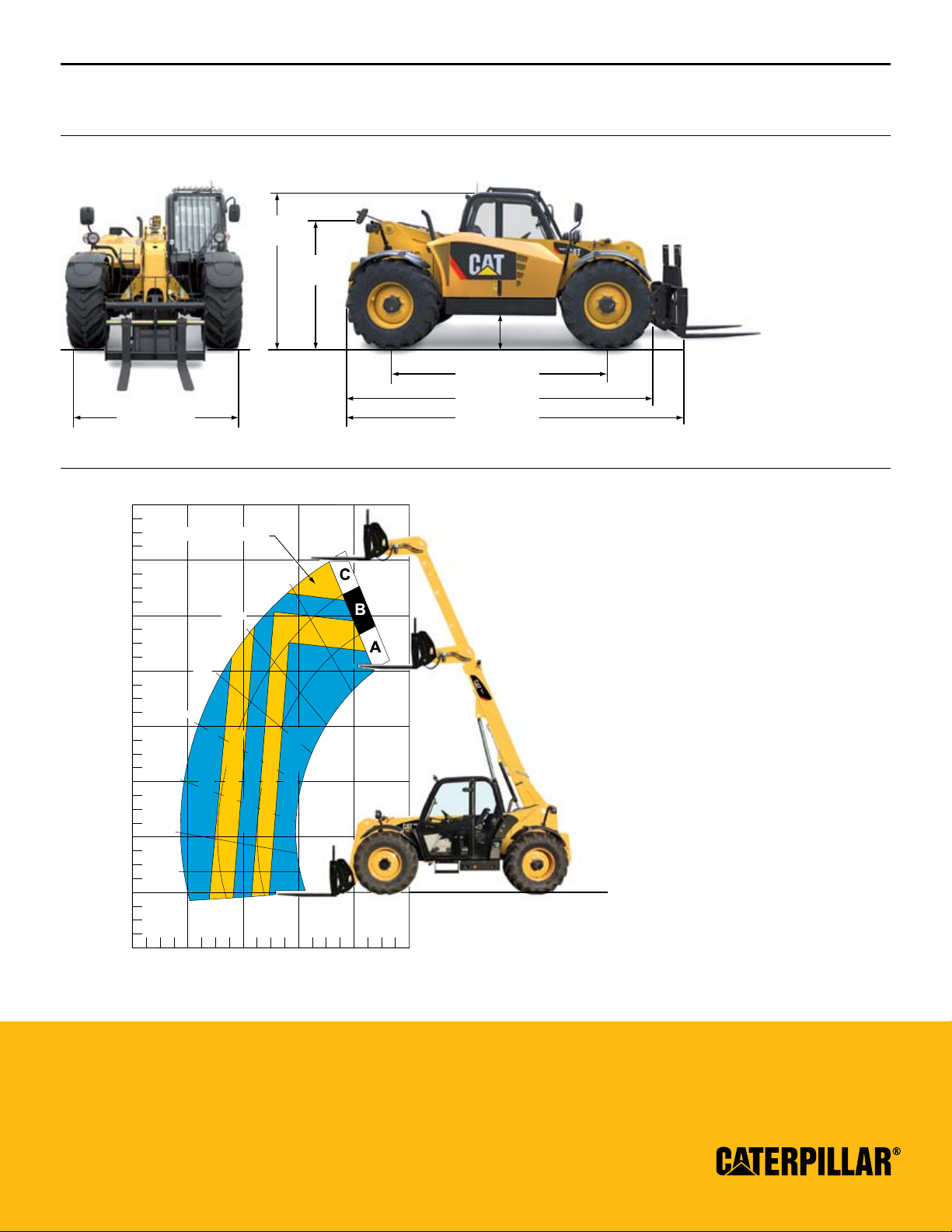

TH407 Telehandler
Dimensions
All dimensions are approximate.
24 00 mm (94 .48 in )
Load Chart and Dimensions
23 85 mm
(9 3.8 9 in)
183 8 mm
(7 2.36 i n)
441 m m
17.3 6 in
30 50 mm (120. 07 in)
46 79 mm (184. 21 in)
53 53 mm (20 7. 87 in)
IMPORTANT
Rated lift capacities shown are with machine
equipped with carriage and pallet forks. The
machine must be level on a firm surface with
undamaged, properly inflated tires. Machine
specifications and stability are based on rated
lift capacities at specific boom angles and boom
lengths. (I f specifications are cri tical, the proposed
application should be discussed with your dealer.)
DO NOT exceed rated lift capacity loads, as unstable
and dangerous machine conditions will result.
DO NOT tip the machine forward to determine
the allowable load.
Use only JLG approved attachments with proper
material handler model/attachment load capacity
charts displayed in the operator’s cab. OSHA
requires all rough terrain forklif t operators be
trained according to OSHA 2 9 CFR 1910.178 (1).
Due to continuous product improvements, machine
specifications and/or equipment changes may
be made without prior notification. This machine
meets or exceeds ANSI/ITSDF B56.6-2005 as
originally manufactured for intended applications.
For more complete information on Cat products, dealer services, and indus try solutions, visit us on the web at
www.cat .com
© 200 9 Caterp illar
Prin ted in U. S.A .
All r ights r eserve d.
CAT, CATERPILL AR, their respective logos, “Caterpillar Yellow” and the POW ER ED GE trade dress, as well as
corp orate and p roduct i denti ty used he rein, ar e tradema rks of Ca terpil lar and may no t be used wi thout p ermiss ion.
AEHQ5966-03
