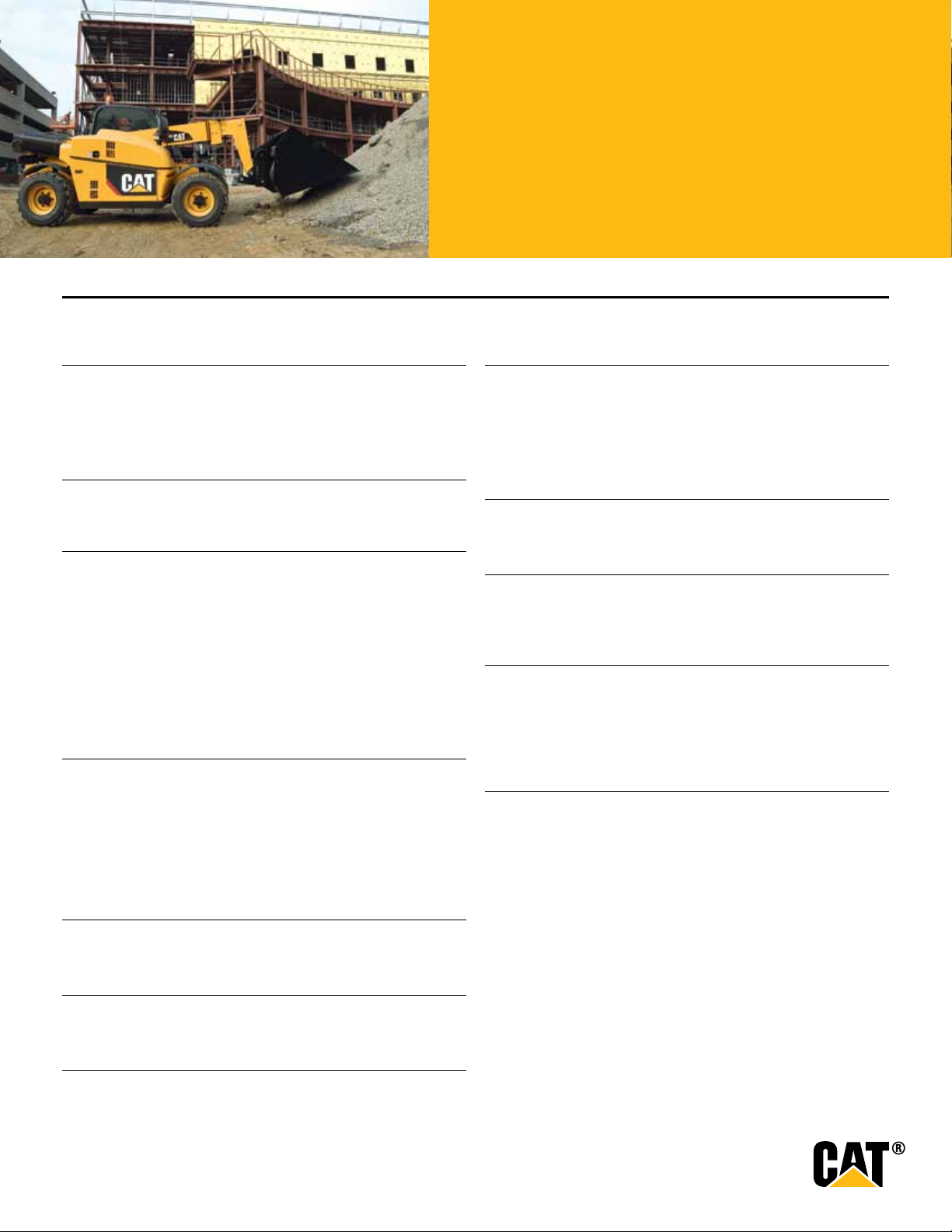

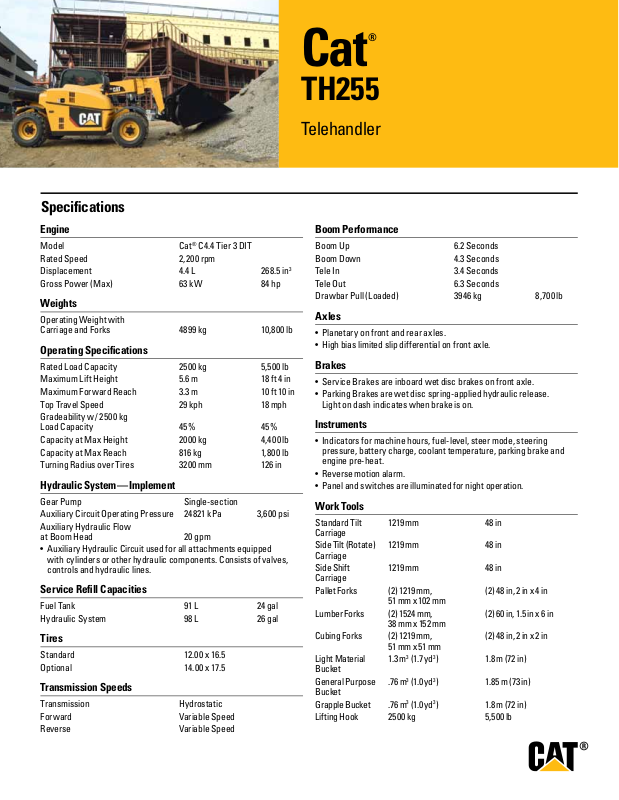

Specifications
®
Cat
TH255
Telehandler
Engine
Model Cat® C4.4 Tier 3 DIT
Rated Speed 2,200 rpm
Displacement 4.4 L 268.5 in
Gross Power (Max) 63 kW 84 hp
3
Weights
Operating Weight with
Carriage and Forks 4899 kg 10,800 lb
Operating Specifications
Rated Load Capacity 2500 kg 5,500 lb
Maximum Lift Height 5.6 m 18 ft 4 in
Maximum Forward Reach 3.3 m 10 ft 10 in
Top Travel Speed 29 kph 18 mph
Gradeability w / 2500 kg
Load Capacity 45% 45%
Capacity at Max Height 2000 kg 4,400 lb
Capacit y at Max Reach 816 kg 1,800 lb
Turning Radius over Tires 3200 mm 126 in
Hydraulic System — Implement
Gear Pump Single-section
Auxiliary Circuit Operating Pressure 24821 kPa 3,600 psi
Auxiliary Hydraulic Flow
at Boom Head 20 gpm
• Auxiliary Hydraulic Circuit used for all attachments equipped
with cylinders or other hydraulic components. Consists of valves,
controls and hydraulic lines.
Service Refill Capacities
Fuel Tank 91 L 24 gal
Hydraulic System 98 L 26 gal
Tires
Standard 12.00 x 16.5
Optional 14.00 x 17.5
Transmission Speeds
Transmission Hydrostatic
Forward Variable Speed
Reverse Variable Speed
Boom Performance
Boom Up 6.2 Seconds
Boom Down 4.3 Seconds
Tel e In 3.4 Seconds
Tel e Ou t 6.3 Seconds
Drawbar Pull (Loaded) 3946 kg 8,700 lb
Axles
• Planetary on front and rear axles.
• High bias limited slip differential on front axle.
Brakes
• Service Brakes are inboard wet disc brakes on front axle.
• Parking Brakes are wet disc spring-applied hydraulic release.
Light on dash indicates when brake is on.
Instruments
• Indicators for machine hours, fuel-level, steer mode, steering
pressure, battery charge, coolant temperature, parking brake and
engine pre-heat.
• Reverse motion alarm.
• Panel and switches are illuminated for night operation.
Work Tools
Standard Tilt 1219 mm 4 8 in
Carriage
Side Tilt (Rotate) 1219 mm 4 8 in
Carriage
Side Shift 1219 mm 4 8 in
Carriage
Pallet Forks (2) 1219 mm, (2) 48 in, 2 in x 4 in
51 mm x 102 mm
Lumber Forks (2) 1524 mm, (2) 60 in, 1.5 in x 6 in
38 mm x 152 mm
Cubing Forks (2) 1219 mm, (2) 48 in, 2 in x 2 in
51 mm x 51 mm
Light Material 1.3 m
Bucket
General Purpose .76 m
Bucket
Grapple Bucket .76 m
Lifting Hook 2500 kg 5,500 lb
3
(1.7 yd3) 1.8 m (72 in )
3
(1.0 yd3) 1.85 m (73 in)
3
(1.0 yd3) 1.8 m (72 in)
Page 2
7.3 m (24 ft)
7.3 m (24 ft)
6.1 m (20 ft)
4.9 m (16 ft)
3.7 m (12 ft)
2.4 m (8 ft)
1.2 m (4 ft)
-1.2 m (-4 ft)
3.7 m
(12 ft)
4.9 m
(16 ft)
2.4 m
(8 ft)
1.2 m
(4 ft)
0 m
(0 ft)
0 m (0 ft)
C
D
E
B
A
TL255
-10
10
20
30
40
50
60
70
80
TL255
-1
0
1
0
2
0
30
4
0
50
60
70
8
0
0°
10°
20°
30°
40°
50°
60°
70°
2,000 kg (4,400 lb)
1,360 kg (3,000 lb)
900 kg (2,000 lb)
816 kg (1,800 lb)
2,500 kg
(5,500 lb)

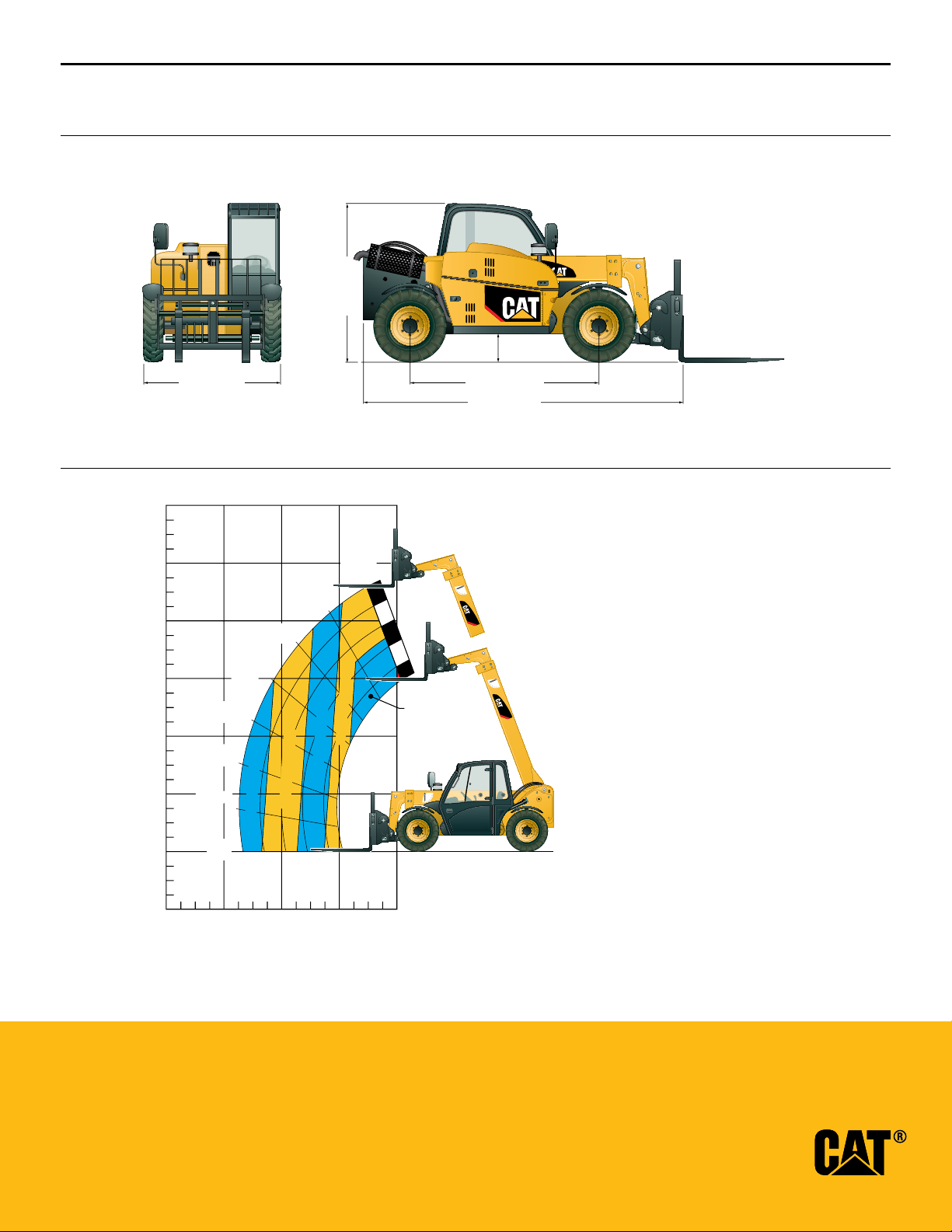

TH255 Telehandler
95.5 in. (2.41 m)
Dimensions
All dimensions are approximate.
94 in. (2.38 m)
1.9 2 m (75. 6 in)
1.81 6 m (71.5 in )
95.5 in. (2.41 m)
Load Chart and Dimensions
6.1 m (20 ft)
60°
4.9 m (16 ft)
50°
3.7 m (12 ft)
40°
30°
2.4 m (8 ft)
20°
1.2 m (4 ft)
0 m (0 ft)
10°
0°
-1.2 m (-4 ft)
4.9 m
(16 ft)
For m ore compl ete inf ormati on on Cat pr oducts , dealer se rvices , and indu stry s olutio ns, vis it us on the w eb at ww w.cat .com
© 2010 Cat erpillar
All rights reserved .
Prin ted in U. S.A .
Mate rials and s pecifica tions ar e subject t o change wi thou t notice . Featur ed machine s in phot os may inclu de addit ional
equip ment. Se e you r Cat de aler for avail able optio ns.
CAT, CAT ERPI LLA R, SA FET Y.CAT.C OM, the ir respec tive log os, “Ca terpil lar Yellow ” and the PO WER E DGE trad e dress,
as well a s corpor ate and pro duct iden tit y used here in, are tr ademark s of Cate rpillar a nd may not be u sed wit hout per missio n.
3.7 m
(12 ft)
900 kg (2,000 lb)
816 kg (1,800 lb)
2.4 m
(8 ft)
1,360 kg (3,000 lb)
1.2 m
(4 ft)
70°
2,000 kg (4,400 lb)
E
D
(0 ft)
C
B
0 m
A
2,500 kg
(5,500 lb)
TL255
27 9 mm
(11 in )
128 in. (3.25 m)
2. 286 m ( 90 in)
221.6 in. (6.33 m)
3.6 58 m (14 4 in)
IMPORTANT
Rated lift capacities shown are with machine
equipped with carriage and pallet forks.
The machine must be level on a firm surface
-10
10
20
30
40
60
50
80
70
TL255
with undamaged, properly inflated tires.
Machine specifications and stability are
based on rat ed lift capacities at specific
boom angles and boom lengths.
(If specifications are critical, the proposed
-10
10
20
30
40
60
50
80
70
TL255
application should be discussed with your dealer.)
DO NOT exceed rated lift capacity loads, as
unstable and dangerous machine conditions
will result.
DO NOT tip the machine forward to determine
the allowable load.
0
8
70
60
50
0
4
TL255
0
30
2
0
1
-1
0
Use only JLG approved at tachments with
proper material handler model/attachment
load capacity charts displayed in the operator’s
cab. OSHA requires all rough terrain forklift
operators be trained according to OSHA 29
CFR 1910.178 (1).
Due to continuous product improvements,
machine specifications and /or equipment
changes may be made without prior notification.
This machine meets or exceeds ANSI/ITSDF
B56.6-2005 as originally manufactured for
intended applications.
AEHQ5954-05 (09-2010)
