Caterpillar PL87 BROCHURE

PL87

Pipelayer

Engine Weights

Engine Model Cat
Net Power – ISO 9249 273 kW 366 hp Lift Capacity
Net Power – ISO9249 (Metric) 371 hp Lift Capacity at Tipping Point – ISO 8813 97 069 kg 214,000 lb

®

C15 ACERT™ Operating Weight 54 485 kg 120,119 lb

PL87 Pipelayer Features

Performance

Improved hydraulics offer greater response and
more precise control. New heavy duty winch
works with updated hydraulic system for greater
machine productivity.

Slope Capability

Lengthened track-roller-frame and repositioned
rear idler puts more track on the ground, enhancing
slope capability.

Lift Capacity

New counterweight pro le adds more weight
providing increased lift capacity. The PL87 has
arated lift capacity of 97 069 kg (214,000 lb).

Operator Interface

New control handle puts boom and hook functions
in the operator’s right hand. Enclosed cab option
aids operator comfort and offers outstanding visibility.
New dual brake pedals enhance machine control,
especially on slopes and for turning within a tight
pipeline right-of-way.

Safety

Additional large surface mirrors enhance visibility
for the operator, and a modi ed block set design
reduces the pro le for greater visibility to the pipe.
New, easy-to-service ladder design offers enhanced
access/egress to the operator station.

Transportability

New lower winch pro le reduces shipping envelope
and aids transportability. New bolt-on block horn
has been added to the front of the machine for more
convenient transport/storage of the block set.

Contents

Pipelayer...............................................................3

Operator Station ..................................................4

Implement and Steering Controls ....................5

Enclosed Cab .......................................................6

Engine and Power Train .....................................7

Structure...............................................................8

Undercarriage .....................................................8

Integrated Technologies ....................................9

Sustainability .......................................................9

Serviceability .....................................................10

Safety ..................................................................11

Renowned Cat Dealer Support .......................11

PL87 Specications ..........................................12

PL87 Standard Equipment................................15

PL87 Mandatory Attachments

and OptionalEquipment ...................................15

2

Cat® Pipelayers have been the standard of the pipeline
industry for decades. A worldwide network of Cat dealers,
in tune with the special high production needs of pipeliners,
supports these durable and dependable machines.
CatPipelayers are purpose-built to meet the unique
demands of pipeline customers. And like every Cat machine,
pipelayers are designed for long life, serviceability and
rebuild capability to help keep owning and operating
costs low. The PL87 answers customer needs for increased
lift capacity, enhanced slope capability, ease of operation,
performance and transportability.

Pipelayer

Integrated, robust components

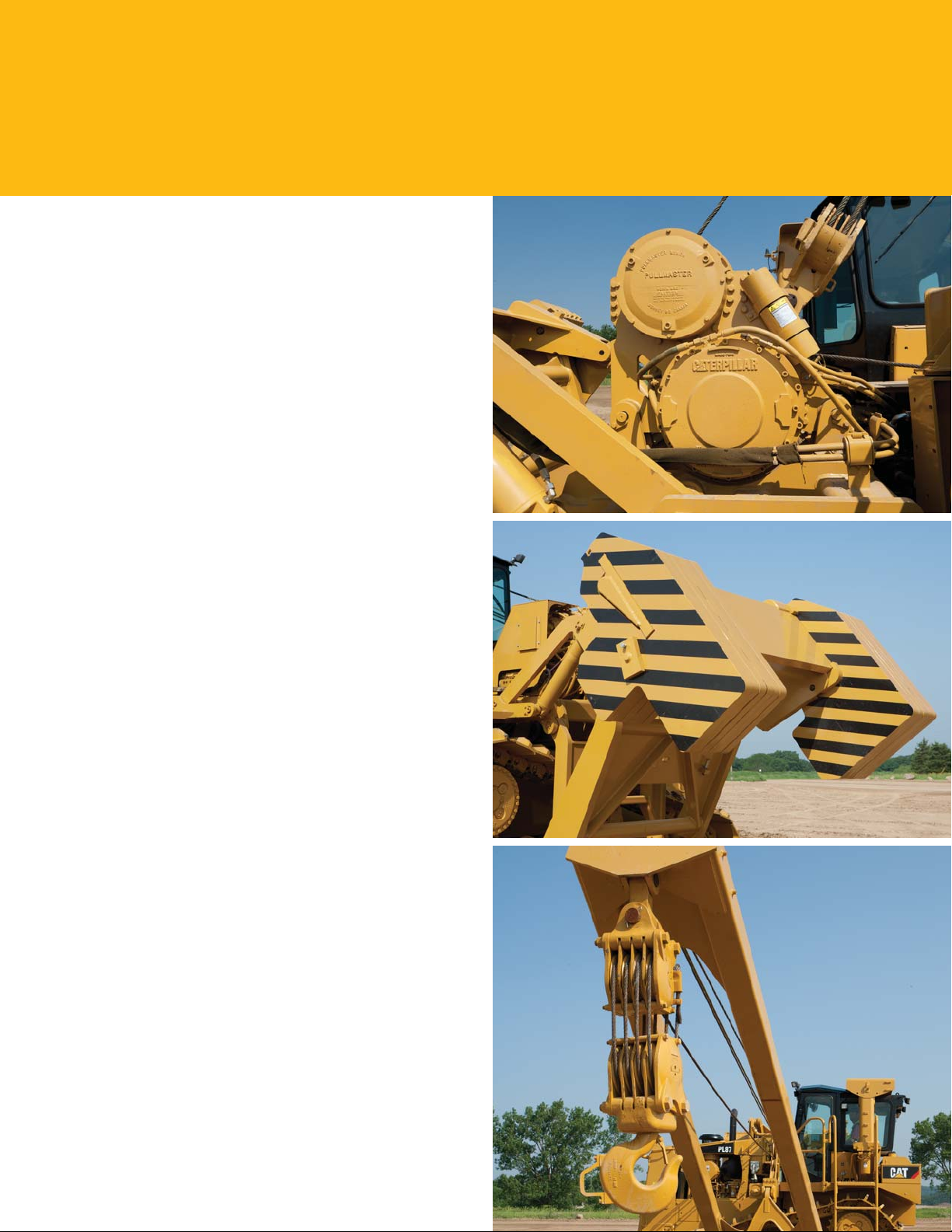

Winches

New heavy-duty winch design works with updated machine
hydraulics for greater productivity. Boom and hook draw
works are driven by independent hydraulic winches. Oil-disc
brakes provide smooth operation and positive retention of
boom and hook positions. A modular, pin-on design allows
for fast replacement and easy field service. Interchangeable
parts between hook and boom winch assemblies help reduce
cost and downtime. The winch profile has been reduced to
enhance visibility and meet critical transport requirements
for rail shipment.

Counterweight

New counterweight profile adds more counterweight,
increasing lift capacity. Segments are contoured to provide
alow center of gravity and enhanced visibility to the front
and side. The counterweight is extended hydraulically for
improved load balance and clearance. Segments are splined
for ease of assembly and disassembly. The PL87 has a rated
lift capacity of 97 069 kg (214,000 lb).

Boom

The light weight, durable boom features high tensile strength
steel construction for narrow structures and maximum visibility
to the work area. Replaceable boom-mount bearings aid
serviceability and long life.

Blocks and Hook

Updated block set profile enhances visibility to the pipe
andhelps take advantage of the full length of the boom.
Theheavy-lifting components include hook and boom blocks
with sleeve bearings, a forged hook with latch and serviceable
handle, and ductile iron sheaves. A bolt-on block horn has
been added to the front of the machine for convenient
storage of the block set during transport.

Drawbar

A robust drawbar tows a wide range of attachments
formaximum versatility.

3

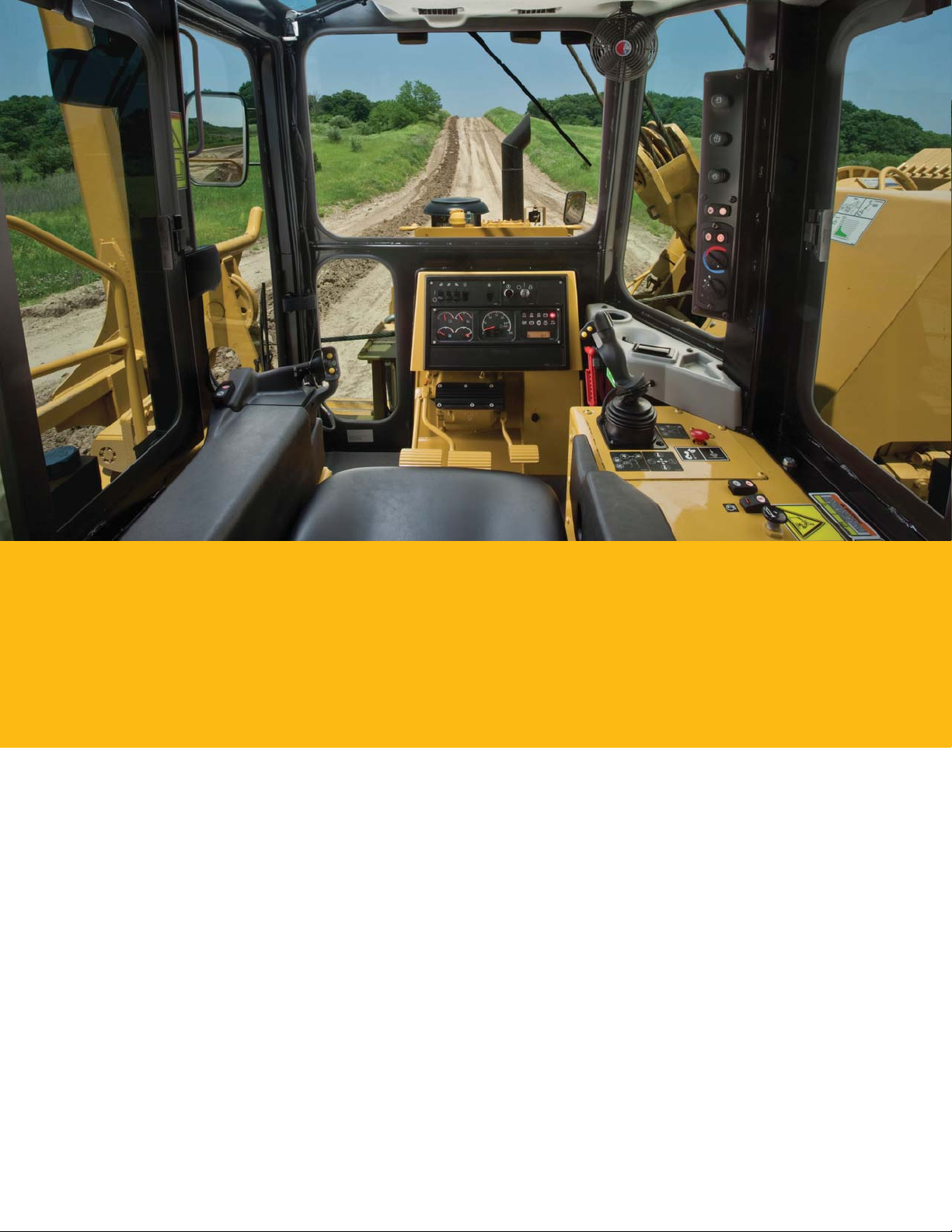

Operator Station

Designed for Productive Comfort

Caterpillar designs operator stations for maximum productivity. Operator comfort features and excellent
visibility all around the machine help operators work more efficiently and contribute to job site safety.
Customers may choose an Open Cab (OROPS), an Enclosed Cab with single pane glass, or an ArcticCab
with Dual Pane glass.

• A Roll Over Protection Structure (ROPS) provides added operator protection with an open
orenclosed cab.

• A more durable access ladder design aids access/egress to the operator station, and can be removed
to minimize the machine’s shipping envelope.

• Additional mirrors further enhance the operator’s visibility all around the machine.

• Ergonomically designed seat is positioned for enhanced visibility to the trench and for convenient
access to key operator control levers and pedals.

• Monitoring system provides instant feedback on the condition of operating systems and records
performance data for diagnostics and to help manage undercarriage wear. The system also features
adigital and gauge-type tachometer.

• 12-volt outlets power devices like cell phones and laptop computers.

4

Implement and Steering Controls

Ergonomically Designed for Ease of Operation

2

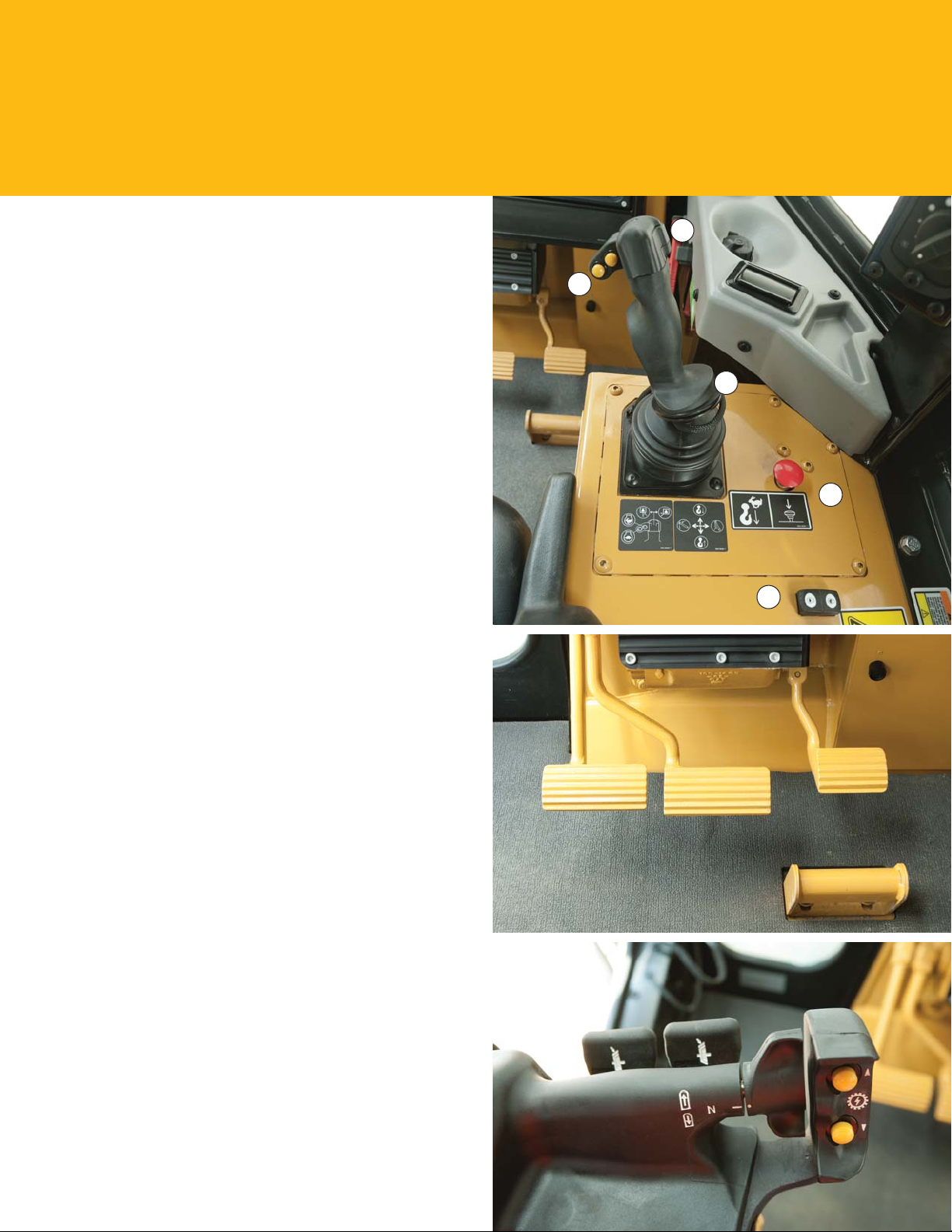

Pipelayer Control

Right joystick places all of the boom, hook and counterweight
function control in one hand. Low-effort, ergonomically
designed control handle allows simultaneous, precise
positioning of the load line and boom.

1) Increment/decrement buttons on pipelayer control handle

provide continuous adjustable throttle.

2) Thumb rocker controls the counterweight functions.

3) Joystick forward lowers the hook and joystick back raises

the hook. Joystick left lowers the boom and joystick right
raises the boom.

4) Quick drop control.

5) Rocker switch allows the operator to increase/decrease

engine speed to a set level with the touch of a button.

1

3

4

Quick Drop Control

The new quick drop control, when pushed, will allow the
load on the hook to free fall to the ground. This control is
tobe used only in emergency situations where the load must
be released immediately.

Dual Brake Pedal Controls

Dual brake pedal controls provide enhanced maneuverability
and steering control, especially in slope applications.
Brakesare spring applied and hydraulically actuated.

Finger Tip Steering Control

Finger tip controls are grouped to the operator’s left for
easyone-handed operation to control steering, direction
andgear selection.

5

5

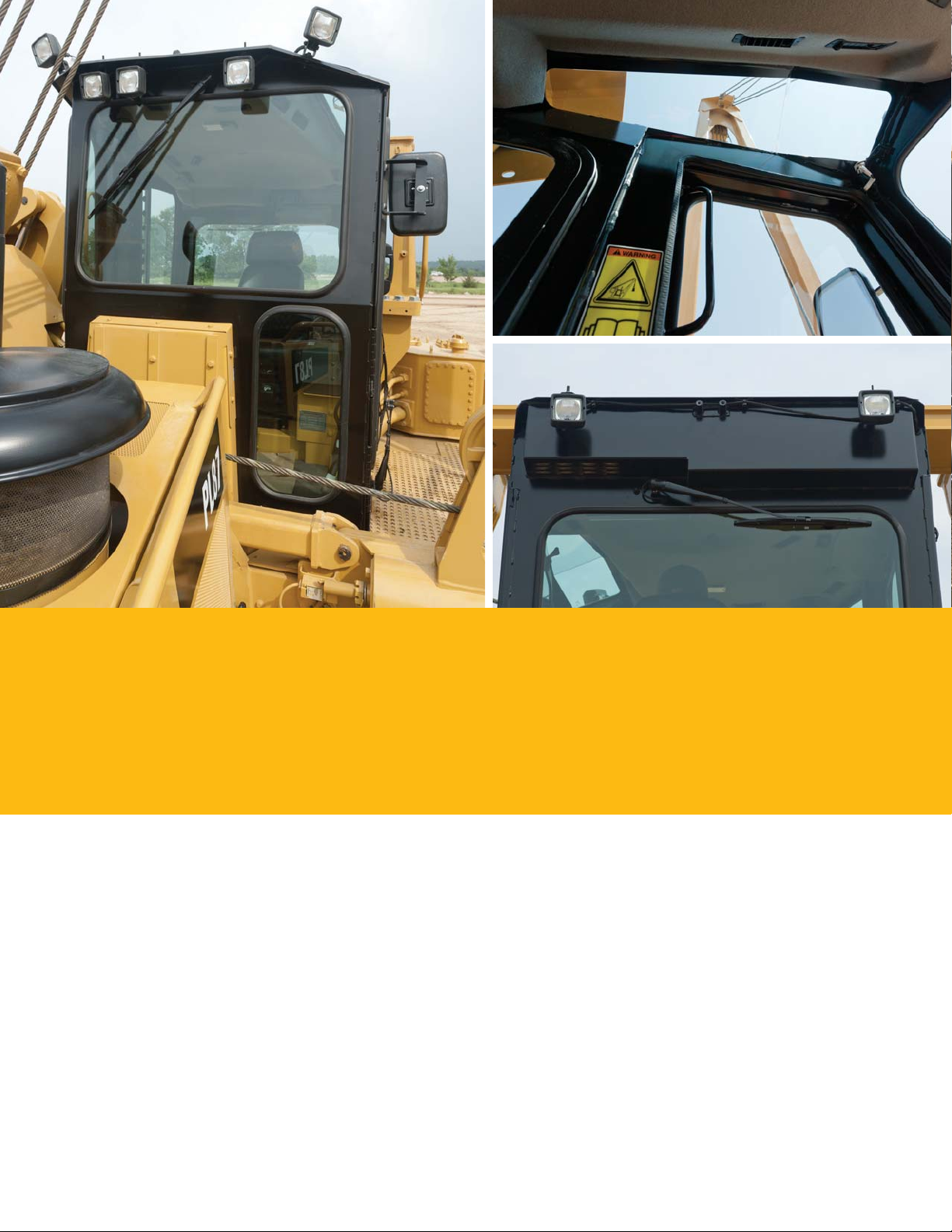

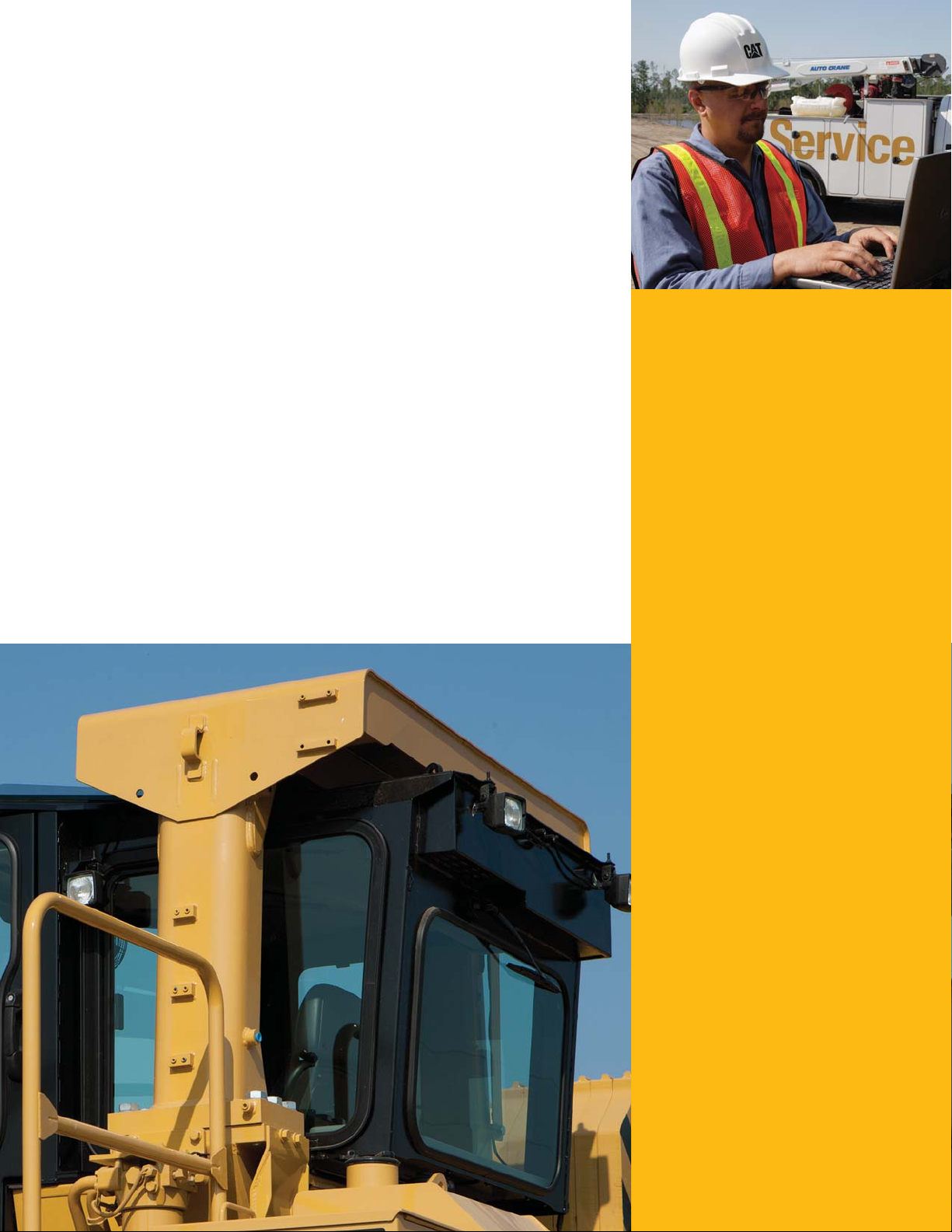

Enclosed Cab

Designed with Pipeline Productivity in Mind

The optional enclosed cab is designed by Caterpillar specifically for demanding pipeline applications.
The cab is designed to work with the Rollover Protective Structure (ROPS), and is fully insulated with
aheater. Air conditioning is available as an option.

Glass area is maximized for excellent sight lines around the machine and to the trench to aid productivity
and enhance job site safety. A skylight window provides a view to the boom and upper block.

The cab includes eight additional halogen lights: three facing forward, two to the rear, two to the
boomside and one to the winch side. Wipers provide a clearer view during inclement weather.

Arctic Arrangement

An arctic arrangement equips the pipelayer for optimal performance in arctic conditions. The Arctic Cab
has many of the same operator comfort features as the enclosed cab, but adds dual pane windows for cold
weather environments. The arrangement also incorporates fluids, final drive and roller seals, and batteries
designed to perform in severe cold weather environments.

6

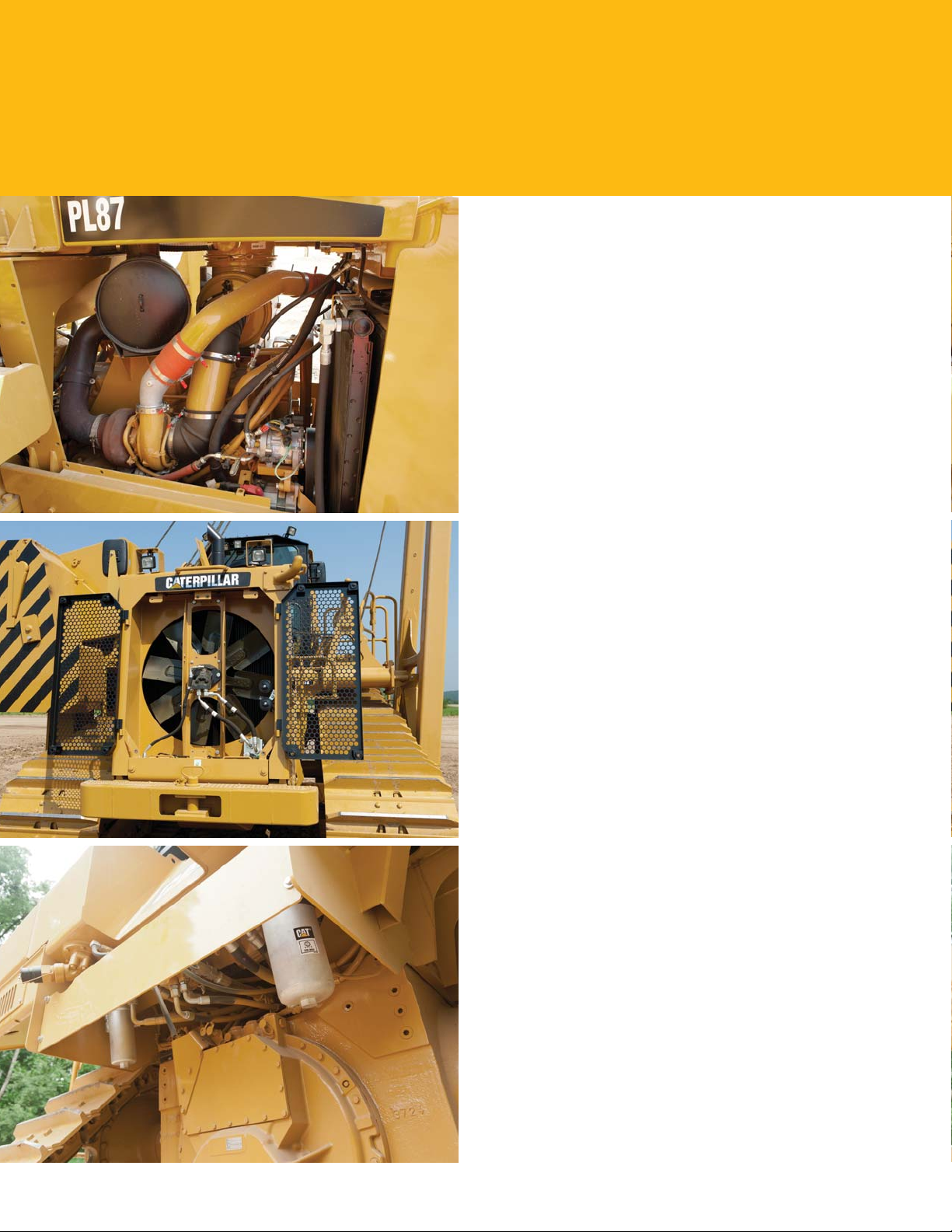

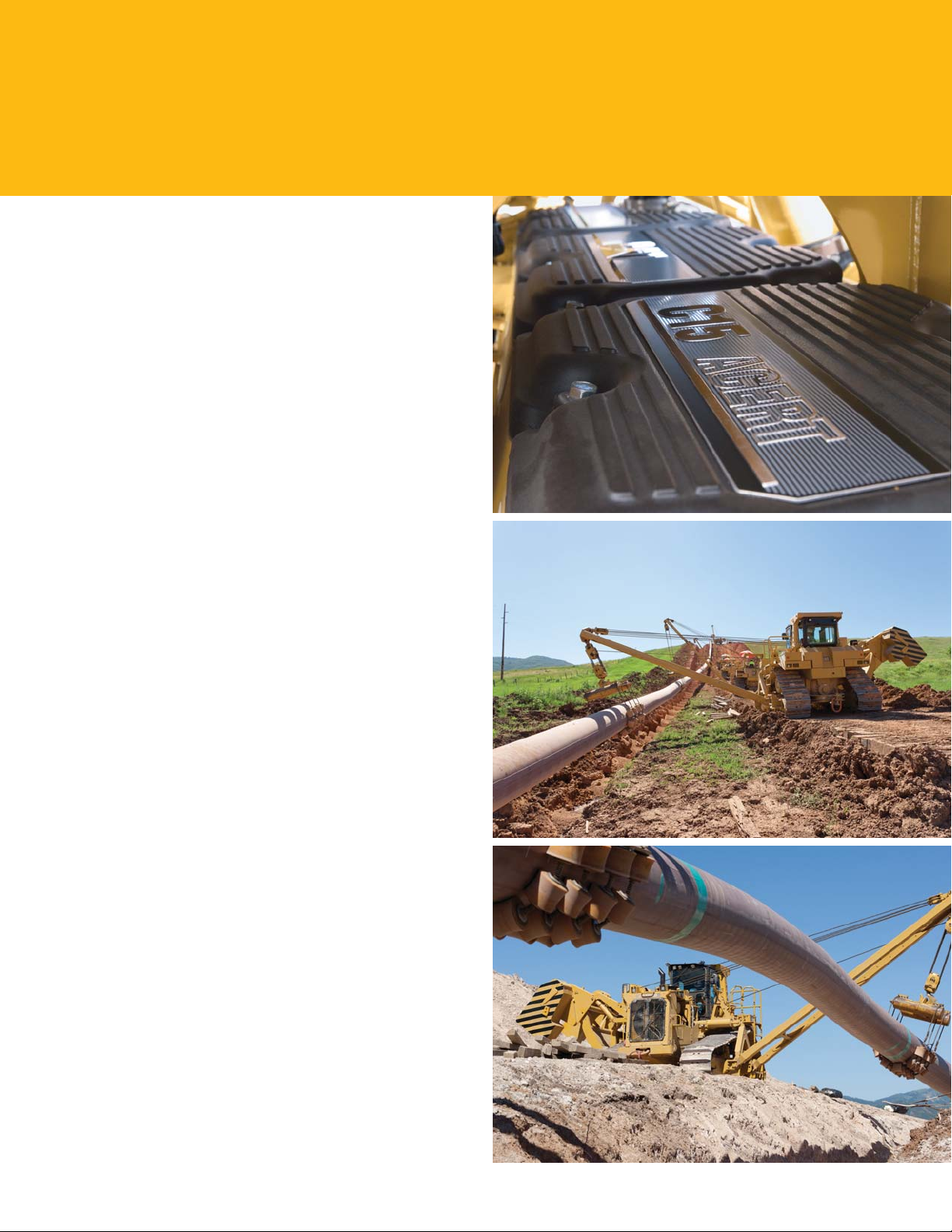

Engine and Power Train

Powerful Efciency

Engine

The Cat C15 engine with ACERT™ Technology provides
thelarge displacement and high torque rise for the power
needed on challenging jobs. Matched to the high-efficiency
torque divider and electronically controlled power shift
transmission, the C15 ACERT engine will provide years
ofdependable service.

Constant Net Horsepower

Constant net horsepower maintains high standards of
performance and response. The engine automatically adjusts
to maintain power output and conversely lowers output
whendemands are low. This provides significant fuel savings
in cooler climates and during long engine idle times typical
of pipeline applications.

Planetary Power Shift Transmission

The planetary power shift transmission offers smooth shifting
and quick speed and directional changes for maximum
productivity. With three speeds forward and three speeds
reverse, the transmission utilizes large diameter, high capacity,
oil-cooled clutches for long life. An oil-to-water cooler facilitates
maximum cooling capacity, and forced oil flow lubricates
andcools clutch packs for long life.

Electronic Clutch Pressure Control

The Finger Tip Control (FTC) system has an additional
drive train feature for added performance, Electronic Clutch
Pressure Control (ECPC). This feature provides smoother
shifting by modulating individual clutches. ECPC also provides
the auto-shift and auto-kickdown feature.

Steering Clutch and Brake

Clutches are fade resistant and adjustment free. The multi-disc,
oil-cooled steering clutches are hydraulically applied and
electronically controlled. The brakes are applied by springs
and hydraulically released for safe and reliable braking
performance.

7

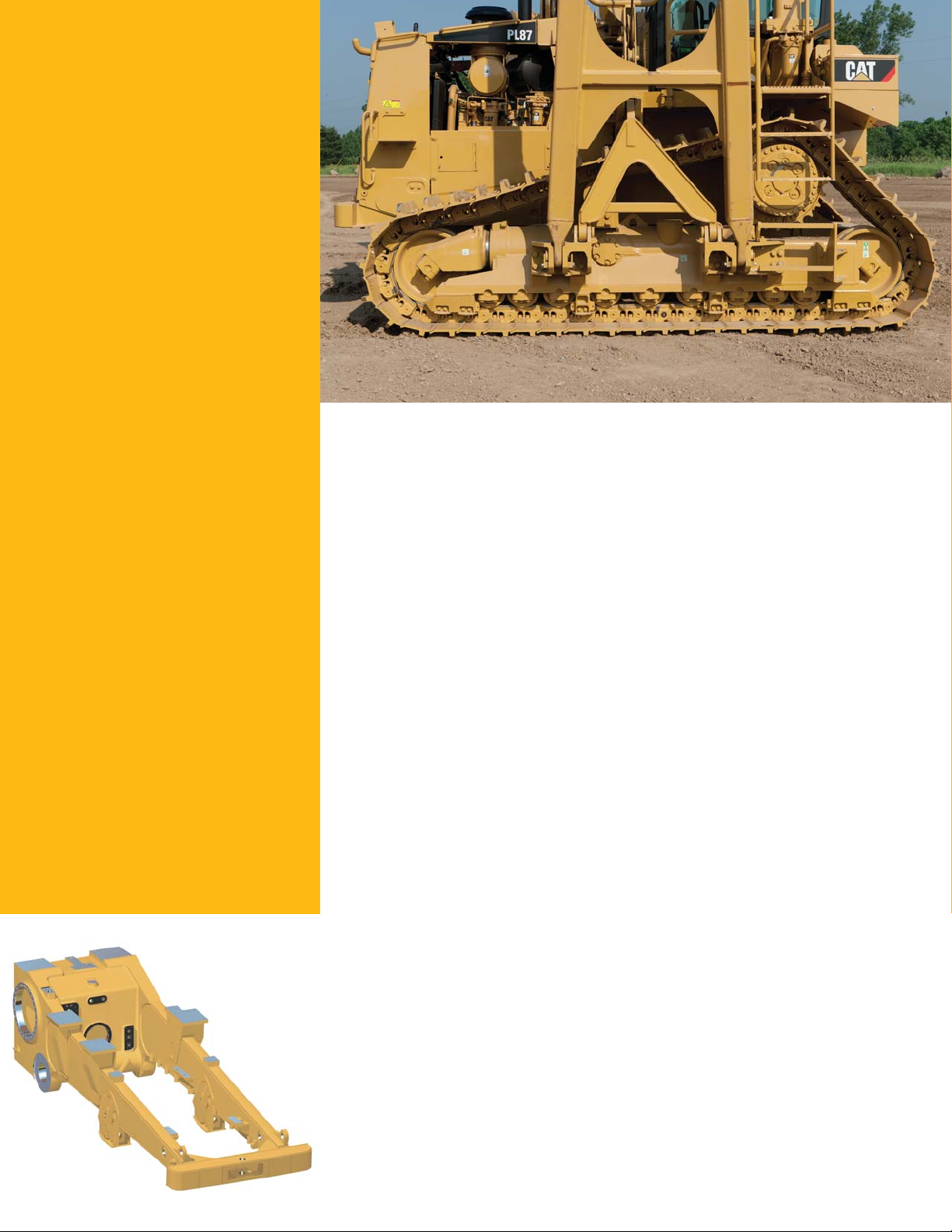

Structure

Underlying Strength

The Pipelayer main frame is
engineered to handle the most
demanding applications.
Themainframe is built to absorb
high impact shock loads and
twisting forces, and full box section
frame rails are designed to keep
components rigidly aligned.
Heavysteel castings add strength
tothe main case, center saddle and
front cross member for outstanding
durability. Top and bottom rails are
continuous rolled sections, with no
machining or welding, to provide
superior mainframe durability.
Thefinal drives are elevated well
above the ground level work area
toprotect them from impact loads,
abrasion and contaminants.

Caterpillar uses robotic welding
techniques in the assembly of
thecase and frames. The deep
penetration and consistency of
robotic welding insures quality
forlong life and durability.

Undercarriage

Engineered for Performance

The PL87 features a non-suspended, Cat elevated sprocket undercarriage.
Track roller frame length has been increased by 128 mm (5.03 in), and the
rear idler has been moved down and rearward, resulting in more track on
theground to enhance machine stability, especially on steep slopes.

Undercarriage components are built for long life and ease of serviceability.
Rollers and idlers feature Duo-Cone™ seals to help prevent oil loss and
dirtentry. Tubular roller frames resist bending and twisting, with added
reinforcement where operating loads are highest. Cat Tough Steel™ sprocket
segments are precision machined after heat treat for proper fit. Segments can
be removed or replaced without breaking the track.

Pipelayer track is designed for high-impact and high load applications.
ThePositive Pin Retention Sealed and Lubricated Track is an exclusive
Caterpillardesign that locks the link to the pin for enhanced service life.
Track shoes help optimize the machine for performance in demanding underfoot
conditions. The PL87 features an 864 mm (34 in) super extreme service grouser
with sealed and lubricated track (48 sections) and clipped shoes.

8

Integrated Technologies

Solutions to Make Work Easier and More Efcient

Cat Product Link*

Remote monitoring with Product Link improves overall fleet
management effectiveness. Product Link is deeply integrated
into machine systems. Events and diagnostic codes, as well
ashours, fuel, idle time and other detailed information are
transmitted to a secure web based application, VisionLink™.
VisionLink includes powerful tools to convey information to
users and dealers, including mapping, working and idle time,
fuel level and more.

*Product Link licensing not available in all areas.

Load Monitor Ready

The PL87 is Load Monitor Indicator (LMI) ready from the
factory and can accept regional LMI systems. New hydraulic
circuitry, integrated mounting hardware and the ready-mount
power supply makes system installation simple. The LMI ready
hydraulic system enables installation without opening the
hydraulic system thus preventing contamination.

Sustainability

Thinking Generations Ahead

• Fuel efficient engine, and power saving features like
constant net horsepower, help save fuel to reduce
costs and lower emissions.

• Technologies like Product Link help improve overall
efficiency, save fuel and fluids, and reduce equipment
wear and tear.

• Longer service intervals help reduce parts and fluids
consumption.

• Ecology drains make draining fluids more convenient
and help prevent spills.

• Major components are built to be rebuilt, eliminating
waste and saving customers money by giving the
machine and/or major components a second –
andeven third – life.

9

Serviceability

More Productivity, Less Cost

Grouped service points and easy maintenance contribute
toincreased machine up-time for greater productivity and
reduced costs.

Easy Diagnostics

The machine monitoring system provides instant feedback
on the condition of operating systems, utilizing a three level
warning system. The system can easily be upgraded by
flashing software.

Service Access

• For ease of servicing, all regular engine maintenance
points are easily reached through the left-hand engine
compartment.

• Engine doors are equipped with door handles and
keyedlocks for better protection.

• Enlarged service panel doors provide easier access
toallmaintenance locations.

• Remote-mounted fuel and hydraulic filters located
within easy reach

• Optional fast fill fuel tank available

• Hydraulic oil, pivot shaft oil and washer fluid levels are
conveniently monitored using a sight gauge

• Fuel tank fill, hydraulic oil sight gauge, fuel tank water
and sediment drain and S·O·SSM sampling ports are
conveniently grouped within easy reach on the back
ofthe machine.

• Pressure taps are grouped to allow for quick monitoring
of the hydraulic system, and have ground-level access
through the left service access door.

10

Cooling Package

Cores and fan are accessible from ground level, with grill
doors that are easily removed for cleaning and maintenance.
The core is also easily accessed from the back through the
engine compartment. The radiator fill cap for engine coolant
refill is located on top of the hood.

Ecology Drains

Ecology drains provide a convenient method for draining
fluids that saves time and helps prevent spills. They are included
on the radiator (coolant), hydraulic tank and engine oil change.

Safety

Designed with Protection in Mind

Job site safety is a key concern for pipeline customers, and Cat pipelayers are
designed with features to help protect people in and around the machine.

• A Roll Over Protection Structure (ROPS) provides added operator protection
with an open or enclosed cab.

• New winch profile and additional mirrors provide even greater visibility
around the machine.

• Increased undercarriage length and repositioned rear idler enhance
slopecapability.

• PL87 pipelayers are Load Monitor Indicator (LMI) ready to help operators
monitor loads for enhanced job site safety and efficiency.

• Grab handles help personnel maintain three points of contact while servicing.

• Updated quick drop release conveniently located near right-hand controls.

• The PL87 features dual brakes that provide smooth operation and positive
retention of boom and hook positions.

Renowned Cat Dealer Support

When Uptime Counts

Cat dealers excel at providing parts
availability and equipment service
to even the most remote areas.
With more than 10,000 service
technicians employed in over
3,000Cat dealer locations around
the world, Cat parts and service
resources and capabilities are
beyond compare.

– Manage costs with preventive

maintenance programs like Custom
Track Service, S·O·SSM analysis,
and guaranteed maintenance
contracts.

– Stay productive with best-in-class

parts availability.

Catdealers can even help you with
operator training to help you boost
your profits.

And when it’s time for machine
replacement, your Cat dealer
canhelp you save even more with
Genuine Cat Reman parts. Receive
the same warranty and reliability
as new products at cost savings
of40 to 70 percent for power train
and hydraulic components.

11

PL87 Specications

Engine Hydraulic System Standards

Engine Model Cat® C15 ACERT™

Emissions U.S. EPA Tier 3,

EUStage IIIA

Gross Power 294 kW 394 hp

Gross Power (Metric) 400 hp

Gross Power –
ISO14396

Gross Power –
ISO14396 (Metric)

Flywheel Power 273 kW 366 hp

Flywheel Power
(Metric)

Net Power –
ISO9249

Net Power –
ISO9249 (Metric)

Net Power – 270 kW 362 hp
SAEJ1349

Net Power – 367 hp
SAEJ1349 (Metric)

Net Power – 273 kW 366 hp
EU80/1269

Net Power – 371 hp
EU80/1269 (Metric)

Bore 137 mm 5.4 in

Stroke 172 mm 6.75 in

Displacement 15.2 L 928 in

• Engine ratings at 1,850 rpm.

• Net power advertised is the power available

at the ywheel when the engine is equipped
with fan, air cleaner, mufer and alternator.
Automatic derating occurs beyond
thataltitude.

281 kW 377 hp

382 hp

371 hp

273 kW 366 hp

371 hp

3

Undercarriage

Shoe Type Super Extreme Service

Width of 864 mm 34 in
StandardShoes

Number of Shoes 48
(each side)

Grouser Height 93 mm 3.6 in

Track Gauge 2.54 m 8 ft 4 in

Length of Track 3.587 m 11 ft 9 in
onGround

Ground ContactArea 3715 mm 10 ft 5 in

Number of Rollers 9 9
(each side)

Number of 1 per side
CarrierRollers

• Positive pin retention track.

Implement Pump 277 L/min 73.2
Output – Max gal/min
(closed loop)

Relief Valve Setting 41 600 kPa 6,033.6 psi

Counterweight 101 L/min 26.7
(gear) gal/min

Variable Charge 219 L/min 57.9
Pump Output – gal/min
Max(open loop)

Service Capacities

Fuel Tank 569 L 150.3 gal

Crankcase andFilter 38 L 10 gal

Final Drive 13 L 3.4 gal
(eachside)

Cooling System 76 L 20 gal

Hydraulic Tank 170 L 44.9 gal

Power Train 190 L 50 gal

Operating Specifications

Lifting Capacity 97 069 kg 214,000 lb

Weights

Operating Weight 54 485 kg 120,119 lb

Shipping Weight 42 865 kg 94,501 lb

• Operating weight includes all shipping
weights plus full fuel tank and operator.

• Shipping weight includes: lubricants,
coolant, 10% fuel, hydraulic controls and
uids, backup alarm, seat belt, 710mm
(28 in) grouser shoes, drawbar and
counterweight.

Transmission

1 Forward 3 km/h 1.9 mph

2 Forward 5.4 km/h 3.3 mph

3 Forward 9.4 km/h 5.8 mph

1 Reverse 4 km/h 2.5 mph

2 Reverse 7 km/h 4.4 mph

3 Reverse 12.3 km/h 7.7 mph

1F – Drawbar Pull 618.5 N 139 lbf

2F – Drawbar Pull 338.2 N 76 lbf

3F – Drawbar Pull 186.9 N 42 lbf

Brakes Brakes meet

thestandard
SAEJISO10265
MAR99

ROPS Optional ROPS

(Rollover Protection
Structure) meets
thestandards
SAEJ397 OCT95,
SAE J1040 MAY94,
ISO 3164 1995 and
ISO3471-1

Pipelaying Equipment

Planetary Hydraulic Winches

Hook

Drum Diameter 254 mm 10 in

Flange Diameter 508 mm 20 in

Drum Length 355.6 mm 14 in

Wire Rope Diameter 19 mm 0.75 in

Boom and Cables, 114.3 m 375 ft

7.3m (24 ft)

Boom and Cables, 114.3 m 375 ft

7.3m (24 ft) Extended

Boom and Cables, 124.2 m 407.6 ft

8.53 m (28 ft)

Boom and Cables, 124.2 m 407.6 ft

8.53m (28 ft) Extended

Hook Speed (Raise) 15.5 50.8
with 8 Part Line m/min ft/min

Boom

Drum Diameter 254 mm 10 in

Flange Diameter 508 mm 20 in

Drum Length 355.6 mm 14 in

Wire Rope Diameter 19 mm 0.75 in

Boom and Cables, 55 m 180.4 ft

7.3m (24 ft)

Boom and Cables, 74 m 242.8 ft

7.3m (24 ft) Extended

Boom and Cables, 62.5 m 205 ft

8.53 m (28 ft)

Boom and Cables, 86.2 m 282.8 ft

8.53m (28 ft) Extended

Removable Counterweight 13 Segments

2 @ 285 kg 628 lb

6 @ 710 kg 1,562 lb

5 @ 785 kg 1,725 lb

Total Weight Extendible 13 903 kg 30,587 lb

• Hydraulic Power – 540 L/min at
18259kPa/183 bar (143 gal/min at 2,650psi)
and 2,100 rpm pump speed independent
oftorqueconverter

12

lb kg

220,000
210,000
200,000
190,000
180,000
170,000
160,000
150,000
140,000
130,000
120,000
110,000

Load

100,000

90,000
80,000
70,000
60,000
50,000
40,000
30,000
20,000
10,000

99 790
95 254
90 718
86 183
81 647
77 111
72 575
68 039
63 503
58 967
54 431
49 895
45 359
40 823
36 287
31 751
27 216
22 680
18 144
13 608

9072
4536

0

0

1.2 1.5 1.8 2.1 2.4 2.7 3.0 3.4 3.7 4.0 4.3 4.6 4.9 5.2 5.5 5.8 6.1 6.4 6.7 7.0 7.3 7.6 7.9 8.2 8.5 m

4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 ft

A

B

C

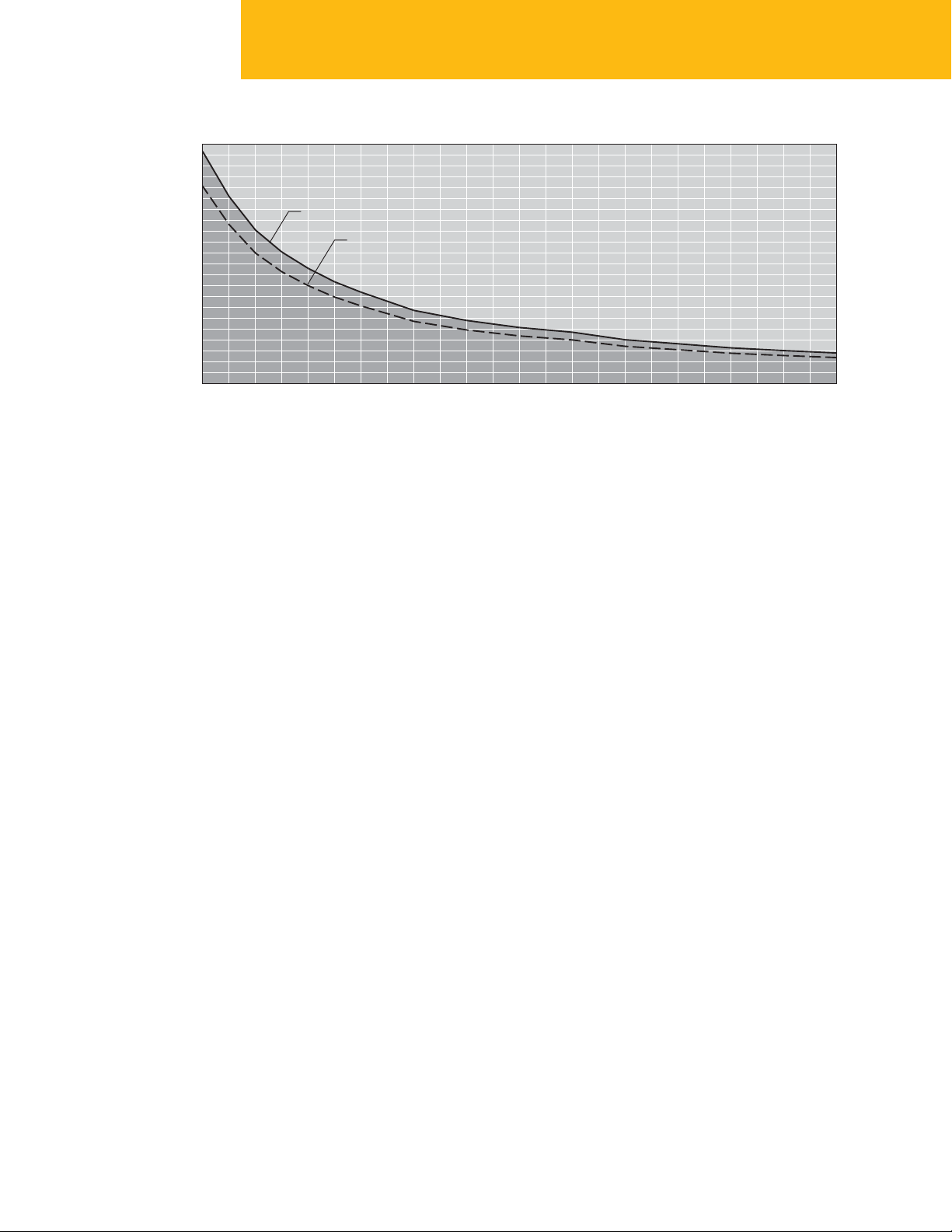

A – Lift capacity at tipping point – ISO 8813 – 97 069 kg (214,000 lb)
B – Rated load capacity – ANSI/ASME B30.14
C – Working range – ANSI/ASME B30.14

PL87 Specifications

Load Overhang

13

PL87 Speci cations

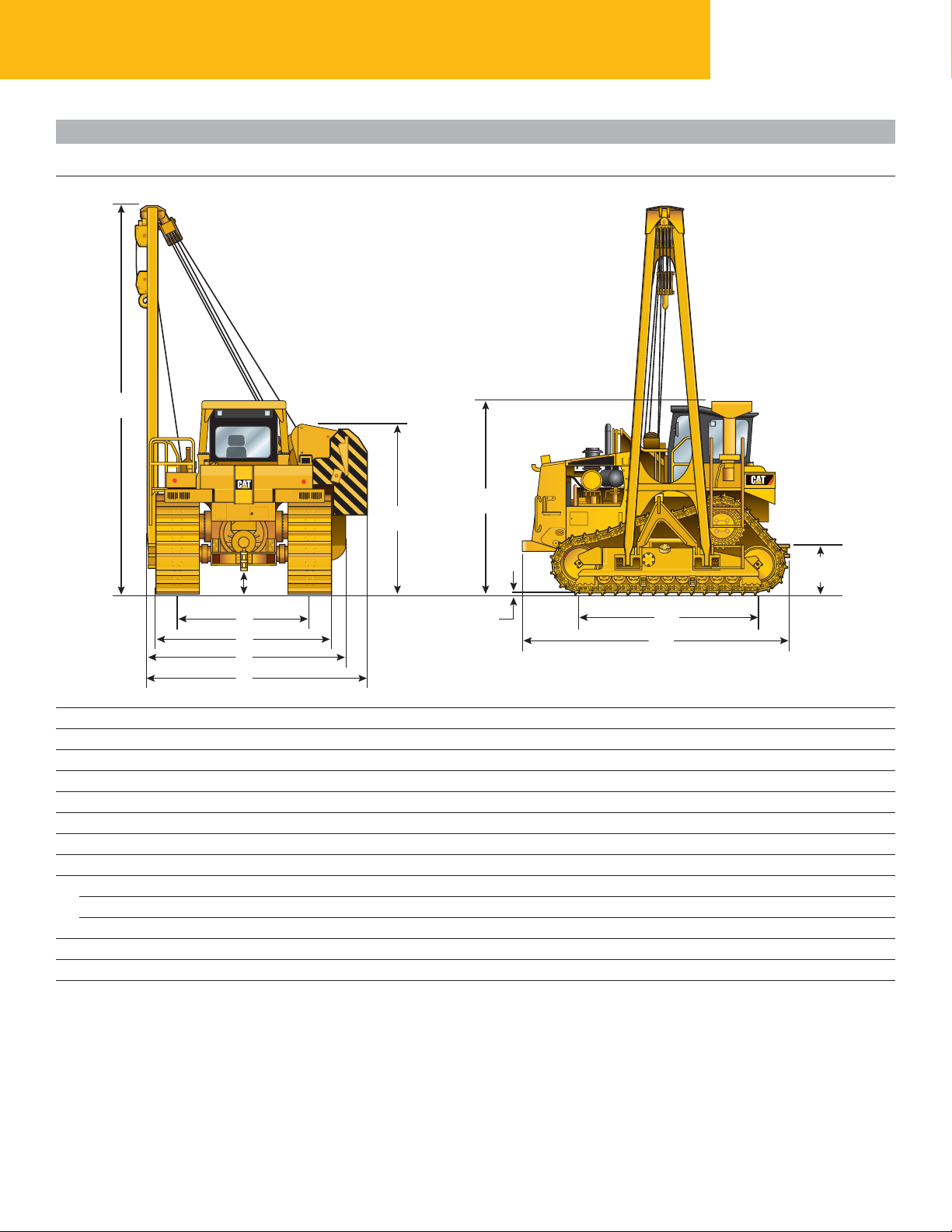

PL87 Dimensions

12

PL87

5

11

1
2

3
4

Track gauge

1

Width of tractor (standard shoes)

2

Width of tractor counterweight/boom removed

3

Width of tractor (counterweight retracted)

4

Machine height (tip of counterweight)

5

Drawbar height

6

Length of track on ground

7

Operating length

8

Height of machine

9

Height with ROPS and boom removed

Height to the top of the ROPS canopy/cab

Grouser height

10

Ground clearance (per SAE J1234)

11

Boom height [at SAE 1.22 m (4 ft) overhang] 8.53m (28 ft) boom

12

9

10

7

8

2.54 m

3.86 m

4.04 m

4.34 m

3.44 m

0.60 m

3.72 m

5.49 m

3.18 m

3.84 m

0.09 m

0.46 m

9.25 m

6

8 ft 4 in

12 ft 8 in

13 ft 3 in

14 ft 3 in

11 ft 3.25 in

1 ft 10 in

12 ft 2 in

17 ft 11 in

11 ft 6 in

12 ft 7 in

3.6 in

18 in

30 ft 5 in

14

Standard equipment may vary. Consult your Cat dealer for details.

PL87 Standard Equipment

ELECTRICAL

Alarm, backup
Batteries, 4, maintenance free
Converter, 12V, 10 amp with 1 outlet
Diagnostic connector
Horn, forward warning
Lighting system, halogen, (2 front, 2 rear)
Starting receptacle

OPERATOR ENVIRONMENT

Armrest, adjustable
Deactivation switch, hydraulic controls
Horn
Hour meter, electronic
Governor switch, electronic
Key start, single
Monitoring system, electronic warning

system with temperature gauges for

coolant, power train oil and hydraulic oil
Pedal, decelerator
Pedals, dual brake
Seat, Vinyl suspension
Seat belt, retractable
Service indicator, air cleaner
Steering control, electronic,  nger

tipcontrol
Storage compartment

PIPELAYING EQUIPMENT

Block and hook with latch, heavy duty
Counterweights, extendable segmented
Drawworks, hydraulic actuated and

controlled

POWER TRAIN

Advanced Modular Cooling System

(AMOCS)
Aftercooler, air-to-air (ATAAC)
C15 ACERT diesel engine with EUI

(Electronic Unit Injection)
Coolant, extended life with protection

to–37° C (–34° F)
Electric starting, 24 volt
Fan, suction, hydraulically driven blower
Filter, air with electronic service indicator
Final drives, four planet, double reduction

planetary
Fuel priming pump, electric
Muf er
Parking brake, electronic
Precleaner, stratta-tube dust ejector
Prescreener
Starting aid, ether
Torque divider
Transmission, electronically-controlled

powershift, 3F-3R speeds
Transmission, control module, electronic
Turbocharger, wastegate
Water separator

UNDERCARRIAGE

Carrier roller
Frame, 9-roller tubular track roller frame
Hydraulic track adjusters
Master links, two piece
Non-suspended undercarriage

Rollers and idlers, lifetime lubricated
Sprocket rim segments, replaceable
Track adjusters, hydraulic
Track guiding guards
864 mm (34 in) super extreme service

grouser with sealed and lubricated track
(48 section) clipped grousers

OTHER STANDARD EQUIPMENT

Bumper, front with towing device
Drawbar, heavy duty
Ecology drains – Engine oil, coolant,

hydraulic oil, torque converter, fuel tank,

power train case and transmission
Guard, hinged bottom
Guard, hinged radiator
Hood, solid
Hydraulic system, pilot operated for hook,

boom, and counterweight control
Oil cooler, hydraulic
Parts book, CD ROM
Product link ready

SM

sampling ports

S·O·S
Steering, electronic clutch brake
Vandalism protection for  uid

compartments

PL87 Mandatory Attachments and Optional Equipment

Mandatory attachments may vary. Consult your Cat dealer for details on available arrangements.

MANDATORY ATTACHMENTS

FACTORY ARRANGEMENTS

Cab with Air Conditioning

and 150 Amp Alternator
Cab with 95 Amp Alternator
Heater, Engine Coolant, 110V or 240V
Roll-Over Protection (ROPS)
Rollers, Arctic
Rollers, Standard

PIPELAYING EQUIPMENT

Boom and Cables, 7.3 m (24 ft)
Boom and Cables, 7.3 m (24 ft) Extended
Boom and Cables, 8.53m (28 ft)
Boom and Cables, 8.53m (28 ft) Extended

ENGINE ENCLOSURES

Enclosure, Engine, Solid
Enclosure, Engine, Perforated

HOOD

Hood, Solid
Hood, Perforated

FUEL SYSTEMS

Tank, Fuel, Std
Tank, Fuel, Fast Fill

OPTIONAL EQUIPMENT

POWER TRAIN

Drains, ecology, power train

PRODUCT LINK

Product Link PL321, none
Product Link PL321, Satellite
Product Link PL321, Cellular

15

PL87 Pipelayer

For more complete information on Cat products, dealer services, and industry solutions,
visit us on the web at www.cat.com

© 2012 Caterpillar Inc.
All rights reserved

Materials and specications are subject to change without notice. Featured machines
in photos may include additional equipment. See your Cat dealer for available options.

CAT, CATERPILLAR, SAFETY.CAT.COM, their respective logos, “Caterpillar Yellow”
and the “Power Edge” trade dress, as well as corporate and product identity used herein,
are trademarks of Caterpillar and may not be used without permission.

AEHQ6316-01 (02-2012)

Replaces AEHQ6316
