USER’S GUIDE

WK3200/3700-E-1

GUIDELINES LAID DOWN BY FCC RULES FOR USE OF THE UNIT IN THE U.S.A. (not applicable to other areas).

NOTICE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC WARNING

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Important!

Please note the following important information before using this product.

• Before using the optional AD-5 Adaptor to power the unit, be sure to check the AC Adaptor for any damage first. Carefully check the power cord for breakage, cuts, exposed wire and other serious damage. Never let children use an AC adaptor that is seriously damaged.

• Never attempt to recharge batteries.

• Do not use rechargeable batteries.

• Never mix old batteries with new ones.

• Use recommended batteries or equivalent types.

• Always make sure that positive (+) and negative (–) poles are facing correctly as indicated near the battery compartment.

• Replace batteries as soon as possible after any sign they are getting weak.

• Do not short-circuit the battery terminals.

• The product is not intended for children under 3 years.

• Use only CASIO AD-5 adaptor.

• The AC adaptor is not a toy.

• Be sure to disconnect the AC adaptor before cleaning the product.

This mark applies in EU countries only.

CASIO Europe GmbH Bornbarch 10, 22848 Norderstedt, Germany

738A-E-002A

Safety Precautions

Congratulations on your selection of the CASIO electronic musical instrument.

• Before using the instrument, be sure to carefully read through the instructions contained in this manual.

• Please keep all information for future reference.

Symbols

Various symbols are used in this user’s guide and on the product itself to ensure that the product is used safely and correctly, and to prevent injury to the user and other persons as well as damage to property. Those symbols along with their meanings are shown below.

DANGER

This symbol indicates information that, if ignored or applied incorrectly, creates the danger of death or serious personal injury.

WARNING

This indication stipulates matters that have the risk of causing death or serious injury if the product is operated incorrectly while ignoring this indication.

Symbol Examples

This triangle symbol ( ) means that the user should be careful. (The example at left indicates electrical shock caution.)

This circle with a line through it ( means that the indicated action must not be performed. Indications within or nearby this symbol are specifically prohibited. (The example at left indicates that disassembly is prohibited.)

The black dot ( indicated action must be performed. Indications within this symbol are actions that are specifically instructed to be performed. (The example at left indicates that the power plug must be unplugged from the electrical socket.)

)

) means that the

CAUTION

This indication stipulates matters that have the risk of causing injury as well as matters for which there is the likelihood of occurrence of physical damage only if the product is operated incorrectly while ignoring this indication.

738A-E-003A

E-1

Safety Precautions

DANGER

Alkaline Batteries

Perform the following steps immediately if fluid leaking from alkaline batteries ever gets into your eyes.

1. Do not rub your eyes! Rinse them with water.

2. Contact your physician immediately.

Leaving alkaline battery fluid in your eyes can lead to loss of sight.

WARNING

Smoke, Strange Odor, Overheating

Continued use of the product while it is emitting smoke, a strange odor, or heat creates the risk of fire and electric shock. Take the following steps immediately.

1. Turn off power.

2. If you are using the AC adaptor for power, unplug it from the wall outlet.

3. Contact your original retailer or an authorized CASIO Service Provider.

AC Adaptor

● Misuse of the AC adaptor creates the risk

of fire and electric shock. Always make sure you observe the following precautions.

• Be sure to use only the AC adaptor that is specified for this product.

• Use only a power source whose voltage is the within the rating marked on the AC adaptor.

• Do not overload electrical outlets and extension cords.

● Misuse of the AC adaptor’s electric cord can damage or break it, creating the risk of fire and electric shock. Always make sure you observe the following precautions.

• Never place heavy objects on the cord

or subject it to heat.

• Never try to modify the cord or subject

it to excessive bending.

• Never twist or stretch the cord.

• Should the electric cord or plug become

damaged, contact your original retailer or authorized CASIO Service Provider.

● Never touch the AC adaptor while your hands are wet.

Doing so creates the risk of electric shock.

● Use the AC adaptor where it will not be splashed with water. Water creates the risk of fire and electric shock.

● Do not place a vase or any other container filled with liquid on top of the AC adaptor. Water creates the risk of fire and electric shock.

Batteries

Misuse of batteries can cause them to leak, resulting in damage to nearby objects, or to explode, creating the risk of fire and personal injury. Always make sure you observe the following precautions.

• Never try to take batteries apart or allow

them to become shorted.

• Never expose batteries to heat or dispose

of them by incineration.

• Never mix old batteries with new ones.

• Never mix batteries of different types.

• Do not charge the batteries.

• Make sure the positive (+) and negative

(–) ends of the batteries are facing correctly.

Do not incinerate the product.

Never throw the product into fire. Doing so can cause it to explode, creating the risk of fire and personal injury.

Water and Foreign Matter

Water, other liquids, and foreign matter (such as pieces of metal) getting into the product create the risk of fire and electric shock. Take the following steps immediately.

1. Turn off power.

2. If you are using the AC adaptor for

power, unplug it from the wall outlet.

3. Contact your original retailer or an

authorized CASIO Service Provider.

Disassembly and Modification

Never try to take this product apart or modify it in any way. Doing so creates the risk of electric shock, burn injury, or other personal injury. Leave all internal inspection, adjustment, and maintenance up to your original retailer or authorized CASIO Service Provider.

E-2

738A-E-004A

Safety Precautions

Dropping and Impact

Continued use of this product after it has been damaged by dropping or subjecting it to strong impact creates the risk of fire and electric shock. Take the following steps immediately.

1. Turn off power.

2. If you are using the AC adaptor for power, unplug it from the wall outlet.

3. Contact your original retailer or an authorized CASIO Service Provider.

Plastic Bags

Never place the plastic bag the product comes in over your head or in your mouth. Doing so creates the risk of suffocation. Particular care concerning this precaution is required where small children are present.

Keep off of the product and stand.*

Climbing onto the product or stand can cause it to tip over or become damaged. Particular care concerning this precaution is required where small children are present.

Location

Avoid locating the product on an unstable stand, on an uneven surface, or any other unstable location. An unstable location can cause the product to fall over, creating the risk of personal injury.

CAUTION

AC Adaptor

● Misuse of the AC adaptor creates the risk of fire and electric shock. Always make sure you observe the following precautions.

• Do not locate the electric cord near a stove or other sources of heat.

• Never pull on the cord when unplugging from the electrical outlet. Always grasp the AC adaptor when unplugging.

● Misuse of the AC adaptor creates the risk of fire and electric shock. Always make sure you observe the following precautions.

• Insert the AC adaptor into the wall outlet as far as it will go.

• Unplug the AC adaptor from the wall outlet during lightening storms or before leaving on a trip or other longterm absence.

• At least once a year, unplug the AC adaptor from the wall outlet and wipe away any dust that is built up in the area around the prongs of the plug.

Relocating the Product

Before relocating the product, always unplug the AC adaptor from the wall outlet and disconnect all other cables and connecting cords. Leaving cords connected creates the risk of damage to the cords, fire, and electric shock.

738A-E-005A

Cleaning

Before cleaning the product, always unplug the AC adaptor from the wall outlet first. Leaving the AC adaptor plugged in creates the risk of damage to the AC adaptor, fire, and electric shock.

Batteries

Misuse of batteries can cause them to leak resulting in damage to nearby objects, or to explode, creating the risk of fire and personal injury. Always make sure you observe the following precautions.

• Use only batteries that are specified for use with this product.

• Remove batteries from the product if you do not plan to use it for a long time.

E-3

Safety Precautions

Connectors

Connect only the specified devices and equipment to the product’s connectors. Connection of a non-specified device or equipment creates the risk of fire and electric shock.

Location

Avoid the following locations for this product. Such locations create the risk of fire and electric shock.

• Areas subject to high humidity or large amounts of dust.

• In food preparation areas or other areas subject to oil smoke.

• Near air conditioning equipment, on a heated carpet, in areas exposed to direct sunlight, inside of a vehicle parked in the sun, or any other area that subjects the product to high temperatures.

Display Screen

• Never push on the display screen’s LCD panel or subject it to strong impact. Doing so can cause the LCD panel’s glass to crack, creating the risk of personal injury.

• Should the LCD panel ever crack or break, never touch the liquid inside of the panel. LCD panel liquid can cause skin irritation.

• Should LCD panel liquid ever get inside your mouth, immediately wash out your mouth with water and contact your physician.

• Should LCD panel liquid ever get into your eyes or onto your skin, rinse with clear water for at least 15 minutes, and then contact a physician.

Correct Stand* Assembly

An incorrectly assembled stand can tip over, causing the product to fall and creating the risk of personal injury. Make sure you assemble the stand correctly, following the assembly instructions that come with it. Make sure you mount the product on the stand correctly.

* Stand is available as an option.

IMPORTANT!

When using batteries, be sure to replace them or shift to one of the alternate power sources whenever you notice any of the following symptoms.

• Dim power indicator

• Instrument does not turn on

• Display that is flickering, dim, or difficult to read

• Abnormally low speaker/headphone volume

• Distortion of sound output

• Occasional interruption of sound when playing at high volumes

• Sudden power failure when playing at high volumes

• Flickering or dimming of the display when playing at high volume

• Continued sound output even after you release a key

• A tone that is totally different from the one that is selected

• Abnormal rhythm pattern and demo tune play

• Loss of power, sound distortion, or low volume when playing from a connected computer or MIDI device

• Sudden power failure while reading from or writing to external storage media

Sound Volume

Do not listen to music at very loud volumes for long periods. Particular care concerning this precaution is required when using headphones. High volume settings can damage your hearing.

Heavy Objects

Never place heavy object on top of the product. Doing so can make the product top heavy, causing the product to tip over or the object to fall from it, creating the risk of personal injury.

E-4

738A-E-006A

Introduction

Congratulations upon your selection of this CASIO musical instrument. This keyboard provides you with the following features and functions.

❐ 550 Tones Include Rich Advanced Tones

A total of 332 Advanced Tones are programmed with DSP tones to make them richer and more powerful. Advanced tones like Stereo Piano and Tremolo Electric Piano enhance the Piano and Electric Piano tones to create a totally new sound.

❐ 50 Drawbar Organ Tones

In addition to the 550 standards tones, the keyboard also includes 50 realistic drawbar organ tones. Drawbar organ tones can be controlled using nine digital drawbars. You can also select percussion or key click, and even edit the parameters of preset tone and save up to 100 original tones in user tone memory.

❐ Flash Memory

Built-in Flash memory lets you expand your selection of tones and rhythms by downloading data from the CASIO MUSIC SITE, or by the CD-ROM that comes bundled with the keyboard. You can also store up to 200 SMF format music files for playback.

❐ PIANO SETTING Button

The press of a button optimizes the keyboard setup for piano play.

❐ 160 Preset Rhythms + 16 User Rhythms

A selection of 160 rhythms includes accompaniments for everything from rock to pops and jazz. You can also transfer accompaniment data from your computer and store up to 16 of them as user rhythms in keyboard memory.

❐ Auto Accompaniment

Simply play a chord and the corresponding rhythm, bass and chord parts play automatically. One-touch Preset instantly recalls the most suitable tone and tempo settings to match the rhythm you are using.

❐ Big, Information-packed Display

A big built-in display shows chord names, tempo setting, keyboard information, staff notation of notes played, and more for full support of all your keyboard play. A built-in backlight keeps the display easy to read, even in total darkness.

❐ Song Memory

Record up to six parts in memory, along with their tone, volume, pan position, and other parameters for later playback. Realistic ensemble play can also be created using the Auto Accompaniment function.

❐ Synthesizer Mode

Edit built-in sounds to produce your own original creations. Up to 120 of your own sounds can be stored in memory for recall, just like the built-in tones.

❐ General MIDI compatibility

The General MIDI tones of this keyboard let you connect to a personal computer to enjoy “desktop music” capabilities. This keyboard can be used as a desktop music input device or sound source, and it's just the thing for playback of commercially available pre-recorded General MIDI music software.

❐ Powerful effects

A collection of powerful effects, such as DSP reverb, chorus, and more, give you total control over the type of sound you want. You can even change the parameters of an effect to create your own, original effects. A 4-band equalizer is also included.

738A-E-007A

E-5

Introduction

❐ Mixer

You can specify tone, volume, pan position, and other parameters for each built-in Auto Accompaniment part. You can also control the same parameters for each channel during MIDI input.

❐ Registration Memory

Keyboard setups can be stored in memory for later recall and instant settings whenever you need them. Up to 32 setups (4 setups x 8 banks) can be stored in registration memory.

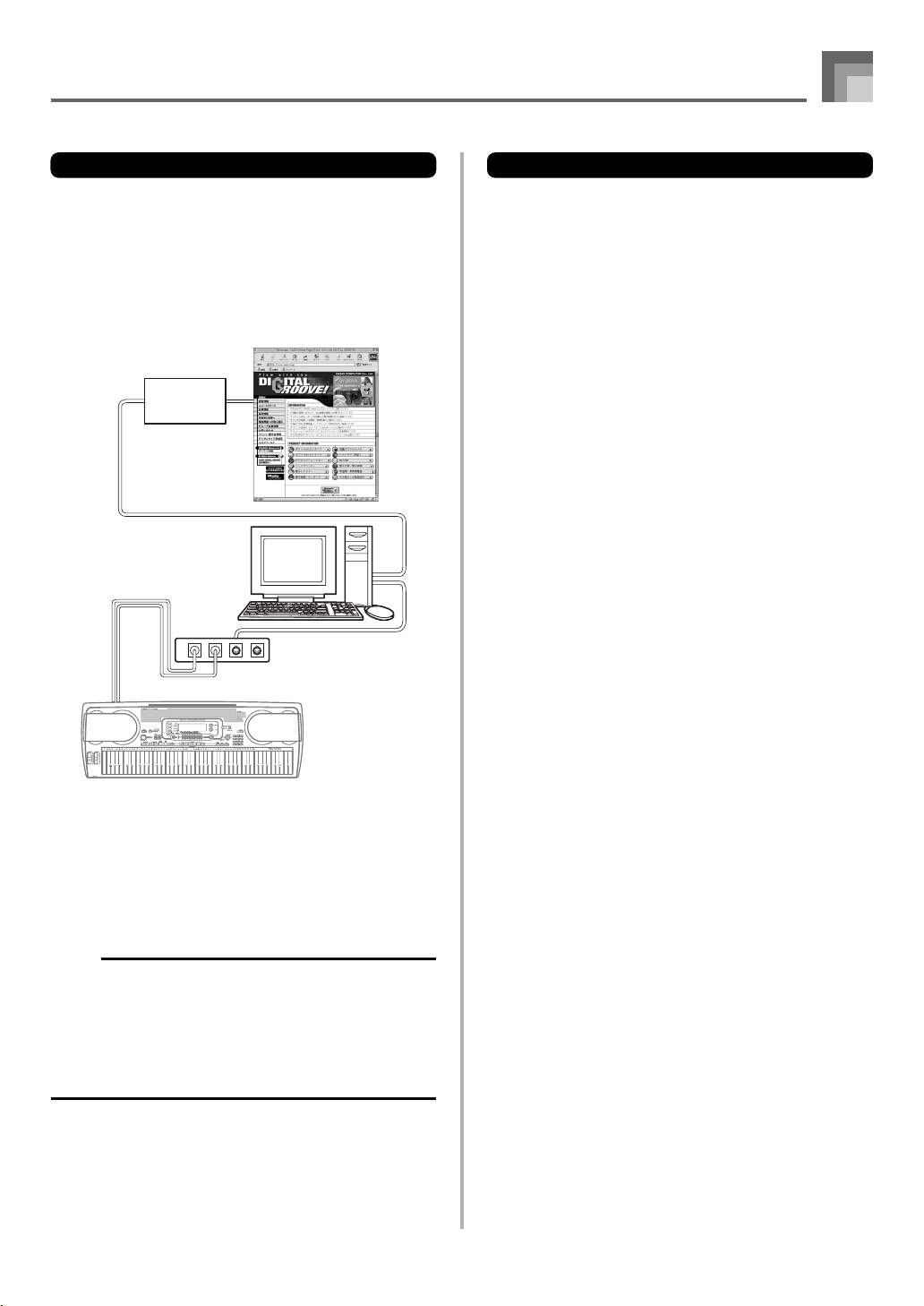

❐ Data download from your computer

You can use your computer to download data from the CASIO MUSIC SITE.

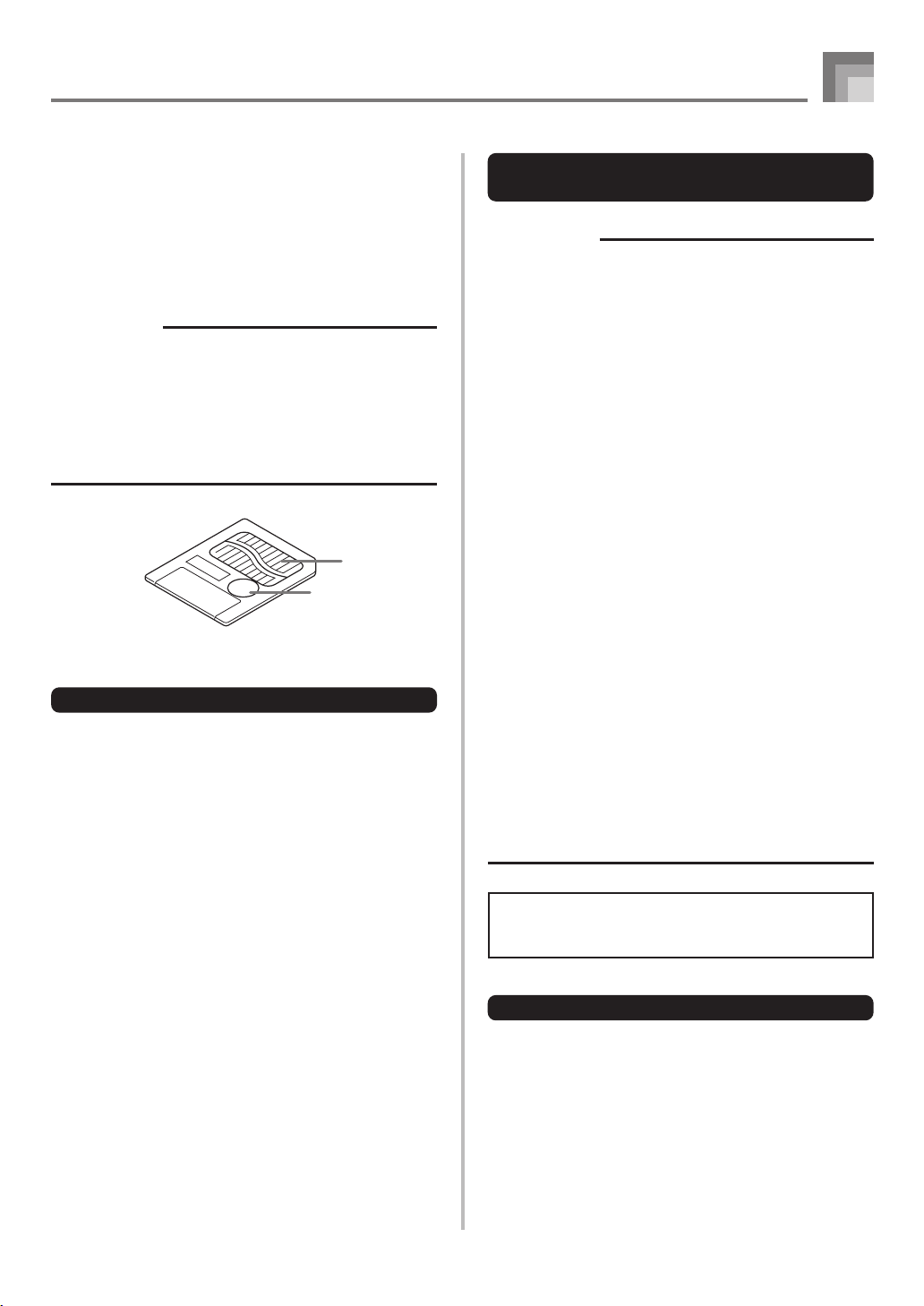

❐ SmartMediaTM Card Slot

A built-in SmartMedia card slot helps to simplify transfer of data from a computer and lets you store volumes of data for later recall when you need it. You can also load a card with a standard MIDI file (SMF) and play it back on the keyboard.

❐ Built-in floppy disk drive (WK-3700 only)

Save original tones or songs you created with the Song Memory to disk for long-term storage. You can also load a disk with a standard MIDI file (SMF) and play it back on the keyboard.

E-6

738A-E-008A

Contents

Safety Precautions ................E-1

Introduction ...........................E-5

General Guide...................... E-10

Attaching the Score Stand ..................... E-11

Playing a Demo Tune.............................E-12

Power Supply ...................... E-14

Using batteries .......................................E-14

Using the AC Adaptor .............................E-15

Auto Power Off.......................................E-15

Turning Off the Keyboard.......................E-16

Memory Contents...................................E-16

Connections ........................ E-17

Applying Effects to Tones .... E-27

Effect Blocks .......................................... E-27

Selecting a DSP Type ............................ E-28

About the DSP Button ............................ E-29

Selecting REVERB ................................ E-29

Selecting CHORUS................................E-30

Using the Equalizer ................................ E-31

Auto Accompaniment ......... E-32

About the MODE Button ........................ E-32

Selecting a Rhythm ................................ E-32

Playing a Rhythm ................................... E-33

Adjusting the Tempo...............................E-33

Using Auto Accompaniment ...................E-33

Using an Intro Pattern ............................E-36

Using a Fill-in Pattern .............................E-36

Basic Operations................. E-19

To play the keyboard .............................. E-19

Selecting a Tone.....................................E-19

PIANO SETTING Button ........................ E-20

Using the PITCH BEND Wheel .............. E-21

Using the MODULATION ....................... E-21

Using the Drawbar Organ

Mode .....................................E-22

To select a drawbar organ tone..............E-24

To edit a drawbar organ tone ................. E-24

Parameter Details .................................. E-25

To save an edited drawbar organ tone...E-26

738A-E-009A

Using a Rhythm Variation.......................E-37

Synchro Starting Accompaniment

with Rhythm Play ................................... E-37

Finishing with an Ending Pattern ........... E-37

Using One-touch Preset.........................E-38

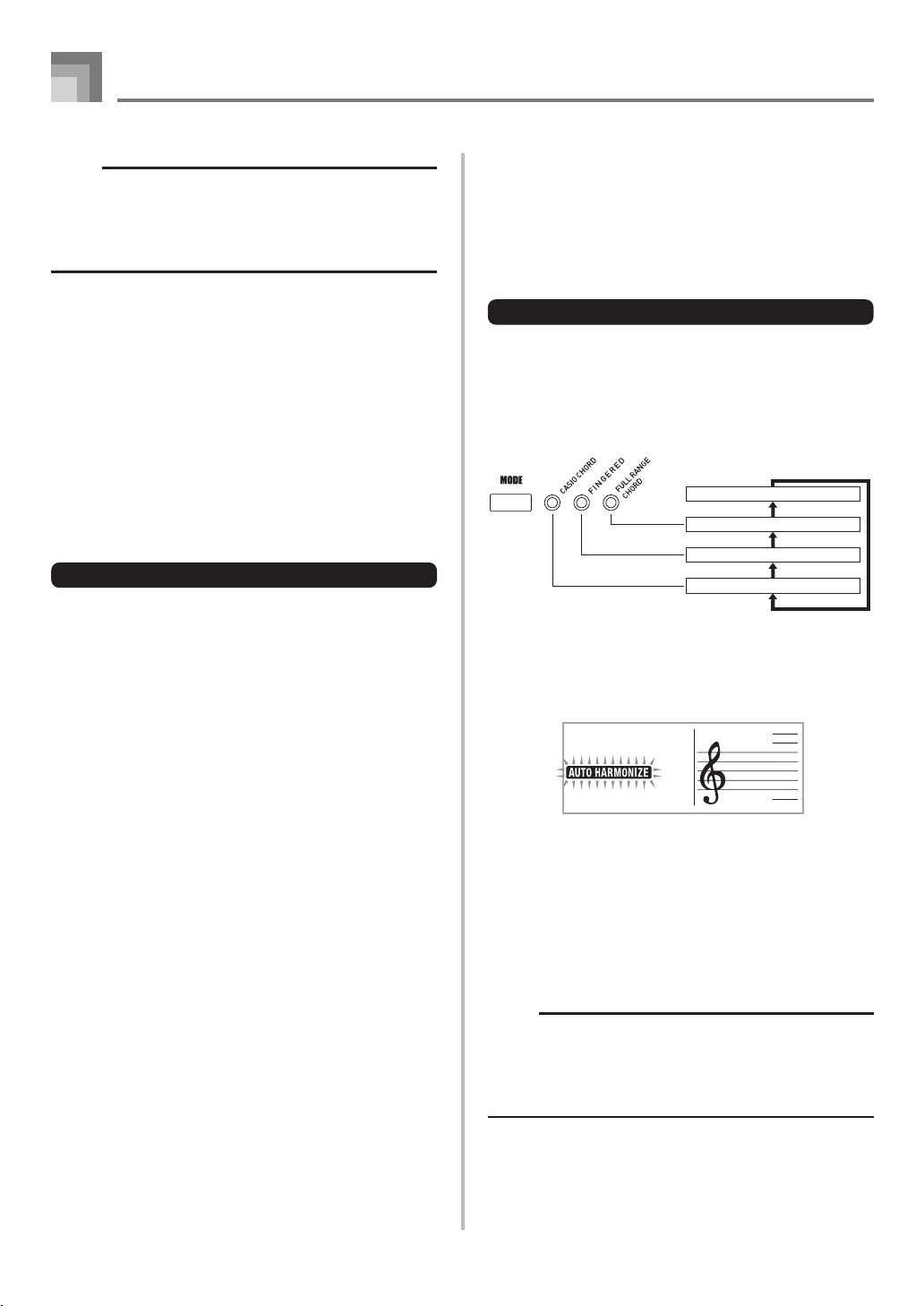

Using Auto Harmonize ........................... E-38

Adjusting the Accompaniment Volume...E-39

Mixer Function..................... E-40

What you can do with the Mixer ............. E-40

Turning Channels On and Off ................E-40

Using the Parameter Edit Mode ............. E-41

How Parameters Work ........................... E-42

E-7

Contents

Synthesizer Mode................ E-44

Synthesizer Mode Functions..................E-44

Creating a User Tone .............................E-47

Storing a User Tone In Memory .............E-50

Registration Memory .......... E-51

Registration Memory Features...............E-51

To Save a Setup in Registration

Memory ..................................................E-52

To Recall a Setup from Registration

Memory ..................................................E-52

Song Memory Function ......E-53

Tracks ....................................................E-53

Basic Song Memory operations .............E-53

Using Real-time Recording ....................E-54

Mixer Mode Settings ..............................E-55

Playing Back from Song Memory...........E-56

Recording Melody and Chords with

Step Recording ......................................E-56

Keyboard Settings .............. E-65

Using Layer ............................................ E-65

Using Split .............................................. E-66

Using Layer and Split Together .............. E-67

Transposing the Keyboard ..................... E-68

Using Touch Response ..........................E-68

Tuning the Keyboard..............................E-69

Changing Other Settings........................E-70

Using the SMF Player ......... E-74

Playing Back an SMF .............................E-76

Configuring Other Settings.....................E-77

MIDI....................................... E-79

What is MIDI? ........................................E-79

General MIDI..........................................E-79

MIDI Settings .........................................E-79

Using the Music Data Management

Software (on the Bundled CD-ROM) ..... E-80

Recording Multiple Tracks......................E-59

Correcting Mistakes While Step

Recording...............................................E-60

Editing Memory Contents.......................E-62

Editing a Song........................................E-64

E-8

738A-E-010A

Contents

Saving Data.......................... E-82

Using a SmartMedia Card......................E-83

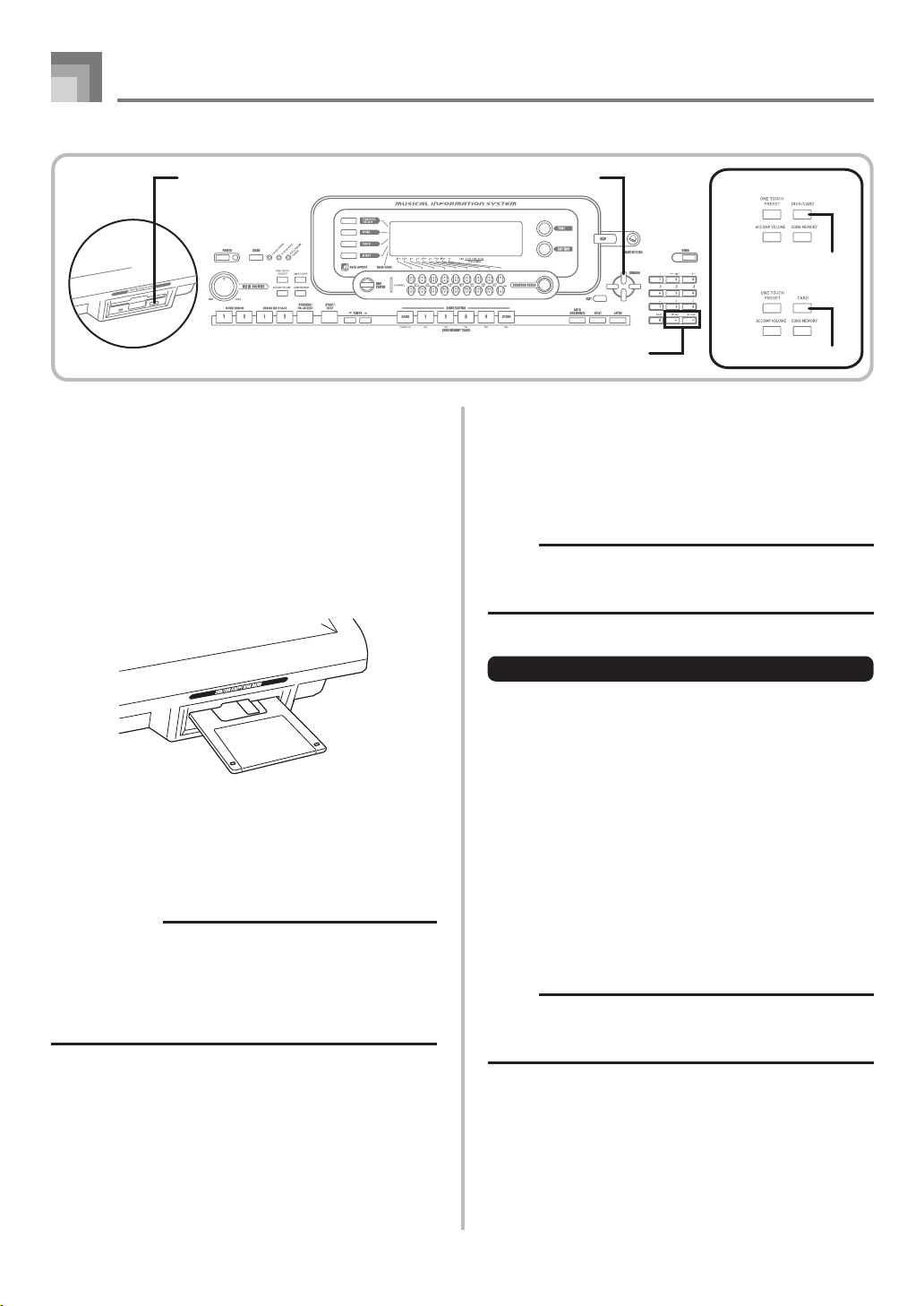

Using the Floppy Disk Drive

(WK-3700 Only) .....................................E-84

Using External Storage Media ...............E-86

Saving Files ........................................... E-87

Loading a File ........................................ E-88

Renaming a File ..................................... E-90

Deleting a File ........................................E-90

Formatting External Storage Media .......E-91

Inputting Characters...............................E-92

SmartMedia Card Error Messages ........ E-93

Disk Drive Error Messages

(WK-3700 Only) .....................................E-94

Company and product names used in this

manual may be registered trademarks of

others.

Troubleshooting ..................E-95

Specifications ......................E-98

Care of your Instrument ... E-101

Appendix ............................... A-1

Tone List...................................................A-1

Drum Assignment List ..............................A-9

Rhythm List ............................................ A-11

Fingered Chord Chart ............................A-12

Effect List ...............................................A-14

DSP Algorithm List .................................A-16

MIDI Implementation Chart

738A-E-011A

E-9

General Guide

1 2 73 654

8 C0

M MQN O P

A B

FD G HE

K L

E-10

TSR U

Y Z [ \ ]

V W X

a b

738A-E-012A

• Illustrations in this User’s Guide shows the WK-3700.

General Guide

1 POWER button 2 Power indicator 3 MODE button 4 EFFECT button 5 SYNTH button 6 MIXER button 7 TRANSPOSE/FUNCTION button 8 MAIN VOLUME knob 9 ONE TOUCH PRESET button 0 ACCOMP VOLUME button A SONG MEMORY button B 쎲WK-3700

DISK/CARD button 쎲WK-3200

CARD button

C DATA ACCESS lamp D RHYTHM button E TONE button F DSP button G PIANO SETTING button

[왖]/[왔]/[왗]/[왘]

H I EXIT button J AUTO HARMONIZE button K SPLIT button

CURSOR buttons

L LAYER button M Speaker N Rhythm list O Tone list P Display Q DEMO button* R 쎲WK-3700

PHONES terminal 쎲WK-3200

PHONES/OUTPUT terminal

S CHORD root names T Percussion instrument list U Chord types name V SMF PLAYER button W CHANNEL button(1~16, DSP)/drawbar buttons X DRAWBAR ORGAN button Y INTRO/ENDING 1/2 buttons Z VARIATION/FILL-IN 1/2 buttons [ SYNCHRO/FILL-IN NEXT button \ START/STOP button ] TEMPO buttons _ SONG MEMORY TRACK buttons

a) BANK button b) REGISTRATION buttons c) STORE button

Attaching the Score Stand*1

Insert the score stand into the slot at the top of the keyboard as shown in the illustration.

738A-E-013A

E-11

General Guide

c d

• WK-3700

PITCH BEND wheel

MODULATION wheel

Number buttons

[+]/[–] buttons (YES/NO)

• WK-3200

c d

• For input of numbers to change displayed settings.

• Negative values can be changed only by using [+] and [–] to increment and decrement the displayed value.

MODULATION button

MODULATION button lamp

PITCH BEND wheel

Playing a Demo Tune*4

Pressing the DEMO button starts demo tune play. There are 3 demo tunes, which continuously play in sequence. To stop demo tune play, press either the DEMO button or the START/STOP button.

NOTE

• Pressing the [+]/[–] buttons skips to the next demo tune.

• The PIANO SETTING button, Layer, and Split are disabled while a demo tune is playing.

Front Panel

• WK-3700 only

Access lamp

Eject button

E-12

738A-E-014A

Rear Panel

• WK-3700

OUT IN

General Guide

• WK-3200

j k

MIDI

SUSTAIN/

ASSIGNABLE JACK

R L/MONO

LINE OUT

DC 12V

MIDI

OUT IN

SUSTAIN/

ASSIGNABLE JACK

DC 12V

MIDI OUT terminal

MIDI IN terminal

SUSTAIN/ASSIGNABLE JACK terminal

LINE OUT R, LINE OUT L/MONO terminal

DC 12V terminal

MIDI OUT terminal

MIDI IN terminal

SUSTAIN/ASSIGNABLE JACK terminal

DC 12V terminal

Rear Panel

Card slot

NOTE

• Display examples shown in this User’s Guide are intended for illustrative purposes only. The actual text and values that appear on the display may differ from the examples shown in this User’s Guide.

• Due to LCD element characteristics, display contrast changes depending on the angle from which you view it. The initial default contrast setting is one that allows easy viewing for a musician seated directly in front of the display. You can also adjust the contrast to the level that suits your particular needs. For more information, see page E-73.

738A-E-015A

E-13

Power Supply

This keyboard can be powered by current from a standard household wall outlet (using the specified AC adaptor) or by batteries. Always make sure you turn the keyboard off whenever you are not using it.

Using batteries

Always make sure you turn off the keyboard before loading or replacing batteries.

To load batteries

Remove the battery compartment cover.

Load six D-size batteries into the battery compartment.

• Make sure that the positive (+) and negative (–) ends are facing correctly.

Insert the tabs on the battery compartment cover into the holes provided and close the cover.

Important Battery Information

■

The following shows the approximate battery life.

Alkaline batteries ............................. 4 hours

The above value is standard battery life at normal temperature, with the keyboard volume at a medium setting. Temperature extremes or playing at very loud volume settings can shorten battery life.

WARNING

• Never try to take batteries apart or allow them to become shorted.

• Never expose batteries to heat or dispose of them by incineration.

• Never mix old batteries with new ones.

• Never mix batteries of different types.

• Do not charge the batteries.

• Make sure the positive (+) and negative (–) ends of

the batteries are facing correctly.

CAUTION

Misuse of batteries can cause them to leak resulting in damage to nearby objects, or to explode, creating the risk of fire and personal injury. Always make sure you observe the following precautions.

• Use only batteries that are specified for use with this product.

• Remove batteries from the product if you do not plan to use it for a long time.

tab

NOTE

• The keyboard may not function correctly if you load or replace batteries with power turned on. If this happens, turning the keyboard off and then back on again should return functions back to normal.

E-14

738A-E-016A

Power Supply

Using the AC Adaptor

Make sure that you use only the AC adaptor specified for this keyboard.

Specified AC Adaptor: AD-12

AC adaptor AD-12

MIDI

R L/MONO

SUSTAIN/

LINE OUT

ASSIGNABLE JACK

OUT IN

Note the following important precautions to avoid damage to the power cord.

● During Use

• Never pull on the cord with excessive force.

• Never repeatedly pull on the cord.

• Never twist the cord at the base of the plug or connector.

• The power cord should not be stretched tight while it is in

use.

● During Movement

• Before moving the keyboard, be sure to unplug the AC

adaptor from the power outlet.

● During Storage

• Loop and bundle the power cord, but never wind it around

the AC adaptor.

IMPORTANT!

• Make sure that the keyboard is turned off before connecting or disconnecting the AC adaptor.

• Using the AC adaptor for a long time can cause it to become warm to the touch. This is normal and does not indicate malfunction.

DC 12V

AC outlet

Auto Power Off

When you are using battery power, keyboard power turns off automatically whenever you leave it on without performing any operation for about 6 minutes. When this happens, press the POWER button to turn power back on.

NOTE

• Auto Power Off is disabled (it does not function) when you are using the AC adaptor to power the keyboard.

To disable Auto Power Off

Hold down the TONE button while turning on the keyboard to disable Auto Power Off.

• When Auto Power Off is disabled, the keyboard does not turn off automatically no matter how long it is left with no operation being performed.

• Auto Power Off is automatically enabled whenever you turn on keyboard power.

Settings

Tone, rhythm, and other “main keyboard settings” in effect when you turn off the keyboard manually by pressing POWER button or when Auto Power Off turns off power are still in effect the next time you turn power back on.

Main Keyboard Settings

Tone number, layer, split, split point, drawbar organ tone settings, transpose, tuning, and contrast settings, touch response, reverb, chorus, DSP, equalizer, rhythm number, tempo, keyboard channel, MIDI In Chord Judge on/off, accomp MIDI out on/off, assignable jack setting, accompaniment volume, user area tones (Synthesizer Mode), user area accompaniments, user DSP area, pitch bend range, Auto Harmonize on/off, Auto Harmonize type, Mixer hold, DSP hold, Auto Accompaniment mode, all Mixer parameters, all Synthesizer Mode parameters, Song Memory song numbers, SMF player settings (play mode, manual play part, SMF playback volume)

738A-E-017A

E-15

Power Supply

Turning Off the Keyboard

• Be sure to press the POWER button to turn off power and make sure that the LCD backlight is off before disconnecting the AC adaptor or doing anything else.

• Never disconnect the AC adaptor while the keyboard is turned on or try to turn off power using any other technique besides pressing the POWER button. Doing so can cause the contents of the keyboard’s Flash memory to become corrupted. Strange keyboard operation and abnormal startup when power is turned on are symptoms of corrupted Flash memory contents. See “Troubleshooting” on page E-95 for more information.

IMPORTANT!

• While the following message is on the display, never turn off the keyboard by pressing the POWER button, disconnecting the AC adaptor, etc.

(message) “Pls Wait” or “Bulk In” Turning off the keyboard while the above message is on the display can cause user data (user tones, song memory data, etc.) currently stored in keyboard memory or on external media to become corrupted. Once corrupted, you may not be able to recall the data again.

Memory Contents

In addition to the above settings, data stored in the Registration Mode and Song Memory Mode is also retained when keyboard power is turned off.

IMPORTANT!

• When running under battery power, be sure to replace batteries as soon as possible after the first signs of low battery power (dim power indicator lamp, dim display characters, etc.) Though the keyboard’s Flash memory is non-volatile (which means that data is not lost when power is interrupted), data can be lost if power suddenly fails while data is being written to flash memory*.

* While storing or deleting user data, while recording

with the synthesizer, while transferring data from a computer, etc.

Initializing the Keyboard

Initialization can be used to return keyboard parameters to their initial factory default settings, or to delete all data currently in keyboard memory. See page E-73 for more information about initialization.

Returning the keyboard to its initial factory defaults

You can use the CD-ROM that comes with the keyboard and your computer to return the keyboard’s flash memory and all of its parameters to their initial factory default settings. See “Bundled CD-ROM Data” on page E-80 for details.

Saving Setups and Memory Contents

About Flash memory

Your keyboard comes with built-in Flash memory, which can continue to hold data even when electrical power is totally cut off. This means that even after batteries go completely dead, you can attach the AC adaptor, turn on power, and still recall data stored in memory. You can back up keyboard memory contents and other data using the media described below.

• SmartMediaTM Card See “Using a SmartMedia Card” on page E-83.

• Floppy Diskette (WK-3700 only) See “Using the Floppy Disk Drive (WK-3700 Only)” on page E-84.

• Computer hard disk See “MIDI” on page E-79.

E-16

738A-E-018A

Connections

• WK-3700

Phones and Line Out Terminals

Before connecting phones or other external equipment, be sure to first turn down the volume settings of the keyboard and the connected equipment. You can then adjust volume to the desired level after connections are complete.

[Front]

PHONES Terminal

Stereo standard plug

INPUT 1

INPUT 2

LEFT (White)

RIGHT (Red)

OUT IN

PIN plug

MIDI

SUSTAIN/

ASSIGNABLE JACK

Standard jacks

Standard plugs

R L/MONO

LINE OUT

DC 12V

Connecting Phones

Connecting phones cuts off output from the keyboard’s builtin speakers, so you can play even late at night without disturbing anyone.

[Rear Panel]

Audio amplifier AUX IN, etc.

Guitar amplifier, keyboard amplifier, etc.

Connecting to a Musical Instrument Amplifier

Use commercially available cords to connect to the two jacks as shown in Figure 3. It is up to you to purchase connecting cables like the ones shown in the illustration for connection. Use the keyboard’s MAIN VOLUME knob to adjust the volume level.

• If your amplifier has only one input jack, connect a cord to the L/MONO jack only.

NOTE

• You can also connect the keyboard’s MIDI terminal to a computer or sequencer. See “MIDI” on page E-79 for details.

• WK-3200

Phones/Output Terminal

[Front]

PHONES/OUTPUT Terminal

Audio connection

Stereo standard plug

Keyboard amp, guitar amp, etc.

White

LEFT

AUX IN or similar terminal

of audio amplifier

RIGHT

Red

PIN plug

Connecting to Audio Equipment

Use commercially available cords to connect to the two jacks as shown in Figure 2. It is up to you to purchase connecting cables like the ones shown in the illustration for connection. Normally in this configuration, you must set the audio equipment’s input selector to the setting that specifies the terminal (such as AUX IN) that the keyboard is connected to. Use the keyboard’s MAIN VOLUME knob to adjust the volume level.

738A-E-019A

Connecting Phones

Connecting phones cuts off output from the keyboard’s builtin speakers, so you can play even late at night without disturbing anyone.

Audio Equipment

Connect the keyboard to a audio equipment using a commercially available connecting cord with a standard plug on one end and two PIN plugs on the other end. Note that the standard plug you connect to the keyboard must be a stereo plug, otherwise you will be able to output only one of stereo channels. In this configuration, you normally set the input selector of the audio equipment to the terminal (usually marked AUX IN or something similar) where the cord from the keyboard is connected. See the user documentation that comes with your audio equipment for full details.

E-17

Connections

Musical Instrument Amplifier

Use a commercially available connecting cord to connect the keyboard to a musical instrument amplifier.

NOTE

• Be sure to use a connecting cord that has a stereo standard plug on the end you connect to the keyboard, and a connector that provides dual channel (left and right) input to the amplifier to which you are connecting. The wrong type of connector at either end can cause one of the stereo channels to be lost.

• When connected to a musical instrument amplifier, set the volume of the keyboard to a relatively low level and make output volume adjustments using the amplifier’s controls.

Connection Example

To keyboard’s PHONES/OUTPUT terminal

Stereo standard plug

PIN plug (red)

PIN plug (white)

PIN jack

Standard plug

INPUT 1

INPUT 2

Keyboard or guitar amp

NOTE

• You can also connect the keyboard to a computer or sequencer. See “MIDI” on page E-79 for details.

Sostenuto Pedal

• As with the sustain pedal function described above, depressing the sostenuto pedal causes notes to be sustained.

• This difference between a sostenuto and sustain pedal is the timing. With a sostenuto pedal, you press the keys and then depress the pedal before you release the keys. Only the notes that are sounding when the pedal is depressed are sustained.

Soft Pedal

Depressing the pedal softens the sound of the notes being played.

Rhythm Start/Stop Pedal

In this case, the pedal performs the same functions as the START/STOP button.

Accessories and Options

Use only the accessories and options specified for this keyboard. Use of non-authorized items creates the danger of fire, electrical shock, and personal injury.

Sustain/Assignable jack Terminal

You can connect an optional sustain pedal (SP-3 or SP-20) to the SUSTAIN/ASSIGNABLE JACK terminal to enable the capabilities described below.

For details on how to select the pedal function you want, see “Changing Other Settings” on page E-70.

SUSTAIN/ASSIGNABLE JACK Terminal

MIDI

R L/MONO

SUSTAIN/

OUT IN

ASSIGNABLE JACK

Sustain Pedal

• With piano tones, depressing the pedal causes notes to linger, much like a piano’s damper pedal.

• With organ tones, depressing the pedal causes notes to continue to sound until the pedal is released.

E-18

LINE OUT

DC 12V

SP-20

738A-E-020A

Basic Operations

POWER

●WK-3700

MODULATION wheel

PITCH BEND wheel

●WK-3200

MODULATION button

PITCH BEND wheel

MAIN VOLUME

This section provides information on performing basic keyboard operations.

To play the keyboard

Press the POWER button to turn the keyboard on.

• This causes the power indicator to light.

Use the MAIN VOLUME knob to set the volume to a relatively low level.

Play something on the keyboard.

Selecting a Tone

This keyboard comes with tones built-in, as shown below.

A partial list of the available tone names is printed on the keyboard console. See the “Tone List” on page A-1 of this manual for a complete list. “Advanced Tones”, are variations of standard tones, which are created by programming in effects (DSP) and other settings.

For details about drawbar organ tones, see “Using the Drawbar Organ Mode” on page E-22.

PIANO SETTING

TONE

Number buttons

[+]/[–]

Drawbar Organ Tones: 50 Preset Tones + 100 User Tones

Number

000 - 049

100 - 199

Number of Tones

100

Tone Type

Preset Tones

User Tones*

DSP Line

On/Off*

*1: See “Changing Tones and Configuring DSP Effect

Settings” on page E-20.

*2: Memory area for tones created by you. See “Synthesizer

Mode” on page E-44. User tone areas 700 through 799 initially contain the same data as advanced tones 000 through 099.

*3: Depends on source tone or user setting. See “Synthesizer

Mode” on page E-44 for more information.

*4: Area for data transferred from a computer. See “U

sing the Music Data Management Software (on the Bundled CDROM)

” on page E-80 for more information. For information about waveforms, see “Creating a User Tone” on page E-47.

*5: Depends on tone. This status can be checked by viewing

the DSP button. See “About the DSP Button” on page E29 for more information.

*6: Memory area for tones created by you. See “To edit a

drawbar organ tone” on page E-24. User drawbar organ tone areas initially contain two sets of the same data as drawbar organ tones types 000 through 049.

Tone Types

Standard Tones: 550 Preset Tones + 124 User Tones

Number

000 - 331

400 - 599

600 - 617

700 - 799

800 - 819

900 - 903

738A-E-021A

Number of Tones

332

200

100

Tone Type

Advanced Tones

Preset Tones

Drum Sets

User Tones*

User Tones with Waves*

User Drum Sets with Waves*

DSP Line

On/Off*

Off

NOTE

• You cannot select tone numbers not included in the above range (standard tones 332 through 399, 618

through 699 and 820 through 899, and drawbar organ tones from 050 to 099). When you use the [+] and [–] buttons to scroll through tone numbers, scrolling jumps across the unused numbers. Pressing [+] when 617 is selected, for example, jumps to 700.

E-19

Basic Operations

To select a tone

Find the tone you want to use in the tone list and note its tone number.

Press the TONE button.

Use the number buttons to input the three digit tone number for the tone you want to select.

Example: To select “432 GM ACOUSTIC BASS”, input

4, 3 and then 2.

BsGsuAco

NOTE

• Always input all three digits for the tone number, including leading zeros (if any).

• You can also increment the displayed tone number by pressing [+] and decrement it by pressing [–].

• When one of the drum sets is selected (tone numbers 600 through 617), each keyboard key is assigned a different percussion sound. See page A-9 for details.

Polyphony

The term polyphony refers to the maximum number of notes you can play at the same time. The keyboard has 32-note polyphony, which includes the notes you play as well as the rhythms and auto-accompaniment patterns that are played by the keyboard. This means that when a rhythm or autoaccompaniment pattern is being played by the keyboard, the number of notes (polyphony) available for keyboard play is reduced. Also note that some of the tones offer only 10-note polyphony.

Changing Tones and Configuring DSP Effect Settings

This keyboard has only a single DSP sound source. Because of this, selecting tones for which DSP is enabled for multiple parts when layering or splitting tones (page E-65, 66) can cause conflicts. To avoid conflicts, DSP is allocated to the last DSP enabled tone, and DSP is disabled (DSP line OFF) for all other parts. DSP line is a parameter that controls whether or not the currently selected DSP effect is applied to a part.* Each tone has a DSP line parameter. Selecting a tone for a part applies the tone’s DSP line parameter setting to all parts. * The DSP line parameter is turned on (DSP effect is applied)

for the 332 Advanced Tones numbered 000 through 331, and turned off (DSP effect not applied) for the 200 preset tones from 400 to 599. For information about other tones, see “Tone Types” on page E-19.

PIANO SETTING Button

Pressing this button changes the setup of the keyboard to optimize it for piano play.

Settings

Tone Number: “000” Rhythm Number: “140” Accompaniment Mode: Normal Layer: Off Split: Off Auto Harmonize: Off Transpose: 0 Touch Response:

Off: Returns to initial default

On: No change Assignable Jack: SUS Local Control: On Mixer Channel 1 Parameter Setup: Depends on tone

To optimize keyboard settings for piano play

E-20

Press the PIANO SETTING button.

Now try playing something on the keyboard.

• The notes you play will sound with a piano tone.

• If you want to play with rhythm accompaniment,

press the START/STOP button. This causes a rhythm that is optimized for piano will start to play.

• To stop rhythm play, press the START/STOP button again.

738A-E-022A

Basic Operations

NOTE

• Pressing the PIANO SETTING button while a rhythm is playing stops rhythm play and then changes the keyboard setup.

• Pressing the PIANO SETTING button while the keyboard is in the Synthesizer Mode or other mode exits the current mode and then changes the keyboard setup.

• The setup of the keyboard does not change if you press the PIANO SETTING button when any one of the following exists. * During real-time recording, step recording, or while

using the editing function of the Song Memory

* While the data save or overwrite message is on the

display

* During demo tune play

Using the PITCH BEND Wheel

As its name suggests, the PITCH BEND wheel lets you “bend” the pitch of a sound. This makes it possible to add a touch of realism to saxophone and other tones.

To use the PITCH BEND wheel

While holding down a keyboard key with your right hand, use your left hand to rotate the PITCH BEND wheel up and down.

• Releasing the PITCH BEND wheel returns the note to its original pitch.

NOTE

• With saxophone and electrical guitar tones, the most realistic sounding effects can be produced if you play notes and operate the PITCH BEND wheel simultaneously.

• See “Pitch Bend Range (Initial Default: 12)” on page E-73 for changing the bend range of the PITCH BEND wheel.

• Never turn on keyboard power while the PITCH BEND wheel is rotated.

Using the MODULATION

Modulation applies vibrato, which modulates the pitch of a note. It works best with notes that are sustained (held) by keeping a keyboard key held down, especially when playing the melody with a violin or other similar tone. You can modify the modulation effect using DSP parameter 0 through 7. For more information, see “DSP Parameters” on page E-28.

• WK-3700

To use the MODULATION Wheel

While playing melody notes with your right hand, rotate the MODULATION wheel with your left hand to apply vibrato to the notes.

• The amount of vibrato applied depends on how far you rotate the MODULATION wheel upwards. Setting the wheel to its neutral position (rotated as far downwards as it can go) turns vibrato off.

• WK-3200

To use the MODULATION button

While holding down a keyboard key with your right hand, use your left hand to press the MODULATION button.

• Vibrato is applied as long as the MODULATION button is depressed.

NOTE

• Modulation can be used to add greater expression to sustained melody notes being played using a violin, synthetic reed, or other similar tone.

• Modulation affects different tones in different ways.

738A-E-023A

E-21

Using the Drawbar Organ Mode

Your keyboard has built-in “drawbar organ tones” that can be altered using nine digital drawbars whose operations are similar to the controls on a drawbar organ. You can also select percussion or key click. There is room in memory for storage of up to 100 user-created drawbar tone variations.

Drawbar Organ Mode Operational Flow

Tone/Rhythm Selection Screeen

DRAWBAR ORGAN button

Drawbar Organ Tone Selection Screen

[왘] CURSOR button DRAWBAR ORGAN button

Drawbar Organ Tone Editing Screen

[왗] / [왘] CURSOR buttons

“More?” Screen

[왔] CURSOR button [왖] CURSOR button

Synthesizer Editing Screen

[왔] CURSOR button [왖] CURSOR button

DSP Effect Editing Screen

[왔] CURSOR button

Name/Save Setting Screen

EXIT button

[왗] / [왘] CURSOR buttons

[왖] CURSOR button

* You can also display the drawbar organ tone selection screen from the Song Memory Mode or SMF Playback Mode screen. In

this case, however, the Drawbar Organ Tone Editing Screen does not appear.

E-22

738A-E-024A

Using the Drawbar Organ Mode

Channel Buttons while the Drawbar Organ Tone Selection Screen is Displayed

The 18 buttons along the bottom of the display function as drawbar buttons while the drawbar organ tone selection screen is on the display (after you press the DRAWBAR ORGAN button). Each pair of buttons (upper and lower) represents a drawbar, which means that the 18 buttons provide you with the function of nine drawbars.

“ ’ ”: Feet

Value Parameter Name

Ft16’

Currently selected parameter

Decrease

Currently selected drawbar

Increase

51/38 4 22/32 13/511/3116

Drawbar buttons

CLICK SECOND THIRD

DECAY

PERCUSSION

Each of the nine button pairs is assigned values ranging from 16 feet to 1 foot. Each button pair has a decrease button (for decreasing by 16 feet, 5-1/3 feet, etc.) and an increase button (for increasing by 16 feet, 5-1/3 feet, etc.).

738A-E-025A

E-23

Using the Drawbar Organ Mode

To select a drawbar organ tone

Find the drawbar organ tone you want to use in the tone list and note its tone number.

Press the DRAWBAR ORGAN button.

• This causes the drawbar organ tone selection screen to appear.

Tone Number Tone Name

DRAWBAR ORGAN

Number buttons

[+]/[–]

CURSOR

Use the [왗] and [왘] CURSOR buttons to display the drawbar organ tone editing screen. Select the parameter whose setting you want to change.

Example: Selecting the “Ft16’” parameter

Parameter Setting Parameter Name

Ft16’

Drawbar1

Use the number buttons to input the three digit tone number for the tone you want to select.

NOTE

• Always input all three digits for the tone number, including leading zeros (if any).

• You can also increment the displayed tone number by pressing [+] and decrement it by pressing [–].

To edit a drawbar organ tone

Select the drawbar organ tone (000 to 049, 100 to

199) you want to edit.

• There are a total of 13 parameters. You can use the

[왗] and [왘] CURSOR buttons to cycle through them. See “Parameter Details” on page E-25 for more information.

• While the “More?” screen is on the display, you can advance to the synthesizer and DSP effect editing screens by pressing the [왔] CURSOR button or the [+] button.

Use the [왖] and [왔] CURSOR buttons or the [+] and [–] buttons to change the setting of the currently displayed parameter.

• You can also change a parameter setting by entering a value with the number buttons.

• You can monitor the changes in a tone by playing notes on the keyboard as you adjust parameter settings.

NOTE

• Selecting a different tone after you edit parameters replaces parameter settings with those of the newly selected tone.

• If you have drawbar organ tones assigned to more than one channel, changing the drawbar organ setting for one of the channels causes the same setting to be applied to all of the other channels as well.

• See “To save an edited drawbar organ tone” on page E-26 for information about saving your edits.

E-24

738A-E-026A

Using the Drawbar Organ Mode

Editing Synthesizer Mode Parameters and DSP Parameters of Drawbar Tones

As with standard (non-drawbar) tones, you can edit the Synthesizer Mode parameters and DSP parameters of drawbar organ tones. See “Drawbar Organ Mode Operational Flow” on page E-22.

Use the [왗] and [왘] CURSOR buttons to display “More?”, and then press the [왔] CURSOR button.

• This enters the Synthesizer Mode, which is indicated by the indicator next to SYNTH on the display screen.

• For the remainder of this procedure, perform the steps starting from step 3 under “Creating a User Tone” on page E-47.

Parameter Details

The following provides details about the parameters you can configure using the drawbar organ tone editing screen.

Drawbar Position

This parameter defines the position of each drawbar, and the volume of each overtone. The larger the value, the greater the corresponding overtone’s volume.

Parameter Name

Drawbar 16’ Drawbar 5 1/3’ Drawbar 8’ Drawbar 4’ Drawbar 2 2/3’ Drawbar 2’ Drawbar 1 3/5’ Drawbar 1 1/3’ Drawbar 1’

(Ft: Feet)

Parameter Display

Indication

Ft 16’ Ft 5 1/3’ Ft 8’ Ft 4’ Ft 2 2/3’ Ft 2’ Ft 1 3/5’ Ft 1 1/3’ Ft 1’

Settings

0 to 3

Percussion

This parameter lets you add percussion sound, which provides modulation to sustained tones that you create. When you hold down a key on the keyboard, the sound produced decays until it is no longer audible. Pressing the key again sounds the note again at a louder volume. Percussion has “2nd Percussion” (2nd overtone pitch) and “3rd Percussion” (3rd overtone pitch) settings, each of which can be turned on or off. You can also specify the percussion decay time, which controls how long it takes for the percussion sound to decay.

Parameter Name

2nd Percussion

3rd Percussion

Percussion Decay Time

Parameter Display

Indication

Second

Third

Decay

Settings

oFF

Off

....

.......

000 to 127

Click

The parameter determines whether or not a key click is added when a sustained tone configured using the drawbars is played.

Parameter Name

Click

738A-E-027A

Parameter Display

Indication

Click

oFF on

Settings

Click Off

....

Click On

.......

E-25

Using the Drawbar Organ Mode

Display Contents in the Drawbar Organ Mode

In the Drawbar Organ Mode, the current status of the drawbar positions, key click, and percussion parameters are indicated on the display’s bar graph as shown in the illustrations below. There is one line for each parameter, and the bottom segment of the selected parameter line flashes. The bottom segment of the bar graph column that represents the currently selected parameter flashes to indicate that it is selected.

None of the channel numbers (1 to 16) are displayed in the drawbar organ tone mode and editing mode.

Drawbar Position Graph

Setting Value 0 1 2 3

Display

Off On Blink

Click and Percussion On/Off Graph

Setting Value Off On

Display

Percussion Decay Time Graph

Setting Value 0-31 32-63 64-95 96-127

Display

To save an edited drawbar organ tone

After editing parameters, use the [왗] and [왘] CURSOR buttons to display “More?”.

Press the [왔] CURSOR button three times to display the screen for inputting a tone name and assigning a tone number.

Use the [+] and [–] buttons or the number buttons to select a tone number.

• You can select a tone number in the range of 100 to

199.

After the tone name is the way you want, press the [왘] CURSOR button to store the tone.

• Use the [+] and [–] buttons to scroll through letters at the current cursor location.

• Use the [왗] and [왘] CURSOR buttons to move the cursor left and right.

• See the page E-92 for information about inputting text.

After everything is the way you want, press the [왔] CURSOR button to store the tone.

• This will display a confirmation message asking whether you really want to save the data. Press the YES button to save the data.

• After the save operation is complete, the message “Complete” appears and then the display returns to

the tone selection screen.

• To cancel save, press the EXIT button.

E-26

738A-E-028A

Applying Effects to Tones

This keyboard provides you with a selection of effects that you can apply to tones. The built-in effects include a wide variety of variations that give you access to a selection of general digital effects.

Effect Blocks

The following shows how the effects of this keyboard are organized.

DSP

REVERB

CHORUS

EQUALIZER

Output

Sound Source

16ch

DSP button

off on

DSP Line

DSP

DSP effects are applied to the connection between the sound source and output. You can select distortion and modulation effects. You can create DSP effect setups and also transfer downloaded DSP data from your computer. The keyboard has memory that lets you store up to 100 DSP effect setups. See “U

sing the Music Data Management Software (on the

Bundled CD-ROM)

” on page E-80 and “Saving the Settings

of DSP Parameters” on page E-29 for more information.

REVERB

Reverb simulates the acoustics of specific types of environments. You can choose from among 16 different reverb effects, including “Room” and “Hall”.

CHORUS

The chorus effect gives sound greater depth by causing it to vibrate. You can choose from among 16 different chorus effects, including “Chorus” and “Flanger”.

EQUALIZER

The equalizer is another type of effect that you can use to make adjustments in tone quality. Frequencies are divided among a number of bands, and raising and lowering the level of each frequency band alters the sound. You can reproduce the optimal acoustics for the type of music you are playing (classics, for example) by selecting the applicable equalizer setting.

Channel Buttons while the Effect Mode Screen is Displayed

In the Effect Mode, the 18 buttons along the bottom of the display screen control the type and parameters of each effect, a shown in the illustration below.

Effect type Parameter 1 Parameter 3 Parameter 5 Parameter 7

Parameter 0 Parameter 2 Parameter 4 Parameter 6

51/38 4 22/32 13/511/3116

Increase

Currently selected drawbar

Decrease

CHANNEL buttons

NOTE

• Pressing the [왖] and [왔] CURSOR buttons at the same time returns the currently selected effect to its preset value.

738A-E-029A

E-27

Applying Effects to Tones

CURSOREFFECT

Number buttons

[+]/[–]

EXIT

Selecting a DSP Type

In addition to the 100 built-in effect types, you can also edit effect types to create your own and store them in user memory. You can have up to 100 effect types in user memory at one time. You can also select the DSP type of the last DSP enabled tone that you used. This means you always have access to the DSP type of Advanced Tones and tones you download over the Internet. To select the DSP type of the last DSP enabled tone that you used, select “ton” in step 3 of the procedure below. Perform the following steps to select a DSP type.

PREPARATION

• When using a DSP effect, you should use the Mixer to confirm that the DSP lines of the required parts are turned on. See “Mixer Function” on page E-40 for more information.

Press the EFFECT button so the pointer appears next to EFFECT on the display.

Press the [왘] CURSOR button.

• The DSP type setting screen (step 3) will appear automatically about fives seconds after you press the button.

Use the [+] and [–] buttons or number buttons to select the type of DSP you want.

• See the “Effect List” on page A-14 for information about the DSP types that can be selected.

• Here you could also change the parameters of the effect you selected, if you want. See “Changing the Settings of DSP Parameters” for more information.

NOTE

• The DSP type display area shows the DSP number (000 to 199), or “ton” (user tone created using DSP).

Changing the Settings of DSP Parameters

You can control the relative strength of a DSP and how it is applied. See the following section titled “DSP Parameters” for more information.

After selecting the DSP type you want, use the [왗] and [왘] CURSOR buttons to display the parameter whose setting you want to change.

• This displays the parameter setting screen.

Use the [+] and [–] buttons or the number buttons to make the parameter setting you want.

• Pressing the [+] and [–] buttons at the same time returns the parameter to its recommended setting.

Press the EFFECT or EXIT button.

• This exits the tone or rhythm setting screen.

DSP Parameters

The following describes the parameters for each DSP.

DSP

■

Parameter 0 to 7

These parameters differ in accordance with the algorithm* of the selected DSP type. See the “Effect List” on page A14 and the “DSP Algorithm List” on page A-16 for more information. * Effector structure and operation type

■

DSP Reverb Send (Range: 000 to 127)

Specifies how much of the post-DSP sound should be sent to reverb.

■

DSP Chorus Send (Range: 000 to 127)

Specifies how much of the post-DSP sound should be sent to chorus.

E-28

738A-E-030A
