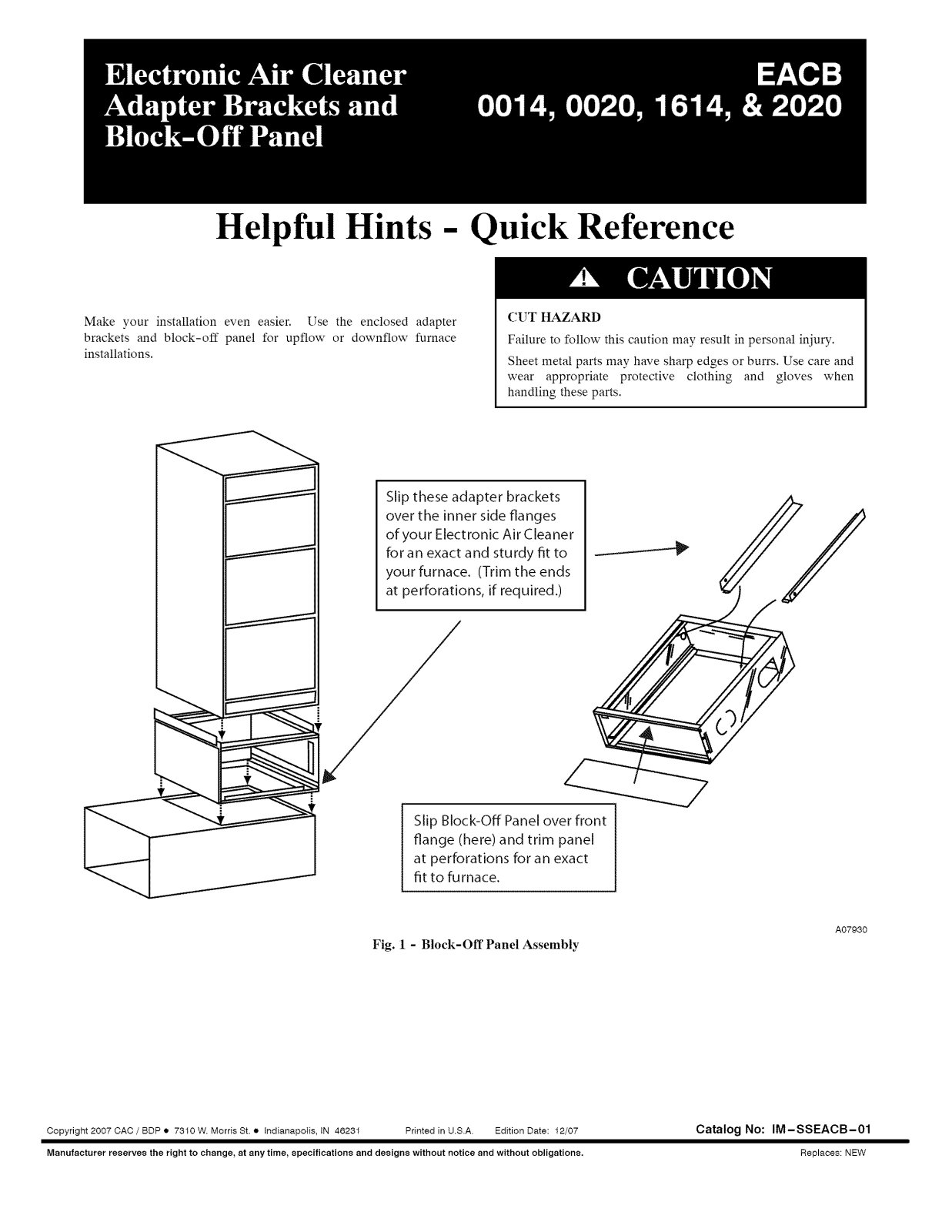

Carrier EACB0020, EACB1614, EACB2020, EACB0014 Installation Guide

Helpful Hints - Quick Reference

Make },our installation even easier. Use the enclosed adapter
brackets and block-off panel for upflow or downflow furnace

installations.

Slip these adapter brackets
over the inner side flanges
of your Electronic Air Cleaner
foran exact and sturdy fit to
your furnace. (Trim the ends
at perforations, if required.)

CUT HAZARD
Failure to follow this caution may result in personal injury.
Sheet metal parts may have sharp edges or burrs. Use care and

wear appropriate protective clothing and gloves when
handling these parts.

i

Slip Block-Off Panel over front
flange (here) and trim panel
at perforations for an exact

fit to furnace.

AO7930

Fig. 1 - Block-Off Panel Assembly
