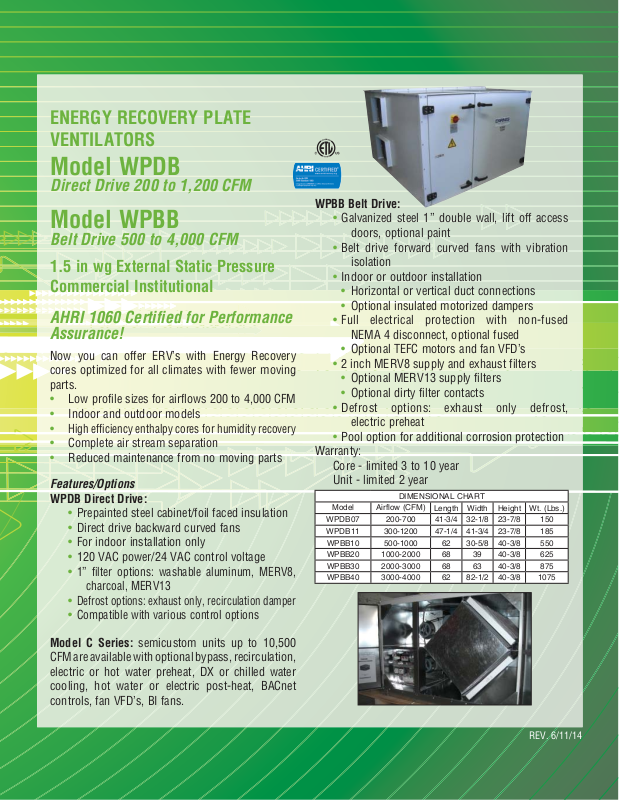

ENERGY RECOVERY PLATE
VENTILATORS

Model WPDB

Direct Drive 200 to 1,200 CFM

Model WPBB

Belt Drive 500 to 4,000 CFM

1.5 in wg External Static Pressure
Commercial Institutional

AHRI 1060 Certified for Performance
Assurance!

Now you can offer ERV’s with Energy Recovery
cores optimized for all climates with fewer moving
parts.

• Low profile sizes for airflows 200 to 4,000 CFM

• Indoor and outdoor models

•

High efficiency enthalpy cores for humidity recovery

• Complete air stream separation

• Reduced maintenance from no moving parts

Features/Options

WPDB Direct Drive:

• Prepainted steel cabinet/foil faced insulation

• Direct drive backward curved fans

• For indoor installation only

• 120 VAC power/24 VAC control voltage

•

1” filter options: washable aluminum, MERV8,

charcoal, MERV13

•

Defrost options: exhaust only, recirculation damper

•

Compatible with various control options

WPBB Belt Drive:

• Galvanized steel 1” double wall, lift off access
doors, optional paint

• Belt drive forward curved fans with vibration
isolation

• Indoor or outdoor installation

• Horizontal or vertical duct connections

• Optional insulated motorized dampers

• Full electrical protection with non-fused
NEMA 4 disconnect, optional fused

• Optional TEFC motors and fan VFD’s

• 2 inch MERV8 supply and exhaust filters

• Optional MERV13 supply filters

• Optional dirty filter contacts

• Defrost options: exhaust only defrost,
electric preheat

• Pool option for additional corrosion protection
Warranty:
Core - limited 3 to 10 year
Unit - limited 2 year

DIMENSIONAL CHART

Model Airflow (CFM)
WPDB07 200-700 41-3/4 32-1/8 23-7/8 150
WPDB11 300-1200 47-1/4 41-3/4 23-7/8 185
WPBB10 500-1000 62 30-5/8 40-3/8 550
WPBB20 1000-2000 68 39 40-3/8 625
WPBB30 2000-3000 68 63 40-3/8 875
WPBB40 3000-4000 62 82-1/2 40-3/8 1075

Length Width Height Wt. (Lbs.)

Model C Series: semicustom units up to 10,500
CFM are available with optional bypass, recirculation,
electric or hot water preheat, DX or chilled water
cooling, hot water or electric post-heat, BACnet
controls, fan VFD’s, BI fans.

REV. 6/11/14
