Carnes SMDB User Manual

COPYRIGHT © 2000 CARNES CO.
ALL RIGHTS RESERVED

SUPERSEDES 12723

12723-A

CARNES COMPANY, Verona, WI. Phone: [phone] Fax:[phone] E-Mail:[e-mail] www.carnes.com

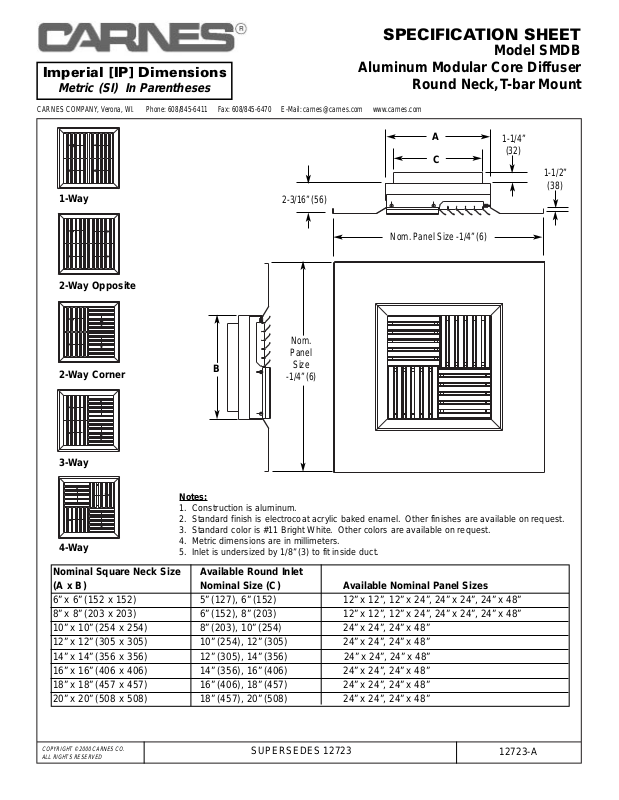

SPECIFICATION SHEET

Model SMDB

Aluminum Modular Core Diffuser

Round Neck,T-bar Mount

Imperial [IP] Dimensions

Metric (SI) In Parentheses

Nominal Square Neck Size Available Round Inlet
(A x B) Nominal Size (C) Available Nominal Panel Sizes

6” x 6” (152 x 152) 5” (127), 6” (152) 12” x 12”, 12” x 24”, 24” x 24”, 24” x 48”
8” x 8” (203 x 203) 6” (152), 8” (203) 12” x 12”, 12” x 24”, 24” x 24”, 24” x 48”
10” x 10” (254 x 254) 8” (203), 10” (254) 24” x 24”, 24” x 48”
12” x 12” (305 x 305) 10” (254), 12” (305) 24” x 24”, 24” x 48”
14” x 14” (356 x 356) 12” (305), 14” (356) 24” x 24”, 24” x 48”
16” x 16” (406 x 406) 14” (356), 16” (406) 24” x 24”, 24” x 48”
18” x 18” (457 x 457) 16” (406), 18” (457) 24” x 24”, 24” x 48”
20” x 20” (508 x 508) 18” (457), 20” (508) 24” x 24”, 24” x 48”

Notes:

1. Construction is aluminum.

2. Standard finish is electrocoat acrylic baked enamel. Other finishes are available on request.

3. Standard color is #11 Bright White. Other colors are available on request.

4. Metric dimensions are in millimeters.

5. Inlet is undersized by 1/8” (3) to fit inside duct.

1-Way

2-Way Opposite

2-Way Corner

3-Way

4-Way

Nom. Panel Size -1/4” (6)

A
C

B

2-3/16” (56)

1-1/2”

(38)

1-1/4”

(32)

Nom.
Panel

Size

-1/4” (6)
