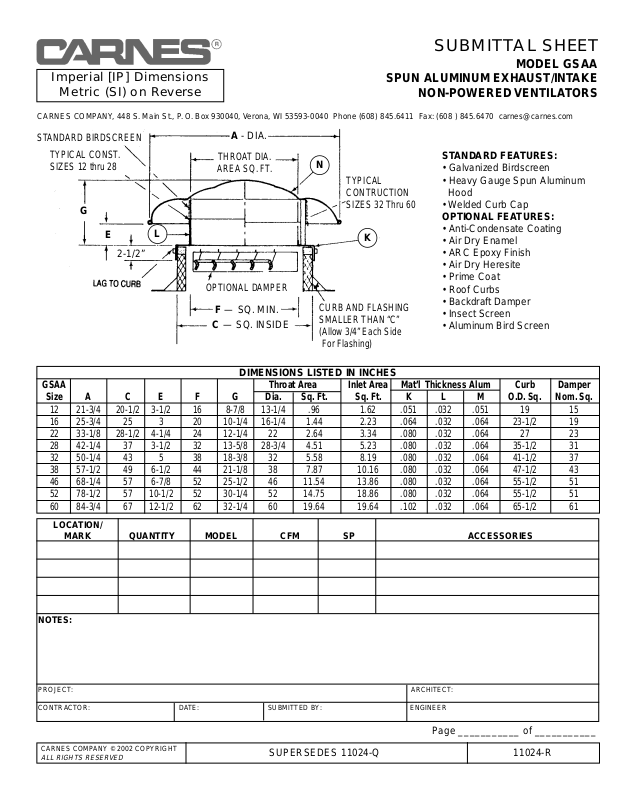

Carnes GSAA User Manual
Imperial [IP] Dimensions
Metric (SI) on Reverse
SUBMITTAL SHEET
MODEL GSAA
SPUN ALUMINUM EXHAUST/INTAKE
NON-POWERED VENTILATORS
CARNES COMPANY, 448 S. Main St., P. O.Box 930040, Verona, WI 53593-0040 Phone (608) 845.6411 Fax: (608 ) 845.6470 carnes@carnes.com
CARNES COMPANY © 2002 COPYRIGHT
ALL RIGHTS RESERVED
SUPERSEDES 11024-Q 11024-R
TYPICAL
CONTRUCTION
SIZES 32 Thru 60
CURB AND FLASHING
SMALLER THAN “C”
(Allow 3/4” Each Side
For Flashing)
STANDARD BIRDSCREEN
TYPICAL CONST.
SIZES 12 thru 28
A - DIA.
THROAT DIA.
AREA SQ. FT.
N
K
L
OPTIONAL DAMPER
F — SQ. MIN.
E
G
2-1/2”
C — SQ. INSIDE
STANDARD FEATURES:
• Galvanized Birdscreen
• Heavy Gauge Spun Aluminum
Hood
• Welded Curb Cap
OPTIONAL FEATURES:
• Anti-Condensate Coating
• Air Dry Enamel
• ARC Epoxy Finish
• Air Dry Heresite
• Prime Coat
• Roof Curbs
• Backdraft Damper
• Insect Screen
• Aluminum Bird Screen
DIMENSIONS LISTED IN INCHES
GSAA Throat Area Inlet Area Mat’l Thickness Alum Curb Damper
Size A C E F G Dia. Sq. Ft. Sq. Ft. K L M O.D. Sq. Nom. Sq.
12 21-3/4 20-1/2 3-1/2 16 8-7/8 13-1/4 .96 1.62 .051 .032 .051 19 15
16 25-3/4 25 3 20 10-1/4 16-1/4 1.44 2.23 .064 .032 .064 23-1/2 19
22 33-1/8 28-1/2 4-1/4 24 12-1/4 22 2.64 3.34 .080 .032 .064 27 23
28 42-1/4 37 3-1/2 32 13-5/8 28-3/4 4.51 5.23 .080 .032 .064 35-1/2 31
32 50-1/4 43 5 38 18-3/8 32 5.58 8.19 .080 .032 .064 41-1/2 37
38 57-1/2 49 6-1/2 44 21-1/8 38 7.87 10.16 .080 .032 .064 47-1/2 43
46 68-1/4 57 6-7/8 52 25-1/2 46 11.54 13.86 .080 .032 .064 55-1/2 51
52 78-1/2 57 10-1/2 52 30-1/4 52 14.75 18.86 .080 .032 .064 55-1/2 51
60 84-3/4 67 12-1/2 62 32-1/4 60 19.64 19.64 .102 .032 .064 65-1/2 61
LOCATION/
MARK QUANTITY MODEL CFM SP ACCESSORIES
NOTES:
PROJECT: ARCHITECT:
CONTRACTOR: DATE: SUBMITTED BY: ENGINEER
Page ___________ of ___________
Metric (SI) Dimensions
Imperial ([IP] on Reverse
SUBMITTAL SHEET
MODEL GSAA
SPUN ALUMINUM EXHAUST/INTAKE
NON-POWERED VENTILATORS
CARNES COMPANY, 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone (608) 845.6411 Fax: (608 ) 845.6470 carnes@carnes.com
CARNES COMPANY © 2002 COPYRIGHT
ALL RIGHTS RESERVED
SUPERSEDES 11024-Q 11024-R
TYPICAL
CONTRUCTION
SIZES 32 Thru 60
CURB AND FLASHING
SMALLER THAN “C”
(Allow 19mm Each
Side For Flashing)
STANDARD BIRDSCREEN
TYPICAL CONST.
SIZES 12 thru 28
A - DIA.
THROAT DIA.
AREA SQ. FT.
N
K
L
OPTIONAL DAMPER
F — SQ. MIN.
E
G
64
C — SQ. INSIDE
STANDARD FEATURES:
• Galvanized Birdscreen
• Heavy Gauge Spun Aluminum Hood
• Welded Curb Cap
OPTIONAL FEATURES:
• Anti-Condensate Coating
• Air Dry Enamel
• ARC Epoxy Finish
• Air Dry Heresite
• Prime Coat
• Roof Curbs
• Backdraft Damper
• Insect Screen
• Aluminum Bird Screen
DIMENSIONS LISTED IN MILLIMETERS
GSAA Throat Area Inlet Area Mat’l Thickness Alum. Curb Damper
Size A C E F G Dia. Sq. Ft. Sq. M K L M O.D. Sq. Nom. Sq.
12 552 520 89 406 225 336 .089 .151 .051 .082 .051 482 381
16 654 635 76 508 260 412 .134 .207 .064 .032 .064 597 482
22 841 723 114 609 311 559 .245 .310 .080 .032 .064 685 584
28 1073 939 89 812 346 730 .419 .486 .080 .032 .064 901 1371
32 1275 1091 127 965 466 812 .518 .761 .080 .032 .064 1053 939
38 1460 1244 165 1117 536 965 .731 .944 .080 .032 .064 1206 1091
46 1732 1447 175 1320 647 1168 1.072 1.288 .080 .032 .064 1409 1295
52 1993 1447 266 1320 768 1320 1.370 1.752 .080 .032 .064 1409 1295
60 2151 1701 317 1523 819 1523 1.825 1.825 .102 .032 .064 1662 1548.
LOCATION/
MARK QUANTITY MODEL CFM SP ACCESSORIES
NOTES:
PROJECT: ARCHITECT:
CONTRACTOR: DATE: SUBMITTED BY: ENGINEER
Page ___________ of ___________
