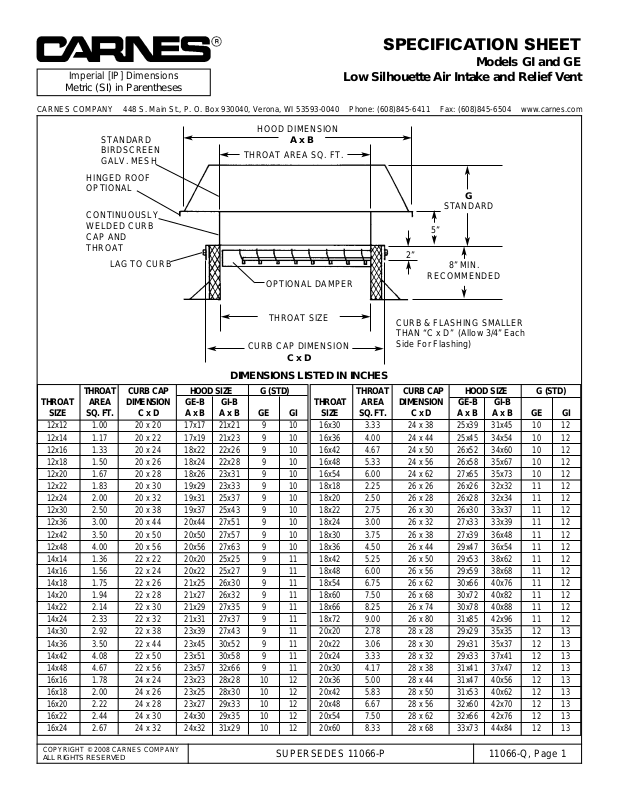

SPECIFICATION SHEET

Models GI and GE

Low Silhouette Air Intake and Relief Vent

A x B

C x D

HOOD DIMENSION

THROAT AREA SQ. FT.

OPTIONAL DAMPER

CURB CAP DIMENSION

THROAT SIZE

STANDARD
BIRDSCREEN
GALV. MESH

HINGED ROOF
OPTIONAL

CONTINUOUSLY
WELDED CURB
CAP AND
THROAT

LAG TO CURB

5”

2”

G

STANDARD

8” MIN.

RECOMMENDED

CURB & FLASHING SMALLER
THAN “C x D” (Allow 3/4” Each
Side For Flashing)

DIMENSIONS LISTED IN INCHES

THROAT CURB CAP HOOD SIZE G (STD)

THROAT AREA DIMENSION GE-B GI-B

SIZE SQ. FT. C x D A x B A x B GE GI

12x12 1.00 20 x 20 17x17 21x21 9 10
12x14 1.17 20 x 22 17x19 21x23 9 10
12x16 1.33 20 x 24 18x22 22x26 9 10
12x18 1.50 20 x 26 18x24 22x28 9 10
12x20 1.67 20 x 28 18x26 23x31 9 10
12x22 1.83 20 x 30 19x29 23x33 9 10
12x24 2.00 20 x 32 19x31 25x37 9 10
12x30 2.50 20 x 38 19x37 25x43 9 10
12x36 3.00 20 x 44 20x44 27x51 9 10
12x42 3.50 20 x 50 20x50 27x57 9 10
12x48 4.00 20 x 56 20x56 27x63 9 10
14x14 1.36 22 x 22 20x20 25x25 9 11
14x16 1.56 22 x 24 20x22 25x27 9 11
14x18 1.75 22 x 26 21x25 26x30 9 11
14x20 1.94 22 x 28 21x27 26x32 9 11
14x22 2.14 22 x 30 21x29 27x35 9 11
14x24 2.33 22 x 32 21x31 27x37 9 11
14x30 2.92 22 x 38 23x39 27x43 9 11
14x36 3.50 22 x 44 23x45 30x52 9 11
14x42 4.08 22 x 50 23x51 30x58 9 11
14x48 4.67 22 x 56 23x57 32x66 9 11
16x16 1.78 24 x 24 23x23 28x28 10 12
16x18 2.00 24 x 26 23x25 28x30 10 12
16x20 2.22 24 x 28 23x27 29x33 10 12
16x22 2.44 24 x 30 24x30 29x35 10 12
16x24 2.67 24 x 32 24x32 31x29 10 12

THROAT CURB CAP HOOD SIZE G (STD)

THROAT AREA DIMENSION GE-B GI-B

SIZE SQ. FT. C x D A x B A x B GE GI

16x30 3.33 24 x 38 25x39 31x45 10 12
16x36 4.00 24 x 44 25x45 34x54 10 12
16x42 4.67 24 x 50 26x52 34x60 10 12
16x48 5.33 24 x 56 26x58 35x67 10 12
16x54 6.00 24 x 62 27x65 35x73 10 12
18x18 2.25 26 x 26 26x26 32x32 11 12
18x20 2.50 26 x 28 26x28 32x34 11 12
18x22 2.75 26 x 30 26x30 33x37 11 12
18x24 3.00 26 x 32 27x33 33x39 11 12
18x30 3.75 26 x 38 27x39 36x48 11 12
18x36 4.50 26 x 44 29x47 36x54 11 12
18x42 5.25 26 x 50 29x53 38x62 11 12
18x48 6.00 26 x 56 29x59 38x68 11 12
18x54 6.75 26 x 62 30x66 40x76 11 12
18x60 7.50 26 x 68 30x72 40x82 11 12
18x66 8.25 26 x 74 30x78 40x88 11 12
18x72 9.00 26 x 80 31x85 42x96 11 12
20x20 2.78 28 x 28 29x29 35x35 12 13
20x22 3.06 28 x 30 29x31 35x37 12 13
20x24 3.33 28 x 32 29x33 37x41 12 13
20x30 4.17 28 x 38 31x41 37x47 12 13
20x36 5.00 28 x 44 31x47 40x56 12 13
20x42 5.83 28 x 50 31x53 40x62 12 13
20x48 6.67 28 x 56 32x60 42x70 12 13
20x54 7.50 28 x 62 32x66 42x76 12 13
20x60 8.33 28 x 68 33x73 44x84 12 13

Imperial [IP] Dimensions

Metric (SI) in Parentheses

THROAT CURB CAP HOOD SIZE G (STD)

THROAT AREA DIMENSION GE-B GI-B

SIZE SQ. FT. C x D A x B A x B GE GI

20x66 9.17 28 x 74 33x79 44x90 12 13
20x72 10.00 28 x 80 34x86 46x98 12 13
20x84 11.67 28 x 92 34x98 46x110 12 13
22x22 3.36 30 x 30 32x32 39x39 12 14
22x24 3.67 30 x 32 32x34 39x41 12 14
22x30 4.58 30 x 38 33x41 43x51 12 14
22x36 5.50 30 x 44 33x47 43x57 12 14
22x42 6.42 30 x 50 35x55 43x63 12 14
22x48 7.33 30 x 56 35x61 46x72 12 14
22x54 8.25 30 x 62 35x67 46x78 12 14
22x60 9.17 30 x 68 36x74 48x86 12 14
22x66 10.08 30 x 74 36x80 48x92 12 14
22x72 11.00 30 x 80 37x87 48x98 12 14
22x84 12.83 30 x 92 37x99 50x112 12 14
22x96 14.67 30 x 104 38x112 50x124 12 14
24x24 4.00 32 x 32 35x35 44x44 13 15
24x30 5.00 32 x 38 35x41 44x50 13 15
24x36 6.00 32 x 44 37x49 46x58 13 15
24x42 7.00 32 x 50 37x55 46x64 13 15
24x48 8.00 32 x 56 37x61 49x73 13 15
24x54 9.00 32 x 62 39x69 49x79 13 15
24x60 10.00 32 x 68 39x75 51x87 13 15
24x66 11.00 32 x 74 39x81 51x93 13 15
24x72 12.00 32 x 80 39x87 52x100 13 15
24x84 14.00 32 x 92 41x101 52x112 13 15
24x96 16.00 32 x 104 41x113 55x127 13 15
30x30 6.25 38 x 38 42x42 52x52 15 17
30x36 7.50 38 x 44 45x51 54x60 15 17
30x42 8.75 38 x 50 45x57 57x69 15 17
30x48 10.00 38 x 56 45x63 57x75 15 17
30x54 11.25 38 x 62 47x71 60x84 15 17
30x60 12.50 38 x 68 47x77 60x90 15 17
30x66 13.75 38 x 74 47x83 62x98 15 17
30x72 15.00 38 x 80 49x91 62x104 15 17
30x84 17.50 38 x 92 49x103 62x116 15 17

30x96 20.00 38 x 104 49x115 67x133 15 17
30x108 22.50 38 x 116 49x127 67x145 15 17
30x120 25.00 38 x 128 51x141 67x157 15 17

36x36 9.00 44 x 44 52x52 62x62 17 20

36x42 10.50 44 x 50 52x58 65x71 17 20

36x48 12.00 44 x 56 54x66 65x77 17 20

36x54 13.50 44 x 62 54x72 69x87 17 20

36x60 15.00 44 x 68 56x80 69x93 17 20

36x66 16.50 44 x 74 56x86 72x102 17 20

36x72 18.00 44 x 80 56x92 72x108 17 20

36x84 21.00 44 x 92 57x105 72x120 17 20

36x96 24.00 44 x 104 57x117 77x137 17 20
36x108 27.00 44 x 116 57x129 77x149 17 20
36x120 30.00 44 x 128 60x144 77x161 17 20

THROAT CURB CAP HOOD SIZE G (STD)

THROAT AREA DIMENSION GE-B GI-B

SIZE SQ. FT. C x D A x B A x B GE GI

42x42 12.25 50 x 50 58x58 74x74 19 22
42x48 14.00 50 x 56 61x67 74x80 19 22
42x54 15.75 50 x 62 61x73 78x90 19 22
42x60 17.50 50 x 68 63x81 78x96 19 22
42x66 19.25 50 x 74 63x87 81x105 19 22
42x72 21.00 50 x 80 63x93 81x111 19 22
42x84 24.50 50 x 92 66x108 84x126 19 22

42x96 28.00 50 x 104 66x120 87x141 19 22
42x108 31.50 50 x 116 66x132 87x153 19 22
42x120 35.00 50 x 128 69x147 87x165 19 22

48x48 16.00 56 x 56 69x69 84x84 21 25

48x54 18.00 56 x 62 69x75 84x90 21 25

48x60 20.00 56 x 68 71x83 87x99 21 25

48x66 22.00 56 x 74 71x89 87x105 21 25

48x72 24.00 56 x 80 71x95 91x115 21 25

48x84 28.00 56 x 92 74x110 94x130 21 25

48x96 32.00 56 x 104 74x122 94x142 21 25
48x108 36.00 56 x 116 74x134 98x158 21 25
48x120 40.00 56 x 128 77x149 98x170 21 25

54x54 20.25 62 x 62 76x76 94x94 23 27

54x60 22.50 62 x 68 79x85 94x100 23 27

54x66 24.75 62 x 74 79x91 98x110 23 27

54x72 27.00 62 x 80 81x99 98x116 23 27

54x84 31.50 62 x 92 81x111 103x133 23 27

54x96 36.00 62 x 104 81x123 103x145 23 27
54x108 40.50 62 x 116 84x138 108x162 23 27
54x120 45.00 62 x 128 84x150 108x174 23 27

60x60 25.00 68 x 68 86x66 104x104 25 29

60x66 27.50 68 x 74 86x92 104x110 25 29

60x72 30.00 68 x 80 87x99 109x121 25 29

60x84 35.00 68 x 92 87x111 109x133 25 29

60x96 40.00 68 x 104 92x128 117x153 25 29
60x108 45.00 68 x 116 92x140 117x165 25 29
60x120 50.00 68 x 128 92x152 117x177 25 29

66x66 30.25 74 x 74 93x93 114x114 26 32

66x72 33.00 74 x 80 93x99 114x120 26 32

66x84 38.50 74 x 92 97x115 121x139 26 32

66x96 44.00 74 x 104 97x127 121x151 26 32
66x108 49.50 74 x 116 100x142 126x168 26 32
66x120 55.00 74 x 128 100x154 126x180 26 32

72x72 36.00 80 x 80 102x102 125x125 28 34

72x84 42.00 80 x 92 102x114 129x141 28 34

72x96 48.00 80 x 104 108x132 129x153 28 34
72x108 54.00 80 x 116 108x144 135x171 28 34
72x120 60.00 80 x 128 108x156 135x185 28 34

DIMENSIONS IN INCHES [Continued]

11066-Q, Page 2
