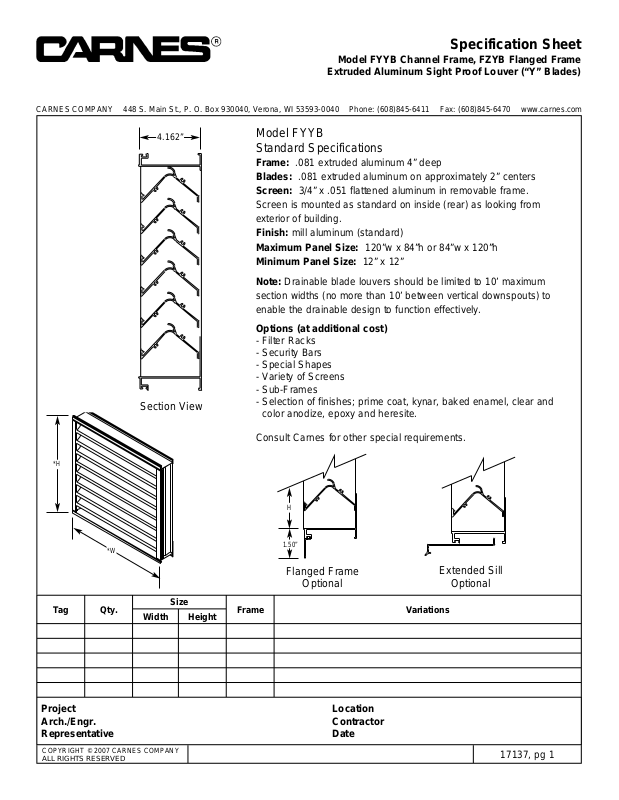

Specification Sheet

Model FYYB Channel Frame, FZYB Flanged Frame

Extruded Aluminum Sight Proof Louver (“Y” Blades)

CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: [phone] Fax: [phone] www.carnes.com

COPYRIGHT © 2007 CARNES COMPANY

ALL RIGHTS RESERVED

17137, pg 1

Tag Qty.

Size

Frame Variations

Width Height

Project Location
Arch./Engr. Contractor
Representative Date

Model FYYB
Standard Specifications

Frame: .081 extruded aluminum 4” deep
Blades: .081 extruded aluminum on approximately 2” centers
Screen: 3/4” x .051 flattened aluminum in removable frame.

Screen is mounted as standard on inside (rear) as looking from
exterior of building.

Finish: mill aluminum (standard)
Maximum Panel Size: 120”w x 84”h or 84”w x 120”h
Minimum Panel Size: 12” x 12”

Note: Drainable blade louvers should be limited to 10’ maximum

section widths (no more than 10’ between vertical downspouts) to
enable the drainable design to function effectively.

Options (at additional cost)

- Filter Racks

- Security Bars

- Special Shapes

- Variety of Screens

- Sub-Frames

- Selection of finishes; prime coat, kynar, baked enamel, clear and
color anodize, epoxy and heresite.

Consult Carnes for other special requirements.

Flanged Frame

Optional

*W

*H

H

1.50”

Extended Sill

Optional

Section View

4.162”

17137, pg 2

75 mm/h (3 in/h) Rainfall &

13 m/s (29 mph) Wind Velocity

Ventilation Air Core

Velocity m/s (fpm)

Water Penetration

Effectiveness %

*Water Penetration

Classification

0.0 (0) 90.7 C

0.48 (95) 90.1 C

0.99 (195) 86.7 C

1.47 (289) 85.7 C

1.92 (378) 82.0 C

2.47 (486) 79.5 C

2.91 (573) 76.1 C

3.39 (669) 70.2 D

Pressure Drop

FREE AREA VELOCITY (ft/min)

Based on standard air -.075 lbs per cu ft
Ratings do not include the effects of screen
Tested on a 48" x 48"

Water Penetration

* AMCA Classes for maximum allowable water penetrations

75 mm/h (3 in/h) Rainfall &

13 m/s (50 mph) Wind Velocity

Ventilation Air Core

Velocity m/s (fpm)

Water Penetration

Effectiveness %

*Water Penetration

Classification

0.0 (0) 83.3 C

0.54 (106) 79.7 C

1.08 (214) 76.7 C

1.49 (294) 74.9 D

1.96 (386 72.8 D

2.39 (470) 71.0 D

2.91 (573) 65.9 D

3.44 (678) 58.7 D

* AMCA Classes for maximum allowable water penetrations

* Discharge Loss Intake

Wind Velocity (mph) Class

29 4
50 4

Class Discharge Loss Coefficient

1 0.4 and above
2 0.3 to 0.399
3 0.2 to 0.299
4 .199 and below

* Discharge loss coefficient is the theoretical
air flow of an opening divided by the actual
flow rate of a louver the same size.

(the higher the coefficient, the less resistance
to airflow)

Wind Driven Rain Penetration Classes

Class Effectiveness

A 1 to 0.99
B 0.989 to 0.95
C 0.949 to 0.80
D Below 0.8

Wind Driven Rain Performance

AMCA 500-L

Test Size 1m x 1m (39” x 39”) core

41-1/2”w x 41”h Nominal (1.05m x 1.04m)

FYYB Specifications

Furnish and install louver as hereinafter specified where shown on
plans or as described in schedules. Louver shall be stationary type
with horizontal rain resistant style blades positioned on approxi­mately 2” centers within 4.162” deep frame. Louver frame and
blade materials to be .081” thick 6063-T5 extruded aluminum.
Sections up to maximum of 60”w x 96”h shall withstand wind load­ing of 30lbs/sq.ft. (110 mph wind equivalent). Consult factory for
welded construction and higher wind speeds.

Louver shall meet the performance requirements established by
the AMCA 500L test procedure and shall be licensed to bear the
AMCA certified ratings seal for water penetration, air performance,
and wind driven rain. Louver shall have a maximum static pressure
drop of .23” (exhaust) and .31” (intake) water gage based on 1000
FPM free area intake velocity. Louver shall carry a Class C water
penetration classification based on a ventilation core of 573 FPM at
a rainfall rate of 3” per hour and a 29 mph simulated wind velocity.
Louver shall carry a class D water penetration classification based
on a ventilation core of 294 FPM at a rainfall rate of 8” per hour
and a 50mph simulated wind velocity.

Beginning point of WATER PENETRATION
is 722 fpm free area velocity at .01 oz. of
water penetration

The Carnes Company
certifies that the
model FYYB/FZYB
louver shown herein
is licensed to bear the
AMCA Seal. The rat­ings shown are based
on tests and proce­dures performed in

accordance with
AMCA Publication 511 and comply
with the requirements of the AMCA
Certified Ratings Program. The AMCA
Certified Ratings Seal applies to air
performance ratings and water pene­tration ratings.
