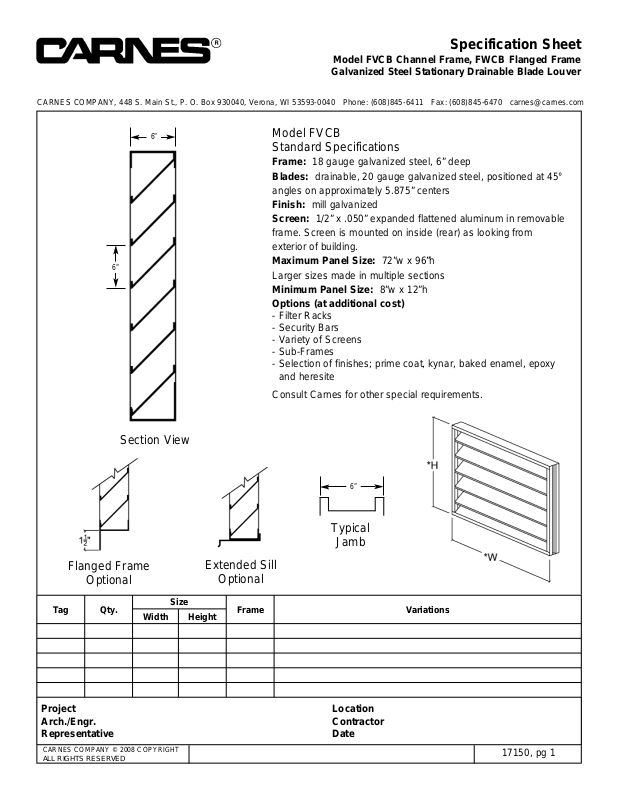

Specification Sheet

Model FVCB Channel Frame, FWCB Flanged Frame

Galvanized Steel Stationary Drainable Blade Louver

CARNES COMPANY, 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: [phone] Fax: [phone] [e-mail]

CARNES COMPANY © 2008 COPYRIGHT

ALL RIGHTS RESERVED

17150, pg 1

Tag Qty.

Size

Frame Variations

Width Height

Project Location
Arch./Engr. Contractor
Representative Date

Model FVCB
Standard Specifications

Frame: 18 gauge galvanized steel, 6” deep
Blades: drainable, 20 gauge galvanized steel, positioned at 45°

angles on approximately 5.875” centers

Finish: mill galvanized
Screen: 1/2” x .050” expanded flattened aluminum in removable

frame. Screen is mounted on inside (rear) as looking from
exterior of building.
Maximum Panel Size: 72”w x 96”h
Larger sizes made in multiple sections

Minimum Panel Size: 8”w x 12”h
Options (at additional cost)

- Filter Racks

- Security Bars

- Variety of Screens

- Sub-Frames

- Selection of finishes; prime coat, kynar, baked enamel, epoxy
and heresite

Consult Carnes for other special requirements.

Section View

Flanged Frame

Optional

Extended Sill

Optional

Typical

Jamb

6”

6”

6”
