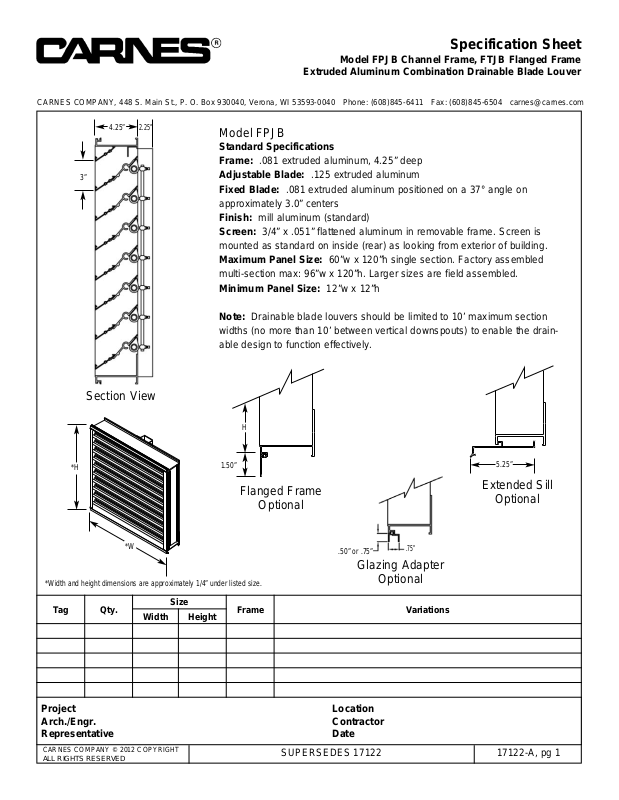

Model FPJB Channel Frame, FTJB Flanged Frame

Extruded Aluminum Combination Drainable Blade Louver

CARNES COMPANY, 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: [phone] Fax: [phone] [e-mail]

CARNES COMPANY © 2012 COPYRIGHT

ALL RIGHTS RESERVED

SUPERSEDES 17122 17122-A, pg 1

Model FPJB

Standard Specifications
Frame: .081 extruded aluminum, 4.25” deep
Adjustable Blade: .125 extruded aluminum
Fixed Blade: .081 extruded aluminum positioned on a 37° angle on

approximately 3.0” centers

Finish: mill aluminum (standard)
Screen: 3/4” x .051” flattened aluminum in removable frame. Screen is

mounted as standard on inside (rear) as looking from exterior of building.
Maximum Panel Size: 60”w x 120”h single section. Factory assembled
multi-section max: 96”w x 120”h. Larger sizes are field assembled.

Minimum Panel Size: 12”w x 12”h

Note: Drainable blade louvers should be limited to 10’ maximum section

widths (no more than 10’ between vertical downspouts) to enable the drain­able design to function effectively.

Tag Qty.

Size

Frame Variations

Width Height

Project Location
Arch./Engr. Contractor
Representative Date

*Width and height dimensions are approximately 1/4” under listed size.

Section View

*W

*H

Flanged Frame

Optional

1.50”

H

Extended Sill

Optional

3”

4.25”

2.25”

5.25”

Glazing Adapter

Optional

.50” or .75”

.75”

17122-A, pg 2

Free Area in Square Feet

HEIGHT

INCHES

WIDTH IN INCHES

12 18 24 30 36 42 48 54 60
12 0.49 0.73 0.98 1.22 1.47 1.71 1.96 2.20 2.45
18 0.73 1.10 1.47 1.84 2.20 2.57 2.94 3.30 3.67
24 0.98 1.47 1.96 2.45 2.94 3.43 3.92 4.41 4.90
30 1.22 1.84 2.45 3.06 3.67 4.28 4.90 5.51 6.12
36 1.47 2.20 2.94 3.67 4.41 5.14 5.88 6.61 7.34
42 1.71 2.57 3.43 4.28 5.14 6.00 6.85 7.71 8.57
48 1.96 2.94 3.92 4.90 5.88 6.85 7.83 8.81 9.79
54 2.20 3.30 4.41 5.51 6.61 7.71 8.81 9.91 11.02
60 2.45 3.67 4.90 6.12 7.34 8.57 9.79 11.02 12.24
66 2.69 4.04 5.39 6.73 8.08 9.42 10.77 12.12 13.46
72 2.94 4.41 5.88 7.34 8.81 10.28 11.75 13.22 14.69

FPJB Selection and Examples

Example 1:

Airflow given as 10,000 cfm – select louver size.

A. Determine louver free area by dividing airflow by free area
velocity (do not exceed 1250 fpm on intake louver application).

10,000 cfm ÷ 1250 fpm = 8.0 sq. ft.
Airflow F.A.V. Req’d Louver Free Area

B. Select a louver with at least the required louver free area from
the Free Area Chart above.

48”w x 54”h

8.81 ft. free area
1135 fpm free area velocity (10,000) cfm ÷ 8.81 sq. ft. F.A.V.
(Other selections available - see Free Area Chart above.)

Example 2:

Louver size given 42”w x 72”h intake - determine maximum
airflow.

A. Use Free Area Chart to determine.

Free Area = 10.28 sq. ft.

B. Free Area x Free Area Velocity (do not exceed 1250 fpm on
intake louver applications).

10.28 sq. ft. x 1250 fpm = 12,850 cfm
Free Area F.A.V. Max. Airflow
