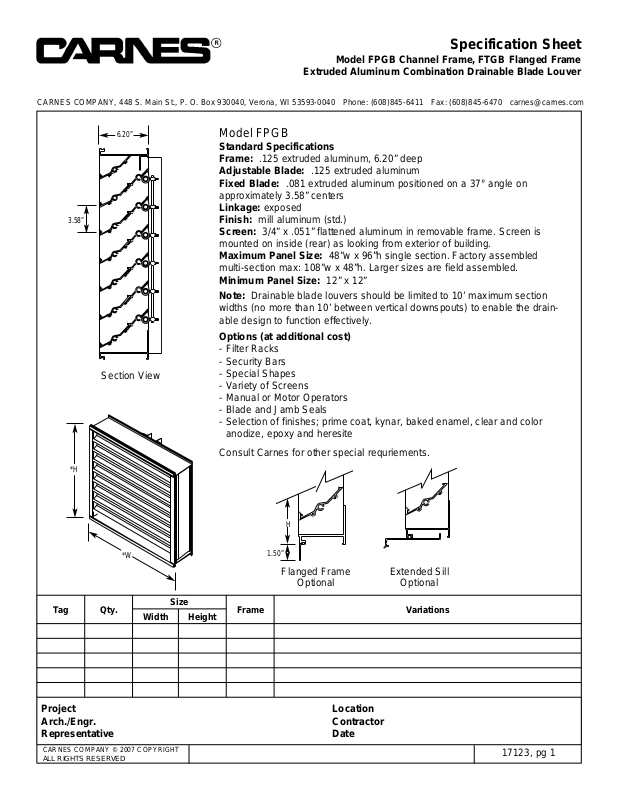

Specification Sheet

Model FPGB Channel Frame, FTGB Flanged Frame

Extruded Aluminum Combination Drainable Blade Louver

CARNES COMPANY, 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: [phone] Fax: [phone] [e-mail]

CARNES COMPANY © 2007 COPYRIGHT

ALL RIGHTS RESERVED

17123, pg 1

Model FPGB

Standard Specifications
Frame: .125 extruded aluminum, 6.20” deep
Adjustable Blade: .125 extruded aluminum
Fixed Blade: .081 extruded aluminum positioned on a 37° angle on

approximately 3.58” centers

Linkage: exposed
Finish: mill aluminum (std.)
Screen: 3/4” x .051” flattened aluminum in removable frame. Screen is

mounted on inside (rear) as looking from exterior of building.
Maximum Panel Size: 48”w x 96”h single section. Factory assembled
multi-section max: 108”w x 48”h. Larger sizes are field assembled.

Minimum Panel Size: 12” x 12”
Note: Drainable blade louvers should be limited to 10’ maximum section

widths (no more than 10’ between vertical downspouts) to enable the drain­able design to function effectively.

Options (at additional cost)

- Filter Racks

- Security Bars

- Special Shapes

- Variety of Screens

- Manual or Motor Operators

- Blade and Jamb Seals

- Selection of finishes; prime coat, kynar, baked enamel, clear and color
anodize, epoxy and heresite

Consult Carnes for other special requriements.

Tag Qty.

Size

Frame Variations

Width Height

Project Location
Arch./Engr. Contractor
Representative Date

Section View

6.20”

3.58”

*W

*H

Flanged Frame

Optional

1.50”

H

Extended Sill

Optional

The Carnes Company certifies that the model
FPGB/FTGB louver shown herein is licensed to
bear the AMCA Seal. The ratings shown are
based on tests and procedures performed in
accordance with AMCA Publication 511 and
comply with the requirements of the AMCA
Certified Ratings Program. The AMCA Certified
Ratings Seal applies to air performance ratings
and water penetration ratings.

17123, pg 2

Free Area in Square Feet

HEIGHT

INCHES

WIDTH IN INCHES

12 18 24 30 36 42 48 54 60 66 72 78 84 90 96 102 108 114 120
12 0.19 0.3 0.42 0.54 0.65 0.77 0.89 1.01 1.12 1.24 1.36 1.47 1.59 1.71 1.82 1.94 2.06 2.18 2.29
18 0.41 0.67 0.93 1.19 1.45 1.72 1.98 2.24 2.5 2.76 3.02 3.28 3.54 3.8 4.06 4.32 4.58 4.84 5.1
24 0.68 1.11 1.54 1.97 2.4 2.83 3.26 3.69 4.12 4.55 4.98 5.41 5.84 6.27 6.7 7.13 7.56 7.99 8.42
30 0.88 1.43 1.99 2.54 3.09 3.65 4.2 4.75 5.31 5.86 6.41 6.97 7.52 8.07 8.63 9.18 9.73 10.29 10.84
36 1.09 1.78 2.46 3.15 3.83 4.52 5.21 5.89 6.58 7.26 7.95 8.63 9.32 10.01 10.69 11.38 12.06 12.75 13.43
42 1.36 2.22 3.08 3.93 4.79 5.65 6.5 7.36 8.22 9.07 9.93 10.79 11.64 12.5 13.36 14.21 15.07 15.93 16.78
48 1.56 2.54 3.52 4.5 5.48 6.46 7.44 8.42 9.4 10.38 11.35 12.33 13.31 14.29 15.27 16.25 17.23 18.21 19.19
54 1.75 2.86 3.96 5.06 6.17 7.27 8.37 9.47 10.58 11.68 12.78 13.89 14.99 16.09 17.19 18.3 19.4 20.5 21.61
60 2.04 3.33 4.61 5.89 7.18 8.46 9.74 11.02 12.31 13.59 14.87 16.16 17.44 18.72 20.01 21.29 22.57 23.86 25.14
66 2.24 3.64 5.05 6.45 7.86 9.27 10.67 12.08 13.48 14.89 16.3 17.7 19.11 20.51 21.92 23.32 24.73 26.14 27.54
72 2.39 3.9 5.4 6.9 8.41 9.91 11.42 12.92 14.42 15.93 17.43 18.93 20.44 21.94 23.45 24.95 26.45 27.96 29.46
78 2.72 4.43 6.14 7.85 9.56 11.27 12.98 14.69 16.4 18.11 19.82 21.53 23.24 24.95 26.65 28.36 30.07 31.78 33.49
84 2.91 4.74 6.57 8.4 10.23 12.06 13.9 15.73 17.56 19.39 21.22 23.05 24.88 26.71 28.54 30.37 32.2 34.03 35.86
90 3.12 5.08 7.04 9 10.97 12.93 14.89 16.85 18.81 20.77 22.73 24.69 26.66 28.62 30.58 32.54 34.5 36.46 38.42
96 3.4 5.54 7.67 9.81 11.95 14.08 16.22 18.36 20.49 22.63 24.77 26.9 29.04 31.18 33.31 35.45 37.59 39.72 41.86

102 3.59 5.85 8.11 10.36 12.62 14.88 17.13 19.39 21.65 23.91 26.16 28.42 30.68 32.93 35.19 37.45 39.71 41.96 44.22
108 3.8 6.18 8.57 10.96 13.34 15.73 18.12 20.5 22.89 25.28 27.66 30.05 32.44 34.82 37.21 39.6 41.98 44.37 46.76
114 4.08 6.64 9.21 11.77 14.33 16.9 19.46 22.02 24.58 27.15 29.71 32.27 34.84 37.4 39.96 42.53 45.09 47.65 50.22
120 4.27 6.95 9.64 12.32 15.01 17.69 20.37 23.06 25.74 28.42 31.11 33.79 36.48 39.16 41.84 44.53 47.21 49.89 52.58

Beginning point of WATER PENETRATION is 1158 fpm
free area velocity at .01 oz. of water penetration

Pressure Drop Water Penetration

Static Pressure Drop (inches w.g.)

oz per sq ft of louver FREE AREA

(Test size 48 x 48 - 15 min test period)

FREE AREA VELOCITY (FT/MIN)

Standard air - .075 lbs per cu ft
Ratings do not include the effects of a wire bird screen
Test based on a 48” x 48” test size, 15 min test duration

Free Area Velocity (ft/min)

Standard Air - .075lb/ft
