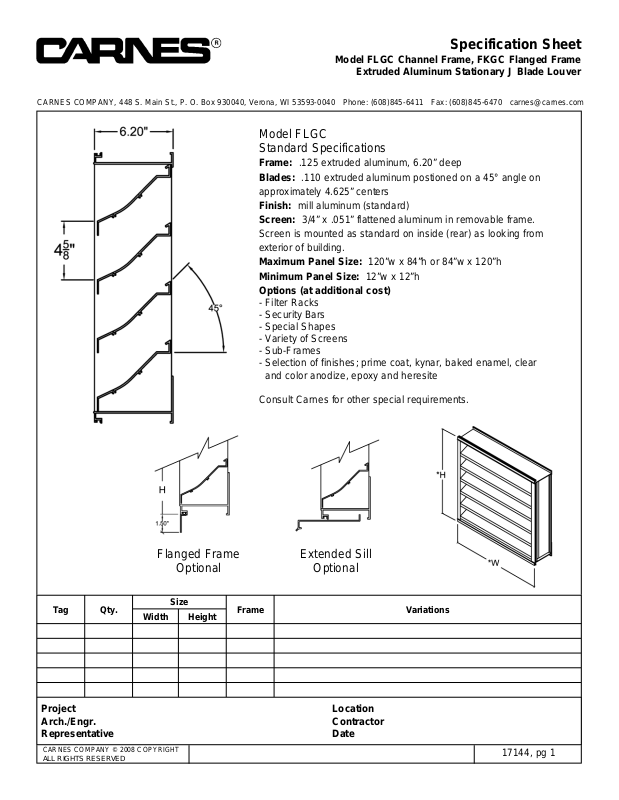

Carnes FLGC User Manual

Specification Sheet

Model FLGC Channel Frame, FKGC Flanged Frame

Extruded Aluminum Stationary J Blade Louver

CARNES COMPANY, 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: [phone] Fax: [phone] [e-mail]

CARNES COMPANY © 2008 COPYRIGHT

ALL RIGHTS RESERVED

17144, pg 1

Tag Qty.

Size

Frame Variations

Width Height

Project Location
Arch./Engr. Contractor
Representative Date

Model FLGC
Standard Specifications

Frame: .125 extruded aluminum, 6.20” deep
Blades: .110 extruded aluminum postioned on a 45° angle on

approximately 4.625” centers

Finish: mill aluminum (standard)
Screen: 3/4” x .051” flattened aluminum in removable frame.

Screen is mounted as standard on inside (rear) as looking from
exterior of building.

Maximum Panel Size: 120”w x 84”h or 84”w x 120”h
Minimum Panel Size: 12”w x 12”h
Options (at additional cost)

- Filter Racks

- Security Bars

- Special Shapes

- Variety of Screens

- Sub-Frames

- Selection of finishes; prime coat, kynar, baked enamel, clear
and color anodize, epoxy and heresite

Consult Carnes for other special requirements.

Extended Sill

Optional

Flanged Frame

Optional

The Carnes Company certifies that the model
FLGC/FKGC louver shown herein is licensed to
bear the AMCA Seal. The ratings shown are
based on tests and procedures performed in
accordance with AMCA Publication 511 and
comply with the requirements of the AMCA
Certified Ratings Program. The AMCA Certified
Ratings Seal applies to air performance ratings
and water penetration ratings.

17144, pg 2

Pressure Drop

FREE AREA VELOCITY (FT/MIN)

Standard air - .075 lbs per cu ft
Ratings do not include the effect of a wire birdscreen
Test based on a 48" x 48" test size, 15 min test duration

Water Penetration

oz per sq ft of louver FREE AREA

(Test size 48 x 48 - 15 min test period)

Free Area in Square Feet

HEIGHT WIDTH IN INCHES
INCHES 12 18 24 30 36 42 48 54 60 66 72 78 84 90 96 102 108 114 120

12 0.52 0.77 1.03 1.29 1.55 1.81 2.07 2.32 2.58 2.84 3.10 3.36 3.61 3.87 4.13 4.39 4.65 4.90 5.16
18 0.77 1.16 1.55 1.94 2.32 2.71 3.10 3.48 3.87 4.26 4.65 5.03 5.42 5.81 6.20 6.58 6.97 7.36 7.74
24 1.03 1.55 2.07 2.58 3.10 3.61 4.13 4.65 5.16 5.68 6.20 6.71 7.23 7.74 8.26 8.78 9.29 9.81 10.33
30 1.29 1.94 2.58 3.23 3.87 4.52 5.16 5.81 6.45 7.10 7.74 8.39 9.03 9.68 10.33 10.97 11.62 12.26 12.91
36 1.55 2.32 3.10 3.87 4.65 5.42 6.20 6.97 7.74 8.52 9.29 10.07 10.84 11.62 12.39 13.16 13.94 14.71 15.49
42 1.81 2.71 3.61 4.52 5.42 6.32 7.23 8.13 9.03 9.94 10.84 11.74 12.65 13.55 14.46 15.36 16.26 17.17 18.07
48 2.07 3.10 4.13 5.16 6.20 7.23 8.26 9.29 10.33 11.36 12.39 13.42 14.46 15.49 16.52 17.55 18.59 19.62 20.65
54 2.32 3.48 4.65 5.81 6.97 8.13 9.29 10.45 11.62 12.78 13.94 15.10 16.26 17.42 18.59 19.75 20.91 22.07 23.23
60 2.58 3.87 5.16 6.45 7.74 9.03 10.33 11.62 12.91 14.20 15.49 16.78 18.07 19.36 20.65 21.94 23.23 24.52 25.81
66 2.84 4.26 5.68 7.10 8.52 9.94 11.36 12.78 14.20 15.62 17.04 18.46 19.88 21.30 22.72 24.13 25.55 26.97 28.39
72 3.10 4.65 6.20 7.74 9.29 10.84 12.39 13.94 15.49 17.04 18.59 20.13 21.68 23.23 24.78 26.33 27.88 29.43 30.98
78 3.36 5.03 6.71 8.39 10.07 11.74 13.42 15.10 16.78 18.46 20.13 21.81 23.49 25.17 26.85 28.52 30.20 31.88 33.56
84 3.61 5.42 7.23 9.03 10.84 12.65 14.46 16.26 18.07 19.88 21.68 23.49 25.30 27.10 28.91 30.72 32.52 34.33 36.14
90 3.87 5.81 7.74 9.68 11.62 13.55 15.49 17.42 19.36 21.30 23.23 25.17 27.10 29.04 30.98 32.91 34.85 36.78 38.72

96 4.13 6.20 8.26 10.33 12.39 14.46 16.52 18.59 20.65 22.72 24.78 26.85 28.91 30.98 33.04 35.11 37.17 39.24 41.30
102 4.39 6.58 8.78 10.97 13.16 15.36 17.55 19.75 21.94 24.13 26.33 28.52 30.72 32.91 35.11 37.30 39.49 41.69 43.88
108 4.65 6.97 9.29 11.62 13.94 16.26 18.59 20.91 23.23 25.55 27.88 30.20 32.52 34.85 37.17 39.49 41.82 44.14 46.46
114 4.90 7.36 9.81 12.26 14.71 17.17 19.62 22.07 24.52 26.97 29.43 31.88 34.33 36.78 39.24 41.69 44.14 46.59 49.04
120 5.16 7.74 10.33 12.91 15.49 18.07 20.65 23.23 25.81 28.39 30.98 33.56 36.14 38.72 41.30 43.88 46.46 49.04 51.63

Beginning point of WATER PENETRATION is 834 fpm
free area velocity at .01 oz. of water penetration
