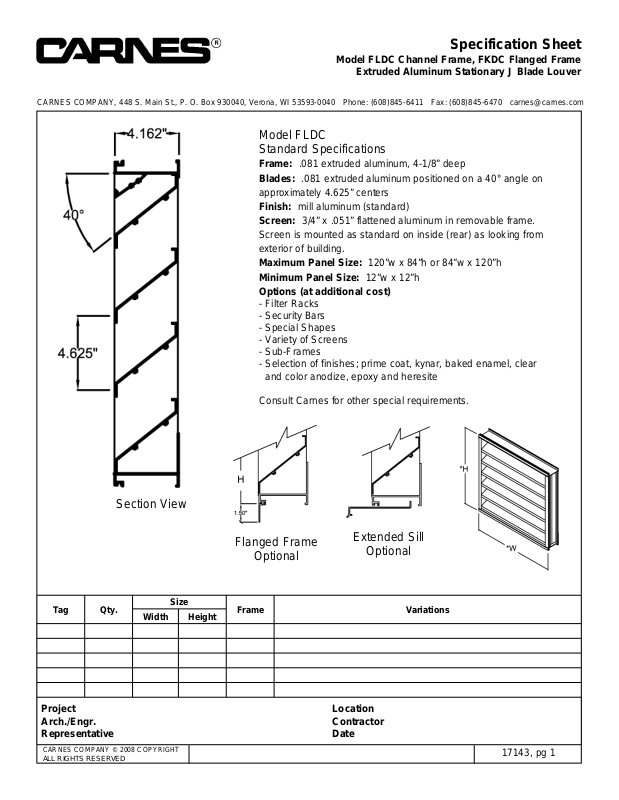

Specification Sheet

Model FLDC Channel Frame, FKDC Flanged Frame

Extruded Aluminum Stationary J Blade Louver

CARNES COMPANY, 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: [phone] Fax: [phone] [e-mail]

CARNES COMPANY © 2008 COPYRIGHT

ALL RIGHTS RESERVED

17143, pg 1

Tag Qty.

Size

Frame Variations

Width Height

Project Location
Arch./Engr. Contractor
Representative Date

Model FLDC
Standard Specifications

Frame: .081 extruded aluminum, 4-1/8” deep
Blades: .081 extruded aluminum positioned on a 40° angle on

approximately 4.625” centers

Finish: mill aluminum (standard)
Screen: 3/4” x .051” flattened aluminum in removable frame.

Screen is mounted as standard on inside (rear) as looking from
exterior of building.

Maximum Panel Size: 120”w x 84”h or 84”w x 120”h
Minimum Panel Size: 12”w x 12”h
Options (at additional cost)

- Filter Racks

- Security Bars

- Special Shapes

- Variety of Screens

- Sub-Frames

- Selection of finishes; prime coat, kynar, baked enamel, clear
and color anodize, epoxy and heresite

Consult Carnes for other special requirements.

Section View

Extended Sill

Optional

Flanged Frame

Optional

The Carnes Company certifies that the model
FLDC/FKDC louver shown herein is licensed to
bear the AMCA Seal. The ratings shown are
based on tests and procedures performed in
accordance with AMCA Publication 511 and
comply with the requirements of the AMCA
Certified Ratings Program. The AMCA Certified
Ratings Seal applies to air performance ratings
and water penetration ratings.

17143, pg 2

Free Area in Square Feet

Pressure Drop

FREE AREA VELOCITY (FT/MIN)

Standard air - .075 lbs per cu ft
Ratings do not include the effect of a wire birdscreen
Test based on a 48" x 48" test size, 15 min test duration

Water Penetration

oz per sq ft of louver FREE AREA

(Test size 48 x 48 - 15 min test period)

HEIGHT WIDTH IN INCHES
INCHES 12 18 24 30 36 42 48 54 60 66 72 78 84 90 96 102 108 114 120

12 0.19 0.31 0.43 0.54 0.66 0.78 0.89 1.01 1.13 1.24 1.36 1.48 1.59 1.71 1.83 1.94 2.06 2.18 2.29
18 0.50 0.80 1.10 1.41 1.71 2.01 2.31 2.62 2.92 3.22 3.53 3.83 4.13 4.43 4.74 5.04 5.34 5.65 5.95
24 0.77 1.23 1.70 2.16 2.63 3.09 3.56 4.02 4.49 4.96 5.42 5.89 6.35 6.82 7.28 7.75 8.21 8.68 9.14
30 0.96 1.54 2.13 2.71 3.30 3.88 4.46 5.05 5.63 6.22 6.80 7.38 7.97 8.55 9.13 9.72 10.30 10.89 11.47
36 1.15 1.85 2.55 3.25 3.96 4.66 5.36 6.06 6.76 7.46 8.16 8.86 9.56 10.26 10.96 11.66 12.36 13.06 13.76
42 1.43 2.29 3.16 4.02 4.89 5.76 6.62 7.49 8.36 9.22 10.09 10.95 11.82 12.69 13.55 14.42 15.29 16.15 17.02
48 1.61 2.59 3.57 4.55 5.53 6.51 7.49 8.47 9.45 10.43 11.41 12.39 13.37 14.35 15.33 16.31 17.29 18.27 19.25
54 1.92 3.09 4.26 5.42 6.59 7.76 8.93 10.10 11.26 12.43 13.60 14.77 15.93 17.10 18.27 19.44 20.61 21.77 22.94
60 2.11 3.40 4.68 5.97 7.25 8.54 9.82 11.11 12.39 13.67 14.96 16.24 17.53 18.81 20.10 21.38 22.67 23.95 25.23
66 2.35 3.78 5.21 6.64 8.07 9.50 10.93 12.36 13.79 15.22 16.65 18.08 19.51 20.94 22.37 23.80 25.23 26.66 28.09
72 2.81 4.52 6.23 7.94 9.65 11.36 13.07 14.78 16.49 18.20 19.90 21.61 23.32 25.03 26.74 28.45 30.16 31.87 33.58
78 2.88 4.63 6.39 8.14 9.89 11.64 13.39 15.14 16.90 18.65 20.40 22.15 23.90 25.65 27.40 29.16 30.91 32.66 34.41
84 3.07 4.94 6.81 8.68 10.55 12.42 14.28 16.15 18.02 19.89 21.76 23.63 25.49 27.36 29.23 31.10 32.97 34.84 36.70
90 3.28 5.27 7.27 9.26 11.25 13.25 15.24 17.23 19.23 21.22 23.21 25.21 27.20 29.19 31.18 33.18 35.17 37.16 39.16

96 3.55 5.70 7.86 10.02 12.17 14.33 16.48 18.64 20.80 22.95 25.11 27.26 29.42 31.57 33.73 35.89 38.04 40.20 42.35
102 3.82 6.13 8.45 10.77 13.09 15.41 17.73 20.05 22.36 24.68 27.00 29.32 31.64 33.96 36.28 38.59 40.91 43.23 45.55
108 3.96 6.37 8.78 11.19 13.60 16.01 18.42 20.82 23.23 25.64 28.05 30.46 32.87 35.28 37.68 40.09 42.50 44.91 47.32
114 4.24 6.81 9.38 11.96 14.53 17.10 19.68 22.25 24.82 27.40 29.97 32.54 35.12 37.69 40.26 42.84 45.41 47.98 50.56
120 4.28 6.89 9.49 12.09 14.69 17.30 19.90 22.50 25.10 27.71 30.31 32.91 35.51 38.12 40.72 43.32 45.92 48.53 51.13

Beginning point of WATER PENETRATION is 812 fpm
free area velocity at .01 oz. of water penetration

Standard Air - .075lb/ft.

3

0.9

1.0

0.8

0.7

0.5

0.6

0.4

0.3

0.2

0.15

0.09

0.10

0.08

0.07

0.05

0.06

0.04

0.03

0.02

0.01
