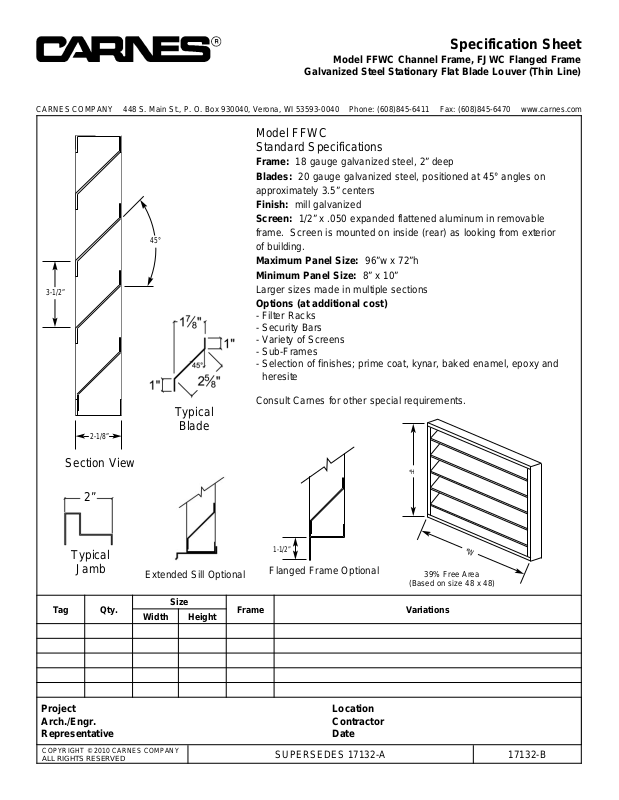

Specification Sheet

Model FFWC Channel Frame, FJWC Flanged Frame

Galvanized Steel Stationary Flat Blade Louver (Thin Line)

CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: [phone] Fax: [phone] www.carnes.com

COPYRIGHT © 2010 CARNES COMPANY

ALL RIGHTS RESERVED

SUPERSEDES 17132-A 17132-B

Tag Qty.

Size

Frame Variations

Width Height

Project Location
Arch./Engr. Contractor
Representative Date

Model FFWC
Standard Specifications

Frame: 18 gauge galvanized steel, 2” deep
Blades: 20 gauge galvanized steel, positioned at 45° angles on

approximately 3.5” centers

Finish: mill galvanized
Screen: 1/2” x .050 expanded flattened aluminum in removable

frame. Screen is mounted on inside (rear) as looking from exterior
of building.

Maximum Panel Size: 96”w x 72”h
Minimum Panel Size: 8” x 10”

Larger sizes made in multiple sections

Options (at additional cost)

- Filter Racks

- Security Bars

- Variety of Screens

- Sub-Frames

- Selection of finishes; prime coat, kynar, baked enamel, epoxy and
heresite

Consult Carnes for other special requirements.

Flanged Frame Optional

*W

*H

1-1/2”

Extended Sill Optional

2-1/8”

Section View

3-1/2”

45°

39% Free Area

(Based on size 48 x 48)

Typical

Blade

Typical

Jamb

2”
