Carnes EHJA User Manual

CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6504 www.carnes.com
COPYRIGHT © 2012 CARNES COMPANY
ALL RIGHTS RESERVED
40054, pg 1

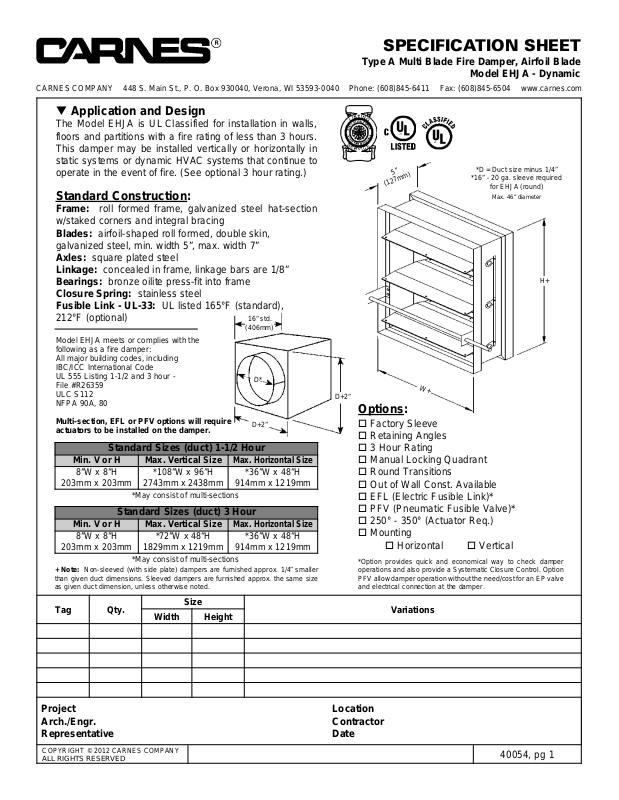

SPECIFICATION SHEET
Type A Multi Blade Fire Damper, Airfoil Blade
Model EHJA - Dynamic
Tag Qty.
Variations
Width Height
Project Location Arch./Engr. Contractor Representative Date
t Application and Design
The Model EHJA is UL Classified for installation in walls, floors and partitions with a fire rating of less than 3 hours. This damper may be installed vertically or horizontally in static systems or dynamic HVAC systems that continue to operate in the event of fire. (See optional 3 hour rating.)
Standard Construction:
Frame: roll formed frame, galvanized steel hat-section
w/staked corners and integral bracing Blades: airfoil-shaped roll formed, double skin, galvanized steel, min. width 5”, max. width 7”
Axles: square plated steel Linkage: concealed in frame, linkage bars are 1/8” Bearings: bronze oilite press-fit into frame Closure Spring: stainless steel Fusible Link - UL-33: UL listed 165°F (standard),
212°F (optional)
Model EHJA meets or complies with the following as a fire damper: All major building codes, including IBC/ICC International Code UL 555 Listing 1-1/2 and 3 hour ­File #R26359 ULC S112 NFPA 90A, 80
Multi-section, EFL or PFV options will require actuators to be installed on the damper.
Standard Sizes (duct) 1-1/2 Hour
Min. V or H Max. Vertical Size
Max. Horizontal Size
8”W x 8”H
203mm x 203mm
*108”W x 96”H
2743mm x 2438mm
*36”W x 48”H
914mm x 1219mm
*May consist of multi-sections
5”
(127mm)
H+
W+
+ Note: Non-sleeved (with side plate) dampers are furnished approx. 1/4” smaller than given duct dimensions. Sleeved dampers are furnished approx. the same size as given duct dimension, unless otherwise noted.
16” std.
(406mm)
D+2”
D+2”
*D = Duct size minus 1/4”
*16” - 20 ga. sleeve required
for EHJA (round)
Max. 46” diameter
D*
Standard Sizes (duct) 3 Hour
Min. V or H Max. Vertical Size
Max. Horizontal Size
8”W x 8”H
203mm x 203mm
*72”W x 48”H
1829mm x 1219mm
*36”W x 48”H
914mm x 1219mm
*May consist of multi-sections
Options:
Factory SleeveRetaining Angles3 Hour RatingManual Locking QuadrantRound TransitionsOut of Wall Const. AvailableEFL (Electric Fusible Link)*PFV (Pneumatic Fusible Valve)*250° - 350° (Actuator Req.)Mounting
Horizontal Vertical
*Option provides quick and economical way to check damper operations and also provide a Systematic Closure Control. Option PFV allow damper operation without the need/cost for an EP valve and electrical connection at the damper.
40054, pg 2
Model EHJA - Type A Multi Blade Fire Damper
PERFORMANCE DATA
Pressure drop testing was done by an independent laboratory to the AMCA Standard 500-D, Fig. 5.3 ductwork upstream and downstream.
DAMPER SIZE 36 x 36
VELOCITY THROUGH FACE AREA
PRESSURE DROP - INCHES OF WATER (In. W.C.)
1.0 .9 .8 .7
.6 .5
.4 .3
.25
.2
.15
.1
.09 .08 .07
.06 .05
.04 .03
.025
.02
.015
.01
100
1000
150 200 300 400500 700 900 1500 2000 3000 4000 6000
Single Section
w/Hand Quadrant
Multi-Section
w/Actuator
16”
Sleeve
Control Shaft
4-7/16”
6”
4”
1½”
UL Rated
Fire Wall
Break Away Connection
Break Away Connection
Retaining Angle
Retaining
Angle
Hand Quad
Mounting Area
1½”
1½”
1½”
16”
Sleeve
2¼”
1 Hour
Fire Wall
Break Away Connection
Break Away Connection
Retaining Angle
Retaining
Angle
Actuator
Mounting Area
1½”
1½”
4¼”
1¾”
4¾”
Motor Location
DAMPER SIZE 24 x 24
VELOCITY THROUGH FACE AREA
PRESSURE DROP - INCHES OF WATER (In. W.C.)
1.0 .9 .8 .7
.6 .5
.4 .3
.25
.2
.15
.1
.09 .08
.07 .06 .05
.04 .03
.025
.02
.015
.01
100
1000
150 200 300 400 500 700 900 15002000 3000 4000 6000
1.5
2.0
2.5
DAMPER SIZE 12 x 12
VELOCITY THROUGH FACE AREA
PRESSURE DROP - INCHES OF WATER (In. W.C.)
1.0 .9 .8 .7
.6 .5
.4 .3
.25
.2
.15
.1
.09 .08 .07
.06 .05
.04 .03
.025
.02
.015
.01
100
1000
150 200 300 400 500 700 900 1500 2000
3000 4000 6000
1.5
2.0
2.5
