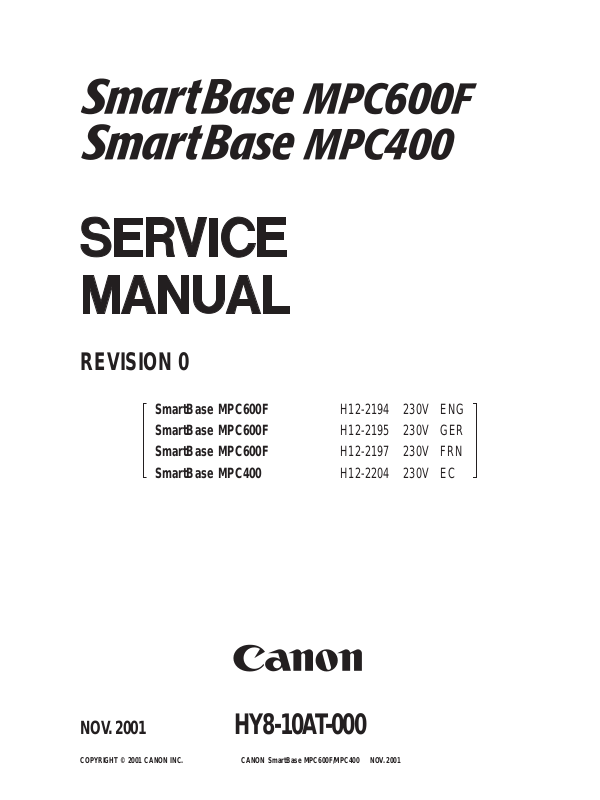

REVISION 0

SmartBase MPC600F H12-2194 230V ENG SmartBase MPC600F H12-2195 230V GER SmartBase MPC600F H12-2197 230V FRN SmartBase MPC400 H12-2204 230V EC

HY8-10AT-000NO V . 2001

Application

This manual has been issued by Canon Inc. for qualified persons to learn technical theory , installation, maintenance, and repair of products. This manual covers all localities where the products are sold. For this reason, there may be information in this manual that does not apply to your locality.

Corrections

This manual may contain technical inaccuracies or typographical errors due to improvements or changes in products. When changes occur in applicable products or in the content of this manual, Canon will release technical information as the need arises. In the event of major changes in the contents of this manual, Canon will issue a new editions of this manual.

The following paragraph does not apply to any countries where such pro visions ar e inconsistent with local law.

T rademarks

The product names and company names described in this manual are the registered trademarks of the individual companies.

This manual is copyrighted with all rights reserved. Under the copyright laws, this manual may not be copied, reproduced or translated into another language, in whole or in part, without the written consent of Canon Inc.

DTP System

This manual was produced on a Windows98

, personal computer, final pages were printed on AGFA SelectSet A v antra 25. All graphics were produced with Adobe Illustrator 9.0J®. All documents and all page layouts were created with Adobe PageMaker 6.5

I. MEANING OF MARKS

The marks used in this manual have the following meanings.

Mark Meaning

States a precaution to be taken to prevent danger to personnel, damage to the product, or damage to electronic components by discharge of static electricity. for example.

States a precaution to be taken to prevent damage to electronic components by electrostatic discharge.

If the following mark is used, following the directions given.

Informs you of fire-related cautions.

Informs you that the plug must be removed from the power outlet before starting an operation.

Gives useful information to understand descriptions.

Indicates sections to be read to obtain more detailed information.

II. ABOUT THIS MANUAL

This manual is divided into five parts, and contains information required for servicing the product.

Each of the above parts is further divided into the following four chapters:

Chapter 1: General Description

This part explains product specifications and the how to service the unit safely. It is very important, so please read it.

Chapter 2: Technical Reference

This part explains the technical theory the product.

Chapter 3: Assembly and Disassembly

This part explains the assembly and disassembly of the product.

Chapter 4: Maintenance and Service

This part explains how to maintain the products for adjustment and troubleshooting and service operations and service switches.

Chapter 5: Appendix

This part explains the informations of the optional products and user data flow.

• For more details of user operations and user reports, see the separate volume of

GUIDE

• Detailed description of each SSSW/parameter is not given in this manual except the new SSSWs/parameters added to this model. See

• See the the error codes not shown in this manual.

G3 Facsimile Service Data Handbook (supplied separately)

G3/G4 Facsimile Error Code List (Rev.2, supplied separately)

for details them.

USER'S

for details of

III. REVISION HISTORY

REVISION CONTENT

0 Original

III

IV. TABLE OF CONTENTS

Page 1 - 1 1. FEATURES 1 - 1 1.1 Overview 1 - 2 2. SPECIFICATIONS 1 - 2 2.1 General Specification 1 - 2 2.2 Communication Specification (SmartBase MPC600F only) 1 - 3 2.3 Color Communication Specification (SmartBase MPC600F only) 1 - 4 2.4 Scanner Specification 1 - 6 2.5 Printer Specification 1 - 9 2.6 Copy Specification 1 -10 2.7 Function 1 -12 3. OVERVIEW 1 -12 3.1 External View 1 -13 3.2 Operation Panel 1 -16 3.3 Consumables 1 -16 3.3.1 BJ cartridge and ink cartridge 1 -17 3.3.2 Print media

Chapter 1: General Description

Chapter 2: Technical Reference

2 - 1 1. COMPONENT LAYOUT 2 - 1 1.1 Parts Layout 2 - 4 2. SCANNER MECHANISM 2 - 6 3. PRINTER SECTION 2 - 6 3.1 Overview of the Printer's Mechanical Parts 2 - 7 3.1.1 Carriage 2 - 7 3.1.2 Purge section 2 - 7 3.1.3 Paper feed section 2 - 8 3.2 Paper Feed Section 2 - 8 3.2.1 Paper feed components 2 - 9 3.2.2 Friction separation system 2 - 9 3.2.3 Paper transport section 2 - 9 3.2.4 Paper discharge section 2 -10 3.3 About the Ink Sensor 2 -12 3.4 Purge Section 2 -12 3.4.1 Purge section functions 2 -13 3.4.2 Purge section components 2 -15 3.5 Ink Suction Amount in the Cleaning Mode 2 -16 4. NEW FUNCTION

Chapter 3: Assembly and Disassembly

3 - 1 1. ATTENTION TO BE PAID DURING ASSEMBLY/ DISASSEMBLY 3 - 1 1.1 Safety Cautions 3 - 2 1.2 General Cautions 3 - 3 1.3 Product-Inherent Cautions 3 - 3 1.4 Action in the Event of Abnormality (All Clear) 3 - 4 1.5 Removal of red screws prohibited 3 - 4 1.6 Transporting the machine 3 - 5 2. DISASSEMBLY/ASSEMBLY 3 - 5 2.1 Parts Layout 3 - 8 2.2 Disassembly Work-Flow 3 - 9 2.3 Disassembly Procedure

Chapter 4: Maintenance and Service

4 - 1 1. MAINTENANCE LIST 4 - 1 1.1 Consumables 4 - 1 1.2 Cleaning 4 - 2 1.3 Periodic Inspection 4 - 2 1.4 Periodic Replacement Parts 4 - 2 1.5 Adjustment Items 4 - 3 1.6 General Tools 4 - 3 1.7 Special Tools 4 - 4 2. HOW TO CLEAN PARTS 4 - 4 2.1 Main Unit Outer Covers 4 - 4 2.2 Pickup/Separation Roller (SmartBase MPC600F only) 4 - 4 2.3 Document U-Turn/Feed/Eject Roller (SmartBase MPC600F only) 4 - 4 2.4 Separation Guide (SmartBase MPC600F only) 4 - 4 2.5 Document Guide Sheet (SmartBase MPC600F only) 4 - 4 2.6 White Sheet (SmartBase MPC600F only) 4 - 4 2.7 Document Glass 4 - 4 2.8 Printer Platen 4 - 6 3. ADJUSTMENT 4 - 6 3.1 CS LED Lights-on Duration Adjustment 4 - 7 3.2 When Adjustment of the Print Head Position is Required 4 -10 4. TROUBLESHOOTING 4 -10 4.1 Troubleshooting Index 4 -12 4.2 Errors Shown on the Display 4 -12 4.2.1 User error message 4 -17 4.2.2 Error codes 4 -23 4.3 Errors not Shown on the Display 4 -23 4.3.1 General errors 4 -24 4.3.2 Printing problems 4 -26 4.3.3 Scanning problems 4 -28 4.4 Processing Communication Problems

4 -28 4.4.1 Initial identification of problems 4 -29 4.4.2 Procedures for processing communication problems 4 -31 5. SERVICE SWITCHES 4 -31 5.1 Hardware Switches 4 -32 5.2 Service Data Setting 4 -32 5.2.1 Service data overview 4 -33 5.2.2 Service data registration/setting method 4 -34 5.2.3 Service data setting 4 -41 5.2.4 Explanation of service data 4 -42 5.2.5 New SSSWs/parameters added to this model 4 -56 6. TEST FUNCTIONS 4 -56 6.1 User Test Print Functions 4 -56 6.1.1 Nozzle check pattern 4 -57 6.2 Service Test Functions 4 -57 6.2.1 Test mode overview 4 -58 6.2.2 Test mode flowchart 4 -60 6.2.3 D-RAM tests 4 -60 6.2.4 CS tests 4 -61 6.2.5 PRINT test 4 -62 6.2.6 Modem and NCU tests 4 -66 6.2.7 Faculty tests 4 -71 7. SERVICE REPORT 4 -71 7.1 Report Output Function 4 -71 7.1.1 User report output functions 4 -72 7.1.2 Service report output functions 4 -85 8. WIRING DIAGRAM 4 -85 8.1 Wiring Diagram

Chapter 5: Appendix

5 - 1 1. USER DATA FLOW 5 - 1 1.1 User Data Flow (by Operation Panel) 5 - 5 1.2 User Data Flow (by MultiPASS Suite)

Chapter 1

General Description

SmartBase MPC600F/MPC400 Chapter 1: General Description

1. FEATURES

1.1 Overview

This product is a G3 transreceiving facsimile based on the ITU-T recommendations. It can be used in telephone networks.

Picture Quality Color Printer

High quality printing can be accomplished with the Canon Bubble Jet (BJ) method using the maximum 2400dpi × 1200dpi resolution. Various kinds of media can be printed with the high speed of a maximum 17 pages per minute. The printing paper tray can hold up to 100 sheets of plain paper, 30 sheets of transparencies film, or 10 envelopes.

Plain paper fax which can transmit/receive in color *

Conforming to ITU-T recommendations, this fax is able to transmit/receive in color. Due to containing extremely high-speed 33.6kbps modems, transmission time can be shortened. Pictures and photographs can both be send and received clearly by UHQ (Ultra High quality), Canon’s vivid image processing technology. Up to 30 letter, A4 and legal size sheets, can be set in the ADF *1. 9 one-touch dial entries and 100 speed dial entries can be registered, and group dial and broadcasting transmission can also be done. When paper and ink run out, the data is saved to memory, so there is no worry. When a externalphone is attached, fax communication and normal telephone reception are possible due to FAX/TEL switching.

Out-of-Ink Function

This machine has a function which detects when ink has run out. It also detects when the cartridges of machines equipped with color communications are out of ink. The presence/absence of ink in the ink chamber is detected by reflecting ink sensor.

Copy Function

This machine can be used as a 1200dpi × 1200dpi high resolution full color copier. With a monochrome document (including half-tone), up to 99 pages can be copied at one time at the speed of a maximum of 17 pages/minute.

Full Color & 256 Gradation Grayscale Scanner

Using graphics or OCR software which conforms to the TWAIN standard, full color and 256-gradation grayscale images with a quality of 40 ~ 9600 dpi can be read into a computer.

PC Fax

*1 SmartBase MPC600F only

By connecting this machine to a computer, a fax can be transmitted from the included MultiPASS Suite or from a Windows application, and a received image can be saved to the computer as-is without printing it out.

1-1

SmartBase MPC600F/MPC400 Chapter 1: General Description

2. SPECIFICATIONS

2.1 General Specification

Type Desktop Body colour Cool White Power source 180 ~ 264V AC, 48 ~ 62 Hz Power consumption Standby 5.8 W (SmartBase MPC400)

8.0 W (SmartBase MPC600F)

Max. 41.8 W

Usage environment. 50.0° F ~ 90.5° F (10° C ~ 32.5° C), 20% ~ 80% RH, 570 ~ 760

mmHg (760 ~ 1013 hPa) Horizontal ±3° or less

Operating noise Measured in accordance with ISO standards

Operating :50 dB(A) or less

Dimensions (W × D × H) 17.32" × 20.59" × 8.89" (440 mm × 523 × 228 mm) SmartBase

MPC400

17.32" × 20.59" × 11.85" (440 mm × 523 × 301 mm) SmartBase MPC600F (Not including trays)

Weight 22.05 lbs (10.0 kg) SmartBase MPC400

27.34 lbs (12.4 kg) SmartBase MPC600F (including trays)

2.2 Communication Specification (SmartBase MPC600F only)

Applicable lines PSTN (Public Switched Telephone Network) Applicable Services NET SWITCH (Australia)

Own Ringing (Fin) FAX ABILITY (New zealand)

Handset None Transmission method Half-duplex Transmission control protocol ITU-T T30 binary protocol/ECM protocol/

ITU-T V.8 protocol/V.34 protocol/ECM protocol

Modulation method

G3 image signals ITU-T V.27ter (2.4k, 4.8k bps)

ITU-T V.29 (7.2k, 9.6k bps) ITU-T V.17 (TC7.2k, TC9.6k, 12k, 14.4k bps) ITU-T V.34 (2.4k, 4.8k, 7.2k, 9.6k, 12k, 14.4k, 16.8k, 19.2k,

21.6k, 24k, 26.4k, 28.8k, 31.2k, 33.6k bps)

G3 procedure signals ITU-T V.21 (No.2) (300bps)

ITU-T V.8 300bps ITU-T V.34 600 bps, 1200 bps (With automatic fallback function)

Coding Black/white ITU-T T.4 Coding method (MH, MR)

ITU-T T.6 Coding method (MMR) ITU-T T.82/T.85 Coding method (JBIG)

Color ITU-T T.81 Coding method (JPEG)

1-2

SmartBase MPC600F/MPC400 Chapter 1: General Description

Error correction ITU-T T30 (ECM) Time required for transmission protocol

Pre-message Post-message Post-message *

Protocol Protocol *

Protocol *

Mode (between pages) (after pages)

G3 standard approx.12 sec. approx.4 sec. approx.3.5 sec. V.8/V.34 approx.9 sec. approx.1 sec. approx.1 sec.

*1 Time from when other facsimile is connected to the line until image transmission begins. *2 Post-message (between pages): Time from after one document has been sent until transmission of the

next document starts if several pages are transmitted.

*3 Post-message (after last pages): Time from after image transmission is completed until line is

switched from facsimile to telephone.

Minimum transmission time 10 msec (G3), 0 msec (G3, ECM) Transmission output level From 0 to -15 dBm Receive input level From -3 to -43 dBm Modem IC FM336

2.3 Color Communication Specification (SmartBase MPC600F only)

ITU-T recommendation ITU-T T.30 ANNEX E (JPEG Color Fax)

T.4 ANNEX E (JPEG Header) T.42 (Color space for Color Fax) T.81 (JPEG)

Scanning Document size A4 Printing paper size A4 Resolution 200×200 dpi Picture element 8 bit Coding JPEG Color space CIELAB Illuminant Data CIE Standard Illuminant D50 Sub sample 4:1:1 (=Lab)

1-3

SmartBase MPC600F/MPC400 Chapter 1: General Description

2.4 Scanner Specification

Type Book

Sheet (SmartBase MPC600F only)

ADF capacity Max. 30 sheets (A4/Letter/Legal) Effective scanning width Letter/Legal 8.42" (214 mm)

A4 8.19" (208 mm)

Scanning method Contact Image sensor scanning method Scanning resolution 600 × 1200 dpi Scanning speed

Mode Scanning speed

Text 5.3 second/page Gray scale 5.3 second/page Full color 15.8 second/page

Memory Scanning Canon FAX Standard Chart No.1 scanning

Max. approx. 270 sheet

Scanner gradations Grayscale; 8 bit, 256 gradations

Color; R,G,B (8 bits each) full color capability

TWAIN Yes Scanning density adjustment 9 density level Image modes Halftone (PHOTO mode) Halftone (fax and copy) 64-gradation error diffusion system (UHQ) Prescan Yes

1-4

SmartBase MPC600F/MPC400 Chapter 1: General Description

Scanning range

Sheet dimensions (W × L)

SmartBase MPC600F

ADF Maximum 8.50" × 39.3" (216 mm × 1000 mm) ADF Minimum 4.13" × 5.83" (105 mm × 148 mm) Document glass 8.50" × 11.7" (216 mm × 297 mm)

SmartBase MPC400

Document glass 8.50" × 14.0" (216 mm × 356 mm)

Thickness

ADF 0.002" ~ 0.005" (0.06 mm ~ 0.13 mm)

50~90 g/m

Document glass 0.79" (20 mm)

MAX. 0.16" (MAX. 4.0 mm) MAX. 0.16" (MAX. 4.0 mm)

COLOR FAX: MAX. 0.24"

(MAX. 6.0 mm)

MAX. 0.18" (MAX. 4.5 mm)

Letter/Legal*/A4

MAX. 0.18" (MAX. 4.5 mm)

* When using legal-size documents with the SmartBase MPC600F, load them into the ADF. **SmartBase MPC600F only

Figure 1-1 Scanning Range

Document scanning width “A4/LTR” is set in service data #1 SSSW SW06, bit4.

NOTE

1-5

SmartBase MPC600F/MPC400 Chapter 1: General Description

2.5 Printer Specification

Printing method Bubble-jet ink on-demand BJ Cartridge

Structure Detachable ink tanks for each color and BK/Cl (C, M, Y) integrated

head

Head BK: 320 nozzles, 2-column vertical array

Cl: 256 nozzles/color, 2-column vertical array/color Ink colors Pigment BK, dyes C, M, Y Ink tanks BCI-3eBK, BCI-3eC, BCI-3eM, BCI-3eY Weight BK: 32 g Cl (C, M, Y): 11 g

Ink Tank

Products name BCI-3eBK/BCI-3eC/BCI-3eM/BCI-3eY Product code F47- 3131 / F47- 3141/ F47- 3151/ F47- 3161 Weight 32g (BCI-3eBK)/11g (others)

Ink detection Optical LOW-Ink sense Printing speed Black Approx. 17 pages/minute (in case of character print)

Color Approx. 12 page/minute

Printing resolution 2400 dpi × 1200 dpi Paper output tray stacking Approx. 50 sheets (when using the recommended paper) Paper tray

Paper supply method ASF (Auto Sheet Feeder) Number of paper tray 1tray : Legal/Letter/A4/A5/B5 (Universal) Paper capacity Max. 0.40" (10 mm) thickness

plain paper (Approx. 100 sheets)

Weight 64 ~ 105 g/m

2.6 Copy Specification

Color copy Yes Multiple copy 99 copies Copy mode

Black & white DRAFT, TEXT, PHOTO Color FAST, NORMAL, FINE

Copy resolution

Black & white 600 dpi × 600 dpi Color 1200 dpi × 1200 dpi

Copy magnification ratio 25~400% Fixed ratio A4 → LTR, LGL → LTR, 4 × 6 inch → LTR

1-9

SmartBase MPC600F/MPC400 Chapter 1: General Description

2.7 Function

Dialling

Manual dialling Numeric button Auto dialing Max. 120 digits

One-touch:9, Coded speed:100, Numeric button:1

Group dial Max. 110 locations Redial Numeric button redial function (Max. 120 digits)

Transmission

Broadcast transmission Max. 110 locations (One-touch:9, Coded speed:100, Numeric

button:1)

Delayed transmission Yes (PC Assisted) Max. 30 reservation Confidential Tx/Rx None Relay broadcasting originating None Relay broadcasting None

Reception

Dual Access Yes FAX/TEL switching Yes

Method CNG detection Message None Pseudo CI None Pseudo ring Yes Pseudo ringback tone Yes

Reduction settings for reception Yes Automatic reduction of reception images Yes (100% ~ 70%) Built-in Answering machine None Answering machine connection Yes (Telephone answering priority type) Remote reception Yes (Remote ID method) Memory lock reception None Reception printing in reverse order None

Polling

Polling transmission None Polling reception Yes

Extended copy function

mirror Yes Image repeat Yes Entire document Yes

1-10

SmartBase MPC600F/MPC400 Chapter 1: General Description

Others

Closed network None Direct mail prevention None Memory box None Memory backup

Backup contents Dial registration data, User data, Service data, Time Backup IC 256 kbit SRAM for control Backup device Lithium battery 3.0V DC/220 mAh Battery life Approx. 5 years

Image data backup None Image Memory Approx. 4.3 MB Activity management Yes

a) User report

Activity management report (Every 20 transactions : always transmission and reception together) Activity report (sending/receiving) One-touch speed dialling list Coded speed dialling list Group dialling list Memory clear list User’s data list Document memory list Multi activity report

b) Service report

System data list System dump list Error list

Transmitting terminal identification Yes Time

Management data Year/month/date/day/hour/minute (24 hour display) Precision ±90 sec per month

Display 2 row × 20 digits Completion stamp None Program button None Hook button Yes Telephone exchange function None Speaker phone None Demo print function None HELP function None

1-11

SmartBase MPC600F/MPC400 Chapter 1: General Description

3. OVERVIEW

3.1 External View

Front View

ADF (AUTOMATIC DOCUMENT FEEDER)*

Holds documents for copying, scanning, and sending faxes, and feeds them automatically into the machine.

FEEDER COVER*

DOCUMENT GUIDES*

Adjust to the width of the document.

MULTI-PURPOSE TRAY and TRAY COVER

Hold plain paper and other print media.

DOCUMENT OUTPUT SLOT*

Documents come out here.

PLATEN GLASS COVER

Open to place a document on the platen glass.

OPERATION PANEL

Controls the machine.

PLATEN GLASS

* MPC600F model only

SCANNING UNIT

Lift up to install the Printhead (Cartridge) and Ink Tanks, and to adjust the paper thickness lever.

OPEN BUTTON

Push to lift up the scanning unit.

OUTPUT TRAY

Holds printed pages as they exit the machine.

Inside View

HOLDER

PAPER THICKNESS LEVER

Adjusts the gap between the printhead and the surface of the printing paper. Set the paper thickness lever to the right when loading envelopes, Banner Paper, and T-Shirt Transfers. For all other print media, set to the left.

Figure 1-5 External View

1-12

SmartBase MPC600F/MPC400 Chapter 1: General Description

3.2 Operation Panel

Operation Panel

This section describes buttons used when making copies and scanning.

MPC600F Model

ON/OFF

ON/OFF Button

Turns the machine on and off.

Resume ( ) Button

Resumes printing after an error is corrected. Also ejects a document remaining in the ADF.*

In Use/Memory Light*

Lights during copying and scanning.

Alarm ( ) Light

Flashes when an error occurs, or when the machine is out of paper or ink.

LCD

Displays messages and selections, and prompts during operation.

(-), (+) Buttons

Scroll through selections.

In Use/ Memory Alarm

Resume

Enlarge/ Reduce

Paper Select

Contrast

Image Quality

GHI

PQRS WXYZ

Menu ( ) Button

Displays the menu to customise operation of your machine.

OK Button

Selects and confirms settings.

Enlarge/Reduce ( ) Button

Sets the enlargement or reduction ratio of a document.

Paper Select ( ) Button

Selects the paper size and paper type when making copies.

Contrast ( ) Button

Selects the copy contrast.

Image Quality ( ) Button

Selects the copy resolution.

→ Fax Guide*

Copy Fax Scan

ABC

DEF

123

JKL MNO

456

TUV

789

Copy ( ) Button

Switches the standby display to Copy Mode.

Scan ( ) Button

Switches the standby display to Scan Mode. When the machine is connected to your PC, pressing this button starts scanning and sends the scanned data to your PC. In Scan Mode, pressing Start starts scanning. For details on scanning, → MultiPASS Suite User’s Guide.

Numeric Buttons

Enter the copy quantity and other numerical values.

(Stop/Reset) Button

Cancels copying and other operations, and returns the machine to standby mode.

(Start) Button

Starts copying and scanning.

Colour/B&W ( ) Button

Sets the machine for colour or black & white copying. For colour copying, press this button to turn on its light.

Colour

Redial/Pause

Coded Dial

Hook

→ Fax Guide*

/B&W

01 02 03 04

05 06 07 08

D.T. Polling R

ON/OFF

MPC400 Model

* MPC600F model only

Copy Scan

123 456

789

Figure 1-6 Operation Panel (1)

1-13

SmartBase MPC600F/MPC400 Chapter 1: General Description

01 02 03 04

Redial/Pause

05 06 07 08

Coded Dial

Hook

Hook Button

Engages or disengages the telephone line.

Coded Dial Button

Press this button and a two-digit code to dial a pre-registered fax/ telephone number or group.

Redial/Pause Button

Redials the last number that was dialled with the numeric buttons. Also enters pauses between or after the fax/telephone number when dialling or registering numbers.

D.T. Polling R

R Button

Dials the outside line access number

when the machine is connected through a switchboard (PBX).

Polling Button

Polls another fax machine.

D.T. Button*

Confirms the dial tone when dialling a fax/telephone number.

* This feature is only available for some countries.

One-Touch Speed Dial Buttons

Dial fax/telephone numbers pre-registered for one-touch speed dialling.

Figure 1-7 Operation Panel (2)

1-14

SmartBase MPC600F/MPC400 Chapter 1: General Description

Guidelines for Entering Numbers, Letters, and Symbols

When you come to a step that requires you to enter a name or number, refer to the table below to determine which numeric button to press for the character you want:

NOTE

Uppercase Letter Mode (:A)

• If you pause for more than two minutes between entering data, the machine will automatically return to standby mode.

Lowercase Letter Mode (:a)

Number Mode (:1)

Figure 1-8 Operation Panel (3)

1-15

SmartBase MPC600F/MPC400 Chapter 1: General Description

Ink Tank

BCI-3eBK

BCI-3eC

Ink Tank

BCI-3eM

Ink Tank

BCI-3eY

Ink Tank

3.3 Consumables

3.3.1 BJ cartridge and ink car tridge

Ink T anks

• For optimum printing results and to avoid printing problems, Canon recommends that you only use the Canon Ink Tanks described in this guide.

NOTE

There are four Ink Tanks: Black, cyan, magenta, and yellow.

Ink Tank

BCI-3eBK

Ink Tank

BCI-3eC

Ink Tank

BCI-3eM

Ink Tank

BCI-3eY

YELLOW INK TANK (BCI-3eY) MAGENTA INK TANK (BCI-3eM) CYAN INK TANK (BCI-3eC)

BLACK INK TANK (BCI-3eBK)

Figure 1-9 Consumables (1)

1-16

SmartBase MPC600F/MPC400 Chapter 1: General Description

3.3.2 Print media Description of print media

■■

■ Plain Paper

■■

The machine supports A5-, A4-, B5-, letter-, and legal-size paper in portrait orientation. You can use regular copier paper, cotton bond paper, or typical letterhead. Your machine does not require special ink jet paper. Always use paper without curls, folds, staples, or damaged edges. Look at the label on the package to see if the paper has a preferred side for printing.

■■

■ Envelopes

■■

The machine can print on European DL and U.S. Commercial No. 10 envelopes. You may be able to load other sizes, but Canon cannot guarantee consistent performance on these. Do not use the following types of envelopes since they may cause problems:

• Envelopes with windows, holes, perforations, cutouts, and double flaps.

• Envelopes made with special coated paper or deeply embossed paper.

• Envelopes with peel-off sealing strips.

• Envelopes with letters enclosed.

■■

■ Glossy Photo Paper GP-301

■■

A high gloss, thick paper that produces the look and feel of a photograph.

■■

■ Banner Paper BP-101

■■

Specifically designed for printing one continuous sheet in a banner format. The connected sheets are divided by perforations and you can print from two to six sheets at a time.

■■

■ High Resolution Paper HR-101/HR-101N

■■

Designed to produce near-photographic quality print output with sharp and vivid graphics.

■■

■ Bubble Jet Paper LC-301

■■

Developed for high quality printing with minimal or no smearing when in contact with water or damp surfaces. This specially coated paper produces bright and vivid colours and stands up to normal office highlighters.

■■

■ Transparencies CF-102

■■

Produce excellent contrast, sharpness, and colour, creating crisp and professional overhead presentations. Do not use normal transparencies in the machine as they do not absorb ink and may cause ink to run.

■■

■ High Gloss Photo Film HG-201

■■

A bright white finish film that lends striking visual power to charts, graphs, and photographic images. It creates a sharper and more vivid colour output than is possible with coated paper.

■■

■ Glossy Photo Cards FM-101

■■

Made from the same stock as Glossy Photo Paper, these cards allow you to print images over the entire area of the card. Print the image so that it extends beyond the perforations and then trim off the unwanted white margins.

1-17

SmartBase MPC600F/MPC400 Chapter 1: General Description

■■

■ Photo Paper Pro PR-101/ PC-101S

■■

Photo Paper Pro PR-101 is thick paper with a treated surface that enhances gloss and provides superior colour reproduction. It is ideal for printing high quality photographs. Photo Paper Pro PC-101S is made of the same material as Photo Paper Pro PR-101. This photo-size paper is intended for printing images that cover the entire surface of the card, without a white border. To take full advantage of PC-101S, make the images slightly larger than the area indicated by the perforations. This paper is ideal for printing high quality photographs.

■■

■ T-Shirt Transfers TR-201

■■

This paper is used to produce iron-on transfers.

1-18

Chapter 2

Technical Reference

+ 149 hidden pages
