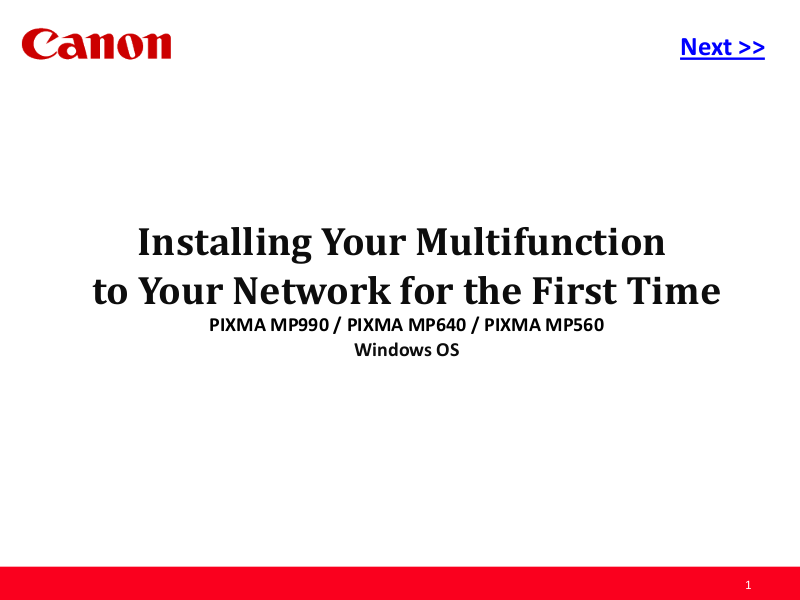

Page 1
<< Previous Next >>
Installing Your Multifunction
to Your Network for the First Time
PIXMA MP990 / PIXMA MP640 / PIXMA MP560
Windows OS
1
Page 2
<< Previous Next >>
Installing Your Multifunction
to Your Network for the First Time
PIXMA MP990 / PIXMA MP640 / PIXMA MP560
Windows OS
Preparing to Connect My Multifunction to My Network 3
Network Requirements 3
Important Information You Need Before Adding Your Multifunction 4
Adding Your Multifunction to the Network 5
Confirm Connection Status 9
Downloading & Installing the Drivers 12
Downloading the Driver 12
Installing the Driver 15
2
Page 3
Preparing to Connect My Multifunction
<< Previous Next >>
To My Network
Network Requirements
Before connecting the machine to the network, make sure that configuration of the computer and access point or router is
complete, and that the computer is connected to the network.
Notes on Network Connection
• The configuration, router functions, setup procedures and security settings of the network device vary depending on your
system environment. For details, refer to your device's instruction manual or contact its manufacturer.
• The machine cannot be used over a wireless and wired connection at the same time.
Wireless Connection
Connect to your network environment over a wireless connection.
3
Page 4
Preparing to Connect My Multifunction
To My Network
<< Previous Next >>
An "Ad-hoc connection," which establishes a direct
connection to the computer over a wireless connection
without using an access point, is not supported.
Be sure to prepare an access point.
Important Information You Need Before Adding Your Multifunction
The following information is required to connect to your access point or router.
• Access Point Name/Network Name:
Also referred to as SSID. A name to identify the specific access point.
• Network Key:
Also referred to as encryption key, WEP key or WPA/WPA2 passphrase, Pre-Shared key.
A password is required to prevent unauthorized access to communication.
Check your access point or router for the following information, and then write it down.
NOTE: For details on how to check the following information, refer to the manual of your access point or router, or contact its manufacturer.
4
Page 5
Adding Your Multifunction to Your Network
Adding Your Multifunction to Your Network
<< Previous Next >>
Step One
Use the Easy-Scroll Wheel* (A) to select Settings, and
then press the OK button.
*Easy-Scroll Wheel location varies according to model.
MP640 pictured in examples below.
Step Two
Select Device settings, then press the OK button.
5
Page 6
Adding Your Multifunction to Your Network
<< Previous Next >>
Step Three
Select Yes, then press the OK button.
When wireless connection is enabled, the Wi-Fi lamp**
(B) lights blue.
**Wi-Fi lamp location varies according to model.
Step Four
Select Change wireless / wired, then press the OK button.
6
Page 7
Adding Your Multifunction to Your Network
<< Previous Next >>
Step Five
Select the access point name you wrote down,
then press the OK button.
NOTE: If you are living in an apartment, nearby access
points in use may be detected.
Step SIx
When one of the following screens is displayed, enter the network
key you wrote down, then press the OK button.
If the following screen is not displayed, go to Step Eight.
Use the Easy-Scroll Wheel to select the character. Use the button
to move the cursor to the right.
IMPORTANT: Enter upper and lower case letters of the alphabet
correctly.
7
Page 8
Adding Your Multifunction to Your Network
<< Previous Next >>
Step Seven
Make sure that the network key is correct, and
then press the OK button.
Step Eight
When the completion screen appears, press the OK button, then
press the HOME*** button (C).
***HOME button location varies depending on model.
The standby screen returns.
NOTE: If Failed to connect to the access point. appears, press the OK
button, make sure that the network key is correct, then enter it again. If a
connection still cannot be established, refer to the printed manual: Network
Setup Troubleshooting.
8
Page 9
Adding Your Multifunction to Your Network
Confirm Connection Status
<< Previous Next >>
Step One
Press the HOME*** button (A), select Settings using the
Easy-Scroll Wheel (B), and then press the OK button.
***HOME button location varies depending on model.
IMPORTANT: Confirm connection status after installing
the machine in the target location.
Step Two
Select Device settings, and then press the OK button.
9
Page 10
Adding Your Multifunction to Your Network
<< Previous Next >>
Step Three
Select LAN settings, and then press the OK button.
Step Four
Select Confirm LAN settings, then press the OK button.
10
Page 11
Adding Your Multifunction to Your Network << Previous Next >>
Step Five
Select Wireless LAN setting list, then press the OK button.
Make sure that Connection is set to Active, and then press the HOME button.
It may take a while before the connection is complete. In this case, press the Back* button (C) and wait for about a minute, then
display the Wireless LAN setting list screen again.
*Back button location varies depending on model.
NOTE:
• If the communication status does not improve, make sure of the following.
• The machine and network device are turned on.
• There is no obstacle between the machine and access point, and wireless communication is possible.
• There is no microwave, refrigerator or any other object that may cause radio interference nearby.
11
Page 12
Downloading and Installing the Drivers
<< Previous Next >>
Downloading the Driver
To use the machine by connecting it to a computer, software including the drivers needs to be copied (installed) to the computer's hard disk. The
installation process takes about 20 minutes. (The installation time varies depending on the computer environment or the number of applications
to be installed.)
Step One
Go to the Drivers & Software for your model
MP640
MP560
MP990
Step Two
Select your operating system in the Select OS dropdown
menu.
12
Page 13
Downloading and Installing the Drivers << Previous Next >>
Step Three
In the Drivers section, click the Download icon for the MP Driver
*Name varies by model
example: MP990
* The file name turns red when the mouse pointer is on the file name
13
Page 14
Downloading and Installing the Drivers << Previous Next >>
Step Four
On the next screen, read the information and instructions and click I Agree - Begin Download
Select [Save] or [Run]. If [Run] is selected, the file will be automatically installed
If [Save] is selected, once the file has been downloaded, double-click it to begin the installation process
IMPORTANT:
• Quit all running applications before installation.
• Log on as the administrator (or a member of the Administrators group).
• Do not switch users during the installation process.
• Internet connection may be required during the installation. Connection fees apply.
• It may be necessary to restart your computer during the installation process. Follow the on-screen instructions. The
installation resumes once your computer has restarted.
If the firewall function of your security software is turned on, a warning message may appear that Canon software is attempting
to access the network. If such a warning message appears, set the security software to always allow access.
14
Page 15
Downloading and Installing the Drivers << Previous Next >>
Installing the Driver
NOTE: If a User Account Control screen appears, click Continue or Yes (depending on Windows version) to continue.
NOTE: If the same screen reappears in subsequent steps, click Continue or Yes.
Step One
Click Next on the Welcome screen.
Step Two
Select your place of residence and click Next.
15
Page 16
Downloading and Installing the Drivers << Previous Next >>
Step Three
Click Yes for the License Agreement.
Step Four
Installation proceeds
16
Page 17
Downloading and Installing the Drivers << Previous Next >>
Step Four
Select Use the Printer on network on the Connection
method screen, and then click Next.
Step Five
After searching for printers, the Detected Printers List appears.
Verify your printer is detected and click Next.
17
Page 18
Downloading and Installing the Drivers << Previous Next >>
Step Six
Setup will install the driver components. After
completion, click Next on the Setup Completion screen.
Step Seven
When the Connection Performance Measurement dialog box
appears, click Next.
18
Page 19
Downloading and Installing the Drivers
Step Eight
Confirm the measurement results, and then click Finish.
Ensure that is displayed in Connection Performance between the Printer and the
Access Point.
• If an icon other than appears, improve the communication status by referring to
the displayed message or the help file, then click Remeasurement.
If the following window appears, click OK to restart or Cancel to
restart later
<< Previous Next >>
19
