Canon EOS 5DS, EOS 5DS R Basic Manual

Basic Instruction Manual

This basic manual covers only the most basic operations. For other features and more details, see the Camera Instruction Manual PDF le on the CD-ROM.

Introduction

The EOS 5DS/EOS 5DS R is a digital single-lens reflex camera featuring a full-frame CMOS sensor (approx. 36.0 mm x 24.0 mm) with approx. 50.6 effective megapixels, Dual DIGIC 6, approx. 100% viewfinder coverage, high-precision and high-speed 61-point AF, approx. 5.0 fps continuous shooting, 3.2-inch LCD monitor, Live View shooting, and Full High-Definition (Full HD) movie shooting.

Before Starting to Shoot, Be Sure to Read the Following

To avoid botched pictures and accidents, first read the “Safety Precautions” (p.14-16) and “Handling Precautions” (p.17-18).

Refer to This Manual While Using the Camera to Further Familiarize Yourself with the Camera

While reading this manual, take a few test shots and see how they come out. You can then better understand the camera.

Testing the Camera Before Use and Liability

After shooting, play images back and check whether they have been properly recorded. If the camera or memory card is faulty and the images cannot be recorded or downloaded to a computer, Canon cannot be held liable for any loss or inconvenience caused.

Copyrights

Copyright laws in your country may prohibit the use of your recorded images of people and certain subjects for anything but private enjoyment. Also be aware that certain public performances, exhibitions, etc., may prohibit photography even for private enjoyment.

About the EOS 5DS R

The EOS 5DS R’s optical low-pass filter is disabled, and the effect is eliminated to obtain a higher-looking resolution. Since the optical low-pass filter is for reducing moire and false colors, images taken with the EOS 5DS R may show more moire and false colors than with the EOS 5DS depending on the subject and shooting conditions.

Item Check List

Before starting, check that all the following items are included with your camera. If anything is missing, contact your dealer.

Camera

(with body cap)

Wide Strap

* Battery Charger LC-E6 or LC-E6E is provided. (The LC-E6E comes with a

power cord.)

The Instruction Manual and CD-ROMs provided are listed on the next page. Be careful not to lose any of the above items.

Eyecup Eg

Interface Cable

Battery Pack

LP-E6N

(with protective cover)

IFC-150U II

Battery Charger

LC-E6/LC-E6E*

Cable

protector

Connecting to Peripheral Devices

When connecting the camera to a computer or printer, use the provided interface cable or one from Canon. When connecting an interface cable, also use the provided cable protector (p.29).

Instruction Manual and CD-ROMs

The instruction manual consists of a booklet, a leaflet, and electronic manuals (PDF files on the CD-ROM). The booklet is the Basic Instruction Manual. For more detailed instructions, see the Camera Instruction Manual on the CD-ROM.

Camera Basic

Instruction Manual

(this booklet)

Quick Reference Guide

Camera Instruction Manual CD-ROM

Contains the following manuals (PDF files):

• Camera Instruction Manual (Detailed version)

• Quick Reference Guide Instructions for viewing the Camera Instruction Manual CD-ROM are on pages 154-155.

EOS DIGITAL Solution Disk (Software CD-ROM)

Contains software such as image-editing software and Software Instruction Manuals (PDF files). For more information and installation procedures of the software, see pages 158-159. Instructions for viewing the Software Instruction Manual are on page 160.

Compatible Cards

The camera can use the following cards regardless of capacity: If the card is new or was previously formatted (initialized) by another camera or computer, format the card with this camera (p.59).

CF (CompactFlash) cards

* Type I, UDMA mode 7-compatible.

SD/SDHC*/SDXC* memory cards

* UHS-I cards supported.

Cards that Can Record Movies

When shooting movies, use a large-capacity card with a fast reading/ writing speed as shown in the table.

Movie Recording Size

(p.138)

ALL-I (I-only) 30 MB/sec. or faster 20 MB/sec. or faster

IPB 10 MB/sec. or faster 6 MB/sec. or faster

If you use a slow-writing card when shooting movies, the movie may

not be recorded properly. Also, if you play back a movie on a card with a slow reading speed, the movie may not play back properly.

If you want to shoot still photos while shooting a movie, you will need

an even faster card.

To check the card’s reading/writing speed, refer to the card

manufacturer’s Web site.

CF card SD card

In this manual, “CF card” refers to CompactFlash cards and “SD card” refers to SD/SDHC/SDXC cards. “Card” refers to all memory cards used to record images or movies. * The camera does not come with a card for recording images/

movies. Please purchase it separately.

Quick Start Guide

Insert the battery (p.34).

* Shooting is possible with either a CF card or an SD card in the camera.

To charge the battery, see page 32.

Insert the card (p.35).

The camera-front side slot is

for a CF card, and the camera-back side slot is for an SD card.

Attach the lens (p.44).

Align it with the red dot.

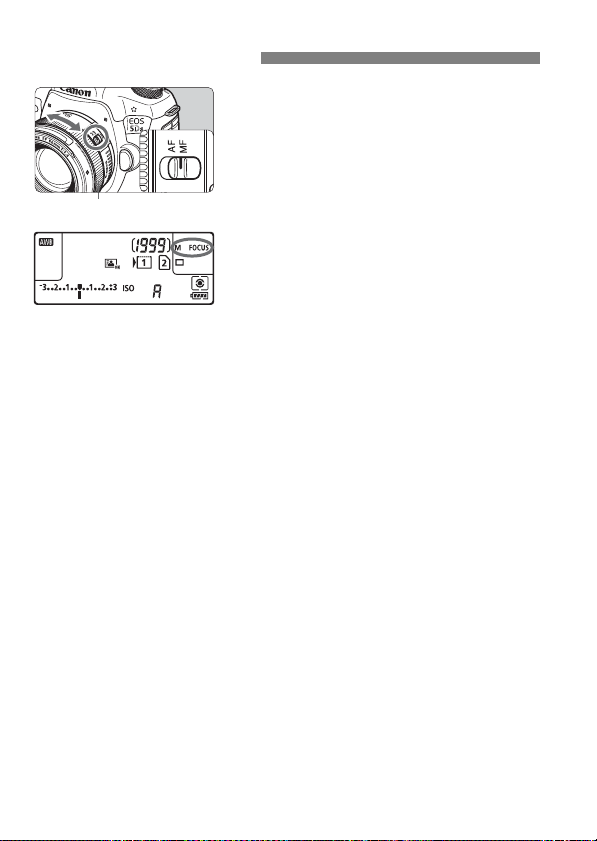

Set the lens’s focus mode switch to <f> (p.44).

Set the power switch to <1>

(p.39)

Quick Start Guide

While holding down the center of the Mode Dial, set it to <A> (Scene Intelligent Auto) (p.26).

All the necessary camera settings

will be set automatically.

Focus on the subject (p.47).

Look through the viewfinder and

aim the viewfinder center over the subject.

Press the shutter button halfway,

and the camera will focus on the subject.

Take the picture (p.47).

Press the shutter button completely

to take the picture.

Review the picture.

The image just captured will be

displayed for 2 sec. on the LCD monitor.

To display the image again, press

the <x> button (p.142).

To shoot while looking at the LCD monitor, see “Live View

Shooting” (p.121).

To view the images captured so far, see “Image Playback” (p.142). To delete an image, see “Erasing Images” (p.152).

Conventions Used in this Manual

Icons in this Manual

<6> : Indicates the Main Dial. <5> : Indicates the Quick Control Dial. <9> : Indicates the Multi-controller. <0> : Indicates the Setting button. 0/9/4/7/8 : Indicates that each function remains active for

* In this manual, the icons and markings indicating the camera’s buttons, dials,

and settings correspond to the icons and markings on the camera and on the LCD monitor.

3 : Indicates a function that can be changed by pressing the

<M> button to change its settings.

M : When shown on the upper right of a page, it indicates that

the function is available only in the <d>, <s>, <f>, <a>, or <F> mode.

(p.**) : Reference page numbers for more information.

: Warning to prevent shooting problems. : Supplemental information. : Tips or advice for better shooting. : Troubleshooting advice.

Basic Assumptions

All operations explained in this manual assume that the power switch

is set to <1> and the <R> switch is set to the left (Multi function lock released) (p.39, 51).

It is assumed that all the menu settings, Custom Functions, etc. are

set to their defaults.

The illustrations in this manual show the EOS 5DS attached with the

EF50mm f/1.4 USM lens as an example.

4 sec., 6 sec., 8 sec., 10 sec., or 16 sec. after you let go of the button.

Chapters

456

For first-time DSLR users, Chapters 1 and 2 explain the camera’s basic operations and shooting procedures.

Introduction

Getting Started

Basic Shooting

Setting the AF and Drive Modes

Image Settings

Advanced Operations

Shooting with the LCD Monitor

Shooting Movies

Image Playback

Viewing the CD-ROM Instruction Manuals /

Downloading Images to Your Computer

(Live View Shooting)

111

121

131

141

153

Contents

Introduction 2

Item Check List.................................................................................3

Instruction Manual and CD-ROMs................................................... 4

Compatible Cards......................................... ....................................5

Quick Start Guide............................................................................. 6

Conventions Used in this Manual..................................................... 8

Chapters........................................................................................... 9

Safety Precautions......................................................................... 14

Handling Precautions .................................................................... 17

Nomenclature................................................................................. 19

Getting Started 31

Charging the Battery ...................................................................... 32

Installing and Removing the Battery............................................... 34

Installing and Removing the Card..................................................35

Turning on the Power..................................................................... 39

Setting the Date, Time, and Zone.................................................. 41

Selecting the Interface Language...................................................43

Attaching and Detaching a Lens .................................................... 44

Basic Operation.............................................................................. 46

Q Quick Control for Shooting Functions....................................... 53

3 Menu Operations..................................................................56

Before You Start............................................................................. 59

Formatting the Card..................................................................... 59

Disabling the Beeper....................................................................61

Setting the Power-off Time/Auto Power Off..................................61

Setting the Image Review Time ...................................................62

Reverting the Camera to the Default Settings..............................62

l Displaying the Grid...................................................................63

Q Displaying the Electronic Level...............................................64

Setting the Viewfinder Information Display.....................................66

Help..........................................................................................67

Basic Shooting 69

A Fully Automatic Shooting (Scene Intelligent Auto)...................70

A Full Auto Techniques (Scene Intelligent Auto).........................73

Setting the AF and Drive Modes 75

f: Selecting the AF Operation.....................................................76

S Selecting the AF Area and AF Point.........................................79

AF Sensor............................................... ... .... .................................83

Lenses and Usable AF Points.........................................................84

Selecting AI Servo AF Characteristics............................................89

MF: Manual Focus..........................................................................90

o Selecting the Drive Mode........................................................91

j Using the Self-timer...................................................................92

Contents

Image Settings 93

Selecting the Card for Recording and Playback.............................94

Setting the Image-Recording Quality..............................................97

Contents

Setting Crop/aspect ratio................................................................ 99

i: Setting the ISO Speed.........................................................101

A Selecting a Picture Style...................................................... 102

B: Setting the White Balance................................................... 103

Auto Correction of Brightness and Contrast................................. 104

Setting Noise Reduction............................................................... 105

Highlight Tone Priority.................................................................. 107

Correction of Lens Peripheral Illumination and Aberrations......... 108

Reducing Flicker...........................................................................110

Advanced Operations 111

d: Program AE............................................................................ 112

s: Shutter-Priority AE....................................... .... ... .................. 113

f: Aperture-Priority AE............................................................. 114

a: Manual Exposure................................................................... 115

q Selecting the Metering Mode.................................................. 117

O Setting Exposure Compensation............................................. 118

h Auto Exposure Bracketing (AEB)...........................................119

A AE Lock................................. ..................................................120

Shooting with the LCD Monitor (Live View Shooting) 121

A Shooting with the LCD Monitor.............................................. 122

Shooting Function Settings.......................................................... 125

Using AF to Focus (AF Method)...................................................125

MF: Focusing Manually................................................................129

Shooting Movies 131

k Shooting Movies.....................................................................132

Autoexposure Shooting..............................................................132

Shutter-priority AE......................................................................133

Aperture-priority AE..................................... .... ... ........................134

Manual Exposure Shootin..........................................................135

Setting the Movie Recording Size.................................................138

Image Playback 141

x Image Playback......................................................................142

B: Shooting Information Display.............................................144

x Searching for Images Quickly.................................................148

u Magnifying Images..................................................................149

k Playing Back Movies...............................................................150

L Erasing Images........................................................................152

Viewing the CD-ROM Instruction Manuals /

Downloading Images to Your Computer 153

Viewing the Camera Instruction Manual CD-ROM .......................154

Downloading Images to a Computer.............................................156

Software Overview........................................................................158

Installing the Software...................................................................159

Software Instruction Manual.........................................................160

Contents

Certification Logo

Select [54: Certification Logo Display] and press <0> the logos of the camera’s certifications. Other certification logos can be found in this Instruction Manual, on the camera body, and on the camera’s package.

to display some of

Safety Precautions

The following precautions are provided to prevent harm or injury to yourself and others. Make sure to thoroughly understand and follow these precautions before using the product.

If you experience any malfunctions, problems, or damage to the product, contact the nearest Canon Service Center or the dealer from whom you purchased the product.

Warnings:

To prevent fire, excessive heat, chemical leakage, explosions, and electrical shock,

follow the safeguards below:

• Do not use any batteries, power sources, or accessories not specified in the Instruction Manual. Do not use any home-made or modified batteries.

• Do not short-circuit, disassemble, or modify the battery. Do not apply heat or solder to the battery. Do not expose the battery to fire or water. Do not subject the battery to strong physical shock.

• Do not insert the battery’s plus and minus ends incorrectly.

• Do not recharge the battery in temperatures outside the allowable charging (working) temperature range. Also, do not exceed the recharging time indicated in the Instruction Manual.

• Do not insert any foreign metallic objects into the electrical contacts of the camera, accessories, connecting cables, etc.

When disposing of a battery, insulate the electrical contacts with tape to prevent contact with other metallic objects or batteries. This is to prevent a fire or an explosion.

If excessive heat, smoke, or fumes are emitted when recharging the battery,

immediately unplug the battery charger from the power outlet to stop recharging. Otherwise, it may cause a fire, heat damage, or electrical shock.

If the battery leaks, changes color, deforms, or emits smoke or fumes, remove it

immediately. Be careful not to get burned in the process. It may cause a fire, electrical shock or skin burn if you keep using it.

Prevent any battery leakage from contacting your eyes, skin, and clothing. It can

cause blindness or skin problems. If the battery leakage contacts your eyes, skin, or clothing, flush the affected area with lots of clean water without rubbing it. See a physician immediately.

Do not leave any cords near a heat source. It can deform the cord or melt the

insulation and cause a fire or electrical shock.

Do not hold the camera in the same position for long periods of time. Even if the

camera does not feel too hot, prolonged contact with the same body part may cause skin redness, blistering or low-temperature contact burns. Using a tripod is recommended for people with circulation problems or very sensitive skin, or when using the camera in very hot places. Do not fire the flash at anyone driving a car or other vehicle. It may cause an accident.

Do not fire the flash near a person’s eyes. It may impair the person’s vision. When

using flash to photograph an infant, keep at least 1 meter/3.3 feet away.

Follow the warnings below. Otherwise, death or serious injuries may result.

Safety Precautions

When the camera or accessories are not in use, make sure to remove the battery

and disconnect the power plug from the equipment before storing. This is to prevent electrical shock, excessive heat, fire, or corrosion.

Do not use the equipment where there is flammable gas. This is to prevent an

explosion or a fire.

If you drop the equipment and the casing breaks open to expose the internal parts,

do not touch the internal parts. There is a possibility of an electrical shock.

Do not disassemble or modify the equipment. High-voltage internal parts can cause

electrical shock.

Do not look at the sun or an extremely bright light source through the camera or

lens. Doing so may damage your vision. Keep equipment out of the reach of children and infants, including when in use. Straps or cords may accidentally cause choking, electrical shock, or injury. Choking or injury may also occur if a child or infant accidentally swallows a camera part or accessory. If a child or infant swallows a part or accessory, consult a physician immediately .

Do not use or store the equipment in dusty or humid places. Likewise, store the

battery with its protective cover attached to prevent short-circuit. This is to prevent a fire, excessive heat, electrical shock, or burn.

Before using the camera inside an airplane or hospital, check if it is allowed.

Electromagnetic waves emitted by the camera may interfere with the plane’s instruments or the hospital’s medical equipment.

To prevent a fire and electrical shock, follow the safeguards below:

• Always insert the power plug all the way in.

• Do not handle a power plug with wet hands.

• When unplugging a power plug, grasp and pull the plug instead of the cord.

• Do not scratch, cut, or excessively bend the cord or put a heavy object on the cord. Also do not twist or tie the cords.

• Do not connect too many power plugs to the same power outlet.

• Do not use a cord whose wire is broken or insulation is damaged.

Unplug the power plug periodically and clean off the dust around the power outlet

with a dry cloth. If the surrounding is dusty, humid, or oily, the dust on the power outlet may become moist and short-circuit the outlet, causing a fire.

Do not connect the battery directly to an electrical outlet or a car’s cigarette lighter

outlet. The battery may leak, generate excessive heat or explode, causing a fire, burns or injuries.

A thorough explanation of how to use the product by an adult is required when the

product is used by children. Supervise children while they are using the product. Incorrect usage may result in electrical shock or injury.

Do not leave a lens or lens-attached camera in the sun without the lens cap

attached. Otherwise, the lens may concentrate the sun’s rays and cause a fire.

Do not cover or wrap the product with a cloth. Doing so may trap heat within and

cause the casing to deform or catch fire.

Be careful not to get the camera wet. If you drop the product in the water or if water

or metal get inside the product, promptly remove the battery. This is to prevent a fire and an electrical shock.

Do not use paint thinner, benzene, or other organic solvents to clean the product.

Doing so may cause fire or a health hazard.

Safety Precautions

Cautions:

Do not use or store the product inside a car under the hot sun or near a heat source.

The product may become hot and cause skin burns. Doing so may also cause battery leakage or explosion, which will degrade the performance or shorten the life of the product.

Do not carry the camera around when it is attached to a tripod. Doing so may cause

injury. Also make sure the tripod is sturdy enough to support the camera and lens.

Do not leave the product in a low-temperature environment for an extended period of

time. The product will become cold and may cause injury when touched.

Never play the provided CD-ROM in a drive that is not compatible with the CD-ROM.

If you use it in a music CD player, you may damage the speakers and other components. When using headphones, there is also a risk of injury to your ears from excessively loud volume.

Follow the cautions below. Otherwise, physical injury or property damage may result.

Handling Precautions

Camera Care

This camera is a precision instrument. Do not drop it or subject it to physical

shock.

The camera is not waterproof and cannot be used underwater. If you

accidentally drop the camera into water , promptly consu lt the nearest Canon Service Center. Wipe of f any wat er dr oplets with a dry and clean cloth. If the camera has been exposed to salty air, wipe it with a well -wrung wet cloth.

Never leave the camera near anything having a strong magnetic field such

as a magnet or electric motor. Also avoid using or leaving the camera near anything emitting strong radio waves, such as a large antenna. S trong magnetic fields can cause camera misoperation or destroy image data.

Do not leave the camera in excessive heat, such as in a car in direct

sunlight. High temperatures can cause the camera to malfunction.

The camera contains precision electronic circuitry. Never attempt to

disassemble the camera yourself.

Do not block the mirror operation with your finger, et c. Doing so may cause a

malfunction.

Use a blower to blow away dust on the lens, viewfinder, refle x mirror, and

focusing screen. Do not use cleaners that contain organic solvents to clean the camera body or lens. For stubborn dirt, take the camera to the nearest Canon Service Center.

Do not touch the camera’s electrical contacts with your fingers. This is to

prevent the contacts from corroding. Corroded contacts can cause camera misoperation.

If the camera is suddenly brought in from the cold into a warm room,

condensation may form on the camera and internal parts. To pre vent condensation, first put the camera in a sealed plastic bag and let it adjust to the warmer temperature before taking it out of the bag.

If condensation forms on the camera, do not use the camera. Th is is to avoid

damaging the camera. If there is condensation, remove the lens, card and battery from the camera, and wait until condensa tio n has evaporat ed b efo re using the camera.

If the camera will not be used for an extended period, remove the battery

and store the camera in a cool, dry, well-ventilated location. Even while the camera is in storage, press the shutter button a few times once in a while to check that the camera is still working.

Avoid storing the camera where there are chemicals that result in rust and

corrosion such as in a chemical lab.

Handling Precautions

If the camera has not been used for an extended perio d, te st a ll i ts functions

before using it. If you have not used the camera for some time or if there is an important shoot such as a foreign trip coming up, have the camera checked by your nearest Canon Service Center or check the camera yourself and make sure it is working properly.

If you use continuous shooting, Live View shooting, or movie shooting for a

prolonged period, the camera may become hot. This is not a malfunction.

If there is a bright light source inside or outside the image area, ghosting

may occur.

LCD Panel and LCD Monitor

Although the LCD monitor is manufactured with very high precision

technology with over 99.99% effective pixels, ther e may be a few dead pixels displaying only black or red, etc. among the remaining 0.01% or less pixels. Dead pixels are not a malfunction. They do not affect the images recorded.

If the LCD monitor is left on for a prolonge d period, screen b urn-in may occur

where you see remnants of what was displayed. However, this is only temporary and will disappear when the camera is left unused for a few days.

The LCD monitor display may seem slow in low temperatures, or look black

in high temperatures. It will return to normal at room temperature.

Cards

To protect the card and its recorded data, note the following:

Do not drop, bend, or wet the card. Do not subject it to excessive force,

physical shock, or vibration.

Do not touch the card’s electronic contacts with your fingers or anything

metallic.

Do not affix any stickers, etc., on the card. Do not store or use the card near anything that has a strong magnetic field,

such as a TV set, speakers, or magnet. Also avoid places prone to having static electricity.

Do not leave the card in direct sunlight or near a heat source. Store the card in a case. Do not store the card in hot, dusty, or humid locations.

Lens

After detaching the lens from the camera, put down the lens with the rear end up and attach the rear lens cap to avoid scratching the lens surface and electrical contacts.

Contacts

Nomenclature

<m> Flash exposure compensation/ISO speed setting button (p.101)

LCD panel illumination button (p.51)

<6> Main Dial (p.48)

Shutter button (p.47)

<o> Drive mode selection/ AF operation/AF method selection button (p.91/76/125)

<n> White balance selection/ Metering mode selection button (p.103/117)

AF area selection/ Multi-function button (p.81)

Lens mount index (p.44)

Flash sync contacts

Hot shoe

Mode Dial lock-release button (p.48)

Mode Dial (p.26, 48)

Self-timer lamp (p.92)

Remote control sensor

Grip (Battery compartment)

DC coupler cord hole

Depth-of-field preview button

Body cap (p.44)

Contacts (p.18)

Mirror

Lens lock pin

Lens mount

Built-in microphone

Strap mount (p.28)

Lens release button (p.45)

Nomenclature

Info button (p.52, 64, 67, 124, 137, 142)

Power switch (p.39)

<M> Menu button (p.56)

Terminal cover

LCD panel (p.22-23)

Eyecup

Viewfinder eyepiece

Touch pad (p.50)

<Y> External microphone IN terminal Cable protector socket

<D> HDMI mini OUT terminal <D> PC terminal <g> Digital terminal (p.156)

Cable protector socket <F> Remote control terminal (N3 type)

AF start button (p.47, 76, 123)

<A> AE lock button (p.120)

<S> AF point selection button (p.81-82)

<Q> Quick Control button (p.53)

<5> Quick Control Dial (p.49)

<0> Setting button (p.56)

When connecting the interface cable to a digital terminal, you must use the provided cable protector (p.29).

Nomenclature

Dioptric adjustment knob (p.46)

<b/X> Creative Photo/ Comparative playback (Two-image display) button (p.102)

<c> Rating button

Index/Magnify/ Reduce button (p.148/149)

<x> Playback button (p.142)

<L> Erase button (p.152)

Speaker

Ambient light sensor

LCD monitor (p.56, 122, 132, 142)

Tripod socket

Multi function lock switch (p.51)

<V> Focal plane mark

<A/k> Live View shooting/ Movie shooting switch (p.121/131) <0> Start/Stop button (p.122, 132)

<9> Multi-controller (p.50)

Battery compartment cover (p.34)

Access lamp (p.37)

Serial number

Strap mount (p.28)

Card slot cover (p.35)

Battery compartment cover release lever (p.34)

SD card slot (p.35)

CF card slot (p.35)

CF card eject button (p.37)

Nomenclature

LCD Panel

Shutter speed FE lock (FEL) Remaining number of exposures for time-lapse movie Busy (buSY) Multi function lock warning (L) No card warning (Card) Error code (Err) Cleaning image sensor (CLn)

White balance (p.103) Q Auto: Ambience

priority

QwAuto: White priority

W Daylight

E Shade

R Cloudy

Y Tungsten

light

U White

fluorescent light

I Flash O Custom P Color temperature

Aperture

AF point selection ([ ] AF, SEL [ ], SEL AF) AF point registration ([ ] HP, SEL [ ], SEL HP) Card warning (Card 1/2) Card full warning (FuLL 1/2)

Possible shots Self-timer countdown Bulb exposure time Card error warning (Err) Error number Remaining images to record

White balance correction

<a> Time-lapse movie shooting

<O> Exposure compensation (p.118)

<N> Auto Lighting Optimizer (p.104)

<f> CF card indicator

<J> CF card selection icon

<2>Mirror lockup

* The display will show only the settings currently applied.

<g> SD card indicator

<J> SD card selection icon

Nomenclature

<w> HDR shooting

Multiple-exposure shooting

<J> Bulb timer shooting

<H> Interval timer shooting

<r> GPS acquisition status

<y> Flash exposure compensation

Exposure level indicator

Exposure compensation amount (p.118) AEB range (p.119) Flash exposure compensation amount

ISO speed (p.101)

AF operation (p.76)

One-Shot AF

AI Focus AF

AI Servo AF

4 L

Manual focus Drive mode (p.91)

u Single shooting o High-speed

continuous shooting

i Low-speed

continuous shooting

B Silent single shooting M Silent continuous

shooting

Q Self-timer: 10 sec./

remote control

k Self-timer: 2 sec./

remote control

Metering mode (p.117)

q Evaluative metering w Partial metering r Spot metering e Center-weighted

average metering

Battery level (p.40)

<0> Monochrome shooting

<h> AEB (p.119)

ISO speed (p.101)

<A> Highlight tone priority (p.107)

Nomenclature

Viewfinder Information

Electronic level (p.64)

Spot metering circle (p.117)

Aspect ratio line (1:1)

Grid (p.63)

Area AF frame (p.80)

< > Battery level (p.40)

White balance (p.103)

Drive mode (p.91)

AF operation (p.76)

Focusing screen

<S> Single AF point <O> Spot AF point

Crop area (1.6x)

Crop area (1.3x)

<z> Warning symbol

Flicker detection (p.110)

JPEG/RAW (p.97)

Metering mode (p.117)

* The display will show only the settings currently applied.

<A>AE lock (p.120)

AEB in-progress (p.119)

<D>Flash-ready

Improper FE lock warning

<d>FE lock

FEB in-progress

<e>High-speed sync

<y>Flash exposure

compensation

Shutter speed (p.113) FE lock (FEL) Busy (buSY) Multi function lock warning (L) No card warning (Card) Error code (Err)

Aperture (p.114)

<e>AF status indicator

Maximum burst Number of remaining multiple exposures

ISO speed (p.101)

<A> Highlight tone priority (p.107)

<O> Exposure compensation (p.118)

Exposure level indicator

Exposure compensation amount (p.118) AEB range (p.119) Flash exposure compensation

AF point selection ([ ] AF, SEL [ ], SEL AF) AF point registration ([ ] HP, SEL [ ], SEL HP) Card warning (Card 1/2) Card full warning (FuLL 1/2)

Nomenclature

ISO speed

(p.101)

<o>Focus

indicator (p.70, 77)

(p.70)

Nomenclature

Mode Dial

Y ou can set the shooting mode. T urn the Mode Dial while holding down the Mode Dial center (Mode Dial lock release button).

F : Bulb

a : Manual exposure (p.115) f : Aperture-priority AE (p.114) s : Shutter-priority AE (p.113) d : Program AE (p.112)

A : Scene Intelligent Auto (p.70)

Custom shooting mode

You can register the shooting mode (d/s/f/a/F), AF operation, menu settings, etc., to w, x, y Mode Dial positions.

Nomenclature

Battery Charger LC-E6

Charger for Battery Pack LP-E6N/LP-E6 (p.32).

Power plug

Battery pack slot

Charge lamp

IMPORTANT SAFETY INSTRUCTIONS-SAVE THESE INSTRUCTIONS. DANGER-TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY FOLLOW THESE INSTRUCTIONS.

For connection to a supply not in the U.S.A., use an attachment pl ug adapter of the proper configuration for the power outlet, if needed.

Battery Charger LC-E6E

Charger for Battery Pack LP-E6N/LP-E6 (p.32).

Power cord

Charge lamp

Battery pack slot

Power cord socket

Nomenclature

Attaching the Strap

Pass the end of the strap through the camera’s strap mount eyelet from the bottom. Then pass it through the strap’s buckle as shown in the illustration. Pull the strap to take up any slack and make sure the strap will not loosen from the buckle.

The eyepiece cover is also attached to

the strap.

Eyepiece cover

Nomenclature

Using the Cable Protector

When connecting the camera to a computer, printer, Wireless File Transmitter or GPS Receiver, use the provided interface cable or one from Canon. When connecting the interface cable, also use the provided cable protector. Using the cable protector prevents the cable from accidental disconnection and the terminal from getting damaged.

Using the Provided Interface Cable and a Genuine HDMI Cable (sold separately)

HDMI cable (sold separately)

Clamp

Cable protector

Provided interface cable

Nomenclature

Using a Genuine Interface Cable (sold separately)

If you use a genuine interface cabl e (sold separately), run the cable through the clamp before attaching the clamp to the cable protector.

Clamp

Connecting interface cable without using the cable protector may

damage the digital terminal.

Do not use a USB 2.0 cable equipped with a Micro-B plug. It may

damage the camera’s digital terminal.

As shown in the lower-right illustration for step 4, check that the interface

cable is securely attached to the digital terminal.

To connect the camera to a TV set, using HDMI Cable HTC-100 (sold separately) is recommended. Using the cable protector is recommended even when connecting an HDMI cable.

+ 134 hidden pages
