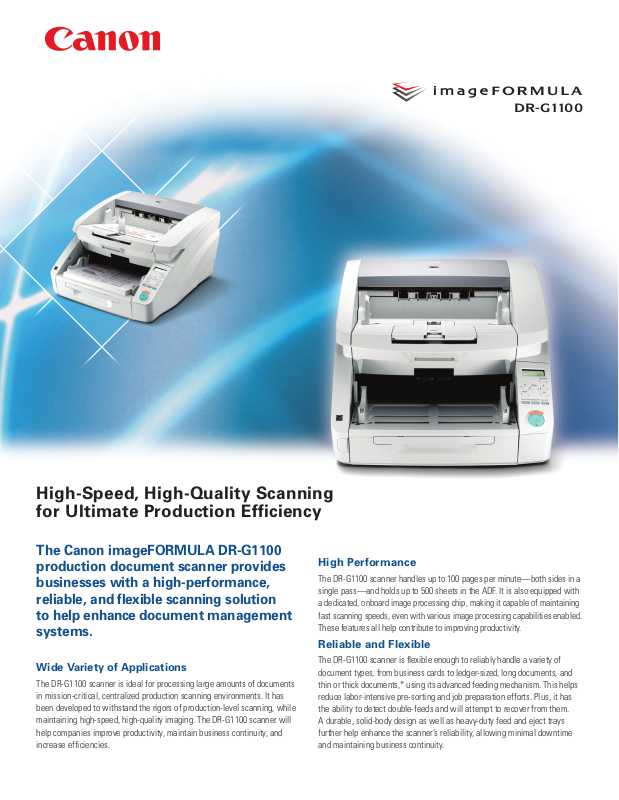

Canon DR-G1100 User Manual

DR-G1100

High-Speed, High-Quality Scanning
for Ultimate Production Efficiency

The Canon imageFORMULA DR-G1100
production document scanner provides
businesses with a high-performance,
reliable, and flexible scanning solution
to help enhance document management
systems.

Wide Variety of Applications

The DR-G1100 scanner is ideal for processing large amounts of documents
in mission-critical, centralized production scanning environments. It has
been developed to withstand the rigors of production-level scanning, while
maintaining high-speed, high-quality imaging. The DR-G1100 scanner will
help companies improve productivity, maintain business continuity, and
increase efficiencies.

High Performance

The DR-G1100 scanner handles up to 100 pages per minute—both sides in a
single pass—and holds up to 500 sheets in the ADF. It is also equipped with
a dedicated, onboard image processing chip, making it capable of maintaining
fast scanning speeds, even with various image processing capabilities enabled.
These features all help contribute to improving productivity.

Reliable and Flexible

The DR-G1100 scanner is flexible enough to reliably handle a variety of
document types, from business cards to ledger-sized, long documents, and
thin or thick documents,* using its advanced feeding mechanism. This helps
reduce labor-intensive pre-sorting and job preparation efforts. Plus, it has
the ability to detect double-feeds and will attempt to recover from them.
A durable, solid-body design as well as heavy-duty feed and eject trays
further help enhance the scanner’s reliability, allowing minimal downtime
and maintaining business continuity.

DR-G1100

Efficient, Smooth Operation

The DR-G1100 scanner features an intuitive control panel that allows easy
access to scanner settings, and user-programmable job buttons for one-touch
operation. This scanner is also equipped with a motorized paper feed tray
that can be adjusted to the height of the batch, and flexible paper feed and
output guides. This, plus the ability to handle a variety of document types,*
helps to deliver unattended batch scanning for optimizing workflows and
increasing efficiencies.

Specifications

Type: Production Document Scanner
Document Feeding: Automatic, Manual, Continuous Manual
Document Size

Width: 2” - 12”

Length: 2.8” - 17”

Long Document Mode: Up to 118.1”
Document Weight

Automatic Feeding: 5 - 56 lb. Bond
Manual Feeding: 5 - 64 lb. Bond

Feeder Capacity: 500 Sheets
Grayscale: 8-bit
Color: 24-bit
Scanning Element: Three-Line Contact Image Sensor (CMOS)
Light Source: RGB LED
Scanning Modes: Color, Grayscale, Black and White
Color Dropout: RGB and Custom
Optical Resolution: 600 dpi
Output Resolution: 150/200/240/300/400/600 dpi
Scanning Speeds*** Simplex Duplex

Black and White/
Grayscale/Color: Up to 100 ppm Up to 200 ipm

Interface: Hi-Speed USB 2.0
Supported OS: Windows® XP/Windows Vista

Windows 8 (32-bit/64-bit)

Scanner Drivers: ISIS®/TWAIN
Dimensions (H x W x D): 18.9” x 21.1” x 12.4” (with trays closed)
Weight: 50 lb.
Power Consumption: 95W or Less (Energy Saving Mode: 1.6W or Less)
Suggested Daily Volume:**** 25,000 Scans
Bundled Software: Canon CapturePerfect, Kofax VRS
Options: Barcode Module III, eCarePAK Extended Service,

Windows 7 Service Pack 1 or later (32-bit/64-bit)

Exchange Roller Kit, Flatbed Scanner Unit 101, Flatbed
Scanner Unit 201, Imprinter Unit, Patchcode Decoder

®

Environment in Mind

The DR-G1100 scanner meets ENERGY STAR® guidelines for energy efficiency
and complies with both the EU RoHS and WEEE directives for the reduction
of hazardous substances and waste products.**

Customer Care

For investment protection, eCarePAK options are available to extend service
beyond the initial 90-day on-site warranty period. This saves on costs associ­ated with post-purchase maintenance and helps maximize uptime throughout
the product life.

Other Features: Auto Color Detection, Auto Page Size Detection,

Item Number: 8074B002

* See specifications for further detail on document types.
** The facts and product statistics about EU RoHS and WEEE were obtained from Canon Electronics Inc. as of 2013.
*** Examples based on typical settings, rated in pages/images per minute with letter-sized documents, landscape feeding

direction, up to 200 dpi. Actual processing speeds may vary based on PC performance and application software.

**** Calculations based on scanning speed and assumed daily time of use.

Background Smoothing, Batch Separation, Character
Emphasis, Count Only Mode, Custom Color Dropout/
Enhance Color, Deskew, Double-Feed Detection
(Ultrasonic), Edge Emphasis, Folio Scan, Image Rotation,
Moiré Reduction, MultiStream, Paper Feed Tray (Three
Positions), Pre-Scan, Prevent Bleed-Through/Remove
Background, Punch Hole Removal, Rapid Recovery
System, Skip Blank Page, Staple Detection, Text
Enhancement, Text Orientation Recognition, Three­Dimensional Color Correction, User Preferences,
Verify Scan
