STARTUP MANUAL
Read this manual thoroughly before using this scanner.
Keep this manual in a safe place for future reference.
Compact Document Scanner
International ENERGY STAR® Office Equipment Program
As an E
NERGY STAR partner, Canon Electronics Inc. has determined that this product
meets the E
NERGY STAR guidelines for energy efficiency.
The International E
NERGY STAR Office Equipment Program is an international program
that promotes energy saving through the use of computers and other office equipment.
The program backs the development and dissemination of products with functions that
effectively reduce energy consumption. It is an open system in which business proprietors can participate voluntarily. The targeted products are office equipment such as
computers, monitors, printers, fax machines, copiers and Scanners. Their standards and
logos are uniform among the participating nations.
FCC REGULATIONS (For 120V models)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If
such changes or modifications should be made, you could be required to stop operation of the equipment.
RADIO INTERFERENCE REGULATIONS (For 120V models)
This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as
set out in the Interference-causing equipment standard entitled "Digital Apparatus", ICES-003 of the Industry Canada.
RÈGLEMENT SUR LE BROUILLAGE RADIOÉLECTRIQUE (For 120V models)
Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils numériques
de Classe B prescrites dans la norme sur le matériel brouilleur: "Appareils Numériques", NMB-003 édictée
par l'Industrie Canada.
Für EMVG
Dieses Produkt ist zum Gebrauch im Wohnbereich, Geschäfts-und Gewerbebereich sowie in Kleinbetrieben
vorgesehen.
MODEL NAMES
Model DR-2080C is identical to model M11044.
Model DR-2080C is the sales name of model M11044.
READ CAREFULLY BEFORE OPENING THE SEALED DISK PACKAGE
CANON SOFTWARE LICENSE AGREEMENT
IMPORTANT-READ THIS AGREEMENT BEFORE OPENING THE SEALED DISK PACKAGE! BY OPENING
THE SEALED DISK PACKAGE, YOU ARE DEEMED TO AGREE TO BE BOUND BY THIS AGREEMENT.
This legal document is a license agreement between you and Canon Electronics Inc. ("Canon"). BY OPENING THE SEALED DISK
PACKAGE, YOU ARE DEEMED TO AGREE TO BE BOUND BY THE TERMS OF THIS AGREEMENT.
IF YOU DO NOT AGREE TO THE
TERMS OF THIS AGREEMENT, DO NOT OPEN THE SEALED DISK PACKAGE AND PROMPTLY RETURN THE CANON SCANNER,
THE DISK PACKAGE CONTAINING SCANNER DRIVER SOFTWARE PROGRAMS AND/OR SCANNER UTILITY SOFTWARE
PROGRAM PROPRIETARY TO CANON OR ITS LICENSOR (THE "SOFTWARE") AND THE ACCOMPANYING DOCUMENTATION
AND OTHER ITEMS TO THE PLACE WHERE YOU OBTAINED THEM FOR A REFUND BEFORE THEY ARE USED OR OPENED OR
UNPACKED.
In consideration of the right to use the SOFTWARE, you agree to abide by the terms and conditions of this Agreement.
1. GRANT OF LICENSE: Canon grants you the personal, non-exclusive right to use the SOFTWARE only on a single computer. You
may physically transfer the SOFTWARE from one computer to another provided that the SOFTWARE is used on only one computer at any time.
You shall not assign, sublicense, sell, rent, lease, loan, convey or transfer to any third party, or send or bring the SOFTWARE out of the
country where you originally obtain it to other countries without required authorization of applicable governments, or copy, duplicate, translate or
convert to another programming language the SOFTWARE or accompanying documentation, except as expressly provided herein.
Except as expressly permitted under the applicable law, you shall not alter, modify, disassemble, decompile or otherwise reverse engineer
the SOFTWARE or accompanying documentation and you also shall not have any third party to do so.
2. BACK-UP COPY: You may make one copy of the SOFTWARE solely for a back-up purpose or copy the SOFTWARE onto the
permanent storage device (e.g. a hard disk) of your computer and retain the original for a back-up purpose. Except as expressly permitted under the
applicable law, any other copying of the SOFTWARE is a violation of this Agreement. You must reproduce and include the copyright notice on the
back-up copy.
3. SUPPORT AND UPDATE: Canon, Canon's affiliate, their distributor or dealer is not responsible for maintaining or helping you to
use the SOFTWARE. No updates, fixes or support will be made available for the SOFTWARE.
4. LIMITED WARRANTY AND DISCLAIMER OF INDEMNITY: Canon, Canon's affiliate, their distributor or dealer will not
guarantee uninterrupted service, or absence or correction of errors. Therefore, the SOFTWARE is licensed on an "AS IS" basis without warranty of
any kind. The diskette on which the SOFTWARE is recorded is warranted against defective material or workmanship under normal use for a period
of ninety (90) days from the date you purchased the same as evidenced by a receipt or otherwise. The limited warranty does not apply if the failure
of the diskette resulted from accident, abuse or misapplication of the SOFTWARE and shall not extend to anyone other than the original user of the
SOFTWARE.
CANON, CANON'S AFFILIATE, THEIR DISTRIBUTOR OR DEALER DISCLAIMS ALL IMPLIED WARRANTIES, INCLUDING
ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, WITH RESPECT TO THE SOFTWARE OR
ACCOMPANYING DOCUMENTATION.
NEITHER CANON, CANON'S AFFILIATE, THEIR DISTRIBUTOR NOR DEALER IS LIABLE FOR ANY LOSS OR DAMAGE
INCLUDING CONSEQUENTIAL OR INCIDENTAL LOSS OR DAMAGE SUCH AS LOSS OF PROFITS, EXPENSE OR INCONVENIENCE,
WHATSOEVER CAUSED BY OR ARISING OUT OF THE SOFTWARE, ACCOMPANYING DOCUMENTATION OR THE USE THEREOF.
CANON, CANON'S AFFILIATE, THEIR DISTRIBUTOR OR DEALER SHALL HAVE NO OBLIGATION TO INDEMNIFY YOU
AGAINST ANY CLAIM OR SUIT BROUGHT BY A THIRD PARTY ALLEGING THAT THE SOFTWARE, ACCOMPANYING
DOCUMENTATION OR THE USE THEREOF INFRINGES ANY INTELLECTUAL PROPERTY OF SUCH THIRD PARTY.
THE ABOVE IS CANON'S ENTIRE LIABILITY AND YOUR EXCLUSIVE REMEDY IN CONNECTION WITH THE SOFTWARE
AND ACCOMPANYING DOCUMENTATION.
5. TERM: This Agreement is effective upon opening the sealed disk package and remains in effect until terminated. You may terminate
this Agreement by destroying the SOFTWARE and any copy thereof. This Agreement will also terminate if you fail to comply with any of the
terms of this Agreement. In addition to Canon enforcing its respective legal rights, you must then promptly destroy the SOFTWARE and any copy
thereof.
6. U.S. GOVERNMENT RESTRICTED RIGHTS NOTICE: The SOFTWARE is provided with RESTRICTED RIGHTS. Use,
duplication or disclosure is subject to restrictions as set forth in either subparagraph (c) (1) (ii) of the Rights in Technical Data and Computer
Software clause at DFARs 252.227-7013 or subparagraph (c) (1) and (2) of the Commercial Computer Software Restricted Rights Clause at FAR
52.227-19, as applicable.
7. SEVERABILITY: In the event that provision of this Agreement is declared or found to be illegal by any court or tribunal of
competent jurisdiction, such provision shall be null and void with respect to the jurisdiction of that court or tribunal and all the remaining provisions
of this Agreement shall remain in full force and effect.
8. ACKNOWLEDGEMENT: BY OPENING THE SEALED DISK PACKAGE, YOU ACKNOWLEDGE THAT YOU HAVE READ
THIS AGREEMENT, UNDERSTOOD IT, AND AGREE TO BE BOUND BY ITS TERMS AND CONDITIONS. YOU ALSO AGREE THAT
THIS AGREEMENT IS THE COMPLETE AND EXCLUSIVE STATEMENT OF AGREEMENT BETWEEN YOU AND CANON
CONCERNING THE SUBJECT MATTER HEREOF AND SUPERSEDES ALL PROPOSALS OR PRIOR AGREEMENTS, VERBAL OR
WRITTEN, AND ANY OTHER COMMUNICATIONS BETWEEN YOU AND CANON RELATING TO THE SUBJECT MATTER HEREOF.
NO AMENDMENT TO THIS AGREEMENT SHALL BE EFFECTIVE UNLESS SIGNED BY A DULY AUTHORIZED REPRESENTATIVE
OF CANON.
Should you have any questions concerning this Agreement, or if you desire to contact Canon for any reason, please write to Canon's local affiliate.
2 Preface
Preface
Thank you for purchasing the Canon DR-2080C scanner. Be sure to read this
manual thoroughly before using the scanner in order to ensure that you fully
understand how to use the scanner correctly. After you have read this manual,
retain it for future reference.
CAUTION
Be aware of the following points when using this scanner for reproduction:
• Making duplicates of paper currency, coins, government-issued securities and other negotiable instruments is prohibited by law and subject to criminal penalties.
• Making duplicates of government-issued passports as well as licenses, permits, official
documents and private documents issued by public or private institutions may also be subject
to criminal penalties.
• Making duplicates of written works, music, paintings, prints, maps, drawings, movie stills,
photographs and other copyrighted works is prohibited, except when done for personal and
noncommercial purposes.
Copyright
Copyright © 2004 by CANON ELECTRONICS INC. All rights reserved. No part of
this publication may be reproduced, transmitted, transcribed, stored in a retrieval
system, or translated into any language or computer language in any form or by any
means, electronic, mechanical, magnetic, optical, chemical, manual, or otherwise,
without the prior written permission of CANON ELECTRONICS INC.
Trademarks
• Microsoft, Windows and Windows NT are registered trademarks of Microsoft Corporation in
the United States and/or other countries.
• ISIS is a trademark of Pixel Translations, A division of Captiva Software Corporation, in the
United Status.
• Intel and Pentium are registered trademarks of Intel Corporation.
• ENERGY STAR is a U.S. registered mark.
• Adobe is the registered trademark of Adobe Systems Incorporated in the United States and/or
other countries.
•Product names mentioned herein are for identification purposes only and may be trademarks
and/or registered trademarks of their respective countries.
Other Notice
The information given in these Operating Instructions is subject to change without
notice.
Preface 3
Notational Conventions
The symbols and indications used in this manual are explained below.
Familiarize yourself with these symbols and their meanings before reading
this manual.
“(→ page 12)”
Means “Refer to page 12 for more details.”
WARNING
This indicates a matter in which failure to follow proper procedure
could result in loss of life or serious injury. In order to ensure
safe operation, always observe these warnings.
CAUTION
This indicates a matter in which failure to follow proper procedure
could result in serious injury or property damage. In order to
ensure safe operation, always observe these cautions.
Notice
This indicates important information regarding the operation of the unit that
must be observed. Always read these items in order to prevent damage to the
unit or physical injury.
Note
This indicates supplemental information concerning the operation of the unit.
Reading these notes is recommended.
4 Table of Contents
Table of Contents
Before Using the Unit .........................................................................................5
To Ensure Safe Operation ...................................................................................... 5
Installation Location ................................................................................................. 5
About the AC adapter............................................................................................... 6
Moving the Scanner ................................................................................................. 6
Notes on Normal Handling ....................................................................................... 7
Notes Concerning Disposal ..................................................................................... 8
Features of the DR-2080C ..................................................................................... 9
Checking the Packing List .................................................................................... 11
Removing Protective Tape and Protective Sheet ................................................... 12
Names and Functions of Parts ............................................................................. 14
Installing the Scanner....................................................................................... 16
Before Setting Up the Scanner............................................................................. 16

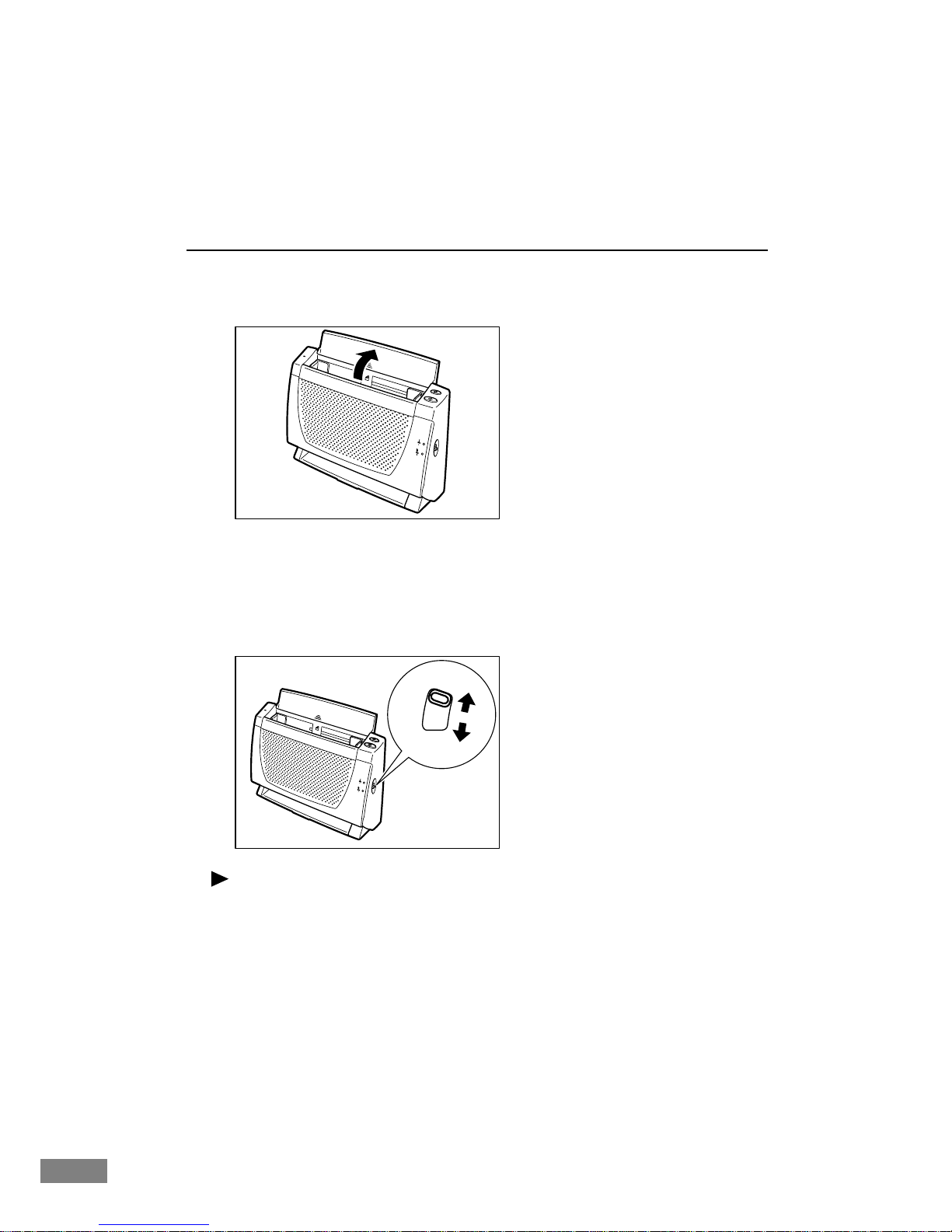

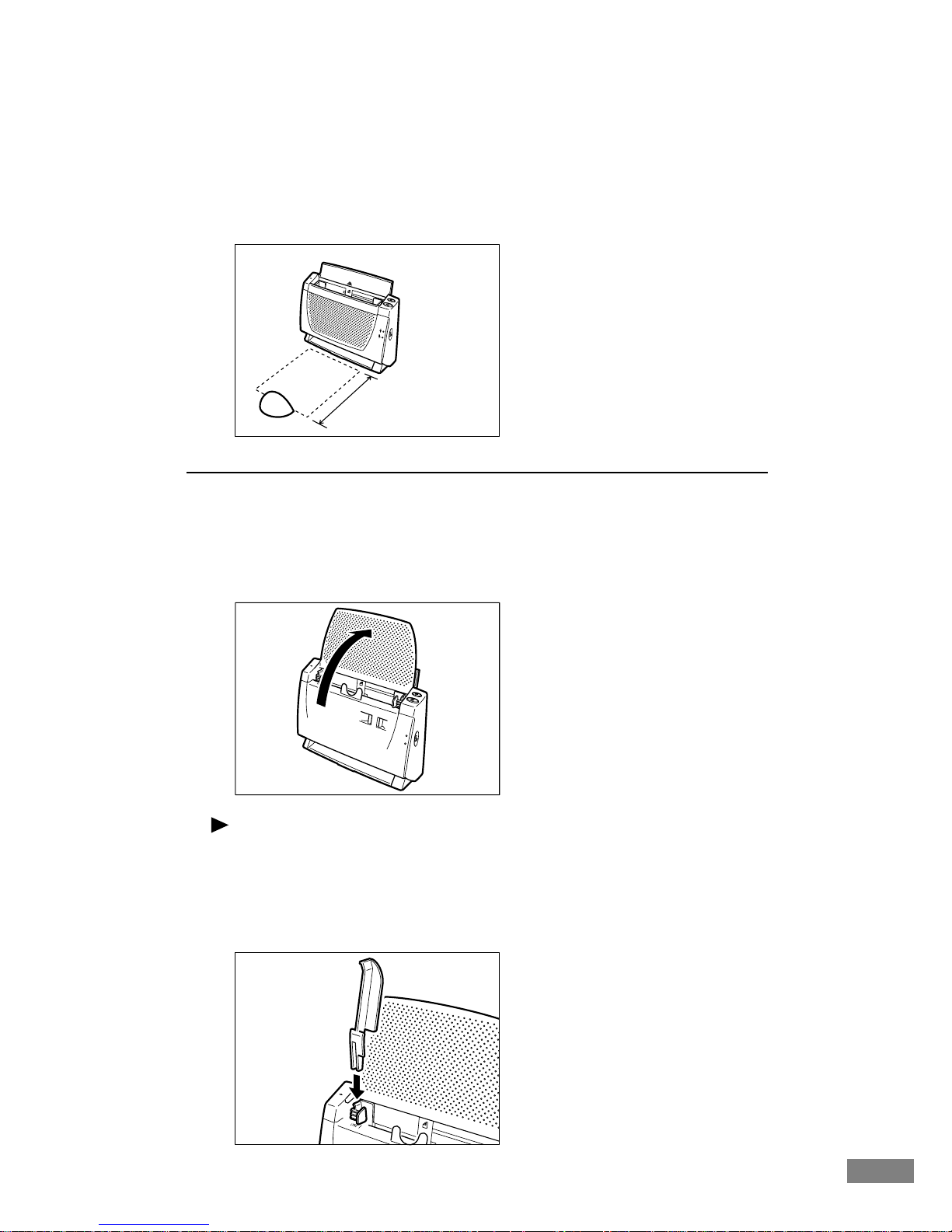

Extending the stand ............................................................................................... 16

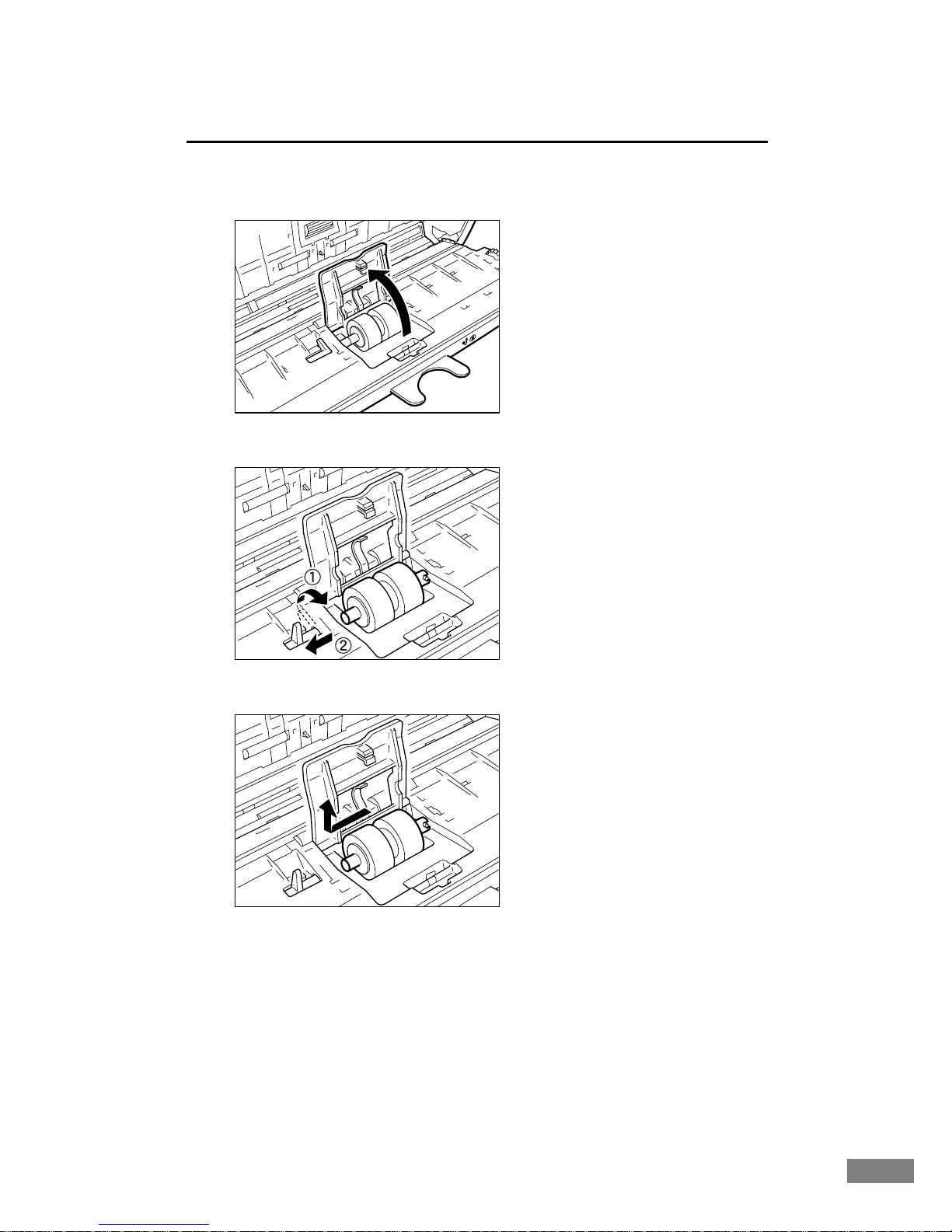

Installing the Feed Roller ....................................................................................... 16
Installation Requirements..................................................................................... 20
Installation Procedure........................................................................................... 22
Interface Board..................................................................................................... 23
SCSI Boards .......................................................................................................... 23
USB 2.0 Interface Board ........................................................................................ 24
Connecting the Scanner to Your PC ..................................................................... 25

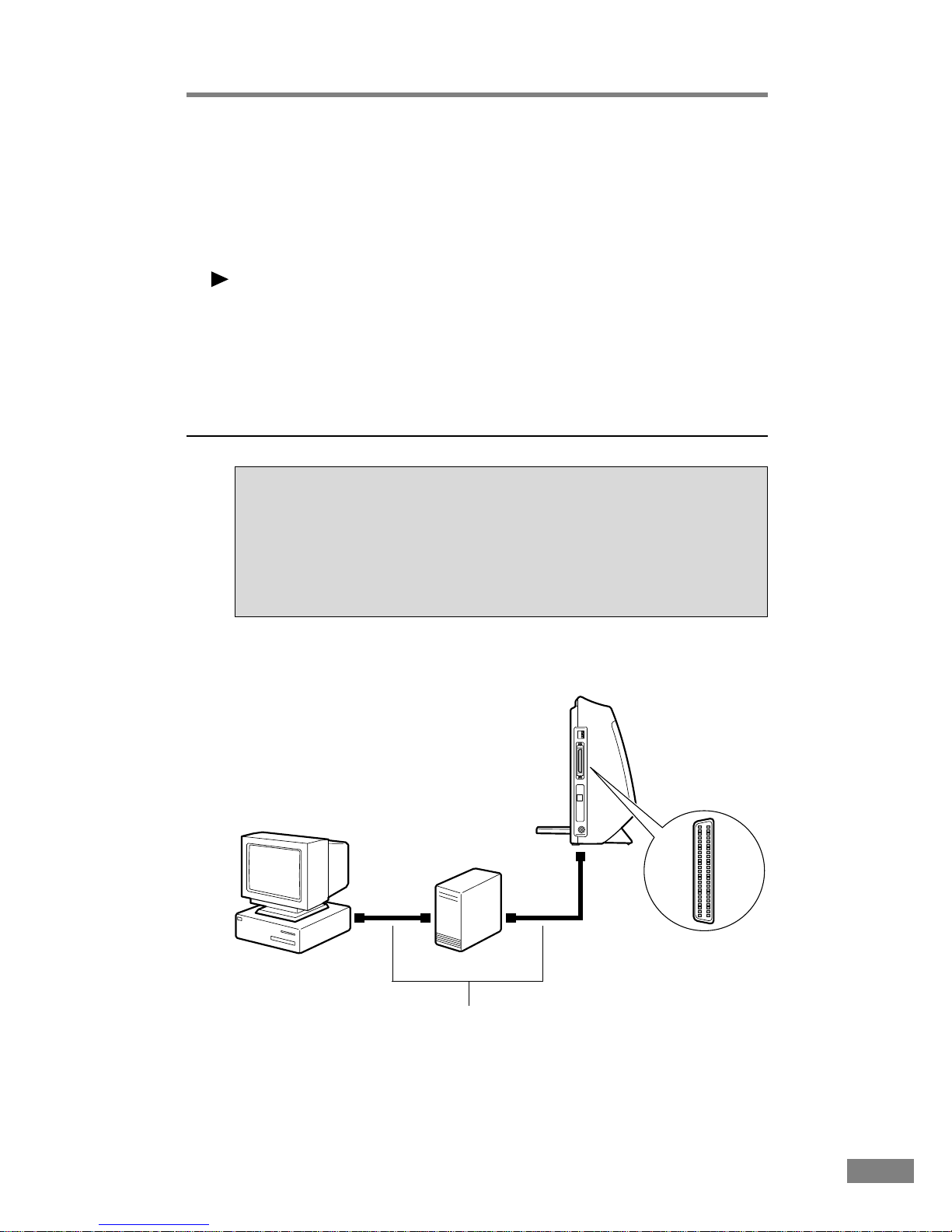

Connecting via SCSI .............................................................................................. 25

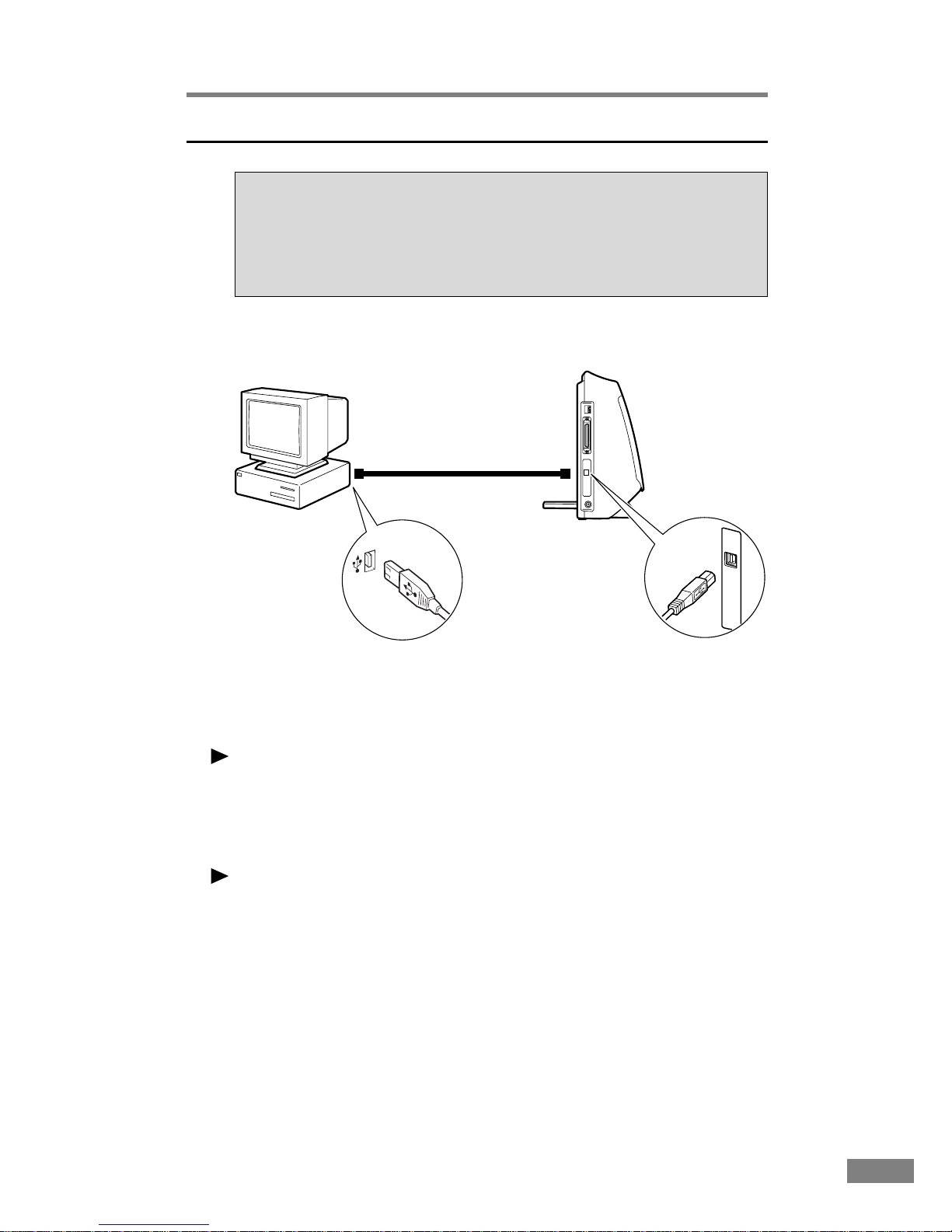

Connecting via USB ............................................................................................... 27

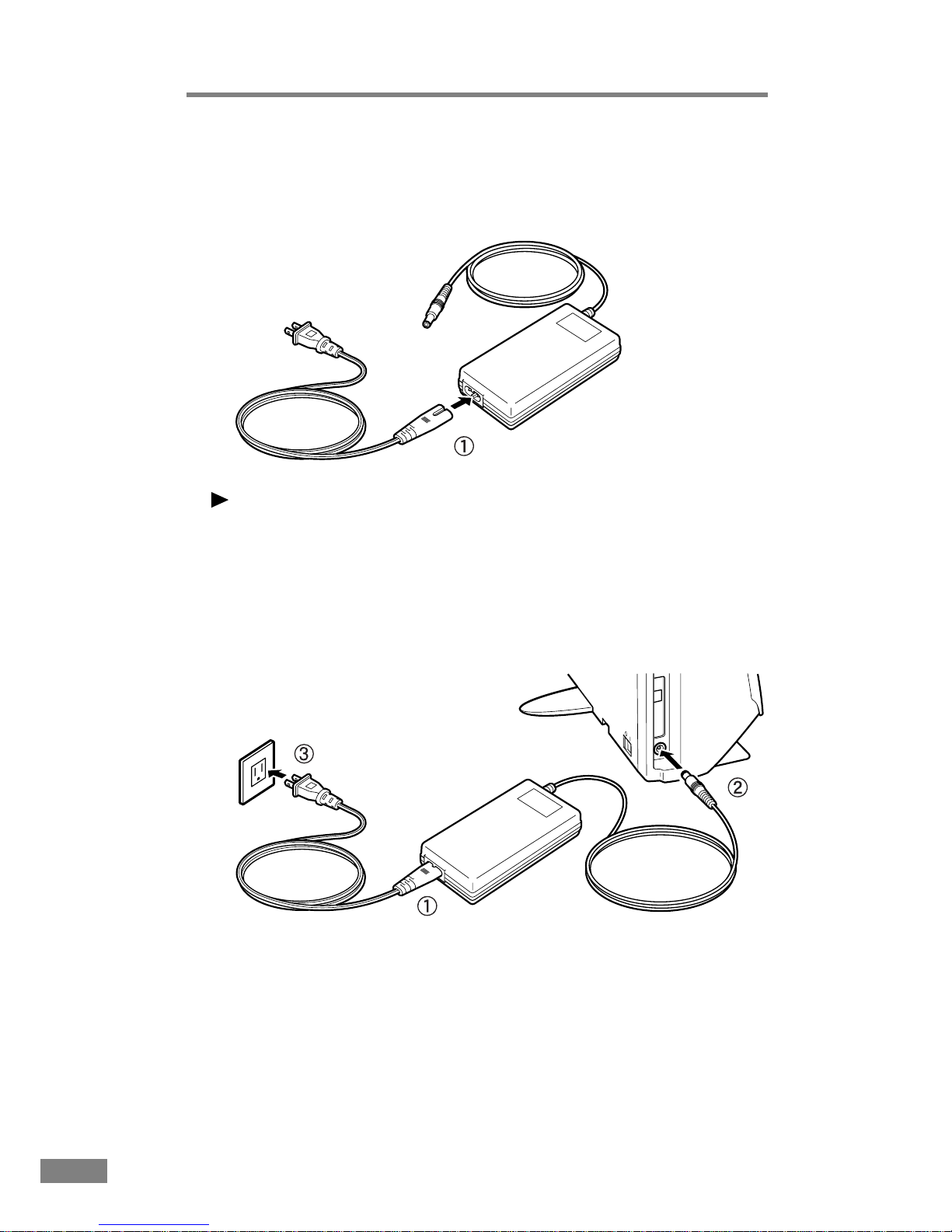

Connecting the Power Cord ................................................................................. 28
Turning the Power On/Off ..................................................................................... 29
Turning the Power On ............................................................................................ 29

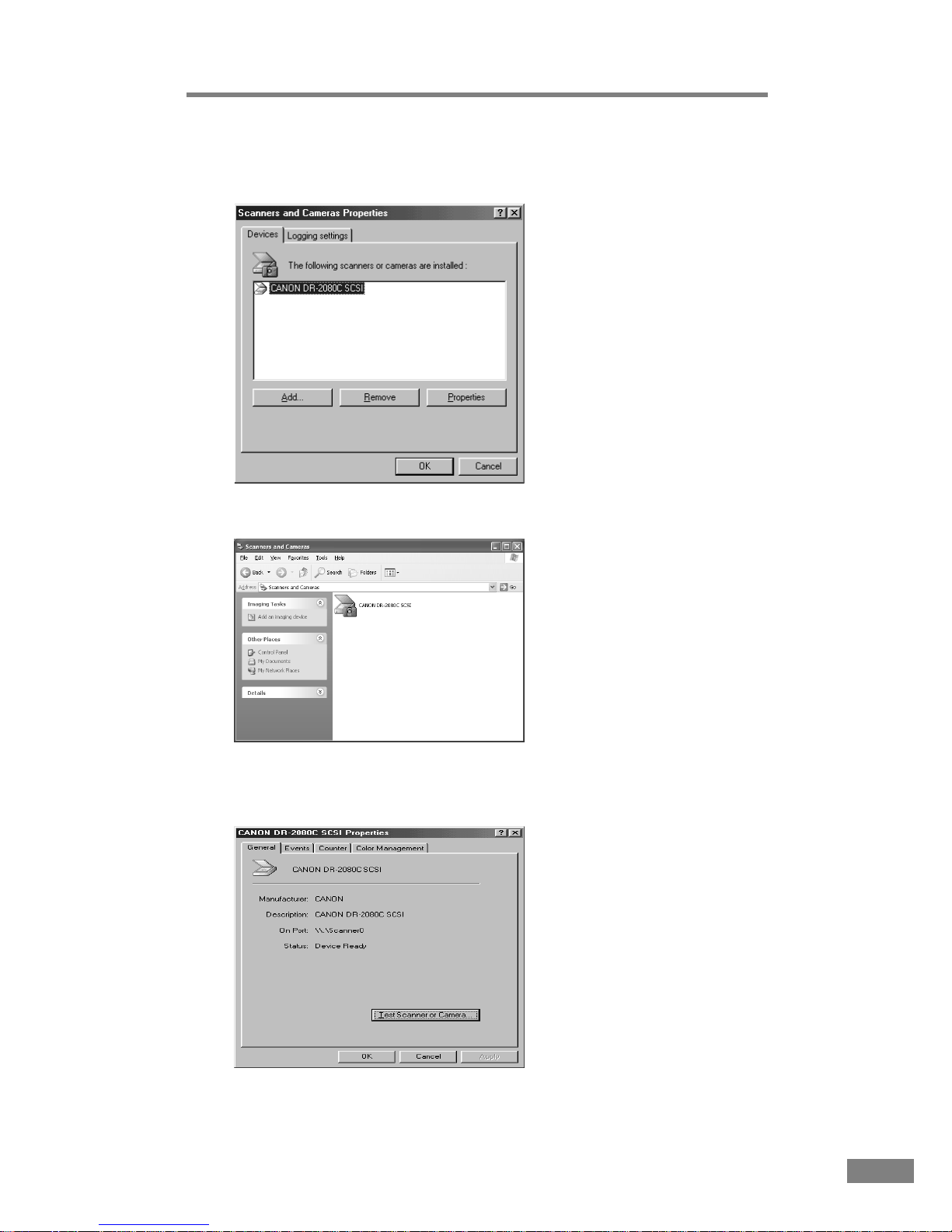

Recognizing the Scanner ....................................................................................... 30
Turning the Power Off ............................................................................................ 32
Installing the Software...................................................................................... 33

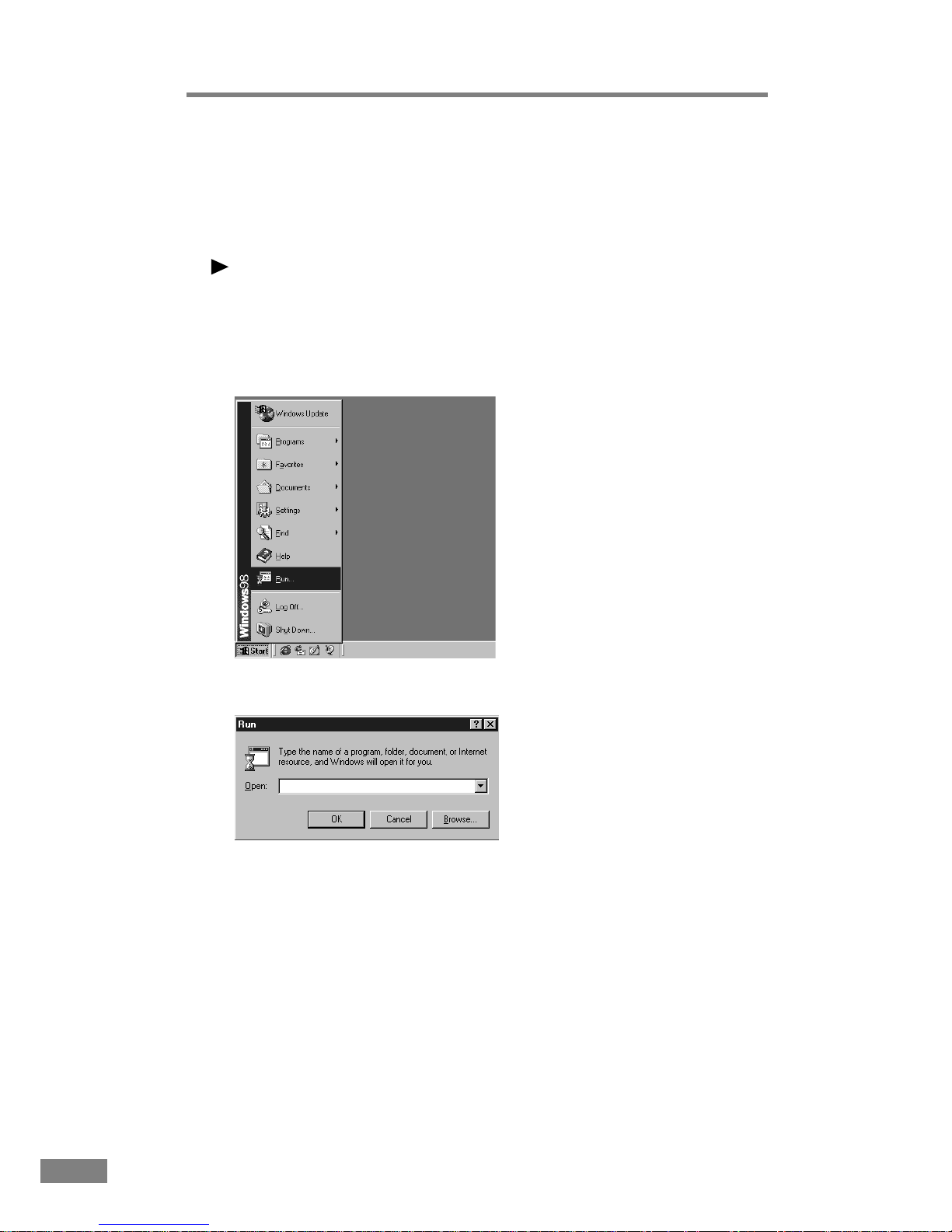

Installing the ISIS/TWAIN Driver .......................................................................... 33

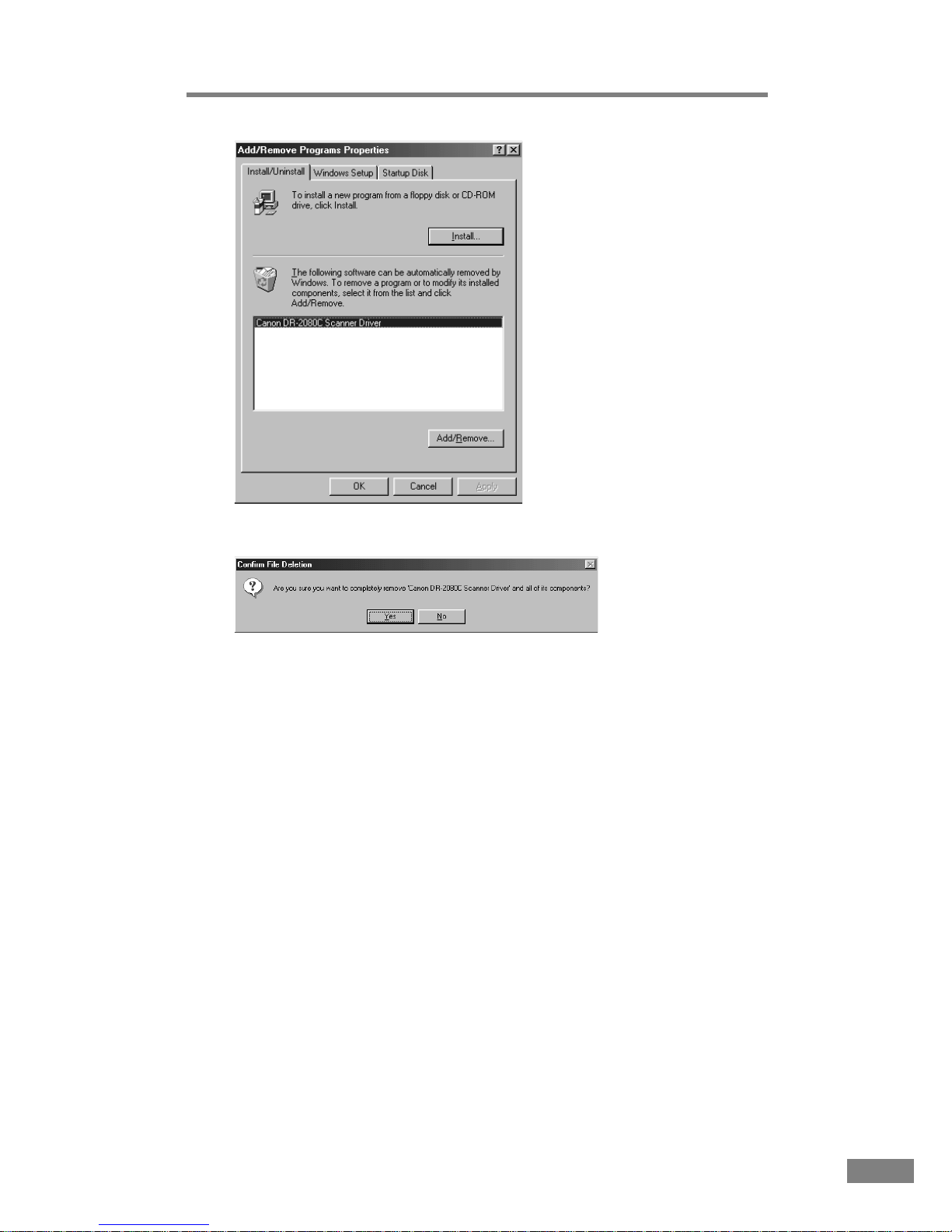

Uninstalling the ISIS/TWAIN Driver...................................................................... 35

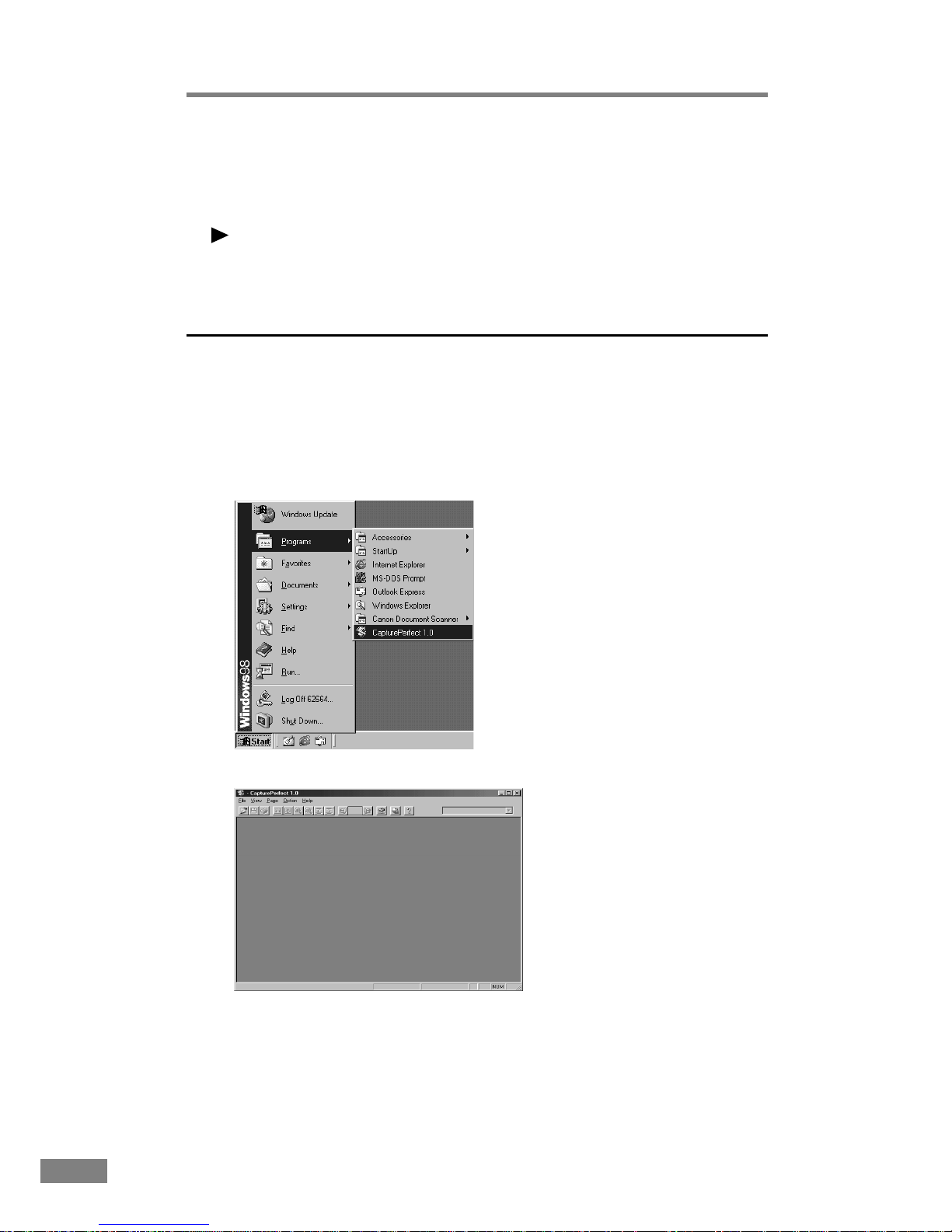

Installing CapturePerfect ...................................................................................... 38

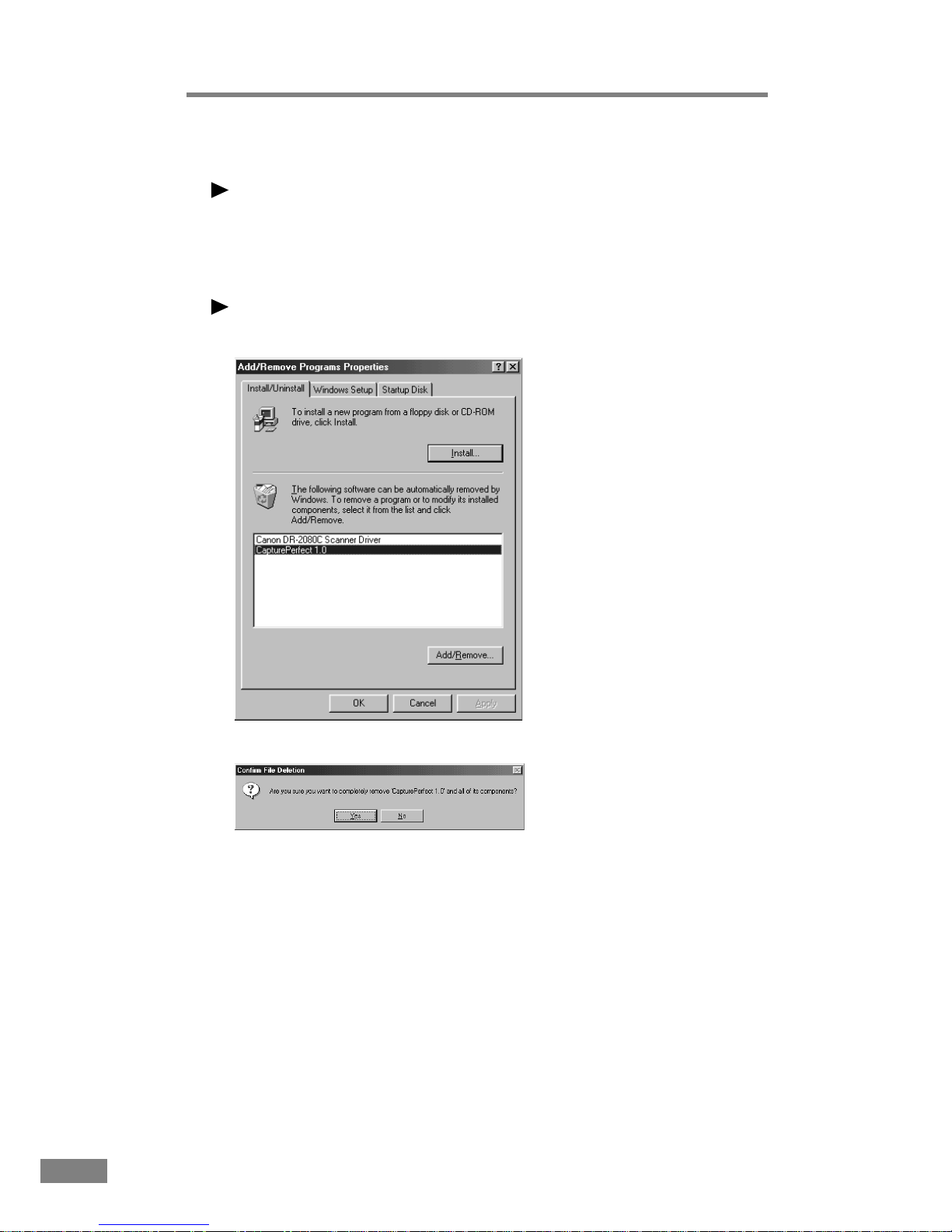

Uninstalling CapturePerfect .................................................................................. 39
Using the Software............................................................................................ 41
Using the ISIS/TWAIN Driver ............................................................................... 41
Using CapturePerfect ........................................................................................... 42
Starting CapturePerfect.......................................................................................... 42

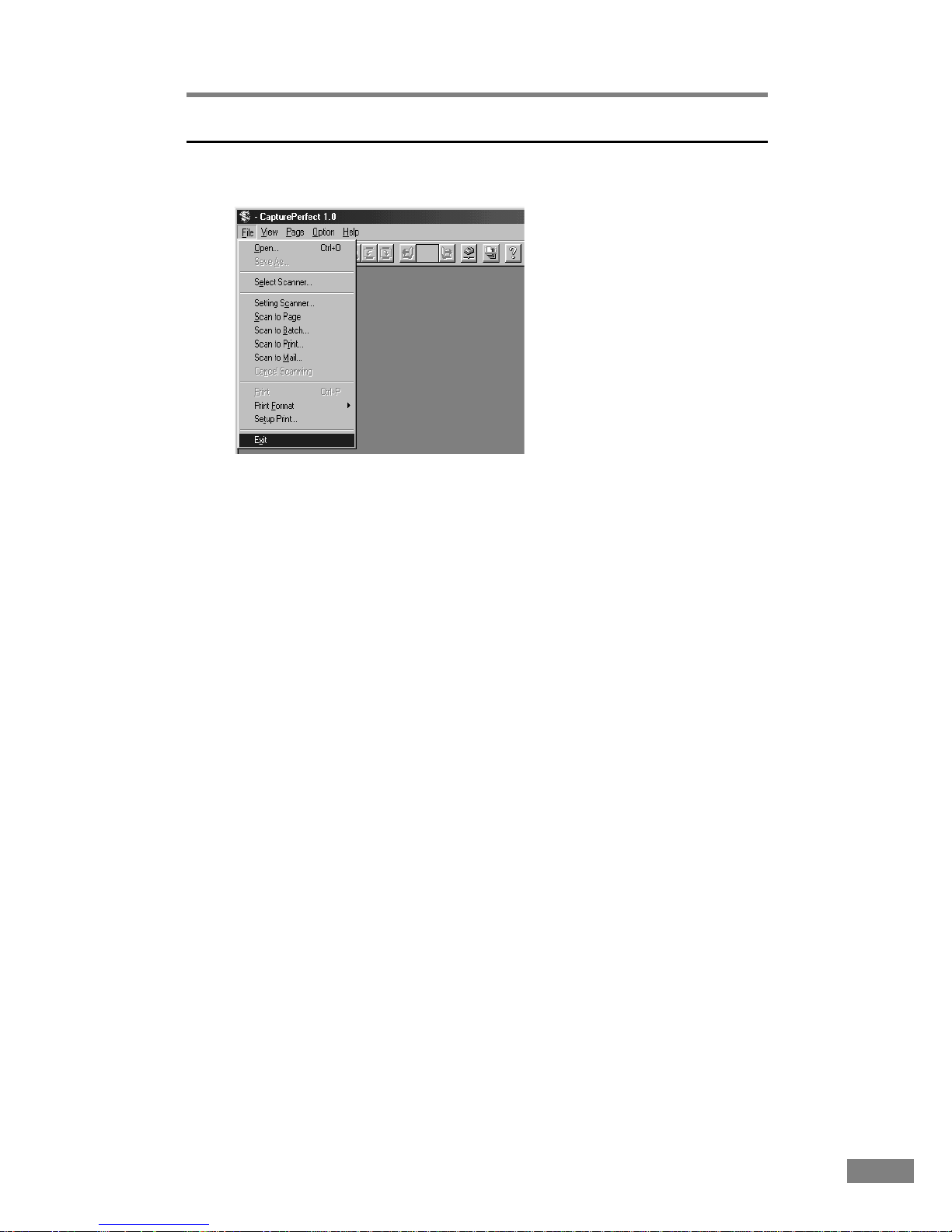

Closing CapturePerfect .......................................................................................... 43
Starting Up CapturePerfect by the Event Driven Function ................................... 44

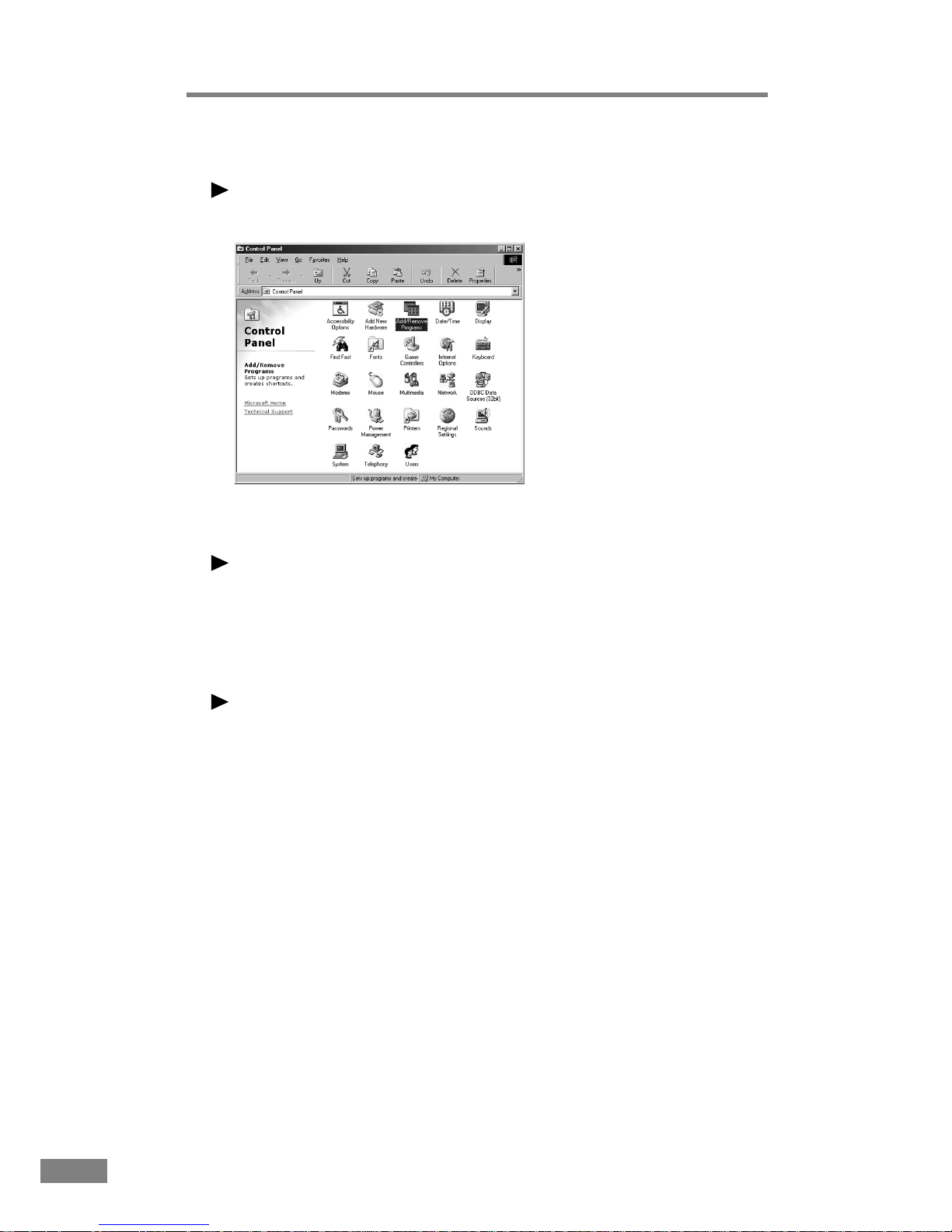

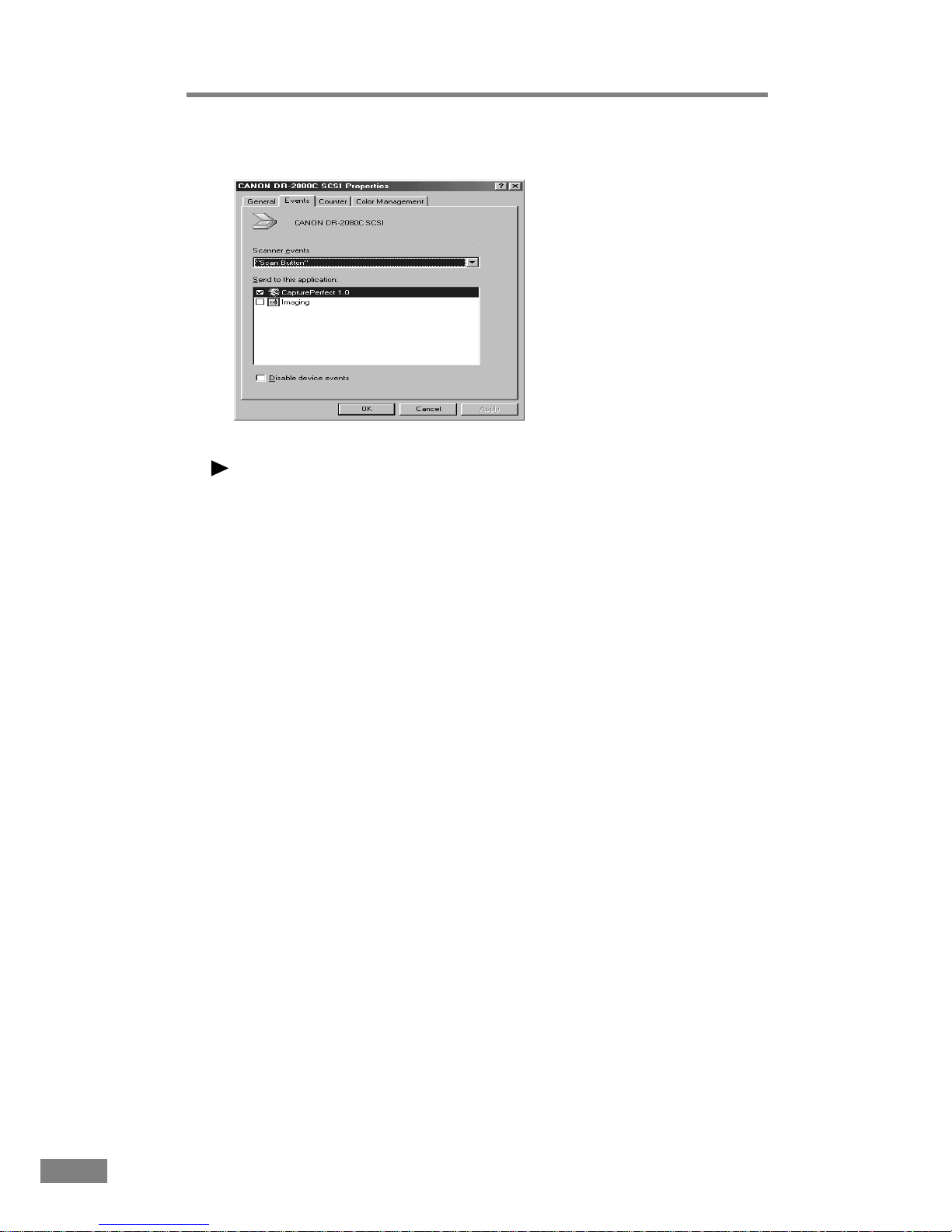

Verifying the “Scanner Event” ................................................................................ 44
Using the Scanner............................................................................................. 47
Documents ........................................................................................................... 47

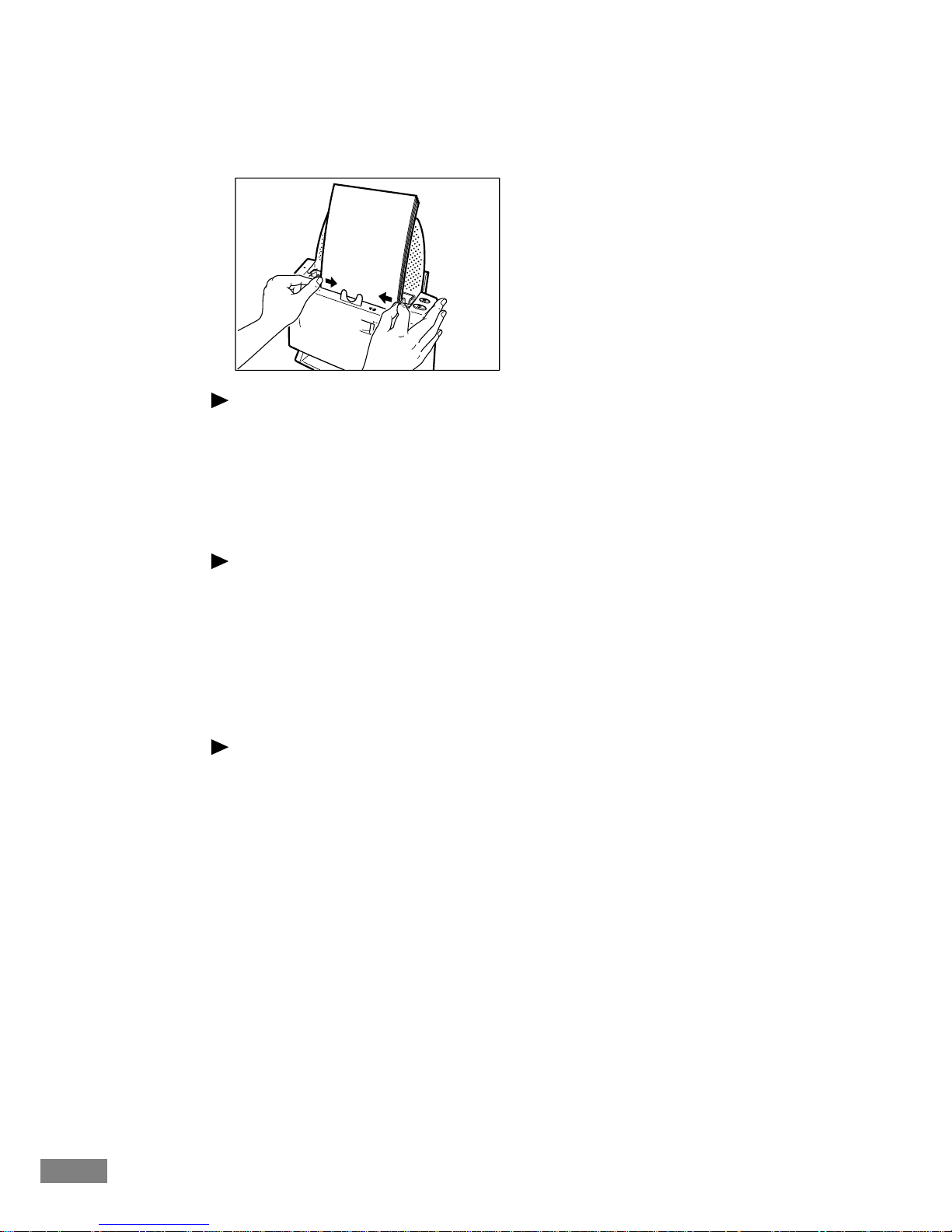

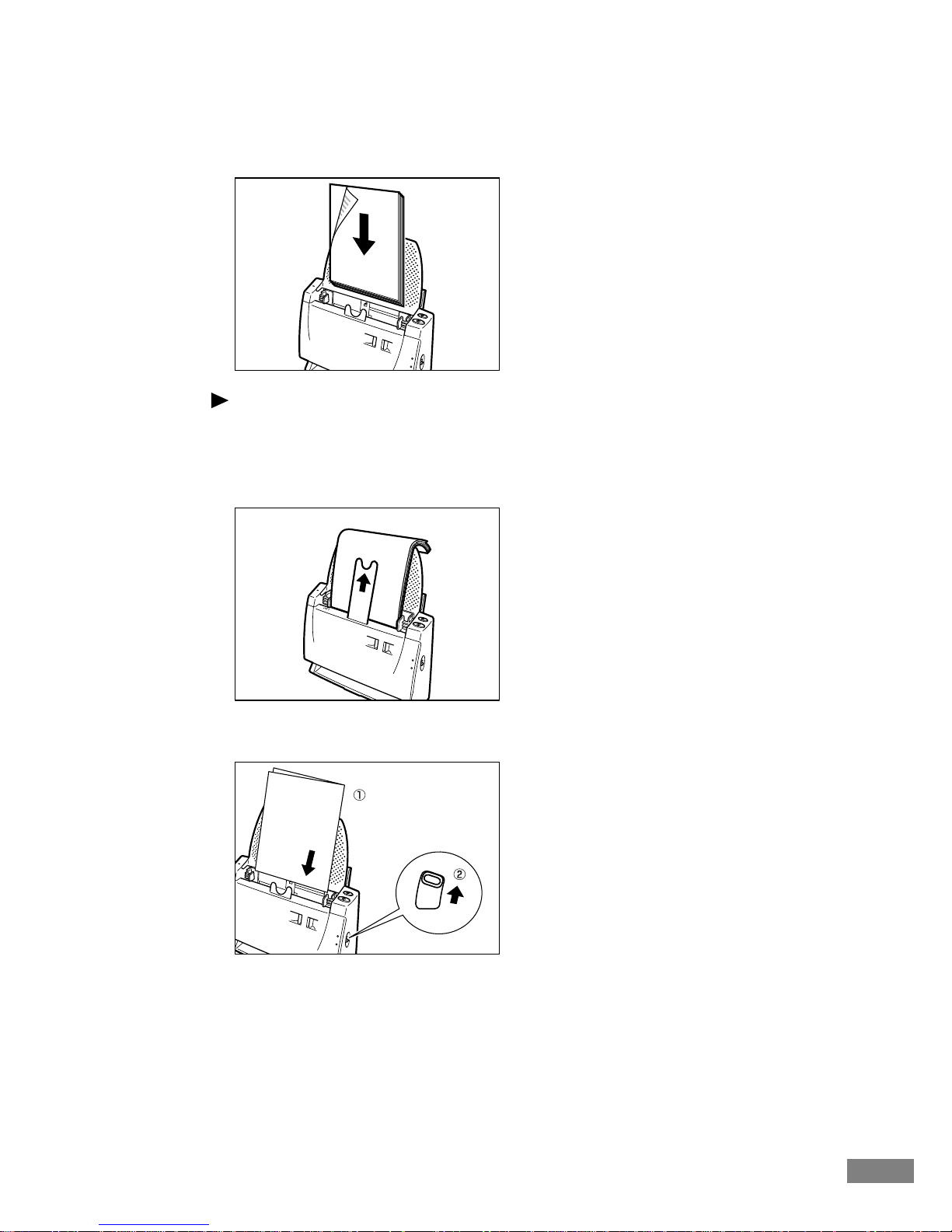

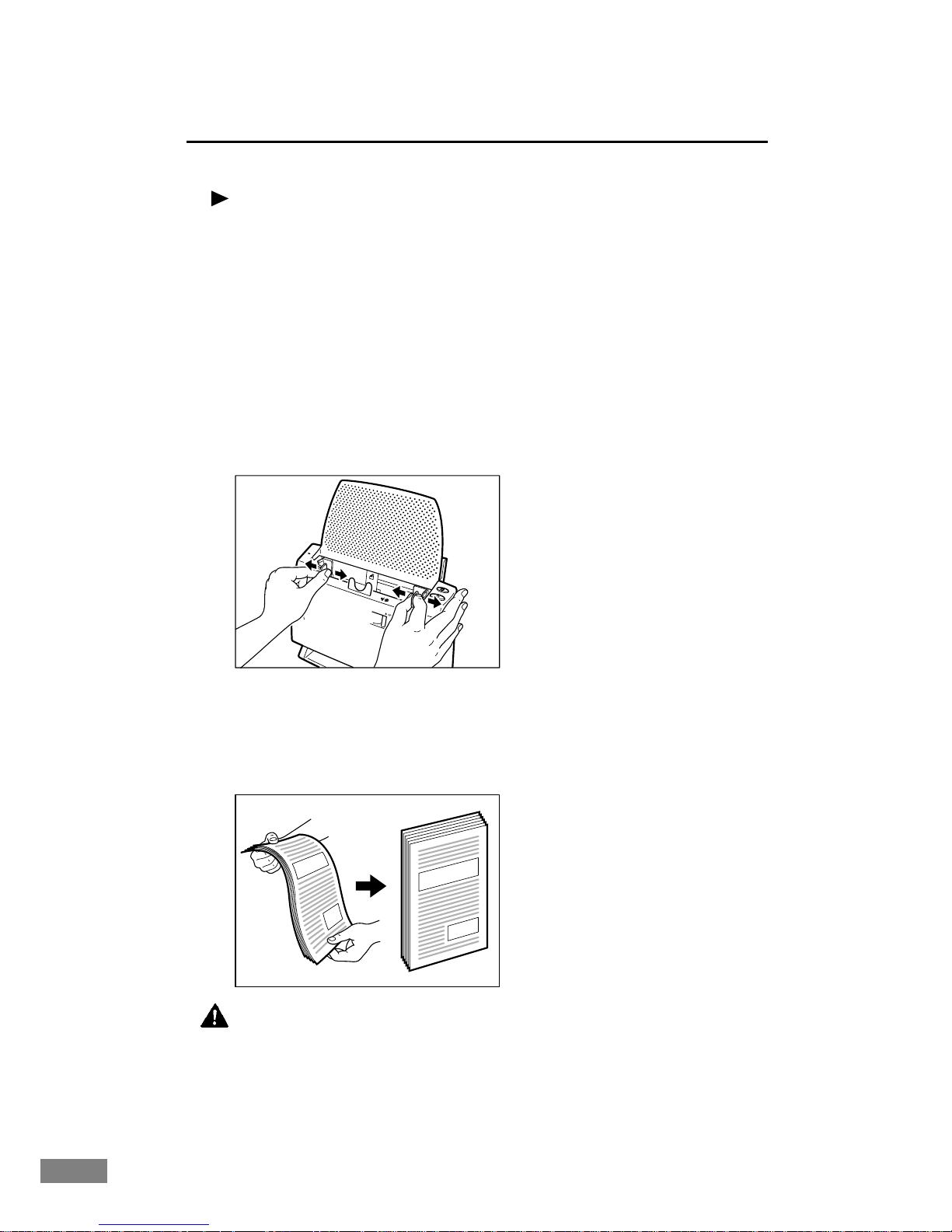

Loading a Document for Scanning ....................................................................... 48
Preparing for Scanning .......................................................................................... 48

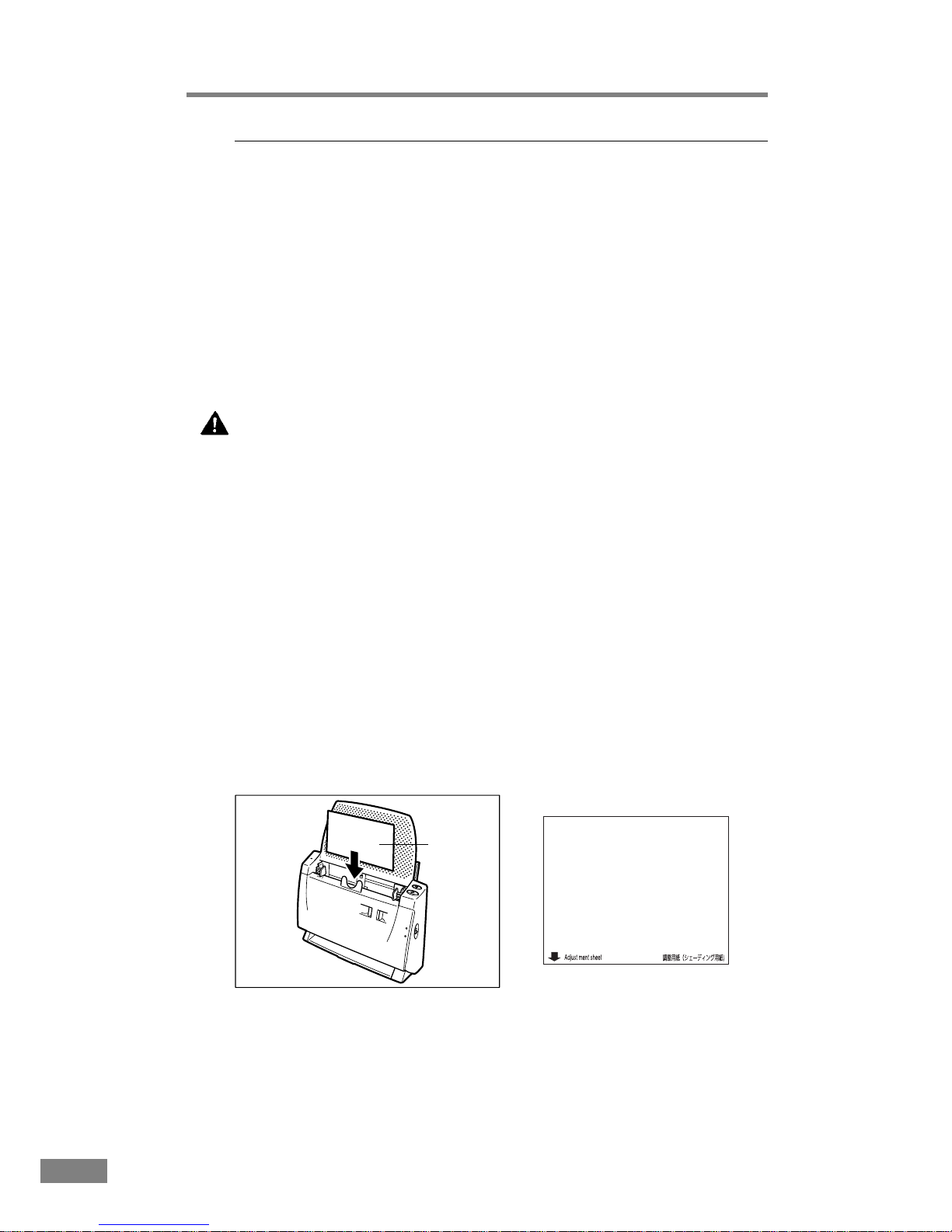

Scanning Long Documents .................................................................................... 49
Loading a Document for Scanning......................................................................... 50

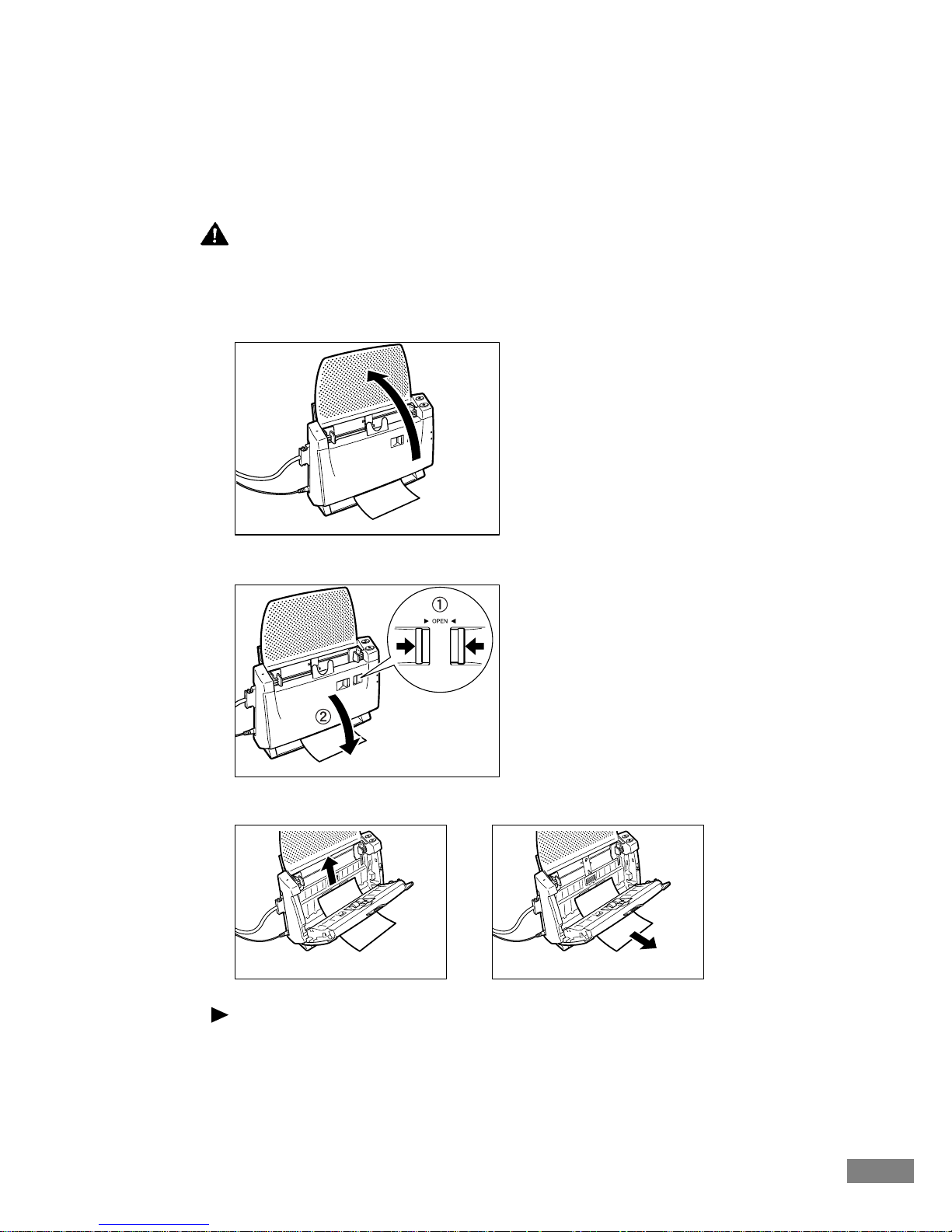

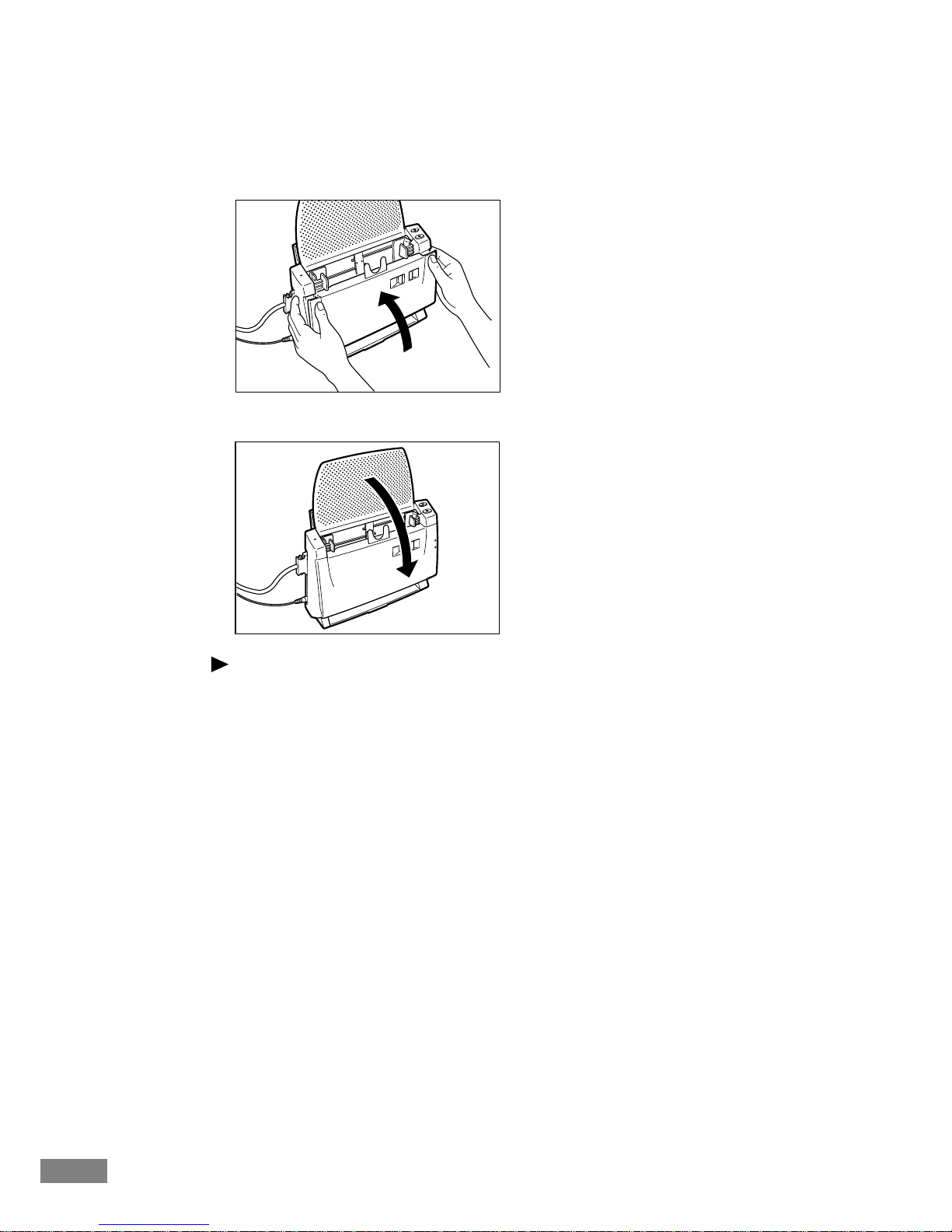

Clearing Paper Jams............................................................................................ 53
Regular Maintenance ........................................................................................ 55

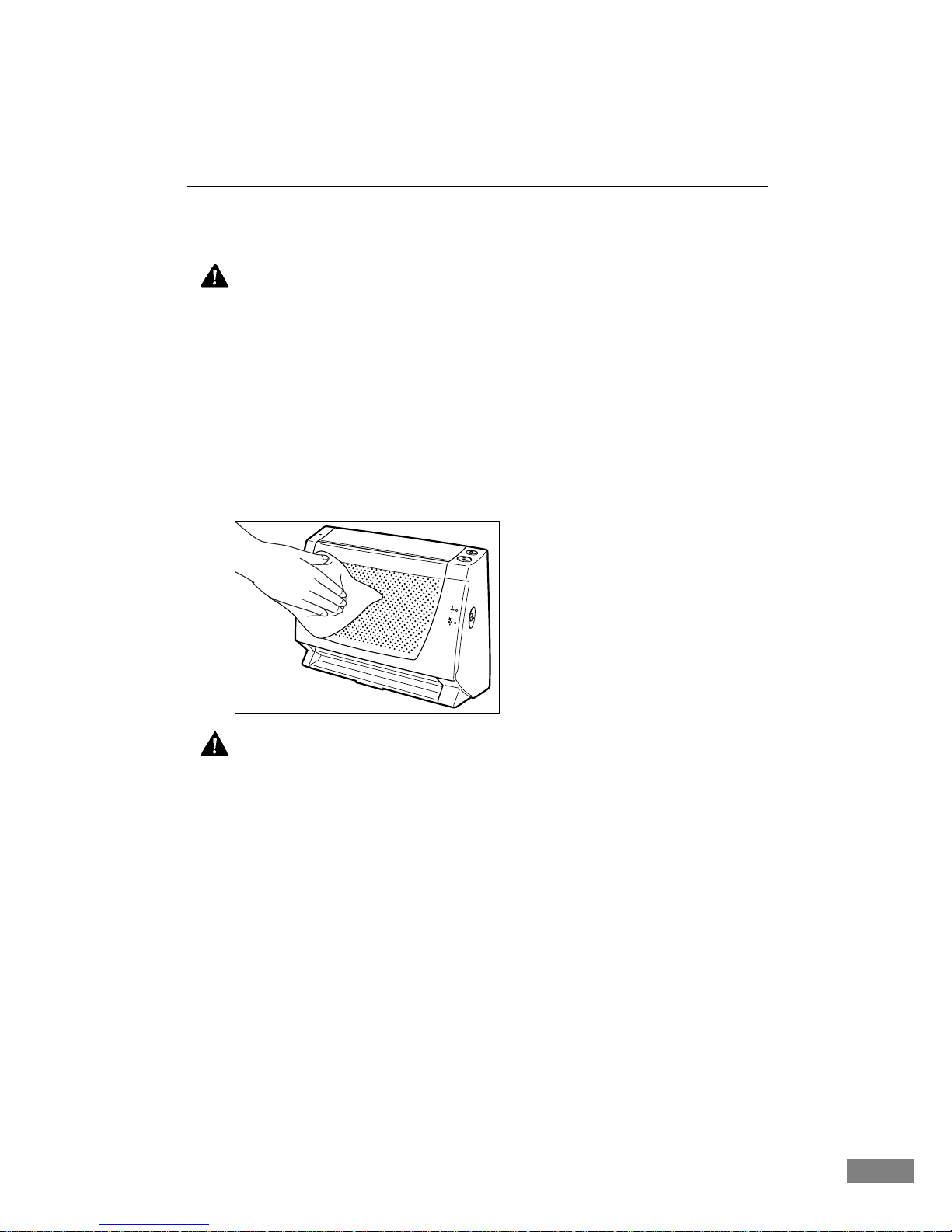

Cleaning the Scanner........................................................................................... 55

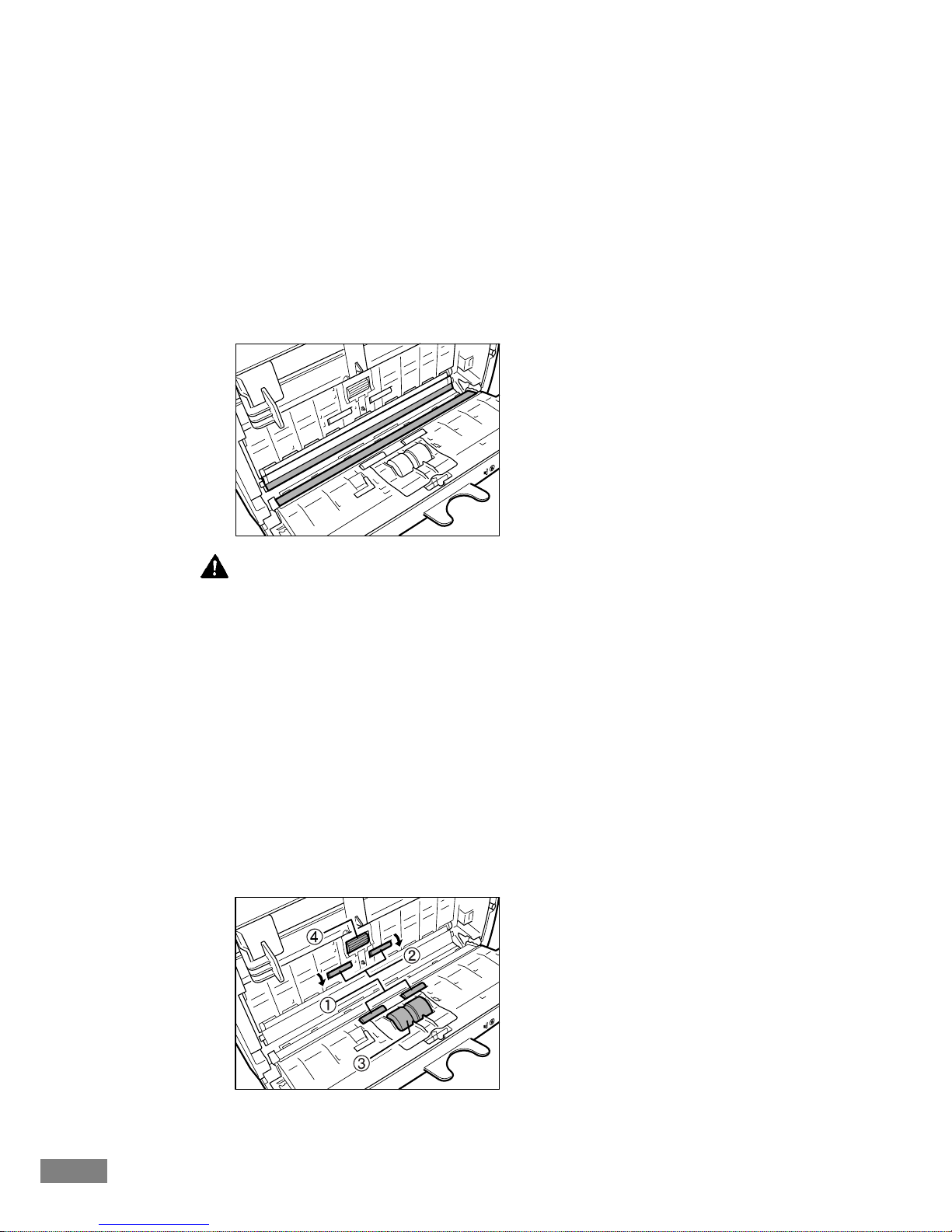

Cleaning the Scanning Glass and Transport Rollers............................................ 56
Removing the Retard Roller................................................................................... 57

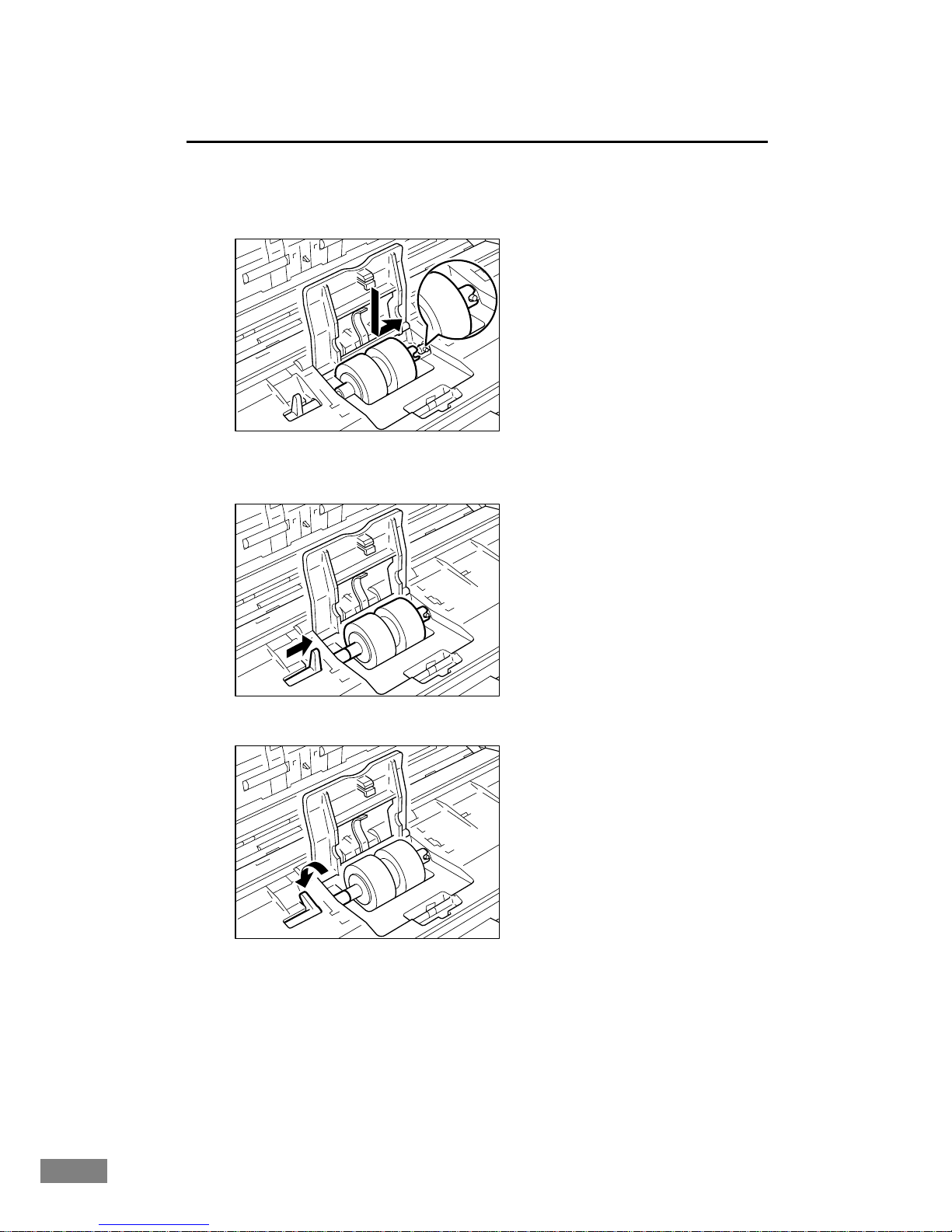

Reinstalling the Retard Roller ................................................................................ 58

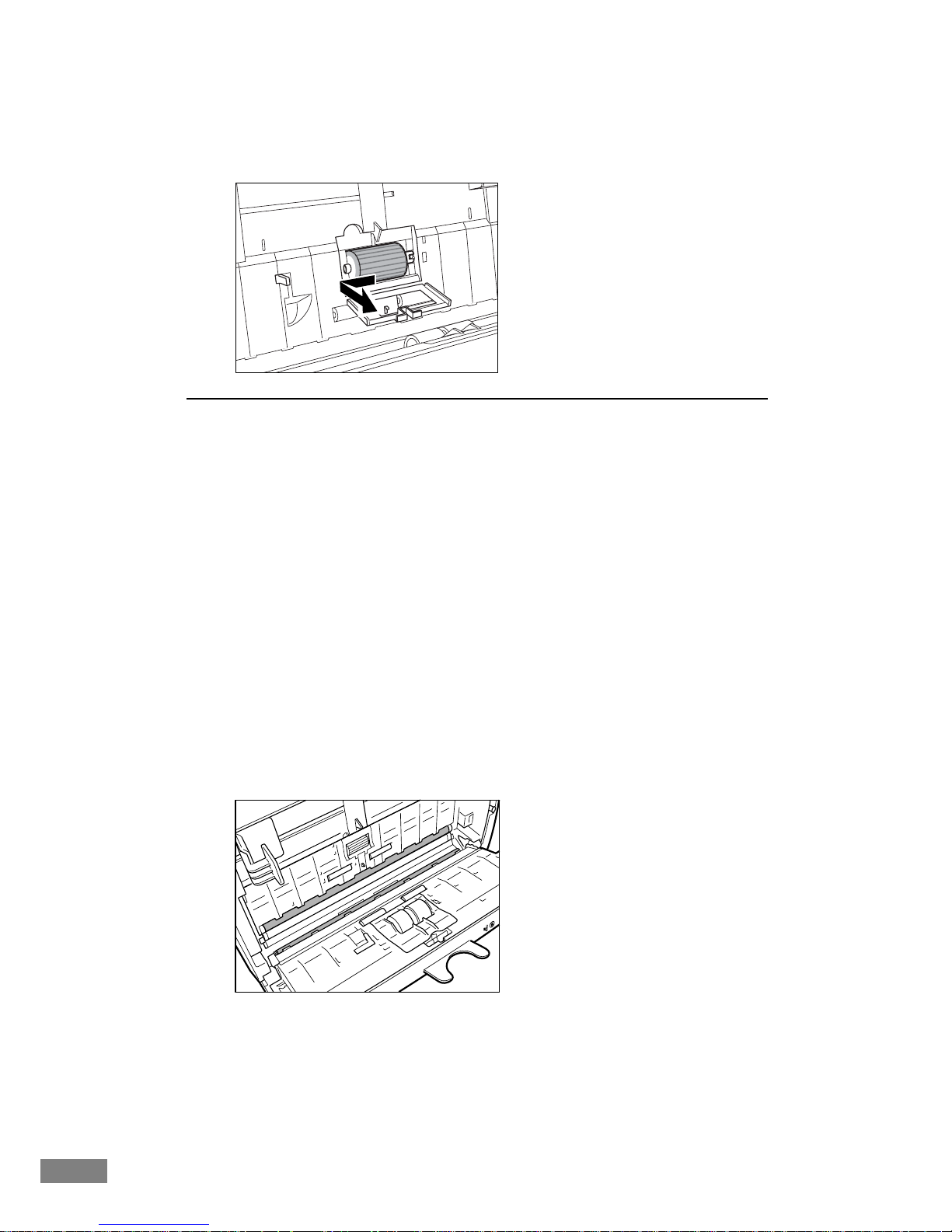

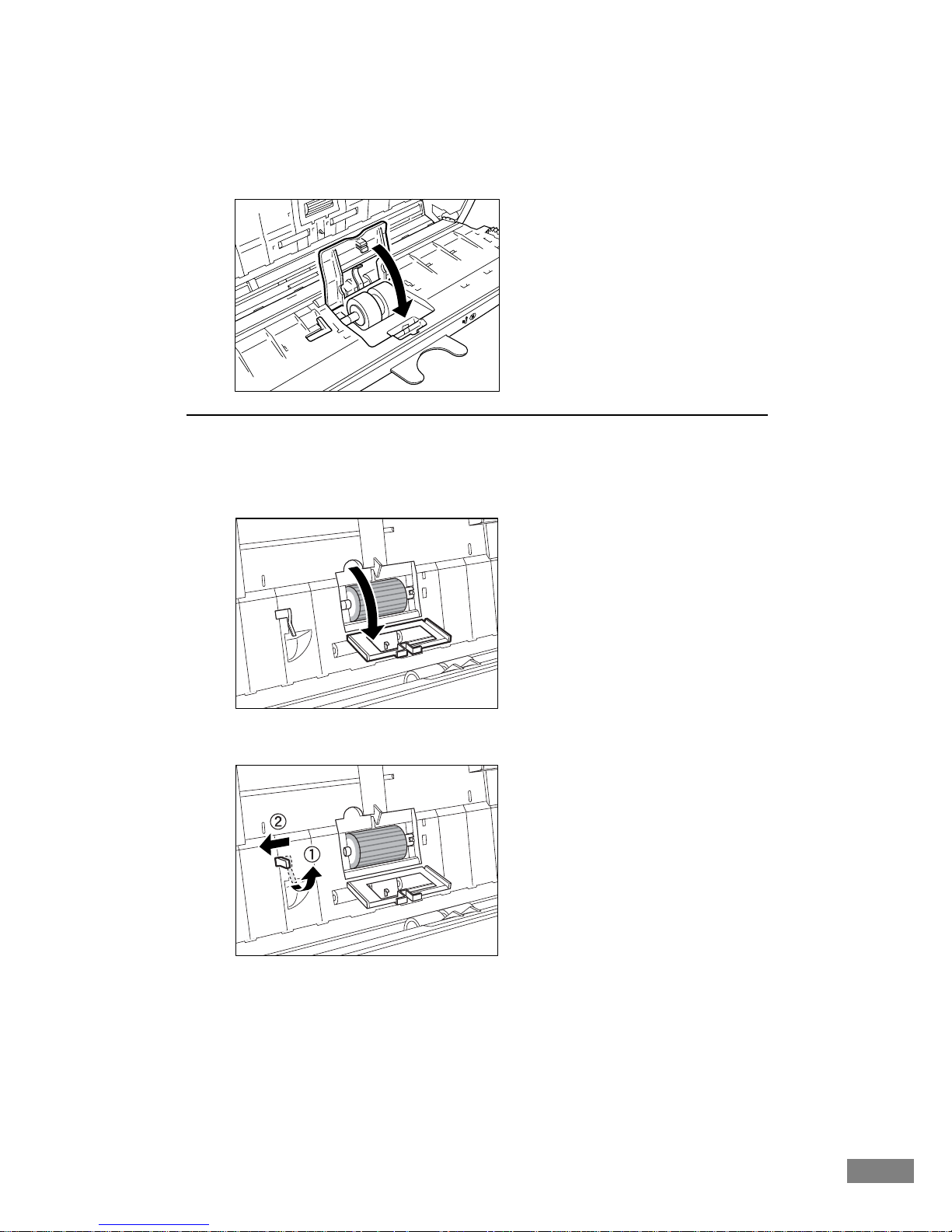

Removing the Feed Roller ..................................................................................... 59
Reinstalling the Feed Roller ................................................................................... 60
Cleaning the Metal Rollers ................................................................................... 60

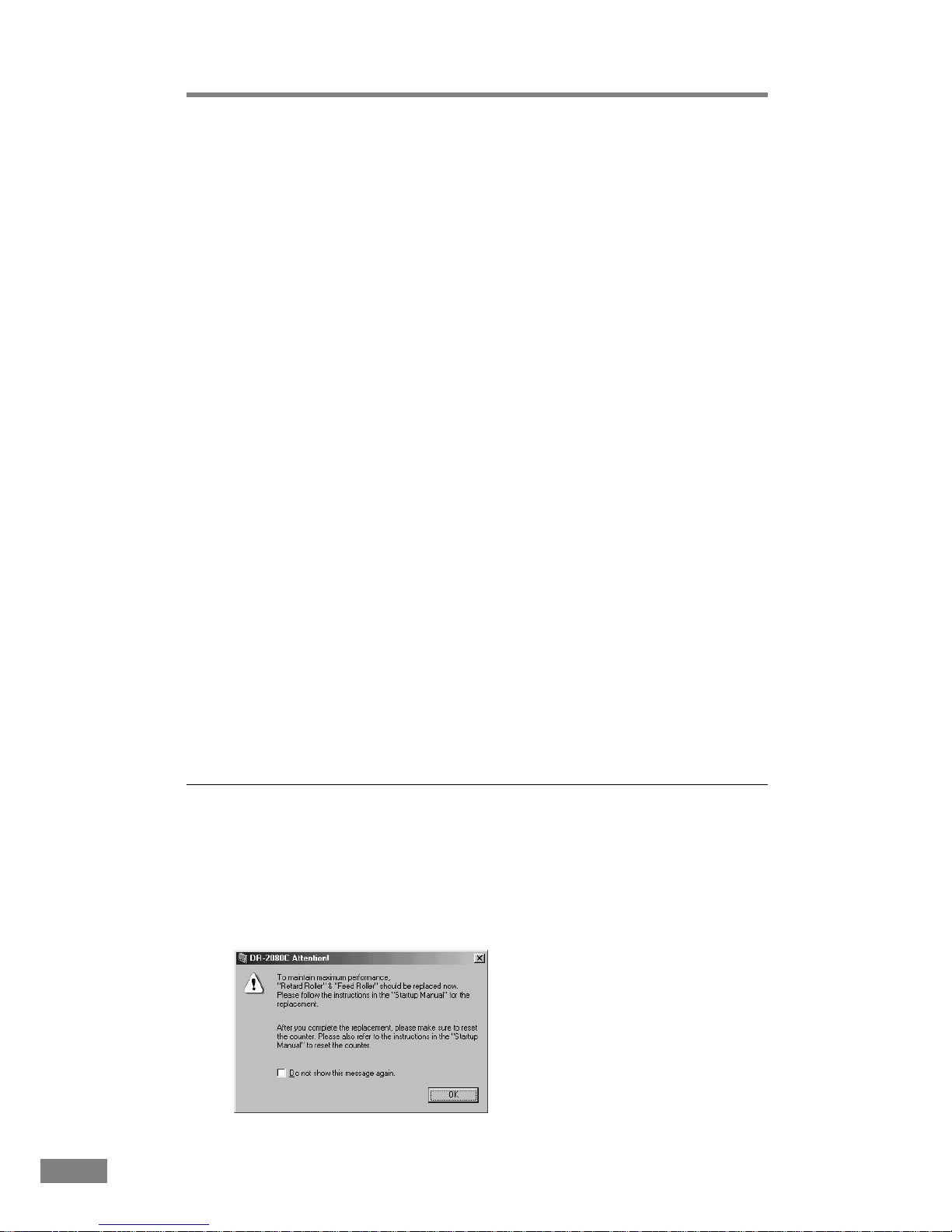

Feed Rollers Replacements ................................................................................. 61

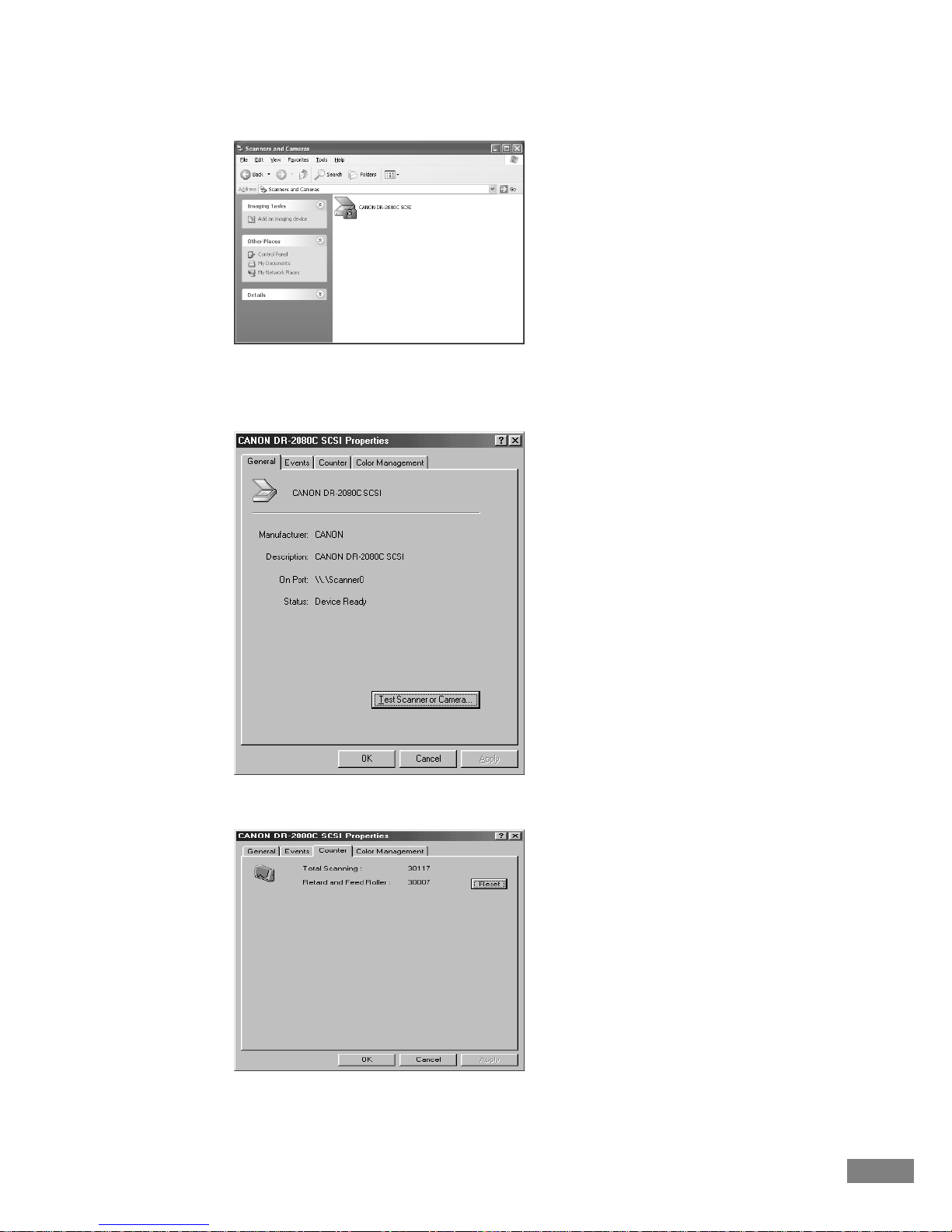

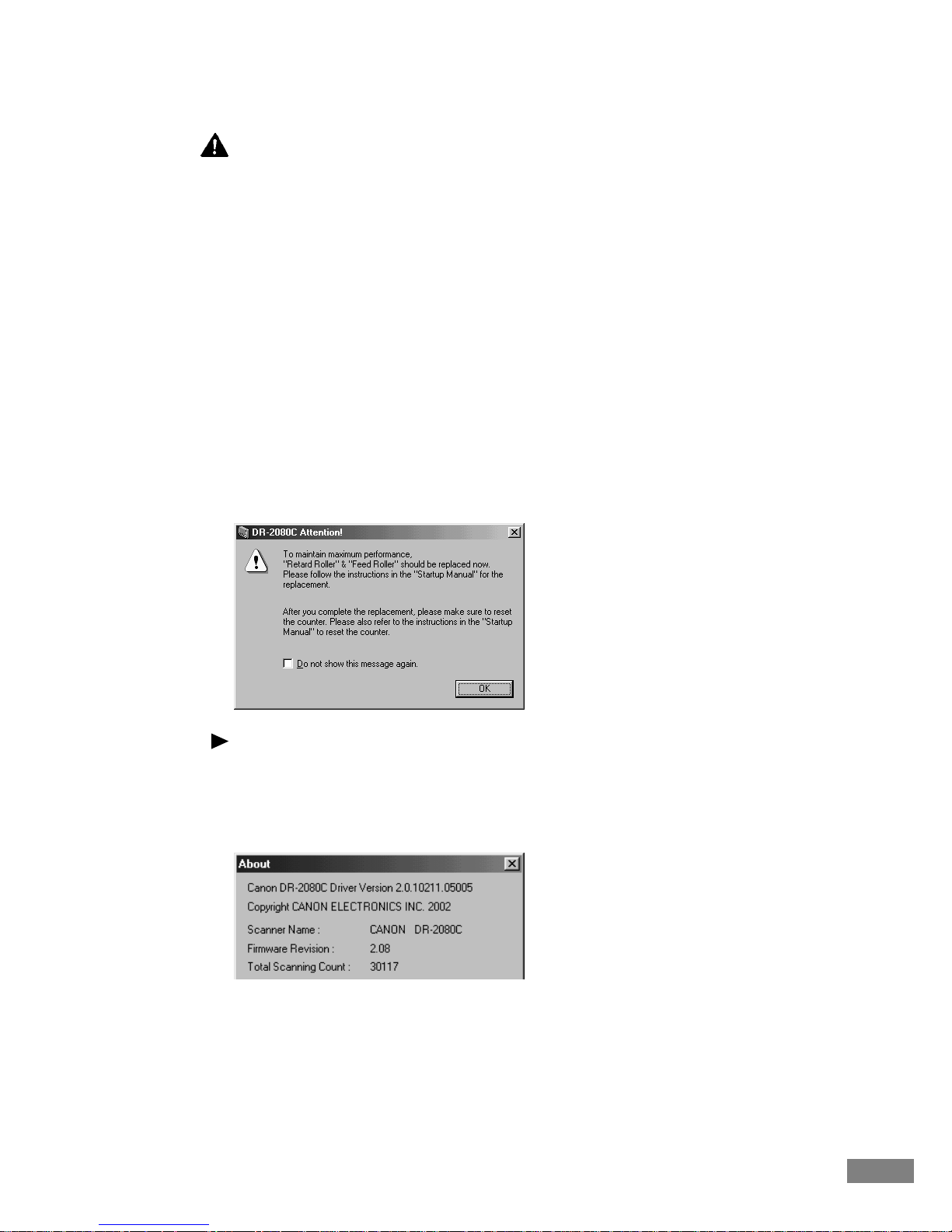

Resetting the Counter ............................................................................................ 62
Troubleshooting ................................................................................................64
Specifications.................................................................................................... 71
Index.............................................................................................................73
Before Using the Unit 5
Before Using the Unit
To Ensure Safe Operation
In order to ensure safe operation, be certain to read the cautions described
below.
Installation Location
The performance of this unit is affected by the environment in which it is
installed. Make sure that the location where the unit is installed meets the
following environmental requirements.
● Do not setup the unit on a non-slip surface that may affect document
output.
● Provide adequate space around the unit (as indicated in the above diagram)
for operation, maintenance and ventilation purposes.
● Avoid locations exposed to direct sunlight. If the unit must be placed in
such a spot, hang a heavy curtain, etc., to shade the unit.
● Avoid dusty locations. Dust can get inside of the unit and cause problems.
● Avoid warm or humid locations, such as in the vicinity of a water faucet,
water heater, humidifier, etc., and avoid locations where there fumes from
ammonia, paint thinner, etc., may be present.
At least 4 in.
(100 mm)
At least 4 in.
(100 mm)
Longer than the document size
At least 4 in. (100 mm)
(Document stop)
6 Before Using the Unit
● Avoid unstable surfaces and locations subject to vibration.
● Avoid locations that are subject to rapid temperature changes.
Condensation inside of the unit can result in inferior image quality. Use
this unit under the following environmental conditions:
Temperature: 10 degree C to 32.5 degree C
Humidity: 20% to 80% RH
● Avoid locating the unit near equipment that generates electromagnetic
fields, including speakers, televisions, and radios.
About the AC adapter
● Connect only to a power outlet of the rated voltage and power supply
frequency. (Either 120 V, 60 Hz or 220-240 V, 50/60 Hz depending on
your region.)
● Do not connect to power outlets with other electrical devices. Also, when
connecting via an extension cord, check the amperage rating.
● Disassembling and/or reassembling the AC adapter is extremely dangerous
and should not be attempted under any circumstances.
● Do not place heavy objects on the AC adapter or power cord. Do not place
the adapter or cords in an area where they are likely to be stepped on.
● Do not use the power cord while it is still bundled.
● Never pull directly on the power cord. To remove the plug from the outlet,
grasp the plug directly and remove.
● Keep the area around the power plug clear of articles so that the power plug
can be disconnected in an emergency.
● Use only the AC adapter provided with the product. Also, do not use the
scanner’s AC adapter with any other product.
120 V Model: MH3-2053 or MG1-3607
220-240 V Model: MH3-2054 or MG1-3607
● If unclear about the AC adapter, see your product dealer or the service
department for further information.
Moving the Scanner
● To avoid dropping or damaging the scanner, always carry it with two
hands. The scanner weighs approximately 2.3 kilograms.
● Make sure to disconnect the interface cable and AC adapter. If the scanner
is transported with these items plugged in, the plugs and connectors may be
damaged due to physical shock or concussion.
Before Using the Unit 7
Notes on Normal Handling
WARNING
To avoid fire and electric shock, always observe the following
warnings when using this unit.
■ Do not place flammable chemicals, such as alcohol or paint thinner, near
the unit.
■ Do not cut, damage, or modify the power cord. Do not place heavy objects
on the power cord, do not pull on the power cord, and do not bend the
power cord sharply.
■ Do not plug in or unplug the power cord with wet hands.
■ Do not use multi-outlet adapters to connect multiple devices to one outlet.
■ Do not tie up or bundle the power cord. Push the plug in as far as it will go
when plugging in the power cord.
■ Only use the AC adapter and the power cord that was provided with this
unit.
■ Do not attempt to disassemble or modify this unit.
■ Disassembling or reassembling of the AC adapter is extremely dangerous
and should not be attempted under any circumstances.
■ Do not use flammable sprays near this unit.
■ Always turn the unit off and unplug the power cord before cleaning this
unit.
■ To clean this unit, dampen a cloth in a mild detergent solution and then
wring the cloth out thoroughly. Do not use flammable liquids to clean the
unit, including alcohol, benzene, or paint thinner.
■ If the unit ever makes a strange noise, emits smoke or a strange odor, or
becomes hot, or if the unit does not operate at all even though the power is
on, immediately turn the unit off and unplug the power cord. Contact your
dealer or service representative to have the unit serviced.
■ Do not drop, kick, or otherwise strike the unit. If the unit does somehow
become damaged, immediately turn the unit off and unplug the power cord.
Contact your dealer or service representative to have the unit serviced.
■ Always turn the unit off and unplug the power cord before moving this
unit.
8 Before Using the Unit
CAUTION
■ Do not set the unit up on a wobbly platform, a sloped surface, or any other
type of unstable location. Do not set up the unit in a location that is subject
to vibration. The unit could injure someone if it falls or tips over.
■ Do not block the ventilation openings. Doing so could cause the unit to
overheat, creating a risk of fire.
■ Do not place paper clips, staples, necklaces or any other metallic objects on
top of the unit. Liquids or small metallic objects that get inside of the unit
create a risk of fire or electric shock. If such foreign matter does get inside
of the unit, unplug the power cord immediately, and then contact your
dealer or service representative for assistance.
■ Do not set up the unit in a dusty or humid location. Doing so creates a risk
of fire or electric shock.
■ Do not place objects on top of the unit. The object could injure someone if
it falls or tips over.
■ To prevent any risk of fire or electric shock, be sure that the power source
meets the power requirements of the unit.
■ When unplugging the power cord, always grasp the plug. Pulling on the
cord itself could expose or break the wires in the power cord, damaging the
cord and creating a risk of fire or electric shock.
■ In order to allow you to easily unplug the power cord at any time, do not
place other objects around the power outlet. Such obstacles could prevent
you from unplugging the power cord quickly in an emergency.
■ Do not spill liquids or flammable chemicals (such as alcohol, paint thinner,
or benzene) on the unit. Doing so creates a risk of fire or electric shock.
■ If the unit will not be used for an extended period of time, unplug the
power cord for safety’s sake.
■ When operating this unit, avoid wearing loose-fitting clothing, dangling
jewelry, or other material that could get pulled into the unit. Injury could
result. Be especially careful if you are wearing a necktie or have long hair.
In the event that some article or clothing does get caught in the unit, turn
the power off immediately.
■ Be careful when placing paper in the unit and when removing jammed
paper. It is possible to cut your hand on the edge of a sheet of paper.
Notes Concerning Disposal
CAUTION
Always follow the appropriate municipal by-laws or consult your service
center when disposing of the scanner or the AC adapter.
Before Using the Unit 9
Features of the DR-2080C
The main features of the DR-2080C scanner are listed below.
■ Compact size
The scanner is extremely compact, 11.7W x 8.2H x 3.9D in. (298W x 209H
x 99D mm). Further, because the DR-2080C is an upright scanner, it does
not take up a lot of space.
■ SCSI/USB2.0 Interface supported
The scanner is equipped with both SCSI and Hi-Speed USB 2.0 interface to
be connected to a personal computer.
■ Color/Grayscale support
Documents can be scanned in 24-bit color or 256-level grayscale.
■ Supports a variety of scanning modes*
The scanner supports the following scanning modes, depending on the
document type:
● Single-sided/double-sided mode
● Single-sheet/continuous feed
■ Automatic document size detection*
The scanner automatically detects the size of a scanned document and
eliminates any unnecessary space around the edges of the document when
storing it, even when storing a document of irregular size.
■ High durability
The scanner has high durability of 500,000 scans at maximum.
■ Folio scan
A folio (folded in half) document can be set for scanning as it is and the
scanned images of both sides are put together in a page.
■ Dropout color
The scanner is equipped with a “dropout color” function that allows you to
specify a color for the scanner to omit from scanned images. (This
correction is made by the ISIS/TWAIN driver.)
■ Deskew
The deskew function automatically straightens an image if the document
was loaded askew. (This correction is made by the ISIS/TWAIN driver.)
■ Text enhanced mode
The scanner is equipped with a “text enhanced” mode that allows you to
clearly scan text printed on a dark background, and text that is written in
faint pencil. (This function is implemented by the ISIS/TWAIN driver.)
* Available when using applications that support these functions.
10 Before Using the Unit
■ “Skip blank page” function
The scanner is equipped with a “skip blank page” function that allows it to
scan a document regardless of whether every page is double-sided or
single-sided. (This function is implemented by the ISIS/TWAIN driver.)
■ Pre-scan function
The scanner is equipped with a pre-scan function that allows you to adjust
the contrast and brightness of a pre-scanned image and then sends the
adjusted image to the application software, without needing to scan the
document again. (This function is implemented by the ISIS/TWAIN
driver.)
■ Auto Start
The scanner is equipped with an auto start function that automatically
initiates scanning when a document is placed in the document feed port.
(This function is implemented by the ISIS/TWAIN driver.)
■ Compatible with carbonless duplicating paper
The scanner is able to scan carbonless duplicating paper.
■ Power-saving feature
The scanner has a power-saving feature that puts the scanner in low-power
mode after it has been idle for a certain period of time.
Before Using the Unit 11
Checking the Packing List
The contents of the carton in which this unit is shipped are described below. If
anything is missing or damaged, contact your dealer or service representative.
q Feed roller w Document stop e Setup disc (CD-ROM)
r Startup manual (this manual) t Adjustment sheet
y Quick Reference Guide u Software license agreement
i Warranty card (U.S.A. and Canada only) o USB cable
!0 Power cord !1 AC adapter (120V Model : MH3-2053 or MG1-3607,
220-240V Model: MH3-2054 or MG1-3607)
!2 Paper side guide adapter !3 Scanner
• Adjustment (shading adjustment) sheets are inserted at the last page of this
manual. Be sure to keep them with care to prevent loss.
• The packed contents of the carton are subject to change without notice.
• Keep the carton and the packing material for future use if it is ever
necessary to store or transport the unit.
12 Before Using the Unit
Removing Protective Tape and Protective Sheet
Before using the scanner, remove the protective tape and protective sheet that
protect the unit from damage during shipment.
1.
Remove the protective tape that is attached to the exterior of the unit.
2.
Remove the protective sheet from between the paper feed tray and the
scanner.
3.
Lift the edge of the paper feed tray to open it.
Before Using the Unit 13
4.
While squeezing the OPEN release (➀), open the front unit towards you (➁).
5.
Remove the protective tape pasted on the inside of the scanner.
14 Before Using the Unit
Names and Functions of Parts
This section explains the name and function of each part. Familiarize yourself
with the parts before connecting the scanner.
■ Front and right views
■ Front view (with top cover and paper feed cover open)
Document feed opening
Set the document that you want to
scan here.
OPEN release
Use this to open the front unit.
Document positioning mark
Align the paper side guides with this
mark according to the size of the
document to be scanned.
Paper feed extension plate
Pull this out if the document
falls forward.
Paper side guides
Adjust these to the width of the
document.
Document stop
To prevent ejected documents
from scattering, set this in a
position apart from the
document eject opening by at
least the length of the
document.
Front unit
Paper side guide adapters
Set these adapters into the paper
side guides if paper skews during
feeding.
Top cover
Open this cover to set your
document.
Stop key
Press this key to stop the document
scanning.
Start key
Press this key to start the document
scanning.
Feed selection lever
Sets the feeding method of
documents. To feed the sheets of
a multi-page document
individually, set the lever in the
down position (page separation
mode). To feed all the sheets of a
non-separable multi-page
document, set the lever in the up
position to bypass separation.
(bypass mode).
Feed indicator
This shows the position of
the feed selection lever.
Document eject
opening
Scanned documents
are ejected from
here.
Paper feed tray
Open this cover if
the document is
protruding from the
document feed
opening.
Power indicator
This lights when you
turn on the scanner.
Before Using the Unit 15
■ Rear and left views
CAUTION
Do not block the ventilation openings. Doing so could cause the
unit to overheat, creating a risk of fire.
■ Symbols Used in This Guide
Ventilation
openings
Power connector
Connects to the AC
adapter provided with
this unit.
SCSI connector
Connects to a 50-pin
half-pitch (pin type)
SCSI cable.

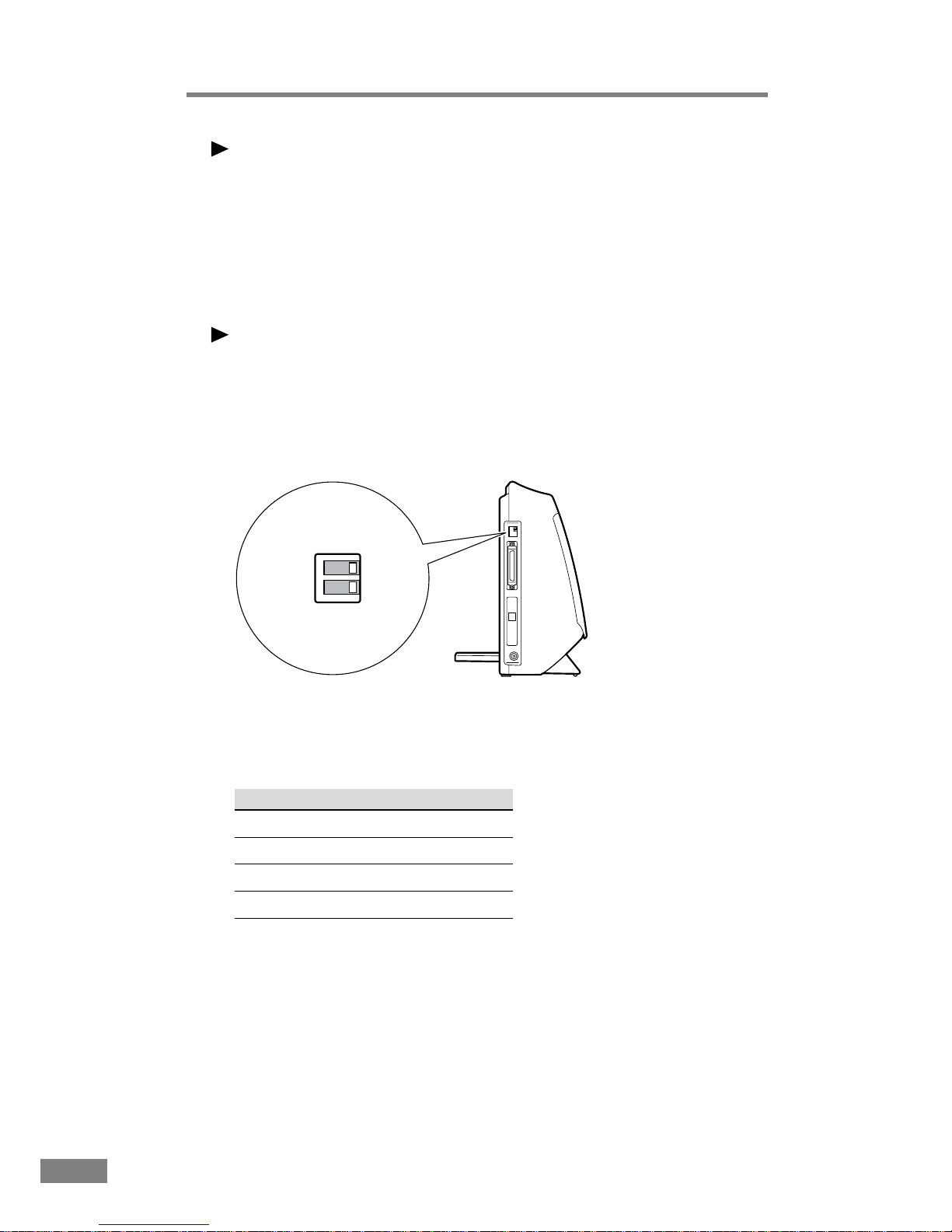

DIP switches
These set the SCSI ID.
Stand
Pull this out to
prevent the unit from
toppling.

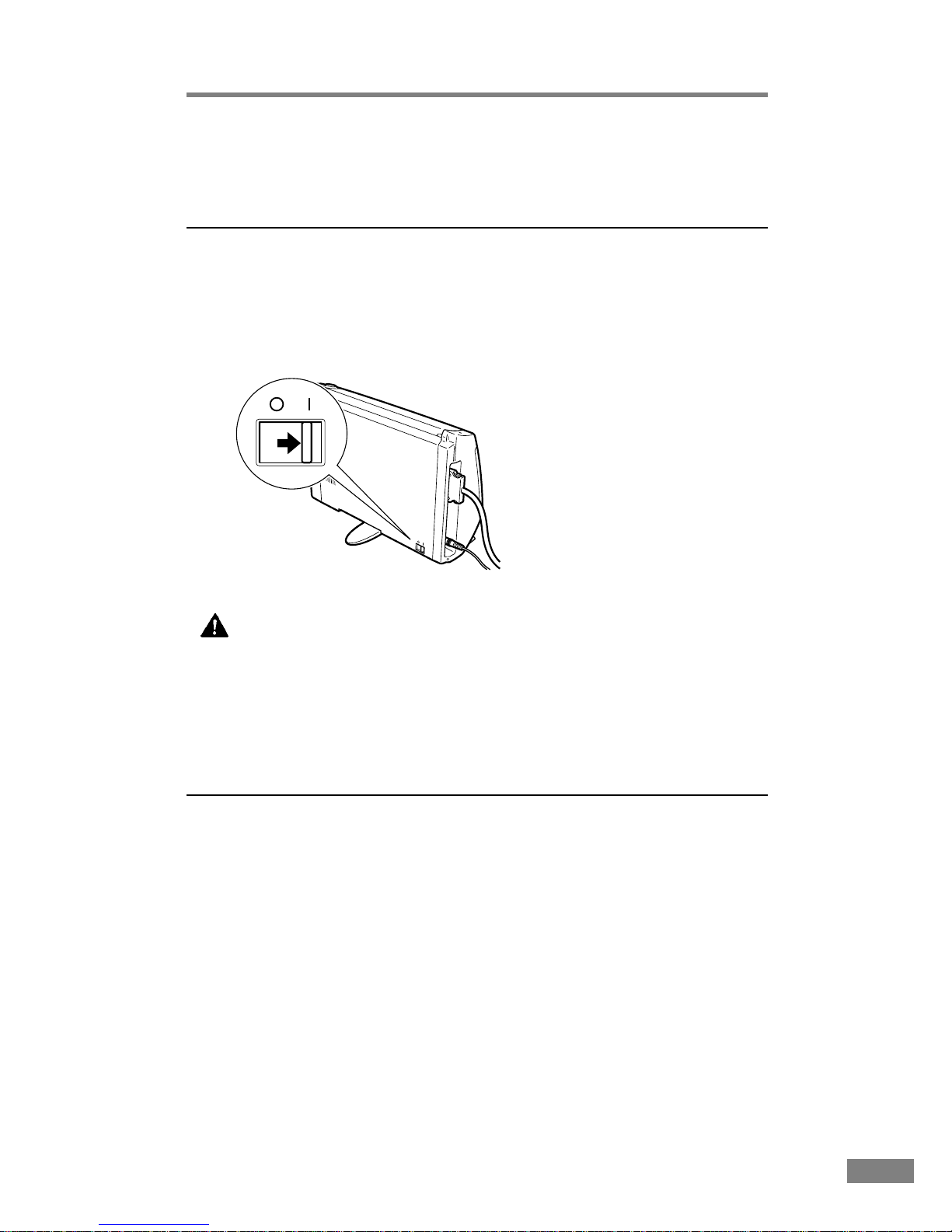

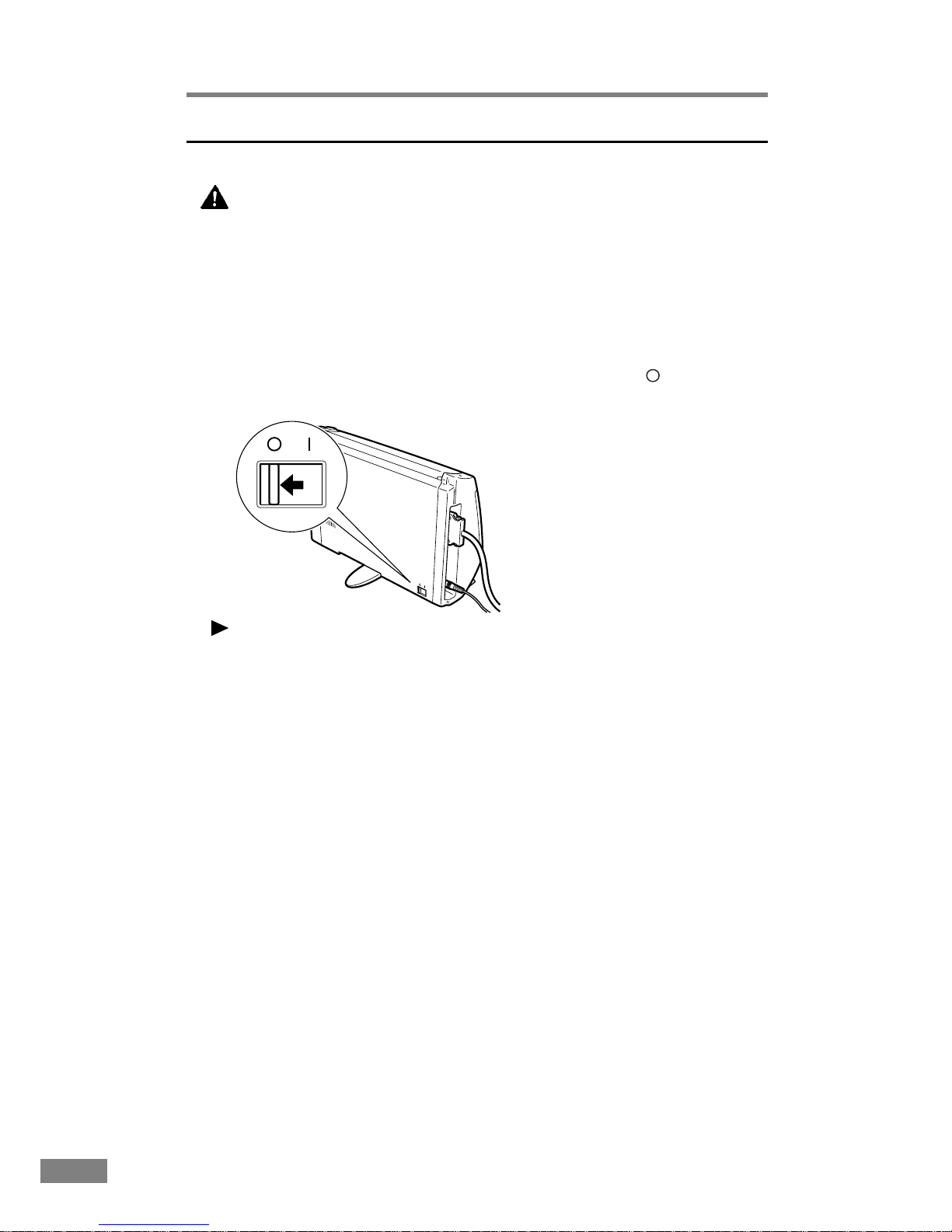

Power switch
Turns the scanner’s
power on and off.
This symbol shows the setting
method (central position, front/back,
and paper feed direction) for the
document to be scanned.
This symbol shows that the pages
of the document set in the scanner
are fed sheet by sheet (page
separation mode).
These symbols show the method
for arranging documents with
multiple pages.
Shows that the pages of the
document set in the scanner are all
fed at once without separation
(bypass mode).
USB connector
Connects to a HiSpeed USB 2.0compatible cable.
16 Installing the Scanner
Installing the Scanner
Before Setting Up the Scanner
Extending the stand
Extend the stand located at the rear of the unit to prevent it from toppling.
Notice
Make sure that you use the unit with the stand extended. If you do not use the
stand, the unit may topple and be damaged.
Installing the Feed Roller
Open the front unit and install the provided feed roller.
1.
Lift the edge of the paper feed tray to open it.
Installing the Scanner 17
2.
While squeezing the OPEN release (➀), open the front unit towards you (➁).
3.
Open the roller cover inside the scanner. To open the cover, set your finger in
the groove and lift.
4.
Raise the roller lock lever (➀), and slide it in the direction of the arrow (➁).
5.
Insert the feed roller into the groove inside the roller cover, and align the
notch in the roller with the spindle in the front unit.
18 Installing the Scanner
6.
Slide the roller lock lever to the right, and set it into the hollow to the left of
the roller.
7.
Lower the lever to fasten the feed roller spindle.
8.
Close the roller cover. Make sure that the cover clicks into place and is
returned to its original position.
Installing the Scanner 19
9.
Gently press the upper left and right edges of the front unit. Make sure that the
cover clicks into place and is returned to its original position.
10.
Close the paper feed tray.
11.
Close the top cover.
20 Installing the Scanner
Installation Requirements
In order to use the DR-2080C, your computer must satisfy the following
system requirements:
● IBM PC/AT-compatible that satisfies the following specifications:
• Intel Celeron 733MHz or faster
•Main memory: 256 MB or more (recommended)
• Hard disc space: 400 MB or more
● SCSI board or USB 2.0 interface board that supports the scanner (→ page
23 “Interface Board”)
● Display that is capable of resolution of 1024 x 768 (XGA) or better
(recommended)
● One of the following operating systems, running normally:
Connecting via SCSI
•Microsoft Windows 95
•Microsoft Windows 98/98SE
•Microsoft Windows Me
•Microsoft Windows NT 4.0 Workstation
•Microsoft Windows 2000 Professional SP4
•Microsoft Windows XP
Connecting via USB2.0
•Microsoft Windows 98SE
•Microsoft Windows Me
•Microsoft Windows 2000 Professional SP4
•Microsoft Windows XP
● ISIS-compatible or TWAIN-compatible application software that runs
normally under your operating system
Notice
● If you are connecting the scanner via USB 2.0 interface, be sure to use an
updated version of the USB 2.0 driver. For details on the updated driver,
contact your dealer.
● If your CPU, memory or SCSI board does not meet the recommended
specifications, you may experience problems such as slow scanning speed.
Note
● Be sure to allocate sufficient virtual memory.
● Use the SCSI board provided a SCSI board recommended for use with the
unit.
● After checking the shape of the connectors on the computer connected to
the unit and SCSI device, use the SCSI cable provided purchase a SCSI
cable with the right combination of connectors. (→ page 23)
Installing the Scanner 21
● The USB cable you are using should be the one originally bundled with the
scanner or a Hi-Speed USB 2.0-compatible cable.
● Depending on the application software that you are using, the device driver
provided may not operate, or you may not be able to use the functions
described in this guide.
● Make sure that the device driver and application software that you will be
using are compatible with your PC, the system configuration, and the type
of SCSI board that you are using.
● The ISIS/TWAIN driver provided with the scanner is not necessarily
compatible with all ISIS-compatible or TWAIN-compatible application
software. For details, contact your application software dealer.
Loading...
