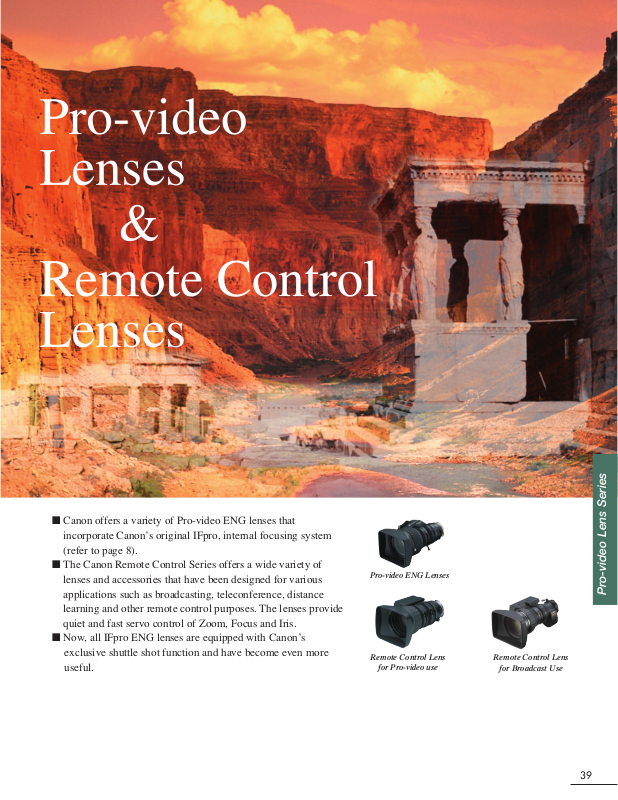

Canon offers a variety of Pro-video ENG lenses that incorporate Canon’s original IFpro, internal focusing system (refer to page 8). The Canon Remote Control Series offers a wide variety of lenses and accessories that have been designed for various applications such as broadcasting, teleconference, distance learning and other remote control purposes. The lenses provide quiet and fast servo control of Zoom, Focus and Iris. Now, all IFpro ENG lenses are equipped with Canon’s

exclusive shuttle shot function and have become even more useful.

■

Remote Control Lens

for Broadcast Use

Pro-video ENG Lenses

Crossover Solutions for 2/3” Pro-video YJ20x8.5B

(Please refer to page 9 for details about Switchable cameras and Crossover technology.)

Canon has developed two affordable optical solutions to accommodate the increasing number of 16:9/4:3 switchable 2/3” Pro-video cameras.

The first solution is the W80Y-85 Crossover Adaptor, a specially designed compact front mounted wide converter for the YJ20x8.5B/YJ19x9B, which makes the master lens wider by a factor of 0.8x. When you use the W80Y-85 on the YJ20x8.5B/YJ19x9B in the 4:3 mode of a switchable camera, it performs the Crossover function restoring the tele-side shifted image to a normal field of view as would be found on a conventional 4:3 camera. There is no light loss when using the W80Y-85. (The M.O.D becomes 0.58m)

The second solution is the YJ20x8.5B VRS which has a built-in “Shrinker”. When the “Shrinker” is in place, the tele-side shifted image is restored to the normal field of view as would be found on a conventional 4:3 camera. The VRS “Shrinker” performs no function in the 16:9 mode while the W80Y-85 is usable in both the switchable 4:3 mode and the16:9 mode.

W80Y-85

YJ20x8.5B VRS

YJ20x8.5B KRS YJ20x8.5B IRS YJ13x6B KRS YJ13x6B IRS

Zoom Ratio 20x 20x 13x 13x

Image Size 2/3" 2/3" 2/3" 2/3"

Built-in Extender — 2.0x — 2.0x

Range of Focal Length 8.5~170mm 8.5~170mm 6~78mm 6~78mm

(with Extender) 17~340mm 12~156mm (2.0x)

1:1.8 at 8.5~113.3mm 1:1.8 at 8.5~113.3mm 1:2.0 at 6~58mm 1:2.0 at 6~58mm

Maximum Relative Aperture 1:2.7 at 170mm 1:2.7 at 170mm 1:2.7 at 78mm 1:2.7 at 78mm

(with Extender) 1:3.6 at 17~226.7mm 1:4.0 at 12~116mm

1:5.4 at 340mm

(2.0x)

1:5.4 at 156mm

(2.0x)

Angular Field 4:3 Aspect Ratio

54.7°x42.4° at 8.5mm 54.7°x42.4° at 8.5mm 72.5°x57.6° at 6mm 72.5°x57.6° at 6mm

of View (8.8x6.6mm)

3.0°x2.2° at 170mm 3.0°x2.2° at 170mm 6.5°x4.8° at 78mm 6.5°x4.8° at 78mm

(with Extender)

29.0°x22.0° at 17mm 40.3°x30.8° at 12mm

1.5°x1.1° at 340mm

(2.0x)

3.2°x2.4° at 156mm

(2.0x)

M.O.D from Lens Front 0.9m(10mm with Macro) 0.9m(10mm with Macro) 0.4m(10mm with Macro) 0.4m(10mm with Macro)

Object Dimensions 4:3 Aspect Ratio

85.2x63.9cm at 8.5mm 85.2x63.9cm at 8.5mm 68.1x51.1cm at 6mm 68.1x51.1cm at 6mm

at M.O.D (8.8x6.6mm)

4.4x3.3cm at 170mm 4.4x3.3cm at 170mm 5.0x3.8cm at 78mm 5.0x3.8cm at 78mm

(with Extender)

42.6x32.0cm at 17.0mm 34.1x25.6cm at 12mm

2.2x1.7cm at 340mm

(2.0x)

2.5x1.9cm at 156mm

(2.0x)

Approx.Size(WxHxL) 163.3x103x170.4mm 163.3x103.0x195.4mm 165.4x105.1x211.7mm 165.4x105.1x234.8mm

Approx.Mass 1.17kg (2.58lbs) 1.39kg (3.06lbs) 1.54kg (3.39lbs) 1.74kg (3.83lbs)

Macro Yes Yes Yes Yes

Yes Yes Yes Yes

Reference: The following is the lens angle (without Shrinker) in the 4:3 mode of switchable cameras as explained on page 9.

Angular Field 4:3 mode of 45.9°x35.2° at 8.5mm 45.9°x35.2° at 8.5mm 61.9°x48.5° at 6mm 61.9°x48.5° at 6mm

of View

Most Switchable

2.43°x1.82° at 170mm 2.4°x1.8° at 170mm 5.29°x3.97° at 78mm 5.29°x3.97° at 78mm

Cameras

23.9°x18.0° at 17.0mm 33.4°x25.4° at 12mm

(with Extender) (7.2x5.4mm)

1.2°x0.9° at 340mm

(2.0x)

2.64°x1.98° at 156mm

(2.0x)

Pro-video Lens Series

Control Accessories for Pro-video ENG Lenses and HDgc

(

KRS)Lenses

# Unit Description CODE 1 FM-12 Flex Focus Module 1824A012 5 FM-70 Flex Dual Module 0002T071 8 FC-40 Flex Cable 1824A010 9 FFC-15 Flex Focus Controller 1824A024

10 FFC-200 Flex Focus Controller 1824A014 11 FZC-100 Flex Zoom Controller 1824A021 15 FPM-77 Focus Positional Servo Module 1824A020 16 FPD-400 Focus Positional Demand 1824A018 18 ZSD-15A2/M2 Zoom Demand A 1824A070

(A or M types, depends on applicable camera) M 1824A071 19 ZSD-300A/M Zoom Demand A 1824A066 (A or M types, depends on applicable camera) M 1824A067

20 ZSD-300D Zoom Demand 1824A123 21 ZSG-200A/M Zoom Servo Grip A 1824A068

(A or M types, depends on applicable camera) M 1824A069

22 CR-10 Clamper 1824A007 23 GA-70 Grip Adapter 0018T531 28 EC-80 Zoom Extension Cable (8P) 1824A009 30 CC-0820 Conv. Cable (8pM-20pF) 1824A127

* 5 16 & 23 are not applicable to YH14x7.3 and YH16x7. **In USA, 18 & 9 are available only as MS-15 kit

configuration and not as individual product.

Recommended Kit Configuration for the Pro-video ENG lenses.

Zoom Focus

Kit Name System Component System Component

for KRS/IRS/VRS Type of Pro-video ENG Lenses

Zoom Servo -- ZSD-15 18 ** -- -Only -- ZR-1 19 -- --

-- ZR-2(A) 21 22 28 -- --

-- ZR-2(B) 21 23 *----

Semi-Servo MS-15 ZSD-15 18 ** FRC-15 1 8 9 **

MS-21 ZR-1 19 FR-2 1 8 10 MS-21D ZR-1D 20 30 FR-2 1 8 10 MS-22 ZR-2(A) 21 22 28 FR-2 1 8 10

Full Servo -- ZR-1 19 FPS-4 15 16 *

-- ZR-2(A) 21 22 28 FPS-4 15 16 *

Full Manual FZC-1 FZC-1 5 8 11 FR-2(w/o 1 ) 8 10

ZSD-15A2, ZSD-300A/M, ZSG-200A and FPD-400 is not available

*A or M types, depends on applicable camera.

MS-22

FC-40

FM-12

ZSG-200A ZSG-200M

FFC-200

CR-10

EC-80

SEMI-SERVO KIT

for all Pro-video ENG lenses

MS-15

ZSD-15AII ZSD-15MII

FC-40

FM-12

FFC-15

SEMI-SERVO KIT

for all Pro-video ENG lenses

MS-21D

ZSD-300D

FM-12

FFC-200

FC-40

SEMI-SERVO KIT

for all Pro-video ENG lenses

Lens

EC-80

CC-0820

20p

Recommended Kit Configuration

Applicable Component Detail

Applicable Kit Detail
