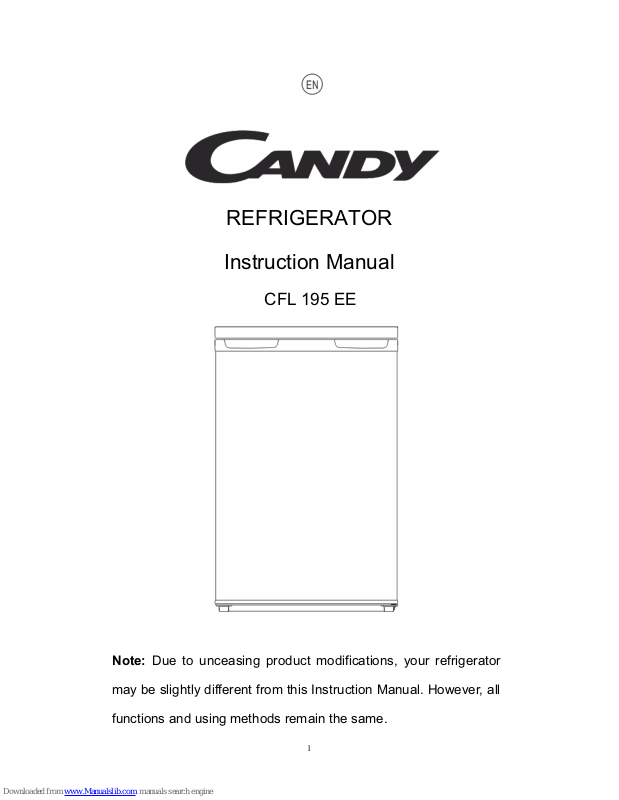

Candy CFL 195 EE Instruction Manual

1

REFRIGERATOR

Instruction Manual

CFL 195 EE

Note: Due to unceasing product modifications, your refrigerator

may be slightly different from this Instruction Manual. However, all

functions and using methods remain the same.

2

Dear customer,

Before placing your new refrigerator/freezer into operation please read these
operating instructions carefully. They contain important information for safe use, for
installation and for care of the appliance.

Please keep these operating instructions for future reference. Pass them on to
possible new owners of the appliance.

Notes which are important for your safety or for the proper functioning of the
appliance are stressed with a warning triangle and/or with signal words (Warning!,
Caution!, Important! ). Please observe the following carefully.

Supplementary information regarding operation and practical applications of the
appliance appear after this symbol.

Tips and notes concerning economical and environmentally sound use of the appliance
are marked with the cloverleaf.

The operating instructions contain instructions for the correction of possible
malfunctions by the user in the section “Trouble shooting”. If these instructions
should not be sufficient, contact your local Service Force Center.

Printed on paper manufactured with environmentally sound processes he who thinks
ecologically acts accordingly...

3

Contents

Important Safety Instruction ---------------------------------------------------------------page 4

Remove transport packaging -------------------------------------------------------------page 6

Installation -------------------------------------------------------------------------------------page 6

Positioning -------------------------------------------------------------------------------------page 6

Description of the appliance ---------------------------------------------------------------page 7

View of the appliance ------------------------------------------------------------------------page 7

Reversing the door----------------------------------------------------------------------------page 7

Starting up and temperature regulation -------------------------------------------------page 9

Interior Accessories --------------------------------------------------------------------------page 9

Defrosting --------------------------------------------------------------------------------------page 10

Cleaning and Care ---------------------------------------------------------------------------page 11

Energy Saving Tips --------------------------------------------------------------------------page 12

Trouble shooting ------------------------------------------------------------------------------page 12

Changing the light bulb ---------------------------------------------------------------------page 14

Noises during Operation --------------------------------------------------------------------page 14

Regulations, Standards, Guidelines -----------------------------------------------------page 15

Disposal of the appliance -------------------------------------------------------------------page 15

4

Important safety instructions

These warnings are provided in the interests of your safety. Ensure you fully
understand them before installing or using the appliance.
Your safety is paramount importance. If you are unsure about the meaning of
these warnings contact the Customer Care Department for assistance.
Intended use

This appliance is intended to be used in household and similar applications such as
– staff kitchen areas in shops, offices and other working environments;
– farm houses and by clients in hotels, motels and other residential type environments;
– bed and breakfast type environments;
–catering and similar non-retail applications.
It is suitable for the storage of food at low temperature. If the appliance is used for purposes
other than those intended or used incorrectly, no liability can be accepted by the
manufacturer for any damage that may be caused.

Alterations or changes to the refrigerator are not permitted for reasons of safety.

If you use the refrigerator in a commercial application or for purposes other than the cooling
of foods, the manufacturer accepts no liability for any damages that may occur.

Prior to initial start-up

Check the appliance for transport damage. Under no circumstances should a damaged
appliance be plugged in. In the event of damage, please contact your supplier.

Refrigerant

The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the
appliance, a natural gas with a high level of environmental compatibility, which is
nevertheless flammable. During transportation and installation of the appliance,
ensure that none of the components of the refrigerant circuit becomes damaged.

The refrigerant (R600a) is flammable.

Caution: risk of fire

If the refrigerant circuit should become damaged:

z Avoid open flames and sources of ignition.
z Thoroughly ventilate the room in which the appliance is situated.

The instructions shall include the warnings:

WARNING!—

Keep ventilation openings, in the appliance enclosure or in the built-in

structure, clear of obstruction.

WARNING!—Do not use mechanical devices or other means to accelerate the

5

defrosting process, other than those recommended by the manufacturer.

WARNING!—Do not damage the refrigerant circuit.
WARNING!—Do not use electrical appliances inside the food storage compartments of

the appliance, unless they are of the type recommended by the manufacturer.

WARNING! —Do not store explosive substances such as aerosol cans with a flammable

propellant in this appliance.
WARNING!—This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the appliance
by a person responsible for their safet

y

WARNING!—Young children should be supervised to ensure that they do not play with

the appliance

WARNING!—If the supply cord is damaged, it must be replaced by the manufacturer, its

service agent or similarly qualified persons in order to avoid a hazard

.

WARNING!—

When disposing of the appliance, do so only at an authorized waste

disposal centre. Do not expose to flame

.

WARNING!—Please keep the appliance away from substance, which can cause

ignition

.

WARNING!--- Before obtaining access to terminals, all supply circuits must be

disconnected

.

WARNING!--- Please remove all the doors before you dispose your refrigerator.
WARNING!--- The fridge is only applied with power supply of single phase alternating

current of 220~240V/50Hz. If fluctuation of voltage in the district of user is so large that
the voltage exceeds the above scope, for safety sake, be sure to apply A.C. Automatic
voltage regulator of more than 350W to the fridge. The fridge must employ a special
power socket instead of common one with other electric appliances. Its plug must match
the socket with ground wire.

Safety of children

Packaging (e.g. wraps, polystyrene) can be dangerous for children.

There is a risk of suffocation! Keep packaging material away from children!

Make old appliances unusable prior to disposal. Pull out the mains plug, cut off the mains
cable, break or remove spring or bolt catches, if fitted. By doing this you ensure that children
cannot lock themselves in the appliance when playing (there is risk of suffocation!) or get
themselves into other dangerous situations.

Often children cannot recognize the hazards present in household appliances. It is therefore
important that you ensure adequate supervision and never let children play with the
appliance!

Daily Operation

Containers with flammable gases or liquids can leak at low temperatures. There is a risk of an
