Operating Instructions

VT6315, VT6358, VT6361





Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or property damage! Retain instructions for future reference.

Portable Air Compressor

Table of Contents



Description . . . . . . . . . . . . . . . . . . . . .

1

Unpacking . . . . . . . . . . . . . . . . . . . . . .

1

Safety Guidelines . . . . . . . . . . . . . . . .

1

General Safety Information . . . . . . . .

1

Introduction . . . . . . . . . . . . . . . . . . . .

3

Assembly . . . . . . . . . . . . . . . . . . . . . . .

3

Operation . . . . . . . . . . . . . . . . . . . . . .

5

Maintenance . . . . . . . . . . . . . . . . . . . .

5

Troubleshooting Chart .. .. .. .. .. .. .. .. .. .. .. ..

6

Warranty . . . . . . . . . . . . . . . . . . . . . . .

8

Description

Air compressor units are intended to provide compressed air to power pneumatic tools and operate spray guns.. The pumps supplied are oil lubricated.. A small amount of oil

carryover is present in the compressed air stream.. Applications requiring air free of oil or water should have the appropriate filter installed.. The air compressor unit must be mounted

as described in the instructions on a solid floor.. Any other use of these units will void the warranty and the

manufacturer will not be responsible for problems or damages resulting from such misuse..

Unpacking

After unpacking the unit, inspect carefully for any damage that may have occurred during transit.. Make sure to tighten fittings, bolts, etc.., before putting unit into service..

Do not operate unit if damaged during

shipping, handling or use. Damage may result in bursting and cause injury or property damage.

Read & Follow All Instructions

Save These Instructions

Do Not Discard

Safety Guidelines

This manual contains information that is very important to know and understand.. This information is provided for SAFETY and to PREVENT EQUIPMENT PROBLEMS . To help

recognize this information, observe the following symbols..

Danger indicates an imminently

hazardous situation which, if not avoided, WILL result in death or serious injury.

Warning indicates a potentially

hazardous situation which, if not avoided, COULD result in death or serious injury.

Caution indicates a potentially

hazardous situation which, if not avoided, MAY result in minor or moderate injury.

Notice indicates important

information, that if not followed, may cause damage to equipment.

NOTE: Information that requires special attention..

General Safety Information

California proposition 65

This product or

its power cord may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Wash hands after handling.

Breathable Air Warning

This compressor/pump is NOT equipped and should NOT be used “as is” to supply breathing quality air. For any application of air for human consumption, you must fit the air compressor/pump with suitable in-line safety and alarm equipment. This additional equipment is necessary to properly filter and purify the air to meet minimal specifications for Grade D breathing as described in Compressed

Gas Association Commodity Specification G 7.1, OSHA 29 CFR 1910. 134, and/or Canadian Standards Associations (CSA).

DISCLAIMER OF WARRANTIES In the event the compressor is

used for the purpose of breathing air application and proper in-line safety and alarm equipment

is not simultaneously used, existing warranties are void, and the manufacturer disclaims any liability whatsoever for any loss, personal injury or damage.

You can create

dust when you cut, sand, drill or grind materials such as

wood, paint, metal, concrete, cement, or other masonry. This dust often contains chemicals known to cause cancer, birth defects, or other reproductive harm. Wear protective gear.

REMINDER: Keep your dated proof of purchase for warranty purposes! Attach it to this manual or file it for safekeeping.

© 2010

IN625501AV 8/10

Operating Instructions

General Safety Information

(Continued)

General Safety

Since the air compressor and other components (material pump, spray guns, filters, lubricators, hoses, etc..) used, make up a high pressure pumping system, the following safety precautions must be observed at all times:

1. Read all manuals included with this product carefully..

MANUAL

Be thoroughly familiar with the controls and the

proper use of the equipment..

2.Follow all local electrical and safety codes as well as in the United States, the National Electrical Codes (NEC) and Occupational Safety and Health Act (OSHA)..

3.Only persons well acquainted with these rules of safe operation should be allowed to use the compressor..

4.Keep visitors away and NEVER allow children in the work area..

5.Wear safety glasses and

use hearing protection when operating the unit..

6.Do not stand on or use the unit as a handhold..

7.Before each use, inspect compressed air system and electrical components for signs of damage, deterioration, weakness or leakage.. Repair or replace defective items before using..

8.Check all fasteners at frequent intervals for proper tightness..

Motors,

electrical equipment and controls can cause electrical arcs that

will ignite a flammable gas

or vapor. Never operate or repair in or near a flammable gas or vapor. Never store flammable liquids or gases in the vicinity of the compressor.

Never

operate compressor without a

beltguard. This unit can start automatically without

warning. Personal injury or property damage could occur from contact with moving parts.

9.Do not wear loose clothing or jewelry that will get caught in the moving parts of the unit..

Compressor parts may be hot even if the unit is stopped.

10.Keep fingers away from a running compressor; fast moving

and hot parts will cause injury and/ or burns..

11.If the equipment should start to vibrate abnormally, STOP the engine/ motor and check immediately for the cause.. Vibration is generally a warning of trouble..

12.To reduce fire hazard, keep engine/ motor exterior free of oil, solvent, or excessive grease..

An ASME code safety relief valve

with a setting no higher than 150 psi MUST be installed in the tank for this compressor. The ASME safety valve must have sufficient flow and pressure ratings to protect the pressurized components from bursting.

See compressor specification decal

for maximum operating pressure. Do not operate with pressure switch or pilot valves set higher than the maximum operating pressure.

13.Never attempt to adjust ASME safety valve.. Keep safety valve free from paint and other accumulations..

Never use plastic (PVC) pipe for

compressed air. Serious injury or death could result.

Never attempt

to repair or modify a tank! Welding, drilling or any other modification will weaken the

tank resulting in damage from rupture or explosion. Always replace worn, cracked or damaged tanks.

Drain liquid from tank daily.

14.Tanks rust from moisture build-up, which weakens the tank.. Make sure to drain tank regularly and inspect periodically for unsafe conditions such as rust formation and corrosion..

15.Fast moving air will stir up dust and debris which may be harmful.. Release air slowly when draining moisture or depressurizing the compressor system..

Spraying Precautions

Do not spray

flammable materials in vicinity of open flame or near ignition sources including the compressor unit.

16.Do not smoke when spraying paint, insecticides, or other flammable substances..

17.Use a face mask /

respirator when spraying and spray in a well ventilated area to prevent health and fire hazards..

18.Do not direct paint or other sprayed material at the compressor.. Locate compressor as far away from the spraying area as possible to minimize overspray accumulation on the compressor..

19.When spraying or cleaning with solvents or toxic chemicals, follow the instructions provided by the chemical manufacturer..

www.chpower.com

2

VT6315, VT6358, VT6361

Introduction

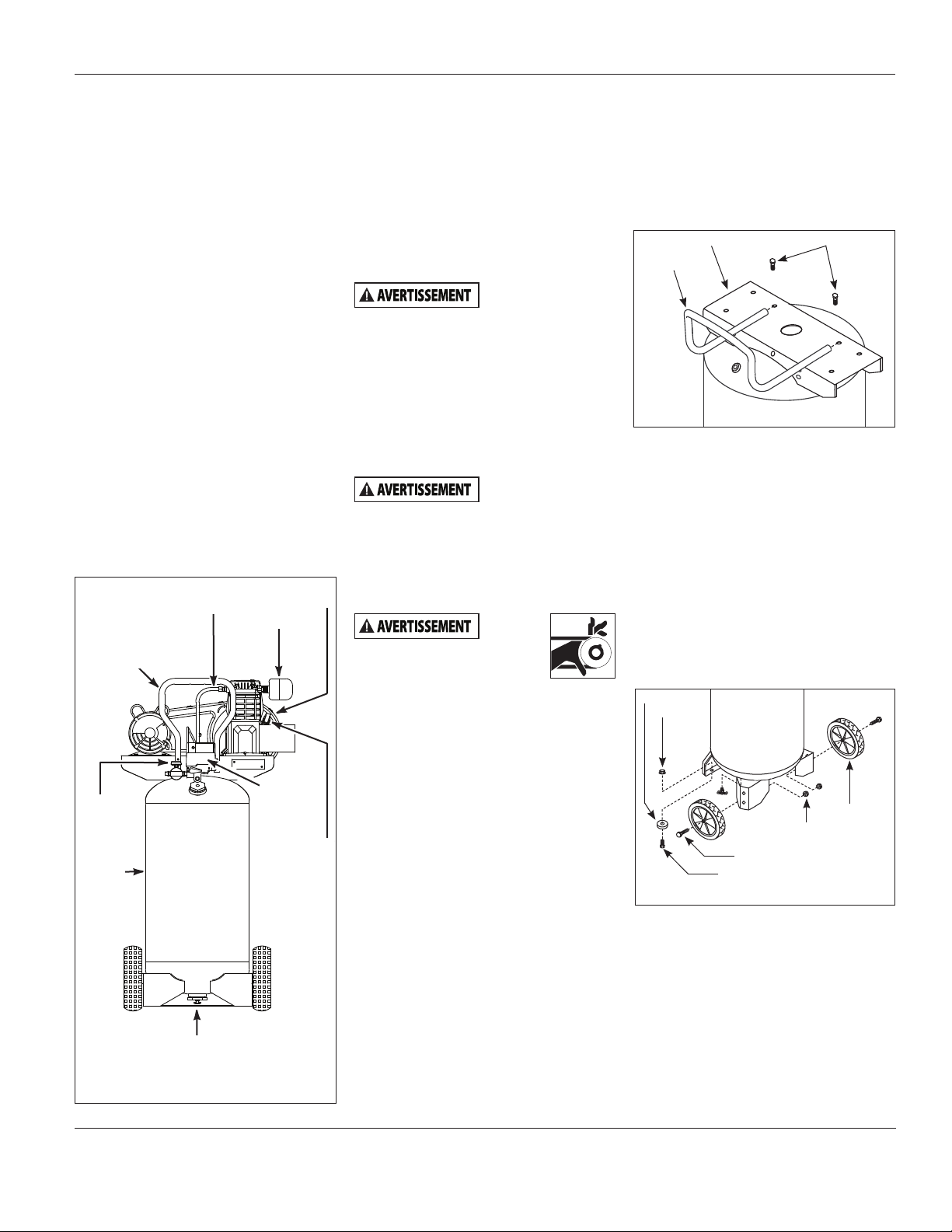

Refer to Figure 1 to locate the following items..

Pressure switch - Auto/Off Switch - In the auto position, the compressor shuts off automatically when tank pressure reaches the maximum preset pressure.. After air is used from the tank and drops to a preset low level, the pressure switch automatically turns the motor back on.. In the off position, the compressor will not operate.. This switch should be in the off position when connecting or disconnecting the power cord from the electrical outlet..

When the pressure switch turns the motor off you will hear air leaking out of the pressure switch unloader valve for a short time.. This releases the air pressure from the discharge tube and allows the compressor to restart easier..

Regulator - The regulator controls the amount of air pressure released at the hose outlet..

Discharge Tube

Belt Guard



Intake Filter

Handle



Hose

Pressure

Switch

Pressure



Gauge

Breather/



Tank

Dipstick

& Oil Fill



Hole

Drain



Petcock



Figure 1



ASME Safety Valve - This valve automatically releases air if the tank pressure exceeds the preset maximum..

Discharge tube - This tube carries compressed air from the pump to the check valve.. This tube becomes very hot during use.. To avoid the risk of severe burns, never touch the discharge tube..

To avoid the risk of severe burns, never

touch the discharge tube.

Check valve - One-way valve that allows air to enter the tank, but prevents air in the tank from flowing back into the compressor pump..

Handle - Designed to move the compressor..

Never use the handle to lift the

unit completely off the ground. Handle is intended only for pushing or pulling product.

Belt Guard - Covers the belt, motor pulley and flywheel..

Never

operate compressor without a

beltguard. This unit can start automatically without

warning. Personal injury or property damage could occur from contact with moving parts.

Tank Drain Valve - This valve is located on the bottom of the tank.. Use this valve to drain moisture from the tank daily to reduce the risk of corrosion..

Reduce tank pressure below 10 psi, before opening drain valve..

Tank Pressure Gauge - Indicates amount of air pressure stored in tank..

Hose Pressure Gauge - Indicates amount of air pressure in hose used to operate tools.. This pressure is increased or decreased by the regulator..

Assembly

Handle Assembly - Handle may be pre-assembled on some units..

Insert four handle screws through holes in handle and tighten to tank baseplate (See Figure 2)..

Tank Baseplate

Handle Screw

Handle



Figure 2



Foot Assembly

The items marked with an asterisk (*) were shipped loose with the unit (See Figure 3)..

1.Tilt unit to allow access to front foot and secure properly to ensure unit does not tip over..

2.Insert bolt through foot and bracket.. The foot should be on the lower side of bracket..

3.Tightly secure with the lock nut.. Repeat on opposite side..

Foot*

Nut*

Wheel*

Lock Nut*

Shoulder Bolt*

Bolt*

Figure 3

www.chpower.com

3

Operating Instructions

Assembly (Continued)





Oil Fill Cap

4. The length of copper wire between

Breather Installation





(Dispose of

the outlet and circuit breaker is not

Dipstick



properly)

longer than 40 feet of 14 AWG or 70







Remove cap from oil fill opening.. Install

Breather



Breather

feet of 12 AWG..





breather (found in parts bag with this







If the above conditions cannot be met

manual).. See Figure 4..













or if nuisance tripping of the current

















OR



protection device occurs, it may be

Remove







Add Oil

possible to operate the compressor from







a 120 volt 20 amp circuit.. See Figure 6..

Cap



















Ground Pin

Grounded Outlet







Oil Drain Extension*











Cap*







Install







Full





Breather



Max

Full



















Figure 6







Low



Add







Add



















Dipstick Oil Read

Sight Glass

Check motor data plate for 240 volt





Figure 5

* Not included with all models.

compatability.. A 240 volt unit must be

Figure 4





operated on a 240 volt circuit.. The cord











Oil





must only plug into a 240 volt grounded









Lubrication



Use SAE 30 industrial grade air

outlet and may require a new cord and



CheCK Oil LEVEL.

compressor oil or full synthetic motor

plug.. See Figure 7..





Some Units

oil like Mobil 1 10W30.. Do not use

Ground Pin

Grounded Outlet

include oil. Follow lubrication

regular automotive oil such as 10W-30..





instructions before operating





Additives in motor oil can cause valve





compressor.









deposits and reduce pump life.. For





Ensure oil drain extension and cap has





maximum pump life, drain and replace





been installed (if included) then remove





oil after the first hour of run time..





the breather (See Figure 5) and fill





Proper oil fill level is illustrated in





pump oil according to the chart..





Figure 5..





















Pump

Approx. Oil Capacity

For pumps with an oil sight glass, oil

Figure 7



VS260000KB

6..0 oz



level can be monitored and maintained





VT470000KB

8..5 oz

as shown in Figure 5..



Grounding instructionS

VT480000KB

8..5 oz

Electrical Data



This product must be grounded.. In







See specification label on air tank for







the event of an electric short circuit,







grounding reduces the risk of electrical

pump model number and refer to the







Overheating, short-circuiting

shock by providing an escape wire for

chart for the proper oil capacity..

and fire damage will result

the electric current.. Unit is equipped





Oil Drain Extension

from inadequate wiring.





with a cord that has a grounding prong..

The 120 volt, 15 amp units can be

Some models include an oil drain



Improper

extension and cap (found with the

operated on a 120 volt 15 amp circuit



use of

owner’s manual).. Install the oil drain

under the following conditions:

grounding plug can result in

extension and cap before adding oil to

1. No other electrical appliances or

a risk of electrical shock.

NOTE: Do not use grounding

the pump.. To avoid oil leaks, it is highly

lights are connected to the same

recommended to apply thread seal

branch circuit..



adapter..



tape or plumber’s putty to the threads

2. Voltage is 120 Volts..





When converting

on each end of the oil drain extension..





to an alternate

3. Circuit is equipped with a 15 amp



Screw the cap onto one end of the

voltage, be sure the green ground wire

circuit breaker or a 15 amp slow

of the cord connects to the ground pin

extension.. Remove the oil drain plug

blow fuse type T (For Canada use

of the plug and to the metal body of the

from the base of the pump and install

pressure switch.



Type D)..





the oil drain extension (See Figure 5)..

















www.chpower.com

4

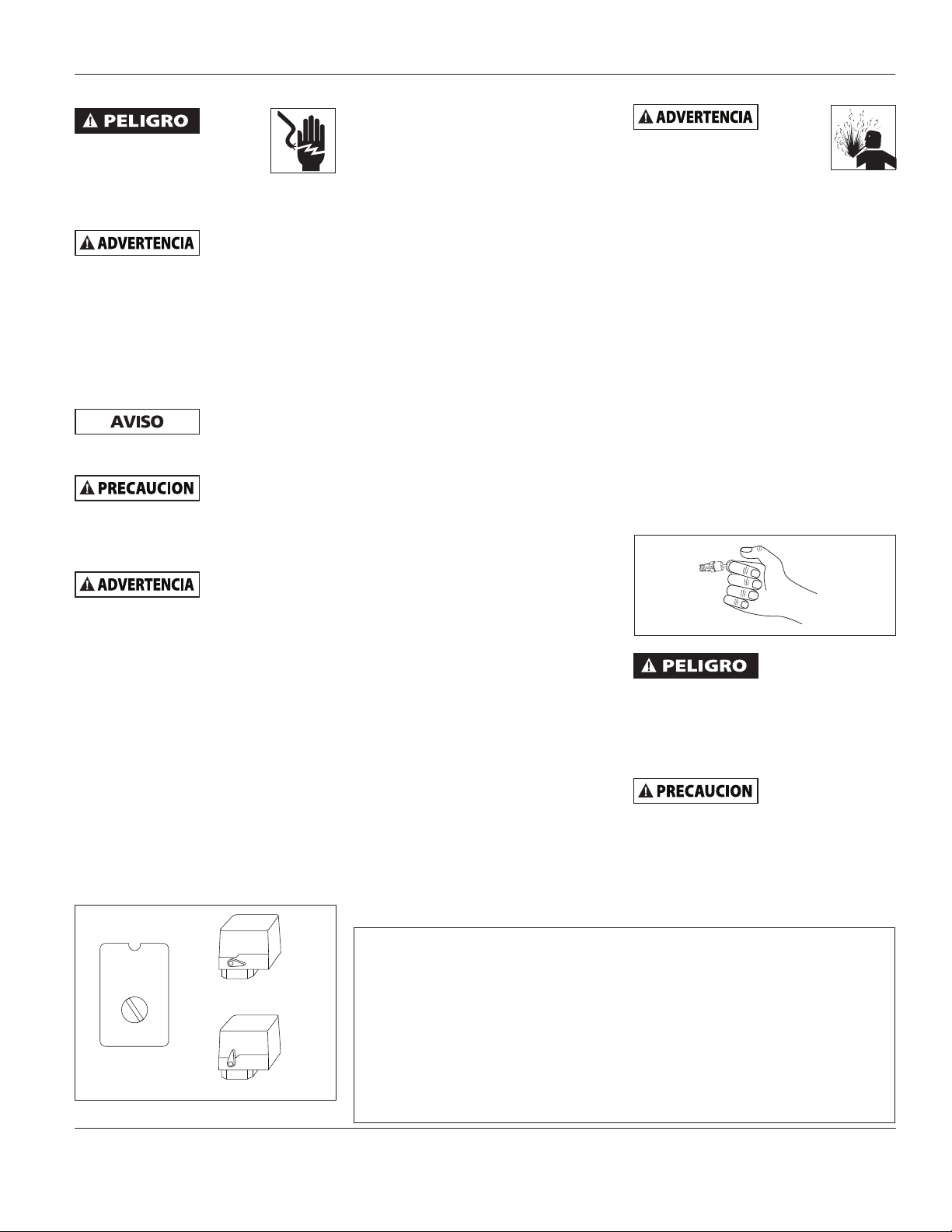

Operation

START-UP

This compressor pump must be filled

with oil before startup. See lubrication section.

Do not attach air tools to open end of

the hose until start-up is completed and the unit checks OK.

Never disconnect threaded joints with

pressure in tank!

1.Check for proper oil level.. See Lubrication Section..

2.Open tank drain valve..

3.Turn pressure switch lever or knob to OFF position and plug in power cord..

4.Turn pressure switch lever or knob to AUTO position and run unit for 30 minutes to break in the pump parts (See Figure 8)..

Lever - Off

A



U

F

T



O /OF

Knob

Auto/Off

Figure 8

Lever - Auto



5.Turn regulator knob fully counterclockwise.. Compressor will build to maximum preset pressure and shut off..

6.Turn regulator knob clockwise to cause air to bleed off.. Compressor will restart at preset pressure..

7.Turn pressure switch lever or knob to OFF position and unplug powercord.. Slowly turn regulator knob clockwise to allow all air pressure to be released.. Do not proceed to the next step until the tank pressure reaches

zero (0)..







VT6315, VT6358, VT6361

8. Attach hose, then add chuck or

Maintenance

other tool to open end of hose.. Plug

















in powercord.. Turn pressure switch

















lever to AUTO position.. When full

Disconnect, tag and lock out



pressure is reached turn regulator

power source, then release



all pressure from the system



knob clockwise until desired outlet



before attempting to install, service,

pressure is achieved..

relocate or perform any maintenance.

9. After use, turn pressure switch lever

All repairs should be performed by an

or knob to the Off position..

authorized service representative..

10. If compressor is not used for a long

For efficient operation:

time period, bleed air from line

Perform the following test to verify free

and use drain valve to drain water

operation of the safety valve weekly

from the tank.. Then, follow the

and follow maintenance schedule..

maintenance schedule..









NOTE: Electric models are equipped

1. Pull ring on safety valve and allow

the ring to snap back to normal

with a pressure switch that

position (see Figure 9).. This valve

automatically turns the motor OFF

automatically releases air if the

when the tank pressure reaches a preset

tank pressure exceeds the preset

level.. After air is used from the tank and

maximum..

drops to a preset low level, the pressure









switch automatically turns the motor









back on..





















Moisture in compressed air













Moisture in compressed air will form











into droplets as it comes from an air











compressor pump.. When humidity



Figure 9

is high or when a compressor is in























continuous use for an extended









Do not attempt to







period of time, this moisture will

















tamper with this

collect in the tank.. When using a





valve. This valve should be checked

paint spray or sandblast gun, this



occasionally. If air leaks after the ring

water will be carried from the tank



has been released, or the valve is stuck

through the hose, and out of the



and cannot be actuated by the ring, the

gun as droplets mixed with the spray



safety valve must be replaced.

material..







A large amount of









Important: This condensation will







fast moving air will









cause water spots in a paint job,



be released if this valve is actuated with

especially when spraying other than



pressure in the tank.

water based paints.. If sandblasting, it



2. With motor OFF and unplugged,

will cause the sand to cake and clog



clean debris from motor, flywheel,

the gun, rendering it ineffective..







tank, air lines and pump cooling fins..

A filter in the air line, located as















near to the gun as possible, will help



Technical Service

eliminate this moisture..



For information regarding the operation













or repair of this product, please call







1-800-543-6400..





www.chpower.com

5

Operating Instructions

Storage

1.When not in use, hose and compressor should be stored in a cool dry place..

2.Tanks should be drained of moisture.. and hose should be disconnected and hung with open ends down to allow any moisture to drain..

3.Protect the electrical cord from possible damage by winding the cord loosely around the handle of the unit or coiling the cord up..

MAINTENANCE SCHEDULE

Operation

Daily

Weekly

Monthly

3 Months

Check Oil Level

λ







Drain Tank

λ

















Check Air Filter



λ





Check Safety Valve



λ















Clean Unit





λ



Check Belt Tightness





λ













Change Oil







λ

Torque Requirements (in/lbs)



Compressor

Bearing

Model

Head Bolts

Cap Bolts

VS

100-125

50-120

VT

225-300

50-120

Troubleshooting Chart

Symptom

Possible Cause(s)

Corrective Action

Low discharge pressure

1.

Air demand exceeds pump capacity

1.

Reduce air demand or use a compressor with more capacity..



2.

Air leaks

2.

Listen for escaping air.. Apply soap solution to all fittings and











connections.. Bubbles will appear at points of leakage.. Tighten or











replace leaking fittings or connections..



3.

Restricted air intake

3.

Clean the air filter element..



4.

Blown gaskets

4.

Replace any gaskets proven faulty on inspection..



5.

Leaking or damaged valves

5.

Remove head and inspect for valve breakage, misaligned valves,











damaged valve seats, etc.. Replace defective parts and reassemble..















Install a new head gasket











































each time the head is removed































Pump overheating causes

1.

Insulating gasket between filter and

1.

Install gasket..

air filter to melt



head is missing













2.

Broken valves/blown gasket

2.

Replace valves or install new gasket..

















Excessive noise (knocking)

1.

Loose motor or compressor pulley

1.

Loose motor or compressor pulleys are a very common cause of











compressors knocking.. Tighten pulley clamp bolts and set-screws..

2.Lack of oil in crankcase

3.Worn connecting rod

4.Worn piston pin bores

5.Piston hitting the valve plate

6.Noisy check valve in compressor system

2.Check for proper oil level; if low, check for possible damage to bearings.. Dirty oil can cause excessive wear..

3.Replace connecting rod.. Maintain oil level and change oil more frequently..

4.Remove piston assemblies from the compressor and inspect for excess wear.. Replace excessively worn piston pin or pistons, as required.. Maintain oil level and change oil more frequently..

5.Remove the compressor head and valve plate and inspect for carbon deposits or other foreign matter on top of piston.. Replace head and valve plate using new gasket.. See Lubrication section for recommended oil..

6.Replace..

Do not disassemble check valve with air pressure in tank

www.chpower.com

6













VT6315, VT6358, VT6361













Troubleshooting Chart (Continued)



















Symptom

Possible Cause(s)



Corrective Action

Large quanity of oil in

1.

Worn piston rings

1.

Replace with new rings.. Maintain oil level and change oil more

the discharge air









frequently..

NOTE: In an oil lubricated

2.

Compressor air intake restricted

2.

Clean filter.. Check for other restrictions in the intake system..

compressor there will

3.

Excessive oil in compressor

3.

Drain down to full level..

always be a small amount













of oil in the air stream..

4.

Wrong oil viscosity

4.

Use Mobil 1 10W-30..











®















Water in discharge air /

Normal operation.. The amount of

1.

Drain tank more often.. At least daily..

tank

water increases with humid weather

2.

Add a filter to reduce the amount of water in the air line..















Motor hums and runs

1.

Use of extension cord

1.

Do not use an extension cord.. Use longer air hose with larger

slowly or not at all









diameter..



2.

Malfunctioning check valve or

2.

Replace check valve, unloader valve or pressure switch..





unloader valve







Do not disassemble check



































valve with air pressure in tank



3.

Low voltage

3.

Check with voltmeter, check reset switch on motor.. If reset switch











trips repeatedly, find and correct the cause.. See next item..



4.

Malfunctioning pressure switch -

4.

Repair or replace pressure switch..





contacts will not close























Reset mechanism cuts

1.

Too many devices on same circuit

1.

Limit the circuit to the use of only the air compressor..

out repeatedly or fuses

2.

Incorrect fuse size or circuit breaker

2.

Be sure that fuses or circuit breakers are rated properly..

blow repeatedly















3.

Malfunctioning check valve

3.

Replace check valve..













Do not disassemble check

























valve with air pressure in tank



4.

Pressure switch set too high

4.

Adjust or replace..



5.

Loose wiring

5.

Check all electrical connections..



6.

Malfunctioning motor

6.

Replace motor..

Tank does not hold

1.

Worn check valve

pressure when





compressors off and the





shut off valve is closed

2.

Check all connections and fittings



for leaks

1. Replace check valve..

Do not disassemble check valve with air pressure in tank

2. Tighten..



3.

Check tank for cracks or pin holes

3.

Replace tank.. Never repair a damaged tank..











Pressure switch

Malfunctioning check valve

Replace the check valve if the unloader valve bleeds off constantly..

continuously blows air









Do not disassemble check









out the unloader valve

















valve with air pressure in tank













Pressure switch does

Malfunctioning unloader valve on

Replace the pressure switch if it does not release the pressure for a

not release air when

pressure switch

short period of time when the unit shuts off..

the unit shuts off









Do not disassemble check





























valve with air pressure in tank













Excessive vibration

1.

Loose fasteners

1.

Tighten..



2.

Belt needs replaced

2.

Replace with correct size..



3.

Belt alignment

3.

Align flywhell and pulley..

www.chpower.com

7

Operating Instructions

Limited Warranty

1.DURATION: From the date of purchase by the original purchaser as follows: Three Years or Four Years as indicated on product specification label..

2.WHO GIVES THIS WARRANTY (WARRANTOR): Campbell Hausfeld / Scott Fetzer Company, 100 Production Drive, Harrison, Ohio, 45030, Telephone: (800) 543-6400

3.WHO RECEIVES THIS WARRANTY (PURCHASER): The original purchaser (other than for purposes of resale) of the Campbell Hausfeld compressor..

4.WHAT PRODUCTS ARE COVERED BY THIS WARRANTY: This Campbell Hausfeld air compressor..

5.WHAT IS COVERED UNDER THIS WARRANTY: Parts and Labor to remedy substantial defects due to material and workmanship during the first year of ownership with the exceptions noted below.. Parts only to remedy substantial defects due to material and workmanship during remaining term of coverage with exceptions noted below..

6.WHAT IS NOT COVERED UNDER THIS WARRANTY:

A.Implied warranties, including those of merchantability and FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED FROM THE DATE OF ORIGINAL PURCHASE AS STATED IN THE DURATION.. If the compressor is used for commercial, industrial or rental purposes, the warranty will apply for ninety (90) days from the date of purchase.. Some States do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you..

B.ANY INCIDENTAL, INDIRECT, OR CONSEQUENTIAL LOSS, DAMAGE, OR EXPENSE THAT MAY RESULT FROM ANY DEFECT, FAILURE, OR MALFUNCTION OF THE CAMPBELL HAUSFELD PRODUCT.. Some States do not allow the exclusion or limitations of incidental or consequential damages, so the above limitation or exclusion may not apply to you..

C.Any failure that results from an accident, purchaser’s abuse, neglect or failure to operate products in accordance with instructions provided in the owner’s manual(s) supplied with compressor..

D.Pre-delivery service, e..g.. assembly, oil or lubricants, and adjustment..

E.Items or service that is normally required to maintain the product, e..g.. lubricants, filters and gaskets, etc..

F.Gasoline engines and components are expressly excluded from coverage under this limited warranty.. The Purchaser must comply with the warranty given by the engine manufacturer which is supplied with the product

G.Additional items not covered under this warranty:

1.Excluded items pertaining to All Compressors

a.Any component damaged in shipment or any failure caused by installing or operating unit under conditions not in accordance with installation and operation guidelines or damaged by contact with tools or surroundings..

b.Pump or valve failure caused by rain, excessive humidity, corrosive environments or other contaminants..

c.Cosmetic defects that do not interfere with compressor functionality..

d.Rusted tanks, including but not limited to rust due to improper drainage or corrosive environments..

e.The following components are considered normal wear items and are not covered after the first year of ownership.. Electric motor, check valve, pressure switch, regulator, pressure gauges, hose, tubing, pipe, fittings and couplers, screws, nuts, hardware items, belts, pulleys, flywheel, air filter and housing, gaskets, seals, oil leaks, air leaks, oil consumption or usage, piston rings..

f.Tank drain valves..

g.Damage due to incorrect voltage or improper wiring..

h.Other items not listed but considered general wear parts..

i.Pressure switches, air governors, load/unload devices, throttle control devices and safety valves modified from factory settings..

j.Damage from inadequate filter maintenance..

k.Induction motors operated with electricity produced by a generator..

2.Excluded items specific to Lubricated Compressors:

a.Pump wear or valve damage caused by using oil not specified..

b.Pump wear or damage caused by any oil contamination..

c.Pump wear or damage caused by failure to follow proper oil maintenance guidelines, operation below proper oil level or operation without oil..

H.Labor, service call, or transportation charges after the first year of ownership of stationary compressors.. Stationary compressors are defined as not including a handle or wheels..

7.RESPONSIBILITIES OF WARRANTOR UNDER THIS WARRANTY: Repair or replace, at Warrantor’s option, compressor or component which is defective, has malfunctioned and/or failed to conform within the duration of the specific warranty period..

8.RESPONSIBILITIES OF PURCHASER UNDER THIS WARRANTY:

A.Provide dated proof of purchase and maintenance records..

B.Call Campbell Hausfeld (800-543-6400) to obtain your warranty service options.. Freight costs must be borne by the purchaser..

C.Use reasonable care in the operation and maintenance of the products as described in the owner’s manual(s)..

D.Repairs requiring overtime, weekend rates, or anything beyond the standard manufacturer warranty repair labor reimbursement rate..

E.Time required for any security checks, safety training, or similar for service personnel to gain access to facility..

F.Location of unit must have adequate clearance for service personnel to perform repairs and easily accessible..

9.WHEN WARRANTOR WILL PERFORM REPAIR OR REPLACEMENT UNDER THIS WARRANTY: Repair or replacement will be scheduled and serviced according to the normal work flow at the servicing location, and depending on the availability of replacement parts..

This Limited Warranty applies in the U..S.., Canada and Mexico only and gives you specific legal rights.. You may also have other rights which vary from State to State or country to country..

www.chpower.com

8

+ 16 hidden pages
