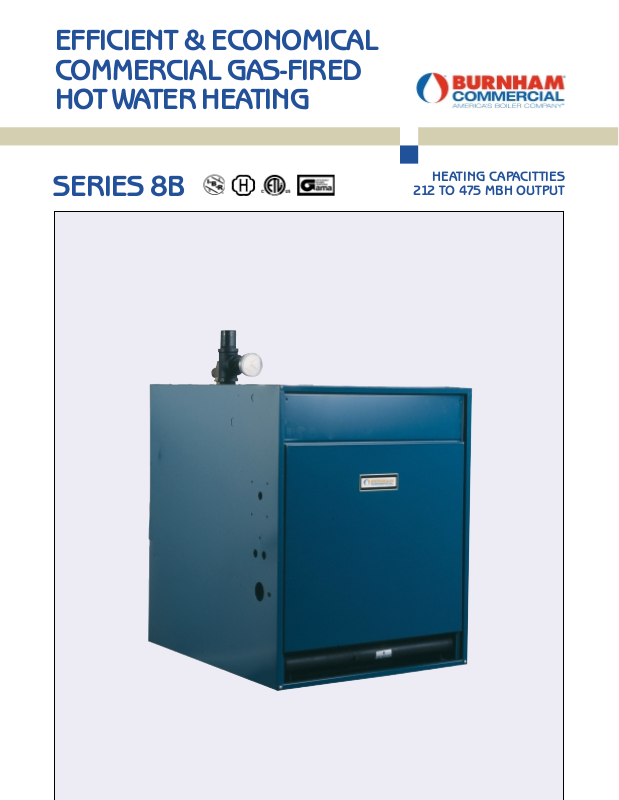

Burnham 8B Brochure
EFFICIENT & ECONOMICAL
COMMERCIAL GAS-FIRED
HOT WATER HEATING
SERIES 8B
HEATING CAPACITTIES
212 TO 475 MBH OUTPUT
1
SERIES 8B COMMERCIAL ATMOSPHERIC
GAS-FIRED HOT WATER BOILER
Maximum Working Pressure: 50 PSI
Adaptable to Any Job
The Burnham® Commercial
Series 8B boiler provides
outstanding single and multiple
boiler performance and reliability.
The boiler can be arranged for
space heating or combination space
heating and domestic hot water
heating with the use of an
Alliance™ indirect-fired water
heater. The compact design and one
inch minimum side clearance make
the Series 8B ideal for modular and
multiple boiler installations*. Large
homes, multi-family dwellings,
small businesses and office
complexes are typical applications
for the Series 8B boiler.
Cast Iron Dependability
The Series 8B boiler is
constructed with durable cast iron
sections. Cast iron has the unique
ability to absorb and transfer heat
quickly and efficiently while
providing unmatched durability.
The pinned
heating surface
and vertical
flue design
extracts
maximum heat
while
maintaining
low draft
losses. This results in higher
efficiencies and lower fuel costs.
The Cast Iron Nipple Difference
Burnham Commercial's Series 8B
boiler sections are joined with
quality cast
iron nipples
that last the life
of the boiler.
They expand
and contract
along with the
sections they join ensuring the
integrity of the entire section
assembly. Cast iron nipples resist
petroleum based chemicals,
including corrosion inhibitors,
pump lubricants, and antifreeze,
and they do not break down from
contact with boiler flue gases, all
of which can deteriorate the
gaskets commonly used in some
competitors’ boiler assemblies.
Features Beyond the Standard
A flame roll-out switch and
blocked vent switch are standard
equipment on all Series 8B boilers.
The flame roll-out switch senses
temperature in the vestibule and
the blocked vent switch senses
temperature at the flue outlet.
The switches will safely shut
down the boiler in the event the
boiler, chimney or venting system
becomes blocked or restricted.
Dimensions (in inches)
*Minimum recommended side-toside clearance for modular/multiple
boiler applications is one inch or as
required by local authorities. New EP
and OP electronic control sets are
designed to mount on top of the
boiler and does not affect side
clearances. When equipped with IRI
(Industrial Risk Insurers) controls,
the gas train will mount along the
right side of the boiler, requiring 18”
service clearance.
*Please refer to the Modular/Multiple
Boiler and Controls literature and
Modular manual for detailed
installation information.
relioB
rebmuN A B C
B508
02
B608
B708
B808
B908
53
B018
01
4/3-32
2/1-72
4/1-13
4/3-83
8/7-11
4/3-31
8/5-51
2/1-71
8/3-91
D E
7
8
9
9
01
01
ASU adanaC ASU adanaC
4/3-42
4/3-72
4/3-82
4/3-03
2/1-33
2/1-33
4/3-42
8/1-61
4/3-52
81
4/3-52
81
8/5-62
02
8/3-62
22
8/3-62
22
8/1-61
61
61
61
51
51
2
