Diverse 3000 Classic handset and charger

Digital cordless telephone

User Guide

This equipment is not designed for making emergency telephone calls when the power fails.

Alternative arrangements should be made for access to emergency services.

This product is intended for registration to any base in the BT Diverse 3000 range.

It may also be registered to other GAP compatible bases, with possible limited

availability of some features.

Diverse 3000 H_set & Charger 22/3/01 1:53 pm Page 1

Diverse 3000 ~ Edition 7 ~ 28th February ’01 ~ 3723

Please open this page for an ‘At a glance’ guide to your Diverse 3000 Classic Handset and Charger.

Diverse 3000 foldout 1 22/3/01 2:06 pm Page 2

Diverse 3000 ~ Edition 7 ~ 28th February ’01 ~ 3723

Please open this page for a ‘Further at a glance’ guide to your Diverse 3000 Classic Handset and Charger.

Diverse 3000 foldout 2 22/3/01 2:06 pm Page 2

Diverse 3000 ~ Edition 7 ~ 28th February ’01 ~ 3723

Display

Displays the status

of your handset.

Memory

Enables speed dialling of numbers stored in the memory.

Green phone

For making and answering calls.

Key lock

Lets you lock (and unlock) the keypad to prevent accidentally pressing buttons.

Intercom

Enables internal calls and call transfer between handsets.

Confirmation (OK

)

Lets you confirm settings.

Redial

Lets you redial the last five external numbers you called.

Delete

Deletes digits shown on the display.

Recall

For use with

switchboards and

BT Select Services.

Also, press and hold down to enter a Pause in a stored

number.

Keypad

Red phone

Press to end a call.

Power

Press and hold

down to switch off

the handset.

Press and hold

down again to

switch back on.

Set

Lets you access

your phone’s

functions.

Used to store

numbers in the

memory.

At a glance

Diverse 3000 foldout 2 22/3/01 2:06 pm Page 1

GHI

PQRS

✱

INT

ABC

JKL

TUV

DEF

MNO

WXYZ

Diverse 3000 ~ Edition 7 ~ 28th February ’01 ~ 3723

Handset display

Display buttons

These top three buttons are also used with icons on the display

Scroll backwards

Scroll forwards

Confirm – OK.

Charger

Contact points

Charger (back view)

Diverse 3000 foldout 1 22/3/01 2:06 pm Page 1

Diverse 3000 ~ Edition 7 ~ 28th February ’01 ~ 3723

Diverse 3000 H_set & Charger 22/3/01 1:53 pm Page 2

Diverse 3000 ~ Edition 7 ~ 28th February ’01 ~ 3723

At a glance 1

Quick Reference Handset Display 4

Quick Guide 5

Introduction 6

Unpacking your Diverse 3000 Classic handset 6

Safety information 7

Setting up 9

Registering a new Diverse 3000 Classic handset with the base station 10

Using your Diverse 3000 Classic Handset 13

Making and receiving calls 14

Caller Display/ Call Waiting 15

Call timer 15 Making and transferring

calls between handsets 17 Using the memory to

store and dial numbers 18 Security features 20 Emergency numbers 22 Call barring and

Call enabling 24

In this guide

Hints and tips boxes

In this user guide, we’ve included helpful tips and useful notes. They are shown in a white box like this.

Using Caller Display and Call Waiting 26

Using the Classic handset 27

Additional features 30

Using your Diverse 3000 Classic with a switchboard 38

Setting to Tone or Pulse dialling 38

General information 41

Guarantee 41 Technical information 42 Switchboard compatibility 42

Help 43

Wall mounting 45

Index 46

Diverse 3000 H_set & Charger 22/3/01 1:53 pm Page 3

Diverse 3000 ~ Edition 7 ~ 28th February ’01 ~ 3723

Indicates an active signal with the base station.

Warning – no contact with base station.

Shows status of battery.

You have new callers listed in your Caller Display list.

Off hook.

EXT Connecting to an external caller.

INT Connecting to another handset, registered to the same

base station.

Handset locked.

Pause.

–

Blank space.

Star button

– Hash button

Recall button

PIN Telephone PIN.

----

Keypad locked.

New answering machine message

Indicates that the call in your caller display calls list was answered.

✱

Quick Reference Handset Display

Diverse 3000 H_set & Charger 22/3/01 1:53 pm Page 4

––

–

––

---

Diverse 3000 ~ Edition 7 ~ 28th February ’01 ~ 3723

Switch the handset on and off

Switch keypad lock on and off

Answer a call

Make an external call

End a call

Redial a number

Store a number in the memory

Dial a number from the Caller Display calls list

Adjust the handset volume

Secrecy

Call another handset

Transfer a call

Call all handsets

Put an external caller on hold while you make an internal call

Hold down for 1 second until you hear a long beep.

to display last 5 numbers

0-9

location

e.g.

microphone off. microphone on.

then the handset number e.g. 3.

then the handset number e.g.

to end the internal call.

Quick Guide

Information for the handset settings

Diverse 3000 H_set & Charger 22/3/01 1:53 pm Page 5

ABC

INT

✱

ABC

INT

Diverse 3000 ~ Edition 7 ~ 28th February ’01 ~ 3723

If anything is missing, please contact your place of purchase immediately.

Diverse 3000 Classic handset

Charger

2 x rechargeable batteries

Power adaptor

Battery compartment cover

Belt Clip

Screws and wall plugs

My additional handset PIN is

Introduction

Your Diverse 3000 Classic handset and Charger has been designed for ease of use and made to the high standards set by BT.

Your Diverse 3000 Classic handset and charger can be used with any product in the Diverse range, (apart from the Diverse 1000). Please refer to your main user guide for a complete list of product features.

Unpacking your Diverse 3000 Classic handset

For your records

For guarantee purposes, proof of purchase is required, so please keep your receipt.

Date of purchase:

Place of purchase:

Serial number: On underside of unit.

Purchase price:

Diverse 3000 H_set & Charger 22/3/01 1:53 pm Page 6

Diverse 3000 ~ Edition 7 ~ 28th February ’01 ~ 3723

Safety information

General

For the handset use only approved nickel-cadmium (NiCad) or nickel-metal hydride (NiMH) rechargeable batteries. Never use other batteries or conventional alkaline batteries. They could lead to a short circuit or destroy the battery casing. Recommended batteries should have a power rating of at least 600mAh 1.2V. Batteries are available from the Diverse Helpline

08457 908070.

Only use the power supply included with the product. Using an unauthorised power supply will invalidate your guarantee and may damage the telephone. The item number for the mains power supply is C39 280-Z4-C174/..-C67.

If Keyguard is active, it is still possible to make emergency calls to

999 and 112.

Do not open the handset or base station. This could expose you to high voltages or other risks. Contact the helpline for all repairs.

Radio signals transmitted between the handset and base may cause interference to hearing aids.

This product should not be used near emergency/intensive care medical equipment and should not be used by people with pacemakers.

Never dispose of batteries in a fire. There is a serious risk of explosion and/or the release of highly toxic chemicals.

Cleaning

Simply clean the handset and base station with a damp (not wet) cloth, or an antistatic wipe. Never use household polish as this will damage the product. Never use a dry cloth as this may cause a static shock.

Environmental

Do not expose to direct sunlight. The product may heat up when the batteries are being recharged. This is normal. However, we recommend that you do not place the product on antique/veneered wood to avoid damage.

Do not stand your product on carpets or other surfaces which generate fibres, or place it in locations preventing free flow of air over it’s surfaces.

Diverse 3000 H_set & Charger 22/3/01 1:53 pm Page 7

Approved rechargeable batteries

Nickel-Cadmium (NiCd)

Sanyo N-3U (700 mAh)

GP GP60AAKC (600 mAh)

Varta 751RS (700 mAh)

Mobile Power 700 (700 mAh)

Panasonic 600 DT (600 mAh)

Nickel-Metal Hydride (Ni-MH)

Sanyo H-3 U (1500 mAh)

GP GP130 AA HC (1300 mAh)

GP GP150 AA HC (1500 mAh)

Varta VH 1101 or

Phone Power (1000 mAh)

Panasonic HHR-110 AA (1100 mAh)

Friwo NiMH (1400 mAh)

Toshiba TH-1200 AARE (1200 mAh)

Diverse 3000 ~ Edition 7 ~ 28th February ’01 ~ 3723

Do not submerge any part of your product in water and do not use it in damp or humid conditions, such as in bathrooms.

Do not expose your product to fire, explosive or other hazardous conditions.

There is a slight chance that your phone could be damaged by an electrical storm. We recommend that you unplug the power and telephone line cord for the duration of the storm.

Diverse 3000 H_set & Charger 22/3/01 1:53 pm Page 8

Place the handset on the charger. When charging the battery level symbol shown on the display flashes.

When charging for the first

time, we recommend that you let the batteries charge for the full 16 hours before making or receiving calls

Diverse 3000 ~ Edition 7 ~ 28th February ’01 ~ 3723

Install the rechargeable batteries in the handset

Slide battery cover down and lift off.

Follow these steps to get your Diverse 3000 Classic Handset and Charger ready for use.

Plug the power cable into the power socket on the underside of your Diverse 3000 Classic Charger.

To wall mount your Diverse 3000 Classic Charger, see page 46.

2 Connect the power cable

Setting up

Please Note

Battery display when inser ting or

replacing a battery.

When you replace the handset

batteries with ones that have been

fully charged, the battery indicator

will not show full until the next

charge cycle has been completed.

Charge the handset until the

batteries register full again. From

then on the display will be correct.

Battery performance

After charging your Diverse 3000

Classic handset for the first time,

subsequent charging time for the handset batteries is approximately 4-5 hours. Batteries and case may

become warm during charging.

This is normal.

Diverse 3000 H_set & Charger 22/3/01 1:53 pm Page 9

Registering a new Diverse 3000 Classic handset with the base station

It is essential that you register your handset with your Diverse base station for it to work. The following are basic instructions on how to do this, but these may differ if you have a Diverse 2-Line or Diverse ISDN.

If your base station is anything other than Diverse 3000 series, please refer to your base station user guide for registering instructions.

This and each further additional handset you purchase must be registered at the base station in order to work.

Up to six handsets (up to 8 on Diverse 2-Line and Diverse ISDN) can be registered and operated from the base station, allowing you to make and transfer internal calls between handsets as well as make and receive external calls.

The instructions in this section are for registering a Classic Handset with one base station. If you have a system with more than one base station, please follow the procedure in the section

‘Operating

with additional base stations’

in your main Diverse base station user guide.

Diverse 3000 ~ Edition 7 ~ 28th February ’01 ~ 3723

Battery low warning

An LCD on the handset display shows the current state of the charge. When the batteries are almost flat a

beep sounds and the display shows the empty battery symbol. Displays

showing the various states of charge

are shown below:

Batteries fully charged

Batteries at 66%

Batteries at 33%

Batteries empty

Please Note

Under ideal conditions, the handset

batteries should give about 10 hours

talktime or 100 hours standby on a

single charge. However, new NiCad

batteries do not reach their full

capacity until they have been in

normal use for several days.

Please note that the lifespan of

NiCad rechargeable batteries

depends on how heavily they are

used. However, over time, their

capacity to recharge will begin to

diminish and they will eventually

need replacing.

Diverse 3000 H_set & Charger 22/3/01 1:53 pm Page 10

At the base station:

Press and hold down the

PAGE button on the base

station (for about 10 seconds) until you hear the tone.

At the handset:

Display shows the handset numbers available, eg –

2,3,4,5,6

N.B. There is a small

delay before these numbers are displayed on the screen.

Select and enter one of these numbers. This is now the handset’s internal number and it is registered with the base station. The stops flashing.

Please Note

You can register your Diverse 3000

Classic handset at up to 4 different

base stations.

Diverse 3000 ~ Edition 7 ~ 28th February ’01 ~ 3723

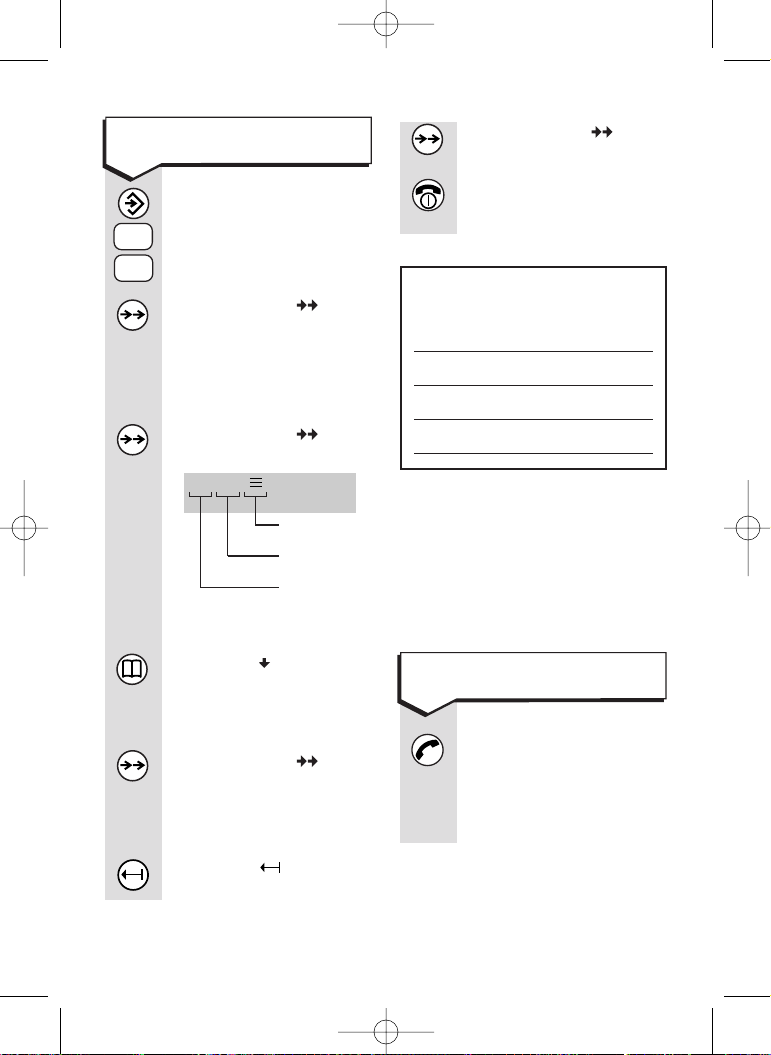

To register your new handset to the base station

At the handset:

Press the SET button.

Press the

INT button.

Press the

✱

button. The base station numbers are displayed.

Enter the number of the base station you want

1-4. (Enter 1 for the

base station 1 when registering for the first time. When registering the handset at additional base stations, enter

2, 3

or 4 as necessary.)

Press the

()

button.

Enter the base station PIN (original setting

0000

Press the

()

button. The flashes.

If you have a Diverse 3010 Classic/ Executive or a Diverse 3016, it comes supplied with one Classic handset which is automatically registered as handset number one.

Diverse 3000 H_set & Charger 22/3/01 1:53 pm Page 11

INT

✱

1- 4

Diverse 3000 ~ Edition 7 ~ 28th February ’01 ~ 3723

Tabs

Slots

5 Fitting the belt clip

Fit the belt clip onto the back of the handset.

Please remove the protective film from the display

Diverse 3000 H_set & Charger 22/3/01 1:53 pm Page 12
