Page 1

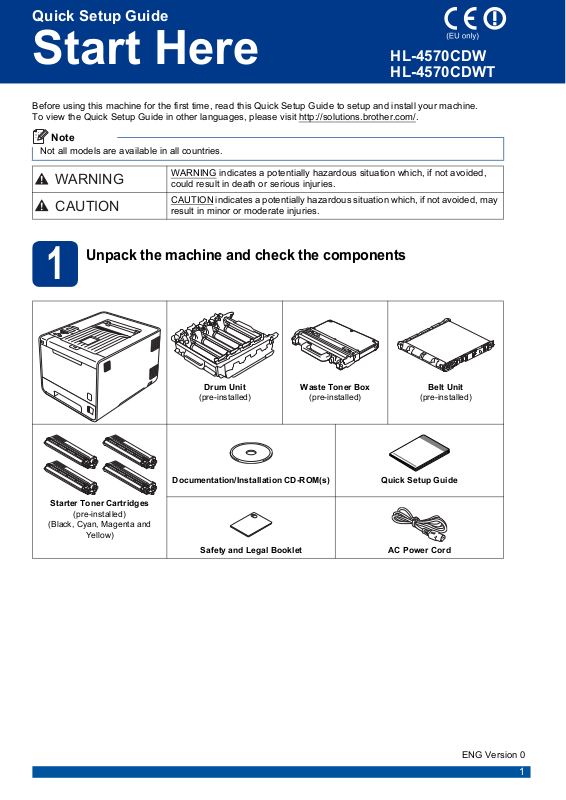

Quick Setup Guide

Note

WARNING

CAUTION

Start Here

HL-4570CDW HL-4570CDWT

Before using this machine for the first time, read this Quick Setup Guide to setup and install your machine. To view the Quick Setup Guide in other languages, please visit http://solutions.brother.com/

Not all models are available in all countries.

WARNING could result in death or serious injuries.

CAUTION result in minor or moderate injuries.

indicates a potentially hazardous situation which, if not avoided,

indicates a potentially hazardous situation which, if not avoided, may

Unpack the machine and check the components

Starter Toner Cartridges

(pre-installed)

(Black, Cyan, Magenta and

Yellow)

Drum Unit

(pre-installed)

Documentation/Installation CD-ROM(s) Quick Setup Guide

Safety and Legal Booklet AC Power Cord

Waste Toner Box

(pre-installed)

Belt Unit

(pre-installed)

ENG Version 0

Page 2

WARNING

• Plastic bags are used in the packaging of your machine. Plastic bags are not toys. To avoid danger of

Note

100 mm (4.00 in.)

250 mm (9.84 in.)

100 mm (4.00 in.)

200 mm (7.87 in.)

suffocation, please keep these bags away from babies and children and dispose of them properly.

• This machine is heavy and weighs approximately 21.0 kg (46.3 lb.). To prevent possible injuries at least two people should lift the machine. Be careful not to pinch your fingers when you put the machine down.

• If you use a Lower Tray, carry it separately from your machine.

• Keep a minimum gap around the machine as shown in the illustration.

• The components included in the box may differ depending on your country.

• We recommend that you save the original packaging.

• If for any reason you must ship your machine, carefully repack the machine in the original packaging to avoid any damage during transit. The machine should be adequately insured with the carrier. How to repack the machine, see Shipment of the machine in the User's Guide.

• Illustrations in this Quick Setup Guide are based on the HL-4570CDW.

• The interface cable is not a standard accessory. Buy the appropriate interface cable for the interface you want to use (USB or Network).

USB cable

It is recommended to use a USB 2.0 cable (Type A/B) that is no longer than 2 meters (6 feet).

Network cable

Use a straight-through Category5 (or greater) twisted-pair cable for 10BASE-T or 100BASE-TX Fast Ethernet Network.

Page 3

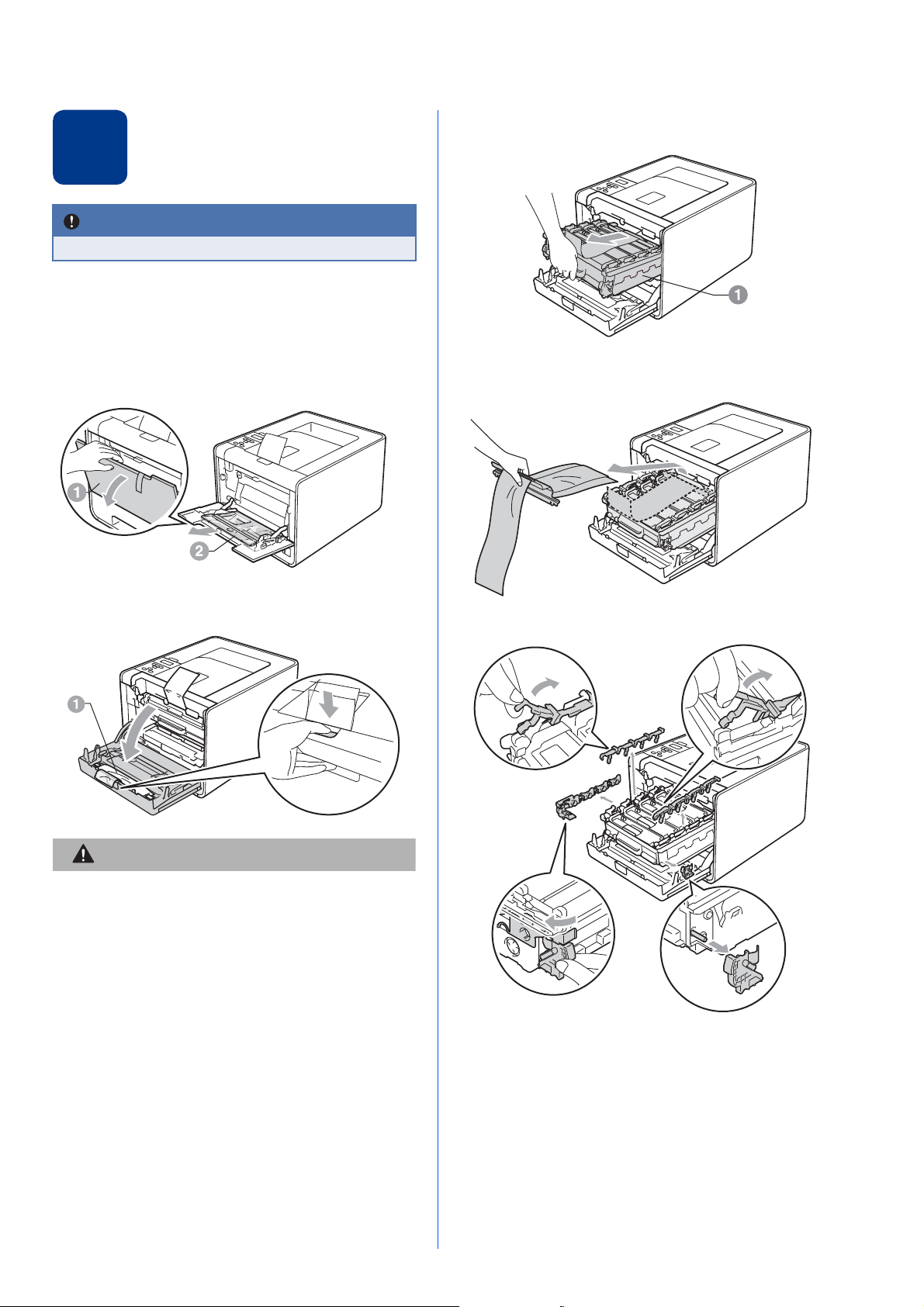

Remove the packing

CAUTION

IMPORTANT

material from the

DO NOT connect the AC power cord yet.

machine

a Remove the packing tape from the outside of

the machine.

d Hold the green handle of the drum unit a and

pull it out until it stops.

b Open the MP tray a, and remove the plastic

sheet b from the MP tray support, then close the MP tray.

c Press the front cover release button and open

the front cover. Remove the silica gel pack a.

e Hold the orange packing material, and remove

it.

f Remove the 4 orange packing pieces.

DO NOT eat Silica Pack. Discard immediately.

g Push the drum unit firmly back into the

machine.

h Close the front cover of the machine.

Page 4

Load paper in the paper

tray

a Pull the paper tray completely out of the

machine.

b While pressing the green paper-guide release

lever a, slide the paper guides to fit the paper size you are loading in the tray. Make sure that the guides are firmly in the slots.

d Put paper in the tray and make sure:

 The paper is below the maximum paper

mark (bbb) a. Over filling the paper tray will cause paper

jams.

 The side to be printed on must be face down.  The paper guides touch the sides of the

paper so it will feed properly.

e Put the paper tray firmly back in the machine.

Make sure that it is completely inserted into the machine.

c Fan the stack of paper well to avoid paper jams

and misfeeds.

For more information about recommended paper, see Recommended paper and print media in the User's Guide.

Page 5

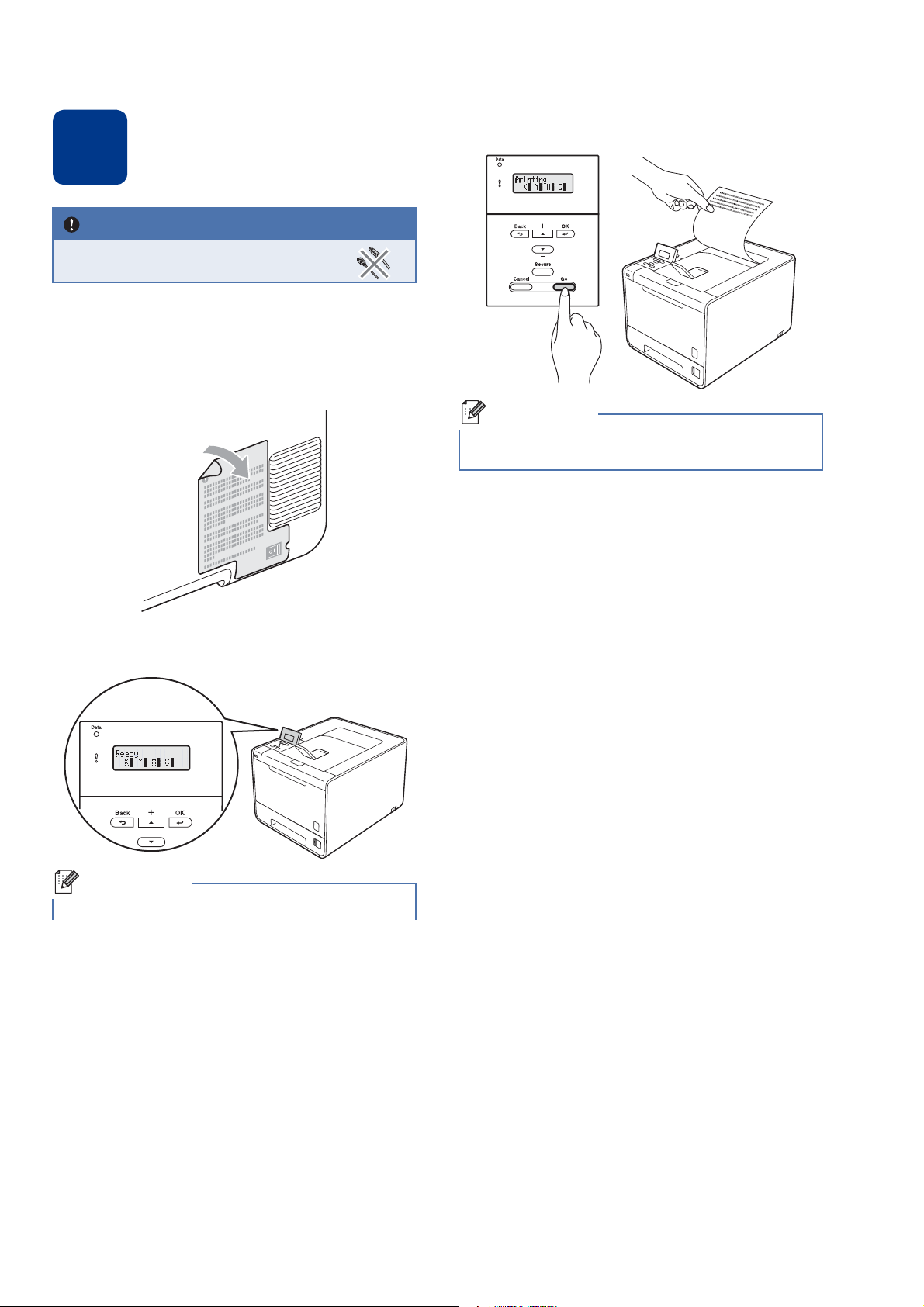

Print a test page

IMPORTANT

Note

DO NOT connect the interface cable yet.

a Connect the AC power cord to the machine and

then connect it to an AC power outlet.

b Remove the label covering the machine's

power switch, and then switch the machine on.

d Press Go. The machine will print a test page.

Check that the test page has printed correctly.

This function will not be available after the first print job you send from your computer.

c After the machine has finished warming up, the

LCD will show Ready.

You can adjust the angle of the display by lifting it.

Page 6

Set your language

Now go to

a Press + or - to choose General Setup.

Press OK.

b Press OK to choose Local Language. c Press + or - to choose your language.

Press OK.

Next page to install the printer driver.

Page 7

Windows

USB

Macintosh

Windows

Macintosh

Wired Network

Wireless Network

Windows

Macintosh

Note

Choose your connection type

For USB Interface Users

Windows®, go to page 8 Macintosh, go to page 9

For Wired Network

Windows®, go to page 10 Macintosh, go to page 14

For Wireless Network

Windows® and Macintosh, go to page 16

You can download the latest drivers and utilities for your machine from the Brother Solutions Center at http://solutions.brother.com/

Page 8

USB

IMPORTANT

Note

Finish

Note

Windows

For USB Interface Cable Users for Windows

Before you install

a Make sure that your computer is ON and you

are logged on with Administrator rights.

• If there are any programs running, close them.

• The screens may differ depending on your operating system.

• For Windows Vista® and Windows®7 users, when the User Account Control screen appears, click Allow or Yes.

• If you want to install the PS driver (BR-Script3 printer driver), choose Custom Install and then follow the on-screen instructions.

c Follow the on-screen instructions until this

screen appears.

b Turn off the machine and make sure the USB

interface cable is NOT connected to the machine, and then begin installing the printer driver. If you have already connected the cable, disconnect it.

d Connect the USB cable to the USB connector

on the machine marked with the symbol, and then connect the cable to your computer.

Install the printer driver

a Put the installation CD-ROM into your

CD-ROM drive. If prompted, select your model and language.

If the Brother screen does not appear automatically, go to My Computer (Computer), double-click the CD-ROM icon, and then double-click start.exe.

b Click Install Printer Driver, and click Yes if

you accept the license agreement.

e Turn the machine on, and follow the on-screen

instructions to complete setup.

The installation is now complete.

• Depending on your security settings, a Windows Security or antivirus software window may appear when using the machine or its software. Please allow or permit the window to continue.

• XML Paper Specification Printer Driver The XML Paper Specification Printer Driver is the most suitable driver when printing from the applications that use the XML Paper Specification documents. Please download the latest driver by accessing the Brother Solutions Center at http://solutions.brother.com/

Page 9

USB

Windows

USB

Macintosh

IMPORTANT

Note

Finish

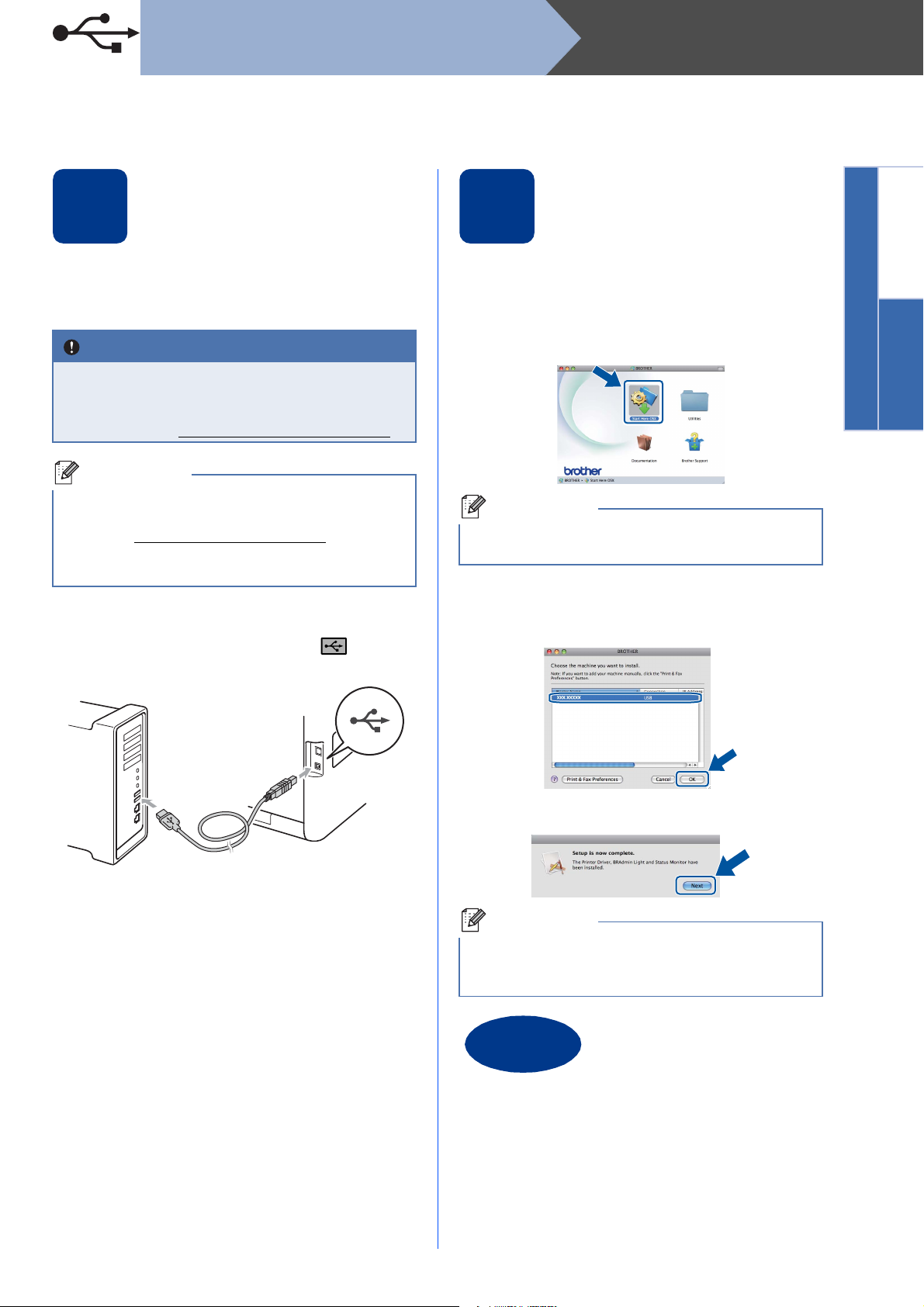

For USB Interface Cable Users for Macintosh

Macintosh

Before you install

a Make sure your machine is connected to the

power and your Macintosh is ON. You must be logged on with Administrator rights.

For Mac OS X 10.4.10 users, upgrade to Mac OS X 10.4.11 - 10.6.x. (For the latest drivers and information on the Mac OS X you are using, visit http://solutions.brother.com/

If you want to setup the PS driver (BR-Script3 printer driver), please go to the Brother Solutions Center at http://solutions.brother.com/ Downloads on your model page to download the driver and visit FAQ's for installation instructions.

and click

b Connect the USB cable to the USB connector

on the machine marked with the symbol, and then connect the cable to your Macintosh.

Install the printer driver

a Put the installation CD-ROM into your

CD-ROM drive.

b Double-click the Start Here OSX icon. Follow

the on-screen instructions.

It may take a few minutes for installation to complete.

c Follow the on-screen instructions until this

screen appears. Choose your machine from the list, and then click OK.

c Make sure the machine power switch is on.

d When this screen appears, click Next.

When the Brother Support screen appears, make your selection and follow the on-screen instructions.

The installation is now complete.

Page 10

Wired Network

Note

IMPORTANT

Note

For Wired Network Interface Cable Users for Windows® (For Peer-to-Peer network users)

Windows

Before you install

TCP/IPTCP/IP

a Router b Machine

If you are going to connect the machine to your network, we recommend that you contact your system administrator prior to installation.

a Make sure that your computer is ON and you

are logged on with Administrator rights.

c Connect the network interface cable to the LAN

connector marked with a symbol and then connect it to a free port on your hub.

d Make sure the machine power switch is on.

Install the printer driver

a Put the installation CD-ROM into your

CD-ROM drive. If prompted, select your model and language.

• If there are any programs running, close them.

• The screens may differ depending on your operating system.

b Remove the protective cap from the LAN

connector.

If the Brother screen does not appear automatically, go to My Computer (Computer), double-click the CD-ROM icon, and then double-click start.exe.

b Click Install Printer Driver, and click Yes if

you accept the license agreement.

• For Windows Vista® and Windows®7 users, when the User Account Control screen appears, click Allow or Yes.

• If you want to install the PS driver (BR-Script3 printer driver), choose Custom Install and then follow the on-screen instructions.

c Follow the on-screen instructions to complete

setup.

Page 11

Wired Network

Windows

Macintosh

Wired Network

Note

Finish

Note

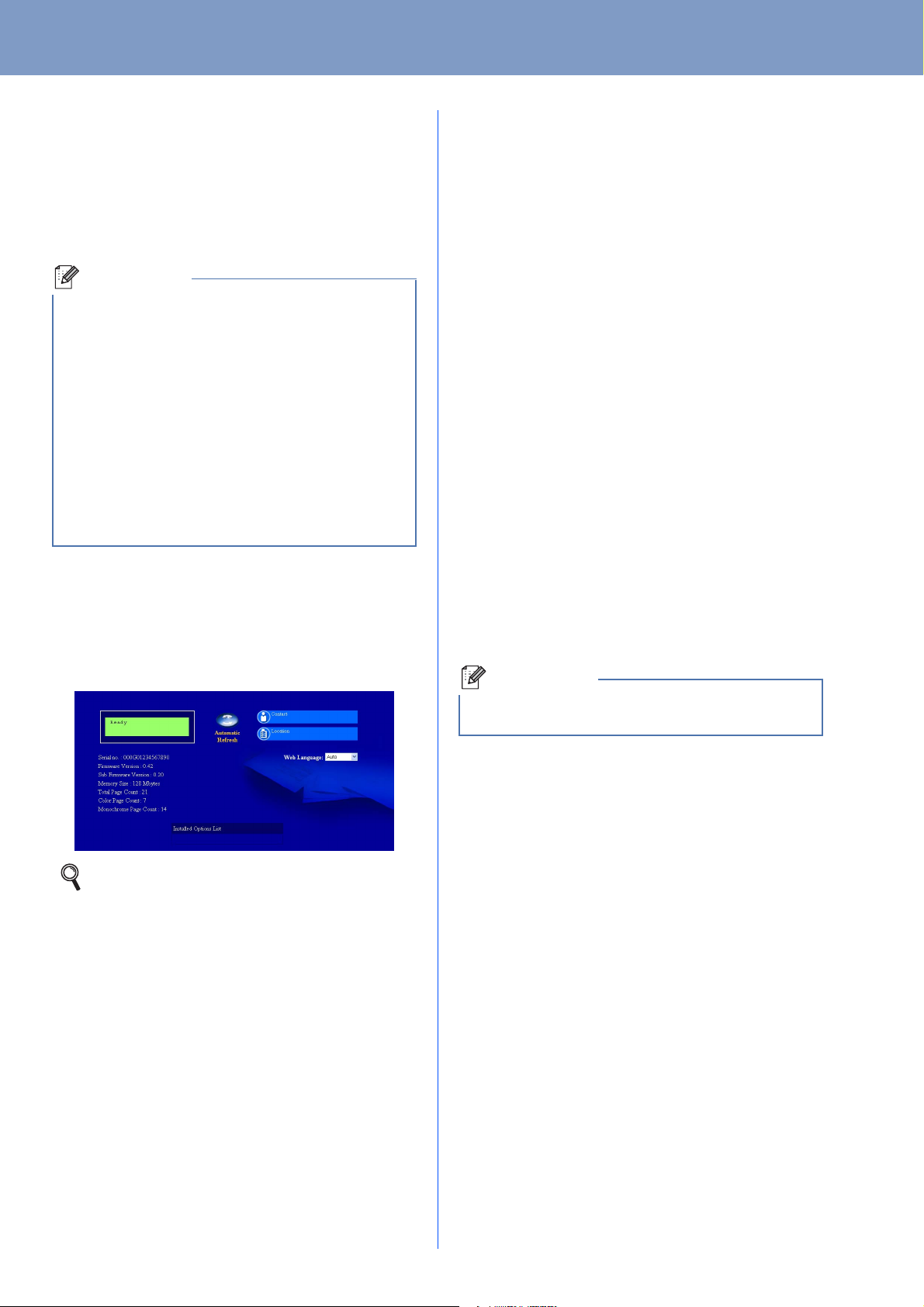

You can find your machine’s IP Address and the node name by printing out the Printer Settings Page. See Print the Printer Settings Page on page 25.

The installation is now complete.

• If you use a specified IP Address for the machine, you must set the Boot Method to Static by using the control panel. For more information, see Network menu in the Network User's Guide.

• Depending on your security settings, a Windows Security or antivirus software window may appear when using the machine or its software. Please allow or permit the window to continue.

Windows

Page 12

Wired Network

Note

IMPORTANT

TCP/IP

Note

For Wired Network Interface Cable Users for Windows® (For shared network users)

Windows

Before you install

a Client computer b Also known as “Server” or “Print server” c TCP/IP or USB d Machine

If you are going to connect the machine to your network, we recommend that you contact your system administrator prior to installation.

Install the printer driver

a Put the installation CD-ROM into your

CD-ROM drive. If prompted, select your model and language.

If the Brother screen does not appear automatically, go to My Computer (Computer), double-click the CD-ROM icon, and then double-click start.exe.

b Click Install Printer Driver, and click Yes if

you accept the license agreement.

a Make sure that your computer is ON and you

are logged on with Administrator rights.

• If there are any programs running, close them.

• The screens may differ depending on your operating system.

b Make sure the machine power switch is on.

• For Windows Vista® and Windows®7 users, when the User Account Control screen appears, click Allow or Yes.

• If you want to install the PS driver (BR-Script3 printer driver), choose Custom Install and then follow the on-screen instructions.

c Follow the on-screen instructions until this

screen appears. Choose your machine’s queue, and then click OK.

Contact your administrator if you do not know the location or the name of the machine queue on the network.

Page 13

Wired Network

Windows

Macintosh

Wired Network

Finish

Note

d Follow the on-screen instructions to complete

setup.

The installation is now complete.

• Depending on your security settings, a Windows Security or antivirus software window may appear when using the machine or its software. Please allow or permit the window to continue.

Windows

Page 14

Wired Network

IMPORTANT

Note

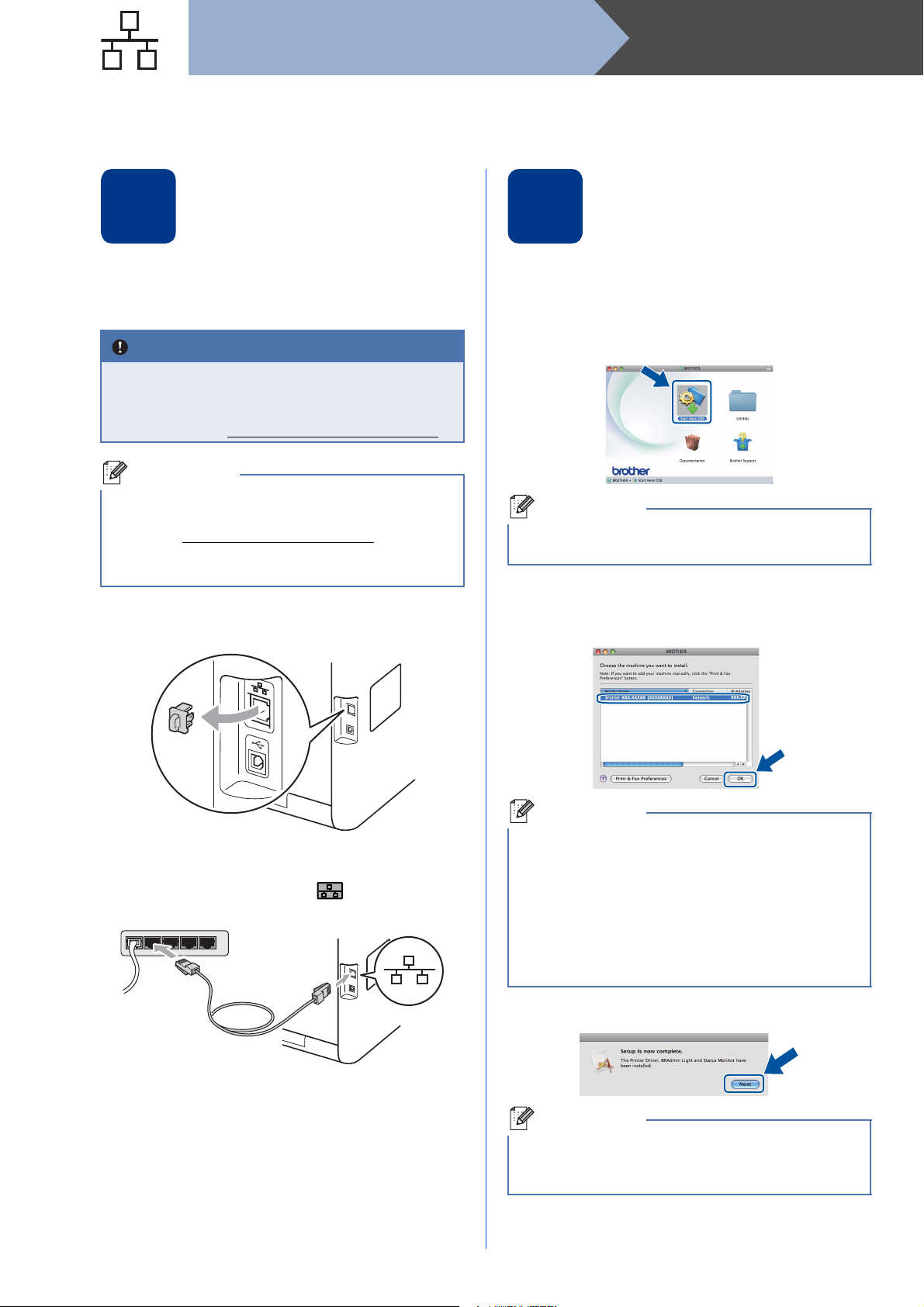

For Wired Network Interface Cable Users for Macintosh

Macintosh

Before you install

a Make sure your machine is connected to the

power and your Macintosh is ON. You must be logged on with Administrator rights.

For Mac OS X 10.4.10 users, upgrade to Mac OS X 10.4.11 - 10.6.x. (For the latest drivers and information on the Mac OS X you are using, visit http://solutions.brother.com/

and click

b Remove the protective cap from the LAN

connector.

Install the printer driver

a Put the installation CD-ROM into your

CD-ROM drive.

b Double-click the Start Here OSX icon. Follow

the on-screen instructions.

It may take a few minutes for installation to complete.

c Follow the on-screen instructions until this

screen appears. Choose your machine from the list, and then click OK.

c Connect the network interface cable to the LAN

connector marked with a symbol and then connect it to a free port on your hub.

d Make sure the machine power switch is on.

• If there is more than one of the same model connected on your network, the MAC Address (Ethernet Address) will be displayed after the model name.

• You can find your machine’s MAC Address (Ethernet Address) and IP Address by printing out the Printer Settings Page. See Print the Printer Settings Page on page 25.

d When this screen appears, click Next.

When the Brother Support screen appears, make your selection and follow the on-screen instructions.

Page 15

Wired Network

Windows

Macintosh

Wired Network

Finish

Note

The installation is now complete.

If you use a specified IP Address for the machine, you must set the Boot Method to Static by using the control panel. For more information, see Network menu in the Network User's Guide.

Macintosh

Page 16

For Wireless Network Users

IMPORTANT

Note

For Wireless Network Interface Users

Before you begin

First you must configure the wireless network settings of your machine to communicate with your network access point/router. After the machine is configured to communicate with your access point/router, computers on your network will have access to the machine. To use the machine from these computers, you will need to install the printer driver. The following steps will guide you through the configuration and installation process.

• If you are going to connect the machine to your network, we recommend that you contact your system administrator prior to installation. You must know your wireless network settings before you proceed with this installation.

• If you have previously configured the wireless settings of the machine, you must reset the print server back to its factory default settings.

1. On your machine, press + or - to choose Network, and press OK.

2. Press + or - to choose Network Reset , and press OK.

3. Press + to choose Reset. When Reboot OK? appears, press + to choose Yes.

• To achieve optimum results with normal everyday document printing, place the Brother machine as close to the network access point/router as possible with minimal obstructions. Large objects and walls between the two devices as well as interference from other electronic devices can affect the data transfer speed of your documents. Due to these factors, wireless may not be the best method of connection for all types of documents and applications. If you are printing large files, such as multi-page documents with mixed text and large graphics, you may want to consider choosing wired Ethernet for a faster data transfer or USB for the fastest throughput speed.

• Although the Brother HL-4570CDW(T) can be used in both a wired and wireless network, only one of the connection methods can be used at a time.

Infrastructure Mode

a Access point/router

b Wireless Network machine (your machine)

c Wireless capable computer connected to

the access point/router

d Wired computer connected to the access

point/router

Page 17

For Wireless Network Users

Wireless Network

Windows

Macintosh

Note

Now go to

IMPORTANT

Note

Confirm your network environment (Infrastructure Mode)

The following instructions will offer two methods for installing your Brother machine in a wireless network environment.

To setup your machine in any other wireless environment, you can find instructions in the Network User's Guide.

a If your WLAN access point/router supports automatic wireless mode

(Wi-Fi Protected Setup or AOSS™)

b If your WLAN access point/router does not support Wi-Fi Protected Setup or AOSS™, write down

the wireless network settings of your WLAN access point/router.

Please do not contact Brother Customer Service for assistance without the wireless security information. We cannot assist you in locating your network security settings.

Network name (SSID/ESSID) Network Key

For example:

Network name (SSID/ESSID) Network Key

HELLO 12345678

• If you do not know this information (Network Name (SSID/ESSID) and Network Key), you cannot continue the wireless setup.

• How can I find this information (Network Name (SSID/ESSID) and Network Key)

1. You should see the documentation provided with your WLAN access point/router.

2. The initial network name could be the manufacturer’s name or the model name.

3. If you do not know the security information, please consult the router manufacturer, your system

administrator or internet provider.

page 18

page 19

Page 18

For Wireless Network Users

Now go to

Note

Connecting the Brother machine to the wireless network

Configure the wireless settings using the

automatic wireless mode

a Confirm your WLAN access point/router has

the Wi-Fi Protected Setup or AOSS™ symbol as shown below.

b Place the Brother machine within range of your

Wi-Fi Protected Setup or AOSS™ access point/router. The range may differ depending on your environment. Refer to the instructions provided with your access point/router.

c On your machine, press + or - to choose

Network and press OK. Press + or - to choose WLAN and press OK. Press + or - to choose WPS/AOSS and press OK.

When WLAN Enable? is displayed, press + to accept. This will start the wireless setup wizard.

Otherwise press Cancel to exit from the wireless setup wizard.

When Press Key on rtr appears, press the Wi-Fi Protected Setup or AOSS™ button on your WLAN access point/router. See the user’s guide for your WLAN access point/router for instructions. And then press +.

This feature will automatically detect which mode (Wi-Fi Protected Setup or AOSS™) your access point/router uses to configure your machine.

Wireless setup is now complete. A four level indicator at the right of your machine’s LCD will show the wireless signal strength of your access point/router.

To install the printer driver, continue to step 10.

For Windows® Users:

page 23

For Macintosh Users:

page 24

d A connection result message appears on the

If your WLAN access point/router supports Wi-Fi Protected Setup (PIN Method) and you want to configure your machine using the PIN (Personal Identification Number) Method, see Using the PIN

Method of Wi-Fi Protected Setup in the Network User's Guide.

LCD and a WLAN report will automatically be printed.

If the connection failed, check the error code on the printed report and refer to Troubleshooting on page 20.

Page 19

For Wireless Network Users

Wireless Network

Windows

Macintosh

Now go to

IMPORTANT

Note

Configure the wireless settings (typical Wireless

Setup in infrastructure mode)

You must have the wireless settings you wrote down for your network in step 8 on page 17 before you proceed.

a On your machine, press + or - to choose

Network and press OK. Press + or - to choose WLAN and press OK. Press + or - to choose Setup Wizard and press OK.

When WLAN Enable? is displayed, press + to accept. This will start the wireless setup wizard.

Otherwise press Cancel to exit from the wireless setup wizard.

b The machine will search for available SSIDs. If

a list of SSIDs is displayed, use the + or - key to choose the SSID you wrote down in step 8 on page 17, then press OK.

If you are using an authentication and encryption method that requires a Network Key, go to c.

If your authentication method is Open System and your encryption mode is None, go to e.

If your WLAN access point/router supports Wi-Fi Protected Setup, WPS is available appears. Press +. To connect your machine using the automatic wireless mode, press + to choose Yes. (If you choose No, go to c to enter the Network Key.) When Press WPS on rtr appears, press the Wi-Fi Protected Setup button on your WLAN access point/router, and then press + twice. Go to e.

c Enter the Network Key you wrote down in

step 8 on page 17.

To enter a letter or number, hold down or repeatedly press the + or - key until the letter you want appears, and then press OK.

To delete the letters you have entered, press the Back key.

For more information, see Entering Text for Wireless Settings on page 22.

Press OK when you have entered all the characters, then press OK for Yes to apply your settings. Go to d.

d Your machine will now try to connect to your

wireless network using the information you have entered.

e A connection result message appears on the

LCD and a WLAN report will automatically be printed.

If the connection failed, check the error code on the printed report and refer to Troubleshooting on page 20.

Wireless setup is now complete. A four level indicator at the right of your machine’s LCD will show the wireless signal strength of your access point/router.

To install the printer driver, continue to step 10.

For Windows® Users:

page 23

For Macintosh Users:

page 24

• It will take several seconds to display a list of available SSIDs.

• If a list of SSIDs is not displayed, make sure your access point is on. Move your machine closer to the access point and try starting from a again.

If you use your machine in an IEEE 802.1x supported wireless network, see Using IEEE

802.1x authentication in the Network User's Guide.

If your access point is set to not broadcast the SSID you will have to manually add the SSID name. For details, see Configuring your

machine when the SSID is not broadcast in the Network User's Guide.

Page 20

For Wireless Network Users

IMPORTANT

Troubleshooting

Please do not contact Brother Customer Service for assistance without the wireless security information. We cannot assist you in locating your network security settings.

How can I find the wireless settings (Network Name (SSID/ESSID) and Network Key)

1. You should see the documentation provided with your WLAN access point/router.

2. The initial network name could be the manufacturer’s name or the model name.

3. If you do not know the security information, please consult the router manufacturer, your system administrator or internet provider.

* The Network Key may also be described as the Password, Security Key or Encryption Key. * If the WLAN access point/router is set to not broadcast the SSID, the SSID will not automatically be detected.

You will have to manually enter the SSID name. See Configuring your machine when the SSID is not broadcast in the Network User's Guide.

WLAN report

If the WLAN report that printed shows that the connection failed, check the error code on the printed report and refer to the following instructions.

Error code Recommended Solutions

The wireless setting is not activated, turn the wireless setting to ON.

- If a LAN cable is connected to your machine, disconnect it and turn the wireless setting of your machine to ON.

TS-01

TS-02

1. On your machine, press + or - to choose Network and press OK.

2. Press + or - to choose WLAN and press OK.

3. Press + or - to choose Setup Wizard and press OK.

4. When WLAN Enable? is displayed, press + to accept. This will start the wireless setup

wizard.

The WLAN access point/router cannot be detected.

1. Check the following 4 points.

- Make sure that the WLAN access point/router is powered on.

- Move your machine to an obstruction-free area, or closer to the wireless access

point/router.

- Temporarily place your machine within about one meter (3.3 feet) from the WLAN

access point when you are configuring the wireless settings.

- If your WLAN access point/router is using MAC address filtering, confirm the MAC

address of the Brother machine is allowed in the filter.

2. If you manually entered the SSID and security information (SSID/authentication method/encryption method/Network Key) the information may be incorrect. Reconfirm the SSID and security information and reenter the correct information as necessary.

See How can I find the wireless settings (Network Name (SSID/ESSID) and Network Key) on page 20 to confirm.

Page 21

For Wireless Network Users

Wireless Network

Windows

Macintosh

Authentication method Encryption method

WPA-Personal

TKIP

AES

WPA2-Personal AES

OPEN

WEP

NONE (without encryption)

Shared key WEP

Error code Recommended Solutions

The wireless network and security setting you entered may be incorrect. Reconfirm the wireless network settings.

TS-03

TS-04

* Check if the entered or selected SSID/authentication method/encryption

method/UserID/Userpass are correct.

See How can I find the wireless settings (Network Name (SSID/ESSID) and Network Key) on page 20 to confirm.

The Authentication/Encryption methods used by the selected WLAN access point/router are not supported by your machine.

For infrastructure mode, change the authentication and encryption methods of the WLAN access point/router. Your machine supports the following authentication methods WPA, WPA2, OPEN and Shared key. WPA supports TKIP or AES encryption methods. WPA2 supports AES for the encryption method. OPEN and Shared key correspond to WEP encryption.

If your problem is not solved the SSID or network settings you entered may be incorrect. Reconfirm the wireless network settings.

Combined table of authentication and encryption methods

See How can I find the wireless settings (Network Name (SSID/ESSID) and Network Key) on page 20 to confirm.

For ad-hoc mode, change the authentication and encryption methods of your computer for the wireless setting. Your machine supports OPEN authentication method only, with optional WEP encryption.

The security information (SSID/Network Key) is incorrect. Reconfirm the SSID and security information (Network Key). If your router uses WEP encryption, enter the key used as the first WEP key. Your Brother

TS-05

TS-06

machine supports the use of the first WEP key only.

See How can I find the wireless settings (Network Name (SSID/ESSID) and Network Key) on page 20 to confirm.

The wireless security information (Authentication method/Encryption method/Network Key) is incorrect. Reconfirm the wireless security information (Authentication method/Encryption method/Network Key) in the table of TS-04. If your router uses WEP encryption, enter the key used as the first WEP key. Your Brother machine supports the use of the first WEP key only.

See How can I find the wireless settings (Network Name (SSID/ESSID) and Network Key) on page 20 to confirm.

Page 22

For Wireless Network Users

Error code Recommended Solutions

The machine cannot detect a WLAN access point/router that has WPS or AOSS™ enabled.

If you would like to configure your wireless settings using WPS or AOSS™, you must operate both your machine and the WLAN access point/router. Confirm your WLAN access point/router supports WPS or AOSS™ and try starting again.

TS-07

If you do not know how to operate your WLAN access point/router using WPS or AOSS™, see the documentation provided with your WLAN access point/router, ask the manufacturer of your WLAN access point/router or ask your network administrator.

Two or more WLAN access points that have WPS or AOSS™ enabled are detected.

TS-08

- Confirm that only one WLAN access point/router within range has the WPS or AOSS™ method active and try again.

- Try starting again after a few minutes in order to avoid interference from other access points.

Entering Text for Wireless Settings

Hold down or repeatedly press the + or - key to select a character from the list below:

(space) !"#$%&'()*+,-./0123456789:;<=>?@ ABCDEFGHIJKLMNOPQRSTUVWXYZ[?]^_\abcdefghijklmnopqrstuvwxyz{|}~

Press the Back key to delete the letters you have entered.

Page 23

Wireless Network

Windows

Macintosh

IMPORTANT

Note

IMPORTANT

Finish

Note

Windows

Install the Printer Driver for Windows

Before you install

a Make sure that your computer is ON and you

are logged on with Administrator rights.

• If there are any programs running, close them.

• The screens may differ depending on your operating system.

b Make sure the machine power switch is on.

Install the printer driver

a Put the installation CD-ROM into your

CD-ROM drive. If prompted, select your model and language.

If you want to install the PS driver (BR-Script3 printer driver), choose Custom Install and then follow the on-screen instructions.

d Choose your machine from the list, and then

click Next.

DO NOT cancel any of the screens during the installation.

e Follow the on-screen instructions to complete

setup.

The installation is now complete.

If the Brother screen does not appear automatically, go to My Computer (Computer), double-click the CD-ROM icon, and then double-click start.exe.

b Click Install Printer Driver, and click Yes if

you accept the license agreement.

For Windows Vista® and Windows®7 users, when the User Account Control screen appears, click Allow or Yes.

c Choose Wireless Network Connection.

• If you use a specified IP Address for the machine, you must set the Boot Method to Static by using the control panel. For more information, see Network menu in the Network User's Guide.

• Depending on your security settings, a Windows Security or antivirus software window may appear when using the machine or its software. Please allow or permit the window to continue.

Page 24

Wireless Network

IMPORTANT

Note

IMPORTANT

Note

Finish

Note

Install the Printer Driver for Macintosh

Before you install

a Make sure your machine is connected to the

power and your Macintosh is ON. You must be logged on with Administrator rights.

For Mac OS X 10.4.10 users, upgrade to Mac OS X 10.4.11 - 10.6.x. (For the latest drivers and information on the Mac OS X you are using, visit http://solutions.brother.com/

Macintosh

DO NOT cancel any of the screens during the installation.

It may take a few minutes for installation to complete.

d Choose your machine from the list, and then

click OK.

and click

Install the printer driver

a Put the installation CD-ROM into your

CD-ROM drive.

b Double-click the Start Here OSX icon. Follow

the on-screen instructions.

• If there is more than one of the same model connected on your network, the MAC Address (Ethernet Address) will be displayed after the model name.

• You can find your machine’s MAC Address (Ethernet Address) and IP Address by printing out the Printer Settings Page. See Print the Printer Settings Page on page 25.

e When this screen appears, click Next.

When the Brother Support screen appears, make your selection and follow the on-screen instructions.

c Choose Wireless Network Connection.

The installation is now complete.

If you use a specified IP Address for the machine, you must set the Boot Method to Static by using the control panel. For more information, see Network menu in the Network User's Guide.

Page 25

For Network Users

Note

Web Based Management (web browser)

The Brother print server is equipped with a web server that allows you to monitor its status or change some of its configuration settings, using HTTP (Hyper Text Transfer Protocol).

• The login name for the Administrator is ‘admin’ (case sensitive) and the default password is ‘access’.

• We recommend Microsoft Explorer greater) for Windows greater) for Macintosh. Please also make sure that JavaScript and Cookies are always enabled in whichever browser you use. To use a web browser, you will need to know the IP Address of the print server. The IP Address of the print server is listed on the Print Setting Page.

6.0 (or greater) or Firefox 3.0 (or

Internet

and Safari 3.0 (or

Reset the network settings to the factory default

To reset all network settings of the print server to its factory default, follow the steps below.

a Press + or - to choose Network.

Press OK.

b Press + or - to choose Network Reset.

Press OK.

c Press + to choose Reset. d Press + to choose Yes for reboot.

The machine will re-start.

Print the Printer Settings Page

The Printer Settings Page lists all the current printer settings, including network settings.

a Open your browser. b Type http://machine_ip_address/ into

your browser (where machine_ip_address is the IP address or the print server name).

 For example: http://192.168.1.2/

See Web Based Management in the Network User's Guide.

a Press + or - to choose Machine Info..

Press OK.

b Press OK to choose Print Settings.

If the IP address on the Printer Settings Page shows 0.0.0.0, wait for one minute and try again.

Page 26

Other Information

Note

Color Correction (if needed)

Color Calibration

The output density for each color may vary depending on the environment the machine is in, such as temperature and humidity. Calibration helps you to improve the color density.

• If you print using the Direct Print feature or the BR-Script printer driver, you need to perform the calibration from the control panel. See Using the control panel on page 26.

• If you print using the Windows the driver will get the calibration data automatically if both Use Calibration Data and Get Device Data Automatically are on. See Advanced tab in the User's Guide.

• If you print using the Macintosh printer driver, you need to perform the calibration using Status Monitor. After turning Status Monitor on, choose Color Calibration from Control menu. See Color Calibration in the User's Guide.

Using the control panel

printer driver,

a Press + or - to choose Color Correction.

Press OK.

Color Registration

Auto Registration

You can adjust the print position of each color automatically.

a Press + or - to choose Color Correction.

Press OK.

b Press + or - to choose Auto Regist..

Press OK.

c Press OK to choose Registration. d Press + to choose Yes.

To adjust the print position of each color manually, see Manual Registration in the User's Guide.

Brother CreativeCenter Icon

Get inspired. Double-click the Brother CreativeCenter icon on your desktop to access a FREE web site with many ideas and resources for personal and professional use.

b Press + or - to choose ColorCalibration.

Press OK.

c Press OK to choose Calibrate. d Press + to choose Yes.

You can reset the calibration parameters back to those set at the factory.

a Press + or - to choose Color Correction.

Press OK.

b Press + or - to choose ColorCalibration.

Press OK.

c Press + or - to choose Reset.

Press OK.

d Press + to choose Reset.

http://www.brother.com/creativecenter/

Page 27

Options and Consumables

Options

The machine has the following optional accessories. You can expand the capabilities of the machine by adding these items. For more information about the optional Lower Tray Unit and compatible SO-DIMM Memory, visit us at http://solutions.brother.com/

For installing the SO-DIMM Memory, see Installing extra memory in the User's Guide.

Lower Tray Unit for HL-4570CDW (LT-300CL) SO-DIMM Memory

Second lower paper tray unit can hold up to 500 sheets of paper. When the tray is installed, the machine expands total input capacity up to 800 sheets.

You can increase the memory by installing one SO-DIMM (Small Outline Dual In-line Memory Module).

Consumables

When the time comes to replace consumable items, an error will be indicated by the LCD on the control panel. For more information about the consumables for your machine, visit us at http://solutions.brother.com/ local Brother reseller.

Toner cartridges Drum unit

Belt Unit (BU-300CL) Waste Toner Box (WT-300CL)

For replacing the consumable items, see Replacing consumable items in the User's Guide.

or contact your

Page 28

Trademarks

The Brother logo is a registered trademark of Brother Industries, Ltd. Brother is a registered trademark of Brother Industries, Ltd. Microsoft, Windows, Windows Server and Internet Explorer are registered trademarks of Microsoft Corporation in the United States and/or other countries. Windows Vista is either a registered trademark or a trademark of Microsoft Corporation in the United States and other countries. Apple, Macintosh, Safari and TrueType are trademarks of Apple Inc., registered in the United States and other countries. Wi-Fi and Wi-Fi Alliance are registered trademarks of the Wi-Fi Alliance. AOSS is a trademark of Buffalo Inc.

Any trade names and product names of companies appearing on Brother products, related documents and any other materials are all trademarks or registered trademarks of those respective companies.

Compilation and Publication

Under the supervision of Brother Industries, Ltd., this manual has been compiled and published, covering the latest product descriptions and specifications. The contents of this manual and the specifications of this product are subject to change without notice. Brother reserves the right to make changes without notice in the specifications and materials contained herein and shall not be responsible for any damages (including consequential) caused by reliance on the materials presented, including but not limited to typographical and other errors relating to the publication.

©2010 Brother Industries, Ltd. This product includes software developed by the following vendors: ©1983-1998 PACIFIC SOFTWORKS, INC. ©2010 Devicescape Software, Inc. This product includes the “KASAGO TCP/IP” software developed by ZUKEN ELMIC, Inc.

Brother HL 4570CDWT User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Start Here

Unpack the machine and check the components

Print a test page

Set your language

Choose your connection type

Before you install

Install the printer driver

For USB Interface Cable Users for Macintosh

Before you install

Install the printer driver

For Wired Network Interface Cable Users for Windows® (For Peer-to-Peer network users)

Before you install

Install the printer driver

For Wired Network Interface Cable Users for Windows® (For shared network users)

Before you install

Install the printer driver

For Wired Network Interface Cable Users for Macintosh

Before you install

Install the printer driver

For Wireless Network Interface Users

Before you begin

Confirm your network environment (Infrastructure Mode)

Connecting the Brother machine to the wireless network

Troubleshooting

How can I find the wireless settings (Network Name (SSID/ESSID) and Network Key)

WLAN report

Entering Text for Wireless Settings

Before you install

Install the printer driver

Install the Printer Driver for Macintosh

Before you install

Install the printer driver

For Network Users

Web Based Management (web browser)

Reset the network settings to the factory default

Print the Printer Settings Page

Other Information

Color Correction (if needed)

Color Calibration

Color Registration

Brother CreativeCenter Icon

Options and Consumables

Options

Consumables
