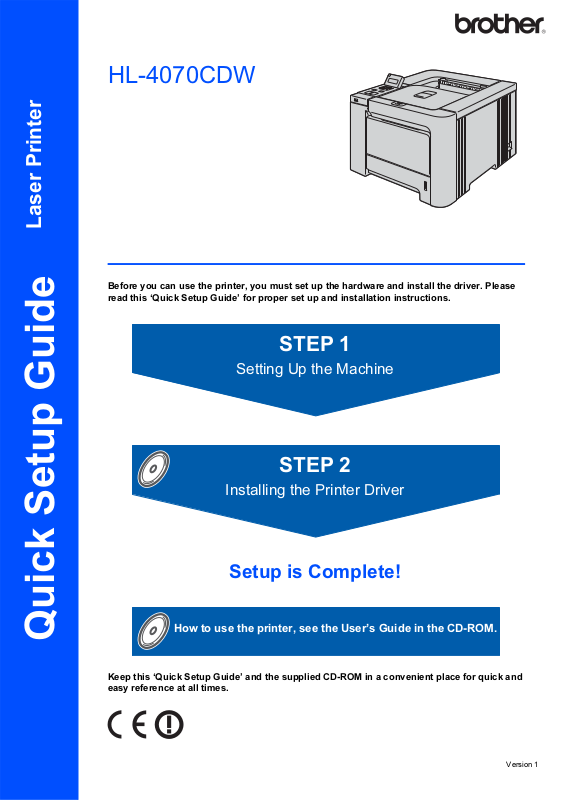

Brother HL-4070CDW User Manual

HL-4070CDW

Laser Printer

Before you can use the printer, you must set up the hardware and install the driver. Please read this ‘Quick Setup Guide’ for proper set up and installation instructions.

STEP 1

Setting Up the Machine

STEP 2

Installing the Printer Driver

Setup is Complete!

Quick Setup Guide

How to use the printer, see the User’s Guide in the CD-ROM.

Keep this ‘Quick Setup Guide’ and the supplied CD-ROM in a convenient place for quick and easy reference at all times.

Version 1

1

Symbols used in this guide

Warning

Warnings tell you what to do to prevent possible personal injury.

Improper Setup

Improper Setup icons alert you to devices and operations that are not compatible with the printer.

Electrical Hazard

Electrical Hazard icons alert you to a possible electrical shock.

Note

Notes tell you how you should respond to a situation that may arise or give tips about how the current operation works with other features.

Hot Surface

Hot Surface icons warn you not to touch machine parts that are hot.

User's Guide

Network User's Guide

Indicates reference to the User's Guide or Network User's Guide which is on the CD-ROM we have supplied.

Caution

Cautions specify procedures you must follow or avoid to prevent possible damage to the printer or other objects.

Safety Precautions

To Use the Printer Safely

Warning

There are high voltage electrodes inside the printer. Before you clean the inside of the printer, make sure that you have turned off the power switch and unplugged the printer from the AC power outlet.

DO NOT handle the plug with wet hands. Doing this might cause an electrical shock.

The fuser unit becomes extremely hot during operation. Wait until it has cooled down sufficiently before replacing consumable items. DO NOT remove or damage the caution labels located on or around the fuser.

DO NOT use flammable substances or any type of spray to clean the inside or outside of the machine. Doing this may cause a fire or electrical shock. Refer to the User's Guide for how to clean the machine.

2

Safety Precautions

DO NOT use a vacuum cleaner to clean up scattered toner. Doing this might cause the toner dust to ignite inside the vacuum cleaner, potentially starting a fire. Please carefully clean the toner dust with a dry, lint-free cloth and dispose of it according to local regulations.

If the printer becomes hot, blows smoke, or generates obscure odor, immediately turn off the power switch and unplug the printer from the AC power outlet. Call your Brother dealer or Brother Customer Service.

If metal objects, water or other liquids get inside the printer, immediately turn off the power switch and unplug the printer from the AC power outlet. Call your Brother dealer or Brother Customer Service.

This printer is heavy and weighs approximately 64.2 lb. (29.1 kg). To prevent injuries use at least two people to lift the printer. Be careful not to pinch your fingers when you put the printer back down.

3

Regulations

Federal Communications Commission (FCC) Declaration of Conformity (For USA)

Responsible Party:

declares, that the products

Product name: Laser Printer HL-4070CDW

Model number: HL-40C

Product option: Lower Tray Unit LT-100CL

comply with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.  Increase the separation between the equipment

and receiver.

 Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

 Consult the dealer or an experienced radio/TV

technician for help.

Brother International Corporation 100 Somerset Corporate Boulevard P.O. Box 6911 Bridgewater, NJ 08807-0911 USA Telephone: (908) 704-1700

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Radio interference (220-240 volt model only)

This printer follows EN55022 (CISPR Publication

22)/Class B. Before you use this product, make sure that you use one of the following interface cables. 1 A shielded parallel interface cable with twisted-pair

conductors and that it is marked “IEEE 1284

compliant”. 2 A USB cable. The cable must not be more than 2 meters long.

Important

A shielded interface cable should be used in order to ensure compliance with the limits for a Class B digital device. Changes or modifications not expressly approved by Brother Industries, Ltd. could void the user's authority to operate the equipment.

Industry Canada Compliance Statement (For Canada

This Class B digital apparatus complies with Canadian ICES-003.

4

EC Declaration of Conformity

Laser Safety (110 to 120 volt Model Only)

This printer is certified as a Class 1 laser product as defined in IEC 60825-1+A2: 2001 specifications under the U.S. Department of Health and Human Services (DHHS) Radiation Performance Standard according to the Radiation Control for Health and Safety Act of 1968. This means that the printer does not produce hazardous laser radiation. Since radiation emitted inside the printer is completely confined within protective housings and external covers, the laser beam cannot escape from the machine during any phase of user operation.

FDA Regulations (110 to 120 volt Model Only)

The U.S. Food and Drug Administration (FDA) has implemented regulations for laser products manufactured on and after August 2, 1976. Compliance is mandatory for products marketed in the United States. The following label on the back of the printer indicates compliance with the FDA regulations and must be attached to laser products marketed in the United States.

MANUFACTURED: Brother Technology (Shenzhen) Ltd. NO6 Gold Garden Ind., Nanling Buji, Longgang, Shenzhen, China This product complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No.50, dated July 26, 2001.

5

Caution

Use of controls, adjustments or performance of procedures other than those specified in this manual may result in hazardous invisible radiation exposure.

IEC 60825-1 specification (220 to 240 volt model only)

This printer is a Class 1 laser product as defined in IEC 60825-1+A2: 2001 specifications. The label shown below is attached in countries where it is needed.

CLASS 1 LASER PRODUCT APPAREIL À LASER DE CLASSE 1 LASER KLASSE 1 PRODUKT

This printer has a Class 3B laser diode which produces invisible laser radiation in the laser unit. You should not open the laser unit under any circumstances.

Caution

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

For Finland and Sweden

LUOKAN 1 LASERLAITE KLASS 1 LASER APPARAT

Varoitus!

Laitteen käyttäminen muulla kuin tässä käyttöohjeessa mainitulla tavalla saattaa altistaa käyttäjän turvallisuusluokan 1 ylittävälle näkymättömälle lasersäteilylle.

Varning

Om apparaten används på annat sätt än i denna Bruksanvisning specificerats, kan användaren utsättas för osynlig laserstrålning, som överskrider gränsen för laserklass 1.

Internal laser radiation

Maximum radiation power: 25 mW

Wave length: 780 - 800 nm

Laser class: Class 3B

The fact that the equipment operates satisfactorily does not imply that the power is grounded and that the installation is completely safe. For your safety, if in any doubt about the effective grounding of the power, call a qualified electrician. This product should be connected to an AC power source within the range indicated on the rating label. DO NOT connect it to a DC power source. If you are not sure, contact a qualified electrician.

Maschinenlärminformations- Verordnung 3. GPSGV (For Germany only)

Der höchste Schalldruckpegel beträgt 70 dB(A) oder weniger gemäß EN ISO 7779.

Disconnect device

You must install this printer near a power outlet that is easily accessible. In case of an emergency, you must disconnect the power cord from the power outlet to shut off the power completely.

Caution for LAN connection

Connect this product to a LAN connection that is not subjected to over voltages.

IT power system (For Norway only)

This product is also designed for an IT power system with phase-to-phase voltage 230V.

Wiring information (for UK) Important

If you need to replace the plug fuse, fit a fuse that is approved by ASTA to BS1362 with the same rating as the original fuse. Always replace the fuse cover. Never use a plug that does not have a cover.

Warning - This printer must be earthed.

The wires in the mains lead are coloured in line with the following code:

Green and Yellow: Earth

Blue: Neutral

Brown: Live

If in any doubt, call a qualified electrician.

IMPORTANT - For Your Safety

To ensure safe operation, the supplied three-pin plug must be inserted only into a standard three-pin power outlet that is properly grounded through the normal household wiring. Extension cords used with this printer must be threepin plug type and correctly wired to provide proper grounding. Incorrectly wired extension cords may cause personal injury and equipment damage.

6

Getting Started

1

Carton components may vary from one country to another. Save all packing materials and the printer carton in case for any reason you must ship your printer.

What is in the box?

1

2

3

4

5

8 7

6

9

1 Front cover release button

2 Control panel

1

3 USB direct interface

4 Front cover

5 Paper tray

6 Power switch

7 Face-down output tray

8 Face-down output tray support flap (Support flap)

9 Multi -purpose tray (MP tray)

1

You can adjust the angle of the LCD display by tilting it up or down.

CD-ROM

(including User’s

Guide)

Quick Setup Guide

AC power cord

Belt unit

(pre-installed)

Waste toner box

(pre-installed)

Insertion sheet and

Toner cartridges

(Black, Cyan, Magenta and Yellow)

Drum unit

Plastic bag for

repacking

(pre-installed)

The interface cable is not a standard accessory. Buy the appropriate cable for the interface you are going to use.

 USB cable

Do not use a USB interface cable that is longer than 6 feet (2.0 meters). Do not connect the USB cable to a non-powered hub or a Macintosh

®

keyboard.

Make sure that you connect it to the USB connector of your computer.

 Parallel cable

Do not use a parallel interface cable that is longer than 6 feet (2.0 meters). Use a shielded interface cable that is IEEE 1284-compliant.

 Network cable

Use a straight-through Category5 (or greater) twisted-pair cable for 10BASE-T or 100BASE-TX Fast Ethernet Network.

7

Getting Started

2

Control panel

1 Menu buttons

 +

7

Scroll backward through menus and the available options.

 -

Scroll forward through menus and the available options.

 OK

Choose the control panel menu.

6

Select the chosen menus and settings.

 Back

Go back one level in the menu structure.

2 Reprint button

1

Choose the reprint menu.

3 Go button

Clear error messages. Pause and continue printing.

4 Cancel button

Stop and cancel the print operation in progress.

2

5

Exit from a menu (control panel menu, reprint menu or Direct Print menu)

5 Direct Print LED: Blue

 On

3

USB flash memory is inserted into the USB direct interface.

 Off

4

USB flash memory is not inserted into the USB direct interface.

Direct Print button

Switch to Direct Print mode when USB flash memory is inserted into the USB direct interface.

6 LCD back light

 Off

The printer is off or in sleep status.

 Green (General)

Ready to print / Printing / Warming up

 Red (Error)

There is a problem with the printer.

 Orange (Setting)

Choose a menu (control panel menu, reprint menu or Direct Print menu) or Pause

LCD messages

The message on the LCD shows the current printer status during normal operation. The o marks indicate the status of the toner in the toner cartridges. When the o mark blinks (n), the indicated toner is nearly empty. When toner becomes empty, the o indicator disappears completely.

The mark indicates the wireless signal strength with four levels. ( means no signal, means weak,

means middle, and means strong.)

7 Data LED: Yellow

 On

Data is in the printer memory.

 Blinking

Receiving / processing data

 Off

No remaining data in the memory.

For the control panel details, see Chapter 4 of the User’s Guide on the CD-ROM.

8

Getting Started

3

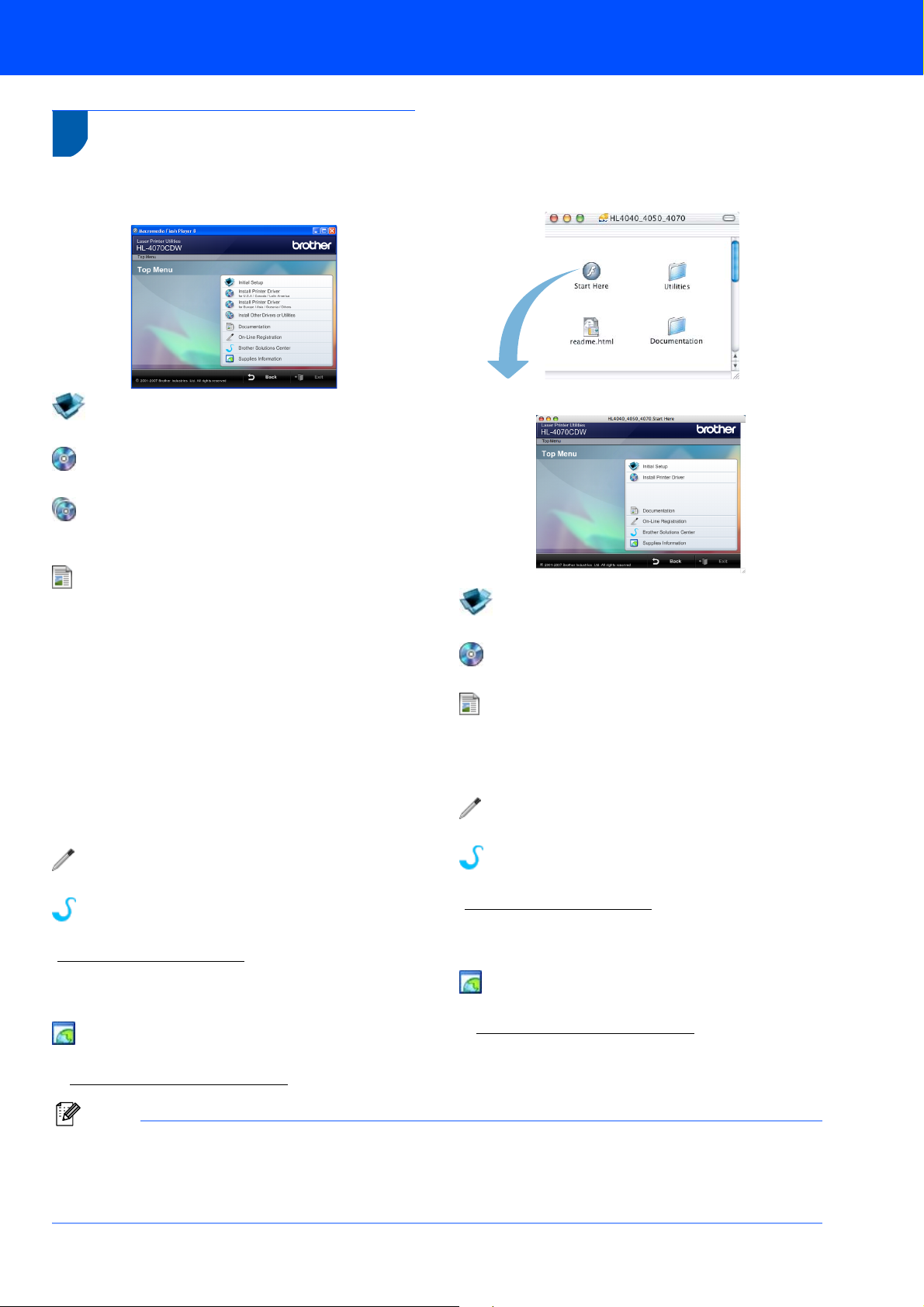

Supplied CD-ROM

You can find a variety of information on the CD-ROM.

Windows

®

Initial Setup

Instructional movie for printer setup.

Install Printer Driver

Install the printer driver.

Install Other Drivers or Utilities

Install optional drivers, utilities and Network management tools.

Macintosh

®

Documentation

View the Printer User’s Guide and Network User's Guide in HTML format. You can also view the manuals in PDF format by accessing the Brother Solutions Center. The User’s Guide and Network User’s Guide in HTML format will be installed automatically when you install

the driver. Click the Start button, All Programs

1

, your printer (Brother HL-4070CDW), and then User’s Guide. If you do not want to install the User’s Guide, choose Custom setup from Install Printer Driver, and uncheck User’s Guides in HTML format when you install the driver.

1

Programs for Windows® 2000 users

On-Line Registration

Register your product on-line.

Brother Solutions Center

The Brother Solutions Center (http://solutions.brother.com

) is a one-stop resource for all your printer support needs. Download the latest drivers and utilities for your printers, read FAQs and troubleshooting tips, or learn about printer solutions.

Supplies Information

Visit our web site for original/genuine Brother supplies at http://www.brother.com/original/

Initial Setup

Instructional movie for printer setup.

Install Printer Driver

Install the printer driver.

Documentation

View the Printer User’s Guide and Network User's Guide in HTML format. You can also view the User’s Guide in PDF format by accessing the Brother Solutions Center.

On-Line Registration

Register your product on-line.

Brother Solutions Center

The Brother Solutions Center (http://solutions.brother.com

) is a one-stop resource for all your printer support needs. Download the latest drivers and utilities for your printers, read FAQs and troubleshooting tips, or learn about printer solutions.

Supplies Information

Visit our web site for original/genuine Brother supplies at http://www.brother.com/original/

Note

For visually impaired users, we have prepared an HTML file on the supplied CD-ROM: readme.html. This file can be read by Screen Reader ‘text-to-speech’ software.

9

STEP 1

1

1 Put the CD-ROM into the CD-ROM drive

Setting Up the Machine

For Windows® users

Improper Setup

DO NOT connect the interface cable. Connecting the interface cable is done when installing the driver.

1 Turn on your computer. (You must be logged

on with Administrator rights.) Put the supplied CD-ROM into your CD-ROM drive. The opening screen will appear automatically. Choose your printer model and the language.

2 Click Initial Setup on the menu screen.

For Macintosh® users

Improper Setup

DO NOT connect the interface cable. Connecting the interface cable is done when installing the driver.

1 Turn on your Macintosh

ROM into your CD-ROM drive, and then double-click the HL4040_4050_4070 icon on your desktop. Double-click the Start Here icon. Follow the on-screen instructions.

®

. Put the supplied CD-

3 You can view the initial setup instructions and

follow along with the steps on the next page.

2 Click Initial Setup on the menu screen.

3 You can view the initial setup instructions and

follow along with the steps on the next page.

10

2 Removing the packing

materials from the printer

Important

Save all packing material and the carton in case you have to ship your machine.

Improper Setup

DO NOT plug in the AC power cord yet.

1 Press the front cover release button and open

the front cover.

Setting Up the Machine

3 Hold the green handle of the drum unit. Lift the

drum unit up and then pull it out until it stops.

2 Remove the 4 pieces of orange packing

material as shown in the illustration below.

4 Remove the orange packing material as shown

in the illustration below.

11

STEP 1

3 Installing the toner

1 Unpack the toner cartridges and rock each

2 Remove the protective cover.

Setting Up the Machine

cartridges

toner cartridge 5 to 6 times.

5 Put the drum unit back into the printer.

6 Close the front cover of the printer.

3 Hold the handle of the toner cartridge and slide

it into the drum unit. Make sure that you match the toner cartridge color to the same color label on the drum unit, and make sure that you fold down the toner cartridge handle (1) once the toner cartridge is in place.

1

1 2 3 4

4 Loading paper in the paper

1 Pull the paper tray completely out of the printer.

tray

2 While pressing the green paper-guide release

lever (1), slide the paper guides to fit the paper size. Make sure that the guides are firmly in the slots.

1 C — Cyan

2 M — Magenta

3 Y — Yellow

4 K — Black

4 Repeat steps 1 through 3 for the remaining

toner cartridges.

12

1

Setting Up the Machine

3 Fan the stack of paper well to avoid paper jams

and misfeeds.

4 Put paper in the paper tray. Make sure that the

paper is flat in the tray and below the maximum paper mark.

1 Lift the LCD display and adjust it for the best

viewing angle.

2 Unfold the support flap.

5 Put the paper tray firmly back into the printer.

Make sure that it is completely inserted into the printer.

5 Printing a test page

Improper Setup

DO NOT connect the interface cable yet.

3 Make sure that the printer power switch is off.

Remove the label covering the AC power inlet.

4 Connect the AC power cord to the printer.

13

STEP 1

5 Plug the AC power cord into an AC power

6 After the printer has finished warming up, the

Setting Up the Machine

outlet. Turn on the printer power switch.

LCD shows Ready.

6 Setting your language on the

control panel

7 Press Go. The printer prints a test page. Check

that the test page has printed correctly.

Note

• If you press Reprint, the printer prints a duplex test page.

• This function will not be available after the first print job you send from your computer.

1 Press the + or – button until the LCD shows

General Setup. Press OK.

Select ab or OK General Setup

2 Press OK again.

General Setup Local Language

3 Press the + or – button to choose your

language. Press OK to accept.

Local Language English

14

STEP 2

Follow the instructions on this page for your operating system and interface. For the latest drivers, documentation, and to find the best solution for your problem, access the Brother Solution Center directly from the CD-ROM / Driver or visit http://solutions.brother.com.

Installing the Printer Driver

Windows

For USB interface cable users....................................................................................... 16

For parallel interface cable users.................................................................................. 18

For wired network interface cable users...................................................................... 20

For wireless network users ........................................................................................... 24

®

Macintosh

For USB interface cable users....................................................................................... 39

For wired network interface cable users...................................................................... 41

For wireless network users ........................................................................................... 43

®

The screens for Windows® in this Quick Setup Guide are based on Windows® XP. The screens for Mac OS

®

X in this Quick Setup Guide are based on Mac OS® X 10.4.

15

STEP 2

1

®

USB

Windows

Note

If the Found New Hardware Wizard appears on your computer, click Cancel.

Installing the Printer Driver

For USB interface cable users

3 Click USB cable users.

Windows

®

Installing the driver and connecting the printer to your computer

1 Make sure the USB interface cable is NOT

connected to the printer, and then begin installing the driver. If you have already connected the cable, remove it.

2 Click Install Printer Driver on the menu

screen.

Note

• For Windows Vista™, when the User Account Control screen appears, click Continue.

• If you want to install the PS driver (Brother’s BR-Script Driver), choose Custom setup and then follow the on-screen instructions. When the

Select Components screen appears, check PS(PostScript Emulation) Driver, and then

continue following the on-screen instructions.

4 When the License Agreement window

appears, click Yes if you agree to the License Agreement.

16

Note

Choose the Install Printer Driver icon for your region.

Installing the Printer Driver

5 When this screen appears, make sure the

printer power switch is on. Connect the USB interface cable to your computer, and then connect it to the printer. Click Next.

Windows

®

Windows

®

USB

6 Click Finish.

Note

• If you want to register your product on-line, check On-Line Registration.

• If you do not want to set your printer as Default printer, uncheck Set as Default Printer.

Setup is now complete.

17

STEP 2

Installing the Printer Driver

Windows

®

Windows

2

For parallel interface cable users

Note

If the Found New Hardware Wizard appears on your computer, click Cancel.

Parallel

Installing the driver and connecting the printer to your computer

1 Click Install Printer Driver on the menu

screen.

Note

• For Windows Vista™, when the User Account Control screen appears, click Continue.

• If you want to install the PS driver (Brother’s BR-Script Driver), choose Custom setup and then follow the on-screen instructions. When the

Select Components screen appears, check PS(PostScript Emulation) Driver, and then

continue following the on-screen instructions.

3 When the License Agreement window

appears, click Yes if you agree to the License Agreement.

Note

Choose the Install Printer Driver icon for your region.

2 Click Parallel cable users.

4 Click Finish.

Note

• If you want to register your product on-line, check On-Line Registration.

• If you do not want to set your printer as Default printer, uncheck Set as Default Printer.

5 Turn off the printer power switch.

18

Installing the Printer Driver

6 Connect the parallel interface cable to your

computer, and then connect it to your printer.

7 Turn on the printer power switch.

Setup is now complete.

Windows

®

Windows

®

Parallel

19

STEP 2

Installing the Printer Driver

Windows

®

3

For wired network interface cable users

For Peer-to-Peer network printer users

Note

R

1

Macintosh

Windows

TCP/IP

®

Windows

1 Router

2 Network printer

Wired

Network

R

2

TCP/IP

• If you are going to connect the printer to your network, we recommend that you contact your system administrator prior to installation or see the Network User’s Guide on the CD-ROM.

• If you are using Personal Firewall software (e.g. Windows Firewall), disable it. Once you are sure that you can print, restart your Personal Firewall software.

Connecting the printer to your network and installing the driver

1 Click Install Printer Driver on the menu

screen.

2 Click Network cable users.

Note

• For Windows Vista™, when the User Account Control screen appears, click Continue.

• If you want to install the PS driver (Brother’s BR-Script Driver), choose Custom setup and then follow the on-screen instructions. When the

Select Components screen appears, check PS(PostScript Emulation) Driver, and then

continue following the on-screen instructions.

3 Turn off the printer power switch.

20

Note

Choose the Install Printer Driver icon for your region.

4 Connect the network interface cable to the

printer, and then connect it to a free port on your hub.

5 Turn on the printer power switch.

Installing the Printer Driver

Windows

®

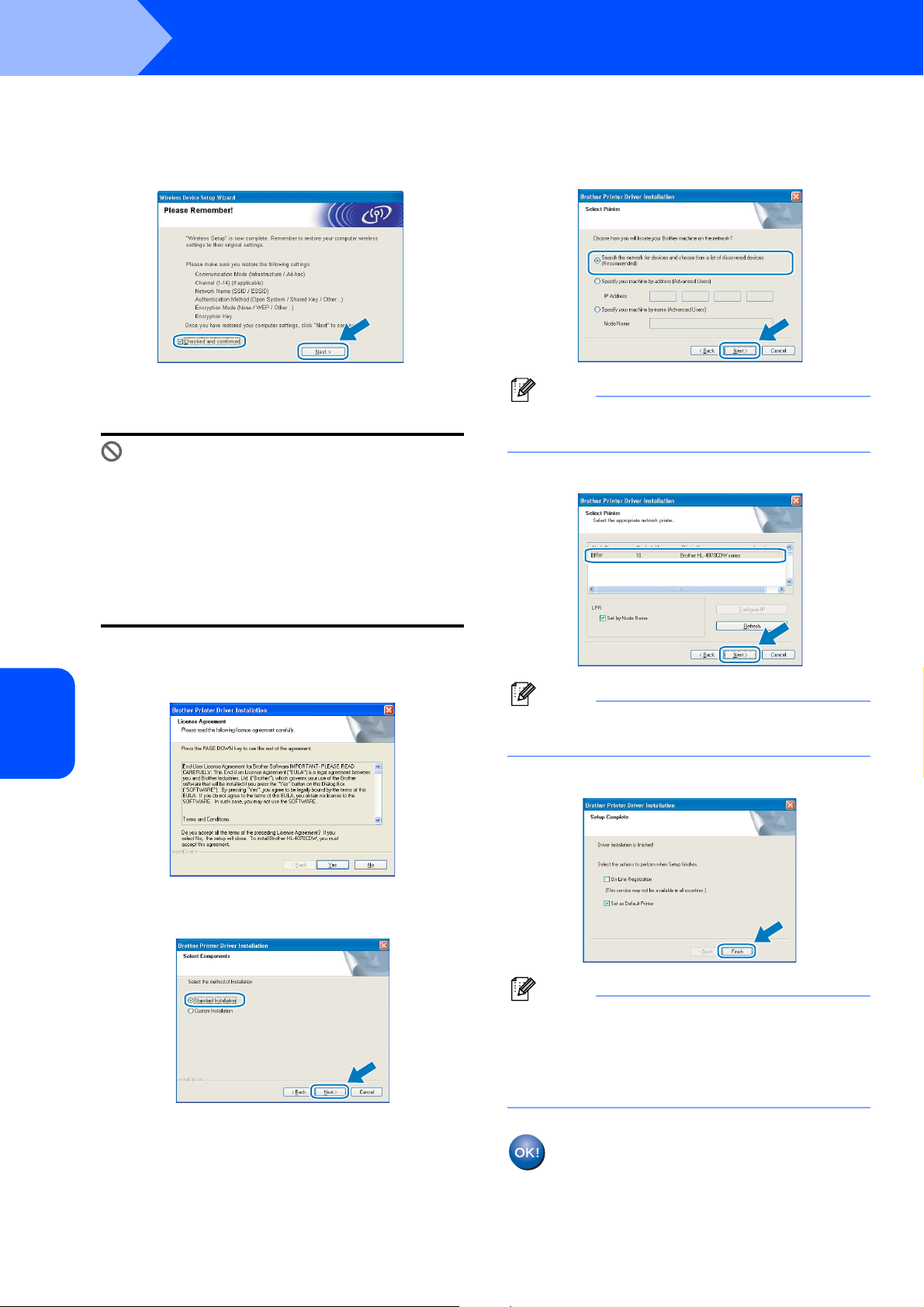

6 When the License Agreement window

appears, click Yes if you agree to the License Agreement.

7 Choose Brother Peer-to-Peer Network

Printer, and then click Next.

10 Click Finish.

Note

• If you want to register your product on-line, check On-Line Registration.

• If you do not want to set your printer as Default printer, uncheck Set as Default Printer.

Setup is now complete.

®

Wired

Network

Windows

8 Choose Search the network for devices and

choose from a list of discovered devices (Recommended). Or enter your printer's IP address or its node name. Click Next.

Note

Contact your administrator if you do not know the printer's IP address or node name.

9 Choose your printer, and then click Next.

21

STEP 2

For shared network printer users

Installing the Printer Driver

Windows

®

Windows

®

Windows

1 Network Shared

2 Also known as “Server” or “Printer server”

3 Printer

Wired

4 TCP/IP, USB or Parallel

Network

R

TCP/IP

R

Windows

2

R

4

3

1

2 Click Network cable users.

Note

• For Windows Vista™, when the User Account Control screen appears, click Continue.

Note

If you are going to connect to a shared printer on your network, we recommend that you ask your system administrator about the queue or share name for the printer prior to installation.

Installing the driver and choosing the correct printer queue or share name

1 Click Install Printer Driver on the menu

screen.

• If you want to install the PS driver (Brother’s BR-Script Driver), choose Custom setup and then follow the on-screen instructions. When the

Select Components screen appears, check PS(PostScript Emulation) Driver, and then

continue following the on-screen instructions.

3 When the License Agreement window

appears, click Yes if you agree to the License Agreement.

22

Note

Choose the Install Printer Driver icon for your region.

4 Choose Network Shared Printer, and then

click Next.

Installing the Printer Driver

5 Choose your printer's queue, and then click

OK.

Note

Contact your administrator if you do not know the location or the name of the printer in the network.

6 Click Finish.

Windows

®

Note

• If you want to register your product on-line, check On-Line Registration.

• If you do not want to set your printer as Default printer, uncheck Set as Default Printer.

Setup is now complete.

Wired

Network

Windows

23

STEP 2

Installing the Printer Driver

Windows

®

4

For wireless network users

Connect your wireless printer and wireless network together: install the printer driver in infrastructure mode

First you must configure the wireless network settings of your printer to communicate with your network access point (router). After the printer is configured to communicate with your access point (router) computers on your network will have access to the printer. To use the printer from these computers, you will need to install the printer driver. The following steps will guide you through the configuration and installation process. To achieve optimum results with normal everyday document printing, place the Brother printer as close to the network access point (router) as possible with minimal obstructions. Large objects and walls between the two devices as well as interference from other electronic devices can affect the data transfer speed of your documents. Due to these factors, wireless may not be the best method of connection for all types of documents and applications. If you are printing large files, such as photos or multi-page documents with mixed text and large graphics, you may want to consider choosing wired Ethernet for a faster data transfer, or USB for the fastest throughput speed.

Important

The following instructions will offer two methods for installing your Brother machine in a wireless network environment. Both methods are for infrastructure mode, using a wireless router or access

®

Network

Wireless

Windows

point that uses DHCP to assign IP addresses. If your wireless router/access point supports SecureEasySetup™ follow the steps Using the SecureEasySetup™ software to configure your printer for a wireless network on page 26. If your wireless router/access point does not support SecureEasySetup™ follow the steps Configuration in Infrastructure mode, using a wireless

computer on page 34 or Configuration in Infrastructure mode, using a network cable temporarily on page 49. To set up your machine in any other wireless environment you can find

instructions in the Network User’s Guide on the CD-ROM.

You can view the Network User’s Guide by following the instructions below. 1 Turn on your computer. Insert the Brother CD-ROM into your CD-ROM drive. 2 Choose your printer model and the language. The CD-ROM main menu will appear. 3 Click the Documentation, and then click HTML documents.

Note

• If you are going to connect the printer to your network, we recommend that you contact your system administrator prior to installation.

• If you are using Personal Firewall software (e.g. Windows Firewall), disable it. Once you are sure that you can print, restart your Personal Firewall software.

• Windows an access point only.

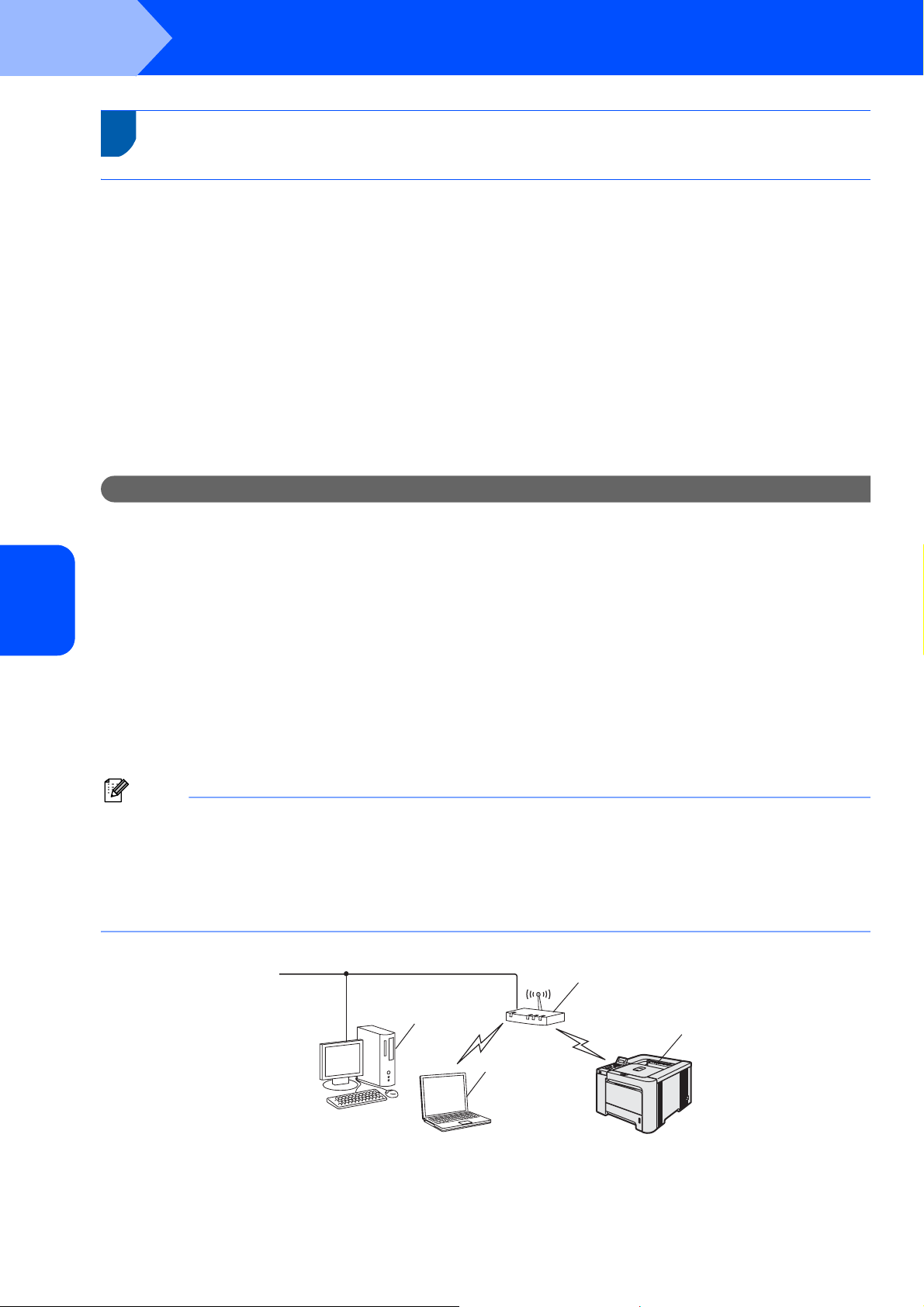

Infrastructure Mode

1 Access Point

2 Wireless Network printer

3 Wireless capable computer connected to the access point

4 Wired computer connected to the access point

®

XP Professional x64 Edition supports wireless network connection between the Brother printer and

1

4

3

2

24

Installing the Printer Driver

Confirm your network environment

The setup process will be different depending on your network environment.

 Installation using SecureEasySetup™.

A

If your wireless access point (A) supports SecureEasySetup™, you do not need to use a computer to configure the printer. The access point (router) and your printer can automatically negotiate using the SecureEasySetup™ procedure. For instructions, see Using the SecureEasySetup™ software to configure your printer for a wireless network on page 26.

 Infrastructure mode

• Installation temporarily using a network cable.

Windows

®

B

If there is an Ethernet Hub or Router in the same network as the wireless access point of your printer, you can temporarily connect the Hub or Router to the printer using an Ethernet cable (B), this is an easy way to configure the printer. You can then remotely configure the printer from a computer on the network. For instructions, go to Configuration in Infrastructure mode, using a network cable temporarily on page 30.

• Installation using a wireless computer.

If a computer of yours has wireless capability, you will need to change the wireless settings of your computer to Adhoc mode so you can directly connect and configure the printer. For instructions, go to Configuration in Infrastructure mode, using a wireless computer on page 34.

®

Network

Wireless

Windows

 Installation using the Setup Wizard from the control panel.

You can also configure the wireless settings of your printer, by using the Setup Wizard from the control panel. For instructions, see Chapter 3 in the Network User’s Guide on the CD-ROM.

25

STEP 2

Using the SecureEasySetup™ software to configure your printer for a wireless network

Installing the Printer Driver

Windows

®

The SecureEasySetup™ software of Broadcom Corporation is an easy way to configure your Brother device to your wireless network settings. By pushing a button on the wireless router or access point, you can complete setup and secure the wireless network. Your router or access point must also support SecureEasySetup™. See the user’s guide for your wireless LAN router or access point for instructions to configure your printer for a wireless network.

Note

• For Windows Vista™, when the User Account Control screen appears, click Allow.

Note

Routers or access points that support SecureEasySetup™ have the SecureEasySetup™ symbol as shown below.

®

Windows

1 Make sure that the printer power switch is on.

Network

Wireless

• If you want to install the PS driver (Brother’s BR-Script Driver), choose Custom setup and then follow the on-screen instructions. When the

Select Components screen appears, check PS(PostScript Emulation) Driver, and then

continue following the on-screen instructions.

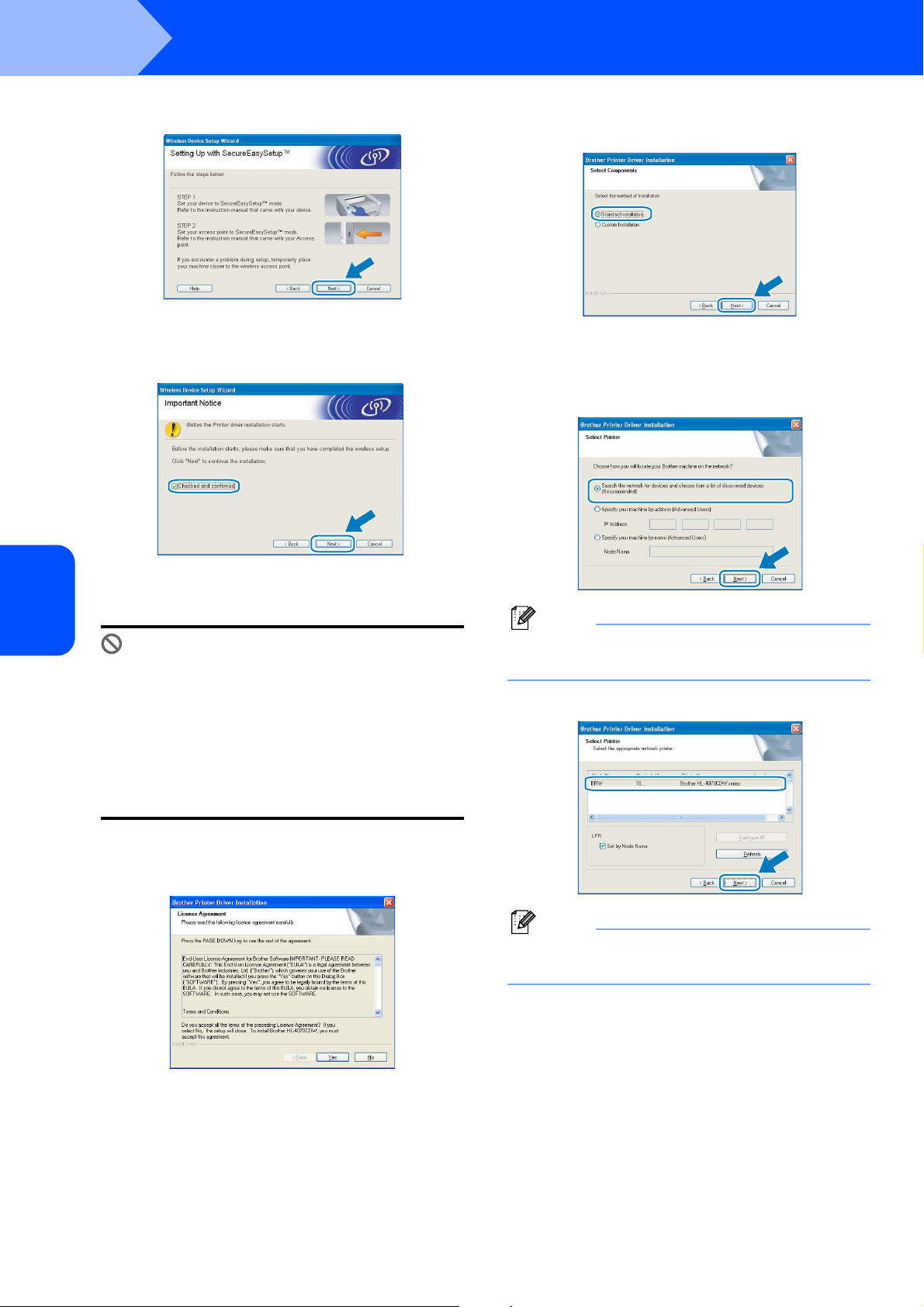

4 Choose Wireless Setup and Driver Install,

and then click Next.

2 Click Install Printer Driver.

Note

Choose the Install Printer Driver icon for your region.

3 Click Wireless Network users.

5 Read the Important Notice and check the box

after you confirm this setting, and then click Next.

26

Installing the Printer Driver

Windows

®

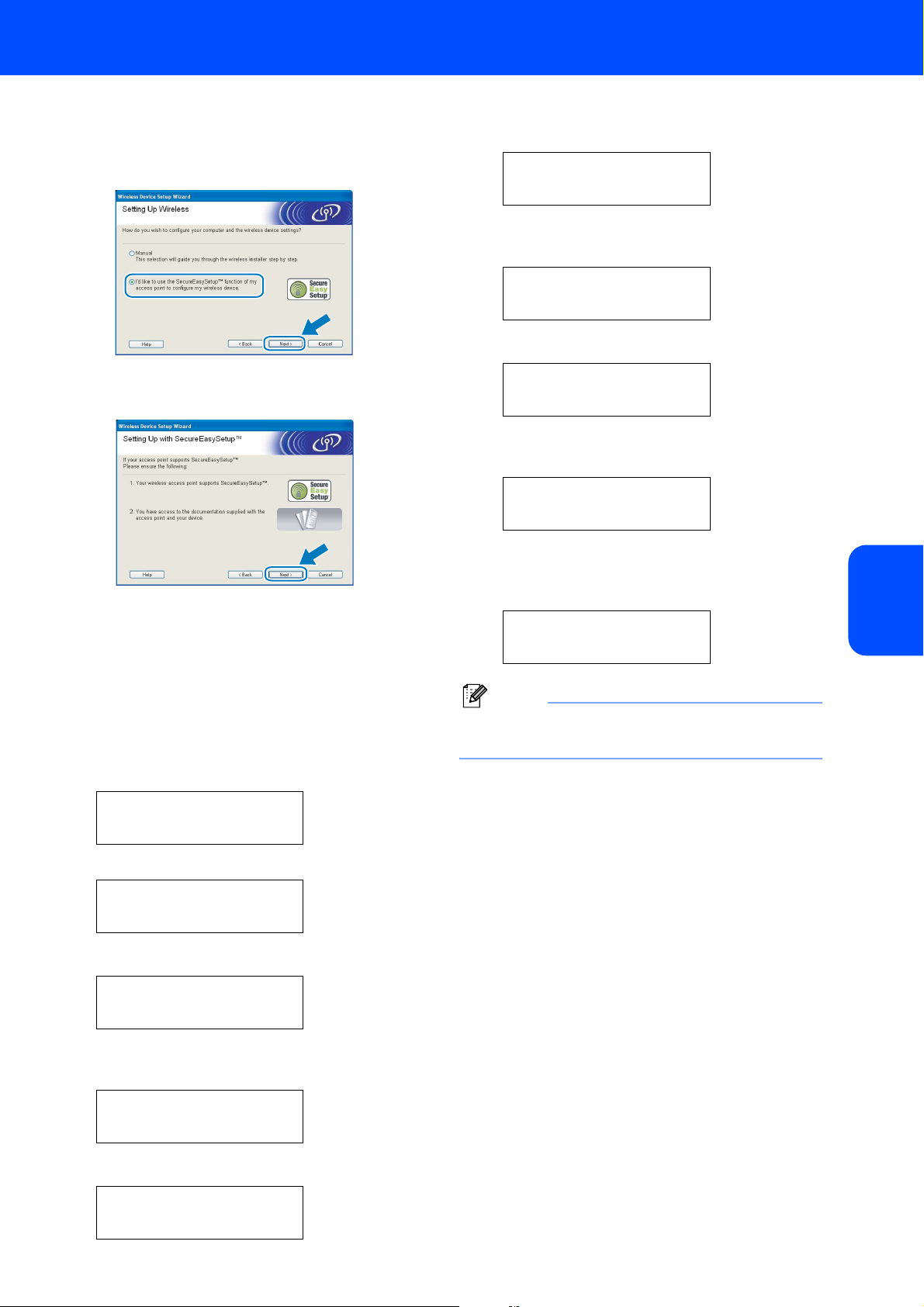

6 Choose I’d like to use the

SecureEasySetup™ function of my access point to configure my wireless device. and click Next.

7 Confirm the on-screen message and click

Next.

8 Refer to the instruction manual that came with

your access point to use the SecureEasySetup™ mode of your access point.

5 Press OK to move to the next menu

level.

WLAN TCP/IP

6 Press the + or - button to select

Setup WLAN.

WLAN Setup WLAN

7 Press OK to move to the next level.

Setup WLAN Setup Wizard

8 Press the + or - button to select

SecureEasySetup.

Setup WLAN SecureEasySetup

9 Press OK.

If the following message appears, press OK again.

WLAN Enable? On

®

Network

Wireless

Windows

9 Put the printer in SecureEasySetup™ mode

using the control panel.

1 Press any of the Menu buttons (+, -, OK

or Back) to take the printer off-line.

Ready

Select ab or OK Machine Info.

2 Press the + or - button to select LAN.

Select ab or OK LAN

3 Press OK to move to the next menu

level.

LAN Wired

4 Press the + or - button to select WLAN.

LAN WLAN

h

Note

The message above only appears when the wireless setting is disabled.

10 The wireless network connection status

using the SecureEasySetup™ software will be displayed on the control panel;

Connecting WLAN, Connected or Connection NG.

Connecting WLAN is displayed when

the print server is trying to make connections to your router or access point. Wait till either Connected or

Connection NG is displayed. Connected is displayed when the print

server is successfully connected to your router or access point. You can now use your printer in a wireless network. Connection NG is displayed when the print server has not successfully connected to your router or access point. Try starting from 2 again. If the same message is displayed again, reset the print server back to the default factory settings and try again.

27

STEP 2

Installing the Printer Driver

Windows

®

10 Click Next.

11 Check the box after you confirm that you have

completed the wireless settings, and then click Next.

13 Choose Standard Installation, and then click

Next.

14 Choose Search the network for devices and

choose from a list of discovered devices (Recommended). Or enter your printer's IP address or its node name. Click Next.

®

Windows

Installing the printer driver

Network

Wireless

Improper Setup

• DO NOT try to cancel any of the screens during this installation.

• If your wireless settings fail, and error message will appear during the installation of printer driver and the installation will be terminated. If you encounter this failure, please go to step 2 and setup the wireless connection again.

Note

Contact your administrator if you do not know the printer's IP address or node name.

15 Choose your printer, and then click Next.

12 The driver installation starts. When the License

Agreement window appears, click Yes if you agree to the License Agreement.

Note

If your printer takes a long time (about 1 minute) to appear on the list, click Refresh.

28

Installing the Printer Driver

16 Click Finish.

Note

• If you want to register your product on-line, check On-Line Registration.

• If you do not want to set your printer as Default printer, uncheck Set as Default Printer.

• Turn your Personal Firewall back on.

Setup is now complete.

Windows

®

Network

Wireless

Windows

29

STEP 2

Configuration in Infrastructure mode, using a network cable temporarily

Installing the Printer Driver

Windows

®

Before configuring the wireless settings

8 Press OK to move to select the next level.

WLAN Enable

Important

If you have previously configured the wireless settings of the printer, you must reset the print server back to the default factory settings (see page 61) and enable the WLAN setting from the control panel. See Enabling the wireless network using the control panel on this page.

9 Press the + or - button to select On.

Off

WLAN Enable On

10 Press OK.

Enabling the wireless network using the control panel

1 Make sure that the printer power switch is on.

2 Press any of the Menu buttons (+, -, OK or

®

Network

Wireless

Windows

Back) to take the printer off-line.

Ready

h

Select ab or OK Machine Info.

Accepted appears on the second line of the LCD.

WLAN Enable Accepted

The WLAN setting is enable.

Configure the wireless settings

1 Click Install Printer Driver.

3 Press the + or - button to select LAN.

Select ab or OK LAN

4 Press OK to move to the next menu level.

LAN Wired

5 Press the + or - button to select WLAN.

LAN WLAN

6 Press OK to move to select the next level.

WLAN TCP/IP

7 Press the + or - button to select

WLAN Enable.

WLAN WLAN Enable

Note

Choose the Install Printer Driver icon for your region.

2 Click Wireless Network users.

30

Installing the Printer Driver

Windows

®

Note

• For Windows Vista™, when the User Account Control screen appears, click Allow.

• If you want to install the PS driver (Brother’s BR-Script Driver), choose Custom setup and then follow the on-screen instructions. When the

Select Components screen appears, check PS(PostScript Emulation) Driver, and then

continue following the on-screen instructions.

3 Choose Wireless Setup and Driver Install,

and then click Next.

6 Choose I’m able to temporarily connect my

device to my access point with a network cable and then click Next.

7 For configuration, you must temporarily

connect your Brother wireless device (your printer) directly to a free port on your access point, hub or router using a network cable. When the following screen appears, insert the network cable to the access point and then to the printer. Click Next.

4 Read the Important Notice and check the box

after you confirm this setting, and then click Next.

5 Choose Manual and then click Next.

8 Choose the printer you wish to configure, and

click Next. If the list is blank, check if the access point and the printer are powered on, and then click Refresh.

Note

The default Node name is “BRNxxxxxx” for the users that temporarily connect with a network cable, or “BRWxxxxxx” for the users that connect without a network cable (where “xxxxxx” are the last six digits of Ethernet address).

®

Network

Wireless

Windows

31

STEP 2

Installing the Printer Driver

Windows

®

9 The wizard will search for wireless networks

available from your printer. Choose the access point you wish to associate the printer with, and then click Next.

11 If your network is configured for Authentication

and Encryption, the following screen will appear. When configuring your Brother wireless printer, you must ensure that it is configured to match the Authentication and Encryption settings of your existing wireless network. Choose the Authentication Method and Encryption Mode from the pull-downs in each setting box. Then enter the Network key and click Next.

Note

• "SETUP" is the default SSID of the printer. Do not choose this SSID.

• If the list is blank, check that the access point has power and is broadcasting the SSID, and then see if the printer and the access point are within range for wireless communication. Then, click Refresh.

• If your access point is set to not broadcast the SSID you can manually add it by clicking the Add

®

Network

Wireless

Windows

button. Follow the on-screen instructions for entering the Name (SSID) and the Channel number.

Note

• If you want to setup more than WEP key1, click Advanced.

• If you do not know the Authentication or Encryption settings for network, contact your network administrator.

12 Click Next. The settings will be sent to your

printer. The settings will remain unchanged if you click Cancel.

10 If your network is not configured for

Authentication and Encryption, the following screen will appear. To continue configuration, click OK and go to 12.

Note

• If you want to manually enter the IP address settings of your printer, click Change IP Address and enter the necessary IP address settings for your network.

• The control panel settings will be automatically changed to WLAN when the wireless settings are sent to your printer.

32

Installing the Printer Driver

Windows

®

13 Disconnect the network cable between your

access point (hub or router) and the printer, and click Next.



Installing the printer driver

Improper Setup

• DO NOT try to cancel any of the screens during this installation.

• If your wireless settings fail, and error message will appear during the installation of the printer driver and the installation will be terminated. If you encounter this failure, please go to step 1 and setup the wireless connection again.

14 The driver installation starts. When the License

Agreement window appears, click Yes if you agree to the License Agreement.

16 Choose Search the network for devices and

choose from a list of discovered devices (Recommended). Or enter your printer's IP address or its node name. Click Next.

Note

Contact your administrator if you do not know the printer's IP address or node name.

17 Choose your printer, and then click Next.

Note

If your printer takes a long time (about 1 minute) to appear on the list, click Refresh.

18 Click Finish.

®

Network

Wireless

Windows

15 Choose Standard Installation, and then click

Next.

Note

• If you want to register your product on-line, check On-Line Registration.

• If you do not want to set your printer as Default printer, uncheck Set as Default Printer.

• Turn your Personal Firewall back on.

Setup is now complete.

33

STEP 2

Configuration in Infrastructure mode, using a wireless computer

Installing the Printer Driver

Windows

®

Before configuring the wireless settings

8 Press OK to move to select the next level.

WLAN Enable

Important

If you have previously configured the wireless settings of the printer, you must reset the print server back to the default factory settings (see page 61) and enable the WLAN setting from the control panel. See Enabling the wireless network using the control panel on this page.

9 Press the + or - button to select On.

Off

WLAN Enable On

10 Press OK.

Enabling the wireless network using the control panel

1 Make sure that the printer power switch is on.

2 Press any of the Menu buttons (+, -, OK or

®

Network

Wireless

Windows

Back) to take the printer off-line.

Ready

h

Select ab or OK Machine Info.

Accepted appears on the second line of the LCD.

WLAN Enable Accepted

The WLAN setting is enable.

Configure the wireless settings

1 Click Install Printer Driver.

3 Press the + or - button to select LAN.

Select ab or OK LAN

4 Press OK to move to the next menu level.

LAN Wired

5 Press the + or - button to select WLAN.

LAN WLAN

6 Press OK to move to select the next level.

WLAN TCP/IP

7 Press the + or - button to select

WLAN Enable.

WLAN WLAN Enable

Note

Choose the Install Printer Driver icon for your region.

2 Click Wireless Network users.

34

Installing the Printer Driver

Windows

®

Note

• For Windows Vista™, when the User Account Control screen appears, click Allow.

• If you want to install the PS driver (Brother’s BR-Script Driver), choose Custom setup and then follow the on-screen instructions. When the

Select Components screen appears, check PS(PostScript Emulation) Driver, and then

continue following the on-screen instructions.

3 Choose Wireless Setup and Driver Install,

and then click Next.

6 Choose I’m not able to connect my device to

my access point with a network cable and then click Next.

7 If you choose This computer has wireless

capability., check I am using an access point in infrastructure mode, and then click Next. Go to 9.

4 Read the Important Notice and check the box

after you confirm this setting, and then click Next.

5 Choose Manual and then click Next.

If you are using a wired computer, choose This computer uses a network cable to connect to the wireless network., you must configure

the wireless settings from the control panel. Click Next and see chapter 3 in the Network User’s Guide on the CD-ROM. If you have already completed the wireless settings, click Next and go to 8.

8 Check the box after you confirm that you have

completed the wireless settings, and then click

Next. Go to Installing the printer driver on page 38.

®

Network

Wireless

Windows

35

STEP 2

Installing the Printer Driver

Windows

®

9 You need to temporarily change your

computer’s wireless settings. Follow the onscreen instructions. Make sure you take notes on all the settings such as SSID or channel of your computer. You will need them to return your computer back to its original wireless settings, and then click Next.

• For Windows Vista™ users: You can temporarily change the wireless settings on your computer, following the steps below:

1 Click Start and then Control Panel.

2 Click Network and Internet and then

Network and Sharing Center icon.

3 Click Connect to a network.

4 You can see the SSID of the wireless printer

in the list. Select SETUP and click Connect.

5 Click Connect Anyway and then Close.

6 Click View status of

Wireless Network Connection (SETUP).

Item Record the current wireless

computer settings

Communication mode: (Infrastructure / Ad-hoc)

Channel: (1-14)

Network name: (SSID /

®

Wireless

Windows

ESSID)

Authentication method: (Open system / Shared key / WPA/WPA2-PSK /

Network

LEAP)

Encryption: (None / WEP / WPA / TKIP / AES/ CKIP)

Encryption key:

10 To communicate with the un-configured

wireless printer, temporarily change the wireless settings on your computer to match printer’s default settings shown on this screen. Check the box after you confirm these settings, and then click Next.

7 Click Details.... and check the

Network Connection Details. It may take

a few minutes to change from 0.0.0.0 to

169.254.x.x IP address to be shown on screen (where x.x. are numbers between 1 and 254).

• For Windows You can temporarily change the wireless settings on your computer, following the steps below:

®

XP SP2 users:

1 Click Start and then Control Panel.

2 Click Network and Internet Connections

icon.

3 Click Network Connections icon.

4 Select and right click

Wireless Network Connection. Click View Available Wireless Networks.

5 You can see the SSID of the wireless printer

in the list. Select SETUP and click Connect.

Note

• If a message to restart your computer appears after the wireless settings have been changed, restart your computer and then go back to step 1 and continue with the install skipping steps 9 and

10.

36

6 Check the Wireless Network Connection

status. It may take a few minutes to change from 0.0.0.0 to 169.254.x.x IP address to be shown on screen (where x.x. are numbers between 1 and 254).

11 Choose the printer you wish to configure, and

click Next. If the list is blank, check if the access point and the printer are powered on, and then click Refresh.

Installing the Printer Driver

Windows

®

Note

The default Node name is “BRNxxxxxx” for the users that temporarily connect with a network cable, or “BRWxxxxxx” for the users that connect without a network cable (where “xxxxxx” are the last six digits of Ethernet address).

12 The wizard will search for wireless networks

available from your printer. Choose the access point you wish to associate the printer with, and then click Next.

Note

• "SETUP" is the default SSID of the printer. Do not choose this SSID.

• If the list is blank, check that the access point has power and is broadcasting the SSID, and then see if the printer and the access point are within range for wireless communication. Then, click Refresh.

• If your access point is set to not broadcast the SSID you can manually add it by clicking the Add button. Follow the on-screen instructions for entering the Name (SSID) and the Channel number.

14 If your network is configured for Authentication

and Encryption, the following screen will appear. When configuring your Brother wireless printer, you must ensure that it is configured to match the Authentication and Encryption settings of your existing wireless network. Choose the Authentication Method and Encryption Mode from the pull-downs in each setting box. Then enter the Network key and click Next.

Note

• If you want to setup more than WEP key1, click Advanced.

• If you do not know the Authentication or Encryption settings for network, contact your network administrator.

15 Click Next. The settings will be sent to your

printer. The settings will remain unchanged if you click Cancel.

®

Network

Wireless

Windows

13 If your network is not configured for

Authentication and Encryption, the following screen will appear. To continue configuration, click OK and go to 15.

Note

• If you want to manually enter the IP address settings of your printer, click Change IP Address and enter the necessary IP address settings for your network.

• The control panel settings will be automatically changed to WLAN when the wireless settings are sent to your printer.

37

STEP 2

Installing the Printer Driver

Windows

®

16 Using the information you recorded in 9, return

the wireless settings of your computer back to their original settings. Check the box if you confirm this step, and then click Next.

Installing the printer driver

19 Choose Search the network for devices and

choose from a list of discovered devices (Recommended). Or enter your printer's IP address or its node name. Click Next.

Note

Contact your administrator if you do not know the printer's IP address or node name.

Improper Setup

• DO NOT try to cancel any of the screens during this installation.

20 Choose your printer, and then click Next.

• If your wireless settings fail, and error message will appear during the installation of the printer driver and the installation will be terminated. If you encounter this failure, please go to step 1 and setup the wireless connection again.

17 The driver installation starts. When the License

Agreement window appears, click Yes if you

®

Network

Wireless

Windows

agree to the License Agreement.

Note

If your printer takes a long time (about 1 minute) to appear on the list, click Refresh.

21 Click Finish.

18 Choose Standard Installation, and then click

Next.

38

Note

• If you want to register your product on-line, check On-Line Registration.

• If you do not want to set your printer as Default printer, uncheck Set as Default Printer.

• Turn your Personal Firewall back on.

Setup is now complete.

Installing the Printer Driver

Macintosh

®

5

For USB interface cable users

Connecting the printer to your Macintosh® and installing the driver

1 Connect the USB interface cable to your

Macintosh

®

, and then connect it to the printer.

Improper Setup

DO NOT connect the printer to a USB port on a keyboard or a non-powered USB hub.

2 Make sure the printer power switch is on.

Note

Please see the User’s Guide on the CD-ROM to install the PS driver (Brother’s BR-Script Driver).

5 The Brother software will search for the Brother

printer. During this time the following screen will appear.

Note

If more than one printer is available, the following list appears. Choose the printer you wish to connect, and then click OK.

3 Click Install Printer Driver on the menu

screen.

4 Click USB cable users and follow the

on-screen instructions. Then, restart your Macintosh

®

.

6 When this screen appears, click OK.

For Mac OS® X 10.3 or greater users: Setup is now complete.

7 When this screen appears, click Add.

®

USB

Macintosh

For Mac OS® X 10.2.4 to 10.2.8 users:

Go to step 7.

For Mac OS

®

X 10.3 or greater users:

Go to step 5.

39

STEP 2

8 Choose USB.

9 Choose your printer, and then click Add.

Installing the Printer Driver

Macintosh

®

Macintosh

10 Click Print Center, then Quit Print Center.

USB

For Mac OS® X 10.2.4 to 10.2.8 users: Setup is now complete.

40

Installing the Printer Driver

Macintosh

®

6

For wired network interface cable users

Connecting the printer to your Macintosh® and installing the driver

1 Connect the network interface cable to the

printer, and then connect it to a free port on your hub.

2 Turn on the printer power switch.

3 Click Install Printer Driver on the menu

screen.

Note

Please see the Network User’s Guide on the CD-ROM to install the PS driver (Brother’s BR-Script Driver).

5 The Brother software will search for the Brother

printer. During this time the following screen will appear.

Note

If more than one printer is available, the following list appears. Choose the printer you wish to connect, and then click OK.

4 Click Network cable users and follow the

on-screen instructions. Then, restart your Macintosh

For Mac OS® X 10.2.4 to 10.2.8 users:

Go to step 7.

For Mac OS

Go to step 5.

®

.

®

X 10.3 or greater users:

• If there is more than one of the same printer model connected on your network, the Ethernet address (MAC address) will be displayed after the model name.

6 When this screen appears, click OK.

For Mac OS® X 10.3 or greater users: Setup is now complete.

7 When this screen appears, click Add.

®

Macintosh

Wired

Network

41

STEP 2

8 Make the following selection.

9 Choose your printer, and then click Add.

Installing the Printer Driver

Macintosh

®

Macintosh

Note

If there is more than one of the same printer model connected on your network, the Ethernet address (MAC address) will be displayed after the model name.

10 Click Print Center, then Quit Print Center.

Wired

Network

For Mac OS® X 10.2.4 to 10.2.8 users: Setup is now complete.

42

Installing the Printer Driver

Macintosh

®

7

For wireless network users

Connect your wireless printer and wireless network together: install the printer driver in infrastructure mode

First you must configure the wireless network settings of your printer to communicate with your network access point (router). After the printer is configured to communicate with your access point (router) computers on your network will have access to the printer. To use the printer from these computers, you will need to install the printer driver. The following steps will guide you through the configuration and installation process. To achieve optimum results with normal everyday document printing, place the Brother printer as close to the network access point (router) as possible with minimal obstructions. Large objects and walls between the two devices as well as interference from other electronic devices can affect the data transfer speed of your documents. Due to these factors, wireless may not be the best method of connection for all types of documents and applications. If you are printing large files, such as photos or multi-page documents with mixed text and large graphics, you may want to consider choosing wired Ethernet for a faster data transfer, or USB for the fastest throughput speed.

Important

The following instructions will offer two methods for installing your Brother machine in a wireless network environment. Both methods are for infrastructure mode, using a wireless router or access point that uses DHCP to assign IP addresses. If your wireless router/access point supports SecureEasySetup™ follow the steps Using the SecureEasySetup™ software to configure your printer for a wireless network on page 45. If your wireless router/access point does not support SecureEasySetup™ follow the steps Configuration in Infrastructure mode, using a network cable

temporarily on page 49 or Configuration in Infrastructure mode, using a wireless computer on page 53. To set up your machine in any other wireless environment you can find

instructions in the Network User’s Guide on the CD-ROM.

You can view the Network User’s Guide by following the instructions below. 1 Turn on your computer. Insert the Brother CD-ROM into your CD-ROM drive. 2 Choose your printer model and the language. The CD-ROM main menu will appear. 3 Click the Documentation, and then click HTML documents.

Note

• If you are going to connect the printer to your network, we recommend that you contact your system administrator prior to installation.

• Before installation, if you are using Personal Firewall software, disable it. Once you are sure that you can print, restart your Personal Firewall software.

Infrastructure Mode

1

4

3

1 Access Point

2 Wireless Network printer

3 Wireless capable computer connected to the access point

4 Wired computer connected to the access point

2

®

Macintosh

Network

Wireless

43

STEP 2

Confirm your network environment

The setup process will be different depending on your network environment.

 Installation using SecureEasySetup™.

If your wireless access point (A) supports SecureEasySetup™, you do not need to use a computer to configure the printer. The access point (router) and your printer can automatically negotiate using the SecureEasySetup™ procedure. For instructions, see Using the SecureEasySetup™ software to configure your printer for a wireless network on page 45.

 Infrastructure mode

• Installation temporarily using a network cable.

Installing the Printer Driver

Macintosh

A

®

Macintosh

Wireless

If there is an Ethernet Hub or Router in the same network as the wireless access point of your printer, you can temporarily connect the Hub or Router to the printer using an Ethernet cable (B), this is an easy way to configure the printer. You can then remotely configure the printer from a computer on the network. For instructions, see Configuration in Infrastructure mode, using a network cable temporarily on page 49.

• Installation using a wireless computer.

If a computer of yours has wireless capability, you will need to change the wireless settings of your computer to Adhoc mode so you can directly connect and configure the printer.

Network

For instructions, see Configuration in Infrastructure mode, using a network cable temporarily on page 49.

 Installation using the Setup Wizard from the control panel.

You can also configure the wireless settings of your printer, by using the Setup Wizard from the control panel. For instructions, see Chapter 3 in the Network User’s Guide on the CD-ROM.

B

44

Installing the Printer Driver

Using the SecureEasySetup™ software to configure your printer for a wireless network

Macintosh

®

The SecureEasySetup™ software of Broadcom Corporation is an easy way to configure your Brother device to your wireless network settings. By pushing a button on the wireless router or access point, you can complete setup and secure the wireless network. Your router or access point must also support SecureEasySetup™. See the user’s guide for your wireless LAN router or access point for instructions to configure your printer for a wireless network.

Note

Routers or access points that support SecureEasySetup™ have the SecureEasySetup™ symbol as shown below.

1 Make sure that the printer power switch is on.

4 Choose Wireless Setup and Driver Install,

and then click Next.

5 Read the Important Notice and check the box

after you confirm this setting, and then click Next.

2 Click Install Printer Driver.

3 Click Wireless Network users.

Note

Please see the Network User’s Guide on the CD-ROM to install the PS driver (Brother’s BR-Script Driver).

6 Choose I’d like to use the

SecureEasySetup™ function of my access point to configure my wireless device. and click Next.

7 Confirm the on-screen message and click

Next.

®

Macintosh

Network

Wireless

45

STEP 2

Installing the Printer Driver

Macintosh

®

8 Refer to the instruction manual that came with

your access point to use the SecureEasySetup™ mode of your access point.

9 Put the printer in SecureEasySetup™ mode

using the control panel.

1 Press any of the Menu buttons (+, -, OK

or Back) to take the printer off-line.

Ready

Select ab or OK Machine Info.

2 Press the + or - button to select LAN.

Select ab or OK LAN

3 Press OK to move to the next menu

level.

LAN Wired

4 Press the + or - button to select WLAN.

LAN WLAN

h

9 Press OK.

If the following message appears, press OK again.

WLAN Enable? On

Note

The message above only appears when the wireless setting is disabled.

10 The wireless network connection status

using the SecureEasySetup™ software will be displayed on the control panel;

Connecting WLAN, Connected or Connection NG.

Connecting WLAN is displayed when

the print server is trying to make connections to your router or access point. Wait till either Connected or

Connection NG is displayed. Connected is displayed when the print

server is successfully connected to your router or access point. You can now use your printer in a wireless network. Connection NG is displayed when the print server has not successfully connected to your router or access point. Try starting from 2 again. If the same message is displayed again, reset the print server back to the default factory settings and try again.

®

Macintosh

5 Press OK to move to the next menu

level.

10 Click Next.

WLAN TCP/IP

6 Press the + or - button to select

Setup WLAN.

WLAN Setup WLAN

Network

Wireless

7 Press OK to move to the next level.

Setup WLAN Setup Wizard

8 Press the + or - button to select

SecureEasySetup.

Setup WLAN SecureEasySetup

46

Installing the Printer Driver

Macintosh

®

11 Check the box after you confirm that you have

completed the wireless settings, and then click

Next.

Installing the printer driver

Improper Setup

• DO NOT try to cancel any of the screens during this installation.

• If your wireless settings fail, and error message will appear during the installation of printer driver and the installation will be terminated. If you encounter this failure, please go to step 2 and setup the wireless connection again.

12 The driver installation starts.

®

For Mac OS

Go to step 13.

X 10.3 or greater users:

• If there is more than one of the same printer model connected on your network, the Ethernet address (MAC address) will be displayed after the model name.

14 When this screen appears, click OK.

For Mac OS® X 10.3 or greater users: Setup is now complete.

15 When this screen appears, click Add.

16 Make the following selection.

For Mac OS

®

X 10.2.4 to 10.2.8 users:

Go to step 15.

13 The Brother software will search for the Brother

printer. During this time the following screen will appear.

Note

If more than one printer is available, the following list appears. Choose the printer you wish to connect, and then click OK.

17 Choose your printer, and then click Add.

Note

If there is more than one of the same printer model connected on your network, the Ethernet address (MAC address) will be displayed after the model name.

®

Macintosh

Network

Wireless

47

STEP 2

18 Click Print Center, then Quit Print Center.

Installing the Printer Driver

For Mac OS® X 10.2.4 to 10.2.8 users: Setup is now complete.

Macintosh

®

Macintosh

Network

Wireless

48

Installing the Printer Driver

Macintosh

Configuration in Infrastructure mode, using a network cable temporarily

®

Before you configure the wireless settings

Important

If you have previously configured the wireless settings of the printer, you must reset the print server back to the default factory settings (see page 61) and enable the WLAN setting from the control panel. See Enabling the wireless network using the control panel on this page.

Enabling the wireless network using the control panel

1 Make sure that the printer power switch is on.

2 Press any of the Menu buttons (+, -, OK or

Back) to take the printer off-line.

Ready

8 Press OK to move to select the next level.

WLAN Enable Off

9 Press the + or - button to select On.

WLAN Enable On

10 Press OK.

Accepted appears on the second line of the LCD.

WLAN Enable Accepted

The WLAN setting is enable.

Configure the wireless settings

1 Click Install Printer Driver.

h

Select ab or OK Machine Info.

3 Press the + or - button to select LAN.

Select ab or OK LAN

4 Press OK to move to the next menu level.

LAN Wired

5 Press the + or - button to select WLAN.

LAN WLAN

6 Press OK to move to select the next level.

WLAN TCP/IP

7 Press the + or - button to select

WLAN Enable.

WLAN WLAN Enable

2 Click Wireless Network users.

Note

Please see the Network User’s Guide on the CD-ROM to install the PS driver (Brother’s BR-Script Driver).

®

Macintosh

Network

Wireless

49

STEP 2

Installing the Printer Driver

Macintosh

®

3 Choose Wireless Setup and Driver Install,

and then click Next.

4 Read the Important Notice and check the box

after you confirm this setting, and then click Next.

7 For configuration, you must temporarily

connect your Brother wireless device (your printer) directly to a free port on your access point, hub or router using a network cable. When the following screen appears, insert the network cable to the access point and then to the printer. Click Next.

8 Choose the printer you wish to configure, and

click Next. If the list is blank, check if the access point and the printer are powered on, and then click Refresh.

®

Macintosh

5 Choose Manual and then click Next.

6 Choose I’m able to temporarily connect my

device to my access point with a network cable and then click Next.

Network

Wireless

Note

The default Node name is “BRNxxxxxx” for the users that temporarily connect with a network cable, or “BRWxxxxxx” for the users that connect without a network cable (where “xxxxxx” are the last six digits of Ethernet address).

9 The wizard will search for wireless networks

available from your printer. Choose the access point you wish to associate the printer with, and then click Next.

50

Note

• "SETUP" is the default SSID of the printer. Do not choose this SSID.

Installing the Printer Driver

Macintosh

®

• If the list is blank, check that the access point has power and is broadcasting the SSID, and then see if the printer and the access point are within range for wireless communication. Then, click Refresh.

• If your access point is set to not broadcast the SSID you can manually add it by clicking the Add button. Follow the on-screen instructions for entering the Name (SSID) and the Channel number.

10 If your network is not configured for

Authentication and Encryption, the following screen will appear. To continue configuration, click OK and go to 12.

12 Click Next. The settings will be sent to your

printer. The settings will remain unchanged if you click Cancel.

Note

• If you want to manually enter the IP address settings of your printer, click Change IP Address and enter the necessary IP address settings for your network.

• The control panel settings will be automatically changed to WLAN when the wireless settings are sent to your printer.

13 Disconnect the network cable between your

access point (hub or router) and the printer, and click Next.

11 If your network is configured for Authentication

and Encryption, the following screen will appear. When configuring your Brother wireless printer, you must ensure that it is configured to match the Authentication and Encryption settings of your existing wireless network. Choose the Authentication Method and Encryption Mode from the pull-downs in each setting box. Then enter the Network key and click Next.

Note

• If you want to setup more than WEP key1, click Advanced.

• If you do not know the Authentication or Encryption settings for network, contact your network administrator.

Installing the printer driver

Improper Setup

• DO NOT try to cancel any of the screens during this installation.

• If your wireless settings fail, and error message will appear during the installation of the printer driver and the installation will be terminated. If you encounter this failure, please go to step 1 and setup the wireless connection again.

14 The driver installation starts.

®

For Mac OS

Go to step 15.

For Mac OS

Go to step 17.

X 10.3 or greater users:

®

X 10.2.4 to 10.2.8 users:

®

Macintosh

Network

Wireless

51

STEP 2

Installing the Printer Driver

Macintosh

®

15 The Brother software will search for the Brother

printer. During this time the following screen will appear.

Note

If more than one printer is available, the following list appears. Choose the printer you wish to connect, and then click OK.

• If there is more than one of the same printer model connected on your network, the Ethernet address (MAC address) will be displayed after the model name.

16 When this screen appears, click OK.

18 Make the following selection.

19 Choose your printer, and then click Add.

Note

If there is more than one of the same printer model connected on your network, the Ethernet address (MAC address) will be displayed after the model name.

20 Click Print Center, then Quit Print Center.

®

Macintosh

For Mac OS® X 10.3 or greater users: Setup is now complete.

17 When this screen appears, click Add.

Network

Wireless

For Mac OS® X 10.2.4 to 10.2.8 users: Setup is now complete.

52

Installing the Printer Driver

Configuration in Infrastructure mode, using a wireless computer

Macintosh

®

Before you configure the wireless settings

Important

If you have previously configured the wireless settings of the printer, you must reset the print server back to the default factory settings (see page 61) and enable the WLAN setting from the control panel. See Enabling the wireless network using the control panel on this page.

Enabling the wireless network using the control panel

1 Make sure that the printer power switch is on.

2 Press any of the Menu buttons (+, -, OK or

Back) to take the printer off-line.

Ready

8 Press OK to move to select the next level.

WLAN Enable Off

9 Press the + or - button to select On.

WLAN Enable On

10 Press OK.

Accepted appears on the second line of the LCD.

WLAN Enable Accepted

The WLAN setting is enable.

Configure the wireless settings

1 Click Install Printer Driver.

h

Select ab or OK Machine Info.

3 Press the + or - button to select LAN.

Select ab or OK LAN

4 Press OK to move to the next menu level.

LAN Wired

5 Press the + or - button to select WLAN.

LAN WLAN

6 Press OK to move to select the next level.

WLAN TCP/IP

7 Press the + or - button to select

WLAN Enable.

WLAN WLAN Enable

2 Click Wireless Network users.

Note

Please see the Network User’s Guide on the CD-ROM to install the PS driver (Brother’s BR-Script Driver).

®

Macintosh

Network

Wireless

53

STEP 2

Installing the Printer Driver

Macintosh

®

3 Choose Wireless Setup and Driver Install,

and then click Next.

4 Read the Important Notice and check the box

after you confirm this setting, and then click Next.

7 If you choose This computer has wireless

capability., check I am using an access point in infrastructure mode, and then click Next. Go to 9.

If you are using a wired computer, choose This computer uses a network cable to connect to the wireless network., you must configure

the wireless settings from the control panel. Click Next and see chapter 3 in the Network User’s Guide on the CD-ROM. If you have already completed the wireless settings, click Next and go to step 8.

®

Macintosh

5 Choose Manual and then click Next.

6 Choose I’m not able to connect my device to

my access point with a network cable and then click Next.

Network

Wireless

8 Check the box after you confirm that you have

completed the wireless settings, and then click

Next. Go to Installing the printer driver on page 57.

54

Installing the Printer Driver

Macintosh

®

9 You need to temporarily change your

computer’s wireless settings. Follow the onscreen instructions. Make sure you take notes on all the settings such as SSID or channel of your computer. You will need them to return your computer back to its original wireless settings, and then click Next.

Item Record the current wireless

computer settings

Communication mode: (Infrastructure / Ad-hoc)

Channel: (1-14)

Network name: (SSID / ESSID)

Authentication method: (Open system / Shared key / WPA/WPA2-PSK / LEAP)

Encryption: (None / WEP / WPA / TKIP / AES/ CKIP)

Encryption key:

Note

You can temporarily change the wireless settings on your computer, following the steps below:

1 Click the AirPort status icon and select.

Open Internet Connect....

2 Click the Network tab to see the available

wireless devices. You can see the Brother wireless print server in the Network option. Select SETUP.

10 To communicate with the un-configured

wireless printer, temporarily change the wireless settings on your computer to match printer’s default settings shown on this screen. Check the box after you confirm these settings, and then click Next.

3 Your wireless network is connected

successfully.

®

Macintosh

Network

Wireless

55

STEP 2

Installing the Printer Driver

Macintosh

®

11 Choose the printer you wish to configure, and

click Next. If the list is blank, check if the access point and the printer are powered on, and then click Refresh.

Note

The default Node name is “BRNxxxxxx” for the users that temporarily connect with a network cable, or “BRWxxxxxx” for the users that connect without a network cable (where “xxxxxx” are the last six digits of Ethernet address).

12 The wizard will search for wireless networks

available from your printer. Choose the access point you wish to associate the printer with, and then click Next.

13 If your network is not configured for

Authentication and Encryption, the following screen will appear. To continue configuration, click OK and go to 15.

14 If your network is configured for Authentication

and Encryption, the following screen will appear. When configuring your Brother wireless printer, you must ensure that it is configured to match the Authentication and Encryption settings of your existing wireless network. Choose the Authentication Method and Encryption Mode from the pull-downs in each setting box. Then enter the Network key and click Next.

®

Macintosh

Note

• If you want to setup more than WEP key1, click Advanced.

• If you do not know the Authentication or

Note

• "SETUP" is the default SSID of the printer. Do not choose this SSID.

• If the list is blank, check that the access point has power and is broadcasting the SSID, and then see if the printer and the access point are within range for wireless communication. Then, click Refresh.

• If your access point is set to not broadcast the SSID you can manually add it by clicking the Add button. Follow the on-screen instructions for

Network

Wireless

entering the Name (SSID) and the Channel number.

Encryption settings for network, contact your network administrator.

56

Installing the Printer Driver

Macintosh

®

15 Click Next. The settings will be sent to your

printer. The settings will remain unchanged if you click Cancel.

Note

• If you want to manually enter the IP address settings of your printer, click Change IP Address and enter the necessary IP address settings for your network.

• The control panel settings will be automatically changed to WLAN when the wireless settings are sent to your printer.

16 Using the information you recorded in 9, return

the wireless settings of your computer back to their original settings. Check the box if you confirm this step, and then click Next.

18 The Brother software will search for the Brother

printer. During this time the following screen will appear.

Note

If more than one printer is available, the following list appears. Choose the printer you wish to connect, and then click OK.

• If there is more than one of the same printer model connected on your network, the Ethernet address (MAC address) will be displayed after the model name.

19 When this screen appears, click OK.

Installing the printer driver

Improper Setup

• DO NOT try to cancel any of the screens during this installation.

• If your wireless settings fail, and error message will appear during the installation of the printer driver and the installation will be terminated. If you encounter this failure, please go to step 1 and setup the wireless connection again.

17 The driver installation starts.

®

For Mac OS

Go to step 18.

For Mac OS

Go to step 20.

X 10.3 or greater users:

®

X 10.2.4 to 10.2.8 users:

For Mac OS® X 10.3 or greater users: Setup is now complete.

20 When this screen appears, click Add.

®

Macintosh

Network

Wireless

57

STEP 2

21 Make the following selection.

22 Choose your printer, and then click Add.

Installing the Printer Driver

Macintosh

®

Note

If there is more than one of the same printer model connected on your network, the Ethernet address (MAC address) will be displayed after the model name.

23 Click Print Center, then Quit Print Center.

®

For Mac OS® X 10.2.4 to 10.2.8 users: Setup is now complete.

Wireless

Macintosh

Network

58

For Network Users

1

BRAdmin Light utility (For Windows® users)

The BRAdmin Light is a utility for initial setup of Brother network connected devices. It can also search for Brother products on your network, view the status and configure basic network settings, such as IP address. For more information on BRAdmin Light, visit us at http://solutions.brother.com

.

Note

• If you require more advanced printer management, use the latest Brother BRAdmin Professional utility version that is available as a download from http://solutions.brother.com

.

• If you are using Personal Firewall software (e.g. Windows Firewall), disable it. Once you are sure that you can print, re-start your Personal Firewall software.

Installing the BRAdmin Light configuration utility

Setting your IP address, Subnet Mask and Gateway using BRAdmin Light

Note

The default password for the print server is ‘access’. You can use BRAdmin Light to change this password.

1 Click Install Other Drivers or Utilities on the

menu screen.

Note

If you have a DHCP/BOOTP/RARP server in your network, you don’t have to do the following operation. Because the print server will automatically obtain its IP address.

1 Start BRAdmin Light. It will search for new

devices automatically.

2 Click BRAdmin Light and follow the on-screen

instructions.

Note

For Windows Vista™, when the User Account Control screen appears, click Allow.

2 Double-click the unconfigured device.

3 Choose STATIC for the Boot Method. Enter

the IP Address, Subnet Mask and Gateway, and then click OK.

4 The address information will be saved to the

printer.

59

For Network Users

2

The BRAdmin Light is a utility for initial setup of Brother network connected devices. It can also search for Brother products on your network, view the status and configure basic network settings, such as IP address from a

computer running Mac OS The BRAdmin Light software will be installed automatically when you install the printer driver. If you have already installed the printer driver, you don’t have to install it again. For more information on BRAdmin Light, visit us at http://solutions.brother.com

BRAdmin Light utility (For Mac OS® X users)

®

X 10.2.4 or greater.

.

3 Double click the file BRAdminLight.jar and

Setting your IP address, Subnet Mask and Gateway using BRAdmin Light

Note

• If you have a DHCP/BOOTP/RARP server in your network, you don’t have to do the following operation. The print server will automatically obtain its own IP address.

• Make sure that version 1.4.1_07 or later of Java™ client software is installed on your computer.

• The default password for the print server is ‘access’. You can use BRAdmin Light to change this password.

run the software. BRAdmin Light will then search for new devices automatically.

4 Double-click the unconfigured device.

1 Double-click the Macintosh HD icon on your

desktop.

2 Choose Library, Printers, Brother and then

Utilities.

5 Choose STATIC for the BOOT Method. Enter

the IP Address, Subnet Mask and Gateway, and then click OK.

6 The address information will be saved to the

printer.

60

For Network Users

3

The Brother print server is equipped with a web server that allows you to monitor its status or change some of its configuration settings, using HTTP (Hyper Text Transfer Protocol).

Web Based Management (web browser)

Note

• The User Name is ‘admin’ and the default password is ‘access’. You can use a web browser to change this password.

• We recommend Microsoft Internet Explorer 6.0

®

(or higher) or Firefox

®

Windows Please also make sure that JavaScript and Cookie are always enabled in whichever browser you use. We recommend you upgrade to Safari™ 1.2 or higher to enable JavaScript. To use a web browser, you will need to know the IP address of the print server.

and Safari™ 1.0 for Macintosh®.

1.0 (or higher) for

®

4

To restore all network settings of the internal print server to default, follow the steps below.

Network default settings

1 Press the + or – button to choose LAN.

Press OK.

Select ab or OK LAN

2 Press the + or – button to choose

Factory Reset. Press OK.

LAN Factory Reset

3 Press OK again.

Factory Reset OK?

5

Print the Printer Settings Page

1 Type http://printer_ip_address/ into

your browser. (Where printer_ip_address is the IP address or the print server name)

 For example: http://192.168.1.2/

(if the printer’s IP address is 192.168.1.2.)

See Chapter 2 of the Network User's Guide.

The Printer Settings Page lists all the current printer settings, including network settings. To print the printer settings page:

1 Press the + or – button to choose

Machine Info.. Press OK.

Select ab or OK Machine Info.

2 Press OK again.

Machine Info. Print Settings

3 Press OK again to print the Printer Settings

Page.

61

Consumables and Options

1

The printer has the following optional accessories. You can expand the capabilities of the printer by adding these items.

Options

See Chapter 5 of the User's Guide on the CD-ROM.

Lower tray unit DIMM memory

LT-100CL

The lower paper tray unit can hold up to 500 sheets of paper. When the lower tray unit is installed, the printer expands total

You can expand the memory by installing the (144-pin DIMM) memory module.

input capacity up to 800 sheets.

2

Consumables

When the time comes to replace consumable items, an error message will be indicated on the LCD. For more information about the consumables for your printer, visit us at http://solutions.brother.com

or contact your

local Brother reseller.

Toner cartridge Drum unit

Belt unit (BU-100CL) Waste toner box (WT-100CL)

62

See Chapter 6 of the User's Guide on the CD-ROM.

Other Information

1

Shipment of the printer

Caution

• Once your printer has been set up and used, we do not recommend that it be moved or shipped unless absolutely necessary.

• Color laser printers are complex printing devices. Moving the printer or shipping it without properly removing the installed supplies can result in SEVERE damage to the printer. As a result, your printer may not operate properly afterwards.

• If the printer must be shipped, see Repacking Instructions on this page, for step-by-step instructions on how to properly prepare your printer for transport.

• Failure to properly prepare the printer for shipping according to the instructions on this page may VOID YOUR WARRANTY.

• If for any reason you must move or ship your printer, carefully re-pack the printer in the original packing material to avoid any damage during transport. The printer should also be adequately insured with the shipping company you choose.

Repacking Instructions

Make sure that you have the following parts for repacking:

1

2

3

4

Repacking the printer

Warning

This printer is heavy and weights approximately

64.2 lb. (29.1 kg). To prevent injuries use at least two people to lift the printer. Be careful not to pinch your fingers when you put the printer down.

1 Turn off the power switch, and unplug all the

cables from the printer.

2 Press the front cover release button and then

open the front cover.

5

1 Insertion sheet for repacking

2 Plastic bag for the waste toner box

3 Orange protective cover, Plastic bag that the toner

cartridge originally came in (4 pieces of each)

4 Orange packing material for locking the drum unit and

the belt unit (4 pieces)

5 A piece of paper (letter or A4) (Please prepare by

yourself.)

63

Other Information

3 Hold the green handle of the drum unit. Lift the

drum unit up and then pull it out until it stops.

4 Release the gray lock lever (1) that is on the left

side of the printer. Pull the drum unit completely out using the green handles on the drum unit.

Caution

• Hold the green handles of the drum unit when you carry it. DO NOT hold the sides of the drum unit.

• We recommend that you place the drum unit on a clean, flat surface with a piece of disposable paper underneath it in case you accidentally spill or scatter toner.

• To prevent damage to the printer from static electricity, DO NOT touch the electrodes shown in the illustration.

64

1

5 Hold the handle of the toner cartridge and pull

it out of the drum unit. Repeat this for all the toner cartridges.

Other Information

Caution

To avoid print quality problems, DO NOT touch the shaded parts shown in the illustrations.

7 Hold the green parts of the belt unit with both

hands and lift the belt unit up, then pull it out.

6 Attach the original orange protective cover to

each of the toner cartridges. Place each of the toner cartridges into the plastic bag included in the carton.

Note

We recommend that you put the belt unit on a clean, flat surface with a piece of disposable paper underneath it in case you accidentally spill or scatter toner.

8 Remove the waste toner box from the printer

using the green handle and place it into the plastic bag included in the carton.

65

Other Information

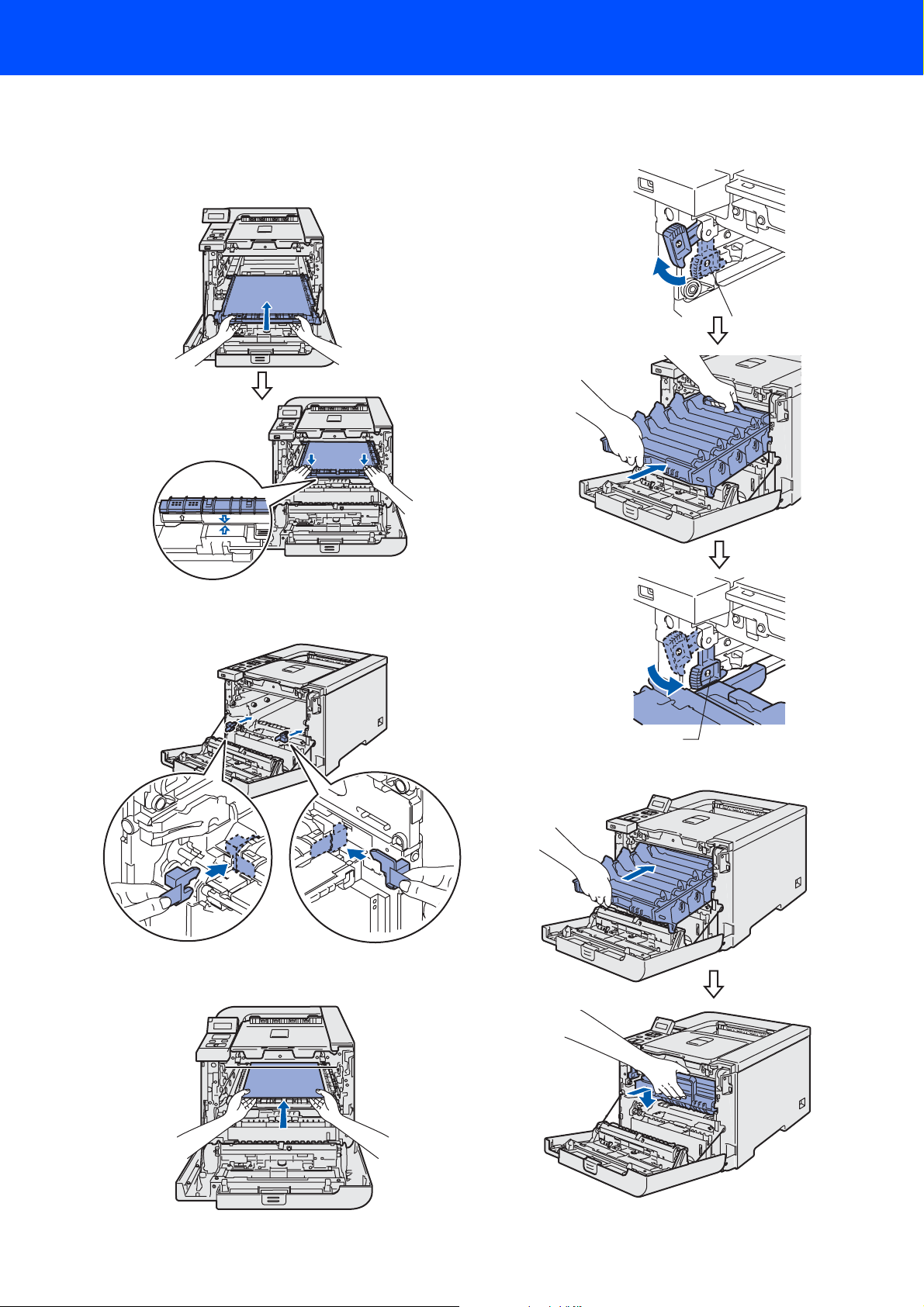

9 Put the belt unit back in the printer. Match the h

mark on the belt unit to the g mark on the printer. Push down on the green area of the belt unit to lock it in place.

12 Make sure that the gray lock lever (1) is in the

up position and put the drum unit in the printer. Push down the gray lock lever (1).

1

10 Insert the original orange packing material for

locking the belt unit as shown in the illustration

11 Put a piece of paper (letter or A4) on the belt

unit to prevent damage to the belt unit.

1

13 Push the drum unit in until it stops.

66

Other Information

14 Insert the original orange packing material for

the drum unit as shown in the illustration, and then close the front cover.

15 Two people should place the printer into the

plastic bag and put the printer and the Styrofoam pieces into the carton. Match the front side of the printer to the “FRONT” mark (1) on the Styrofoam pieces. Put the Styrofoam piece for the toner cartridges (2) on top of the printer.

16 Put the toner cartridges into the Styrofoam

piece.

17 Put the two carton trays (1) (2) on the top and

put the waste toner box in the tray placed towards the front side of the printer (1).

1

2

18 Close the carton and tape it shut.

1

67

Trademarks

The Brother logo is a registered trademark of Brother Industries, Ltd. Apple and Macintosh are registered trademarks and Safari is a trademark of Apple Inc. Windows Vista is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. Microsoft, Windows and Windows Server are registered trademarks of Microsoft Corporation in the United States and/or other countries. Java and all Java-based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the United States and other countries. BROADCOM, SecureEasySetup and the SecureEasySetup logo are trademarks or registered trademarks of Broadcom Corporation. All other terms and brand and product names mentioned in this Quick Setup Guide are registered trademarks of their respective companies.

Compilation and Publication

This manual has been compiled and published, under the supervision of Brother Industries Ltd., covering the latest product descriptions and specifications. The contents of this manual and the specifications of this product are subject to change without notice. Brother reserves the right to make changes without notice in the specifications and materials contained herein and shall not be responsible for any damages (including consequential) caused by reliance on the materials presented, including but not limited to typographical and other errors relating to the publication. This product is designed for use in a professional environment.

Copyright and License

© 2007 Brother Industries, Ltd. © 1998-2007 TROY Group, Inc. © 1983-2007 PACIFIC SOFTWORKS INC. This product includes the "KASAGO TCP/IP" software developed by Elmic Systems, Inc. © 2007 Devicescape Software, Inc. This product includes RSA BSAFE Cryptographic software from RSA Security Inc. ALL RIGHTS RESERVED.

ENG

Brother HL-4070CDW User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Symbols used in this guide

Table of Contents

Safety Precautions

Getting Started

What is in the box?

Control panel

Supplied CD-ROM

1 Put the CD-ROM into the CD-ROM drive

For Windows® users

For Macintosh® users

5 Printing a test page

For USB interface cable users

For parallel interface cable users

For wired network interface cable users

For Peer-to-Peer network printer users

For shared network printer users

For wireless network users

Connect your wireless printer and wireless network together: install the printer driver in infrastructure mode

Using the SecureEasySetup™ software to configure your printer for a wireless network

Configuration in Infrastructure mode, using a network cable temporarily

Configuration in Infrastructure mode, using a wireless computer

For USB interface cable users

For wired network interface cable users

For wireless network users

Connect your wireless printer and wireless network together: install the printer driver in infrastructure mode

Using the SecureEasySetup™ software to configure your printer for a wireless network

Configuration in Infrastructure mode, using a network cable temporarily

Configuration in Infrastructure mode, using a wireless computer

For Network Users

BRAdmin Light utility (For Windows® users)

Installing the BRAdmin Light configuration utility

Setting your IP address, Subnet Mask and Gateway using BRAdmin Light

BRAdmin Light utility (For Mac OS® X users)

Setting your IP address, Subnet Mask and Gateway using BRAdmin Light

Web Based Management (web browser)

Network default settings

Print the Printer Settings Page

Consumables and Options

Options

Consumables

Other Information

Shipment of the printer

Repacking Instructions
