Brother HL-4040CDN User Manual

Quick Setup Guide Laser Printer

HL-4040CN

HL-4040CDN

HL-4050CDN

Before you can use the printer, you must set up the hardware and install the driver. Please read this ‘Quick Setup Guide’ for proper set up and installation instructions.

STEP 1

Setting Up the Machine

STEP 2

Installing the Printer Driver

Setup is Complete!

How to use the printer, see the User’s Guide in the CD-ROM.

Keep this ‘Quick Setup Guide’ and the supplied CD-ROM in a convenient place for quick and easy reference at all times.

Note: Not all models are available in all countries.

Version 1

1 Symbols used in this guide

Warning	Electrical Hazard	Hot Surface	Caution

Warnings tell you what to do	Electrical Hazard icons alert	Hot Surface icons warn you	Cautions specify procedures
to prevent possible personal	you to a possible electrical	not to touch machine parts	you must follow or avoid to
injury.	shock.	that are hot.	prevent possible damage to
			the printer or other objects.

Improper Setup	Note	User's Guide
Improper Setup		Network User's Guide



Improper Setup icons alert	Notes tell you how you should	Indicates reference to the
you to devices and	respond to a situation that	User's Guide or Network
operations that are not	may arise or give tips about	User's Guide which is on the
compatible with the printer.	how the current operation	CD-ROM we have supplied.
	works with other features.

Safety Precautions .......................................................................................................................................	2
To Use the Printer Safely........................................................................................................................	2
Regulations .............................................................................................................................................	4
Getting Started
What is in the box?.......................................................................................................................................	7
Control panel................................................................................................................................................	8
Supplied CD-ROM .......................................................................................................................................	9
STEP 1— Setting Up the Machine
Put the CD-ROM into the CD-ROM drive...................................................................................................	10
Remove the packing materials from the printer .........................................................................................	11
Installing the toner cartridges .....................................................................................................................	12
Load paper in the paper tray ......................................................................................................................	12
Print a test page .........................................................................................................................................	13
Setting your language on the control panel................................................................................................	14
STEP 2— Installing the Printer Driver
Windows®
For USB interface cable users ..................................................................................................................	16
For parallel interface cable users (HL-4050CDN users) ...........................................................................	18
For network interface cable users .............................................................................................................	19
For Peer-to-Peer network printer users ...............................................................................................	19

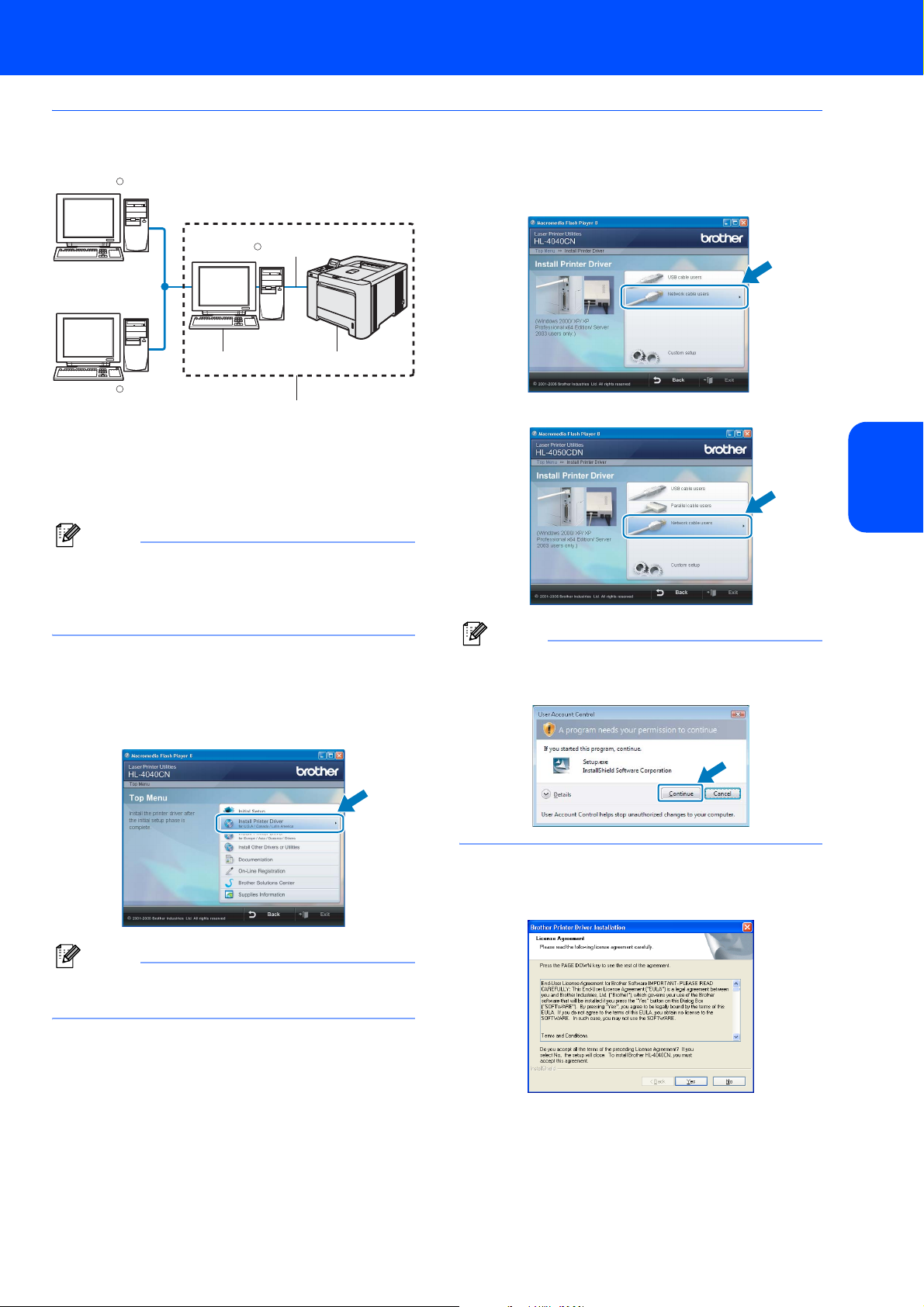

For shared network printer users .........................................................................................................	21
Macintosh®
For USB interface cable users ..................................................................................................................	23
For network interface cable users .............................................................................................................	25
For Network Users
BRAdmin Light utility (For Windows® users)..............................................................................................	27
BRAdmin Light utility (For Mac OS® X users)............................................................................................	28
Web Based Management (web browser)...................................................................................................	29
Network default settings.............................................................................................................................	29
Print the Printer Settings Page...................................................................................................................	29
Consumables and Options
Options.......................................................................................................................................................	30
Consumables .............................................................................................................................................	30
Other Information
Shipment of the printer...............................................................................................................................	31
Troubleshooting
Chapter 7 of the User’s Guide on the CD-ROM

Safety Precautions

To Use the Printer Safely

Warning

There are high voltage electrodes inside the printer. Before you clean the inside of the printer, make sure that you have turned off the power switch and unplugged the printer from the AC power outlet.

DO NOT handle the plug with wet hands. Doing this might cause an electrical shock.

The fuser unit becomes extremely hot during operation. Wait until it has cooled down sufficiently before replacing consumable items. DO NOT remove or damage the caution labels located on or around the fuser.

DO NOT use flammable substances or any type of spray to clean the inside or outside of the machine. Doing this may cause a fire or electrical shock. Refer to the User's Guide for how to clean the machine.

Safety Precautions

DO NOT use a vacuum cleaner to clean up scattered toner. Doing this might cause the toner dust to ignite inside the vacuum cleaner, potentially starting a fire. Please carefully clean the toner dust with a dry, lint-free cloth and dispose of it according to local regulations.

If the printer becomes hot, blows smoke, or generates obscure odor, immediately turn off the power switch and unplug the printer from the AC power outlet. Call your Brother dealer or Brother Customer Service.

If metal objects, water or other liquids get inside the printer, immediately turn off the power switch and unplug the printer from the AC power outlet. Call your Brother dealer or Brother Customer Service.

This printer is heavy and weighs approximately 64.2 lb. (29.1 kg). To prevent injuries use at least two people to lift the printer. Be careful not to pinch your fingers when you put the printer back down.

Safety Precautions

Regulations

Federal Communications Commission (FCC)

Declaration of Conformity (For USA)

Responsible	Brother International Corporation
Party:	100 Somerset Corporate Boulevard
	P.O. Box 6911
	Bridgewater, NJ 08807-0911
	USA
	Telephone: (908) 704-1700
declares, that the products
Product name:	Laser Printer HL-4040CN,
	HL-4040CDN and HL-4050CDN
Model number:	HL-40C
Product option:	Lower Tray Unit LT-100CL

comply with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Important

A shielded interface cable should be used in order to ensure compliance with the limits for a Class B digital device.

Changes or modifications not expressly approved by Brother Industries, Ltd. could void the user's authority to operate the equipment.

Industry Canada Compliance Statement (For Canada

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Radio interference (220-240 volt model only)

This printer follows EN55022 (CISPR Publication 22)/Class B.

Before you use this product, make sure that you use one of the following interface cables.

1A shielded parallel interface cable with twisted-pair conductors and that it is marked “IEEE 1284 compliant”. (For HL-4050CDN users)

2A USB cable.

The cable must not be more than 2 meters long.

Safety Precautions

EC Declaration of Conformity

Laser Safety (110 to 120 volt Model Only)

This printer is certified as a Class 1 laser product as defined in IEC 60825-1+A2: 2001 specifications under the U.S. Department of Health and Human Services (DHHS) Radiation Performance Standard according to the Radiation Control for Health and Safety Act of 1968. This means that the printer does not produce hazardous laser radiation.

Since radiation emitted inside the printer is completely confined within protective housings and external covers, the laser beam cannot escape from the machine during any phase of user operation.

FDA Regulations (110 to 120 volt Model Only)

The U.S. Food and Drug Administration (FDA) has implemented regulations for laser products manufactured on and after August 2, 1976. Compliance is mandatory for products marketed in the United States. The following label on the back of the printer indicates compliance with the FDA regulations and must be attached to laser products marketed in the United States.

MANUFACTURED:

Brother Technology (Shenzhen) Ltd.

NO6 Gold Garden Ind., Nanling Buji, Longgang, Shenzhen, China

This product complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No.50, dated July 26, 2001.

Caution

Use of controls, adjustments or performance of procedures other than those specified in this manual may result in hazardous invisible radiation exposure.

IEC 60825-1 specification (220 to 240 volt model only)

This printer is a Class 1 laser product as defined in IEC 60825-1+A2: 2001 specifications. The label shown below is attached in countries where it is needed.

CLASS 1 LASER PRODUCT

APPAREIL À LASER DE CLASSE 1

LASER KLASSE 1 PRODUKT

This printer has a Class 3B laser diode which produces invisible laser radiation in the laser unit. You should not open the laser unit under any circumstances.

Caution

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

For Finland and Sweden

LUOKAN 1 LASERLAITE

KLASS 1 LASER APPARAT

Varoitus!

Laitteen käyttäminen muulla kuin tässä käyttöohjeessa mainitulla tavalla saattaa altistaa käyttäjän turvallisuusluokan 1 ylittävälle näkymättömälle lasersäteilylle.

Varning

Om apparaten används på annat sätt än i denna Bruksanvisning specificerats, kan användaren utsättas för osynlig laserstrålning, som överskrider gränsen för laserklass 1.

Safety Precautions

Internal laser radiation

Maximum radiation power:	25 mW
Wave length:	780 - 800 nm
Laser class:	Class 3B

IMPORTANT - For Your Safety

To ensure safe operation, the supplied three-pin plug must be inserted only into a standard three-pin power outlet that is properly grounded through the normal household wiring.

Extension cords used with this printer must be threepin plug type and correctly wired to provide proper grounding. Incorrectly wired extension cords may cause personal injury and equipment damage.

The fact that the equipment operates satisfactorily does not imply that the power is grounded and that the installation is completely safe. For your safety, if in any doubt about the effective grounding of the power, call a qualified electrician.

This product should be connected to an AC power source within the range indicated on the rating label. DO NOT connect it to a DC power source. If you are not sure, contact a qualified electrician.

MaschinenlärminformationsVerordnung 3. GPSGV (For Germany only)

Der höchste Schalldruckpegel beträgt 70 dB(A) oder weniger gemäß EN ISO 7779.

Disconnect device

You must install this printer near a power outlet that is easily accessible. In case of an emergency, you must disconnect the power cord from the power outlet to shut off the power completely.

Caution for LAN connection

Connect this product to a LAN connection that is not subjected to over voltages.

IT power system (For Norway only)

This product is also designed for an IT power system with phase-to-phase voltage 230V.

Wiring information (for UK) Important

If you need to replace the plug fuse, fit a fuse that is approved by ASTA to BS1362 with the same rating as the original fuse.

Always replace the fuse cover. Never use a plug that does not have a cover.

Warning - This printer must be earthed.

The wires in the mains lead are coloured in line with the following code:

Green and Yellow: Earth

Blue: Neutral

Brown: Live

If in any doubt, call a qualified electrician.

Getting Started

1 What is in the box?

Carton components may vary from one country to another.

Save all packing materials and the printer carton in case for any reason you must ship your printer.

		1	8	7
		2
		3
		4
					6
		5
				9
1	Front cover release button			5	Paper tray
2	Control panel	1		6	Power switch
2	Control panel
3	USB direct interface			7	Face-down output tray
3	USB direct interface
4	Front cover			8	Face-down output tray support flap (Support flap)
4	Front cover

9 Multi -purpose tray (MP tray)

1	You can adjust the angle of the LCD display by tilting it up or down.

CD-ROM
(including User’s		AC power cord		Waste Toner Box
Guide)	Quick Setup Guide	AC power cord	Belt Unit	(pre-installed)
			(pre-installed)
				Insertion sheet and
Toner cartridges				Plastic bag for
(Black, Cyan, Magenta and Yellow)		Drum Unit		repacking
		(pre-installed)

The interface cable is not a standard accessory. Buy the appropriate cable for the interface you are going to use.

USB cable

Do not use a USB interface cable that is longer than 6 feet (2.0 meters).

Do not connect the USB cable to a non-powered hub or a Macintosh® keyboard. Make sure that you connect it to the USB connector of your computer.

Parallel cable (For HL-4050CDN users)

Do not use a parallel interface cable that is longer than 6 feet (2.0 meters). Use a shielded interface cable that is IEEE 1284-compliant.

Network cable

Use a straight-through Category5 (or greater) twisted-pair cable for 10BASE-T or 100BASE-TX Fast Ethernet Network.

Getting Started

2 Control panel

1Menu buttons

7Scroll backward through menus and the available options.

Scroll forward through menus and the available options.

	6	OK
	6	Choose the control panel menu.
		Choose the control panel menu.
		Select the chosen menus and settings.
		Back
		Go back one level in the menu structure.

2Reprint button

Choose the reprint menu.

3Go button

Clear error messages. Pause and Continue printing.

4Cancel button

Stop and cancel the print operation in progress.

5	Exit from a menu (control panel menu, reprint menu or Direct
	Print menu)

5Direct Print LED: Blue

4	USB flash memory is inserted into the USB direct interface.

Off

USB flash memory is not inserted into the USB direct interface.

Direct Print button

Switch to Direct Print mode when USB flash memory is inserted into the USB direct interface.

6LCD back light

Off

The printer is off or in sleep status.

Green (General)

Ready to print / Printing / Warming up

Red (Error)

There is a problem with the printer.

Orange (Setting)

Choose a menu (control panel menu, reprint menu or Direct Print menu) or Pause

LCD messages

The message on the LCD shows the current printer status during normal operation.

The o marks indicate the status of the toner in the toner cartridges.When the o mark blinks (n), the indicated toner is nearly empty. When toner becomes empty, the o indicator disappears completely.

7Data LED: Yellow

Data is in the printer memory.

Blinking

Receiving / processing data

Off

No remaining data in the memory.

For the control panel details, see Chapter 4 of the User’s Guide on the CD-ROM.

Getting Started

3 Supplied CD-ROM

You can find a variety of information on the CD-ROM.

Windows®

Initial Setup

Instructional movie for printer setup.

Install Printer Driver

Install the printer driver.

Install Other Drivers or Utilities

Install optional drivers, utilities and Network management tools.

Documentation

View the Printer User’s Guide and Network User's Guide in HTML format.

You can also view the manuals in PDF format by accessing the Brother Solutions Center.

The User’s Guide and Network User’s Guide in HTML format will be installed automatically when you install

the driver. Click the Start button, All Programs 1, your printer (e.g. Brother HL-4040CN), and then User’s Guide. If you do not want to install the User’s Guide, choose Custom setup from Install Printer Driver, and uncheck User’s Guides in HTML format when you install the driver.

1 Programs for Windows® 2000 users

On-Line Registration

Brother Solutions Center

The Brother Solutions Center (http://solutions.brother.com) is a one-stop resource for all your printer support needs. Download the latest drivers and utilities for your printers, read FAQs and troubleshooting tips, or learn about printer solutions.

Supplies Information

Visit our web site for original/genuine Brother supplies at http://www.brother.com/original/

Macintosh®

Initial Setup

Instructional movie for printer setup.

Install Printer Driver

Install the printer driver.

Documentation

View the Printer User’s Guide and Network User's Guide in HTML format.

You can also view the User’s Guide in PDF format by accessing the Brother Solutions Center.

On-Line Registration

Brother Solutions Center

Supplies Information

Visit our web site for original/genuine Brother supplies at http://www.brother.com/original/

Note

For visually impaired users, we have prepared an HTML file on the supplied CD-ROM: readme.html. This file can be read by Screen Reader ‘text-to-speech’ software.

+ 24 hidden pages

Brother HL-4040CDN User Manual

1 Symbols used in this guide

Table of Contents

Safety Precautions

Getting Started

1 What is in the box?

2 Control panel

3 Supplied CD-ROM
