Brother HL-3075CW User Manual

Quick Setup Guide
Start Here	HL-3075CW

Thank you for choosing Brother, your support is important to us and we value your business. Your Brother product is engineered and manufactured to the highest standards to deliver reliable performance, day-in and day-out. Before using the printer, read this Quick Setup Guide for the correct setup and installation.

To view the Quick Setup Guide in other languages, please visit http://solutions.brother.com/.

WARNING	WARNING indicates a potentially hazardous situation which, if not avoided, could result in death
	or serious injuries.
CAUTION	CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor
	or moderate injuries.

IMPORTANT IMPORTANT indicates a potentially hazardous situation which, if not avoided, may result in damage to property or loss of product functionality.

Electrical Hazard icons alert you to a possible electrical shock.

Hot Surface icons warn you not to touch printer parts that are hot.

Note	Notes tell you how you should respond to a situation that may arise or give tips about how the
	operation works with other features.

User's Guide

Network User's Indicates reference to the User's Guide or Network User's Guide which is on the CD-ROM we have supplied.

Guide

1	Unpack the printer and check the components
	CD-ROM	Quick Setup Guide	AC Power Cord
	(including User's Guide and
	Network User's Guide)
	Waste Toner Box	Belt Unit	Drum Unit and Toner
	(pre-installed)	(pre-installed)	Cartridge Assemblies
			(Black, Cyan, Magenta and
			Yellow)

ENG Version 0

1

WARNING

•Plastic bags are used in the packaging of your printer. To avoid danger of suffocation, please keep these bags away from babies and children.

•This printer is heavy and weighs approximately 41.9 lb. (19.0 kg). To prevent injuries use at least two people to lift the printer. Be careful not to pinch your fingers when you put the printer back down.

Note

Keep a minimum gap around the printer as shown in the illustration.

	510mm (20.1	in.)
		100mm
		(4 in.)
100mm			120mm
			(4.7 in.)
(4 in.)

Note

The interface cable is not a standard accessory. Buy the appropriate interface cable for the interface you want to use (USB or Network).

USB cable

•Please make sure you use a USB 2.0 (Type A/B) interface cable that is no longer than 6 feet (2 meters).

•When you use a USB cable, make sure you connect it to the USB port of your computer and not to a USB port on a keyboard or non-powered USB hub.

Network cable

Use a straight-through Category5 (or greater) twisted-pair cable for 10BASE-T or 100BASE-TX Fast Ethernet Network.

2

2	Remove the packing
	material from the printer

IMPORTANT

•Save all packing material and the carton in case you have to ship your printer.

•DO NOT plug in the AC power cord yet.

a Remove the packing tape from the outside of the printer.

b Fully open the top cover by lifting up on the handle a.

c Remove the packing material from the inside of the printer.

3	Install the drum unit and
	toner cartridge
	assemblies

a Unpack the four drum unit and toner cartridge assemblies and gently shake each of them from side to side several times to distribute the toner evenly inside the assembly.

b Remove the protective cover by pulling on the tab as shown in the illustration.

Note

Do not touch the surface of the packing film. It may contain toner powder which can stain your skin and clothing.

IMPORTANT

To avoid print quality problems, DO NOT touch the surface of the drum unit.

3

c Slide all four of the drum unit and toner cartridge assemblies into the printer as shown in the illustration. Make sure that you match the toner cartridge color to the same color label on the printer.

C - Cyan

Y - Yellow

M - Magenta K - Black d Close the top cover of the printer.

4

4	Load paper in the paper
	tray

a Pull the paper tray completely out of the printer.

b While pressing the green paper-guide release lever a, slide the paper guides to fit the paper size you are loading in the tray. Make sure that the guides are firmly in the slots.

c Fan the stack of paper well to avoid paper jams and misfeeds.

d Put paper in the tray, and make sure that the paper is below the maximum paper mark a. The side to be printed on must be face down.

IMPORTANT

Make sure the paper guides touch the sides of the paper so it will feed properly.

e Put the paper tray firmly back in the printer. Make sure that it is completely inserted into the printer.

5 Print a test page

IMPORTANT

DO NOT connect the interface cable yet.

a Make sure that the printer power switch is off.

b Connect the AC power cord to the printer.

c Plug the AC power cord into an AC power outlet. Turn on the printer power switch.

d After the printer has finished warming up, the LCD will show Ready.

5

5

e Press Go. The printer prints a test page. Check that the test page has printed correctly.

Note

This function will not be available after the first print job you send from your computer.

6

6	Set your language on the
	control panel

a Press + or - to choose General Setup. Press OK.

General Setup

b Press OK again.

Local Language

c Press + or - to choose your language. Press OK to accept.

English

d Press Cancel to exit from Menu.

Now go to

Go to the next page to install the printer driver.

7 Choose your connection type

For USB interface cable

Windows®, go to page 8

Macintosh, go to page 11

For Wired Network

Windows®, go to page 13

Macintosh, go to page 18

For Wireless Network

Windows® and Macintosh, go to page 20

			Windows
	USB	®
			Macintosh
	Wired		Windows
		®
	Network		Macintosh
	Wireless		Windows
			®
	Network		Macintosh

7

USB

Windows®

For USB Interface Cable Users

8	Install the printer driver
	and connect the printer
	to your computer

IMPORTANT

•DO NOT connect the USB interface cable yet.

•Make sure there are no USB Flash memory drive inserted.

Note

If the Found New Hardware Wizard appears on your computer, click Cancel.

a Turn off the printer power switch.

b Make sure the USB interface cable is NOT connected to the printer, and then begin installing the printer driver. If you have already connected the cable, remove it.

d Put the supplied CD-ROM into your CD-ROM drive. The opening screen will appear automatically.

Choose your printer model and the language.

Note

If the Brother screen does not appear automatically, go to My Computer (Computer), double-click the CD-ROM icon, and then doubleclick start.exe.

e Click Install Printer Driver on the menu screen.

Note

Choose the Install Printer Driver icon for your region.

f Click USB cable users.

c Turn on your computer. (You must be logged on with Administrator rights.)

8

USB

Windows®

Note

•For Windows Vista® and Windows® 7, when the User Account Control screen appears, click Continue or Yes.

•If you want to install the PS driver (Brother’s BR-Script Driver), choose Custom Setup and then follow the on-screen instructions. When the Select Components screen appears, check PS (PostScript Emulation) Driver, and then continue following the on-screen instructions.

g When the License Agreement window appears, click Yes if you agree to the License Agreement.

h Remove the label covering the USB interface connector.

i	When this screen appears, turn on the printer's
	power switch.
	Connect the USB cable to the USB connector
	marked with the	symbol, and then connect		Windows
	the cable to the computer. Click Next.
			USB	®
				Macintosh

IMPORTANT

DO NOT try to cancel any of the screens during this installation.

9

USB

Windows®

j When this screen appears, click Finish.

Note

•If you want to register your product on-line, check On-Line Registration.

•If you do not want to set your printer as Default printer, uncheck Set as Default Printer.

•If you want to disable the Status Monitor, uncheck Enable Status Monitor.

Finish	The installation is now
	complete.

Note

XML Paper Specification Printer Driver

The XML Paper Specification Printer Driver is the most suitable driver for Windows Vista® and

Windows® 7 when printing from the applications that use the XML Paper Specification documents. Please download the latest driver by accessing the Brother Solutions Center at http://solutions.brother.com/.

10

USB	Macintosh

For USB Interface Cable Users

8	Connect the printer to
	your Macintosh and
	install the driver

a Remove the label covering the USB interface connector.

b Connect the USB cable to the USB connector marked with a symbol, and then connect the cable to your Macintosh.

IMPORTANT

•Make sure there are no USB Flash memory drive inserted.

•DO NOT connect the printer to a USB port on a keyboard or a non-powered USB hub.

•Connect the printer directly to your computer.

c Make sure the printer power switch is on.

d Turn on your Macintosh. Put the supplied CDROM into your CD-ROM drive.

e Double-click the Start Here OSX icon. Follow the on-screen instructions.

Note

Please see the User’s Guide on the CD-ROM to install the PS driver (Brother’s BR-Script Driver).

f Choose Local Connection, and then click Next. Follow the on-screen instructions.

Note

It may take a few minutes for installation to complete.

	Windows
USB	®
	Macintosh

11

USB	Macintosh

g Follow the on-screen instructions until this screen appears. Choose your machine from the list, and then click OK.

h When this screen appears, click Next.

Note

When the Brother Support screen appears, make your selection and follow the on-screen instructions.

Finish	The installation is now
	complete.

12

									Wired Network	Windows®

For Wired Network Interface Cable Users

8

For Peer-to-Peer network

printer users

	1
TCP/IP	TCP/IP

aRouter

bNetwork printer

Note

•If you are going to connect the printer to your network, we recommend that you contact your system administrator prior to installation or see the Network User’s Guide on the CD-ROM.

•If you are using Windows® Firewall or a firewall function of anti-spyware or antivirus applications, temporarily disable them. Once you are sure that you can print, configure the software settings following the instructions.

Connect the printer to your network and install the driver

IMPORTANT

Make sure there are no USB Flash memory drive inserted.

a Connect the network interface cable to the LAN connector marked with a symbol and then connect it to a free port on your hub.

b Make sure the printer power switch is on.

c Turn on your computer. (You must be logged on with Administrator rights.)

d Put the supplied CD-ROM into your CD-ROM drive. The opening screen will appear automatically.

Choose your printer model and the language.

	Note
	If the Brother screen does not appear
							Windows
	e Click Install Printer Driver on the menu
	automatically, go to My Computer (Computer),
	double-click the CD-ROM icon, and then double-					Wired
	click start.exe.
	screen.						®
						Network
	Note						Macintosh
	Choose the Install Printer Driver icon for your
	region.

f Click Network cable users.

13

									Wired Network	Windows®

Note

•For Windows Vista® and Windows® 7, when the User Account Control screen appears, click Continue or Yes.

•If you want to install the PS driver (Brother’s BR-Script Driver), choose Custom Setup and then follow the on-screen instructions. When the Select Components screen appears, check PS (PostScript Emulation) Driver, and then continue following the on-screen instructions.

g When the License Agreement window appears, click Yes if you agree to the License Agreement.

i Choose Search the network for devices and choose from a list of discovered devices (Recommended). Or enter your printer's IP Address or its node name. Click Next.

Note

You can find your printer’s IP Address and the node name by printing out the Printer Settings Page. See Print the Printer Settings

Page on page 32.

j Choose your printer, and then click Next.

h Choose Brother Peer-to-Peer Network

Printer, and then click Next.

Note

If your printer takes a long time (about 1 minute) to appear on the list, click Refresh.

14

									Wired Network	Windows®

k Click Finish.

Note

•If you want to register your product on-line, check On-Line Registration.

•If you do not want to set your printer as Default printer, uncheck Set as Default Printer.

•If you want to disable the Status Monitor, uncheck Enable Status Monitor.

•If you disable your Personal Firewall software (e.g. Windows® Firewall), turn it back on.

Finish	The installation is now
	complete.

Note

XML Paper Specification Printer Driver

The XML Paper Specification Printer Driver is the most suitable driver for Windows Vista® and

Windows® 7 when printing from the applications that use the XML Paper Specification documents. Please download the latest driver by accessing the Brother Solutions Center at http://solutions.brother.com/.

Wired	Windows
	®
Network
	Macintosh

15

									Wired Network	Windows®

8

For shared network printer

users

TCP/IP

aClient computer

bAlso known as “Server” or “Print server”

cTCP/IP or USB

dPrinter

Note

If you are going to connect to a shared printer on your network, we recommend that you ask your system administrator about the queue or share name for the printer prior to installation.

Install the driver and choose the correct printer queue or share name

IMPORTANT

Make sure there are no USB Flash memory drive inserted.

a Turn on your computer. (You must be logged on with Administrator rights.)

b Put the supplied CD-ROM into your CD-ROM drive. The opening screen will appear automatically.

Choose your printer model and the language.

Note

If the Brother screen does not appear automatically, go to My Computer (Computer), double-click the CD-ROM icon, and then doubleclick start.exe.

c Click Install Printer Driver on the menu screen.

Note

Choose the Install Printer Driver icon for your region.

d Click Network cable users.

Note

•For Windows Vista® and Windows® 7, when the User Account Control screen appears, click Continue or Yes.

•If you want to install the PS driver (Brother’s BR-Script Driver), choose Custom Setup and then follow the on-screen instructions. When the Select Components screen appears, check PS (PostScript Emulation) Driver, and then continue following the on-screen instructions.

16

									Wired Network	Windows®

e When the License Agreement window appears, click Yes if you agree to the License Agreement.

f Choose Network Shared Printer, and then click Next.

g Choose your printer's queue, and then click

OK.

Note

Contact your administrator if you do not know the location or the name of the printer in the network.

h When this screen appears, click Finish.

Note

•If you want to register your product on-line, check On-Line Registration.

•If you do not want to set your printer as Default printer, uncheck Set as Default Printer.

•If you want to disable the Status Monitor, uncheck Enable Status Monitor.

		The installation is now			Wired	Windows
	Finish					®
		complete.			Network
						Macintosh
	The XML Paper Specification Printer Driver is the
	Note
	XML Paper Specification Printer Driver
	most suitable driver for Windows Vista® and

Windows® 7 when printing from the applications that use the XML Paper Specification documents. Please download the latest driver by accessing the Brother Solutions Center at http://solutions.brother.com/.

17

									Wired Network	Macintosh

For Wired Network Interface Cable Users

8	Connect the printer to
	your Macintosh and
	install the driver

IMPORTANT

Make sure there are no USB Flash memory drive inserted.

a Connect the network interface cable to the LAN connector marked with a symbol and then connect it to a free port on your hub.

b Make sure the printer power switch is on.

c Turn on your Macintosh. Put the supplied CDROM into your CD-ROM drive.

d Double-click the Start Here OSX icon. Follow the on-screen instructions.

e Choose Wired Network Connection (Ethernet), and then click Next. Follow the onscreen instructions.

Note

It may take a few minutes for installation to complete.

f Follow the on-screen instructions until this screen appears. Choose your machine from the list, and then click OK.

Note

•If there is more than one of the same printer model connected on your network, the MAC Address (Ethernet Address) will be

displayed after the model name. You can also confirm your IP Address by scrolling to the right.

•You can find your printer’s MAC Address (Ethernet Address) and the IP Address by printing out the Printer Settings Page. See Print the Printer Settings Page on page 32.

Note

Please see the User’s Guide on the CD-ROM to install the PS driver (Brother’s BR-Script Driver).

18

									Wired Network	Macintosh

g When this screen appears, click Next.

Note

When the Brother Support screen appears, make your selection and follow the on-screen instructions.

Finish	The installation is now
	complete.

Wired	Windows
	®
Network
	Macintosh

19

For Wireless Network Users

For Wireless Network Interface Users

8 Before you begin

First you must configure the wireless network settings of your machine to communicate with your network access point/router. After the machine is configured to communicate with your access point/router, computers on your network will have access to the machine. To use the machine from these computers, you will need to install the printer driver. The following steps will guide you through the configuration and installation process.

IMPORTANT

•If you are going to connect the printer to your network, we recommend that you contact your system administrator prior to installation. You must know your wireless network settings before you proceed with this installation.

•If you have previously configured the wireless settings of the machine you must reset the network (LAN) settings before you can configure the wireless settings again.

1.Press the + or - to choose Network.

Press OK.

2.Press the + or - to choose Factory Reset.

Press OK.

3.Press OK again.

Note

•To achieve optimum results with normal everyday document printing, place the Brother machine as close to the network access point/router as possible with minimal obstructions. Large objects and walls between the two devices as well as interference from other electronic devices can affect the data transfer speed of your documents.

Due to these factors, wireless may not be the best method of connection for all types of documents and applications. If you are printing large files, such as multi-page documents with mixed text and large graphics, you may want to consider choosing wired Ethernet for a faster data transfer or USB for the fastest throughput speed.

•Although the Brother HL-3075CW can be used in both a wired and wireless network, only one of the connection methods can be used at a time.

Infrastructure Mode

1

3

aAccess Point

bWireless Network machine (your machine)

cWireless capable computer connected to the access point/router

dWired computer connected to the access point/router

20

For Wireless Network Users

9 Choose your wireless setup method

The following instructions will offer two methods for setting up your Brother machine in a wireless network environment. Choose the method you prefer for your environment.

Note

To setup your machine in any other wireless environment, you can find instructions in the Network User's Guide.

a Configuration using the Installation CD-ROM and temporarily using a USB cable

It is recommended that you use a PC wirelessly connected to your network for this method.

IMPORTANT

•You need to temporarily use a USB cable during configuration (cable not included).

•If you are using Macintosh, Windows® XP, or currently using a computer connected to an access point/router by network cable, you need to know your wireless settings. Please write down your wireless network settings in the area below.

Item	Record the current wireless network settings

SSID (Network Name)

Network Key (Security Key/Encryption Key)

*The Network Key may also be described as the Password, Security Key or Encryption Key.

IMPORTANT

Please do not contact Brother Customer Service for assistance without the wireless security information. We cannot assist you in locating your network security settings.

Note

•If you do not know this information (SSID and Network Key), you cannot continue the wireless setup.

•How can I find this information (SSID and Network Key)?

1.You should see the documentation provided with your wireless access point/router.

2.The initial network name could be the manufacturer’s name or the model name.

3.If you do not know the security information, please consult the router manufacturer, your system administrator, or internet provider.

Now go to

For Windows® Users go to page 23

For Macintosh Users go to page 25

Wireless	Windows
	®
Network
	Macintosh

21

For Wireless Network Users

b One push configuration using Wi-Fi Protected Setup or AOSS™

If your wireless access point/router supports automatic wireless (one-push) setup (Wi-Fi Protected Setup or AOSS™)

Now go to

page 27

22

	Wireless Network	Windows®

Configuration using the Installation CD-ROM and temporarily using a USB cable (For Windows® Users)

10 Configure the wireless settings

IMPORTANT

You need to temporarily use a USB cable during configuration (cable not included).

a Put the installation CD-ROM into your CD-ROM drive. If prompted, select your model and language.

Note

If the Brother screen does not appear automatically, go to My Computer (Computer), double-click the CD-ROM icon, and then double-click start.exe.

b Click Install Printer Driver.

c Click Wireless Network users.

Note

For Windows Vista® and Windows® 7, when the User Account Control screen appears, click

Allow or Yes.

d Choose Wireless Setup and Driver Install (Recommended), and then click Next.

e Choose Temporarily use a USB cable (Recommended) and then click Next.

f If this screen appears, read the Important Notice. Check the box after you confirm the SSID and Network Key, and then click Next.

g Temporarily connect the USB cable (not included) directly to the computer and the machine.

Wireless	Windows
	®
Network
	Macintosh

23

	Wireless Network	Windows®

h If the confirmation screen appears, check the box and click Next. When the following screen appears, check Yes if you want to connect with the listed SSID. Click Next and go to l.

i The wizard will search for wireless networks available from your machine. Choose the SSID that you wrote down for your network in step 9 on page 21, and then click Next.

Note

•If the list is blank, check that the access point has power and is broadcasting the SSID, and then see if the machine and the access point are within range for wireless communication. Then, click Refresh.

•If your access point is set to not broadcast the SSID you can manually add it by clicking the Advanced button. Follow the on-screen instructions for entering the Name (SSID), and then click Next.

j If your network is not configured for Authentication and Encryption, the following screen will appear. To continue configuration, click OK and go to l.

24

k Enter the Network Key you wrote down in step 9 on page 21 and then enter the key again in Confirm Network Key, then click Next.

l Click Next. The settings will be sent to your machine.

Note

•The settings will remain unchanged if you click

Cancel.

•If you want to manually enter the IP address settings of your machine, click Change IP Address and enter the necessary IP address settings for your network.

•If the wireless setup failure screen appears, click Retry.

m Disconnect the USB cable between the computer and the machine.

n Click Next to continue to install the printer driver.

Wireless setup is now complete. A four level indicator at the right of your machine's LCD will show the wireless signal strength of your access point/router.

To install the printer driver, continue to step 13-e on page 28.

Now go to page 28

	Wireless Network	Macintosh

Configuration using the Installation CD-ROM and temporarily using a USB cable (For Macintosh Users)

10 Configure the wireless settings

IMPORTANT

You need to temporarily use a USB cable during configuration (cable not included).

a Turn on your Macintosh. Put the installation CD-ROM into your CD-ROM drive.

b Double-click the Start Here OSX icon. Follow the on-screen instructions.

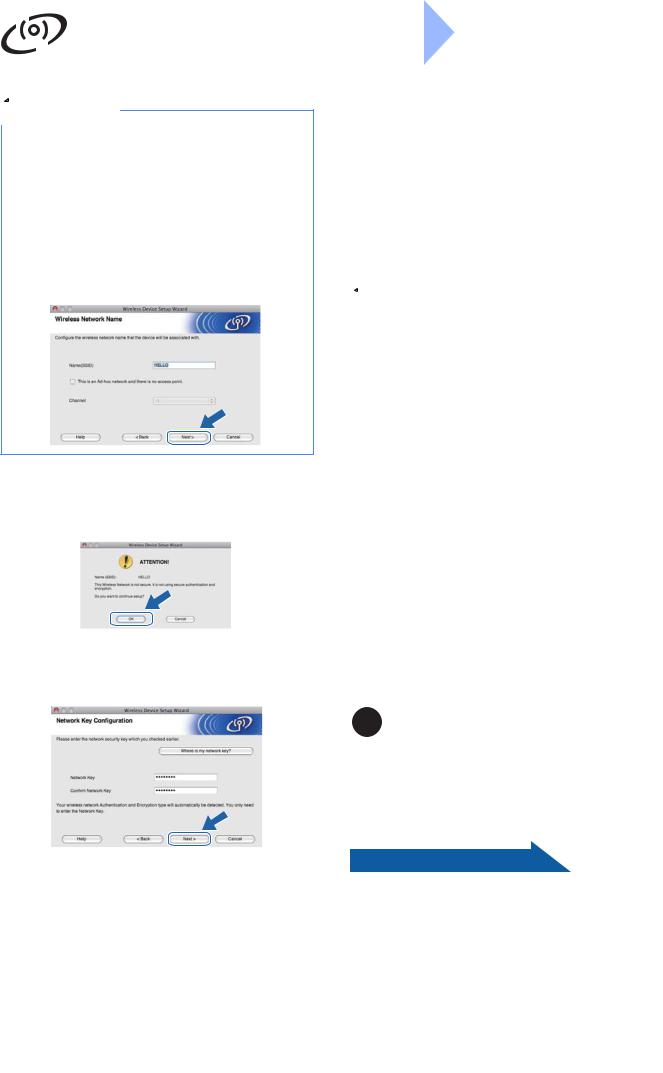

e Read the Important Notice. Check the box after you confirm the SSID and Network Key, and then click Next.

f Temporarily connect the USB cable (not included) directly to the computer and the machine.

c Choose Wireless Network Connection and	g The wizard will search for wireless networks
then click Next.	available from your machine. Choose the SSID
	that you wrote down for your network in step 9
	on page 21, and then click Next.

d Choose Temporarily use a USB cable (Recommended) and then click Next.

Wireless	Windows
	®
Network
	Macintosh

25

	Wireless Network	Macintosh

Note

•If the list is blank, check that the access point has power and is broadcasting the SSID, and then see if the machine and the access point are within range for wireless communication. Then, click Refresh.

•If your access point is set to not broadcast the SSID you can manually add it by clicking the Advanced button. Follow the on-screen instructions for entering the Name (SSID), and then click Next.

h If your network is not configured for Authentication and Encryption, the following screen will appear. To continue configuration, click OK and go to j.

i Enter the Network Key you wrote down in step 9 on page 21 and then enter the key again in Confirm Network Key, then click Next.

j Click Next. The settings will be sent to your machine.

Note

•The settings will remain unchanged if you click

Cancel.

•If you want to manually enter the IP address settings of your machine, click Change IP Address and enter the necessary IP address settings for your network.

•If the wireless setup failure screen appears, click Retry.

k Disconnect the USB cable between the computer and the machine.

l Click Next to continue to install the printer driver.

Wireless setup is now complete. A four level indicator at the right of your machine's LCD will show the wireless signal strength of your access point/router.

To install the printer driver, continue to step 13-d on page 30.

Now go to page 30

26

For Wireless Network Users

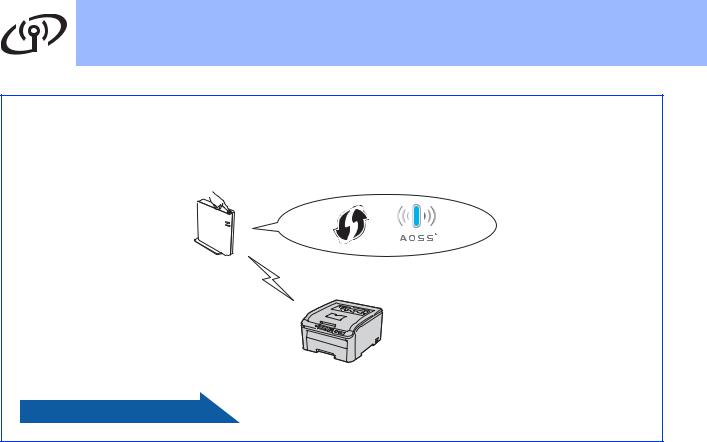

One push configuration using Wi-Fi Protected Setup or AOSS™

11 Configure the wireless settings

a Confirm your WLAN access point/router has the Wi-Fi Protected Setup or AOSS™ symbol as shown below.

b Place the Brother machine within range of your Wi-Fi Protected Setup or AOSS™ access point/router. The range may differ depending on your environment. Refer to the instructions provided with your access point/router.

c Press any of the Menu buttons (+, -, OK or Back) of the control panel on your machine.

Press + or - to choose Network, WLAN or SES/WPS/AOSS. And then, press OK.

The machine searches for an access point that supports Wi-Fi Protected Setup or AOSS™ for 2 minutes.

d Push the Wi-Fi Protected Setup or AOSS™ button on your WLAN access point/router. See the user’s guide for your WLAN access point/router for instructions.

This feature will automatically detect which mode (Wi-Fi Protected Setup or AOSS™) your access point/router uses to configure your machine.

Note

If your wireless access point/router supports Wi-Fi Protected Setup(PIN Method) and you want to configure your machine using the PIN (Personal Identification Number) Method, see

How to configure your wireless machine, using the PIN Method of Wi-Fi Protected Setup in the Network User's Guide.

e If the LCD shows Connected, the printer has successfully connected to your access point/router. You can now use your printer in a wireless network.

If the LCD shows Connection Error, a session overlap has been detected. The printer has detected more than one access point/router on your network with the Wi-Fi Protected Setup mode or AOSS™ mode enabled. Make sure that only one access point/router has the Wi-Fi Protected Setup mode or the AOSS™ mode enabled and try starting from c again.

If the LCD shows No Access Point, the printer has not detected your access point/router on your network with the Wi-Fi Protected Setup mode or AOSS™ mode enabled. Move the printer closer to your access point/router and try starting from c again.

If the LCD shows Connection Fail, the printer has not successfully connected to your access point/router. Try starting from c again. If the same message is indicated again, reset the print server back to its factory default settings and try again. For resetting, see Reset the network settings to the factory

default on page 32.

Wireless setup is now complete. A four level indicator at the right of your machine’s LCD will show the wireless signal strength of your access point/router.

To install the printer driver, continue to;

For Windows® Users:

Now go to step 12 on page 28

For Macintosh Users:

Now go to step 12 on page 30

Wireless	Windows
	®
Network
	Macintosh

27

	Wireless Network	Windows®

Install the Printer Driver

(Windows® XP/XP Professional x64 Edition/Windows Vista®/Windows® 7)

12 Before you install

Make sure that your computer is ON and you are logged on with Administrator rights.

IMPORTANT

•If there are any programs running, close them.

•The screens may differ depending on your operating system.

Note

Disable all personal firewall software (other than

Windows® Firewall), anti-spyware or antivirus applications for the duration of the installation.

13 Install the printer driver

a Put the installation CD-ROM into your CD-ROM drive. If the model name screen appears, choose your machine. If the language screen appears, choose your language.

Note

If the Brother screen does not appear automatically, go to My Computer (Computer), double-click the CD-ROM icon, and then double-click start.exe.

b Click Install Printer Driver.

c Click Wireless Network users.

Note

For Windows Vista® and Windows® 7, when the User Account Control screen appears, click

Allow or Yes.

28

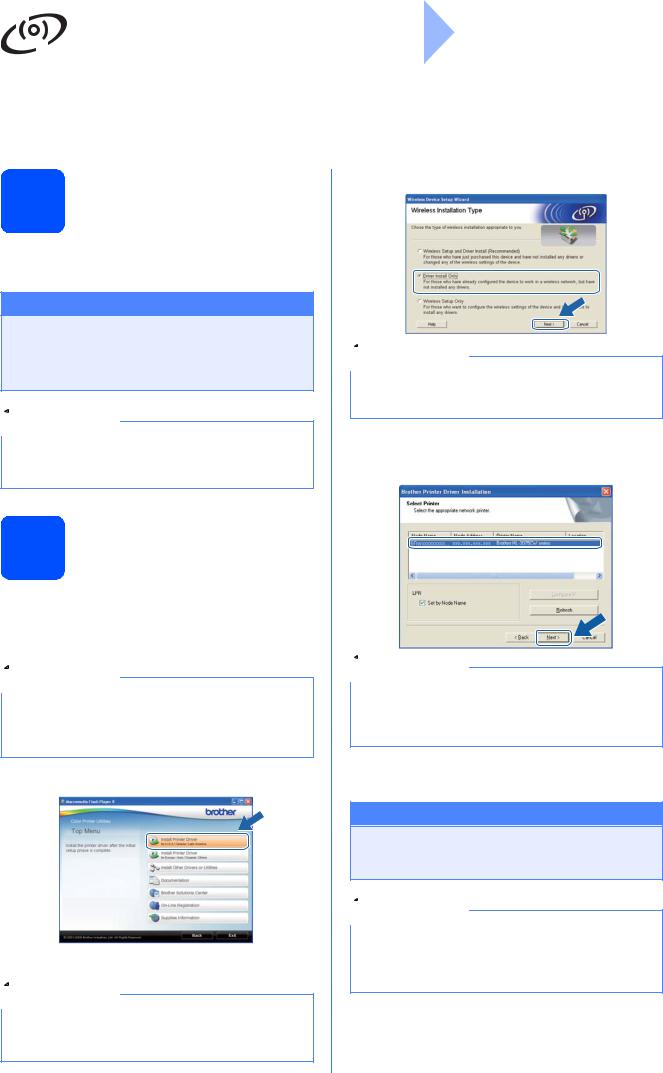

d Choose Driver Install Only and click Next.

Note

If you want to install the PS driver (BR-Script3 printer driver), choose Custom Installation and then follow the on-screen instructions.

e Follow the on-screen instructions until this screen appears. Choose the machine from the list, and then click Next.

Note

If you are using WEP and the LCD displayed ‘Connected’ but your machine is not found, make sure you entered the WEP key correctly. The WEP key is case sensitive.

f Follow the on-screen instructions to complete setup.

IMPORTANT

DO NOT cancel any of the screens during the installation. It may take a few seconds for all screens to appear.

Note

For Windows Vista® and Windows® 7, when the Windows Security screen appears, click the check box and click Install to complete the installation correctly.

	Wireless Network	Windows®

Finish	The installation is now
	complete.

Note

•If you use a specified IP Address for the machine, you must set the Boot Method to Static by using the control panel. For more information, see Network menu in the Network User's Guide.

•Depending on your security settings, a Windows Security or antivirus software window may appear when using the machine or its software. Please allow or permit the window to continue.

•XML Paper Specification Printer Driver

The XML Paper Specification Printer Driver is the most suitable driver for Windows Vista® and Windows® 7 when printing from applications that use the XML Paper Specification documents. Please download the latest driver by accessing the Brother Solutions Center at http://solutions.brother.com/.

Wireless	Windows
	®
Network
	Macintosh

29

	Wireless Network	Macintosh

Install the Printer Driver (Mac OS X 10.4.11 - 10.6.x)

12 Before you install

Make sure your machine is connected to the power and your Macintosh is ON. You must be logged on with Administrator rights.

IMPORTANT

For Mac OS X 10.4.10 users, upgrade to Mac OS X 10.4.11 - 10.6.x. (For the latest

drivers and information on the Mac OS X you are using, visit http://solutions.brother.com/.)

Note

If you want to install the PS driver (BR-Script3 printer driver), please go to the Brother Solutions Center at http://solutions.brother.com/ and click Downloads on your model page and visit FAQ's for setup instructions.

13 Install the printer driver

a Put the installation CD-ROM into your CD-ROM drive.

b Double-click the Start Here OSX icon. Follow the on-screen instructions.

c Choose Wireless Network Connection and

click Next.

IMPORTANT

DO NOT cancel any of the screens during the installation.

Note

•It may take a few minutes for installation to complete.

•If your wireless settings fail, the Wireless Device Setup Wizard screen appears. Follow the on-screen instructions to complete the wireless configuration.

d Follow the on-screen instructions until this screen appears. Choose your machine from the list, and then click OK.

Note

•If there is more than one of the same printer model connected on your network, the MAC Address (Ethernet Address) will be displayed after the model name. You can also confirm your IP Address by scrolling to the right.

•You can find your printer’s MAC Address (Ethernet Address) and the IP Address by printing out the Printer Settings Page. See

Print the Printer Settings Page on page 32

30

	Wireless Network	Macintosh

e When this screen appears, click Next.

Finish	The installation is now
	complete.

Note

If you use a specified IP Address for the machine, you must set the Boot Method to Static by using the control panel. For more information, see

Network menu in the Network User's Guide.

Wireless	Windows
	®
Network
	Macintosh

31

For Network Users

Web Based Management (web browser)

The Brother print server is equipped with a web server that allows you to monitor its status or change some of its configuration settings, using HTTP (Hyper Text Transfer Protocol).

Note

•The login name for the Administrator is ‘admin’ (case sensitive) and the default password is ‘access’.

•We recommend Microsoft® Internet Explorer® 6.0 (or greater) or Firefox 1.0 (or greater) for

Windows® and Safari 4.0/5.0 for Macintosh. Please also make sure that JavaScript and Cookies are always enabled in whichever browser you use. To use a web browser, you will need to know the IP Address of the print server. The IP Address of the print server is listed on the Printer Setting Page.

a Type http://printer_ip_address/ into your browser.

(Where printer_ip_address is the IP Address or the print server name)

 For example: http://192.168.1.2/

See Chapter 10 of the Network User's Guide.

32

Reset the network settings to the factory default

To reset all network settings of the print server to its factory default, follow the steps below.

a Press the + or - to choose Network. Press OK.

Network

b Press the + or - to choose Factory Reset. Press OK.

Factory Reset

c Press OK again.

Restart Printer?

Print the Printer Settings

Page

The Printer Settings Page lists all the current printer settings, including network settings. To print the printer settings page:

a Press the + or - to choose Machine Info.. Press OK.

Machine Info.

b Press OK again.

Print Settings

c Press OK again to print the Printer Settings Page.

Note

If the IP Address on the Printer Settings Page shows 0.0.0.0, wait for one minute and try again.

Other Information

Compilation and Publication

Under the supervision of Brother Industries, Ltd., this manual has been compiled and published, covering the latest product descriptions and specifications.

The contents of this manual and the specifications of this product are subject to change without notice.

Brother reserves the right to make changes without notice in the specifications and materials contained herein and shall not be responsible for any damages (including consequential) caused by reliance on the materials presented, including but not limited to typographical and other errors relating to the publication.

Choosing a location

Put your product on a flat, level, stable surface that is free of vibration and shocks, such as a desk. Put the product near a standard grounded AC power outlet. Choose a location where the temperature remains between 50 F and 90.5 F (10 C and 32.5 C) and the humidity is between 20% to 80% (without condensation).

WARNING

•DO NOT expose the product to direct sunlight, excessive heat, open flames, corrosive gasses, moisture or dust. Doing so may create a risk of an electrical short or fire. It may also damage the product and/or render it inoperable.

•DO NOT place the product near heaters, air conditioners, electrical fans, refrigerators, or water. Doing so may create the risk of a short circuit or fire, should water come into contact with the product (including condensation caused by heating, air conditioning, or ventilation equipment).

•DO NOT place the product near chemicals. Should the chemicals come into contact with the product, there may be a risk of fire. The chemicals may also cause the product to malfunction or become discolored.

•DO NOT put the product in a location where any slot or opening in the product is obstructed or blocked. These slots and openings are provided for ventilation. Blocking the product’s ventilation could create a risk of overheating and/or fire.

Instead:

Keep a gap of roughly 4 inches. (100 mm) between the ventilation hole and the wall.

Place the product on a solid surface.

DO NOT place the product on a bed, sofa, rug, or other similar soft surface.

DO NOT place this product near or over a radiator or heater.

DO NOT place this product in a “built-in” installation unless adequate ventilation is provided.

•DO NOT put objects on top of the product. Doing so could increase the risk of overheating and/or fire should the product malfunction.

•DO install your product near an AC power outlet that is easily accessible. In the event of an emergency, easy access to the plug and outlet will allow you to shut off power to the product quickly and completely.

•Plastic bags are used in the packing of your product and drum unit. Plastic bags are not toys. To avoid the danger of suffocation, keep these bags away from babies and children and dispose of them properly.

33

Other Information

CAUTION

Avoid placing your product in a high-traffic area. If you must place it in a high-traffic area, ensure that the product is in a safe location where it cannot be accidentally knocked-over, which could cause injury to you and serious damage to the product. Also ensure that cords are secured so as not to pose a tripping hazard. DO NOT place this product on an unstable cart, stand, or table. The product is heavy and may fall, causing injury to you, and serious damage to the product.

IMPORTANT

•DO NOT place your product next to devices that contain magnets or generate magnetic fields. Doing so may interfere with the operation of the product, causing print quality problems.

•DO NOT place your product next to sources of interference, such as speakers or the base units of non Brother cordless telephones. Doing so may interfere with the operation of the product’s electronic components.

•DO NOT connect your product to an AC power outlet controlled by wall switches or automatic timers. Disruption of power can delete information from the product’s memory.

•DO NOT connect your product to an AC power outlet on the same circuit as large appliances or other equipment that requires a significant amount of electricity to operate. Operating this product in conjunction with the other product(s) could create an overvoltage, tripping your circuit breaker or blowing your fuse.

To use the product safely

Please keep these instructions for later reference and read them before attempting any maintenance. If you do not follow these safety instructions, there is a possibility of a fire, electrical shock, burn or suffocation.

WARNING

ELECTRICAL HAZARDS

Failure to follow the warnings in this section may create the risk of an electrical shock. In addition, you could create an electrical short, which may create the risk of a fire.

•There are high voltage electrodes inside the product. Before you access the inside of the product, including for routine maintenance such as cleaning, make sure you have unplugged the power cord from the AC power outlet, as well as any Ethernet (RJ-45) cable from the product. Never push objects of any kind into this product through cabinet slots, since they may touch dangerous voltage points or short out parts.

34

Other Information

• DO NOT handle the plug with wet hands.

Always make sure the plug is fully inserted. DO NOT use the product or handle the cord if the cord has become worn or frayed.

•DO NOT touch this product during an electrical storm.

•DO NOT allow this product to come into contact with water. This product should not be used around standing water including a bathtub, sink, or swimming pool, around appliances containing water including a refrigerator, or in a wet basement.

•This product should be connected to an AC power source within the range indicated on the rating label. DO NOT connect it to a DC power source or inverter. If you are not sure what kind of power source you have, contact a qualified electrician.

•Always disconnect all cables from the wall outlet before servicing, modifying or installing the equipment.

•Power Cord Safety:

This product is equipped with a 3-wire grounded plug. This plug will only fit into a grounded power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, call your electrician to replace your obsolete outlet. DO NOT defeat the purpose of the grounded plug.

Use only the power cord supplied with this product.

DO NOT allow anything to rest on the power cord. DO NOT place this product where people can walk on the cord. DO NOT place this product in a position where the cord is stretched or strain is otherwise put on the cord. Doing so may cause the cord to become worn or frayed.

If an extension cord is used with this product, make sure that the total ampere ratings on the products plugged into the extension cord. DO NOT exceed the extension cord ampere rating. Also, make sure that the total of all products plugged into the AC power outlet does not exceed 15 amperes.

The power cord, including extensions, should be no longer than 16.5 feet (5 meters).

FIRE HAZARDS

•DO NOT use flammable substances, any type of spray, or an organic solvent/liquid that containing alcohol or ammonia to clean the inside or outside of the product. Doing so could cause a fire. Instead, use only a dry, lint-free cloth. See Routine Maintenance in the User's Guide for more information on how to clean the product.

•DO NOT attempt to operate this product with a paper jam or with stray pieces of paper inside the product. Prolonged contact of the paper with the drum unit could cause a fire.

•DO NOT use a vacuum cleaner to clean up scattered toner. Doing this might cause the toner dust to ignite inside the vacuum cleaner, potentially starting a fire. Please carefully clean the toner dust with a dry, lint-free soft cloth and dispose of it according to local regulations.

•DO NOT use this product in the vicinity of a gas leak or combustible dust.

35

Other Information

HOT SURFACE

•After you have just used the product, some internal parts will be extremely hot. To prevent injury, DO NOT touch the shaded parts shown in the illustration, when you open the top or back cover (back output tray).

Inside the product	Inside the product
(Top View)	(Back View)

•DO NOT touch the shaded parts shown in the illustration. These rollers may be rotating at high speed and can pinch or entrap your hand.

IMPORTANT

DO NOT remove or damage the caution labels located on or in the product.

Note

Lightning and power surges can damage this product. We recommend that you use a quality surge protection device on the AC power line and any Ethernet (RJ-45) cable plugged into the product.

36

Other Information

Important safety instructions

1Read all of these instructions.

2Save these instructions for later reference.

3Follow all warnings and instructions marked on the product.

4Be careful not to inhale toner.

5DO NOT place anything in front of the product that will block printed pages. DO NOT place anything in the path of printed pages.

6Wait until pages have exited the product before picking them up.

7DO NOT attempt to service this product yourself because opening or removing covers may expose you to dangerous voltage points and other risks and may void your warranty. Refer all servicing to a Brother Authorized Service Center. For the location of your nearest Brother Authorized Service Center, please call: In USA: 1-877-BROTHER (1-877-276-8437)

In Canada: 1-877-BROTHER

8Unplug this product from the AC power outlet and refer all servicing to Brother Authorized Service Personnel under the following conditions:

When the power cord is damaged or frayed. (DO NOT touch the damaged/frayed part while unplugging your product.)

If liquid has been spilled into the product.

If the product has been exposed to rain or water.

If the product does not operate normally when the operating instructions are followed.

Adjust only those controls that are covered by the operating instructions. Improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation.

If the product has been dropped or the cabinet has been damaged.

If the product exhibits a distinct change in performance, indicating a need for service.

9For Material Safety Data Sheet for applicable accessories,visit http://www.brother.com/. (USA only)

37

Other Information

Regulation

Federal Communications Commission (FCC) Declaration of Conformity (USA only)

Responsible Party:	Brother International Corporation
	100 Somerset Corporate Boulevard
	Bridgewater, NJ 08807-0911 USA
	TEL: [phone]

declares, that the products

Product Name:HL-3045CN / HL-3075CW Model Number:HL-30

comply with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Call the dealer or an experienced radio/TV technician for help.

(Wireless network models only)

This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

IMPORTANT

•Changes or modifications not expressly approved by Brother Industries, Ltd. could void the user’s authority to operate the equipment.

•A shielded interface cable should be used to ensure compliance with the limits for a Class B digital device.

Industry Canada Compliance Statement (Canada only)

This Class B digital apparatus complies with Canadian ICES–003.

Cet appareil numérique de la classe B est conforme à la norme NMB–003 du Canada.

Operation is subject to the following two conditions: (1) this device may not cause interference, and

(2) this device must accept any interference, including interference that may cause undesired operation of this device.

L’utilisation de ce dispositif est autorisée seulement aux conditions suivantes:

(1) il ne doit pas produire de brouillage et (2) l’utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif.

Disconnect device

This product must be installed near an AC power outlet that is easily accessible. In case of emergencies, you must disconnect the power cord from the AC power outlet to shut off power completely.

38

Other Information

LAN connection (Network models only)

CAUTION

DO NOT connect this product to a LAN connection that is subject to over-voltages.

International ENERGY STAR® Qualification Statement

The purpose of the International ENERGY STAR® Program is to promote the development and popularization of energy-efficient office equipment.

As an ENERGY STAR® Partner, Brother Industries, Ltd. has determined that this product meets the ENERGY STAR® specifications for energy efficiency.

39

Other Information

Shipment of the printer

If for any reason you must ship your printer, carefully package the printer to avoid any damage during transit. We recommend that you save and use the original packaging. The printer should also be adequately insured with the carrier.

CAUTION

When shipping the printer, the DRUM UNIT, TONER CARTRIDGE assemblies and WASTE TONER BOX must be removed from the printer and put in a plastic bag. Failure to remove these items and put them in a plastic bags before shipping may cause severe damage to the printer and may VOID THE WARRANTY.

Repacking Instructions

Make sure that you have the following parts for repacking.

aPlastic bags – to be supplied by you, the user; one for the waste toner box, and one each for the four drum and toner cartridge assemblies

bProtective covers that the original drum and toner cartridge assembly came with

cPacking material for locking the belt unit

WARNING

This printer is heavy and weights approximately 41.9 lb. (19.0 kg). To prevent injuries use at least two people to lift the printer. Be careful not to pinch your fingers when you put the printer back down.

a Turn off the printer power switch, and then unplug the AC power cord.

40

b Fully open the top cover and take out all the drum unit and toner cartridge assemblies.

Attach the protective cover to each of the drum unit and toner cartridge assemblies.

Put each assembly into a plastic bag and completely seal each bag.

c Remove the belt unit by holding the green handle and lifting the belt unit up and out of the printer.

d Remove the waste toner box from the printer, and then put it in a plastic bag and seal the bag completely.

Other Information

e

f

g

h

Reinstall the belt unit back in the printer.

Reinstall the original packing material into the printer.

Close the top cover.

Put the waste toner box in the Styrofoam piece.

i Using two people, place the printer into the plastic bag.

j Put the printer and the Styrofoam pieces into the carton. Match the front side of the printer to the “FRONT” mark on the Styrofoam pieces. Put the Styrofoam piece for the drum unit and toner cartridge assemblies on the top of the printer.

k Put the power cord, drum unit and toner cartridge assemblies into the Styrofoam piece as shown in the illustration.

l Put the two carton trays on the top.

m Close the carton and tape it shut.

41

Other Information

Control panel

aData LED

On: Data is in the printer memory. Blinking: Receiving / processing data. Off: No remaining data in the memory.

bError LED

Blinking: There is a problem with the printer. Off: There is no problem with the printer.

cMenu buttons

+: Scroll forward through menus and the available options.

-: Scroll backward through menus and the available options.

OK: Choose the control panel menu. Set the chosen menu and settings.

Back: Go back one level in the menu structure.

dSecure Print button

Prints data saved in memory when you enter your four-digit password.

eCancel button

Stops and Cancels the printer operation in progress.

fGo button

Pause and continue printing / Error recovery / Reprint

For the details of the control panel, see chapter 3 of the User's Guide on the CD-ROM.

42

Options and Consumables

Option

The printer has the following optional accessory. You can expand the capabilities of the printer by adding this item. For more information about the compatible SO-DIMM Memory, visit us at http://solutions.brother.com/.

For installing the SO-DIMM Memory, see Chapter 4 of the User's Guide on the CD-ROM.

SO-DIMM Memory

You can expand the memory by installing a (144-pin SO-DIMM) memory module.

Consumables

Please prepare a new consumable item for replacement when the following messages appear on the LCD.

Toner Low		Drums End Soon
Belt End Soon		WT Box End Soon

When the time comes to replace consumable items, the following messages will appear on the LCD.

Replace	Toner		Replace	Drums
Replace	Belt		Replace	WT Box

When the time comes to replace consumable items, an error will be indicated by the LCD on the control panel. For more information about the consumables for your printer, visit us at http://www.brother.com/original/ or contact your local Brother reseller.

Toner cartridges

Drum units

Belt Unit (BU-200CL)

Waste Toner Box (WT-200CL)

For replacing the consumable items, see Chapter 5 of the User's Guide on the CD-ROM.

43

Trademarks

The Brother logo is a registered trademark of Brother Industries, Ltd. Brother is a registered trademark of Brother Industries, Ltd.

Microsoft, Windows, Windows Server, Outlook and Internet Explorer are registered trademarks of Microsoft Corporation in the United States and/or other countries.

Windows Vista is either a registered trademark or a trademark of Microsoft Corporation in the United States and other countries.

Apple, Macintosh, Safari and TrueType are trademarks of Apple Inc., registered in the United States and other countries. WPA, WPA2, Wi-Fi Protected Access and Wi-Fi Protected Setup are either trademarks or registered trademarks of Wi-Fi Alliance in the United States and/or other countries.

Wi-Fi and Wi-Fi Alliance are registered trademarks of the Wi-Fi Alliance. AOSS is a trademark of Buffalo Inc.

Any trade names and product names of companies appearing on Brother products, related documents and any other materials are all trademarks or registered trademarks of those respective companies.

Compilation and Publication Notice

Under the supervision of Brother Industries, Ltd., this manual has been compiled and published, covering the latest product descriptions and specifications.

The contents of this manual and the specifications of this product are subject to change without notice.

Brother reserves the right to make changes without notice in the specifications and materials contained herein and shall not be responsible for any damages (including consequential) caused by reliance on the materials presented, including but not limited to typographical and other errors relating to the publication.

This product is designed for use in a professional environment.

Copyright and License

©2011 Brother Industries, Ltd.

©1983-1998 PACIFIC SOFTWORKS INC.

This product includes the "KASAGO TCP/IP" software developed by ELMIC WESCOM,INC. © 2011 Devicescape Software, Inc.

This product includes RSA BSAFE Cryptographic software from RSA Security Inc.

Portions Copyright for ICC profiles 2003 by European Color Initiative, www.eci.org. ALL RIGHTS RESERVED.
