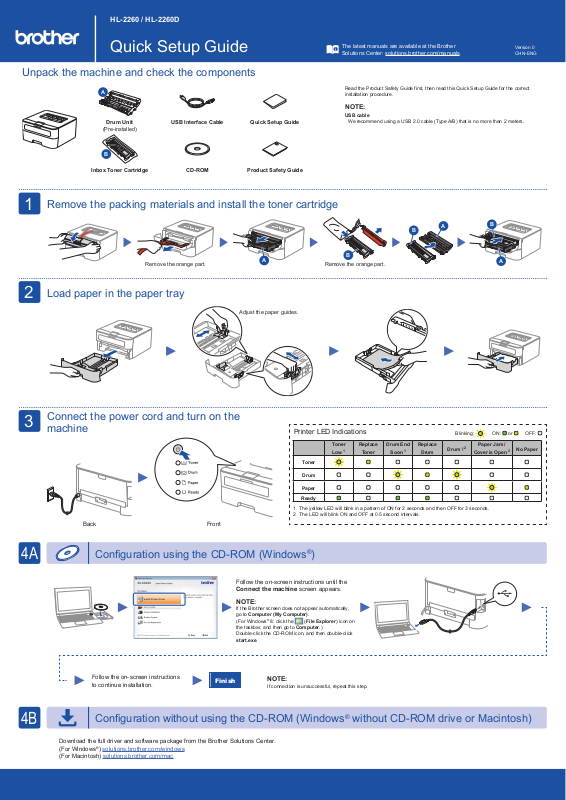

Page 1
HL‑2260 / HL‑2260D
Quick Setup Guide
Unpack the machine and check the components
A
Drum Unit
(Pre‑installed)
B
Inbox Toner Cartridge CD‑ROM Product Safety Guide
USB Interface Cable Quick Setup Guide
The latest manuals are available at the Brother
Solutions Center: solutions.brother.com/manuals.
Read the Product Safety Guide first, then read this Quick Setup Guide for the correct
installation procedure.
NOTE:
USB cable
We recommend using a USB 2.0 cable (Type A/B) that is no more than 2 meters.
Version 0
CHN‑ENG
1
2
Remove the packing materials and install the toner cartridge
Remove the orange part. Remove the orange part.
A
Load paper in the paper tray
Adjust the paper guides.
B
A
B
B
A
3
4A
Connect the power cord and turn on the
machine
Back Front
Configuration using the CD‑ROM (Windows®)
Printer LED Indications
Toner
1
Low
Toner
Drum
Paper
Ready
1 The yellow LED will blink in a pattern of ON for 2 seconds and then OFF for 3 seconds.
2 The LED will blink ON and OFF at 0.5 second intervals.
Replace
Toner
Drum End
1
Soon
Replace
Drum
Blinking: ON: or OFF:
Paper Jam /
2
Drum !
Cover is Open
2
No Paper
4B
Follow the on‑screen instructions until the
Connect the machine screen appears.
NOTE:
If the Brother screen does not appear automatically,
Follow the on‑screen instructions
to continue installation.
go to Computer (My Computer).
(For Windows
the taskbar, and then go to Computer.)
Double‑click the CD‑ROM icon, and then double‑click
start.exe.
Finish
®
8: click the (File Explorer) icon on
NOTE:
If connection is unsuccessful, repeat this step.
Configuration without using the CD‑ROM (Windows® without CD‑ROM drive or Macintosh)
Download the full driver and software package from the Brother Solutions Center.
(For Windows®) solutions.brother.com/windows
(For Macintosh) solutions.brother.com/mac
