Brother Laser Printer
PARTS REFERENCE LIST
MODEL: HL-1850/1870N
Read this list thoroughly before maintenance work.
Keep this list in a convenient place for quick and easy reference at all times.
January 2002
PL-PRN031
NOTE FOR USING THIS PARTS REFERENCE LIST
1.In the case of ordering parts, it needs mentioning the following items:
(1)Code
(2)Q'ty
(3)Description
(4)Symbol ( PCB No., Revision , and Parts location mounted on the PCB.)
Note : No orders without Parts Code or Tool No. can be accepted.
< Example >
|
(1) |
(2) |
(3) |
(4) |
|
|
|
|
|
|
|
REF.NO. |
CODE |
Q’TY |
DESCRIPTION |
SYMBOL |
REMARK |
|
|
|
|
|
|
Revision No.: marked on the main printed circuit board.
B48K056 - 201A
Design change indication
Specification No .
Pattern alteration No.
Circuit board No.
Revision No.: marked on the power supply printed circuit board.
Rev. A
Design change indication
(The first version has no sign.)
2.Design-changed parts :
If the parts are changed, any one of the following symbols is indicated in the REMARKS column.
#A : Compatible between old and new
#B : Replaceable from old to new
#D : Incompatible
#: Newly established
3.The original of this list was made based on the information available in January 2001.
4.Parts are subject to change in design without prior notice.
CONTENTS
1. |
FRAME / DRIVE UNIT.......................................................................... |
1 |
2. |
LASER UNIT ........................................................................................ |
1 |
3. |
PAPER FEEDER / MP UNIT ................................................................ |
3 |
4. |
DUPLEX ............................................................................................... |
5 |
5. |
PAPER CASSETTE ............................................................................. |
7 |
6. |
FIXING UNIT......................................................................................... |
9 |
7. |
COVERS............................................................................................. |
11 |
8. |
MAIN PCB .......................................................................................... |
13 |
9. |
ENGINE PCB...................................................................................... |
15 |
10. |
LOW-VOLTAGE POWER SUPPLY PCB........................................... |
15 |
11. |
HIGH-VOLTAGE POWER SUPPLY PCB .......................................... |
17 |
12. |
AC CORDS......................................................................................... |
17 |
13. |
ACCESSORIES.................................................................................. |
19 |
14. |
PACKING MATERIALS...................................................................... |
21 |
15. |
NETWORK BOARD ........................................................................... |
21 |
16. |
PERIODICAL MAINTENANCE PARTS ............................................. |
23 |
1. FRAME / DRIVE UNIT |
|
|
PR2002076 |
||
REF.NO. |
CODE |
Q'TY |
DESCRIPTION |
SYMBOL |
REMARK |
1 |
LJ5980001 |
1 |
MAIN MOTOR ASSY HE |
|
|
2 |
LJ5969001 |
1 |
FEED SOLENOID ASSY HE |
|
|
3 |
LJ5973001 |
1 |
SOLENOID ASSY 04C4 |
|
|
4 |
LJ5976001 |
1 |
SOLENOID ASSY 04C5 |
|
|
5 |
LJ5208001 |
2 |
LOCK LEVER SPRING |
|
|
6 |
LJ5307001 |
1 |
TONER LED PCB UNIT (EMISSION) |
|
|
7 |
LJ8357001 |
1 |
SOL RELAY PCB ASSY |
|
|
8 |
LJ5088001 |
1 |
REVERSING SWITCH SOLENOID |
|
|
9 |
LJ5015001 |
1 |
T-BELT B40S2M142 |
|
|
10 |
LJ5100001 |
1 |
TONER SENSOR PCB UNIT (RECEPTION) |
|
|
11 |
UL8507001 |
4 |
RUBBER FOOT |
|
|
12 |
LJ5925001 |
1 |
GEAR 21H |
|
|
13 |
UL9069001 |
2 |
CONDUCTOR BUSH 5 |
|
|
14 |
LJ5533001 |
1 |
CONDUCTOR BUSH H |
|
|
15 |
LJ5117001 |
1 |
FAN MOTOR 60 |
|
|
16 |
LJ8363001 |
1 |
DX SENSOR PCB ASSY |
|
|
17 |
LJ8724001 |
3 |
TAPE 60X12 |
|
|
18 |
LE1169001 |
1 |
USB GROUND PLATE |
|
|
19 |
087320615 |
11 |
SCREW, CUP S TITE 3X6 |
|
|
20 |
085411015 |
3 |
TAPTITE, BIND B M4X10 |
|
|
21 |
000300415 |
1 |
SCREW, BIND M3X4 |
|
|
22 |
085310815 |
1 |
TAPTITE, BIND B M3X8 |
|
|
23 |
LJ5966001 |
1 |
FUSER DRIVE GEAR 1HE |
|
|
24 |
LJ5967001 |
1 |
FUSER DRIVE GEAR 2HE |
|
|
25 |
LJ5930001 |
1 |
FEED ROLLER GEAR SHAFT |
|
|
26 |
LJ5114001 |
1 |
SPRING, EXTENSION P/R |
|
ADD |
|
|
|
MODEL HL-1850/1870N 84U-Z23/Z24-010 |
|
|
T/I NO. PR2002076 |
|
|
|
|
|
2. LASER UNIT |
|
|
|
|
|
REF.NO. |
CODE |
Q'TY |
DESCRIPTION |
SYMBOL |
REMARK |
1LJ7004001 1 LASER UNIT (SP)
2087321615 3 TAPTITE, CUP S M3X16
MODEL HL-1850/1870N 84U-Z23/Z24-020
- 2 -
1. FRAME / DRIVE UNIT |
PR2002076 |
|
|
|
|
6 |
5 |
20 |
7 |
|
|
|
2 |
|
|||
|
|
|
|
|
|
|
|
|
9 |
|
|
|
|
|
15 |
|
|
|
|
|
|
|
10 |
|
|
8 |
|
|
|
|
19 |
|
|
|
|
|
|
|
|
19 |
21 |
|
|
|
|
16 |
|
|
|
|
|
|
18 |
||
|
23 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
24 |
19 |
|
|
|
|
|
|
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
17 |
|
|
|
22 |
|
|
|
|
11 |
|
|
11 |
|
19 |
|
|
|
|
|
||
|
|
25 |
|
|
|
|
|
|
|
12 |
|
|
|
20 |
|
|
19 |
|
13 |
|
|
|
4 |
|
|
|
|
|
|
||
|
17 |
|
|
14 |
|
|
|
|
17 |
|
|
|
|
|
3 |
19 |
26 |
|
|
|
11 |
||
|
|
|
|
13 |
|
|
|
T/I NO. PR2002076 |
|
MODEL |
HL-1850/1870N |
84U-Z23/Z24-010 |
|
||
|
|
|
|
|
|
||
2. LASER UNIT
|
2 |
2 |
|
|
|
2 |
1 |
|
MODEL |
HL-1850/1870N 84U-Z23/Z24-020 |
|
|
- 1 - |
|
3. PAPER FEEDER / MP UNIT |
PR2002067 |
|||
REF.NO. |
CODE |
Q'TY |
DESCRIPTION |
REMARK |
1 |
UL9059001 |
2 |
JOINT 5 |
|
2 |
UL9060001 |
1 |
FEED ROLLER ASSY |
|
3 |
UL9062001 |
2 |
BUSH 5 |
|
4 |
LJ5146001 |
1 |
FIRST FEED ROLLER ASSY |
|
5A |
LJ5016001 |
1 |
PAPER PICK-UP ROLLER ASSY *1 |
*1 A component part of the |
5B |
LJ5016001 |
1 |
PAPER PICK-UP ROLLER ASSY |
PAPER FEEDING KIT. |
6 |
LJ5020001 |
2 |
BUSH L |
Refer to "16. PERIODICAL |
7 |
LJ5021001 |
2 |
BUSH R |
MAINTENCE PARTS". |
8LJ5184001 1 SEPARATION PLATE ASSY
9LJ5188001 1 MP PRESSURE PLATE ASSY
10 |
LJ5197001 |
1 MP COVER |
11LJ5199001 1 MP PAPER GUIDE 1
12LJ5200001 1 MP SIDE GUIDE L
13LJ5201001 1 MP SIDE GUIDE R
14LJ5203001 1 MP PAPER GUIDE 2
15LJ5204001 1 MP PAPER GUIDE 3
16LJ5013001 1 PROCESS UNIT COVER ASSY
16-1 |
LJ5205001 |
1 |
PROCESS UNIT COVER |
16-2 |
LJ5206001 |
1 |
P COVER LOCK LEVER L |
16-3 |
LJ5207001 |
1 |
P COVER LOCK LEVER R |
16-4 |
LJ5208001 |
1 |
LOCK LEVER SPRING |
17LJ8365001 1 CASSETTE SENSOR PCB ASSY
18LJ8367001 1 MP SENSOR PCB ASSY
19087310815 1 TAPTITE, CUP B M3X8
20085311015 1 SCREW, BIND B TITE 3X10
21087310615 1 TAPTITE, CUP B M3X6
22LJ5131001 1 RESIST FRONT ACTUATOR
23LJ5132001 1 RESIST FRONT ACTUATOR SPRING
24 |
LJ5626001 |
1 STOPPER H |
25LJ5133001 1 RESIST REAR ACTUATOR
26LJ5134001 1 RESIST REAR ACTUATOR SPRING
27LJ7073001 1 PE ACTUATOR H
28LJ5155001 1 CA ACTUATOR
29LJ5162001 1 MP-PE SENSOR ACTUATOR 1
30LJ5163001 1 MP-PE SENSOR ACTUATOR 2
31LJ5915001 2 ROLLER COLLAR SPRING
32LJ5916001 2 ROLLER COLLAR WASHER
33A |
LJ5150001 |
2 ROLLER COLLAR |
33B |
LJ5150001 |
2 ROLLER COLLAR |
MODEL HL-1850/1870N 84U-Z23/Z24-010
T/I NO. PR2002067
- 4 -
3. PAPER FEEDER / MP UNIT |
PR2002067 |
|
|
|
|
2 |
|
3 |
33B |
|
|
|
1 |
|
|
|
|
|
||
|
|
|
|
|
|
|
||
|
|
|
|
33B |
|
|
|
|
|
|
|
|
6 |
|
7 |
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
18 |
|
|
5B |
|
|
|
|
|
|
|
8 |
|
|
|
|
|
|
|
|
|
29 |
11 |
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
30 |
|
|
|
|
|
|
|
19 |
|
|
|
|
|
|
|
|
|
|
|
13 |
|
|
|
|
|
|
12 |
|
21 |
|
|
|
|
|
|
|
|
|
|
|
9 |
|
|
|
|
|
|
|
25 |
|
|
|
|
15 |
|
|
26 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
22 |
|
|
|
|
|
|
|
24 |
23 |
|
|
|
|
14 |
|
|
|
3 |
|
7 |
10 |
|
|
|
|
|
4 |
|
|
|
|
|||
|
|
33A |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1 |
5A |
31 |
|
|
|
|
|
|
|
|
|
|
|
|
||
|
33A 31 |
|
|
|
|
|
|
|
|
|
|
32 |
|
|
|
|
16 |
|
|
|
|
|
|
|
|
|
|
32 |
|
|
|
|
|
16-3 |
|
|
6 |
16-4 |
|
|
|
|
||
|
27 |
|
|
|
|
|
||
17 |
16-2 |
|
|
|
|
|
||
28 |
|
|
|
|
16-1 |
|||
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
20 |
|
|
|
|
|
|
|
|
MODEL HL-1850/1870N 84U-Z23/Z24-041 |
|
|
|
||||
T/I NO. PR2002067 |
|
|
|
|
|
|
|
|
- 3 -
4. DUPLEX
REF.NO. |
CODE |
Q'TY |
DESCRIPTION |
REMARK |
1 |
LJ5216001 |
1 |
EXIT ROLLER UNIT |
|
1-1 |
LJ5220001 |
1 |
EXIT ROLLER ASSY ZLH |
|
1-2 |
UL9122001 |
4 |
PINCH ROLLER ASSY |
|
1-3 |
UL9125001 |
4 |
PINCH ROLLER SPRING |
|
1-4 |
LJ8364001 |
1 |
REAR COVER SENSOR PCB ASSY |
|
1-5 |
085411015 |
2 |
TAPTITE, BIND B M4X10 |
|
1-6 |
087310815 |
1 |
TAPTITE, CUP B M3X8 |
|
2 |
LJ5222001 |
1 |
DX OUTER CHUTE ASSY |
|
2-1 |
LJ5223001 |
1 |
DX OUTER CHUTE |
|
2-2 |
LJ5224001 |
1 |
FRAP 2 |
|
2-3 |
LJ5225001 |
1 |
FRAP 2 SPRING |
|
3LJ5226001 1 DX REAR CHUTE
4LJ5227001 1 REAR COVER C
5LJ5990001 1 FAN MOTOR 60 B UNIT
6LJ7091001 1 DX FEED ASSY HE
6-1 |
LJ7092001 |
3 |
ROLLLER HOLDER HE |
6-2 |
UH2360000 |
5 |
PRESSURE ROLLER |
6-3 |
LJ5233001 |
1 |
GROUND WIRE |
6-4 |
LJ5235001 |
1 |
DX FEED ROLLER ASSY |
6-5 |
LJ5238001 |
2 |
SIDE REGIST ROLLER |
6-6 |
LJ5015001 |
1 |
T-BELT B40S2M142 |
6-7 |
LJ5240001 |
1 |
T-BELT B40S2M224 |
6-8 |
LJ5241001 |
1 |
SIDE REGIST ROLLER HOLDER |
6-9 |
LJ5248001 |
1 |
GUIDE ACTUATOR |
6-10 |
LJ5249001 |
1 |
GUIDE ACTUATOR SPRING |
6-11 |
LJ5250001 |
1 |
DX PAPER ACTUATOR |
6-12 |
LJ5251001 |
1 |
PAPER ACTUATOR SPRING |
6-13 |
LJ5616001 |
1 |
SHOULDER TAPTITE, BIND B 3X7.5A |
6-14 |
085310815 |
3 |
TAPTITE, BIND B M3X8 |
6-15 |
060300415 |
1 |
SCREW, BIND M3X4 |
6-16 |
085310515 |
1 |
TAPTITE, BIND M3X5 |
7 |
LJ5237001 |
1 |
DRIVE GEAR 14 |
MODEL HL-1850/1870N 84U-Z23/Z24-042
- 5 -
4. DUPLEX
|
|
5 |
|
|
|
|
|
|
|
|
1-5 |
|
1 |
1-5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
1-2 |
1-6 |
|
|
|
|
|
|
|
|
1-2 |
|
|
1-4 |
|
|
|
|
|
|
|
|
1-1 |
|
|
|
2 |
|
|
|
1-3 |
|
|
|
1-3 |
|
|
|
|
|
|
|
|
|
2-1 |
|
|
|
|
|
|
6 |
|
|
|
|
|
6-14 |
6-14 |
|
6-15 |
|
|
|
|
|
||
2-2 |
|
6-3 |
|
|
|
2-3 |
|
|
|
6-14 |
|
|
6-13 |
|
|
6-1 |
|
|
6-7 |
|
|
||
3 |
|
|
|
||
|
|
|
|
||
|
|
|
|
|
|
|
|
6-6 |
|
|
|
|
6-5 |
6-10 |
6-2 |
6-1 |
6-2 |
|
|
|
|||
|
6-9 |
6-12 |
|
|
|
|
6-11 |
|
|
|
|
4 |
|
6-8 |
|
|
|
|
|
|
|
6-4 |
|
|
|
|
|
|
|
|
6-16 |
|
|
|
7 |
MODEL |
HL-1850/1870N 84U-Z23/Z24-042 |
|
|
|
|
|
- 6 - |
|
|
|
|
5. PAPER CASSETTE |
|
|
PR2002029 |
|
REF.NO. |
CODE |
Q'TY |
DESCRIPTION |
REMARK |
1 |
LJ7090001 |
1 |
PAPER TRAY ASSY HE BRO |
CHNG |
1-1 |
LJ4537001 |
1 |
PRESSURE PLATE ASSY LGL |
|
1-2 |
UL9077001 |
2 |
PERSSURE PLATE SPRING |
|
1-3 |
UL9078001 |
1 |
SIDE GUIDE L |
|
1-4 |
UL9079001 |
1 |
SIDE GUIDE R |
|
1-5 |
UL9080001 |
2 |
SIDE GUIDE RACK |
|
1-6 |
UL9081001 |
1 |
SIDE GUIDE GEAR |
|
1-7 |
UL9082001 |
1 |
FRICTION SPRING |
*2 A component part of the |
1-8 |
LJ5919001 |
1 |
PAD HOLDER ZLH ASSY JPN *2 |
|
1-9 |
LJ5923001 |
1 |
SEPARATION PAD SPRING 350 |
PAPER FEEDING KIT. |
1-10 |
LJ5259001 |
1 |
PAPER INDICATOR |
Refer to "16. PERIODICAL |
1-11 |
UL9092001 |
1 |
LOCK LEVER |
MAINTENCE PARTS". |
1-12 |
UL9095001 |
1 |
HELICAL EXTENSION SPRING |
|
1-13 |
LJ4196001 |
1 |
PRESSURE ROLLER HOLDER |
|
1-14 |
LJ5260001 |
1 |
PRESSURE ROLLER COLLAR |
|
1-15 |
LJ5261001 |
1 |
PRESSURE ROLLER SHAFT |
|
1-16 |
LJ4197001 |
1 |
PAPER TRAY COVER |
|
1-17 |
LJ4272001 |
1 |
TRAY COVER FILM |
|
1-18 |
LJ4221001 |
1 |
SCRATCH SPONGE HOLDER ASSY |
|
1-19 |
LJ4200001 |
2 |
SCRATCH SPONGE SPRING |
|
1-20 |
LJ5011001 |
1 |
TRAY LOCK LEVER |
|
1-21 |
UL9083001 |
1 |
PAPER REAR GUIDE |
|
1-22 |
UU0231001 |
1 |
TAPTITE, PAN B M3X8 |
|
1-23 |
087310815 |
1 |
TAPTITE, CUP B M3X8 |
|
1-24 |
UF8709001 |
1 |
TAPTITE, TORX PAN B M3X8 |
|
|
|
|
|
|
MODEL HL-1850/1870N 84U-Z23/Z24-045
T/I NO .PR2002029
- 8 -
5. PAPER CASSETTE
1 |
|
|
1-3 |
|
1-4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
1-8 |
|
|
|
1-1 |
|
1-21 |
|
|
1-9 |
|
|
|
|
1-14 |
1-15 |
|
|
|
|
1-18 |
|
|
1-2 |
1-19 |
|
|
|
|
|
|
|
|
|
|
1-13 |
1-20 |
|
|
1-12 |
|
|
|
|
|
|
1-22 |
|
|
|
1-10 |
|
|
|
|
|
|
|
|
1-11 |
|
1-7 |
|
1-24 |
|
|
1-6 |
1-16 |
1-17 |
|
|
1-5 |
|
|
|
|
1-23 |
|
|
|
|
|
MODEL |
HL-1850/1870N |
84U-Z23/Z24-046 |
|
|
|
- 7 - |
|
|
6. FIXING UNIT
REF.NO. |
CODE |
Q'TY |
DESCRIPTION |
REMARK |
1 |
LJ7005001 |
1 |
FIXING UNIT, 115V (SP) |
|
1 |
LJ7006001 |
1 |
FIXING UNIT, 230V (SP) |
|
1-3 |
LJ5937001 |
1 |
HEAT ROLLER 25 HE |
|
1-4 |
UL8908001 |
2 |
HR BEARING 25 |
|
1-5 |
LJ5939001 |
1 |
HALOGEN LAMP, 115V HE |
|
1-5 |
LJ5944001 |
1 |
HALOGEN LAMP, 230V HE |
|
1-6 |
LJ5276001 |
2 |
EJECT PINCH ROLLER HOLDER L |
|
1-7 |
LJ5277001 |
2 |
EJECT PINCH ROLLER HOLDER R |
|
1-8 |
LJ5540001 |
8 |
EJECT PINCH ROLLER F |
|
1-9 |
LJ5279001 |
4 |
EJECT PINCH SPRING |
|
1-10 |
LJ5280001 |
4 |
PICK OFF FINGER ASSY 2 |
|
1-11 |
LJ5942001 |
1 |
THERMISTOR ASSY HE |
|
1-12 |
UL8916001 |
2 |
PR BUSH |
|
1-13 |
LJ5984001 |
2 |
PR SPRING HE |
|
1-14 |
LJ5268001 |
5 |
CLEANER PINCH ROLLER ASSY |
|
1-15 |
LJ5287001 |
1 |
PRESSURE ROLLER 25 |
|
1-16 |
LJ8949001 |
1 |
THERMISTOR RELAY PCB ASSY |
|
1-17 |
LJ5289001 |
1 |
PAPER EJECT ACTUATOR |
|
1-18 |
LJ5066001 |
1 |
EJECT ACTUATOR SPRING |
|
1-19 |
LJ8366001 |
1 |
EJECT SENSOR PCB ASSY |
|
1-20 |
087310615 |
1 |
TAPTITE, CUP B M3X6 |
|
1-21 |
087311215 |
1 |
TAPTITE, CUP B M3X12 |
|
1-22 |
085311015 |
1 |
SCREW, BIND B TITE 3X10 |
|
1-23 |
LJ8405001 |
1 |
HEATER HARNESS ASSY |
|
1-24 |
LJ5938001 |
1 |
HR GEAR 34 HE |
|
1-25 |
LJ5941001 |
2 |
SCREW, PAN (WASHER) M2.6X6 |
|
|
|
|
|
|
MODEL HL-1850/1870N 84U-Z23/Z24-050
- 10 -
6. FIXING UNIT |
|
|
|
1 |
|
1-9 |
|
|
|
|
|
|
1-18 |
|
|
|
1-9 |
|
|
|
|
|
1-23 |
|
|
|
1-7 |
1-17 |
|
1-8 |
1-20 |
|
|
||
|
1-6 |
|
|
|
1-8 |
|
1-10 |
|
|
|
|
|
|
|
1-25 |
|
|
|
1-14 |
|
|
|
1-4 |
|
|
1-11 |
1-21 |
|
|
1-2 |
|
|
1-19 |
1-3 |
|
|
1-1 |
|
|
|
|
|
|
1-16 |
1-25 |
|
1-5 |
1-4 |
|
|
|
1-22 |
|
|
|
|
|
|
1-12 |
|
|
|
1-13 |
1-24 |
|
|
|
|
|
|
1-15 |
|
1-12 |
|
|
|
1-13 |
|
|
|
MODEL |
HL-1850/1870N |
84U-Z23/Z24-050/051 |
|
|
- 9 - |
|
7. COVERS
REF.NO. CODE Q'TY |
DESCRIPTION |
REMARK |
1LJ5004001 1 SIDE COVER R
2LJ5630001 1 SIDE COVER L ASSY
3LJ5291001 1 PAPER STOPPER
4LJ5599001 1 PAPER STOPPER S
5 |
LJ5293001 |
1 |
TOP COVER |
6 |
LJ5294001 |
1 |
PANEL COVER ASSY |
6-1 |
LJ5295001 |
1 |
PANEL COVER |
6-2 |
LJ5296001 |
1 |
PANEL LIGHT GUIDE |
6-3 |
LJ5297001 |
1 |
KEY |
6-4 |
LJ5298001 |
1 |
KEY TOP A |
6-5 |
LJ5299001 |
1 |
KEY TOP B |
6-6 |
LJ8361001 |
1 |
PANEL PCB ASSY |
6-7 |
LJ5301001 |
1 |
LCDLMG161S6-TPT |
6-8 |
LJ8362001 |
1 |
BACK LIGHT PCB ASSY |
6-9 |
LJ5073001 |
1 |
DIFFUSION FILM |
6-10 |
LJ5302001 |
1 |
LCD HOLDER |
6-11 |
087310815 |
3 |
TAPTITE, CUP B M3X8 |
6-12 |
087311015 |
3 |
TAPTITE, CUP B M3X10 |
7LJ5006001 1 ACCESS COVER
8LJ5007001 1 REAR COVER R
9LJ5008001 1 REAR COVER L
10LJ5030001 1 BROTHER EMBLEM
11LJ5955001 1 PRINTED LCD COVER ASSY 1850
11LJ5995001 1 PRINTED LCD COVER ASSY 1870N
12LJ5579001 1 LASER CAUTION LABEL H
13LJ5933001 1 HEATER CAUTION LABEL REAR
14LJ5898001 1 MYLAR LABEL 1850 FRONT
16 |
UH0905001 |
1 |
PATENT LABEL (US) |
16 |
LJ4421001 |
1 |
MARKING LABEL N/S (Norway/Sweden) |
16 |
LJ4541001 |
1 |
HOT LINE LABEL (Swiss) |
16UH3297001 1 C-TICK MARK (Australia)
17UF9823001 6 SHOULDER SCREW
MODEL HL-1850/1870N 84U-Z23/Z24-060
- 12 -

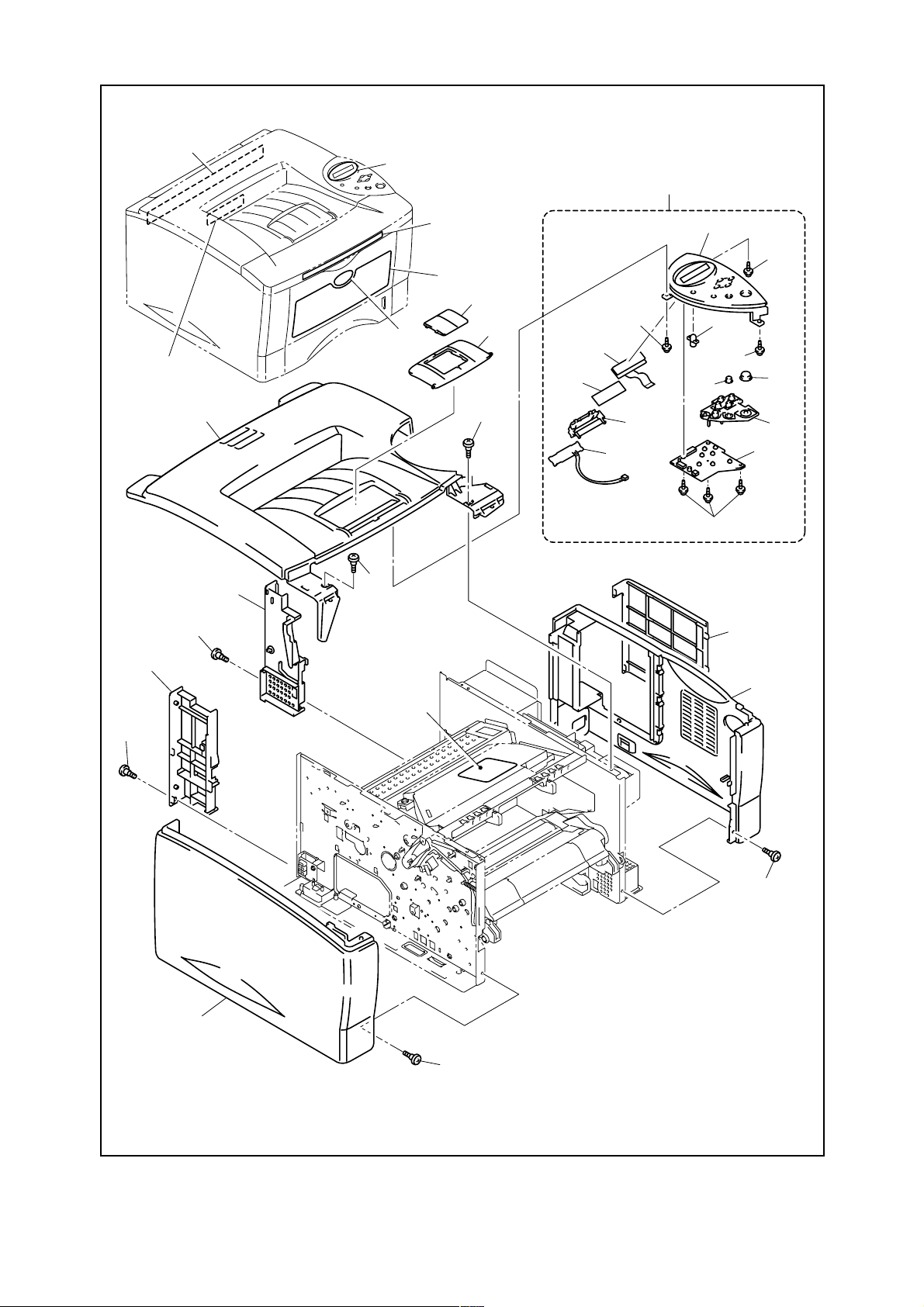

7. COVERS
13 |
11 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
6 |
|
|
|
15 |
|
|
6-1 |
|
|
|
|
|
|
|
6-11 |
|
|
14 |
|
|
|
|
|
|
4 |
|
|
|
|
|
10 |
|
3 |
6-11 |
6-2 |
|
|
|
|
|
|||
|
|
6-7 |
|
|
|
|
16 |
|
|
|
6-11 |
|
|
|
|
|
|
|
||
|
|
6-9 |
|
|
6-4 |
|
|
|
|
|
6-5 |
||
5 |
|
17 |
6-10 |
|
6-3 |
|
|
|
|
|
|
||
|
|
|
|
6-8 |
|
6-6 |
|
|
|
|
|
6-12 |
|
17 |
|
|
|
|
|
|
9 |
|
|
|
|
|
|
17 |
|
|
|
|
7 |
|
8 |
|
|
|
|
|
|
|
|
|
|
|
|
2 |
|
12 |
|
|
|
|
|
17 |
|
|
|
|
|
|
|
|
|
|
|
|
17 |
1 |
|
|
|
|
|
|
|
|
17 |
|
|
|
|
MODEL |
HL-1850/1870N |
84U-Z23/Z24-061 |
|
|
|
|
|
|
- 11 - |
|
|
|
|
8. MAIN PCB
REF.NO. |
CODE |
Q'TY |
DESCRIPTION |
SYMBOL |
REMARK |
1 |
LJ8944001 |
1 |
MAIN PCB ASSY 1850 / 1870N |
B512078-460 |
|
1-1 |
LJ8905001 |
1 |
DIMM 16M |
|
|
|
|
|
|
|
|
MODEL HL-1850/1870N 84U-Z23/Z24-010
- 14 -
8. MAIN PCB
|
1-1 |
|
1 |
MODEL |
HL-1850/1870N 84U-Z23/Z24-101 |
|
- 13 - |
9. ENGINE PCB
REF.NO. |
CODE |
Q'TY |
DESCRIPTION |
SYMBOL |
REMARK |
1 |
LJ8947001 |
1 |
ENGINE PCB ASSY 1850 / 1870N |
B512079-211 |
|
|
|
|
|
|
|
MODEL HL-1850/1870N 84U-Z23/Z24-051
10. LOW-VOLTAGE POWER SUPPLY PCB
REF.NO. |
CODE |
Q'TY |
DESCRIPTION |
REMARK |
1 |
LJ8388001 |
1 |
PS PCB ASSY ZLH, 115V |
|
1LJ8389001 1 PS PCB ASSY ZLH, 230V
2LJ8424001 1 POWER SWITCH RIGHT ANGLE
3LJ8391001 1 INLET HARNESS ASSY, 115V
4 |
LJ8723001 |
2 TAPE 50X40 |
5087320615 3 SCREW, CUP S TITE 3X6
60A5350606 1 SCREW, PAN M3.5X6 (S/P WASHER)
MODEL HL-1850/1870N 84U-Z23/Z24-200
- 16 -
9. ENGINE PCB
|
|
1 |
MODEL |
HL-1850/1870N |
84U-Z23/Z24-151 |
10. LOW-VOLTAGE POWR SUPPLY PCB
|
|
3 |
4 |
|
|
5 |
|
|
|
|
|
|
6 |
2 |
|
|
|
|
5 |
|
|
|
1 |
MODEL |
HL-1850/1870N |
84U-Z23/Z24-201 |
|
|
- 15 - |
|
|
11. HIGH-VOLTAGE POWER SUPPLY PCB
REF.NO. CODE Q'TY |
DESCRIPTION |
REMARK |
1LJ8422001 1 HIGH-VOLTAGE PS PCB ASSY ZLH
2085411015 1 TAPTITE, BIND B M4X10
MODEL HL-1850/1870N 84U-Z23/Z24-220
12. AC CORDS
REF.NO. |
CODE |
Q'TY |
DESCRIPTION |
REMARK |
1A |
LJ8875001 |
1 |
AC CORD, UL/CSA |
|
1B |
LJ8879001 |
1 |
AC CORD ASSY, SAA |
|
1C |
LJ8877001 |
1 |
AC CORD ASSY, SEV |
|
1E |
UH1054001 |
1 |
AC CORD, BS |
|
1F |
U34322001 |
1 |
AC CORD #6, ISRAEL |
|
1G |
UK4094001 |
1 |
AC CORD, DEMKO |
|
1H |
LJ8876001 |
1 |
AC CORD ASSY, VDE |
|
1I |
LJ8288001 |
1 |
AC CORD ASSY, SOUTH AFRICA |
|
|
|
|
|
|
MODEL HL-1850/1870N 84U-Z23/Z24-230
- 18 -
11. HIGH-VOLTAGE POWER SUPPLY PCB
|
|
1 |
|
|
2 |
MODEL |
HL-1850/1870N |
84U-Z23/Z24-220 |
12. AC CORDS
1A
1F
1B |
1G |
1C |
1H |
1D |
1I |
1E
MODEL HL-1850/1870N 84U-Z23/Z24-230
- 17 -
13. ACCESSORIES |
|
|
|
PR2002069 |
|
REF.NO. |
CODE |
Q'TY |
DESCRIPTION |
|
REMARK |
1 |
LJ5947001 |
1 |
CD ASSY 1850/1870N |
Ver.B |
Ver.CHNG |
2 |
LJ5948001 |
1 |
SET GUIDE HE US |
|
|
2 |
LJ7029001 |
1 |
SET GUIDE HE FRE |
|
|
2 |
LJ5961001 |
1 |
SET GUIDE HE GER |
|
|
2 |
LJ7033001 |
1 |
SET GUIDE HE NOR |
|
|
2 |
LJ7030001 |
1 |
SET GUIDE HE NL |
|
|
2 |
LJ7035001 |
1 |
SET GUIDE HE DEN |
|
|
2 |
LJ7032001 |
1 |
SET GUIDE HE SPA |
|
|
2 |
LJ7031001 |
1 |
SET GUIDE HE ITA |
|
|
2LJ7034001 1 SET GUIDE HE SWE
3LJ5996001 1 WIN DRIVER GUIDE US
3 |
LJ7036001 |
1 |
WIN DRIVER GUIDE FRE |
3 |
LJ5997001 |
1 |
WIN DRIVER GUIDE GER |
3 |
LJ7040001 |
1 |
WIN DRIVER GUIDE NOL |
3 |
LJ7037001 |
1 |
WIN DRIVER GUIDE NL |
3 |
LJ7042001 |
1 |
WIN DRIVER GUIDE DEN |
3 |
LJ7039001 |
1 |
WIN DRIVER GUIDE SPA |
3 |
LJ7038001 |
1 |
WIN DRIVER GUIDE ITA |
3LJ7041001 1 WIN DRIVER GUIDE SWE
4LJ5998001 1 MAC DRIVER GUIDE US
4 |
LJ7043001 |
1 |
MAC DRIVER GUIDE FRE |
4 |
LJ5999001 |
1 |
MAC DRIVER GUIDE GER |
4 |
LJ7047001 |
1 |
MAC DRIVER GUIDE NOR |
4 |
LJ7044001 |
1 |
MAC DRIVER GUIDE NL |
4 |
LJ7049001 |
1 |
MAC DRIVER GUIDE DEN |
4 |
LJ7046001 |
1 |
MAC DRIVER GUIDE SPA |
4 |
LJ7045001 |
1 |
MAC DRIVER GUIDE ITA |
4LJ7048001 1 MAC DRIVER GUIDE SWE
5LJ4961001 1 BAG, 215X350H
MODEL HL-1850/1870N 84U-Z23/Z24-920
T/I NO. PR2002069
- 20 -
13. ACCESSORIES
1 |
|
|
2 |
|
3 |
|
4 |
5 |
|
MODEL |
HL-1850/1870N 84U-Z23/Z24-920 |
|
- 19 - |
14. PACKING MATERIALS
REF.NO. |
CODE |
Q'TY |
DESCRIPTION |
REMARK |
1 |
LL0540001 |
1 |
CARTON, HL-1850 US |
|
1 |
LL0543001 |
1 |
CARTON, HL-1870N US |
|
1 |
LL0541001 |
1 |
CARTON, HL-1850 EUR |
|
1LL0544001 1 CARTON, HL-1870N EUR
2LL0282001 1 STYROFORM PAD ASSY
4LJ5583001 1 BAG, 800X900H
5LJ5557001 1 PROCESS BAG 400X480
MODEL HL-1850/1870N 84U-Z23/Z24-930
15. NETWORK BOARD
REF.NO. |
CODE |
Q'TY |
DESCRIPTION |
SYMBOL |
REMARK |
1 |
LJ8671001 |
1 |
BRNET PCB UNIT 4100H |
B512058-211A |
|
1-1 |
087320616 |
2 |
TAPTITE, CUP S M3X6 |
|
|
|
|
|
|
|
|
MODEL HL-1870N 84U-Z24-150
- 22 -
14. PACKING MATERIALS
|
|
2 |
|
2 |
4 |
|
|
|
3 |
|
|
5 |
|
|
|
1 |
|
MODEL |
HL-1850/1870N |
84U-Z23/Z24-930 |
15. NETWORK BOARD
1
1-1
1-1
MODEL HL-1870N 84U-Z24
- 21 -
16. PERIODICAL MAINTENANCE PARTS
REF.NO. |
CODE |
Q'TY |
|
DESCRIPTION |
|
REMARK |
|
1 |
LJ5927001 |
1 |
PAPER FEEDING KIT |
|
|
||
1-1 |
LJ5016001 |
1 |
PAPER PICK-UP ROLLER ASSY *1 |
|
|
||
1-2 |
LJ5919001 |
1 |
PAD HOLDER ZLH ASSY *2 |
|
|
||
|
|
|
|
|
|
|
|
|
|
|
*1 |
Refer to "3. |
PAPER FEEDER / MP UNIT". |
|
|
|
|
|
*2 |
Refer to "5. |
PAPER CASSETTE". |
|
|
|
|
|
|
|
|
|
|
MODEL HL-1850/1870N 84U-Z23/Z24-010
- 24 -
16. PERIODICAL MAINTENANCE PARTS
|
|
1 |
1-1 |
|
|
|
|
1-2 |
MODEL |
HL-1850/1870N |
84U-Z23/Z24 |
|
|
- 23 - |
Loading...
