Brother DCP-J4110DW Setup Guide
Quick Setup Guide
WARNING
DCP-J4110DW
Start Here
Please read the Product Safety Guide first before you set up your machine. Then, please read this Quick Setup
Guide for the correct setup and installation.
WARNING
CAUTION
IMPORTANT
NOTE
Unpack the machine
1
WARNING indicates a potentially hazardous situation which, if not avoided, could result in death
or serious injuries.
CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor
or moderate injuries.
IMPORTANT indicates a potentially hazardous situation which, if not avoided, may result in
damage to property or loss of product functionality.
Notes tell you how you should respond to a situation that may arise or give tips about how the
operation works with other features.
Plastic bags are used in the packing of your machine. To avoid the danger of suffocation, keep these
plastic bags away from babies and children. Plastic bags are not toys.
a Remove the protective tape and film covering the machine, and also from the Touchscreen.
CEE-ENG Version 0
1
Load plain A4 paper
CAUTION
NOTE
IMPORTANT
2
DO NOT carry the machine by holding the scanner
cover, the Jam Clear Cover, the manual feed slot
cover, or the control panel. Doing this may cause
the machine to slip out of your hands. Carry the
machine by sliding your hands into the handhold
indentations located on each side of the machine.
For detailed information, see the Product Safety
Guide.
a Pull the paper tray completely out of the
machine.
b Open the output paper tray cover.
c Gently press and slide the paper guides a to fit
the paper size. Make sure that the triangular
mark b on the paper guide a lines up with the
mark for the paper size you are using.
e Gently put the paper into the paper tray print
side down and top edge first.
Be careful that you do not push the paper in too
far; it may lift at the back of the tray and cause
paper feed problems.
f Gently adjust the paper guides to fit the paper.
Make sure that the paper guides touch the
edges of the paper.
1
2
d Fan the stack of paper well to avoid paper jams
and misfeeds.
Always make sure that the paper is not curled or
wrinkled.
g Check that the paper is flat in the tray and
below the maximum paper mark. Close the
output paper tray cover.
h Slowly push the paper tray completely into the
machine.
2
i While holding the paper tray in place, pull out
WARNING
NOTE
1
IMPORTANT
NOTE
the paper support until it clicks, and then unfold
the paper support flap.
For printing and copying on special media, open
the manual feed slot a on the back of the
machine. Feed only one sheet at a time of A3,
Ledger, Legal, envelopes, or thicker paper when
using the manual feed slot.
For details, see Loading paper in the manual feed
slot in chapter 2 of the Basic User’s Guide.
Connect the power cord
3
The machine must be fitted with an earthed
plug.
DO NOT connect the USB cable yet (if you are
using a USB cable).
a Connect the power cord.
The Warning LED on the control panel will stay on
until you have installed the ink cartridges.
Choose your language
4
a
Press your language
b Press Yes or No.
.
3
Install the ink cartridges
CAUTION
NOTE
NOTE
1
1
IMPORTANT
5
If ink gets in your eyes, wash it out with water at
once and call a doctor if you are concerned.
Make sure you install the Introductory Ink
Cartridges included with your machine first.
a Make sure that the power is turned on.
You can adjust the angle of the control panel by
lifting it. When lowering the control panel, make
sure you push the release button a that is
located behind the mark.
c Remove the orange protective part.
d Unpack the ink cartridge.
Turn the green release lever on the orange
protective packing a counterclockwise until it
clicks to release the vacuum seal. Then
remove the orange protective packing a as
shown.
2
1
b Open the ink cartridge cover a.
2
1
• DO NOT shake the ink cartridges. If ink stains
your skin or clothing, wash with soap or
detergent at once.
• DO NOT touch the cartridge in the area
indicated b, as this can cause the machine not
to function with the cartridge.
4
e Take care to match the sticker colour with the
NOTE
cartridge colour.
Install each ink cartridge in the direction of the
arrow on the label.
7
Choose your language (if needed)
f Gently push the back of the ink cartridge
marked “PUSH” until the cartridge lever lifts.
After all the ink cartridges are installed close
the ink cartridge cover.
The machine will prepare the ink tube system for
printing. This process will take approximately four
minutes. Do not turn off the machine.
Check the print quality
6
a When the preparation process has finished, the
Touchscreen shows Set Paper and Press
Start.
Press Start.
b Check the quality of the four colour blocks on
the sheet. (black/yellow/cyan/magenta)
c If all lines are clear and visible, press Yes to
finish the quality check and go to the next step.
If you can see missing short lines, press No and
follow the steps on the Touchscreen.
a Press Settings.
b Press s or t to display Initial Setup.
Press Initial Setup.
c Press s or t to display Local Language.
Press Local Language.
d Press your language.
e Press .
Set the date and time
8
a Press Settings.
b Press s or t to display Initial Setup.
Press Initial Setup.
c Press Date & Time.
d Press Date & Time.
Enter the last two digits of the year on the
Touchscreen, and then press OK.
To move the cursor to the left, press and
re-enter the number.
e Repeat for month/day/time in 24-hour format.
f Press .
5
Set the Time Zone
9
You can set the time zone on the machine for your
location.
a Press Settings.
b Press s or t to display Initial Setup.
Press Initial Setup.
c Press Date & Time.
d Press Time Zone.
e Enter your time zone.
Press OK.
f Press .
6
Choose your connection type
NOTE
10
These installation instructions are for Windows®XP Home, XP Professional, XP Professional x64 Edition,
Windows Vista
• For Windows Server® 2003/2008/2008 R2, the drivers can be found from your model’s download page at
http://solutions.brother.com/
• If your computer does not have a CD-ROM drive you can download the latest drivers, manuals and utilities
for your model from the Brother Solutions Center at http://solutions.brother.com/
applications included on the CD-ROM may not be available as a download.
• For the latest drivers and information, visit http://solutions.brother.com/
®
, Windows®7, and Mac OS X v10.5.8, 10.6.x, 10.7.x.
.
For USB interface cable
. Some software
.
Windows
Windows®, go to page 8
Macintosh, go to page 10

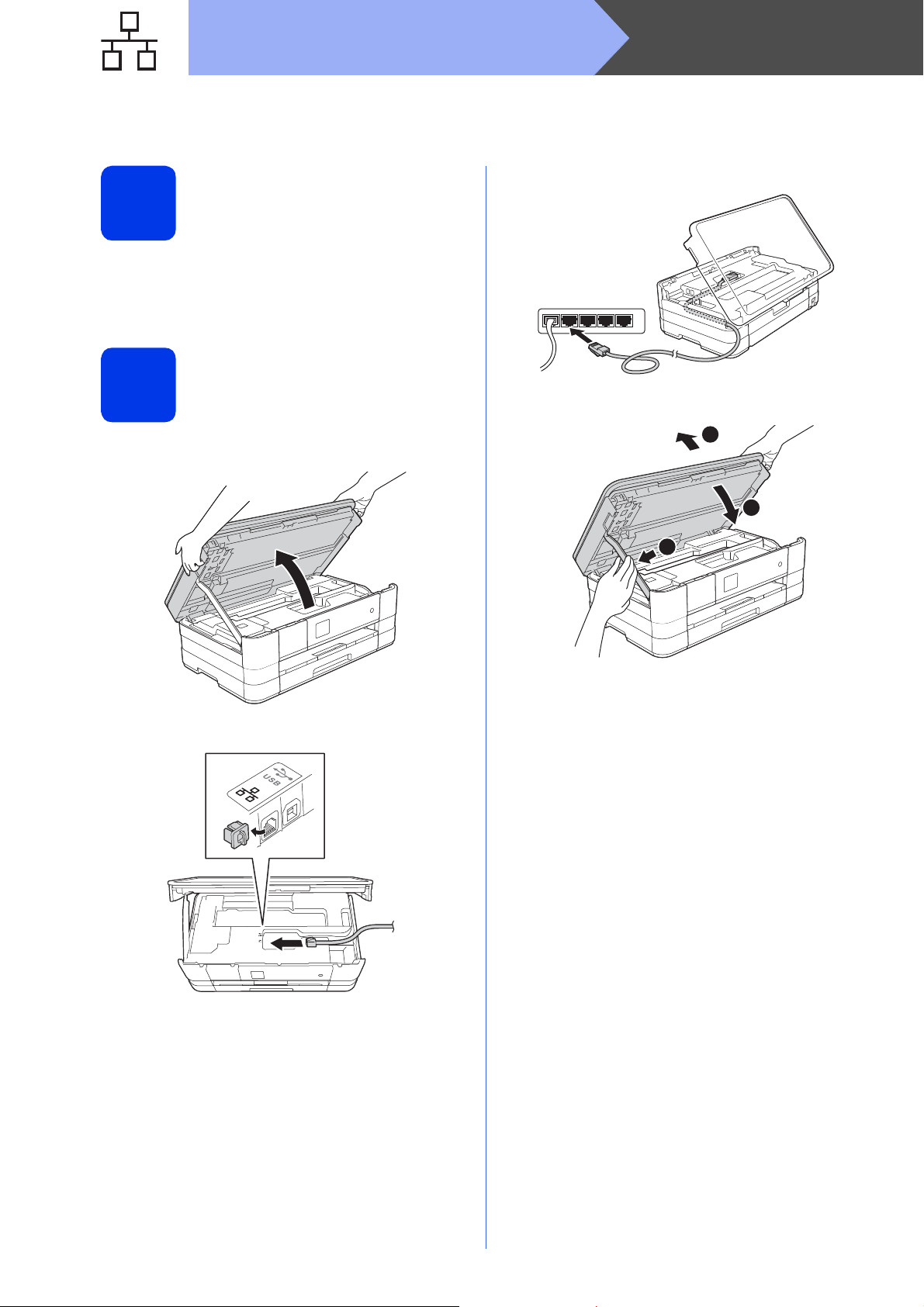

For Wired Network
Windows®, go to page 12
Macintosh, go to page 14
®
USB Wired Network
Macintosh
Windows
®
Macintosh
Wireless Network
For Wireless Network
Windows® and Macintosh,
go to page 16
7
USB
For USB interface users
(Windows®XP Home/XP Professional/Windows Vista®/Windows®7)
Windows
®
Before you install
11
Make sure that your computer is ON and you are
logged on with Administrator rights.
Install MFL-Pro Suite
12
a Put the supplied installation CD-ROM into your
CD-ROM drive. Follow the on-screen
instructions.
b The CD-ROM Top menu will appear.
Click Install MFL-Pro Suite and click Yes if
you accept the license agreements. Follow the
on-screen instructions.
c Choose Local Connection (USB), and then
click Next. The installation continues.
Connect the USB cable
13
a
b
d When this screen appears, go to the next step.
8
