USER’S GUIDE

DCP-350C DCP-353C DCP-357C DCP-560CN

If you need to call Customer Service

Please complete the following information for future reference:

Model Number: DCP-350C, DCP-353C, DCP-357C and DCP-560CN (Circle your model number)

Serial Number:

Date of Purchase:

Place of Purchase:

The serial number is on the back of the unit. Retain this User's Guide with your sales receipt as a permanent record of your purchase, in the event of theft, fire or warranty service.

http://www.brother.com/registration/

By registering your product with Brother, you will be recorded as the original owner of the product. Your registration with Brother:

 may serve as confirmation of the purchase date of your product

should you lose your receipt; and

 may support an insurance claim by you in the event of product loss

covered by insurance.

Approval Information and Compilation and Publication Notice

Under the supervision of Brother Industries Ltd., this manual has been compiled and published, covering the latest product descriptions and specifications.

The contents of this manual and the specifications of this product are subject to change without notice.

Brother reserves the right to make changes without notice in the specifications and materials contained herein and shall not be responsible for any damages (including consequential) caused by reliance on the materials presented, including but not limited to typographical and other errors relating to the publication.

EC Declaration of Conformity under the R & TTE Directive

Section I General

1 General Information 2

Using the documentation....................................................................................... 2

Symbols and conventions used in the documentation .................................... 2

Accessing the Software User’s Guide and Network User’s Guide ........................3

Viewing Documentation...................................................................................3

Control panel overview ..........................................................................................6

LCD display indications...................................................................................8

Basic Operations .............................................................................................8

Warning LED indications.................................................................................9

Printing Reports...............................................................................................9

2 Loading documents and paper 10

Loading documents .............................................................................................10

Using the ADF (DCP-560CN only) ................................................................10

Using the scanner glass ................................................................................11

Scannable area ............................................................................................. 11

Acceptable paper and other media......................................................................12

Recommended media ...................................................................................12

Handling and using media .............................................................................13

Choosing the right media...............................................................................14

Loading paper and other media...........................................................................16

Loading envelopes and post cards................................................................18

Loading photo paper...................................................................................... 20

Removing small printouts from the machine .................................................21

Printable area ................................................................................................22

3 General setup 23

Paper settings......................................................................................................23

Paper Type ....................................................................................................23

Paper Size .....................................................................................................23

LCD display .........................................................................................................24

LCD Contrast.................................................................................................24

Setting the backlight brightness.....................................................................24

Setting the Dim Timer for the backlight ........................................................25

Setting the Off Timer .....................................................................................25

iii

Section II Copy

4 Making copies 28

How to copy .........................................................................................................28

Making a single copy.....................................................................................28

Making multiple copies ..................................................................................28

Stop copying..................................................................................................28

Copy options........................................................................................................28

Changing copy speed and quality .................................................................29

Enlarging or reducing the image copied ........................................................29

Making N in 1 copies or a poster (page layout) ............................................30

Sorting copies using the ADF (DCP-560CN only) .........................................31

Adjusting Brightness, Contrast and Colour....................................................31

Paper options ................................................................................................32

Setting your changes as a new default..........................................................32

Restoring all settings to the factory settings ..................................................32

Section III Direct Photo Printing

Printing photos from a memory card or USB Flash memory drive

PhotoCapture Center™ Operations.....................................................................34

Printing from a memory card or USB Flash memory drive without a PC .......34

Scanning to a memory card or USB Flash memory drive without a PC ........34

Using PhotoCapture Center™ from your computer.......................................34

Using a memory card or USB Flash memory drive .......................................34

Memory cards or a USB Flash memory drive folder structure .......................35

Getting started .....................................................................................................36

Entering PhotoCapture mode........................................................................37

Print Images.........................................................................................................37

View Photo(s) ................................................................................................37

Print Index (Thumbnails) ...............................................................................37

Print Photos ...................................................................................................38

Photo Effects .................................................................................................39

Search by Date..............................................................................................41

Print All Photos..............................................................................................42

Slide show .....................................................................................................42

Trimming........................................................................................................43

DPOF printing................................................................................................43

PhotoCapture Center™ print settings..................................................................44

Print Speed and Quality.................................................................................45

Paper options ................................................................................................45

Adjusting Brightness, Contrast and Colour....................................................46

Cropping ........................................................................................................47

Borderless printing.........................................................................................47

Setting your changes as a new default..........................................................47

Restoring all settings to the factory settings ..................................................47

Scan to a memory card or USB Flash memory drive .........................................48

Entering Scan mode ......................................................................................48

How to scan to a memory card or USB Flash memory drive.........................48

Understanding the Error Messages .....................................................................49

6 Printing photos from a camera 50

Printing photos directly from a PictBridge camera...............................................50

PictBridge requirements ................................................................................50

Setting your digital camera............................................................................50

Printing Images..............................................................................................51

DPOF printing................................................................................................51

Printing photos directly from a digital camera (without PictBridge)......................52

Printing Images..............................................................................................52

Understanding the Error Messages .....................................................................53

Section IV Software

7 Software and Network features 56

Section V Appendixes

A Safety and Legal 58

Choosing a location.............................................................................................58

To use the machine safely...................................................................................59

Important safety instructions..........................................................................62

IMPORTANT - For your safety ......................................................................63

LAN connection (DCP-560CN only) ..............................................................64

Radio interference .........................................................................................64

EU Directive 2002/96/EC and EN50419........................................................64

Legal limitations for copying ................................................................................65

Trademarks..........................................................................................................66

B Troubleshooting and Routine Maintenance 67

Troubleshooting .................................................................................................. 67

If you are having difficulty with your machine................................................67

Error messages ...................................................................................................71

Changing LCD language ...............................................................................73

Error animation ..............................................................................................73

Document jam (DCP-560CN only) ................................................................73

Printer jam or paper jam ................................................................................74

Routine maintenance...........................................................................................76

Replacing the ink cartridges ..........................................................................76

Cleaning the outside of the machine .............................................................78

Cleaning the scanner.....................................................................................79

Cleaning the machine printer platen..............................................................80

Cleaning the paper pick-up roller...................................................................80

Cleaning the print head .................................................................................81

Checking the print quality ..............................................................................81

Checking the print alignment.........................................................................82

Checking the ink volume ...............................................................................82

Machine Information ............................................................................................83

Checking the serial number...........................................................................83

Packing and shipping the machine ......................................................................83

C Menu and Features 85

On-screen programming ......................................................................................85

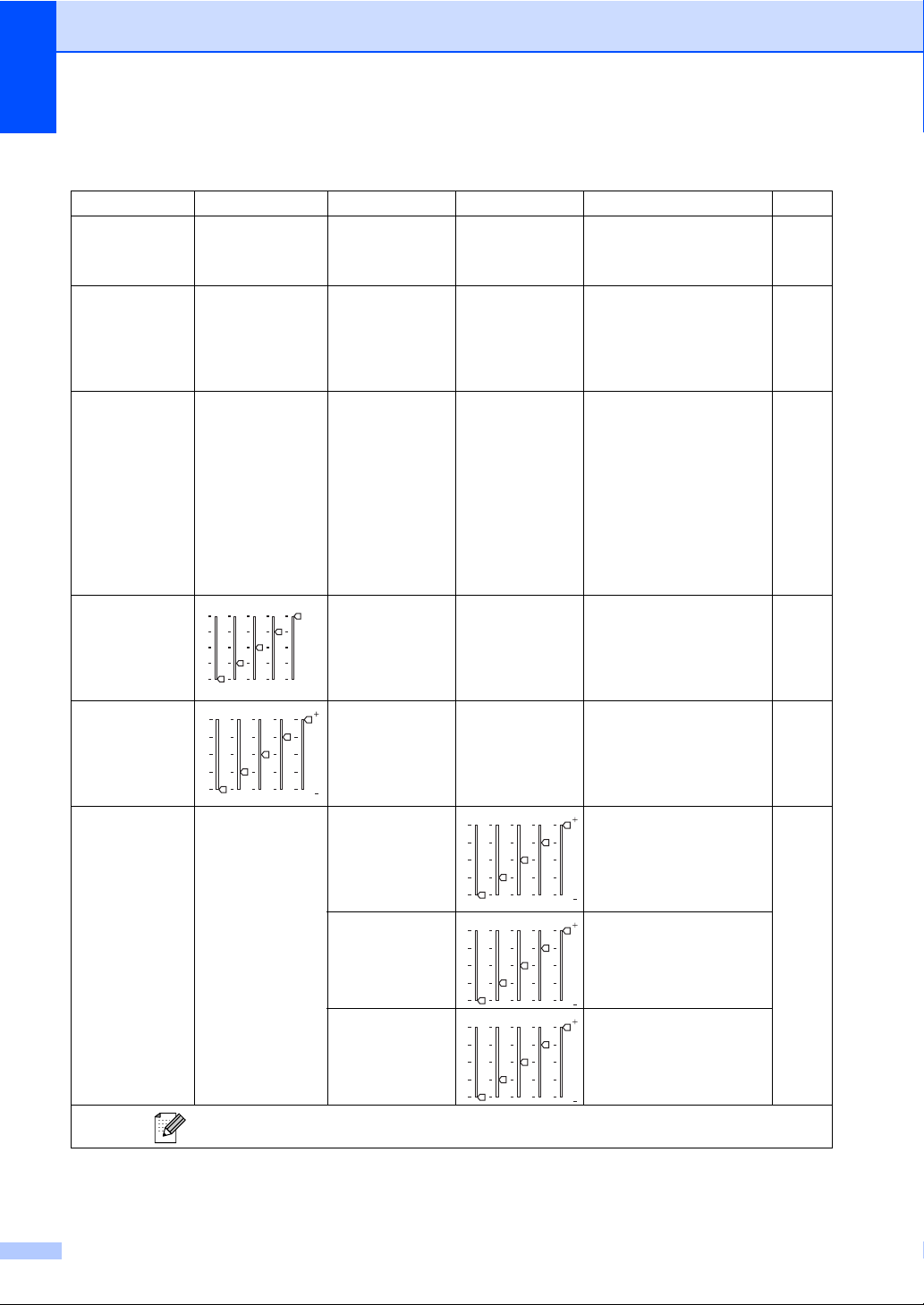

Menu table.....................................................................................................85

Mode and menu keys ..........................................................................................85

Menu table.....................................................................................................86

D Specifications 94

General................................................................................................................94

Print media...........................................................................................................96

Copy ....................................................................................................................97

PhotoCapture Center™ .......................................................................................98

PictBridge ............................................................................................................99

Scanner .............................................................................................................100

Printer ................................................................................................................101

Interfaces ...........................................................................................................102

Computer requirements.....................................................................................103

Consumable items .............................................................................................104

Network (LAN) (DCP-560CN only) ....................................................................105

E Glossary 106

FIndex 107

Section I

General I

General Information 2 Loading documents and paper 10 General setup 23

General Information 1

Using the documentation

Thank you for buying a Brother machine! Reading the documentation will help you make the most of your machine.

Symbols and conventions used in the documentation 1

The following symbols and conventions are used throughout the documentation.

Bold Bold typeface identifies specific

keys on the machine’s control panel.

Italics Italicized typeface emphasizes

an important point or refers you to a related topic.

Courier New

Text in the Courier New font identifies messages on the LCD of the machine.

Warnings tell you what to do to

prevent possible personal injury.

Electrical Hazard icons alert you to possible electrical shock.

Cautions specify procedures you must follow or avoid to prevent possible damage to the machine or other objects.

Notes tell you how you should respond to a situation that may arise or give tips about how the operation works with other features.

Improper Setup icons alert you to devices and operations that are not compatible with the machine.

General Information

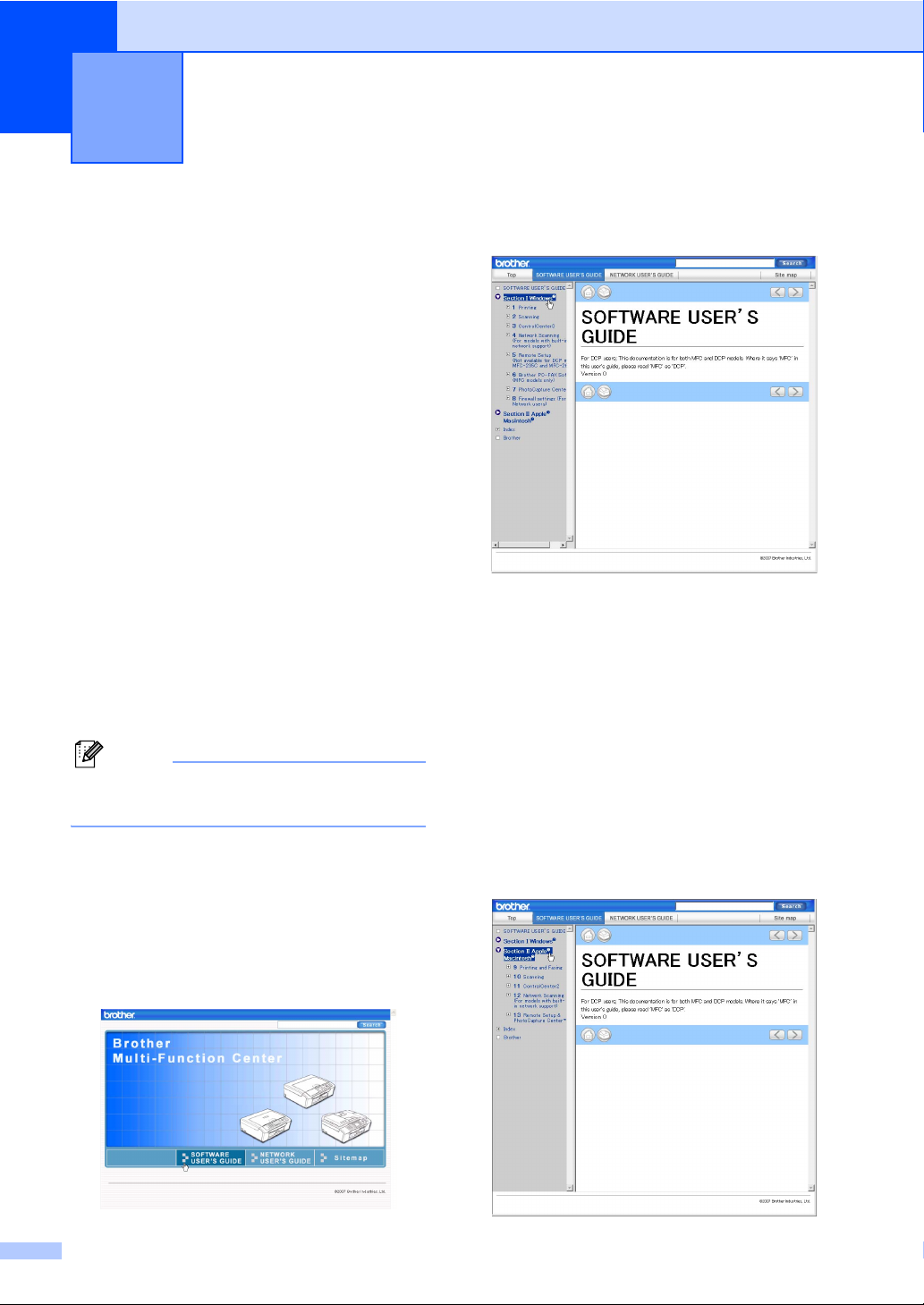

Accessing the Software User’s Guide and Network User’s Guide

This User’s Guide does not contain all the information about the machine such as how to use the advanced features of Printer, Scanner and Network (DCP-560CN only). When you are ready to learn detailed information about these operations, read the

Software User’s Guide and Network User’s Guide.

Viewing Documentation 1

Viewing Documentation (For Windows®) 1

To view the documentation, from the Start menu, point to Brother, DCP-XXXX (where XXXX is your model name) from the programs group, and then choose User’s Guides in HTML format.

If you have not installed the software, you can find the documentation by following the instructions below:

a Turn on your PC. Insert the Brother

CD-ROM into your CD-ROM drive.

b If the model name screen appears, click

your model name.

c If the language screen appears, click

your language. The CD-ROM main menu will appear.

Note

If this window does not appear, use

Windows program from the root directory of the Brother CD-ROM.

Explorer to run the start.exe

d Click Documentation. e Click the documentation you want to

read.

 HTML documents: Software

User’s Guide and Network User’s Guide in HTML format.

This format is recommended for viewing on your computer.

 PDF documents: User’s Guide for

stand-alone operations, Software

User’s Guide and Network User’s Guide in PDF format.

This format is recommended for printing the manuals. Click to go to the Brother Solutions Center, where you can view or download the PDF documents. (Internet access and PDF Reader software are required.)

Chapter 1

How to find Scanning instructions 1

There are several ways you can scan documents. You can find the instructions as follows:

Software User’s Guide

 Scanning

(For Windows

Professional/Windows Windows Vista™)

 ControlCenter3

(For Windows

Professional/Windows Windows Vista™)

 Network Scanning

(DCP-560CN only)

Scansoft™ PaperPort™ 11SE with OCR How-to-Guides

 The complete ScanSoft™ PaperPort™

11SE with OCR How-to-Guides can be viewed from the Help selection in the ScanSoft™ PaperPort™ 11SE with OCR application.

2000

XP and

Viewing Documentation (For Macintosh®) 1

a Turn on your Macintosh

Brother CD-ROM into your CD-ROM drive. The following window will appear.

. Insert the

b Double-click the Documentation icon. c Double-click your language folder. d Double-click the top page file to view the

Software User’s Guide and Network User’s Guide in HTML format.

e Click the documentation you want to

read.

 Software User’s Guide

 Network User’s Guide

(DCP-560CN only)

How to find Scanning instructions 1

There are several ways you can scan documents. You can find the instructions as follows:

Software User’s Guide

 Scanning

(For Mac OS

 ControlCenter2

(For Mac OS

 Network Scanning

(For Mac OS (DCP-560CN only)

Presto!

PageManager® User’s Guide

 The complete Presto!® PageManager®

User's Guide can be viewed from the Help

selection in the Presto! application.

X 10.2.4 or greater)

PageManager®

General Information

Chapter 1

Control panel overview 1

The DCP-350C, DCP-353C, DCP-357C and DCP-560CN have the same control panel keys.

COPY

Quality

Enlarge/Reduce Paper Type Paper Size

20:48

Brightness

Normal

100% Plain A4 0

1 LCD (liquid crystal display)

Displays messages on the screen to help you set up and use your machine.

Also, you can adjust the angle of the LCD display by lifting it.

2 Number of Copies

Use this key to make multiple copies.

3 Menu keys:

 d or c

Press to scroll backward or forward to a menu selection.

 a or b

Press to scroll through the menus and options.

 Menu

Lets you access the main menu to program the machine.

 OK

Lets you choose a setting.

4 Start keys:

789

 Colour Start

Lets you start making copies in full colour. Also lets you start a scanning operation (in colour or mono, depending on the scanning setting in the ControlCenter software).

 Mono Start

Lets you start making copies in monochrome. Also lets you start a scanning operation (in colour or mono, depending on the scanning setting in the ControlCenter software).

5 Stop/Exit

Stops an operation or exits from a menu.

6On/Off

You can turn the machine on and off.

If you turn the machine off, it will still periodically clean the print head to maintain print quality.

7 Ink Management

Lets you clean the print head, check the print quality, and check the available ink volume.

8 Mode keys

 Scan

Lets you access Scan mode.

 PhotoCapture

Lets you access PhotoCapture Center™ mode.

9 Warning LED

Turns red when the LCD displays an error or an important status message.

General Information

Note

Most of the illustrations in this User’s Guide show the DCP-350C.

Chapter 1

LCD display indications 1

The LCD display screen shows the mode the machine is in, the current settings, and the available ink volume.

COPY

Quality

Enlarge/Reduce Paper Type Paper Size

20:48

Brightness

Normal

100% Plain A4 0

1 Ink indicator

Lets you see the available ink volume.

Basic Operations 1

The following steps show how to change a setting in the machine. In this example the Paper Type setting is changed from Plain Paper to Inkjet Paper.

a Press Menu. b Press a or b to choose

General Setup.

General Setup

Print Reports Machine Info. Initial Setup

c Press a or b to choose Paper Type.

General Setup

Paper Type

Paper Size

LCD Settings

Press OK.

d Press a or b to choose Inkjet Paper.

Plain

OKSelect & Press

Paper Type

Plain Paper

Inkjet Paper

Brother Photo Other Photo

OKSelect & Press

Press OK. You can see the current setting on the LCD:

General Setup

Paper Type

Paper Size

LCD Settings

Inkjet

OKSelect & Press

e Press Stop/Exit.

OKSelect & Press

Press OK.

General Information

Warning LED indications 1

The Status LED (light emitting diode) is a light that shows the status of the machine, as shown in the table.

COPY

Quality

Enlarge/Reduce Paper Type Paper Size

20:48

Brightness

LED DCP status Description

Off

Red

Ready The DCP is ready for

Cover open The cover is open. Close

Ink empty Replace the Ink

Paper error Put paper in the tray or

Other messages

Normal

100% Plain A4 0

use.

the cover. (See Error messages on page 71.)

cartridge with a new one. (See Replacing the ink cartridges on page 76.)

clear the paper jam. Check the LCD message. (See Error messages on page 71.)

Check the LCD message. (See Error messages on page 71.)

Printing Reports 1

The following reports are available:

 Help List

A help list about how to quickly program your machine.

 User Settings

Lists your settings.

 Network Config (DCP-560CN only)

Lists your Network settings.

How to print a report 1

a Press Menu. b Press a or b to choose

Print Reports. Press OK.

c Press a or b to choose the report you

want. Press OK.

d Press Mono Start. e Press Stop/Exit.

Loading documents and paper 2

Loading documents 2

You can make copies, and scan from the ADF (automatic document feeder) and from the scanner glass.

Using the ADF (DCP-560CN only) 2

The ADF can hold up to 10 pages and feeds each sheet individually. Use standard

80 g/m before putting them in the ADF.

Recommended environment 2

Document Sizes Supported 2

paper and always fan the pages

Temperature: 20 to 30° C

Humidity: 50% to 70%

Paper:

Length: 148 to 355.6 mm

Width: 148 to 215.9 mm

Weight:

80 g/m

64 to 90 g/m

How to load documents 2

DO NOT pull on the document while it is feeding.

DO NOT use paper that is curled, wrinkled, folded, ripped, stapled, paper clipped, pasted or taped.

DO NOT use cardboard, newspaper or fabric.

 Make sure documents written with ink are

CAUTION

completely dry.

a Fan the pages well. Make sure you put

the documents face down, top edge first in the ADF until you feel them touch

the feed roller.

b Adjust the paper guides to fit the width of

your documents.

c Unfold the ADF Document Output

Support Flap (1).

DO NOT leave thick documents on the scanner glass. If you do this, the ADF may jam.

CAUTION

Loading documents and paper

Using the scanner glass 2

You can use the scanner glass to copy or scan pages of a book or one page at a time.

Document Sizes Supported 2

Length: Up to 297 mm

Width: Up to 215.9mm

Weight: Up to 2 kg

How to load documents 2

Note

To use the scanner glass, the ADF must be empty.

a Lift the document cover. b Using the document guidelines on the

left, center the document face down on the scanner glass.

CAUTION

If you are scanning a book or thick document, DO NOT slam the cover down or press on it.

Scannable area 2

The scannable area depends on the settings in the application you are using. The figures below show the areas you cannot scan on A4 or Letter paper.

c Close the document cover.

Usage Document

Size

Copy Letter 3 mm 3 mm

A4 3 mm 3 mm

Scan Letter 3 mm 3 mm

A4 3 mm 0 mm

Top (1)

Bottom (2)

Left (3)

Right (4)

Chapter 2

Acceptable paper and other media 2

The print quality can be affected by the type of paper you are using in the machine.

To get the best print quality for the settings you have chosen, always set the Paper Type to match the type of paper you load.

You can use plain paper, inkjet paper (coated paper), glossy paper, transparencies and envelopes.

We recommend testing various paper types before buying large quantities.

For best results, use the Brother paper.

 When you print on inkjet paper (coated

paper), transparencies and photo paper, be sure to choose the correct media in the ‘Basic’ tab of the printer driver or in the Paper Type setting of the menu (See Paper Type on page 32).

 When you print on Brother photo paper,

load the instruction sheet included with the photo paper in the paper tray first, and then put the photo paper on top of the instruction sheet.

Recommended media 2

To get the best print quality, we suggest using Brother paper. (See table below.)

If Brother paper is not available in your country, we recommend testing various papers before purchasing large quantities.

We recommend using ‘3M Transparency Film’ when you print on transparencies.

Brother paper

Paper Type Item

A4 Plain BP60PA

A4 Glossy Photo BP61GLA

A4 Inkjet (Matte) BP60MA

10 x 15 cm Glossy BP61GLP

 When you use transparencies or photo

paper, remove each sheet at once to prevent smudging or paper jams.

 Avoid touching the printed surface of the

paper immediately after printing; the surface may not be completely dry and may stain your fingers.

Loading documents and paper

Handling and using media 2



Store paper in its original packaging, and keep it sealed. Keep the paper flat and away from moisture, direct sunlight and heat.

 The coated side of photo paper is shiny.

Avoid touching the shiny (coated) side. Load photo paper with the shiny side facing down.

 Avoid touching either side of

transparencies because they absorb water and perspiration easily, and this may cause decreased output quality. Transparencies designed for laser printers/copiers may stain your next document. Use only transparencies recommended for inkjet printing.

Improper Setup

DO NOT use the following kinds of paper:

• Damaged, curled, wrinkled, or irregularly shaped paper

1 2 mm or longer

• Extremely shiny or highly textured paper

• Paper already printed on by a printer

• Paper that cannot be arranged uniformly when stacked

• Paper made with a short grain

Paper capacity of the output paper tray 2

Up to 50 sheets of 20 lb Letter or 80 g/m2 A4 paper.

 Transparencies or photo paper must be

picked up from the output paper tray one page at a time to avoid smudging.

Chapter 2

Choosing the right media 2

Paper type and size for each operation 2

Paper Type Paper Size Usage

Copy Photo

Capture

Cut Sheet Letter 216 × 279 mm (8 1/2 × 11 in.) Yes Yes Yes

A4 210 × 297 mm (8.3 × 11.7 in.) Yes Yes Yes

Legal 216 × 356 mm (8 1/2 × 14 in.) Yes – Yes

Executive 184 × 267 mm (7 1/4 × 10 1/2 in.) – – Yes

JIS B5 182 × 257 mm (7.2 × 10.1 in.) – – Yes

A5 148 × 210 mm (5.8 × 8.3 in.) Yes – Yes

A6 105 × 148 mm (4.1 × 5.8 in.) – – Yes

Cards Photo 10 × 15 cm (4 × 6 in.) Yes Yes Yes

Photo L 89 × 127 mm (3 1/2 × 5 in.) – – Yes

Photo 2L 13 × 18 cm (5 × 7 in.) – Yes Yes

Index Card 127 × 203 mm (5 × 8 in.) – – Yes

Post Card 1 100 × 148 mm (3.9 × 5.8 in.) – – Yes

Post Card 2 (Double)

Envelopes C5

Envelope

DL Envelope

COM-10 105 × 241 mm (4 1/8 × 9 1/2 in.) – – Yes

Monarch 98 × 191 mm (3 7/8 × 7 1/2 in.) – – Yes

JE4 Envelope

Transparencies Letter 216 ×

A4 210 × 297 mm (8.3 × 11.7 in.) Yes – Yes

148 × 200 mm (5.8 × 7.9 in.) – – Yes

162 × 229 mm (6.4 × 9 in.) – – Yes

110 × 220 mm (4.3 × 8.7 in.) – – Yes

105 × 235 mm (4.1 × 9.3 in.) – – Yes

279 mm (8 1/2 × 11 in.) Yes – Yes

Printer

Loading documents and paper

Paper weight, thickness and capacity 2

Paper Type Weight Thickness No. of

sheets

Cut Sheet

Plain Paper

Inkjet Paper

Glossy Paper

Cards Photo Card

Index Card

Post Card

Envelopes

64 to 120 g/m

64 to 200 g/m

Up to 220 g/m

Up to 120 g/m

Up to 200 g/m

75 to 95 g/m

(17 to 32 lb)

(17 to 53 lb)

(Up to 58 lb)

(Up to 64 lb)

(Up to 32 lb)

(Up to 53 lb)

(20 to 25 lb)

0.08 to 0.15 mm (0.003 to 0.006 in.)

0.08 to 0.25 mm (0.003 to 0.01 in.) 20

Up to 0.25 mm (Up to 0.01 in.)

Up to 0.28 mm (Up to 0.01 in.)

Up to 0.15 mm (Up to 0.006 in.) 30

Up to 0.23 mm (Up to 0.01 in.) 30

Up to 0.52 mm (Up to 0.02 in.) 10

Transparencies – – 10

Up to 50 sheets for Legal size paper 80 g/m2 (20 lb).

Up to 100 sheets of A4 80 g/m

For Photo 10×15cm and Photo L paper, use the photo paper tray. (See Loading photo paper on page 20.)

(20 lb) paper.

100

Chapter 2

Loading paper and other media 2

Note

To print on Photo L or 10 x 15 cm paper, you must use the photo paper tray. (See Loading photo paper on page 20.)

a If the paper support flap is open, close it,

and then pull the paper tray completely out of the machine. Lift the output paper tray cover (1).

b Press and slide the paper side

guides (1) and paper length guide (2) to fit the paper size.

c Fan the stack of paper well to avoid

paper jams and misfeeds.

Note

Always make sure that the paper is not curled.

Loading documents and paper

d Gently put the paper into the paper tray

print side down and top edge first. Check that the paper is flat in the tray.

Note

When you use Legal size paper, press and hold the universal guide release button as you slide out the front of the paper tray.

e Gently adjust the paper side guides to

the paper with both hands. Make sure the paper side guides touch the sides of the paper.

Note

Be careful that you do not push the paper in too far; it may lift at the back of the tray and cause feed problems.

f Close the output paper tray cover.

Chapter 2

g Slowly push the paper tray completely

into the machine.

h While holding the paper tray in place,

pull out the paper support (1) until it clicks and unfold the paper support flap (2).

Loading envelopes and post cards 2

About envelopes 2

 Use envelopes that weigh from 75 to

95 g/m

 Some envelopes need margin settings to

be set in the application. Make sure you do a test print first.

DO NOT use any of the following types of envelopes, as they will cause paper feed problems:

• That are of a baggy construction.

• That are embossed (have raised writing

• That have clasps or staples.

• That are pre-printed on the inside.

Glue 2

CAUTION

on them).

Double flap 2

Note

Do not use the paper support flap for Legal paper.

Occasionally you may experience paper feed problems caused by the thickness, size and flap shape of the envelopes you are using.

Loading documents and paper

How to load envelopes and post cards2

a Before loading, press the corners and

sides of the envelopes or post cards to make them as flat as possible.

Note

If the envelopes or post cards are ‘doublefeeding,’ put one envelope or post card in the paper tray at a time.

If you have problems when printing on envelopes, try the following suggestions: 2

a Open the envelope flap. b Make sure the open flap is either to the

side of the envelope or to the back edge of the envelope when printing.

c Adjust the size and margin in your

application.

b Put the envelopes or post cards into the

paper tray with the address side down and the leading edge in first as shown in the illustration. Slide the paper side guides (1) and paper length guide (2) to fit the size of the envelopes or post cards.

Chapter 2

Loading photo paper 2

Use the photo paper tray which has been assembled on the top of the output paper tray cover to print on photo 10 × 15 cm and photo L size paper. When you use the photo paper tray, you do not have to take out the paper that is in the tray beneath it.

a Press the photo paper tray release

button with your left thumb and push the photo paper tray backward until it clicks into the photo printing position.

c Put the photo paper into the photo paper

tray and gently adjust the paper side guides to the paper. Make sure the paper side guides touch the sides of the paper.

Note

• Be careful that you do not push the paper in too far; it may lift at the back of the tray and cause feed problems.

• Always make sure that the paper is not curled.

d When you have finished printing photos

return the photo paper tray to the normal printing position. Press the photo paper tray release button with your left thumb and pull the photo paper tray forward until it clicks.

1 Photo Paper Tray

b Press and slide the paper side

guides (1) and paper length guide (2) to fit the paper size.

Removing small printouts from the machine 2

When the machine ejects small paper onto the output paper tray you may not be able to reach it. Make sure printing has finished, and then pull the tray completely out of the machine.

Loading documents and paper

Chapter 2

Printable area 2

The printable area depends on the settings in the application you are using. The figures below show the unprintable areas on cut sheet paper and envelopes. The machine can only print in the shaded areas when the Borderless print feature is available and turned on.

Cut Sheet Paper Envelopes

Top (1) Bottom (2) Left (3) Right (4)

Cut Sheet 3 mm 3 mm 3 mm 3 mm

Envelopes 12 mm 24 mm 3 mm 3 mm

Note

The Borderless feature is not available for envelopes.

General setup 3

Paper settings 3

Paper Type 3

To get the best print quality, set the machine for the type of paper you are using.

a Press Menu. b Press a or b to choose

General Setup. Press OK.

c Press a or b to choose Paper Type.

Press OK.

d Press a or b to choose Plain Paper,

Inkjet Paper, Brother Photo, Other Photo or Transparency.

Press OK.

e Press Stop/Exit.

Note

The machine ejects paper with printed surfaces face up onto the paper tray in front of the machine. When you use transparencies or glossy paper, remove each sheet at once to prevent smudging or paper jams.

Paper Size 3

You can use five sizes of paper for printing copies: Letter, Legal, A4, A5, and 10 × 15 cm. When you change the size of paper you load in the machine, you will need to change the paper size setting at the same time.

a Press Menu. b Press a or b to choose

General Setup. Press OK.

c Press a or b to choose Paper Size.

Press OK.

d Press a or b to choose Letter, Legal,

A4, A5 or 10x15cm.

Press OK.

e Press Stop/Exit.

Chapter 3

LCD display 3

LCD Contrast 3

You can adjust the LCD contrast for a sharper and more vivid display. If you are having difficulty reading the LCD, try changing the contrast setting.

a Press Menu. b Press a or b to choose

General Setup. Press OK.

c Press a or b to choose LCD Settings.

Press OK.

d Press a or b to choose LCD Contrast.

Press OK.

e Press a or b to choose Light or Dark.

Press OK.

f Press Stop/Exit.

Setting the backlight brightness 3

If you are having difficulty reading the LCD, try changing the brightness setting.

a Press Menu. b Press a or b to choose

General Setup. Press OK.

c Press a or b to choose LCD Settings.

Press OK.

d Press a or b to choose Backlight.

Press OK.

e Press a or b to choose Light or Dark.

Press OK.

f Press Stop/Exit.

General setup

Setting the Dim Timer for the backlight 3

You can set how long the LCD backlight stays on after the last key press.

a Press Menu. b Press a or b to choose

General Setup. Press OK.

c Press a or b to choose LCD Settings.

Press OK.

d Press a or b to choose Dim Timer.

Press OK.

e Press a or b to choose 10 Secs,

20 Secs, 30 Secs or Off.

Press OK.

f Press Stop/Exit.

Setting the Off Timer 3

You can set how long the LCD stays on after the last key press. This is a power saving feature. The machine can print and scan from your computer when the LCD is off.

a Press Menu.

b Press a or b to choose

General Setup. Press OK.

c Press a or b to choose LCD Settings.

Press OK.

d Press a or b to choose Off Timer.

Press OK.

e Press a or b to choose 1 Min, 2 Mins,

3 Mins, 5 Mins, 10 Mins, 30 Mins

or Off. Press OK.

f Press Stop/Exit.

Note

When the display is off you can press any key to turn it back on.

Chapter 3

Section II

Copy II

Making copies 28

Making copies 4

How to copy 4

Making a single copy 4

a Load your document.

(See Loading documents on page 10.)

b Press Mono Start or Colour Start.

Making multiple copies 4

You can make up to 99 copies.

a Load your document.

(See Loading documents on page 10.)

b Press + or - repeatedly until the number

of copies you want appears (up to 99).

c Press Mono Start or Colour Start.

Note

To sort the copies, press a or b to choose

Stack/Sort. (See Sorting copies using the ADF (DCP-560CN only) on page 31.)

Stop copying 4

To stop copying, press Stop/Exit.

Copy options 4

You can change the copy settings from the default display. The LCD shows:

COPY

Quality

Enlarge/Reduce Paper Type Paper Size Brightness

1 No of Copies

You can enter the number of copies you want by pressing + or - repeatedly.

Press a or b to scroll through the copy options menu.

 Quality (See page 29.)

 Enlarge/Reduce (See page 29.)

 Paper Type (See page 32.)

 Paper Size (See page 32.)

 Brightness (See page 31.)

 Contrast (See page 31.)

 Color Adjust (See page 31.)

 Stack/Sort (DCP-560CN only)

(See page 31.)

 Page Layout (See page 30.)

Normal

100% Plain A4 0

 Set New Default (See page 32.)

 Factory Reset (See page 32.)

When the option you want is highlighted, press OK.

You can change the copy settings temporarily for the next copy.

The machine returns to its default settings after 1 minute.

If you have finished choosing settings, press Mono Start or Colour Start.

If you want to choose more settings, press a or b.

Making copies

Note

You can save some of the settings that you use most often by setting them as default. These settings will stay until you change them again. (See Setting your changes as a new default on page 32.)

Changing copy speed and quality 4

You can choose the copy quality. The factory setting is Normal.

Fast Fast copy speed and lowest

amount of ink used. Use this setting to save time (documents to be proof read, large documents or many copies).

Normal Recommended setting for ordinary

print outs. Good copy quality with adequate copy speed.

Best Use this setting to copy precise

images such as photographs. The highest resolution and slowest speed.

a Load your document. b Enter the number of copies you want. c Press a or b to choose Quality.

Press OK.

d Press a or b to choose Fast, Normal or

Best.

Press OK.

e If you do not want to change additional

settings, press Mono Start or Colour Start.

Enlarging or reducing the image copied 4

You can choose an enlargement or reduction ratio.

a Load your document. b Enter the number of copies you want. c Press a or b to choose

Enlarge/Reduce. Press OK.

50%

69% A4iA5

78% (DCP-350C, DCP-353C, DCP-357C)

78% LGLiLTR (DCP-560CN)

83% (DCP-350C, DCP-353C, DCP-357C)

83% LGLiA4 (DCP-560CN)

93% A4iLTR

97% LTRiA4

100%*

104% EXEiLTR

142% A5iA4

186% 10x15cm i LTR

198% 10x15cmiA4

200%

Custom(25-400%)

d Do one of the following.

 Press a or b to choose the

enlargement or reduction ratio you want. Press OK.

 Press a or b to choose

Custom(25-400%). Press + or - to enter an enlargement or reduction ratio from 25% to 400%. Press OK.

e If you do not want to change additional

settings, press Mono Start or Colour Start.

Note

Page Layout Options are not available with Enlarge/Reduce settings.

Chapter 4

Making N in 1 copies or a poster (page layout) 4

The N in 1 copy feature can help you save paper by letting you copy two or four pages onto one printed page.

You can also make a poster. When you use the poster feature your machine divides your document into sections, then enlarges the sections so you can assemble them into a poster. If you want to print a poster, use the scanner glass.

Important 4

 Please make sure paper size is set to

Letter, Legal, or A4.

 You cannot use the Enlarge/Reduce

setting with the N in 1 and Poster features.

 If you are producing multiple colour

copies, N in 1 copy is not available.

 (P) means Portrait and (L) means

Landscape.

f After the machine scans the page, press

+ (Yes) to scan the next page.

g Put the next page on the scanner glass.

Press OK. Repeat f and g for each page of the layout.

h After all the pages have been scanned,

press - (No) to finish.

Place your document face down in the direction shown below.

 2 in 1 (P)

 2 in 1 (L)

 4 in 1 (P)

 You can only make one poster copy at a

time.

a Load your document. b Enter the number of copies you want. c Press a or b to choose Page Layout.

Press OK.

d Press a or b to choose Off(1 in 1),

2in1(P), 2in1(L), 4in1(P), 4in1(L) or Poster(3 x 3).

Press OK.

e If you do not want to change additional

settings, press Mono Start or Colour Start to scan the page.

If you are making a poster or placed the document in the ADF, the machine scans the pages and starts printing.

If you are using the scanner glass, go to f.

 4 in 1 (L)

 Poster (3 x 3)

You can make a poster size copy of a photograph.

Making copies

Sorting copies using the ADF (DCP-560CN only) 4

You can sort multiple copies. Pages will be sorted in reverse order.

a Load your document. b Enter the number of copies you want. c Press a or b to choose Stack/Sort.

Press OK.

d Press a or b to choose Sort.

Press OK.

e If you do not want to change additional

settings, press Mono Start or Colour Start.

Note

Page Layout options are not available with Sort settings.

Contrast 4

You can adjust the copy contrast to help an image look sharper and more vivid.

a Load your document. b Enter the number of copies you want. c Press a or b to choose Contrast.

Press OK.

d Press a or b to increase or decrease the

contrast. Press OK.

e If you do not want to change additional

settings, press Mono Start or Colour Start.

Colour Saturation 4

a Load your document. b Enter the number of copies you want.

Adjusting Brightness, Contrast and Colour 4

Brightness 4

You can adjust the copy brightness to make copies darker or lighter.

a Load your document. b Enter the number of copies you want. c Press a or b to choose Brightness.

Press OK.

d Press a to or b to make a lighter or

darker copy. Press OK.

e If you do not want to change additional

settings, press Mono Start or Colour Start.

c Press a or b to choose Color Adjust.

Press OK.

d Press a or b to choose Red, Green or

Blue.

Press OK.

e Press a or b to change the colour

saturation. Press OK.

f Do one of the following:

 If you want to change saturation for

another colour, go to step d.

 If you want to change additional

settings, press a or b to choose Exit.

Press OK.

 If you do not want to change

additional settings, press

Mono Start or Colour Start.

Chapter 4

Paper options 4

Paper Type 4

If you are copying on special paper, set the machine for the type of paper you are using to get the best print quality.

a Load your document. b Enter the number of copies you want. c Press a or b to choose Paper Type.

Press OK.

d Press a or b to choose Plain Paper,

Inkjet Paper, Brother Photo, Other Photo or Transparency.

Press OK.

e If you do not want to change additional

settings, press Mono Start or Colour Start.

Paper Size 4

Setting your changes as a new default 4

You can save the copy settings for Quality, Paper Type, Brightness, Contrast and Color Adjust that you use most often by

setting them as the default settings. These settings will stay until you change them again.

a Press a or b to choose your new setting.

Press OK. Repeat this step for each setting you want to change.

b After changing the last setting, press a

or b to choose Set New Default. Press OK.

c Press + to choose Yes. d Press Stop/Exit.

Restoring all settings to the factory settings 4

If copying on paper other than A4 size, you will need to change the paper size setting.

You can copy only on Letter, Legal, A4, A5 or Photo Card [10 cm (W) × 15 cm (H)] paper.

a Load your document. b Enter the number of copies you want. c Press a or b to choose Paper Size.

Press OK.

d Press a or b to choose Letter, Legal,

A4, A5 or 10x15cm.

Press OK.

e If you do not want to change additional

settings, press Mono Start or Colour Start.

You can restore all the settings you have changed to the factory settings. These settings will stay until you change them again.

a Press a or b to choose

Factory Reset. Press OK.

b Press + to choose Yes. c Press Stop/Exit.

Section III

Direct Photo Printing

Printing photos from a memory card or USB Flash memory drive

Printing photos from a camera 50

III

Printing photos from a memory

card or USB Flash memory drive

PhotoCapture Center™ Operations

Printing from a memory card or USB Flash memory drive without a PC 5

Even if your machine is not connected to your computer, you can print photos directly from digital camera media or a USB Flash memory drive. (See Print Images on page 37.)

Scanning to a memory card or USB Flash memory drive without a PC 5

You can scan documents and save them directly to a memory card or USB Flash memory drive. (See Scan to a memory card or USB Flash memory drive on page 48.)

Using a memory card or USB Flash memory drive 5

Your Brother machine has media drives (slots) for use with popular digital camera

media: CompactFlash Memory Stick Pro™, SecureDigital™, MultiMediaCard™, xD-Picture Card™ and USB Flash memory drives.

CompactFlash

SecureDigital™

MultiMediaCard™

22 mm or less

, Memory Stick®,

Memory Stick Pro™

xD-Picture Card™

Memory Stick

Using PhotoCapture Center™ from your computer 5

You can access a memory card or USB Flash memory drive that is inserted in the front of the machine from your PC.

(See PhotoCapture Center™ for Windows or Remote Setup & PhotoCapture Center™

for Macintosh on the CD-ROM.)

in the Software User's Guide

11 mm or less

USB Flash memory

drive

 miniSD™ can be used with a miniSD™

adapter.

 Memory Stick Duo™ can be used with a

Memory Stick Duo™ adapter.

 Memory Stick Pro Duo™ can be used with

a Memory Stick Pro Duo™ adapter.

 Adapters are not included with the

machine. Contact a third party supplier for adapters.

The PhotoCapture Center™ feature lets you print digital photos from your digital camera at high resolution to get photo quality printing.

Printing photos from a memory card or USB Flash memory drive

Memory cards or a USB Flash memory drive folder structure5

Your machine is designed to be compatible with modern digital camera image files and memory cards; however, please read the points below to avoid errors:

 The image file extension must be .JPG

(Other image file extensions like .JPEG, .TIF, .GIF and so on will not be recognized).

 PhotoCapture Center™ printing must be

performed separately from PhotoCapture Center™ operations using the PC. (Simultaneous operation is not available.)

 IBM Microdrive™ is not compatible with

the machine.

 The machine can read up to 999 files on a

memory card or USB Flash memory drive.

 CompactFlash

 This product supports xD-Picture Card™

Type M / Type H.

 The DPOF file on the memory cards must

be in a valid format. (See DPOF printing on page 43.)

Type II is not supported.

Please be aware of the following:

 When printing the INDEX or IMAGE, the

PhotoCapture Center™ will print all the valid images, even if one or more images have been corrupted. The corrupted image will not be printed.

 (memory card users)

Your machine is designed to read memory cards that have been formatted by a digital camera.

When a digital camera formats a memory card it creates a special folder into which it copies image data. If you need to modify the image data stored on a memory card with your PC, we recommend that you do not modify the folder structure created by the digital camera. When saving new or modified image files to the memory card we also recommend you use the same folder your digital camera uses. If the data is not saved to the same folder, the machine may not be able to read the file or print the image.

 (USB Flash memory drive users)

This machine supports USB Flash memory drives that has been formatted by

Windows

Chapter 5

Getting started 5

Firmly put a memory card or USB Flash memory drive into the correct slot.

1 2 3 4

1 USB Flash memory drive

2 CompactFlash

3 SecureDigital™, MultiMediaCard™

4 Memory Stick

5 xD-Picture Card™

CAUTION

The USB direct interface supports only a USB Flash memory drive, a PictBridge compatible camera, or a digital camera that uses the USB mass storage standard. Any other USB devices are not supported.

, Memory Stick Pro™

PhotoCapture key indications:

 PhotoCapture light is on, the memory

card or USB Flash memory drive is properly inserted.

 PhotoCapture light is off, the memory

card or USB Flash memory drive is not properly inserted.

 PhotoCapture light is blinking, the

memory card or USB Flash memory drive is being read or written to.

CAUTION

DO NOT unplug the power cord or remove the memory card or USB Flash memory drive from the media drive (slot) or USB direct interface while the machine is reading or writing to the memory card or USB Flash memory drive (the

PhotoCapture key is blinking). You will lose your data or damage the card.

The machine can only read one device at a time so do not put more than one device in the slot.

Printing photos from a memory card or USB Flash memory drive

Entering PhotoCapture mode 5

After you insert the memory card or USB Flash memory drive, press the

(PhotoCapture) key to illuminate it in

green and display the PhotoCapture options on the LCD.

The LCD shows:


View Photo(s)

Print Index

Print Photos

Photo Effects

OKSelect & Press

Press a or b to scroll through the PhotoCapture key options.

 View Photo(s) (See page 37.)

 Print Index (See page 37.)

 Print Photos (See page 38.)

 Photo Effects (See page 39.)

 Search by Date (See page 41.)

 Print All Photos (See page 42.)

 Slide show (See page 42.)

 Trimming (See page 43.)

Note

If your digital camera supports DPOF printing, see DPOF printing on page 43.

When the option you want is highlighted, press OK.

Print Images 5

View Photo(s) 5

You can preview your photos on the LCD before you print them. If your photos are large files there may be a delay before each photo is displayed on the LCD.

a Make sure you have put a memory card

or USB Flash memory drive in the correct slot.

Press (PhotoCapture).

b Press a or b to choose

View Photo(s). Press OK.

c Press d or c to choose your photo. d Press + or - repeatedly to enter the

number of copies you want.

e Repeat step c and step d until you

have chosen all the photos.

f After you have chosen all the photos, do

one of the following:

 Press OK and change the print

settings. (See page 44.)

 If you do not want to change any

settings, press Colour Start to print.

Print Index (Thumbnails) 5

The PhotoCapture Center™ assigns numbers for images (such as No.1, No.2, No.3, and so on).

Chapter 5

The PhotoCapture Center™ uses these numbers to identify each picture. You can print a thumbnail page (Index page with 5 images per line). This will show all the pictures on the memory card or USB Flash memory drive.

Note

Only file names that are 8 characters or less will be printed correctly on the index sheet.

a Make sure you have put the memory

card or USB Flash memory drive in the correct slot.

Press (PhotoCapture).

Print Photos 5

Before you can print an individual image, you have to know the image number.

Make sure you have put a memory card or USB Flash memory drive in the correct slot.

Press (PhotoCapture).

b Print the Index. (See Print Index

(Thumbnails) on page 37.)

c Press a or b to choose Print Photos.

Press OK.

d Press a repeatedly to choose the image

number that you want to print from the Index page (Thumbnails). If you want to choose a two digit number, press

to move the cursor to the next digit. (For example, enter 1, c, 6 to print image No.16.) Press OK.

b Press a or b to choose Print Index.

Press OK.

c Press a or b to choose the paper

settings, Paper Type or Paper Size. Do one of the following.

 If you chose Paper Type, press OK

and press a or b to choose the type of paper you are using,

Plain Paper, Inkjet Paper, Brother Photo or Other Photo.

Press OK.

 If you chose Paper Size, press OK

and press a or b to choose the paper size you are using, Letter or A4.

Press OK.

 If you do not want to change the

paper settings, go to d

d Press Colour Start to print.

Note

Press b to decrease the image number.

Repeat stepd until you have entered all the image numbers that you want to print. (For example, enter to print images No.1, No.3 and No.6.)

1, OK, 3, OK, 6, OK

Note

You can enter up to 12 characters (including commas) for the image numbers you want to print.

f After you have chosen all the image

numbers, press OK again.

g Press + or - repeatedly to enter the

number of copies you want.

h Do one of the following:

 Change the print settings.

(See page 44.)

 If you do not want to change any

settings, press Colour Start to print.

Printing photos from a memory card or USB Flash memory drive

Photo Effects 5

You can edit and add effects to your photos and view them on the LCD before printing.

Note

•

After adding each effect, you can enlarge the view of the image by pressing

Ink Management

size, press

• The Photo Effects feature is supported by

technology from Reallusion, Inc.

. To go back to the original

Ink Management

again.

Auto Correct 5

Auto Correct is available for most photos. The machine decides the suitable effect for your photo.

a Make sure you have put a memory card

or USB Flash memory drive in the correct slot.

Press (PhotoCapture).

Press a or b to choose Press OK.

Photo Effects

c Press d or c to choose your photo.

Press OK.

d Press a or b to choose Auto Correct.

Press OK.

e Press + or - repeatedly to enter the

number of copies you want. Press OK.

Enhance Skin-Tone 5

Enhance Skin-Tone is best used for adjusting portrait photographs. It detects human skin colour in your photos and adjusts the image.

a Make sure you have put a memory card

or USB Flash memory drive in the correct slot.

Press (PhotoCapture).

Press a or b to choose Press OK.

c Press d or c to choose your photo.

Press OK.

Photo Effects

d Press a or b to choose

Enhance Skin-Tone. Press OK.

e Do one of the following.

 Press OK if you do not want to

change any settings.

 Press a or b to adjust the effect level

manually. Press OK when you have

finished.

f Press + or - repeatedly to enter the

number of copies you want.

g Do one of the following.

 Press OK and change the print

settings. (See page 44.)

 If you do not want to change any

settings, press Colour Start to print.

f Do one of the following.

 Press OK and change the print

settings. (See page 44.)

 If you do not want to change any

settings, press Colour Start to print.

Note

Remove Red-Eye

press

to remove red-eye from your photo.

appears on the LCD,

Chapter 5

Enhance Scenery 5

Enhance Scenery is best used for adjusting landscape photographs. It highlights green and blue areas in your photo, so that the landscape looks more sharp and vivid.

a Make sure you have put the memory

card or USB Flash memory drive in the correct slot.

Press (PhotoCapture).

Press a or b to choose Press OK.

Photo Effects

c Press d or c to choose your photo.

Press OK.

d Press a or b to choose

Enhance Scenery. Press OK.

e Do one of the following.

 Press OK if you do not want to

change any settings.

 Press a or b to adjust the effect level

manually. Press OK when you have finished.

Remove Red-Eye 5

The machine detects eyes in your photos and will remove red-eye from your photo.

Note

There are some cases when red-eye may not be removed.

• When the face is too small.

• When the face is turning too far up, down, left or right.

Make sure you have put a memory card or USB Flash memory drive in the correct slot.

Press (PhotoCapture).

Press a or b to choose Press OK.

Photo Effects

c Press d or c to choose your photo.

Press OK.

Press a or b to choose Press OK.



When

Remove Red-Eye

the photo after effect is shown. The adjusted part is shown in a red frame.

Remove Red-Eye

is successful,

f Press + or - repeatedly to enter the

number of copies you want.

g Do one of the following.

 Press OK and change the print

settings. (See page 44.)

 If you do not want to change any

settings, press Colour Start to print.



When

Remove Red-Eye

Unable to Detect.

is unsuccessful,

is shown.

Note

Press a to try Remove Red-Eye again.

•

When

Remove Red-Eye

the photo after effect is shown. The adjusted part is shown in a red frame.

•

When

Remove Red-Eye

Unable to Detect.

is successful,

is unsuccessful,

is shown.

e Press + or - repeatedly to enter the

number of copies you want.

f Do one of the following.

 Press OK and change the print

settings. (See page 44.)

 If you do not want to change any

settings, press Colour Start to print.

Printing photos from a memory card or USB Flash memory drive

Monochrome 5

You can convert your photo to monochrome.

Make sure you have put a memory card or USB Flash memory drive in the correct slot.

Press (PhotoCapture).

Press a or b to choose Press OK.

Photo Effects

c Press d or c to choose your photo.

Press OK.

d Press a or b to choose Monochrome.

Press OK.

e Press + or - repeatedly to enter the

number of copies you want.

f Do one of the following.

 Press OK and change the print

settings. (See page 44.)

 If you do not want to change any

settings, press Colour Start to print.

Sepia 5

You can convert the colour of your photo to sepia.

Make sure you have put a memory card or USB Flash memory drive in the correct slot.

Press (PhotoCapture).

Press a or b to choose Press OK.

Photo Effects

c Press d or c to choose your photo.

Press OK.

Search by Date 5

You can find your photos based on date.

a Make sure you have put a memory card

or USB Flash memory drive in the correct slot.

Press (PhotoCapture).

b Press a or b to choose

Search by Date. Press OK.

c Press a or b to choose the date that you

want to search from. Press OK.

d Press d or c to choose your photo.

Note

You can view photos with other dates by pressing d or c continuously. Press d to view an older photo and c to view a newer photo.

e Press + or - repeatedly to enter the

number of copies you want.

f Repeat step d and step e until you

have chosen all your photos.

g After you have chosen all your photos,

do one of the following:

 Press OK and change the print

settings. (See page 44.)

 If you do not want to change any

settings, press Colour Start to print.

d Press a or b to choose Sepia.

Press OK.

e Press + or - repeatedly to enter the

number of copies you want.

f Do one of the following.

 Press OK and change the print

settings. (See page 44.)

 If you do not want to change any

settings, press Colour Start to print.

Chapter 5

Print All Photos 5

You can print all the photos on your memory card.

a Make sure you have put a memory card

or USB Flash memory drive in the correct slot.

Press (PhotoCapture).

b Press a or b to choose

Print All Photos. Press OK.

c Press + or - repeatedly to enter the

number of copies you want.

d Do one of the following:

 Change the print settings. (See

page 44.)

 If you do not want to change any

settings, press Colour Start to print.

Slide show 5

You can view all your photos on the LCD using Slide show. You can also choose a photo during the operation.

a Make sure you have put a memory card

or USB Flash memory drive in the correct slot.

Press (PhotoCapture).

b Press a or b to choose Slide show.

Press OK.

c Press Stop/Exit to finish Slide show.

Printing a photo during a Slide show 5

a Press OK to stop at one image while

Slide show is operating.

b Press + or - repeatedly to enter the

number of copies you want.

c Do one of the following:

 Press OK and change the print

settings. (See page 44.)

 If you do not want to change any

settings, press Colour Start to print.

Printing photos from a memory card or USB Flash memory drive

Trimming 5

You can trim your photo and print a part of the image.

Note

If your photo is very small or an irregular proportions you may not be able to trim the photo. The LCD will display

Image Too Small.or Image Too Long..

a Make sure you have put a memory card

or USB Flash memory drive in the correct slot.

Press (PhotoCapture).

b Press a or b to choose Trimming.

Press OK.

c Press d or c to choose your photo.

Press OK.

d Adjust the red frame on your photo.

The part inside of the red frame will be printed.

 Press + or - to enlarge or reduce the

frame size.

 Press each arrow key to move the

position of the frame.

 Press Ink Management to rotate the

frame.

 Press OK when you have finished

the frame setting.

DPOF printing 5

DPOF stands for Digital Print Order Format.

Major digital camera manufacturers (Canon Inc., Eastman Kodak Company, Fuji Photo Film Co. Ltd., Matsushita Electric Industrial Co. Ltd. and Sony Corporation) created this standard to make it easier to print images from a digital camera.

If your digital camera supports DPOF printing, you will be able to choose on the digital camera display the images and number of copies you want to print.

When the memory card (CompactFlash

Memory Stick SecureDigital™ MultiMediaCard™ or xD-Picture Card™) with DPOF information is put into your machine, you can print the chosen image easily.

, Memory Stick Pro™,

a Make sure you have put a memory card

in the correct slot.

Press (PhotoCapture). The

machine will ask you if you want to use DPOF setting.

b Press + to choose Yes. c Do one of the following:

 Change the print settings.

(See page 44.)

 If you do not want to change any

settings, press Colour Start to print.

e Press + or - repeatedly to enter the

number of copies you want.

f Do one of the following:

 Press OK and change the print

settings. (See page 44.)

 If you do not want to change any

settings, press Colour Start to print.

Chapter 5

PhotoCapture Center™ print settings 5

You can change the print settings temporarily for the next print.

The machine returns to its default settings after 3 minutes.

Note

You can save the print settings you use most often by setting them as default. (See Setting your changes as a new default on page 47.)


Print Quality

Paper Type Paper Size Brightness Contrast

0001


OtherPHT 10 x 15cm 0 0

Print Start Press

1 No. of prints

(For View Photo(s), Search by Date, Slide Show)

You can see the total number of photos that will be printed.

(For Print All Photos, Print Photos, Photo Effects, Trimming)

You can see the number of copies of each photo that will be printed.

(For DPOF printing) This does not appear.

Menu Selections Options 1 Options 2 Page

Print Quality

(Does not appear for DPOF printing.)

Paper Type Plain Paper/Inkjet Paper/

Paper Size Letter/A4/10x15cm/13x18cm (When A4 or Letter is chosen)

Brightness

(Does not appear when Photo Effects is chosen.)

Normal/Photo 45

Brother Photo/Other Photo

10 x 8cm

13 x 9cm

15 x 10cm

18 x 13cm

20 x 15cm

Max. Size

Light

Dark

Printing photos from a memory card or USB Flash memory drive

Menu Selections Options 1 Options 2 Page

Contrast

(Does not appear when Photo Effects is chosen.)

Color Enhance

(Does not appear when Photo Effects is chosen.)

Cropping On/Off 47

Borderless On/Off 47

Set New Default Yes/No 48

Factory Reset Yes/No 48

Print Speed and Quality 5

On/Off

White Balance / Sharpness / Color Density / Exit

Paper and print size 5

a Press a or b to choose Paper Size.

a Press a or b to choose

Print Quality. Press OK.

b Press a or b to choose Normal or

Photo.

Press OK.

c If you do not want to change additional

settings, press Colour Start to print.

Paper options 5

Press OK.

b Press a or b to choose the paper size

you are using, Letter, 10x15cm, 13x18cm or A4.

Press OK.

c If you chose Letter or A4, press a or b to

choose the print size. Press OK.

Example: Printed Position for A4 paper

10x8cm213x9cm315x10cm

Paper Type 5

a Press a or b to choose Paper Type.

Press OK.

b Press a or b to choose the type of paper

you are using, Plain Paper, Inkjet Paper, Brother Photo or Other Photo.

Press OK.

c If you do not want to change additional

settings, press Colour Start to print.

18x13cm520x15cm6Max. Size

d If you do not want to change additional

settings, press Colour Start to print.

Chapter 5

Adjusting Brightness, Contrast and Colour 5

Brightness 5

a Press a or b to choose Brightness.

Press OK.

b Press a to make a lighter print or press

b to make a darker print. Press OK.

c If you do not want to change additional

settings, press Colour Start to print.

Contrast 5

You can choose the contrast setting. More contrast will make an image look sharper and more vivid.

a Press a or b to choose Contrast.

Press OK.

b Press a to increase the contrast or press

b to decrease the contrast.

Press OK.

c If you do not want to change additional

settings, press Colour Start to print.

c Press a or b to choose

White Balance, Sharpness or Color Density.

Press OK.

d Press a or b to adjust the degree of the

setting. Press OK.

e Do one of the following:

 If you want to customize another

colour enhancement, press a or b to choose another option.

 If you want to change other settings,

press a or b to choose Exit, and then press OK.

f If you do not want to change additional

settings, press Colour Start to print.

Note

• White Balance

This setting adjusts the hue of the white areas of an image. Lighting, camera settings and other influences will effect the appearance of white. The white areas of a picture may be slightly pink, yellow or some other colour. By using this setting, you can correct that effect and bring the white areas back to pure white.

Colour Enhancement 5

You can turn on the colour enhancement feature to print more vivid images. Printing time will be slower.

a Press a or b to choose

Color Enhance. Press OK.

b Do one of the following:

 If you want to customize the White

Balance, Sharpness or Colour Density, press d or c to choose On, and then go to step c.

 If you do not want to customize,

press d or c to choose Off.

Press OK and then go to step f.

• Sharpness

This setting enhances the detail of an image, similar to adjusting the fine focus on a camera. If the image is not in true focus and you cannot see the fine details of the picture, then adjust the sharpness.

• Colour Density

This setting adjusts the total amount of colour in the image. You can increase or decrease the amount of colour in an image to improve a washed out or weak picture.

Printing photos from a memory card or USB Flash memory drive

Cropping 5

If your photo is too long or wide to fit the available space on your chosen layout, part of the image will automatically be cropped.

The factory setting is On. If you want to print the whole image, turn this setting to Off.

a Press a or b to choose Cropping.

Press OK.

b Press a or b to choose Off (or On).

Press OK.

c If you do not want to change additional

settings, press Colour Start to print.

Cropping: On

Cropping: Off 5

Setting your changes as a new default 5

You can save the print settings you use most often by setting them as the default settings. These settings will stay until you change them again.

a Press a or b to choose your new setting.

Press OK. Repeat this step for each setting you want to change.

b After changing the last setting, press a

or b to choose Set New Default. Press OK.

c Press + to choose Yes. d Press Stop/Exit.

Restoring all settings to the factory settings 5

You can restore all the settings you have changed to the factory settings. These settings will stay until you change them again.

Borderless printing 5

This feature expands the printable area to the edges of the paper. Printing time will be slightly slower.

a Press a or b to choose Borderless.

Press OK.

b Press a or b to choose Off (or On).

Press OK.

c If you do not want to change additional

settings, press Colour Start to print.

a Press a or b to choose

Factory Reset. Press OK.

b Press + to choose Yes. c Press Stop/Exit.

Chapter 5

Scan to a memory card or USB Flash memory drive

Entering Scan mode 5

When you want to scan to a memory card or USB Flash memory drive, press

(Scan).

The LCD shows:

SCAN

Scan to E-mail

Scan to Image Scan to OCR Scan to File Scan to Media

OKSelect & Press

Press a or b to choose Scan to Media.

Press OK.

If you are not connected to your computer only the Scan to Media selection will appear on the LCD.

(See Scanning for Windows in the Software User’s Guide on the CD-ROM for details about the other menu options.)

or Macintosh®

How to scan to a memory card or USB Flash memory drive 5

You can scan monochrome and colour

documents into a memory card or USB Flash memory drive. Monochrome documents will be stored in PDF (*.PDF) or TIFF (*.TIF) file formats. Colour documents may be stored in PDF (*.PDF) or JPEG (*.JPG) file formats. The factory setting is 150dpi Color and the default file format is PDF. The machine automatically creates file names based on the current date.(For details, see Quick Setup Guide.) For example, the fifth image scanned on June 1, 2007 would be named

01060705.PDF. You can change the colour and quality.

Quality Selectable File

Format

150dpi Color JPEG / PDF

300dpi Color JPEG / PDF

600dpi Color JPEG / PDF

200x100dpi B/W TIFF / PDF

200dpi B/W TIFF / PDF

a Insert a CompactFlash

Stick

, Memory Stick Pro™, SecureDigital™, MultiMediaCard™, xD-Picture Card™ or USB Flash memory drive into your machine.

, Memory

Do not take out the memory card while PhotoCapture is blinking to avoid damaging the card, USB Flash memory drive, or data stored on the device that you are using.

WARNING

b Load your document.

c Press (Scan).

Printing photos from a memory card or USB Flash memory drive

d Press a or b to choose

Scan to Media. Press OK.

e Do one of the following.

 To change the quality, go to step f.

 Press Mono Start or Colour Start to

start scanning without changing additional settings.

f Press a or b to choose 150dpi Color,

300dpi Color, 600dpi Color, 200x100dpi B/W or 200dpi B/W.

Press OK.

g Do one of the following.

 To change the file type, go to step h.

 Press Mono Start or Colour Start to

start scanning without changing additional settings.

h Press a or b to choose JPEG, PDF or

TIFF.

Press OK.

Note

• If you chose colour in the resolution setting, you cannot choose TIFF.

• If you chose monochrome in the resolution setting, you cannot choose JPEG.

i Press Mono Start or Colour Start.

Understanding the Error Messages 5

Once you are familiar with the types of errors that can occur while you are using PhotoCapture Center™, you can easily identify and troubleshoot any problems.

 Hub is Unusable.

This message will appear if a Hub or USB Flash memory drive with a Hub has been put into the USB direct interface.

 Media Error

This message will appear if you put in a memory card that is either bad or not formatted, or when there is a problem with the media drive. To clear this error, take out the memory card.

 No File

This message will appear if you try to access a memory card or USB Flash memory drive in the drive (slot) that does not contain a .JPG file.

 Out of Memory

This message will appear if you are working with images that are too large for the machine's memory. This message will also appear when a memory card or USB Flash memory drive you are using does not have enough available space for the scanned document.

 Media is Full.

This message will appear if you are trying to save more than 999 files in a memory card or USB Flash memory drive.

 Unusable Device

This message will appear if a USB device or USB Flash memory drive that is not supported has been connected to the USB direct interface. (For more information, visit us at http://solutions.brother.com.) This message can also appear if you connect a broken device to the USB direct interface.

Printing photos from a camera 6

Printing photos directly from a PictBridge camera

Your Brother machine supports the PictBridge standard, allowing you to connect to and print photos directly from any PictBridge compatible digital camera.

If your camera is using the USB Mass Storage standard, you can also print photos from a digital camera without PictBridge. See

Printing photos directly from a digital camera (without PictBridge) on page 52.

PictBridge requirements 6

To avoid errors, remember the following points:

 The machine and the digital camera must

be connected using a suitable USB cable.

 The image file extension must be .JPG

(other image file extensions like .JPEG, .TIF, .GIF and so on will not be recognized).

 PhotoCapture Center™ operations are

not available when using the PictBridge feature.

Setting your digital camera 6

Make sure your camera is in PictBridge mode. The following PictBridge settings may

be available from the LCD of your PictBridge compatible camera.

Depending on your camera some of these settings may not be available.

Camera Menu Selections

Paper Size Letter, A4, 10x15cm, Printer

Paper Type Plain Paper, Glossy Paper,

Layout Borderless: On, Borderless:

DPOF setting

Print Quality Normal, Fine, Printer

Color Enhancement

See DPOF printing on page 51 for more details.

If your camera is set to use the Printer Settings (Default setting), the machine will print your photo using the following settings.

Settings Options

Paper Size 10x15cm

Paper Type Glossy Paper

Layout Borderless: On

Print Quality Fine

Color Enhancement Off

Options

Settings (Default setting)

Inkjet Paper, Printer Settings

(Default setting)

Off, Printer Settings

(Default setting)

Settings (Default setting)

On, Off, Printer Settings

(Default setting)

 When your camera does not have any

menu selections, this setting is also used.

 The names and availability of each setting

depends on the specification of your camera.

Please refer to the documentation supplied with your camera for more detailed information on changing PictBridge settings.

Printing photos from a camera

Printing Images 6

Note

Remove any memory cards or USB Flash memory drive from the machine before connecting a digital camera.

a Make sure that your camera is turned

off. Connect your camera to the USB direct interface (1) on the machine using the USB cable.

DPOF printing 6

DPOF stands for Digital Print Order Format.

If your digital camera supports DPOF printing, you will be able to choose on the digital camera display the images and number of copies you want to print.

1 USB direct interface

b Turn on the camera.

When the machine has recognized the camera, the LCD shows Camera Connected.

c Choose the photo you want to print

following the instructions from your camera.When the machine starts printing a photo, the LCD will show Printing.

To prevent damage to your machine, do not connect any device other than a digital camera or USB Flash memory drive to the USB direct interface.

WARNING

Chapter 6

Printing photos directly from a digital camera (without PictBridge)

If your camera supports the USB Mass Storage standard, you can connect your camera in storage mode. This enables you to print photos from your camera.

If you would like to print photos in PictBridge mode, see Printing photos directly from a PictBridge camera on page 50.

Note

The name, availability and operation differ among digital cameras. Please refer to the documentation supplied with your camera for detailed information, such as how to switch from PictBridge mode to mass storage mode.

Printing Images 6

Note

Remove any memory cards or USB Flash

memory drive from the machine before connecting a digital camera.

a Make sure that your camera is turned

off. Connect your camera to the USB direct interface (1) on the machine using the USB cable.

1 USB direct interface

b Turn on the camera. c Following the steps in Print

Images on page 37.

To prevent damage to your machine, do not connect any device other than a digital camera or USB Flash memory drive to the USB direct interface.

WARNING

Understanding the Error Messages 6

Once you are familiar with the types of errors that can occur while you are using PictBridge, you can easily identify and troubleshoot any problems.

 Out of Memory

This message will appear if you are working with images that are too large for the machine's memory.

 Unusable Device

This message will appear if you connect a camera which is not in PictBridge mode nor using the USB Mass Storage standard. This message can also appear if you connect a broken device to the USB direct interface.

Printing photos from a camera

For more detailed solutions see Error messages on page 71.

Chapter 6

Section IV

Software IV

Software and Network features 56

Software and Network features 7

The CD-ROM includes the Software User’s Guide and Network User’s Guide (DCP-560CN only) for features available when connected to a computer (for example, printing and scanning). The guide has easy to use links that, when clicked, will take you directly to a particular section.

You can find information on these features:

 Printing

 Scanning

 ControlCenter3 (for Windows

 ControlCenter2 (for Macintosh®)

 PhotoCapture Center™

 Network Printing (DCP-560CN only)

 Network Scanning (DCP-560CN only)

How to read the HTML User’s Guide

This is a quick reference for using the HTML User’s Guide.

(For Windows

)

Note

If you have not installed the software, see Viewing Documentation on page 3.

a From the Start menu, point to Brother,

DCP-XXXX (where XXXX is your model number) from the programs group, then click User’s Guides in HTML format.

b Click SOFTWARE USER’S GUIDE

(or NETWORK USER’S GUIDE) from the top menu.

c Click the heading you would like to read

from the list at the left of the window.

(For Macintosh®)

a Make sure your Macintosh

on. Insert the Brother CD-ROM into your CD-ROM drive.

is turned

b Double-click the Documentation icon. c Double-click your language folder, and

then double-click the top page file.

d Click SOFTWARE USER’S GUIDE

(or NETWORK USER’S GUIDE) in the top menu, and then click the heading you would like to read from the list at the left of the window.

Section V

Appendixes V

Safety and Legal 58 Troubleshooting and Routine Maintenance 67 Menu and Features 85 Specifications 94 Glossary 106

Safety and Legal A

Choosing a location A

Put your machine on a flat, stable surface that is free of vibration and shocks, such as a desk. Put the machine near a standard grounded electrical socket. Choose a location where the temperature remains between 10° C and 35° C.

CAUTION

• Avoid placing your machine in a high-traffic area.

• Avoid placing your machine on carpet.

• DO NOT put the machine near heaters, air conditioners, refrigerators, medical equipment, chemicals or water.

• DO NOT expose the machine to direct sunlight, excessive heat, moisture, or dust.

• DO NOT connect your machine to electrical sockets controlled by wall switches or automatic timers.

• Disruption of power can wipe out information in the machine's memory.

• DO NOT connect your machine to electrical sockets on the same circuit as large appliances or other equipment that might disrupt the power supply.

• Avoid interference sources, such as speakers or the base units of non-Brother cordless phones.

Safety and Legal

To use the machine safely

Please keep these instructions for later reference and read them before attempting any maintenance.

WARNING

There are high voltage electrodes inside the machine. Before you clean the inside of the machine, make sure you have unplugged the power cord from the electrical socket. Doing this will prevent an electrical shock.

DO NOT handle the plug with wet hands. Doing this may cause an electrical shock.

DO NOT pull in the middle of the AC power cord. Doing this may cause an electrical shock.

DO NOT put your hands on the edge of the machine under the document cover or the scanner cover. Doing this may cause injury.

DO NOT put your hands on the edge of the paper tray under the output paper tray cover. Doing this may cause injury.

DO NOT touch the paper feed roller. Doing this may cause injury.

Safety and Legal

DO NOT touch the area shaded in the illustration. Doing this may cause injury.

When moving the machine you must lift it from the base, by placing a hand at each side of the unit as shown in the illustration. DO NOT carry the machine by holding the scanner cover.

DO NOT use flammable substances or any type of spray to clean the inside or outside of the machine. Doing this may cause a fire or electrical shock.

If the machine becomes hot, releases smoke, or generates any strong smells, immediately turn off the power switch and unplug the machine from the electrical socket. Call your Brother dealer or Brother Customer Service.

If metal objects, water or other liquids get inside the machine, immediately turn off the power switch and unplug the machine from the electrical socket. Call your Brother dealer or Brother Customer Service.

WARNING

• This product must be installed near an electrical socket that is easily accessible. In case of an emergency, you must unplug the power cord from the electrical socket to shut off the power completely.

• Always make sure the plug is fully inserted.

Important safety instructions A

1 Read all of these instructions.

2 Save them for later reference.

3 Follow all warnings and instructions marked on the product.

4 Unplug this product from the wall socket before cleaning the inside of the machine. DO NOT

use liquid or aerosol cleaners. Use a damp cloth for cleaning.

5 DO NOT use this product near water.

6 DO NOT place this product on an unstable cart, stand, or table. The product may fall, causing

serious damage to the product.

7 Slots and openings in the casing and the back or bottom are provided for ventilation. To ensure

reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heater. This product should never be placed in a built-in installation unless adequate ventilation is provided.

8 This product should be operated from the type of power source indicated on the label. If you

are not sure of the type of power available, call your dealer or local power company.

9 Use only the power cord supplied with this machine.

10 This product is equipped with a 3-wire grounded plug, a plug having a third (grounded) pin.

This plug will only fit into a grounded power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, call your electrician to replace your obsolete outlet. DO NOT defeat the purpose of the grounded plug.

11 DO NOT allow anything to rest on the power cord. DO NOT place this product where people

can walk on the cord.

12 DO NOT place anything in front of the machine that will block printing. DO NOT place anything

in the path of printing.

13 Wait until pages have exited the machine before picking them up.

Safety and Legal

14 Unplug this product from the power socket and refer all servicing to Brother Authorized Service

Personnel under the following conditions:

 When the power cord is damaged or frayed.

 If liquid has been spilled into the product.

 If the product has been exposed to rain or water.

 If the product does not operate normally when the operating instructions are followed,

adjust only those controls that are covered by the operating instructions. Incorrect adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation.

 If the product has been dropped or the casing has been damaged.

 If the product exhibits a distinct change in performance, indicating a need for service.

15 To protect your product against power surges, we recommend the use of a power protection

device (Surge Protector).

16 To reduce the risk of fire, electric shock and injury to people, note the following:

 DO NOT use this product near appliances that use water, a swimming pool, or in a wet

basement.

 DO NOT use the machine during an electrical storm (there is the remote possibility of an

electrical shock) or to report a gas leak in the vicinity of the leak.

IMPORTANT - For your safety A

To ensure safe operation, the supplied three-pin plug must be inserted only into a standard threepin electrical socket that is effectively grounded through the normal household wiring.

The fact that the equipment operates satisfactorily does not imply that the power is grounded and that the installation is completely safe. For your safety, if in any doubt about the effective grounding of the power, consult a qualified electrician.

Wiring information (for U.K. only) A

Important

If you need to replace the plug fuse, fit a fuse that is approved by ASTA to BS1362 with the same rating as the original fuse.

Always replace the fuse cover. Never use a plug that does not have a cover.

Warning - This machine must be earthed.

The wires in the mains lead are coloured in line with the following code:

 Green and Yellow: Earth

 Blue: Neutral

 Brown: Live

If in any doubt, call a qualified electrician.

LAN connection (DCP-560CN only) A

CAUTION

DO NOT connect this product to a LAN connection that is subject to over-voltages.

Radio interference A

This product complies with EN55022 (CISPR Publication 22)/class B. When connecting the machine to a computer, ensure that you use a USB cable which does not exceed 2.0 metres in length.

EU Directive 2002/96/EC and EN50419 A

European Union Only

This equipment is marked with the above recycling symbol. It means that at the end of the life of the equipment, you must dispose of it separately at an appropriate collection point, and not place it in the normal domestic unsorted waste stream. This will benefit the environment for all. (European Union only)

Safety and Legal

Legal limitations for copying A

It is an offence to make reproductions of certain items or documents with the intent to commit fraud. This memorandum is intended to be a guide rather than a complete list. We suggest you check with relevant legal authorities if in doubt about a particular item or document.

The following are examples of documents which may not be copied:

 Money

 Bonds or other certificates of indebtedness

 Certificates of Deposit

 Armed Forces Service or Draft papers.

 Passports

 Postage Stamps (cancelled or uncancelled)

 Immigration Papers

 Welfare documents

 Cheques or Drafts drawn by Governmental Agencies

 Identification Documents, badges or insignias

 Licences and Certificates of Title to motor vehicles

Copyrighted works cannot be copied. Sections of a copyrighted work can be copied for ‘fair dealing’. Multiple copies would indicate improper use.

Works of art should be considered the equivalent of copyrighted works.

Licenses and Certificates of Title to motor vehicles may not be copied under certain state/provincial laws.

Trademarks

The Brother logo is a registered trademark of Brother Industries, Ltd.

Brother is a registered trademark of Brother Industries, Ltd.

Multi-Function Link is a registered trademark of Brother International Corporation.

Microsoft and Windows are registered trademarks of Microsoft in the U.S. and other countries.

Windows Vista is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.

Macintosh and TrueType are registered trademarks of Apple Inc.

Nuance, the Nuance logo, PaperPort and ScanSoft are trademarks or registered trademarks of Nuance Communications, Inc. or its affiliates in the United States and/or other countries.

Presto! PageManager is a registered trademark of NewSoft Technology Corporation.

Microdrive is a trademark of International Business Machine Corporation.

CompactFlash is a registered trademark of SanDisk Corporation.

Memory Stick is a registered trademark of Sony Corporation.

SecureDigital is a trademark of Matsushita Electric Industrial Co. Ltd., SanDisk Corporation and Toshiba Corporation.

SanDisk is a licensee of the SD and miniSD trademarks.

MultiMediaCard is a trademark of Infineon Technologies and licensed to the MultiMediaCard Association.

xD-Picture Card is a trademark of Fujifilm Co. Ltd., Toshiba Corporation and Olympus Optical Co. Ltd.

PictBridge is a trademark.

Memory Stick Pro, Memory Stick Pro Duo, Memory Stick Duo and MagicGate are trademarks of Sony Corporation.

FaceFilter Studio is a trademark of Reallusion, Inc.

Each company whose software title is mentioned in this manual has a Software License Agreement specific to its proprietary programs.

All other brand and product names mentioned in this User's Guide, the Software User's Guide and the Network User’s Guide (DCP-560CN only) are registered trademarks of their respective companies.

Troubleshooting and Routine

Maintenance

Troubleshooting B

If you think there is a problem with your machine, check the chart below and follow the troubleshooting tips.

Most problems can be easily resolved by yourself. If you need additional help, the Brother Solutions Center offers the latest FAQs and troubleshooting tips. Visit us at http://solutions.brother.com

If you are having difficulty with your machine B

Printing

Difficulty Suggestions

No printout Check the interface cable on both the machine and your computer.

Poor print quality Check the print quality. (See Checking the print quality on page 81.)

White h orizontal lin es appear in text or graphics.

The machine prints blank pages. Clean the print head. (See Cleaning the print head on page 81.)

(See the Quick Setup Guide.)

Make sure the machine is plugged in and not turned off.

One or more ink cartridges are empty. (See Replacing the ink cartridges on page 76.)

Check to see if the LCD is showing an error message. (See Error messages on page 71.)

Check that the correct printer driver has been installed and chosen.

Make sure that the machine is online. Click Start and then Printers and Faxes. Right-click and choose Brother DCP-XXXX (where XXXX is your model name), and make sure that Use Printer Offline is unchecked.

Make sure that the Media Type setting in the printer driver or the Paper Type setting in the machine’s menu matches the type of paper you are using.
