Brooks Instrument 1358 User Manual

Installation and Operation Manual

X-VA-1358-eng
Part Number: 541B041AAG
September, 2012

Model 1358

Model 1358

Sho-Rate

TM

"50",

Size 8, Flow Indicator

Model 1358-V
Sho-Rate "50" Meter
with optional Needle

Control Valve

Model 1358

Installation and Operation Manual

X-V A-1358-eng

Part Number: 541B041AAG

September, 2012

Installation and Operation Manual

X-VA-1358-eng
Part Number: 541B041AAG
September, 2012

Model 1358

WARNING

GLASS TUBE

EXPLOSION

HAZARD

Plastic protective sleeve must remain over glass
tube.

Fasten meter windows securely.
Do not operate above pressure and temperature

limits.
Avoid pressure and flow surges.
Do not service or repair while pressurized.
Read and understand instruction manual.
Failure to comply could result in serious personal

injury or property damage.

WARNING

GLASS TUBE EXPLOSION HAZARD

Protective sleeve
Fasten meter windows securely.
Failure to comply could result in serious personal

injury or property damage.

must

remain

over

glass

tube.

Installation and Operation Manual

X-V A-1358-eng

Part Number: 541B041AAG

Model 1358

Dear Customer ,
We appreciate this opportunity to service your flow measurement and control requirements with a Brooks

Instrument device. Every day, flow customers all over the world turn to Brooks Instrument for solutions to their
gas and liquid low-flow applications. Brooks provides an array of flow measurement and control products for
various industries from biopharmaceuticals, oil and gas, fuel cell research and chemicals, to medical devices,
analytical instrumentation, semiconductor manufacturing, and more.

The Brooks product you have just received is of the highest quality available, offering superior performance,
reliability and value to the user. It is designed with the ever changing process conditions, accuracy requirements
and hostile process environments in mind to provide you with a lifetime of dependable service.

We recommend that you read this manual in its entirety. Should you require any additional information concerning
Brooks products and services, please contact your local Brooks Sales and Service Office listed on the back cover
of this manual or visit www.BrooksInstrument.com

Y ours sincerely ,
Brooks Instrument

September, 2012

Installation and Operation Manual

X-VA-1358-eng
Part Number: 541B041AAG
September, 2012

Paragraph Page
Number Number

Section 1 Introduction

1-1 Description .................................................................................................................................1-1

1-2 Design features..........................................................................................................................1-1

1-3 Specifications ............................................................................................................................. 1-1

1-4 Optional Equipment....................................................................................................................1-2

Section 2 Installation

2-1 Receipt of Equipment.................................................................................................................2-1

2-2 Recommended Storage Practice ...............................................................................................2-1

2-3 Return Shipment ........................................................................................................................2-1

2-4 Transit Precaution ......................................................................................................................2-2

2-5 Installation ..................................................................................................................................2-2

Section 3 Operation

3-1 Operating Instructions ................................................................................................................3-1

Model 1358

Contents

Section 4 Maintenance

4-1 General ......................................................................................................................................4-1

Section 5 Parts List

5-1 General ......................................................................................................................................4-1

Section A Essential Instructions

A-1 Essential Instructions .................................................................................................................A-1

Warranty, Local Sales/Service Contact Information....................................................................... Back Cover

Figures

Figure Page
Number Number

1-1 Dimensions .................................................................................................................................1-5

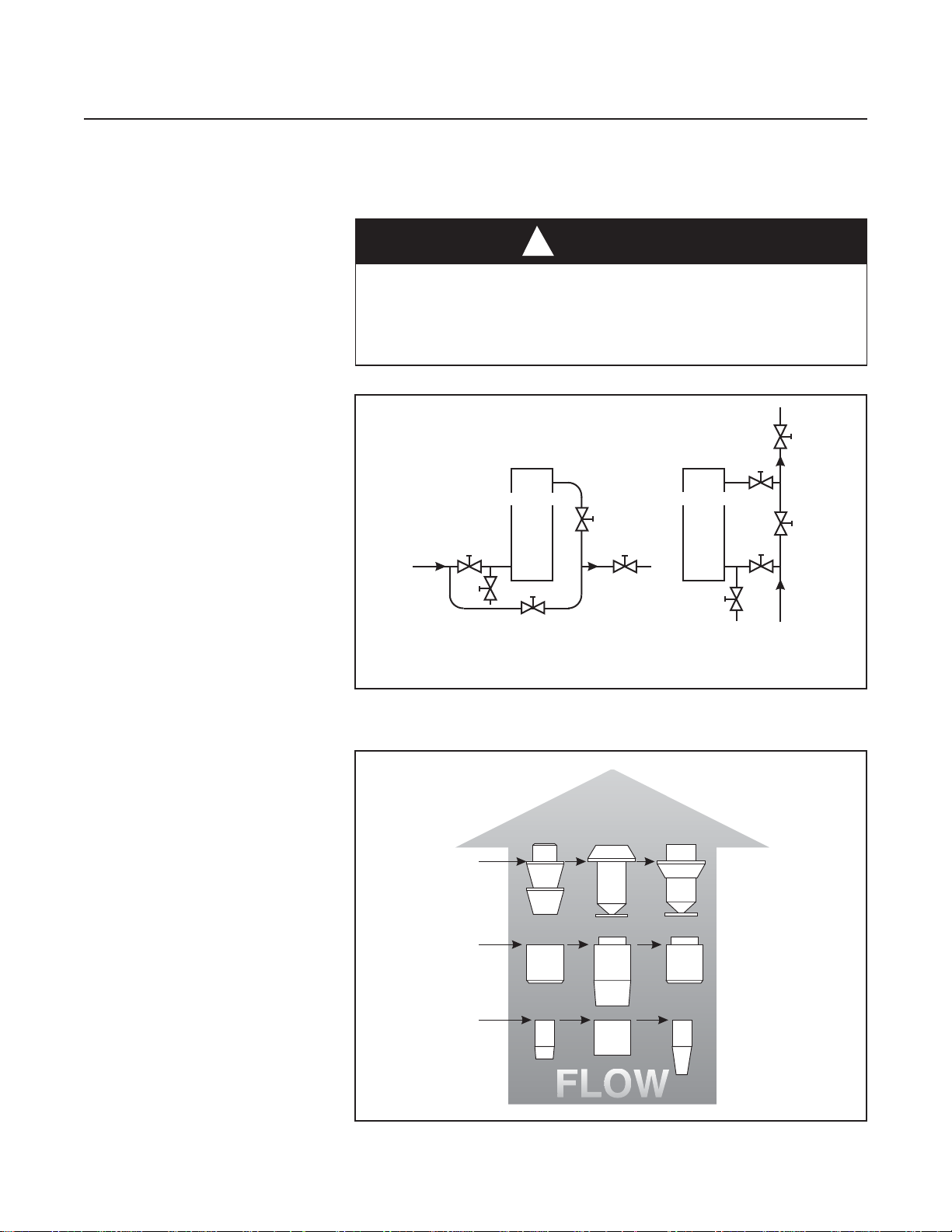

2-1 Typical Bypass Inst allation ..........................................................................................................2-3

2-2 Front Panel Mounting..................................................................................................................2-4

3-1 Typical Bypass Inst allation ..........................................................................................................3-3

3-2 Reading Edge of Floats...............................................................................................................3-3

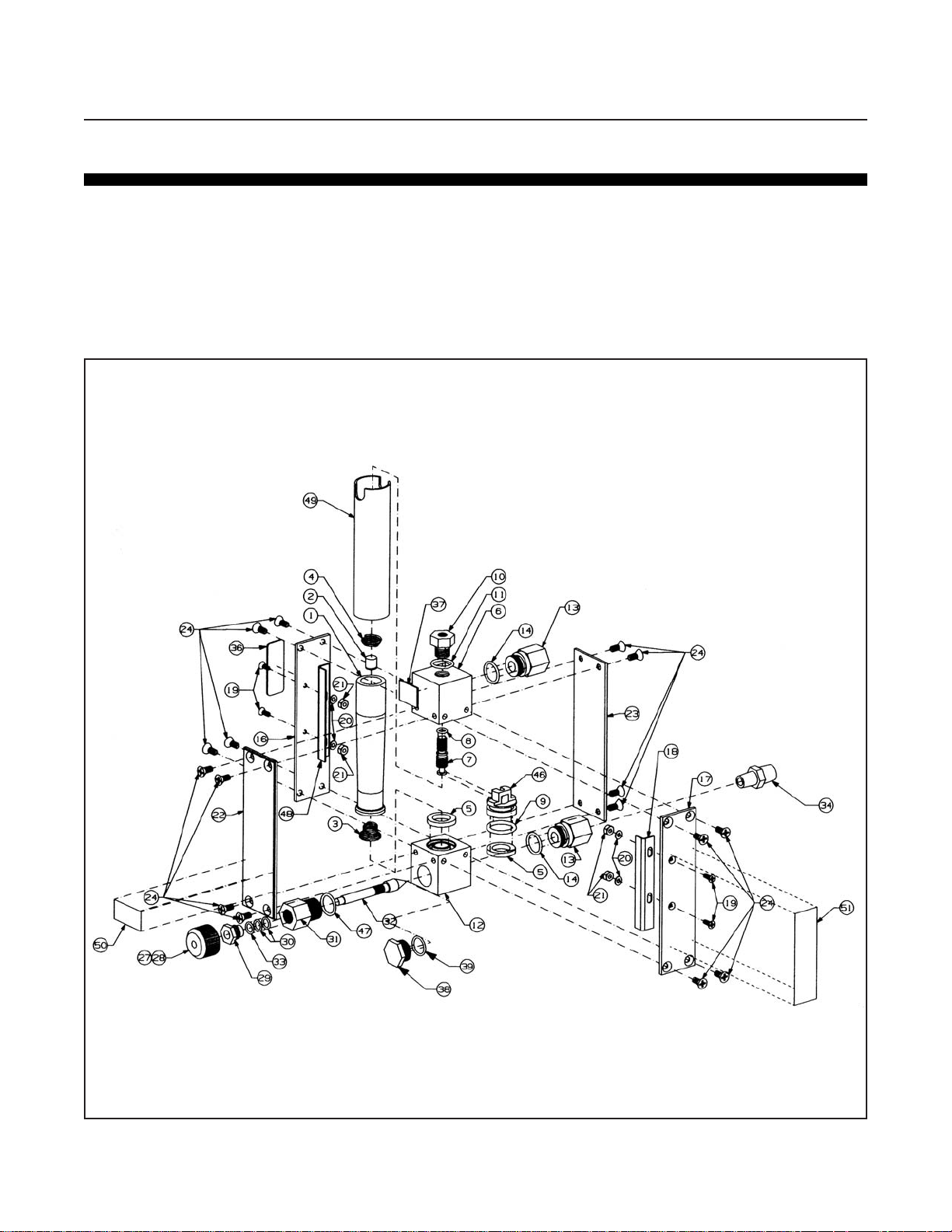

5-1 Exploded View , Size 8 Model 1358 Sho-Rate.............................................................................5-1

Tables

Table Page
Number Number

1-1 Capacities ..................................................................................................................................1-2

5-1 Model 1358 Parts List.................................................................................................................5-6

i

Contents

Model 1358

Installation and Operation Manual

X-VA-1358-eng

Part Number: 541B041AAG

September, 2012

THIS PAGE WAS
INTENTIONALLY

LEFT BLANK

ii

Installation and Operation Manual

WARNING

WARNING

X-V A-1358-eng
Part Number: 541B041AAG
September, 2012

1-1 Description

1-2 Design Features

Section 1 Introduction

Model 1358

The Brooks® Sho-Rate “50” Series of low flow indicators provides a cost­effective means of flow indication where the accuracy requirements are not
severe. A vailable options include an integral needle control valve as well as
flow controllers piped to the inlet or outlet of the meter.

• T en-to-one rangeability

• Heavy-wall, precision bore borosilicate glass metering tube

• A wide range of scales on the metering tube

• Tube removable without disconnecting the instrument

• Interchangeable tubes and floats

• Piping connections rotatable through 360° at 90° intervals

• Easily panel mounted

1-3 Specifications

Do not operate this instrument in excess of the specifications listed
below. Failure to heed this warning can result in serious personal
injury and/or damage to the equipment.

Glass metering tubes are designed for operation up to the maximum
operating pressures and temperatures as specified herein. Due to
the inherent brittle characteristics of glass and conditions beyond
our control, tube breakage could result even within specified
operating conditions. Do not use glass tube meters with fluids that
are toxic, or chemically react with glass such as water above 140°F,
steam, alkalis, flourine, hydrofluoric acid, or molten metal. Failure
to heed warning can result in serious personal injury and/or damage
to the equipment.

Pressure/T emperature

200 psig at 33°F to 250°F (1°C to 121°C)
Fluid temperatures below 32°F (0°C) will cause frosting of the glass
metering tube. Consult factory for applications below this temperature.
100 psig at 33°F to 250°F (1°C to 121°C) (CRN Certification)

Pressure Equipment Directive (PED) 97/23/EC:

Flowmeters mentioned in this instruction manual are Sound Engineering
Practice (SEP).

1-1

Section 1 Introduction

Model 1358

Installation and Operation Manual

X-VA-1358-eng

Part Number: 541B041AAG

September , 2012

Scales

Type (Standard): Fused on meter tube
Length: 75 mm, nominal
Graduations:

S tandard: direct read on tube in gpm water or scfm air.
Optional: special direct read decal on tube. Consult factory for
available ranges. Direct read on metal scale plate mounted beside
tube.

Capacities and Pressure Drop s

Refer to Table 1-1

Standard accuracy:

±10% of full scale from 100% to 10% of scale reading.

Repeatability

0.5% full scale

Rangeability

Ten to one

Table 1-1 Capacities

Maximum Flow Rate

Pressure Drop Pressure Drop
Water Without Valve With Valve
(gpm) Inches W.C. Inches W. C. Float

0.8 12.6 13.6 8-RV-8

1.5 22.2 27.0 8-RJ-10

2.5 61.0 85.2 8-RJ-23

3.5 88.7 121.0 8-RJ-30

5.0 172 238.0 8-RJ-39

Air Without Valve With Valve

(scfm) Inches W.C. Inches W.C. Float

3.4 14.34 15.5 8-RV-8

6.0 25.34 30.8 8-RJ-10

12.0 69.34 97.3 8-RJ-23

15.0 101.34 138.3 8-RJ-30

NOTE: All air flows are at 14.7 psia and 70°F.

Pressure Drop Pressure Drop

Connections

Standard: Horizontal female 3/8" NPT threaded adaptors.

1-2

Dimensions

See Figure 1-1

Materials of Construction:
Metering Tube

Borosilicate glass

Installation and Operation Manual

GLASS TUBE

EXPLOSION

HAZARD

WARNING

!

Plastic protective sleeve must remain over glass tube. (Meter sizes
7 -13 only)

Fasten meter windows securely.
Do not operate above pressure and temperature limits.
Avoid pressure and flow surges.
Do not service or repair while pressurized.
Read and understand instruction manual.
Failure to comply could result in serious personal injury or property

damage.

Protective sleeve must remain over glass tube. Fasten meter
windows securely. Failure to comply could result in serious
personal injury or property damage.

GLASS TUBE EXPLOSION HAZARD

WARNING

!

X-V A-1358-eng
Part Number: 541B041AAG
September, 2012

Section 1 Introduction

Model 1358

Protective T ube Sleeve

UV stabilized polycarbonate

Float

316 stainless steel

End Fittings

Chrome plated brass or 316 stainless steel

Side Plates

Standard: Black anodized aluminum
Optional: 316 stainless steel

Window

Scratch resistant, UV stabilized polycarbonate

Back Cover

Milk white polycarbonate

Float Stops

Stainless steel

1-3

Section 1 Introduction

Model 1358

Installation and Operation Manual

X-VA-1358-eng

Part Number: 541B041AAG

September , 2012

T ube Packing

Standard: Neoprene® (Brass meters), Viton-A® fluoroelastomers
(316 stainless steel meters).
Optional: Teflon

®

, EPM

O-rings

Standard: Buna-N (Brass meters), V iton-A
Optional: (316 stainless steel meters): EPM, Kalrez

®

Inch

MM

Figure 1-1 Model 1358 Dimensions

1-4 Optional Equipment

Mounting

Flush panel mounting bezel
Front of panel mounting locknuts

Standard Needle Valve

The standard needle valve can be supplied integrally mounted or externally
piped to the inlet or outlet of the instrument.

Flow Contollers

Flow controllers can be supplied integrally mounted or externally piped to
the inlet or outlet of the instrument. For the flow controller's complete
instruction manual go to our website: BrooksInstrument.com, select
Documentation, Precision Valves & Flow Controllers, select FC8800, or
FC8900.

1-4

Installation and Operation Manual

X-V A-1358-eng
Part Number: 541B041AAG
September, 2012

2-1 Receipt of Equipment

Section 2 Installation

Model 1358

When the instrument is received, the outside packing case should be
checked for damage incurred during shipment. If the packing case is
damaged, the local carrier should be notified at once regarding his liability .
A report should be submitted to your nearest Product Service Department.

Brooks Instrument

407 W. V ine Street
P.O. Box 903
Hatfield, PA 19440 USA
Toll Free (888) 554 FLOW (3569)
Tel [phone]
Fax [phone]
E-m ail: BrooksAm @BrooksInstrument.com
www.BrooksInstrument.com

Brooks Instrument Brooks Instrument

Neonstraat 3 1-4-4 Kitasuna Koto-Ku
6718 WX Ede, Netherlands Tokyo, 136-0073 Japan
P.O. Box 428 Tel [phone]
6710 BK Ede, Netherlands Fax [phone]
Tel [phone] Email: [e-mail]
Fax [phone]
E-mail: [e-mail]

2-2 Recommended Storage Practice

a. Within the original shipping container.
b. Stored in a sheltered area, preferably a warm, dry, heated warehouse.
c. Ambient temperature of 70° F (21° C) nominal, 109° F (43° C) maximum,

d. Relative humidity 45% nominal, 60% maximum, 25% minimum.

Remove the envelope containing the packing list. Carefully remove the
instrument from the packing case. Make sure spare part s are not
discarded with the packing materials. Inspect for damaged or missing
parts.

If intermediate or long-term storage of equipment is required, it is
recommended that the equipment be stored in accordance with the
following:

45° F (7° C) minimum.

Upon removal from storage a visual inspection should be conducted to
verify the condition of equipment is "as received".

2-1

Section 2 Installation

Model 1358

2-3 Return Shipment

Installation and Operation Manual

X-V A-1358-eng

Part Number: 541B041AAG

September, 2012

Prior to returning any instrument to the factory , contact your nearest Brooks
location for a Return Materials Authorization Number (RMA#). This can be
obtained from one of the following locations:

Brooks Instrument

407 W. V ine Street
P.O. Box 903
Hatfield, PA 19440 USA
Toll Free (888) 554 FLOW (3569)
Tel [phone]
Fax [phone]
E-m ail: BrooksAm @BrooksInstrument.com
www.BrooksInstrument.com

Brooks Instrument Brooks Instrument

Neonstraat 3 1-4-4 Kitasuna Koto-Ku
6718 WX Ede, Netherlands Tokyo, 136-0073 Japan
P.O. Box 428 Tel [phone]
6710 BK Ede, Netherlands Fax [phone]
Tel [phone] Email: [e-mail]
Fax [phone]
E-mail: [e-mail]

2-4 Transit Precautions

2-5 Installation

Any instrument returned to Brooks requires completion of Form RPR003-1,
Brooks Instrument Decontamination S tatement, as well as, a Material
Safety Data Sheet (MSDS) for the fluid(s) used in the instrument. This is
required before any Brooks Personnel can begin processing. Copies of the
form can be obtained from any Brooks Instrument location listed above.

To safeguard against damage during transit, transport the instrument to the
installation site in the same container used for transportation from the
factory if circumstances permit.

A. Location
For proper operation the Model 1358 must be mounted within 6 degrees of
true vertical. The inlet connection to the flowmeter is in the bottom end
fitting. The connections are normally horizontal female NPT. The use of a
level is recommended to assure vertical positioning. Piping must be
adequately supported to prevent undue strain on the flowmeter.

B. Piping Arrangement
It is recommended that bypass piping be installed around the flowmeter so
it may be isolated from the process line for servicing and cleaning. Refer to
Figure 2-1 for a typical installation.

2-2

CAUTION

!

Do not allow the float to fall out of the metering tube. A damaged Float
will affect the accuracy of the meter. Be careful not to break the tube
by pulling on it at an extreme angle or applying excessive force.

Installation and Operation Manual

X-V A-1358-eng
Part Number: 541B041AAG
September, 2012

Section 2 Installation

Model 1358

HORIZONTAL

LINE

FLOWMETER

VERTICAL

LINE

FLOWMETER

B

DA

E

E

C

A - Inlet Valve B - Outlet Valve C - Bypass Valve

D - Control Valve E - Drain Valve

Figure 2-1 Typical Bypass Installation

D

B

C

A

2-3

Section 2 Installation

Model 1358

Installation and Operation Manual

X-V A-1358-eng

Part Number: 541B041AAG

September, 2012

BEZEL

15

2

16

NOMINAL
SCALE
LENGTH

0.25

6.4

1

1

2

7

16

11.1

1
2

12.7

75

SAFETY
SHIELDS

CUSTOMER PANEL

NOTE 1

38.1

3
8
3
8
TYP.

NOTES:

1. BEZEL MOUNTING SCREW SUPPLIED FOR 0.25 [6.4] PANELTHICKNESS.

1

"NPTOR

"RCOR

IF PANELTHICKNESS IS LESS THAN 0.25 [6.4], INSTALL

SPACERS BETWEEN METERAND PANEL AS SHOWN.

1
2

" NPT

2

"RC

177.8

25.4

7

1

OUTLET

INLET

214.3

7

8

16

1

2

4

57.2

PLASTIC PANELBEZEL

FOR FLUSH MTG.

4

3
4

120.6

5
8

15.9

3

1

4

44.4

9

228.6

1

1

4

31.8

PANEL MOUNTING CUT-OUTS

1

1

2

[38.1]

FLUSH PANEL MTG

1

1

[27.0] DIA.

16

2 HOLES REQ'D.

1

[25.4]

1

[6.4]

4

[139.7]

5

[127.0]

7

[5.6] DIA. HOLES

32
FOR #10-32 SCREW
4 REQ'D

DIMENSIONS ARE

7

[177.8]

1

5

2

FRONT OF PANELMTG

PANEL MOUNTING CUT-OUTS

INCH
[MM]

Figure 2-2 Front Panel Mounting

1358031 Rev C

2-4
