Enhanced UL Adapter for use with EZ-Lock
ULA-49EAY Water Jacket with Mounting Collar
BR-3 Pivot Cup
(Part of Lab Viscometer)
YULA-15EK (304 s/s) YULA-15EKZ (316 s/s) Spindle with Coupling Nut
ULA-05EY Clamp Knob
HT-19 Mounting Screw (2)
ULA-10EK Mounting Channel
Pin
ULA-02E Clamping Collar
ULA-06E Spring Plunger
ULA-31EY (304 s/s, open tube) ULA-31EYz (316 s/s, closed tube) Sample Chamber
ULA-34 Tube End Cap
(Not required with ULA-31EYZ Sample Chamber)
Enhanced UL Adapter
for use with EZ-Lock Instruments
(shown with DV-II+Pro Viscometer - similar assembly on
other model viscometers/rheometers)
Assembly & Operating Instructions
No. M09-086
The Enhanced UL Adapter for use with EZ-Lock spindle coupling systems , as shown in Figure 1, is a kit consisting of a spindle with coupling nut attached, sample chamber, mounting channel, and water jacket with mounting collar. It is available in two versions: (1) with type 304 stainless steel suitable for most general purpose applications; (2) with type 316 stainless steel for use with corrosive/acidic applications. All versions are shipped with the water jacket (ULA-49EAY) mounted on the sample chamber.
The type 304 s/s UL Adapter (Part No. ULA-EY) may be used either as an “open tube” or “closed tube” system. In the “open tube” method, the water jacket (ULA-49EAY) must be removed, allowing measurement in a beaker or other suitable vessel. In the “closed tube” method, the sample is poured into the sample chamber with tube end cap installed, which may be temperature controlled by direct immersion into a water bath or with the use of the water jacket connected to a circulating water bath. The 316 s/s UL Adapter (Part No. ULA-EZY) has a closed
sample chamber with solid bottom and cannot be used as an open tube conguration.
The Enhanced UL Adapter may be ordered without the water jacket. Check your sales order to verify that you
have received the correct conguration for your Enhanced UL Adapter for use with EZ-Lock spindle coupling
system.

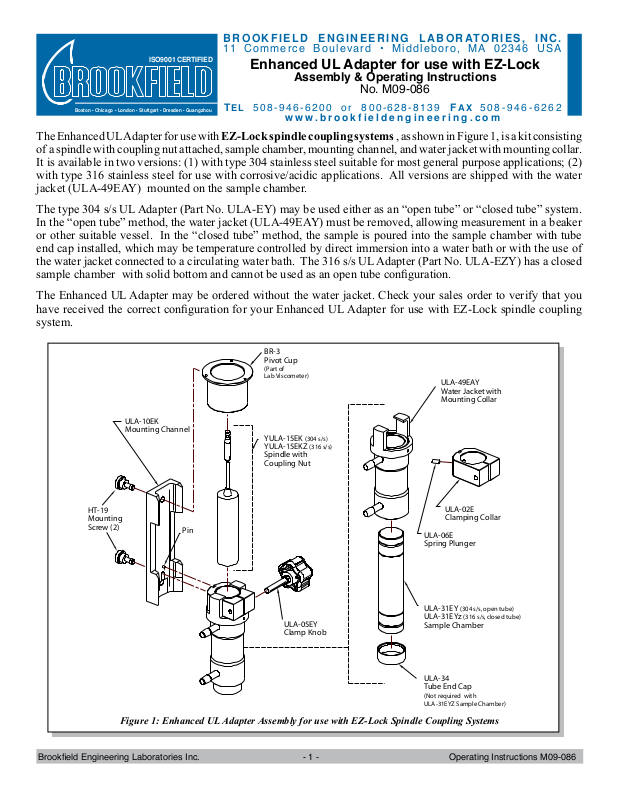

Figure 1: Enhanced UL Adapter Assembly for use with EZ-Lock Spindle Coupling Systems
Brookeld Engineering Laboratories Inc. -  - Operating Instructions M09-086
Assembly & Operation
CLAMPING COLLAR
CLAMPING KNOB
IMMERSION GROOVE
END CAP GROOVE
1. Attach the mounting channel to the viscometer by threading the upper mounting screw (HT-19) into the viscometer pivot cup. Do not overtighten. The end of the mounting channel with the pin must be at the bottom, as shown in Figure 1.
2. Open Tube Operation (#304 stainless steel)
The water jacket (ULA-49EAY) must be removed when the “open tube” method is used. This allows
measurement in a beaker or other container. The sample chamber must be inserted into the clamping collar
before immersion in sample uid. The top of the sample chamber should be ush with the top edge of the
clamping collar.
The clamping collar connects to the mounting channel as shown in Figure 1. Attach the spindle to the
viscometer by raising the spring-loaded sleeve at the base of the viscometer pivot cup and inserting the
spindle so that the bottom of the coupling is ush with the bottom of the sleeve. Slide the sleeve back down to hold the spindle in place. Slowly lower spindle/chamber assembly into sample uid. Observe and ensure that the uid level meets the immersion groove located on the outside of the sample chamber as shown in
Figure 2.
3. Closed Tube Operation with Water Jacket The UL Adapter may be used with the ULA-49EAY water jacket and a circulating water bath by connecting
the water jacket to the bath inlet and outlet ports (Figure 3). The tube end cap (ULA-34) is snapped over the bottom end of the sample chamber before the sample is added. Be sure that it is securely seated in the groove. Fill with 16 mL of sample uid. Insert the clamping collar into the mounting collar as shown in Figure 1. Insert the sample chamber upwards into the water jacket and clamping collar. When fully inserted, secure the sample chamber by tightening the clamping knob. Attach the spindle to the viscometer by raising the spring­loaded sleeve at the base of the viscometer pivot cup and inserting the spindle so that the bottom of th coupling
is ush with the bottom of the sleeve. Slide the spindle into the chamber. Attach the Clamping Collar to the Mounting Channel, slide upwards, and secure in place by tightening the mounting screw. Conrm that the uid level in the sample chamber covers the conical portion of the spindle shaft.
CAUTION: The spindle, sample chamber, and cap (if used) should be clean before use. The cap material
Brookeld Engineering Laboratories Inc. -  - Operating Instructions M09-086
Figure 2: Sample Tube Immersion
Chamber Shown is #304 Stainless Steel
is low density polyethylene. Replace when damaged or loose.
