Broan SmartSense
®
Intelligent Ventilation System
January 2008
Improve air quality throughout
Main Bath
Laundry
Room
Rec Room
Second
Bath
Workshop
the home—automatically and efficiently.
Broan Ultra Silent™ ventilation fans that once worked independently now work
together as an integrated ventilation system in the Broan SmartSense®
Intelligent Ventilation System. Because these fans ventilate from different
locations, you’re assured of ongoing fresh air distribution throughout the home.
Why do I need to ventilate all day?
Proper ventilation exhausts stale indoor air and
minimizes opportunities for mold and mildew growth.
It also helps remove gases and particles not trapped
by any filtration unit. With Broan SmartSense,
get an automatic ventilation solution that minimizes
the presence of pollutants such as household cleaners,
VOCs, carbon monoxide and off-gassing from building
materials, carpets and other furnishings.
Broan SmartSense® meets intermittent and
continuous ventilation requirements of ASHRAE*
62 and other related guidelines (including building
codes derived from the ASHRAE standard).
®
you
How does it work?
The Broan SmartSense® system continually monitors
and activates Broan Ultra Silent
cycling them throughout the home to distribute fresh
air. Broan Ultra Silent
0.3 and 0.7 sones, so they are ideal for any area of the
home that might require additional ventilation. Even in
a bedroom in the middle of the night, you’ll never know
they’re running.
™
fans operate at a barely audible
™
fans day and night,
Installs as easily as an exhaust fan.
Simply recess the fan housing in the ceiling, vent with
6" duct to the exterior of the home and connect the
power wires. No control wiring is necessary. After
installation, program the controls to match the size
of the home.
An economic alternative to other systems.
Broan SmartSense® utilizes exhaust ventilation fans
normally installed in the home and automatically
adjusts the total run-time based on square footage
and number of bedrooms. Broan SmartSense
monitor normal manual fan operation, and adjust
ventilation time as needed to optimize energy usage.
Broan SmartSense
efficient than other ventilation strategies such as
supply side systems that require the use of the home’s
air handler. Because only one fan is running at a time,
Broan SmartSense
ventilation cycles.
Broan SmartSense® meets intermittent
and whole-building ventilation requirements
of green building programs such as
Leadership in Energy Efficient Design
(LEED), NAHB Green Building Guidelines
and ENERGY STAR Indoor Air Package.
®
is more cost effective and energy
®
uses less than 40 watts during
®
controls
*The American Society of Heating, Refrigeration and Air Conditioning Engineers

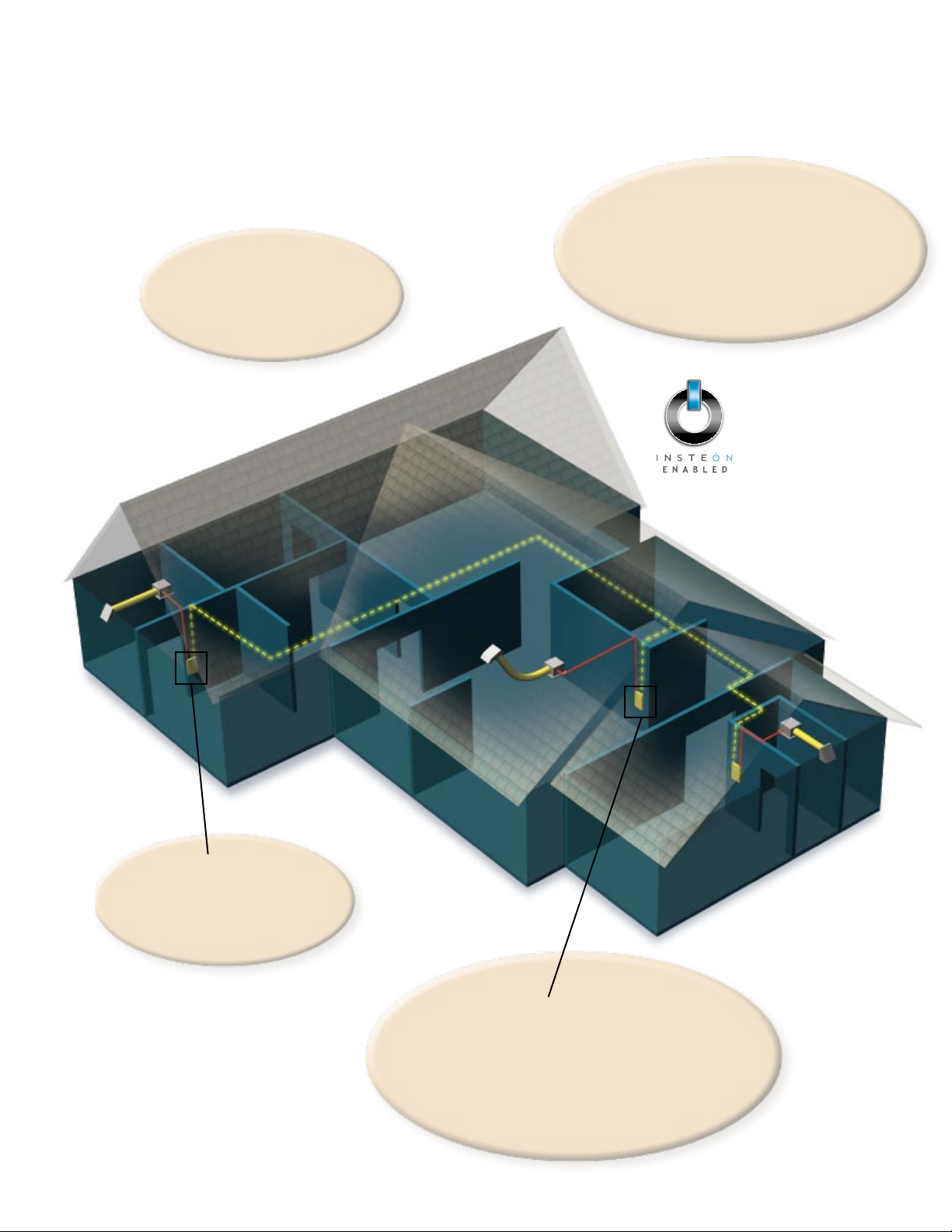

The Broan SmartSense® Intelligent
Ventilation System.
All Broan SmartSense® controls
3
communicate with the “master control”
over existing power wires in the home, telling
Install Broan Ultra Silent™
1
fans throughout the home,
wherever ventilation is needed.
the master how much ventilation each fan
has achieved through manual operation.
Exhaust
Vent
Broan
Ultra Silent
Fan
SmartSense
™
Broan
Control
Broan SmartSense® uses
INSTEON,
wireless home control
technology.
Exhaust
Vent
®
Broan
Ultra Silent
Fan
Master
Broan
SmartSense
Control
™
Ultra Silent
®
Broan
SmartSense
Control
Broan
Fan
®
™
a powerful,
™
Exhaust
Vent
A communicating
2
Broan SmartSense
control is connected to each
Broan Ultra Silent
™
fan.
®
Designate one Broan SmartSense®
4
control as the “master.” The “master control”
calculates how much run-time is necessary after
deducting manual usage. It intermittently turns
fans on and off to achieve optimal ventilation.
Programming Broan SmartSense® controls.
Broan SmartSense® controls monitor and control
all fans on the system. Programming the control
involves just two simple steps:
Choose one control to be the master, and enter 1.
your ventilation rate based on home size and
number of bedrooms.*
An easy two-click procedure registers system 2.
fans with the master.
*Broan SmartSense® is compliant with ASHRAE code 62.1-2004 and 62.2-2004, the
nationally recognized indoor air quality standard (The American Society of Heating,
Refrigeration and Air Conditioning Engineers).
Broan
SmartSense
Control
®
Broan Ultra Silent™ Fan
Convenient two- and three-fan kits.
SMSK102 Kit contains Broan Ultra Silent™ fans
(one 110 CFM fan, one 80 CFM fan), two Broan
SmartSense
white and almond colored paddles.
®
controls and a phase coupler. Includes
For ventilation professionals.
Use this chart to determine the recommended
continuous ventilation rate in CFM (Cubic Feet
per Minute) for homes of various sizes.
Number of Bedrooms
0 – 1 2 – 3 4 – 5
< 1500
30 45 60
1501
to
3000
45 60 75
3001
to
4500
Home Square Footage
For more details see ASHRAE code 62.1-2004 and 62.2-2004.
60 75 90
4501
to
6000
75 90 105
Chart numbers in Cubic Feet per Minute.
SMSK103 Kit contains Broan Ultra Silent™ fans
(one 110 CFM fan, two 80 CFM fans), three Broan
SmartSense
white and almond colored paddles.
®
controls and a phase coupler. Includes
Recommended rooms for the
Broan SmartSense® system.
Use the following list to help determine the types of
rooms that could use a Broan Ultra Silent
that each bathroom, shower stall and watercloset must
have at least one. Combine two- and three-fan kits to
achieve the number of fans needed. Broan SmartSense
systems will recognize up to ten fans.
✔ One for each bathroom
✔ Shower stall
✔ Laundry room
✔ Rec room
✔ Watercloset
✔ Exercise room
✔ Home office
✔ Playroom
✔ Workshop
™
fan. Note
®
Isn’t it time for a smart solution
to home ventilation?
Broan. The leader in residential ventilation.
Speakers Ironing Centers Chimes Heaters Fresh Air Systems
Trash Compactors Ceiling Fans Bath Cabinets
Range Hoods Intercoms Decorative Backsplashes Central Vacuums
Broan®
is America’s leading brand of residential ventilation products including range hoods, decorative backsplashes,
ventilation fans, heater/fan/light combination units, Indoor Air Quality (IAQ) Fresh Air Systems, built-in heaters, whole-house
fans, attic ventilators and trash compactors.
NuTone®
is America’s leading brand of residential built-in convenience products including door chimes, central vacuum
systems, stereo intercom systems, paddle fans, home theater speakers, bath cabinets, ironing centers and ventilation fans.
www.Broan.com
Broan-NuTone, LLC, 926 W. State Street, Hartford, WI 53027 • 800-558-1711
In Canada call 888-882-7626
Broan SmartSense® is a registered trademark of Broan-NuTone, LLC. Broan Ultra Silent™ is a trademark of Broan-NuTone, LLC.
INSTEON
™
is a trademark of SmartLabs™, Inc. • ©2008 Broan-NuTone, LLC • Printed in USA • 01/08 9985 0806A
