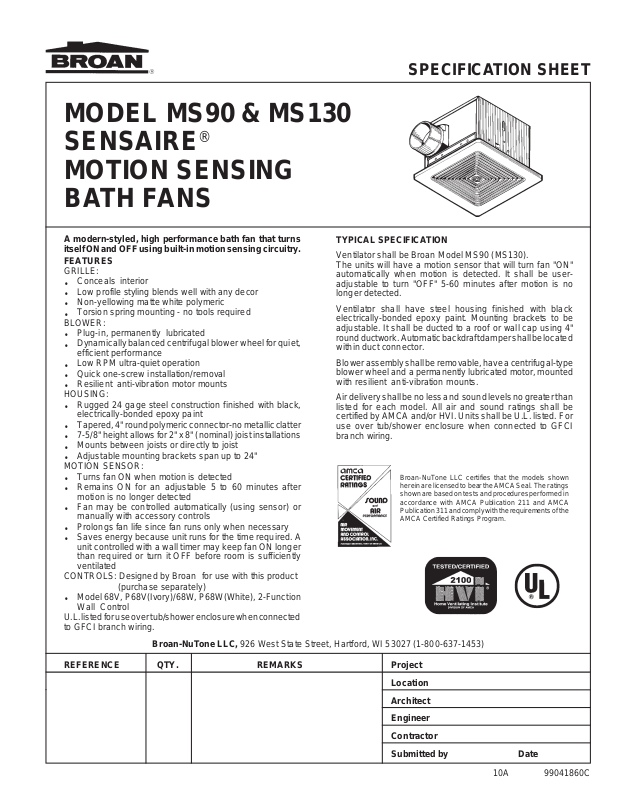

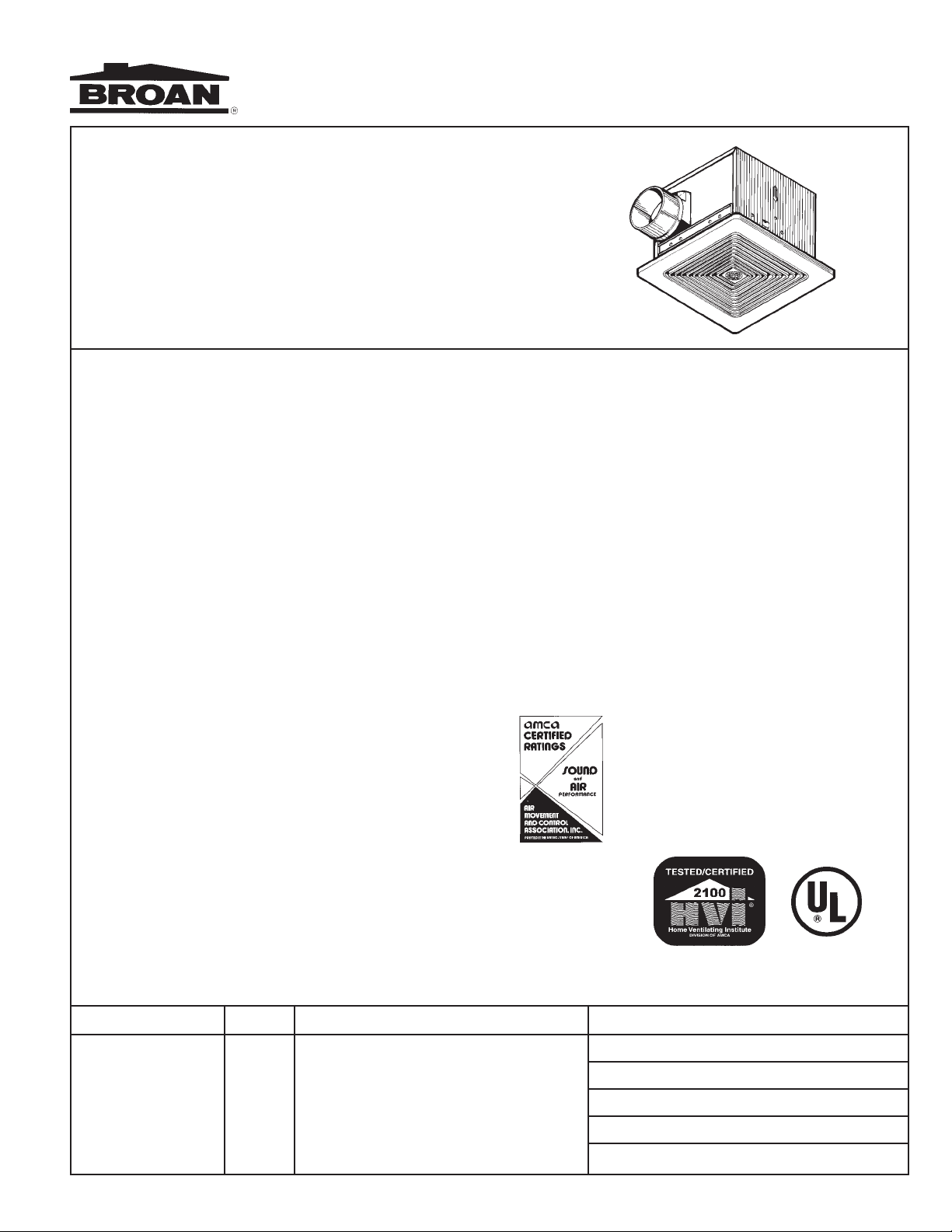

MODEL MS90 & MS130
SPECIFICATION SHEET
SENSAIRE
®
MOTION SENSING
BATH FANS
A modern-styled, high performance bath fan that turns
itself ON and OFF using built-in motion sensing circuitry.
FEATURES
GRILLE:
Conceals interior
•
Low profile styling blends well with any decor
•
Non-yellowing matte white polymeric
•
Torsion spring mounting - no tools required
•
BLOWER:
Plug-in, permanently lubricated
•
Dynamically balanced centrifugal blower wheel for quiet,
•
efficient performance
Low RPM ultra-quiet operation
•
Quick one-screw installation/removal
•
Resilient anti-vibration motor mounts
•
HOUSING:
Rugged 24 gage steel construction finished with black,
•
electrically-bonded epoxy paint
Tapered, 4" round polymeric connector-no metallic clatter
•
7-5/8" height allows for 2" x 8" (nominal) joist installations
•
Mounts between joists or directly to joist
•
Adjustable mounting brackets span up to 24"
•
MOTION SENSOR:
Turns fan ON when motion is detected
•
Remains ON for an adjustable 5 to 60 minutes after
•
motion is no longer detected
Fan may be controlled automatically (using sensor) or
•
manually with accessory controls
Prolongs fan life since fan runs only when necessary
•
Saves energy because unit runs for the time required. A
•
unit controlled with a wall timer may keep fan ON longer
than required or turn it OFF before room is sufficiently
ventilated
CONTROLS: Designed by Broan for use with this product
(purchase separately)
Model 68V, P68V(Ivory)/68W, P68W(White), 2-Function
•
Wall Control
U.L. listed for use over tub/shower enclosure when connected
to GFCI branch wiring.
TYPICAL SPECIFICATION
Ventilator shall be Broan Model MS90 (MS130).
The units will have a motion sensor that will turn fan "ON"
automatically when motion is detected. It shall be useradjustable to turn "OFF" 5-60 minutes after motion is no
longer detected.
Ventilator shall have steel housing finished with black
electrically-bonded epoxy paint. Mounting brackets to be
adjustable. It shall be ducted to a roof or wall cap using 4"
round ductwork. Automatic backdraft damper shall be located
within duct connector.
Blower assembly shall be removable, have a centrifugal-type
blower wheel and a permanently lubricated motor, mounted
with resilient anti-vibration mounts.
Air delivery shall be no less and sound levels no greater than
listed for each model. All air and sound ratings shall be
certified by AMCA and/or HVI. Units shall be U.L. listed. For
use over tub/shower enclosure when connected to GFCI
branch wiring.
Broan-NuTone LLC certifies that the models shown
herein are licensed to bear the AMCA Seal. The ratings
shown are based on tests and procedures performed in
accordance with AMCA Publication 211 and AMCA
Publication 311 and comply with the requirements of the
AMCA Certified Ratings Program.
Broan-NuTone LLC, 926 West State Street, Hartford, WI 53027 (1-800-637-1453)
REFERENCE QTY. REMARKS Project
Location
Architect
Engineer
Contractor
Submitted by Date
10A 99041860C

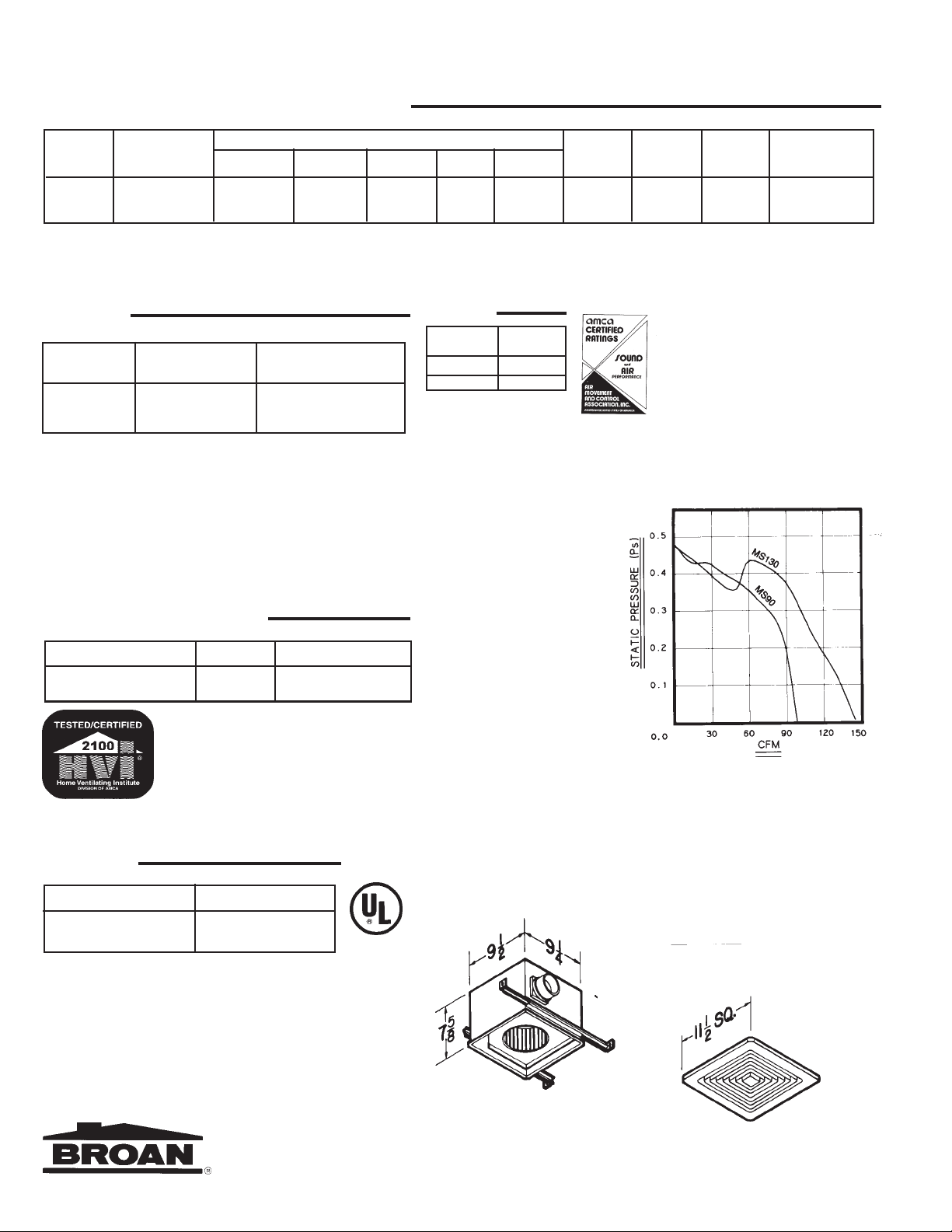

PERFORMANCE RATINGS - MODELS MS90 & MS130
AMCA LICENSED PERFORMANCE
Model Sones @
No.
0.0" S.P. 0.0
CFM @ Static Pressure (Ps - Inches of H20)
0.1 .125 .250 .375 Volts Watts RPM Size
Total Duct
MS90 3.0 98 94 93 84 52 120 50 1050 4" Dia.
MS130 5.6 145 134 130 109 89 120 90 1350 4" Dia.
The performances shown are with inlet grille, backdraft damper and outlet duct. RPM shown is nominal and the performance is based on actual speed of test.
The sound ratings shown are loudness values in fan sones at 5' (1.5m) in a hemispherical free field calculated per AMCA Std. 301. Values shown are for
installation Type B: free inlet fan sone levels.
SONES
Model HVI Sones AMCA Sones
Number @ 0.1" S.P.** @0.0" S.P.**
MS90 2.5 3.0
MS130 3.5 5.6
*There is a difference between sone values certified by HVI for residential use
and by AMCA for commercial/industrial use. Exact comparison of these values
is not possible. This difference is mainly due to the procedures used to convert
measured sound to perceived sound. ANSI S3.4, used by both HVI and
AMCA, specifies a procedure for calculating loudness as perceived by a
typical listener under specific conditions. HVI establishes values at a distance
of 5 feet from the fan in a “spherical free field’’; AMCA establishes values at a
distance of 5 feet in a "hemispherical free field". HVI and AMCA have different
rules for rounding sone values.
AMPS
MODEL
NUMBER AMPS*
MS90 .70
MS130 .90
*Total Connected Load
"Broan-NuTone LLC certifies that the
models shown herein are licensed to
bear the AMCA Seal. The ratings shown
are based on tests and procedures performed in accordance with AMCA Publication 211 (and AMCA Publication 311
if sound is also certified) and comply
with the requirements of the AMCA
Certified Ratings Program."
HVI PERFORMANCE
MODEL NUMBER SONES CFM @0.1'’ Ps
MS90 2.5 90
MS130 3.5 130
HVI-2100 CERTIFIED RATINGS comply with new
testing technologies and procedures prescribed by
the Home Ventilating Institute, for off-the-shelf
products, as they are available to consumers. Product
performance is rated at 0.1 in. static pressure, based
on tests conducted in AMCA’s state-of-the-art test
laboratory. Sones are a measure of humanlyperceived loudness, based on laboratory
measurements.
WEIGHT
MODEL NUMBER SHIPPING WT.
MS90 10.5 LBS.
MS130 10.5 LBS.
