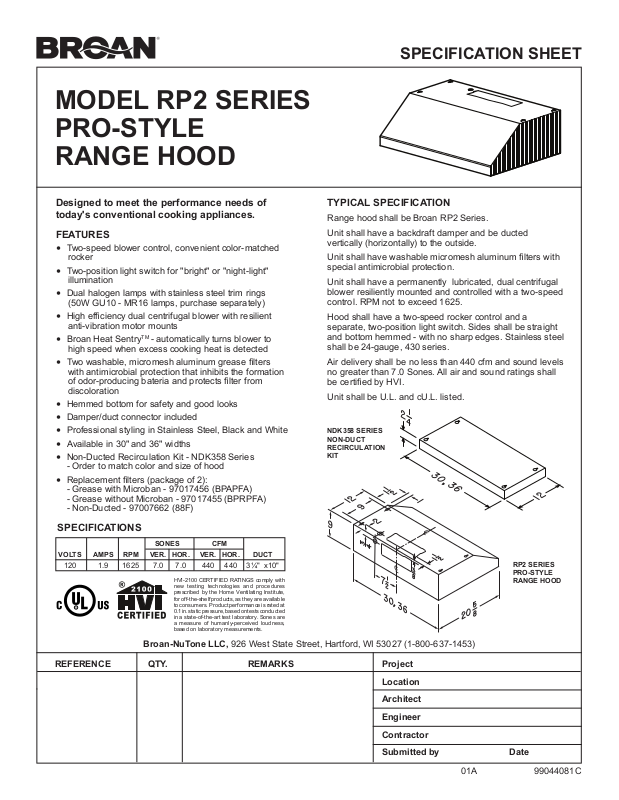

SPECIFICATION SHEET
MODEL RP2 SERIES
PRO-STYLE
RANGE HOOD
Designed to meet the performance needs of today's conventional cooking appliances.
FEATURES
•Two-speed blower control, convenient color-matched rocker
•Two-position light switch for "bright" or "night-light" illumination
•Dual halogen lamps with stainless steel trim rings (50W GU10 - MR16 lamps, purchase separately)
•High efficiency dual centrifugal blower with resilient anti-vibration motor mounts
•Broan Heat SentryTM - automatically turns blower to high speed when excess cooking heat is detected
•Two washable, micromesh aluminum grease filters with antimicrobial protection that inhibits the formation of odor-producing bateria and protects filter from discoloration
•Hemmed bottom for safety and good looks
•Damper/duct connector included
•Professional styling in Stainless Steel, Black and White
•Available in 30" and 36" widths
•Non-Ducted Recirculation Kit - NDK358 Series
-Order to match color and size of hood
•Replacement filters (package of 2):
-Grease with Microban - 97017456 (BPAPFA)
-Grease without Microban - 97017455 (BPRPFA)
-Non-Ducted - 97007662 (88F)
SPECIFICATIONS
|
|
|
SONES |
CFM |
|
||
VOLTS |
AMPS |
RPM |
VER. |
HOR. |
VER. |
HOR. |
DUCT |
120 |
1.9 |
1625 |
7.0 |
7.0 |
440 |
440 |
3¼" x10" |
HVI-2100 CERTIFIED RATINGS comply with new testing technologies and procedures prescribed by the Home Ventilating Institute, foroff-the-shelfproducts,astheyareavailable toconsumers.Productperformanceisratedat 0.1in.staticpressure,basedontestsconducted in a state-of-the-art test laboratory. Sones are a measure of humanly-perceived loudness, based on laboratory measurements.
TYPICAL SPECIFICATION
Range hood shall be Broan RP2 Series.
Unit shall have a backdraft damper and be ducted vertically (horizontally) to the outside.
Unit shall have washable micromesh aluminum filters with special antimicrobial protection.
Unit shall have a permanently lubricated, dual centrifugal blower resiliently mounted and controlled with a two-speed control. RPM not to exceed 1625.
Hood shall have a two-speed rocker control and a separate, two-position light switch. Sides shall be straight and bottom hemmed - with no sharp edges. Stainless steel shall be 24-gauge, 430 series.
Air delivery shall be no less than 440 cfm and sound levels no greater than 7.0 Sones. All air and sound ratings shall be certified by HVI.
Unit shall be U.L. and cU.L. listed.
NDK358 SERIES
NON-DUCT
RECIRCULATION
KIT
RP2 SERIES
PRO-STYLE
RANGE HOOD
Broan-NuTone LLC, 926 West State Street, Hartford, WI 53027 (1-800-637-1453)
REFERENCE |
QTY. |
REMARKS |
Project |
|
|
|
|
Location |
|
|
|
|
|
|
|
|
|
Architect |
|
|
|
|
|
|
|
|
|
Engineer |
|
|
|
|
|
|
|
|
|
Contractor |
|
|
|
|
|
|
|
|
|
Submitted by |
Date |
|
|
|
|
|
|
|
|
01A |
99044081C |
