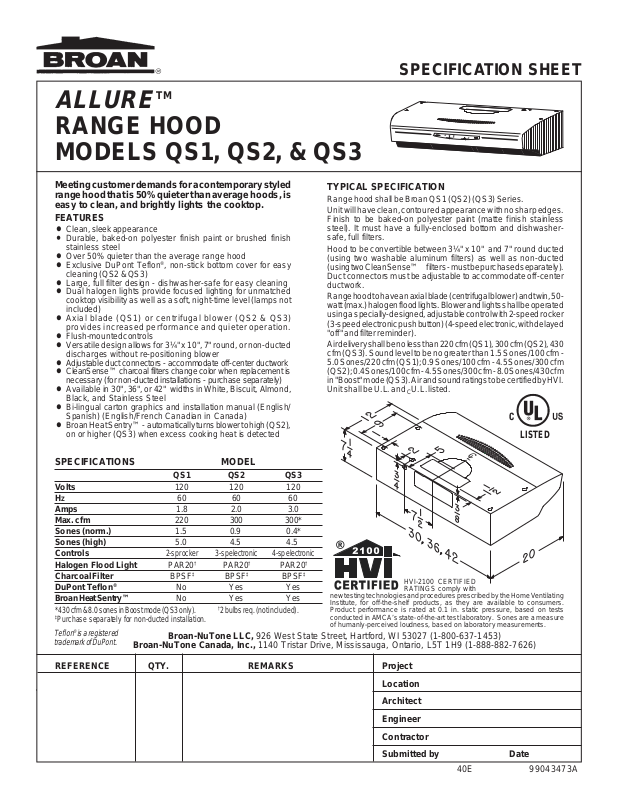

Broan QS336AA, QS142SS, QS330AA Specsheet
SPECIFICATION SHEET
ALLURE
TM
RANGE HOOD
MODELS QS1, QS2, & QS3
Meeting customer demands for a contemporary styled
range hood that is 50% quieter than average hoods, is
easy to clean, and brightly lights the cooktop.
FEATURES
Clean, sleek appearance
•
Durable, baked-on polyester finish paint or brushed finish
•
stainless steel
Over 50% quieter than the average range hood
•
Exclusive DuPont Teflon®, non-stick bottom cover for easy
•
cleaning (QS2 & QS3)
Large, full filter design - dishwasher-safe for easy cleaning
•
Dual halogen lights provide focused lighting for unmatched
•
cooktop visibility as well as a soft, night-time level (lamps not
included)
Axial blade (QS1) or centrifugal blower (QS2 & QS3)
•
provides increased performance and quieter operation.
Flush-mounted controls
•
Versatile design allows for 3¼" x 10", 7" round, or non-ducted
•
discharges without re-positioning blower
Adjustable duct connectors - accommodate off-center ductwork
•
CleanSense™ charcoal filters change color when replacement is
•
necessary (for non-ducted installations - purchase separately)
Available in 30", 36", or 42" widths in White, Biscuit, Almond,
•
Black, and Stainless Steel
Bi-lingual carton graphics and installation manual (English/
•
Spanish) (English/French Canadian in Canada)
Broan Heat Sentry™ - automatically turns blower to high (QS2),
•
on or higher (QS3) when excess cooking heat is detected
TYPICAL SPECIFICATION
Range hood shall be Broan QS1 (QS2) (QS3) Series.
Unit will have clean, contoured appearance with no sharp edges.
Finish to be baked-on polyester paint (matte finish stainless
steel). It must have a fully-enclosed bottom and dishwashersafe, full filters.
Hood to be convertible between 3¼" x 10" and 7" round ducted
(using two washable aluminum filters) as well as non-ducted
(using two CleanSense™ filters - must be purchased separately).
Duct connectors must be adjustable to accommodate off-center
ductwork.
Range hood to have an axial blade (centrifugal blower) and twin, 50watt (max.) halogen flood lights. Blower and lights shall be operated
using a specially-designed, adjustable control with 2-speed rocker
(3-speed electronic push button) (4-speed electronic, with delayed
"off" and filter reminder).
Air delivery shall be no less than 220 cfm (QS1), 300 cfm (QS2), 430
cfm (QS3). Sound level to be no greater than 1.5 Sones/100 cfm -
5.0 Sones/220 cfm (QS1); 0.9 Sones/100 cfm - 4.5 Sones/300 cfm
(QS2); 0.4 Sones/100 cfm - 4.5 Sones/300 cfm - 8.0 Sones/430 cfm
in "Boost" mode (QS3). Air and sound ratings to be certified by HVI.
Unit shall be U.L. and
U.L. listed.
C
LISTED
SPECIFICATIONS MODEL
QS1 QS2 QS3
Volts 120 120 120
HZ 60 60 60
Amps 1.8 2.0 3.0
Max. cfm 220 300 300*
Sones (norm.) 1.5 0.9 0.4*
Sones (high) 5.0 4.5 4.5
Controls
Halogen Flood Light PAR20
Charcoal Filter BPSF
DuPont Teflon
Broan Heat Sentry™ No Yes Yes
* 430 cfm & 8.0 sones in Boost mode (QS3 only).† 2 bulbs req. (not included).
‡
Purchase separately for non-ducted installation.
Teflon® is a registered
trademark of DuPont.
REFERENCE QTY. REMARKS Project
®
Broan-NuTone Canada, Inc., 1140 Tristar Drive, Mississauga, Ontario, L5T 1H9 (1-888-882-7626)
2-sp rocker 3-sp electronic 4-sp electronic
†
‡
No Yes Yes
Broan-NuTone LLC, 926 West State Street, Hartford, WI 53027 (1-800-637-1453)
PAR20
BPSF
†
‡
PAR20
BPSF
†
‡
new testing technologies and procedures prescribed by the Home Ventilating
Institute, for off-the-shelf products, as they are available to consumers.
Product performance is rated at 0.1 in. static pressure, based on tests
conducted in AMCA’s state-of-the-art test laboratory. Sones are a measure
of humanly-perceived loudness, based on laboratory measurements.
HVI-2100 CERTIFIED
RATINGS comply with
Location
Architect
Engineer
Contractor
Submitted by Date
