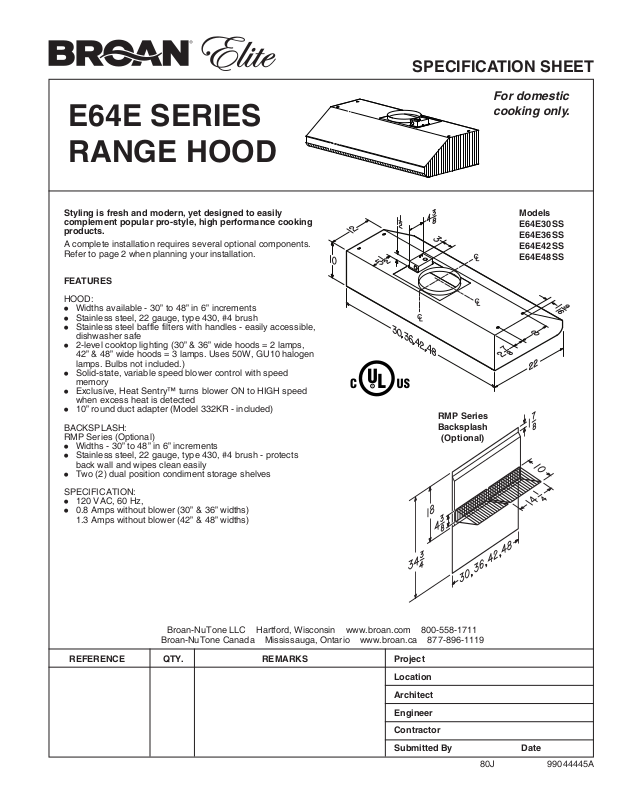

E64E SERIES
RANGE HOOD

SPECIFICATION SHEET

For domestic
cooking only.

Styling is fresh and modern, yet designed to easily
complement popular pro-style, high performance cooking
products.

A complete installation requires several optional components.
Refer to page 2 when planning your installation.

FEATURES

HOOD:

Widths available - 30” to 48” in 6” increments

•

Stainless steel, 22 gauge, type 430, #4 brush

•

Stainless steel baffle filters with handles - easily accessible,

•

dishwasher safe

2-level cooktop lighting (30” & 36” wide hoods = 2 lamps,

•

42” & 48” wide hoods = 3 lamps. Uses 50W, GU10 halogen
lamps. Bulbs not included.)

Solid-state, variable speed blower control with speed

•

memory

Exclusive, Heat Sentry™ turns blower ON to HIGH speed

•

when excess heat is detected

10” round duct adapter (Model 332KR - included)

•

BACKSPLASH:
RMP Series (Optional)

Widths - 30” to 48” in 6” increments

•

Stainless steel, 22 gauge, type 430, #4 brush - protects

•

back wall and wipes clean easily

Two (2) dual position condiment storage shelves

•

SPECIFICATION:

120 VAC, 60 Hz,

•

0.8 Amps without blower (30” & 36” widths)

•

1.3 Amps without blower (42” & 48” widths)

Models
E64E30SS
E64E36SS
E64E42SS
E64E48SS

RMP Series
Backsplash

(Optional)

Broan-NuTone LLC Hartford, Wisconsin www.broan.com 800-558-1711

Broan-NuTone Canada Mississauga, Ontario www.broan.ca 877-896-1119

REFERENCE QTY. REMARKS Project

Location

Architect

Engineer

Contractor

Submitted By Date

80J 99044445A

E64E SERIES RANGE HOOD SYSTEM

MODEL 437

(HIGH CAPACITY ROOF CAP)

MODEL 441

(10” ROUND

WALL CAP)

MODEL 643

(8” ROUND

WALL CAP)

MODEL 418

(10” ROUND

ADJUSTABLE ELBOW)

MODEL 421
(10” ROUND
VERTICAL
IN-LINE
DAMPER ­RECOMMENDED
FOR USE WITH
EXTERIOR BLOWERS)

MODEL 410

(10” ROUND DUCT - 2 FT. SECTIONS)

RMP SERIES BACKSPLASH

(STAINLESS STEEL WALL COVERING

WITH WARMING SHELVES -

OPTIONAL)

E64E SERIES HOOD

MODEL 332KR
(IN-LINE AND EXTERIOR
BLOWER ROUGH-IN KIT)

MODEL HLB9 (800 CFM)

OR HLB11 (1100 CFM)

INLINE BLOWER

(INCLUDES TW0 8” X 12”

TO 10” ROUND TRANSITIONS)

MODEL HLB6 (600 CFM)

INLINE BLOWER

(INCLUDES TW0 4½” X 18½” TO

10” ROUND TRANSITIONS)

MODEL HLB3 (280 CFM)

INLINE BLOWER

(INCLUDES ONE 8” X 10”

ROUND TRANSITION)

MODEL 331H (600 CFM)

OR 332H (900 CFM)

EXTERIOR BLOWER

MODEL 335 (1200 CFM)

OR 336 (1500 CFM)

EXTERIOR BLOWER

INLINE AND EXTERIOR BLOWERS
