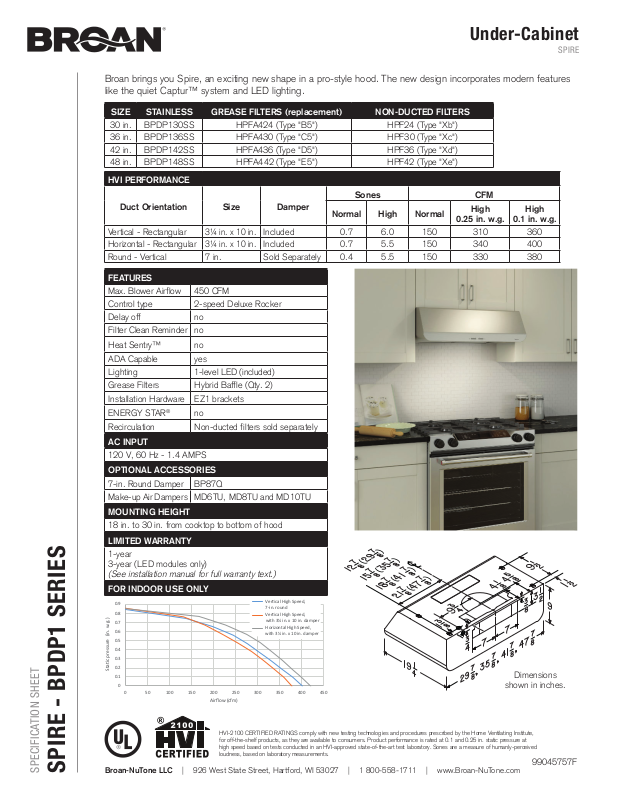

Broan BPDP130SS, BPDP136SS, BPDP142SS, BPDP148SS Specification Sheet
| <![if ! IE]> <![endif]>SPECIFICATION SHEET |
<![if ! IE]> <![endif]>SPIRE - BPDP1 SERIES |
Under-Cabinet
SPIRE
Broan brings you Spire, an exciting new shape in a pro-style hood. The new design incorporates modern features like the quiet Captur™ system and LED lighting.
SIZE |
STAINLESS |
GREASE FILTERS (replacement) |
NON-DUCTED FILTERS |
30 in. |
BPDP130SS |
HPFA424 (Type "B5") |
HPF24 (Type "Xb") |
36 in. |
BPDP136SS |
HPFA430 (Type "C5") |
HPF30 (Type "Xc") |
42 in. |
BPDP142SS |
HPFA436 (Type "D5") |
HPF36 (Type "Xd") |
48 in. |
BPDP148SS |
HPFA442 (Type "E5") |
HPF42 (Type "Xe") |
HVI PERFORMANCE
|
|
|
Sones |
|
CFM |
|
|
Duct Orientation |
Size |
Damper |
Normal |
High |
Normal |
High |
High |
|
|
|
0.25 in. w.g. |
0.1 in. w.g. |
|||
|
|
|
|
|
|
||
Vertical - Rectangular |
3¼ in. x 10 in. |
Included |
0.7 |
6.0 |
150 |
310 |
360 |
Horizontal - Rectangular |
3¼ in. x 10 in. |
Included |
0.7 |
5.5 |
150 |
340 |
400 |
Round - Vertical |
7 in. |
Sold Separately |
0.4 |
5.5 |
150 |
330 |
380 |
FEATURES
Max. Blower Airflow |
450 CFM |
Control type |
2-speed Deluxe Rocker |
Delay off |
no |
Filter Clean Reminder |
no |
Heat Sentry™ |
no |
|
|
ADA Capable |
yes |
Lighting |
1-level LED (included) |
Grease Filters |
Hybrid Baffle (Qty. 2) |
Installation Hardware |
EZ1 brackets |
ENERGY STAR® |
no |
Recirculation |
Non-ducted filters sold separately |
AC INPUT |
|
120 V, 60 Hz - 1.4 AMPS |
|
OPTIONAL ACCESSORIES |
|
7-in. Round Damper |
BP87Q |
Make-up Air Dampers |
MD6TU, MD8TU and MD10TU |
MOUNTING HEIGHT
18 in. to 30 in. from cooktop to bottom of hood
LIMITED WARRANTY
1-year
3-year (LED modules only)
(See installation manual for full warranty text.)
FOR INDOOR USE ONLY
|
0.9 |
|
|
|
|
|
|
Ver cal High Speed, |
|
|
|
|
|
|
|
|
|
7-in. round |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0.8 |
|
|
|
|
|
|
|
|
|
| <![if ! IE]> <![endif]>w.g.) |
|
|
|
|
|
|
|
Ver cal High Speed, |
|
|
0.7 |
|
|
|
|
|
|
with 3¼ in. x 10 in. damper |
|
||
0.6 |
|
|
|
|
|
|
Horizontal High Speed, |
|
||
| <![if ! IE]> <![endif]>(in. |
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
with 3¼ in. x 10 in. damper |
|
|||
0.5 |
|
|
|
|
|
|
|
|||
| <![if ! IE]> <![endif]>pressure |
|
|
|
|
|
|
|
|
|
|
0.4 |
|
|
|
|
|
|
|
|
|
|
0.3 |
|
|
|
|
|
|
|
|
|
|
| <![if ! IE]> <![endif]>cSta |
|
|
|
|
|
|
|
|
|
|
0.2 |
|
|
|
|
|
|
|
|
|
|
|
0.1 |
|
|
|
|
|
|
|
|
|
|
0 |
|
|
|
|
|
|
|
|
|
|
0 |
50 |
100 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
Airflow (cfm)
Dimensions shown in inches.
HVI-2100 CERTIFIED RATINGS comply with new testing technologies and procedures prescribed by the Home Ventilating Institute, for off-the-shelf products, as they are available to consumers. Product performance is rated at 0.1 and 0.25 in. static pressure at
high speed based on tests conducted in an HVI-approved state-of-the-art test laboratory. Sones are a measure of humanly-perceived
loudness, based on laboratory measurements.
99045757F
Broan-NuTone LLC | 926 West State Street, Hartford, WI 53027 | 1 800-558-1711 | www.Broan-NuTone.com
