Broan AP136BL, AP130BL, RP230SS, RP236BL Installation

AP1 & RP SERIES

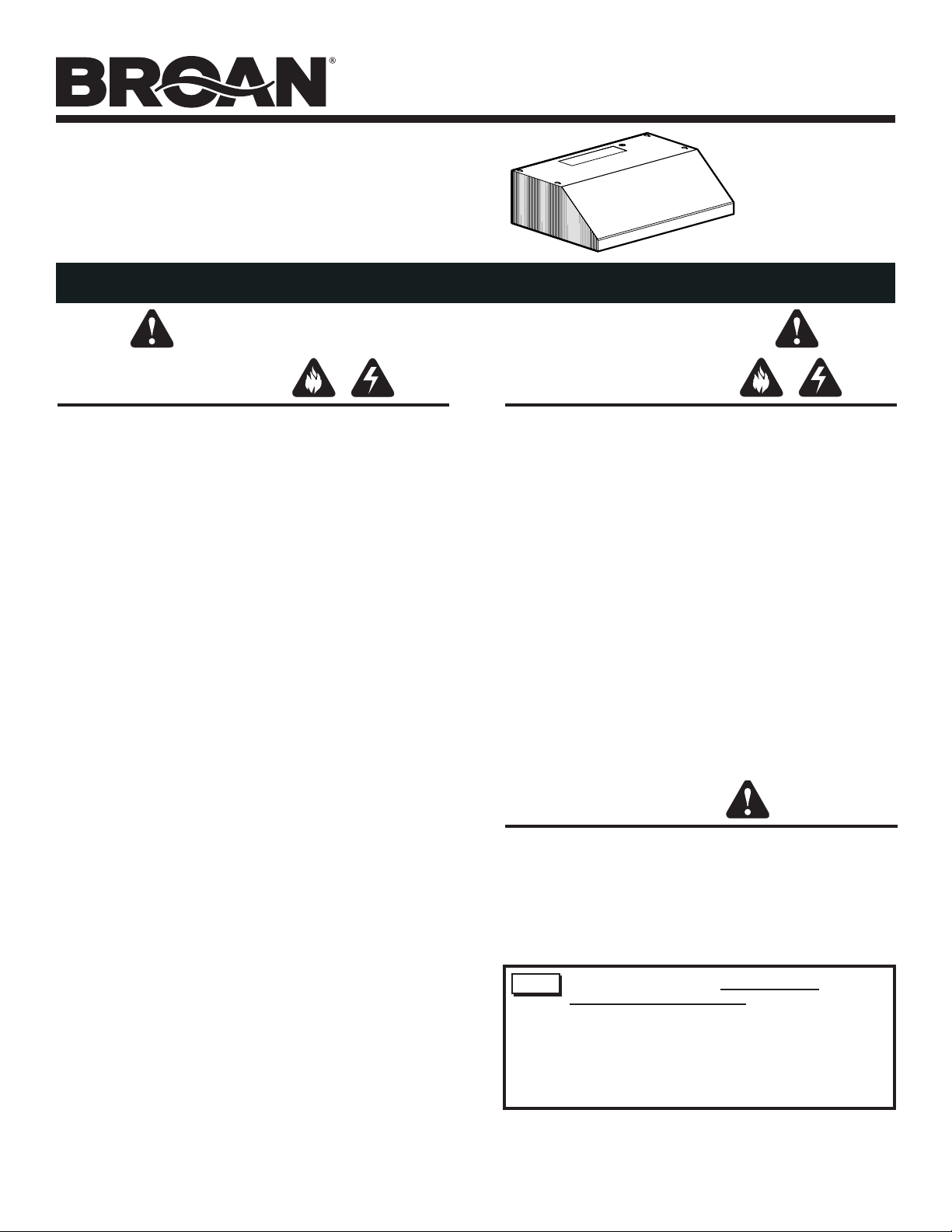

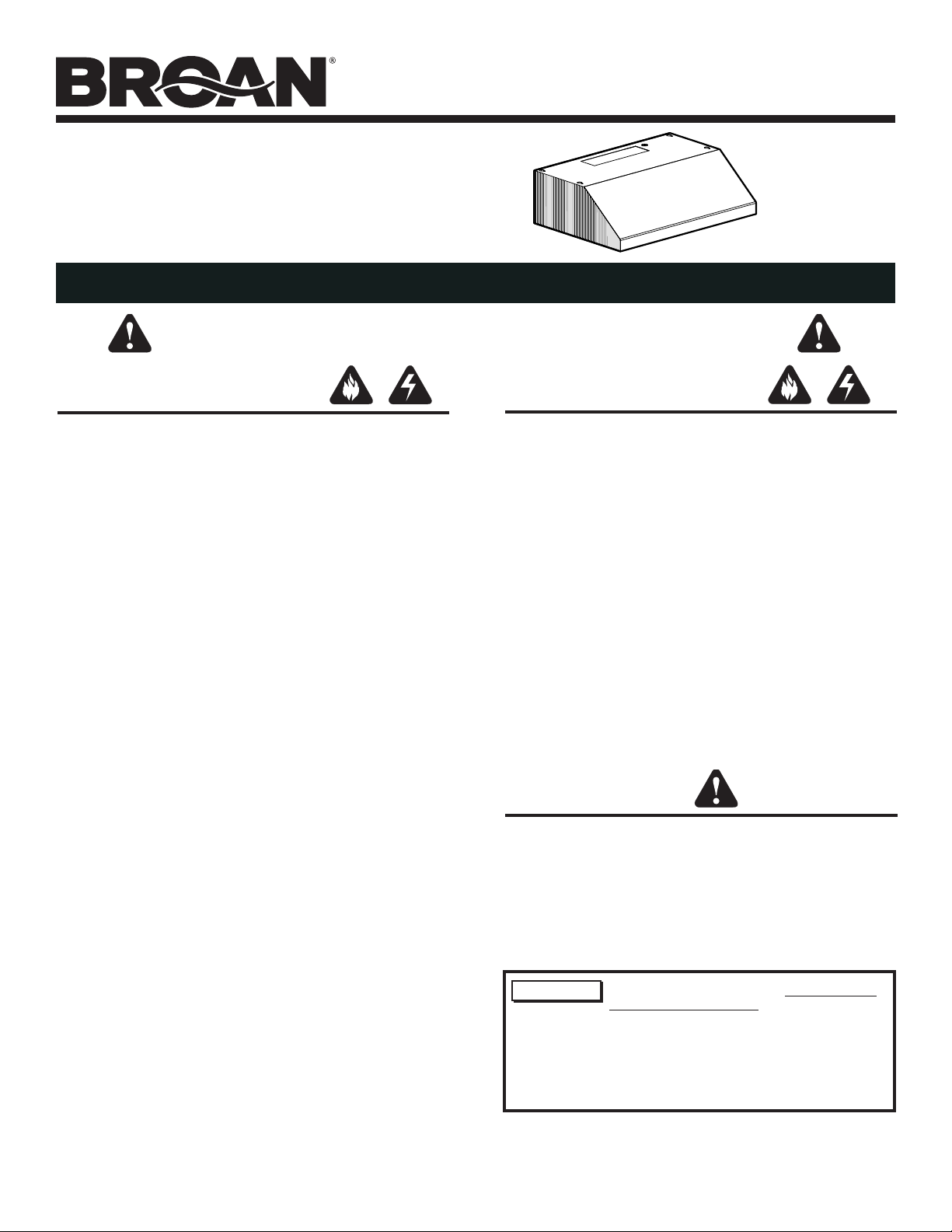

Page 1

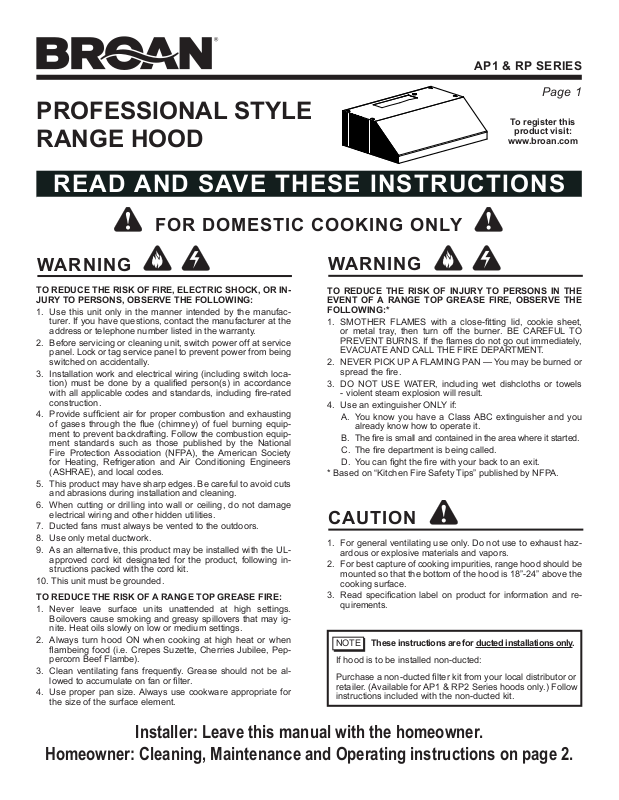

PROFESSIONAL STYLE RANGE HOOD

To register this

product visit:

www.broan.com

READ AND SAVE THESE INSTRUCTIONS

FOR DOMESTIC COOKING ONLY

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty.

2. Before servicing or cleaning unit, switch power off at service panel. Lock or tag service panel to prevent power from being switched on accidentally.

3. Installation work and electrical wiring (including switch loca-

tion) must be done by a qualied person(s) in accordance with all applicable codes and standards, including re-rated

construction.

4. Provide sufcient air for proper combustion and exhausting of gases through the ue (chimney) of fuel burning equip-

ment to prevent backdrafting. Follow the combustion equipment standards such as those published by the National Fire Protection Association (NFPA), the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and local codes.

5. This product may have sharp edges. Be careful to avoid cuts and abrasions during installation and cleaning.

6. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.

7. Ducted fans must always be vented to the outdoors.

8. Use only metal ductwork.

9. As an alternative, this product may be installed with the ULapproved cord kit designated for the product, following instructions packed with the cord kit.

10. This unit must be grounded.

TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

1. Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.

2. Always turn hood ON when cooking at high heat or when ambeing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambe).

3. Clean ventilating fans frequently. Grease should not be al-

lowed to accumulate on fan or lter.

4. Use proper pan size. Always use cookware appropriate for the size of the surface element.

WARNING

TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:*

1. SMOTHER FLAMES with a close-tting lid, cookie sheet,

or metal tray, then turn off the burner. BE CAREFUL TO

PREVENT BURNS. If the ames do not go out immediately,

EVACUATE AND CALL THE FIRE DEPARTMENT.

2. NEVER PICK UP A FLAMING PAN — You may be burned or

spread the re.

3. DO NOT USE WATER, including wet dishcloths or towels

- violent steam explosion will result.

4. Use an extinguisher ONLY if: A. You know you have a Class ABC extinguisher and you

already know how to operate it.

B. The re is small and contained in the area where it started. C. The re department is being called. D. You can ght the re with your back to an exit.

* Based on “Kitchen Fire Safety Tips” published by NFPA.

CAUTION

1. For general ventilating use only. Do not use to exhaust haz-

ardous or explosive materials and vapors.

2. For best capture of cooking impurities, range hood should be

mounted so that the bottom of the hood is 18”-24” above the cooking surface.

3. Read specication label on product for information and re-

quirements.

NOTE These instructions are for ducted installations only.

If hood is to be installed non-ducted:

Purchase a non-ducted lter kit from your local distributor or

retailer. (Available for AP1 & RP2 Series hoods only.) Follow instructions included with the non-ducted kit.

Installer: Leave this manual with the homeowner.

Homeowner: Cleaning, Maintenance and Operating instructions on page 2.

AP1 & RP SERIES

SOFFIT

18" - 24" ABOVE COOKING SURFACE

CABINET

3¼" X 10" DUCT (For horizontal discharge)

WALL CAP

ROOF CAP

3¼" X 10" or

7" ROUND DUCT

(For vertical

discharge)

HOUSE WIRING (Top or Back of hood)

HOODHOOD

LIGHTFAN

FAN

ON OFF

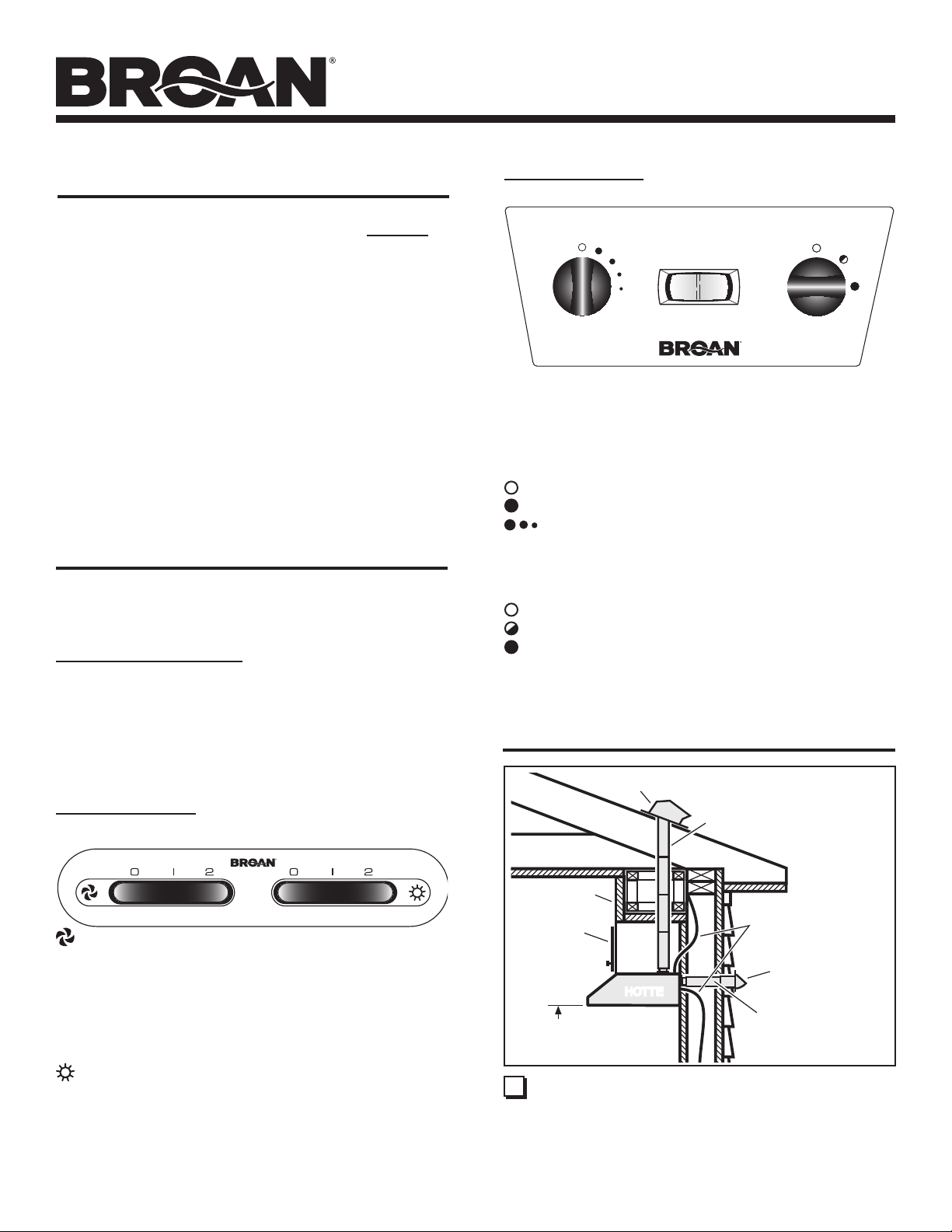

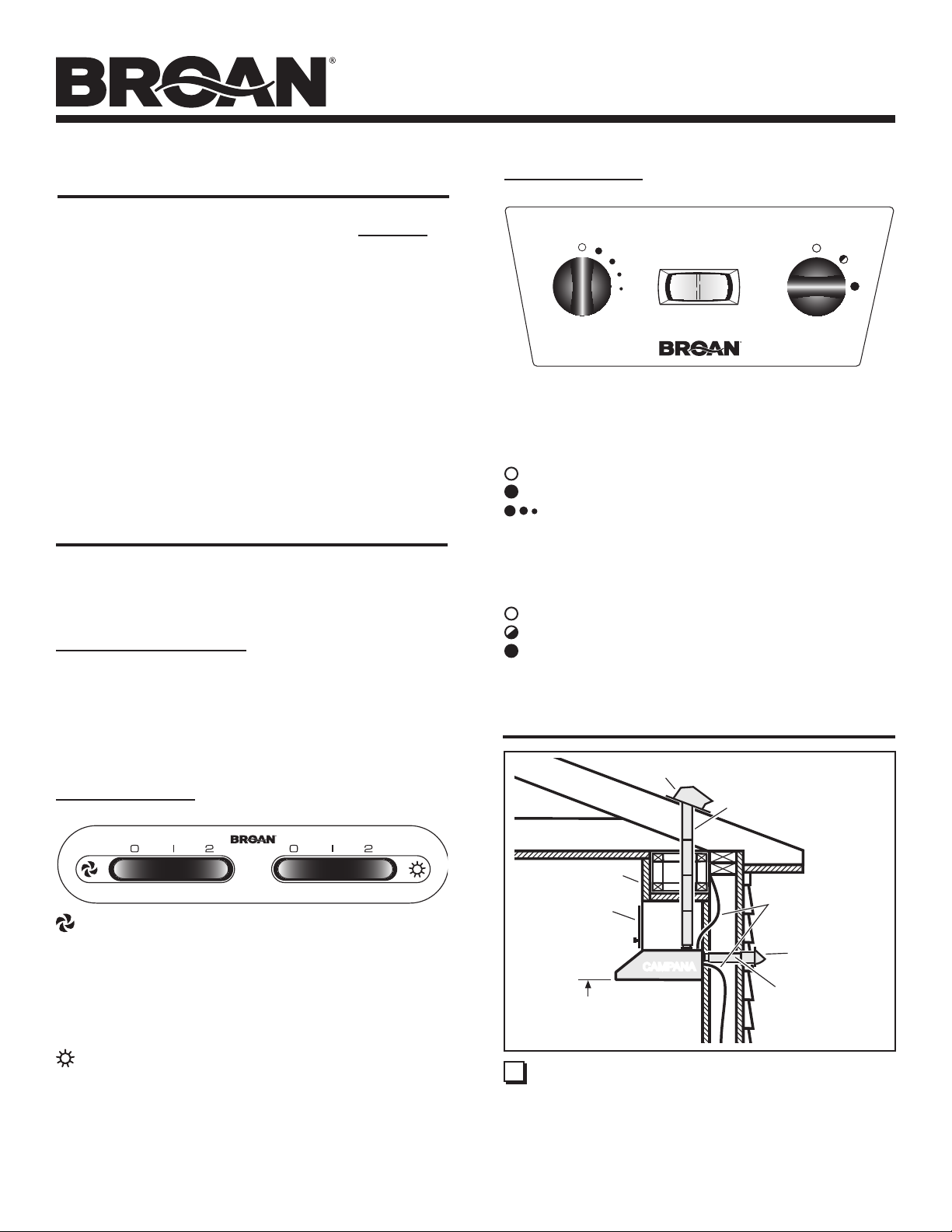

Page 2

CLEANING & MAINTENANCE

For performance, appearance, and health reasons, clean lter,

fan and grease-laden surfaces. Use only a clean cloth and mild detergent solution on stainless and painted surfaces. Clean all-

metal lters in the dishwasher.

The motor is permanently lubricated and never needs oiling. If

the motor bearings make excessive or unusual noise, replace the motor with the exact service motor. The impeller should also

be replaced.

Use 120 V, 50 W, shielded halogen bulbs - MR16 or PAR16 with GU10 base. Purchase bulbs separately.

The grease lters, bottom panel, and blower wheel should be

cleaned frequently. Use a warm detergent solution. The grease

lters and blower wheel are dishwasher safe.

Note: Some minerals, when in contact with dishwasher soap additives, may cause lters to discolor. This discol-

oration is not covered by the warranty.

OPERATION

Always turn the hood ON before cooking in order to establish an

air ow in the kitchen. After turning off the range, let the hood run

for a few minutes to clear the air.

AP SERIES HOOD

Operate the hood as follows:

FAN

The 2-position switch (in center) turns blower ON and OFF. The 5-position switch (at left) controls blower speed.

Blower is OFF (secondary blower OFF). Blower is ON at highest speed.

As dots get smaller - blower speed decreases.

LIGHT

This 3-position switch (at right) turns lights ON and OFF and controls their intensity.

Lights are OFF. Lights are ON to low intensity. Lights are ON to highest intensity.

HEAT SENTRY™

The hood is equipped with a Heat Sentry™ thermostat. This safety

device will turn on or speed up the blower if it senses excess heat

above the cooking surface. If the blower is not on, or if it is running at low speed, the Heat

Senttry™ will override the normal blower control and trun the blower on the high speed. When the temperature level drops to normal levels, the blower will return to its original setting.

RP SERIES HOOD

Operate the hood as follows:

BLOWER SWITCH

This 3-position switch turns blower ON and OFF and controls blower speed. Set switch to (1) position to turn blower ON to low speed. Set switch to (2) position to turn blower ON to high speed. Set switch to (0) position to turn blower OFF.

LIGHT SWITCH

This 3-position switch turns lights ON and OFF and controls their intensity. Set switch to (1) position to turn lights ON to low intensity. Set switch to (2) position to turn lights ON to high intensity. Set switch to (0) position to turn lights OFF.

PREPARE HOOD LOCATION

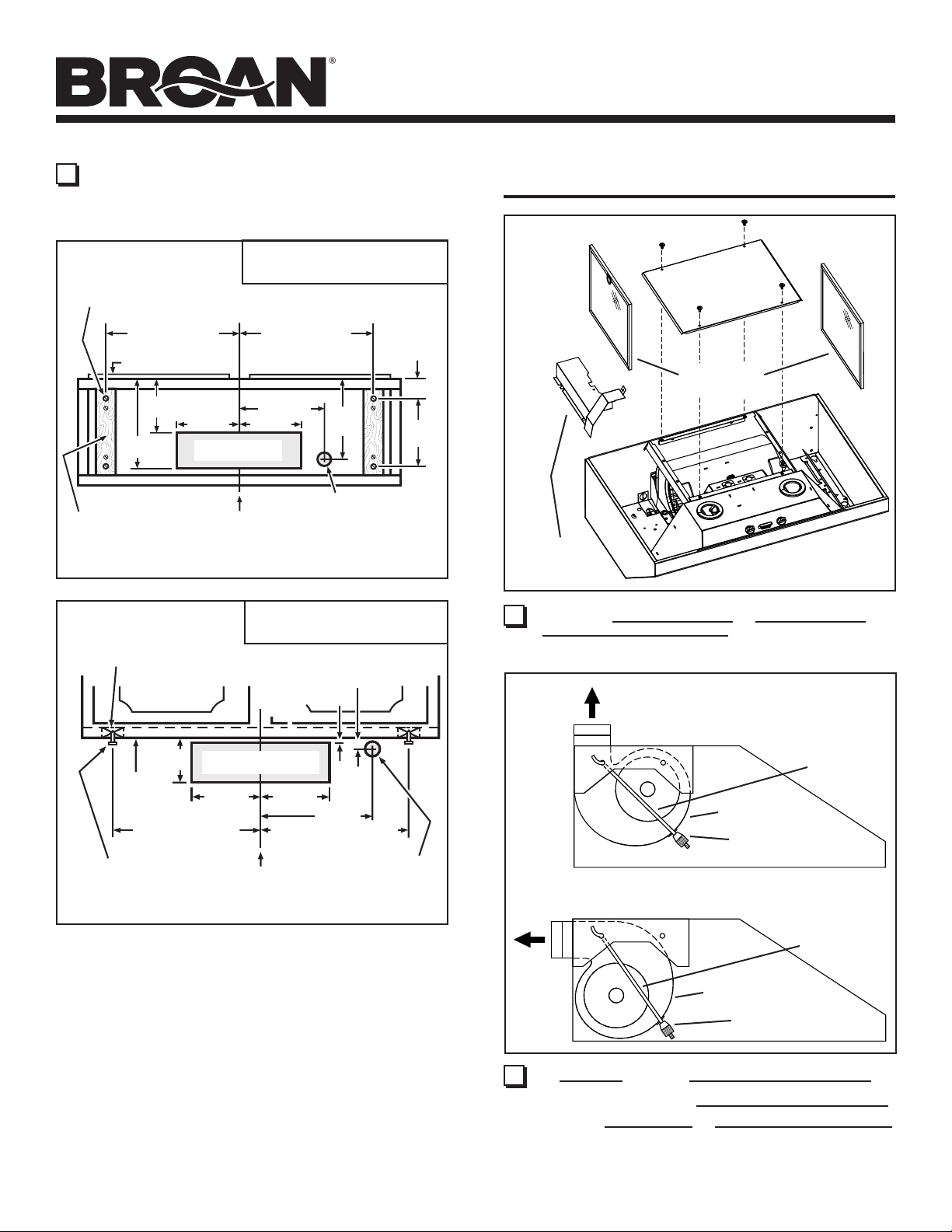

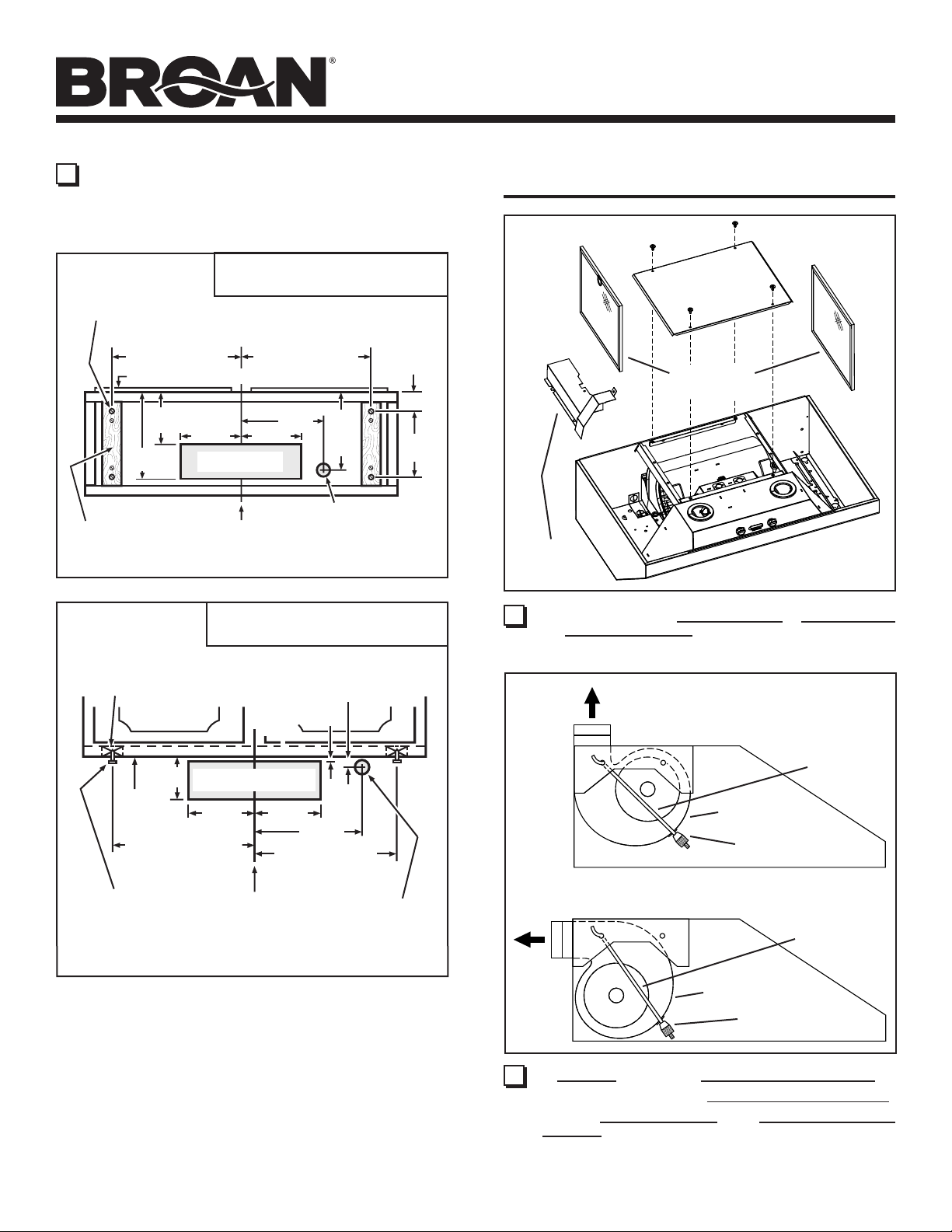

1 Determine whether hood will discharge vertically (3¼” x

10” or 7” Round), or horizontally (3¼” x 10” only). For vertical or horizontal discharge, run ductwork between the

hood location and a roof cap or wall cap. For best results, use a minimum number of transitions and elbows.

AP1 & RP SERIES

CABINET BOTTOM

CABINET FRONT

HORIZONTAL DUCT

ACCESS HOLE

6¼"

HOOD

MOUNTING

SCREWS (4)

ELECTRICAL

ACCESS HOLE

(in wall)

CENTER

LINE

WOOD SHIMS

(recessed-bottom

cabinets only)

15¼" (36" hood)

12¼" (30" hood)

15¼" (36" hood)

12¼" (30" hood)

CENTER

LINE

HOOD MOUNTING SCREWS (4)

ELECTRICAL

ACCESS HOLE

(in cabinet bottom)

WOOD SHIMS

(recessed-bottom

cabinets only)

CABINET FRONT

CABINET BOTTOM

15¼" (36" hood)

12¼" (30" hood)

VERTICAL DUCT

ACCESS HOLE

6¼"

Page 3

2 Use the proper diagram below, for placement of ductwork

and electrical cutout in cabinet or wall. For a non-ducted installation, DO NOT cut a duct access hole.

3¼” X 10”

VERTICAL DUCTING

3¼” X 10”

HORIZONTAL DUCTING

PREPARE THE HOOD

BOTTOM

COVER

ALUMINUM

FILTERS

WIRING

COVER

3 Remove the Aluminum Filters, Bottom Cover, and

Wiring Cover from the hood.

VERTICAL DISCHARGE POSITION

BLOWER

MOUNTING

ROD (2)

BLOWER

KNURLED NUT (2)

HORIzONTAL DISCHARGE POSITION

BLOWER

MOUNTING

ROD (2)

BLOWER

KNURLED NUT (2)

4 Blower is shipped in Vertical Discharge Position.

To change blower to Horizontal Discharge Position: Remove Knurled Nuts from Blower Mounting Rods.

Disengage mounting rods from blower and rotate blower

to horizontal discharge position. Re-engage mounting

rods and tighten blower in place with knurled nuts.

AP1 & RP SERIES

HE0059

Page 4

DAMPER /

DUCT

CONNECTOR

VERTICAL DUCT

KNOCKOUT

HORIzONTAL DUCT

KNOCKOUT

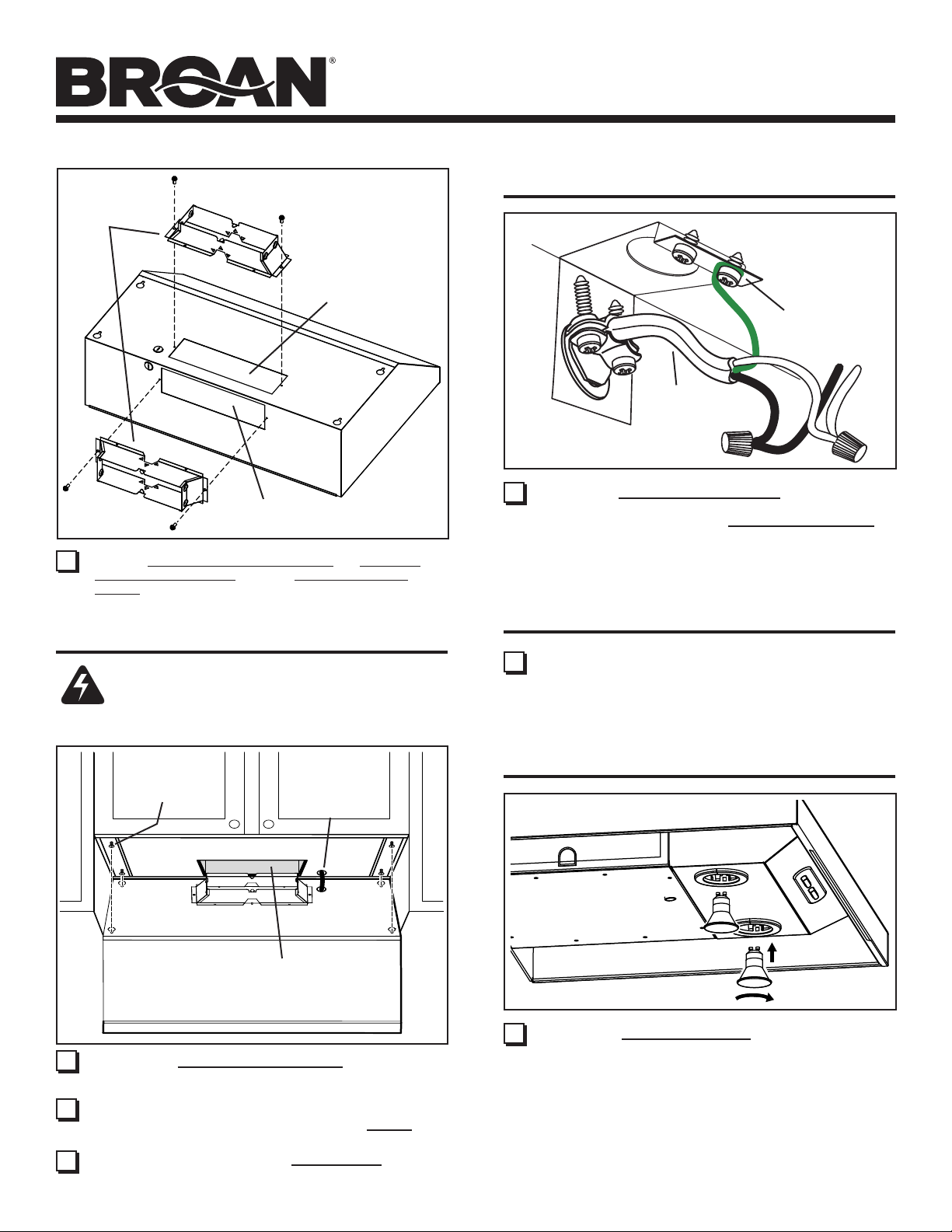

5 Remove Vertical Duct Knockout or Horizontal Duct

Knockout and attach Damper / Duct Connector with two (2) screws (supplied).

INSTALL THE HOOD

WARNING

To reduce the risk of electrical shock, switch power off at service panel. Lock or tag service panel to prevent power from being switched on accidentally.

CONNECT THE WIRING

GREEN

GROUND

SCREW

HOUSE

POWER

CABLE

9 Connect House Power Cable to range hood wiring

- BLACK to BLACK, WHITE to WHITE, and GREEN or BARE WIRE to GREEN Ground Screw.

COMPLETE INSTALLATION

10 Re-install the wiring cover, bottom cover, and lters that

were removed in Step 3.

MOUNTING

SCREWS (4)

DUCTWORK

6 Run House Power Cable between service panel and

hood location. Attach power cable to hood using appropriate connector.

7 Hold the hood in position under the cabinet. Make sure

the damper / duct connector enters the Ductwork and that the damper opens and closes freely.

8 Tighten the four (4) Mounting Screws completely to se-

cure the hood to the cabinet.

HOUSE

POWER

CABLE

INSTALL LIGHT BULBS

(1) PUSH IN

(2) ROTATE CLOCKWISE

11 Install Halogen Bulbs. Use 120 V, 50 W, shielded halo-

gen bulbs - MR16 or PAR16 with GU10 base. Purchase bulbs separately.

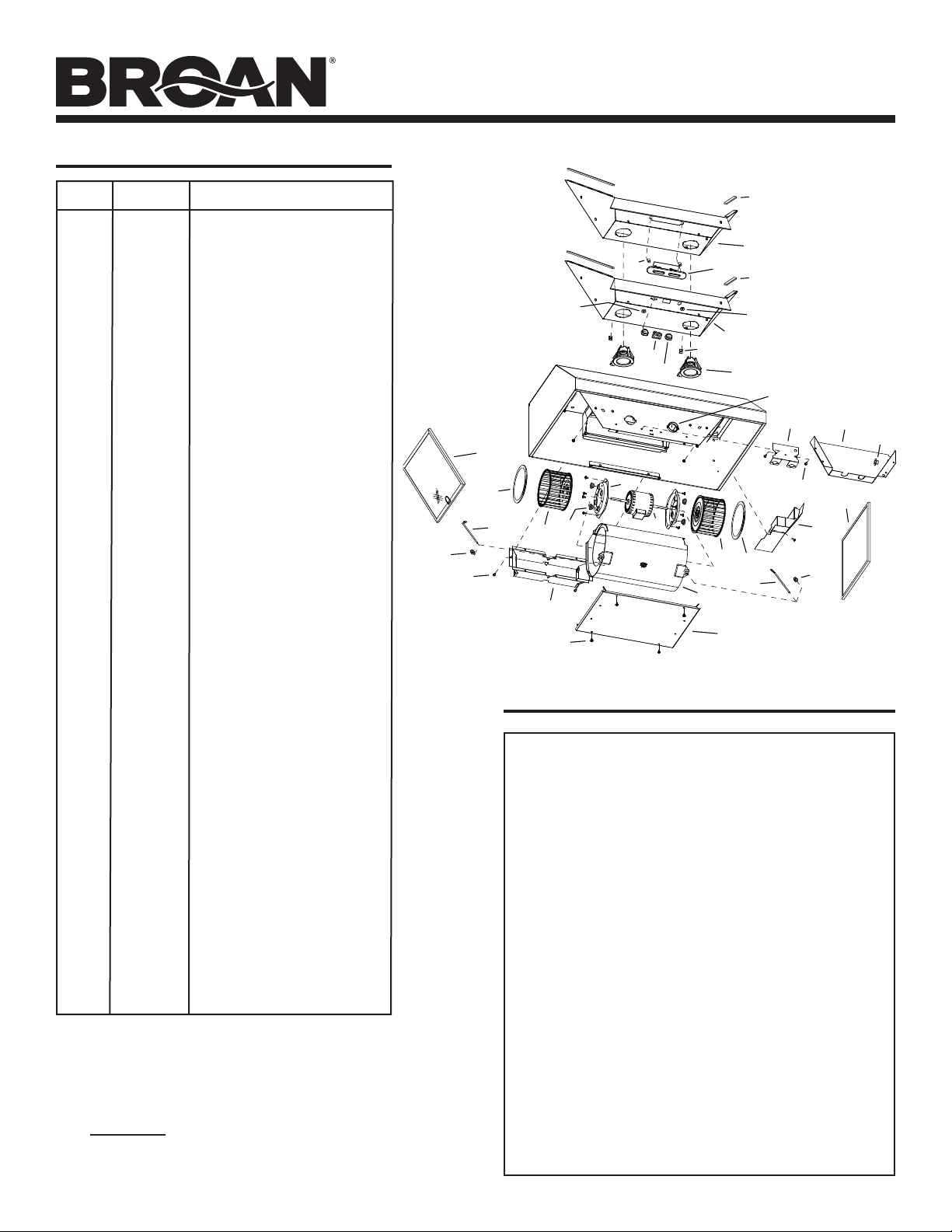

SERVICE PARTS

KEY NO. PART NO. DESCRIPTION

1 97017222 Feature Panel Weldment - RP-Black 97017223 Feature Panel Weldment - RP-White 97017224 Feature Panel Weldment - RP-Silver 2 97017324 Feature Panel Weldment - AP-Black 97017325 Feature Panel Weldment - AP-White 97017326 Feature Panel Weldment - AP-Silver 3 97009517 Bottom Cover - Black 97007895 Bottom Cover - White 97007631 Bottom Cover - Silver 4 97017429 Damper Assembly 5 97007656 Wire Cover Assembly 6 97017428 Thermostat Bracket Assembly 7 98006546 Light Socket Cover 8 99400084 Bushing Split Heyco #2873 9 99271346 Socket/Trim Ring Assembly 10 97017312 Control - RP, Black 97017264 Control - RP, White 11 99111379 Spacer .50 x .375 Nylon 12 97017455 Filter, Aluminum (Qty. 2) 97017456 Filter, Aluminum with Microban (Qty. 2) 13 99420464 Blower Mounting Rod 14 99150617 8-18 x .375 Truss Head Sheet Metal Screw * 15 99170245 8-18x.375 Hex Head Phillips Sheet Metal Screw * 16 99260476 Blower Mounting Rod Nut 17 97007313 Blower Scroll Housing 18 99100491 Motor Isolation Bushing 19 98005212 Motor Retaining Ring 20 99080597 Motor 21 99020142 Blower Wheel, Clockwise 22 99020143 Blower Wheel, Counterclockwise 23 99400055 Heyco Snap Bushing 24 99500323 PVC Foam 25 98010342 Ring, Inlet 26 99260491 Hex Nut 3/8-32 27 99260470 Hex Nut 15/32-32 28 600348 Knob - Black 600349 Knob - White 29 97016970 Switch - Black 97016971 Switch - White 30 99260485 Nut Sheet Metal U-Type ** 99400052 Bushing Strain Relief (Not Shown) ** 99770113 Wire Harness - NSP, RP ** 99770115 Wire Harness - AP ** 99030132 Rotary Fan Control ** 97016439 Rotary Light Control

* Standard hardware - may be purchased locally. ** Not illustrated Order replacement parts by PART NO. - not by KEY NO.

Replacement parts can now be ordered on our website. Please visit us at www.broan.com.

AP1 & RP SERIES

Page 5

WARRANTY

Broan warrants to the original consumer purchaser of its products that such products will be free from defects in materials or workmanship for a period of one year from the date of original purchase. THERE ARE NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

During this one-year period, Broan will, at its option, repair or replace, without charge, any product or part which is found to be defective under normal use and service.

THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS AND TUBES. This warranty does not cover (a) normal maintenance and service or (b) any products or parts which have been subject to misuse, negligence, accident, improper maintenance or repair (other than by Broan), faulty installation or installation contrary to recommended installation instructions.

The duration of an implied warranty is limited to the one-year period as specied for

the express warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you.

BROAN’S OBLIGATION TO REPAIR OR REPLACE, AT BROAN’S OPTION, SHALL BE THE PURCHASER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. BROAN SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH PRODUCT USE OR PERFORMANCE. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply to you.

This warranty gives you specic legal rights, and you may also have other rights,

which vary from state to state. This warranty supersedes all prior warranties. To qualify for warranty service, you must (a) notify Broan at the address or telephone

number below, (b) give the model number and part identication and (c) describe

the nature of any defect in the product or part. At the time of requesting warranty service, you must present evidence of the original purchase date.

In the United States, contact: Broan-NuTone LLC, 926 West State Street, Hartford, WI 53027 (1-800-637-1453) In Canada, contact: Broan-NuTone Canada, Inc., 1140 Tristar Drive, Mississauga, Ontario L5t 1H9 (1-888-882-7626)

BROAN ONE YEAR LIMITED WARRANTY
