Broan 613004, 619004 Specification Data
9-3/8"
min 33"
max 48"
30", 35-7/16"
6-5/8"
9-1/4"
2-1/2"
22-1/2"
18"

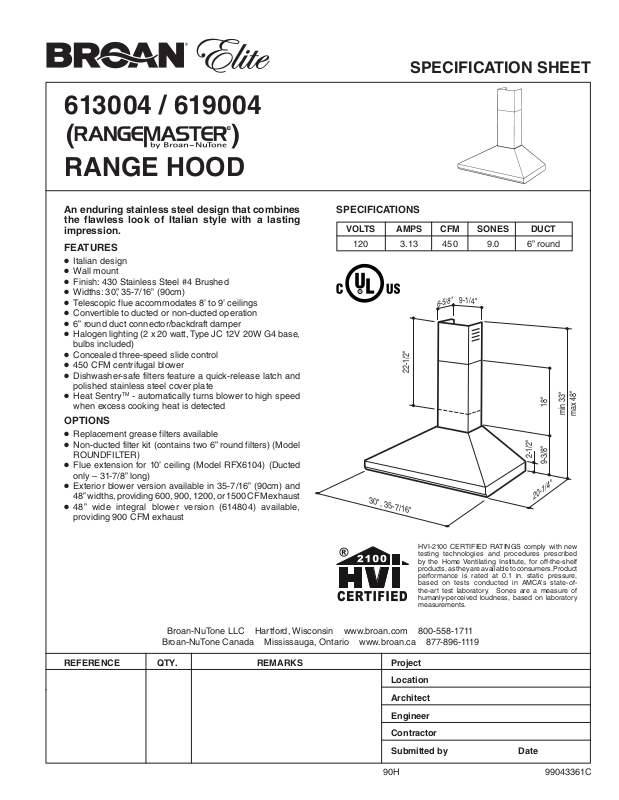

613004 / 619004
( )
RANGE HOOD
SPECIFICATION SHEET
An enduring stainless steel design that combines
the flawless look of Italian style with a lasting
impression.
FEATURES
Italian design
•
Wall mount
•
Finish: 430 Stainless Steel #4 Brushed
•
Widths: 30”, 35-7/16” (90cm)
•
Telescopic flue accommodates 8’ to 9’ ceilings
•
Convertible to ducted or non-ducted operation
•
6” round duct connector/backdraft damper
•
Halogen lighting (2 x 20 watt, Type JC 12V 20W G4 base,
•
bulbs included)
Concealed three-speed slide control
•
450 CFM centrifugal blower
•
Dishwasher-safe filters feature a quick-release latch and
•
polished stainless steel cover plate
Heat Sentry
•
when excess cooking heat is detected
OPTIONS
Replacement grease filters available
•
Non-ducted filter kit (contains two 6” round filters) (Model
•
ROUNDFILTER)
Flue extension for 10’ ceiling (Model RFX6104) (Ducted
•
only – 31-7/8” long)
Exterior blower version available in 35-7/16” (90cm) and
•
48” widths, providing 600, 900, 1200, or 1500 CFM exhaust
48” wide integral blower version (614804) available,
•
providing 900 CFM exhaust
TM
- automatically turns blower to high speed
SPECIFICATIONS
VOLTS AMPS CFM SONES DUCT
120 3.13 450 9.0 6” round
HVI-2100 CERTIFIED RATINGS comply with new
testing technologies and procedures prescribed
by the Home Ventilating Institute, for off-the-shelf
Broan-NuTone LLC Hartford, Wisconsin www.broan.com 800-558-1711
REFERENCE QTY. REMARKS Project
Location
Architect
Engineer
Contractor
Submitted by Date
Broan-NuTone Canada Mississauga, Ontario www.broan.ca 877-896-1119
90H 99043361C
products, as they are available to consumers. Product
performance is rated at 0.1 in. static pressure,
based on tests conducted in AMCA’s state-ofthe-art test laboratory. Sones are a measure of
humanly-perceived loudness, based on laboratory
measurements.
L
L
C
11 "
13
16
2 "
3
16
613004 / 619004 WIRING
613004 / 619004 MOUNTING
WOOD CROSS SUPPORT –
SECURED TO FRAMING AND
LOCATED BEHIND DRYWALL
120 VOLT 60 HZ
2-WIRE PLUS
GROUND POWER
SUPPLY
FRAMING BEHIND WOOD
CROSS SUPPORT
DRYWALL
CEILING DUCT HOOD DISTANCE ABOVE 36” HIGH COOKTOP (SEE NOTE AT RIGHT)
HEIGHT METHOD 24” 25” 26” 27” 28” 29” 30”
MOUNTING BRACKET LOCATION ABOVE 36” HIGH COOK TOP
8 FEET DUCTED OR 27” 28” 29” 30”
9 FEET DUCTED 30” 31” 32” 33”
NONDUCTED 27” 28” 29” 30” 31” 32” 33”
10 FEET DUCTED WITH 30” 31” 32” 33”
RFX6104 FLUE
EXTENSION
NONDUCTED
MOUNTING BRACKET
LOCATION
(ABOVE 36” HIGH
COOKTOP)
NOTE: Minimum hood distance
above cooktop must not be less than
24”.
A maximum of 30” above the cooktop is highly recommended for best
capture of cooking impurities.
Distances over 30” above the cooktop are at the installer’s and user’s
discretion - providing that ceiling
height and flue length permit.
( )
Broan-NuTone LLC Hartford, Wisconsin www.broan.com 800-558-1711
Broan-NuTone Canada Mississauga, Ontario www.broan.ca 877-896-1119
