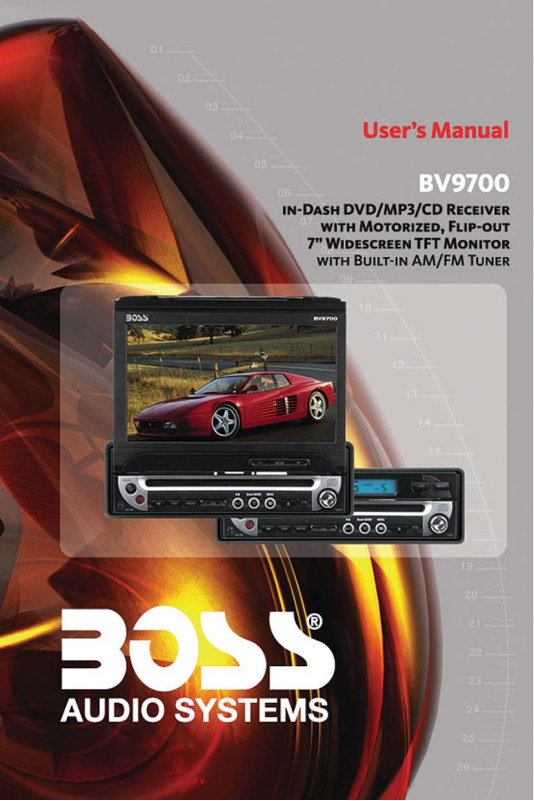

Boss Audio BV9700 User Manual

FEATURES

Compatible with PAL DVD (Video CD) and NTSC DVD (Video CD)

This player can play discs recorded in either PAL or NTSC format.

• A single LSI chip now integrates all major DVD playback circuit functions including MPEG2 decoder, video D/A converter, and audio decoders.

• L/R stereo analog audio outputs for connection to existing head unit aux inputs. Video output is composite video.

• Supplied remote handles multi-function software (multi-language audio-track/subtitle, multi-angle, multistory, etc.), plus all basic functions.

USE THIS PRODUCT SAFELY

This set has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. The safeguards incorporated in this unit protect you if you observe the following procedures for installation, use and servicing. This unit doesn’t contain any parts that can be repaired by the user.

Protect the Disc Mechanism

Avoid inserting any foreign objects into the slot of this player. Failure to observe this may cause malfunction due to the precise mechanism of this unit.

Use Authorized Service Centers

Do not attempt to disassemble or adjust this precision product. Please refer to the Service Center list included with this product for service assistance.

For Installation

The unit should be installed in a horizontal position with the front end up at a convenient angle, but not more than 30˚.

Protect the Monitor Mechanism

• The monitor is operated automatically. Do not pull the monitor out or turn it upward or downward manually. Otherwise, the mechanism construction may be harmed to some degree.

When Driving

Keep the volume level low enough to be aware of road and traffic conditions.

When Washing Your Car

Do not expose the product to water or excessive moisture. This could cause electrical shorts, fire or other damage.

When Parked

Parking in direct sunlight can produce very high temperatures inside your vehicle. Give the interior a chance to cool down before starting playback.

Use the Proper Power Supply

This product is designed to operate with a 12 volt DC, negative ground battery system (the regular system in a North American car).

CONTENTS

Safety Information......................................................................................................4

Disc Notes...................................................................................................................5

Installation...................................................................................................................6

The Player ...................................................................................................................9

Electrical Connections.............................................................................................11

Remote Control ........................................................................................................12

Location and Function of Keys.............................................................................12

Preparing the Remote Control..............................................................................15

Loading/Ejecting a disc ...........................................................................................15

Loading a Disc......................................................................................................15

Ejecting a Disc ......................................................................................................15

Operation ..................................................................................................................16

Basic Operation ....................................................................................................16

Disc (DVD, VCD, CD, MP3) Operation..................................................................20

Radio Operation....................................................................................................26

TV Operation.........................................................................................................27

AV Operation.........................................................................................................27

RGB Operation .....................................................................................................27

Setup..........................................................................................................................28

Language Setup ...................................................................................................28

Display Setup........................................................................................................28

Audio Setup ..........................................................................................................29

Lock Setup ...........................................................................................................29

Other Table ...........................................................................................................30

Trouble Shooting ......................................................................................................31

Specification .............................................................................................................32

SAFETY INFORMATION

CAUTION:

MOBILE DVD PLAYER IS A CLASS I LASER PRODUCT. HOWEVER THIS MOBILE DVD PLAYER USES A VISIBLE/INVISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE MOBILE DVD PLAYER CORRECTLY AS INSTRUCTED. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND - DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

WARNING:

• TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

• TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND ANNOYING INTERFERENCE, USE ONLY THE RECOMMENDED ACCESSORIES.

• THIS DEVICE IS INTENDED FOR CONTINUOUS OPERATION.

Region Management Information

Region Management Information: This Mobile DVD Player is designed and manufactured to respond to the Region Management Information that is recorded on a DVD disc. If the Region number described on the DVD disc does not correspond to the Region number of this Mobile DVD Player, this Mobile DVD Player cannot play this disc.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

DISC NOTES

Disc formats supported by this player

DVD

12 cm disc (Single-sided disc only)

Video CD

12 cm disc

MP3

12 cm disc

Handling and Cleaning

• Dirt, dust, scratches and warping disc will cause misoperation.

• Do not place stickers or make scratches on discs.

• Do not warp discs.

• A disc should always be kept in its case when not in use to prevent from damage.

• Do not place discs in the following places:

1. Direct sunlight

2. Dirty, dusty and damp areas

3. Near car heaters

4. On the seats or dashboard

Disc Cleaning

Use a dry soft cloth to wipe the surface. If the disc is quite dirty, use a soft cloth slightly moistured with isopropyl (rubbing) alcohol. Never use solvents such as benzine, thinner or conventional record cleaners as they may mar the surface of the disc.

Note:

A disc may become somewhat scratched (although not enough to make it unusable) depending on the way it is handled and conditions in the usage environment. Note these scratches are not an indication of any problem with the player.

Label side up

Do not touch the underside of the disc

Do not bend

Wipe the disc from center toward the outside edge

Preparing New Discs with Rough Spots

A new disc may have rough edges on its inside and outside edges. If a disc with rough edges is used, the proper setting will not be performed and the player will not play the disc. Therefore, remove the rough edges in advance by using a ballpoint pen or pencil as shown on the right. To remove the rough edges, press the side of the pen or pencil against the inside and outside edges of the disc.

Rough spots on outside edge

Ball point pen or pencil

Rough spots on inside edge

INSTALLATION

Notes:

• Choose the mounting location where the unit will not interfere with the normal driving function of the driver.

• Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and the system work properly.

• Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts can cause malfunctions.

• Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the vehicle.

• Install the unit where it does not get in the driver’s way and cannot injure the passenger if there is a sudden stop, like an emergency stop.

• If installation angle exceeds 30˚ from horizontal, the unit might not give its optimum performance.

30˚

• Avoid installing the unit where it would be subject to high temperature, such as from direct sunlight, or from hot air, from the heater, or where it would be subject to dust, dirt or excessive vibration.

DIN FRONT/REAR-MOUNT

This unit can be properly installed either from “Front” (conventional DIN Frontmount) or “Rear” (DIN Rear-mount installation, utilizing threaded screw holes at the sides of the unit chassis). For details, refer to the following illustrated installation methods.

DIN FRONT-MOUNT (Method A)

Installation Opening

This unit can be installed in any dashboard having an opening as show below:

53 mm

182 mm

Installing the unit

Be sure you test all connections first, and then follow these steps to install the unit.

1. Make sure the ignition is turned off, and then disconnect the cable from the vehicle battery's negative (-) terminal.

2. Disconnect the wire harness and the antenna.

3. Lift the top of the outer trim ring then pull it out to remove it.

4. The two supplied keys release tabs inside the unit’s sleeve so you can remove it. One key is for the right side and the other is for the left side. Insert the keys as far as they will go (with the notches facing up) into the appropriate slots at the middle left and right sides of the unit. Then slide the sleeve off the back of the unit.

Sleeve

L Key

Outer Trim Ring

Front Panel

R Key

5. Mount the sleeve by inserting the sleeve into the opening of the dashboard and bend open the tabs located around the sleeve with a screwdriver. Not all tabs will be able to make contact, so examine which ones will be most effective. Bending open the appropriate tabs behind the dashboard to secure the sleeve in place.

INSTALLATION

Dashboard

Tabs

Screwdriver

Sleeve

6. Reconnect the wire harness and the antenna and be careful not to pinch any wires or cables.

7. Slide the unit into the sleeve until it locks into place.

8. To further secure the unit, use the supplied metal strap to secure the back of the unit in place. Use the supplied hardware (Hex Nut (M5mm) and Spring Washer) to attach one end of the strap to the mounting bolt on the back of the unit. If necessary, bend the metal strap to fit your vehicle's mounting area. Then use the supplied hardware (Tapping Screw (5x25mm) and Plain Washer) to attach the other end of metal strap to a solid metal part of the vehicle under the dashboard. This strap also helps ensure proper electrical grounding of the unit. Note to install the short threading terminal of the mounting bolt to the back of the unit and the other long threading terminal to the dashboard.

Spring Washer

Metal Strap

Mounting Bolt

Hex Nut

Plain Washer

Tapping Screw

9. Reconnect the cable to the vehicle battery's negative (-) terminal. Then replace the out trim ring

Removing the unit

1. Make sure the ignition is turned off, and then disconnect the cable from the vehicle battery's negative (-) terminal.

2. Remove the metal strap attached the back of the unit (if attached).

3. Lift the top of the outer trim ring then pull it out to remove it.

4. Insert both of the supplied keys into the slots at the middle left and right sides of the unit, then pull the unit out of the dashboard.

DIN REAR-MOUNT (Method B)

If your vehicle is a Nissan, Toyota, follow these mounting instructions. Use the screw holes marked T (Toyota), N (Nissan) located on both sides of the unit to fasten the unit to the factory radio mounting brackets supplied with your vehicle.

Side view showing Screw Holes marked T, N or S

Factory Radio Mounting Bracket

Screw

Dashboard or Console

INSTALLATION

To fasten the unit to the factory radio mounting brackets.

1. Align the screw holes on the bracket with the screw holes on the unit, and then tighten the screws on each side.

2. Fasten with the supplied truss screws (5x5mm) or flush surface screws (4x5mm), depending on the shape of the screw holes in the bracket.

Note:

(1) The outer trim ring, sleeve and the metal strap are not used for method B installation.

(2) When the unit is on work, if you release the front panel, the unit will enter into the power off state automatically, and you can see the indicater LED flashing. When you install the front panel the unit will resume work automatically.

THE PLAYER

FRONT VIEW

1 2

23 3

Closed Position

1567101213 4 14

Open Position

16 25

1 2

23 3 15 6 7

Remove the front panel:

10 12 13

14 16

8 9

THE PLAYER

1. (BACK) 14.

2. AV IN 15. DSP

3. (OPEN/CLOSE) 16. ENT

(EJECT) 17. SETUP

5. Disc Slot 18. LOC

6. MODE 19. MO/ST

7. VOL

8. + 21. AS/PS

9. - 22. Reset Button

10.

11. 7“ COLOR TFT 24. Front Panel LED

MONITOR

12. S (Smart MODE) 25.

13.

+/- 20. BAND

/MUT 23. Remote Sensor

/ , / (Cursor Buttons)

(MENU)

ELECTRICAL CONNECTION

2345678

15 14 13 12 11 10 9

FUSE

FR (RED)

FL(WHITE)

RR (RED)

RL (WHITE)

(WHITE)

0.5A

(RED)

(YELLOW)

(WHITE)

(RED)

(YELLOW)

(WHITE)

(ORANGE)

PREAMP OUTPUT

AV-INPUT(BLACK)

AV-OUTPUT(GRAY)

SUBWOOFER OUT(GREEN)

DIGITAL AUDIO(ORANGE)

RGB

REMOTE SENSOR CONNECTOR (BLACK)

(BLACK)

ANT(BLACK)

YELLOW(SYNC)

BLUE

GREEN

RED

EXTERNAL REMOTE SENSOR (OPTIONAL)

4-SPEAKER SYSTEM

(GREEN/BLACK)

(WHITE/BLACK)

(GRAY/BLACK)

(VIOLET/BLACK)

BRAKE (PINK) Connect to the negative side of the parking brake.

(GREEN)

(WHITE)

(GRAY)

(VIOLET)

REAR LEFT SPEAKER

FRONT LEFT SPEAKER

FRONT RIGHT SPEAKER

ONE SIDE

TV Tuner is sold separately (Model # TV4)

MONITOR

DIVERSITY ANTENNA INPUT
