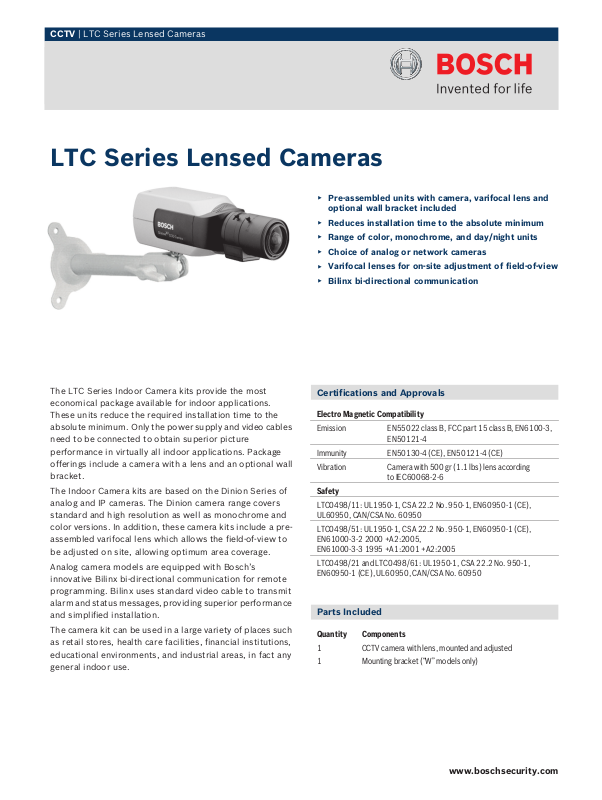

Bosch NWC-0455-55 Specsheet
CCTV | LTC Series Lensed Cameras
LTC Series Lensed Cameras
The LTC Series Indoor Camera kits provide the most economical package available for indoor applications. These units reduce the required installation time to the absolute minimum. Only the power supply and video cables need to be connected to obtain superior picture performance in virtually all indoor applications. Package offerings include a camera with a lens and an optional wall bracket.
The Indoor Camera kits are based on the Dinion Series of analog and IP cameras. The Dinion camera range covers standard and high resolution as well as monochrome and color versions. In addition, these camera kits include a preassembled varifocal lens which allows the field-of-view to be adjusted on site, allowing optimum area coverage.
Analog camera models are equipped with Bosch’s innovative Bilinx bi-directional communication for remote programming. Bilinx uses standard video cable to transmit alarm and status messages, providing superior performance and simplified installation.
The camera kit can be used in a large variety of places such as retail stores, health care facilities, financial institutions, educational environments, and industrial areas, in fact any general indoor use.
Pre-assembled units with camera, varifocal lens and optional wall bracket included
Reduces installation time to the absolute minimum
Range of color, monochrome, and day/night units
Choice of analog or network cameras
Varifocal lenses for on-site adjustment of field-of-view
Bilinx bi-directional communication
Certifications and Approvals
Electro Magnetic Compatibility
Emission |
EN55022 class B, FCC part 15 class B, EN6100-3, |
|
EN50121-4 |
Immunity |
EN50130-4 (CE), EN50121-4 (CE) |
Vibration |
Camera with 500 gr (1.1 lbs) lens according |
|
to IEC60068-2-6 |
Safety
LTC0498/11: UL1950-1, CSA 22.2 No. 950-1, EN60950-1 (CE), UL60950, CAN/CSA No. 60950
LTC0498/51: UL1950-1, CSA 22.2 No. 950-1, EN60950-1 (CE), EN61000-3-2 2000 +A2:2005,
EN61000-3-3 1995 +A1:2001 +A2:2005
LTC0498/21 and LTC0498/61: UL1950-1, CSA 22.2 No. 950-1, EN60950-1 (CE), UL60950, CAN/CSA No. 60950
Parts Included
Quantity Components
1CCTV camera with lens, mounted and adjusted
1Mounting bracket (“W” models only)
www.boschsecurity.com
2 | LTC Series Lensed Cameras
Technical Specifications
For a detailed list of camera technical specifications, refer to the appropriate datasheet for additional information.
Electrical |
|
|
|
Model No. |
Camera Type |
Lens |
Description |
Monochrome, Standard |
|
|
|
LTC 0335-28 |
LTC 0335/20 |
LTC 3364/50 |
Camera, B/W, |
|
|
|
2.8-10 mm lens, 24 V |
|
|
|
60 Hz |
LTC 0335-28W |
LTC 0335/20 |
LTC 3364/50 |
Camera, B/W, |
|
|
|
2.8-10 mm lens, 24 V |
|
|
|
60 Hz, mount |
LTC 0335-55 |
LTC 0335/20 |
LTC 3374/50 |
Camera, B/W, |
|
|
|
5-50 mm lens, |
|
|
|
24 VAC, 60 Hz |
LTC 0335-55W |
LTC 0335/20 |
LTC 3374/50 |
Camera, B/W, |
|
|
|
5-50 mm lens, mount |
|
|
|
TC9210U, 24 VAC, |
|
|
|
60 Hz |
Monochrome, High Resolution |
|
|
|
LTC 0355-28 |
LTC 0355/20 |
LTC 3364/50 |
Camera, B/W, |
|
|
|
2.8-10 mm lens, 24 V |
|
|
|
60 Hz |
LTC 0355-28W |
LTC 0355/20 |
LTC 3364/50 |
Camera, B/W, |
|
|
|
2.8-10 mm lens, 24 V |
|
|
|
60 Hz mount |
LTC 0355-55 |
LTC 0355/20 |
LTC 3374/50 |
Camera, B/W, |
|
|
|
5-50 mm lens, |
|
|
|
24 VAC, 60 Hz |
LTC 0355-55W |
LTC 0355/20 |
LTC 3374/50 |
Camera, B/W, |
|
|
|
5-50 mm lens, mount, |
|
|
|
24 VAC, 60 Hz |
Monochrome, XF |
|
|
|
LTC 0385-28 |
LTC 0385/20 |
LTC 3364/50 |
Camera, B/W, |
|
|
|
2.8-10 mm lens, |
|
|
|
24 VAC, 60 Hz |
LTC 0385-28W |
LTC 0385/20 |
LTC 3364/50 |
Camera, B/W, |
|
|
|
2.8-10 mm lens, |
|
|
|
mount TC9210US, |
|
|
|
24 VAC, 60 Hz |
LTC 0385-55 |
LTC 0385/20 |
LTC 3374/50 |
Camera, B/W, |
|
|
|
5-50 mm lens, |
|
|
|
24 VAC, 60 Hz |
LTC 0385-55W |
LTC 0385/20 |
LTC 3374/50 |
Camera, B/W, 5-50 |
|
|
|
mm lens, mount, |
|
|
|
24 VAC, 60 Hz |
Color, Standard |
|
|
|
LTC 0435-28 |
LTC 0435/20 |
LTC 3364/50 |
Camera, color, |
|
|
|
2.8-10 mm lens, 24 V |
|
|
|
60 Hz |
LTC 0435-28W |
LTC 0435/20 |
LTC 3364/50 |
Camera, color, 2.8-10 |
|
|
|
mm lens, 24 V 60 Hz, |
|
|
|
mount |
Model No. |
Camera Type |
Lens |
Description |
LTC 0435-55 |
LTC 0435/20 |
LTC 3374/50 |
Camera, color, |
|
|
|
5-50 mm lens, |
|
|
|
24 VAC, 60 Hz |
LTC 0435-55W |
LTC 0435/20 |
LTC 3374/50 |
Camera, color, |
|
|
|
5-50 mm lens, mount, |
|
|
|
24 VAC, 60 Hz |
Color, High Resolution (Night Sense) |
|
||
LTC 0455-12 |
LTC 0455/21 |
LTC 3361/41 |
Camera, color, |
|
|
|
2.8-12 mm lens, 24 V |
|
|
|
60 Hz |
LTC 0455-12W |
LTC 0455/21 |
LTC 3361/41 |
Camera, color, |
|
|
|
2.8-12 mm lens, 24 V |
|
|
|
60 Hz |
LTC 0455-28 |
LTC 0455/21 |
LTC 3364/50 |
Camera, color, |
|
|
|
2.8-10 mm lens, 24 V |
|
|
|
60 Hz |
LTC 0455-28W |
LTC 0455/21 |
LTC 3364/50 |
Camera, color, |
|
|
|
2.8-10 mm lens, 24 V |
|
|
|
60 Hz, mount |
LTC 0455-55 |
LTC 0455/21 |
LTC 3374/50 |
Camera, color, |
|
|
|
5-50 mm lens, |
|
|
|
24 VAC, 60 Hz |
LTC 0455-55W |
LTC 0455/21 |
LTC 3374/50 |
Camera, color, |
|
|
|
5-50 mm lens, mount, |
|
|
|
24 VAC, 60 Hz |
Color, XF (Night Sense) |
|
|
|
LTC 0485-28 |
LTC 0485/21 |
LTC 3364/50 |
Camera, color, |
|
|
|
2.8-10 mm lens, |
|
|
|
24 VAC, 60 Hz |
LTC 0485-28W |
LTC 0485/21 |
LTC 3364/50 |
Camera, color, |
|
|
|
2.8-10 mm lens, |
|
|
|
mount, 24 VAC, 60 Hz |
LTC 0485-55 |
LTC 0485/21 |
LTC 3374/50 |
Camera, color, |
|
|
|
5-50 mm lens, |
|
|
|
24 VAC, 60 Hz |
LTC 0485-55W |
LTC 0485/21 |
LTC 3374/50 |
Camera, color, |
|
|
|
5-50 mm lens, mount, |
|
|
|
24 VAC, 60 Hz |
Day/Night, 2X |
|
|
|
LTC 0498-28 |
LTC 0498/21 |
LTC 3664/40 |
Camera, color, |
|
|
|
2.8-11 mm lens, |
|
|
|
24 VAC, 60 Hz |
LTC 0498-28W |
LTC 0498/21 |
LTC 3664/40 |
Camera, color, |
|
|
|
2.8-11 mm lens, |
|
|
|
mount, 24 VAC, 60 Hz |
LTC 0498-75 |
LTC 0498/21 |
LTC 3674/20 |
Camera, color, |
|
|
|
7.5-50 mm lens, |
|
|
|
24 VAC, 60 Hz |
LTC 0498-75W |
LTC 0498/21 |
LTC 3674/20 |
Camera, color, |
|
|
|
7.5-50 mm lens, |
|
|
|
mount, 24 VAC, 60 Hz |
IP, Color |
|
|
|
NWC-0455-28 |
NWC-0455-20P LTC 3364/50 Camera, color, |
||
|
|
|
2.8-11 mm lens, |
|
|
|
24 VAC, 60 Hz |
