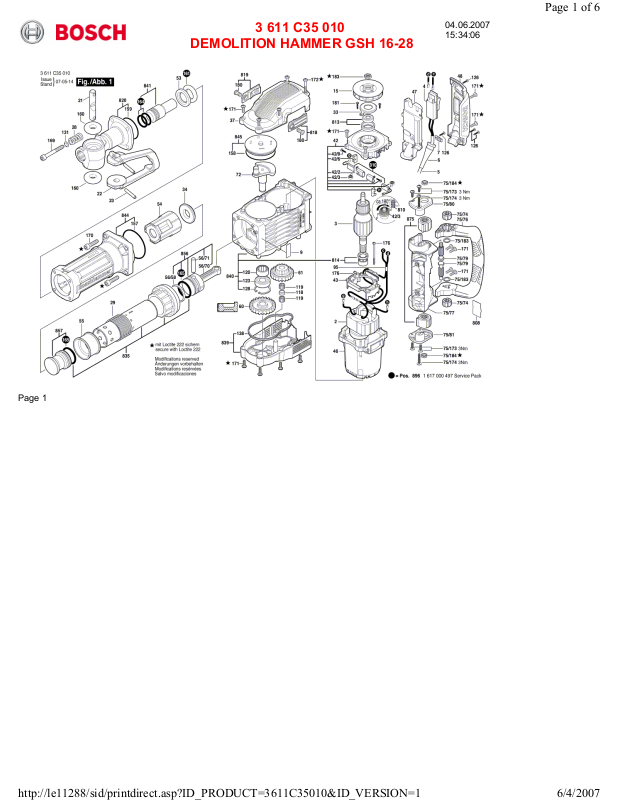

Page 1
3 611 C35 010
DEMOLITION HAMMER GSH 16-28
Page 1 of 6
04.06.2007
15:34:06
Page 1
6/4/2007http://le11288/sid/printdirect.asp?ID_PRODUCT=3611C35010&ID_VERSION=1
Page 2
Item Quantity Order No. Designation Price group Page
2 1 1 614 220 188 FIELD \ 120V 47 1
3 1 1 614 011 118 ARMATURE \ 120V 51 1
4 1 1 617 200 112 ON-OFF SWITCH 34 1
5 1 1 614 461 033 POWER SUPPLY CORD \ USA/CDN 3,1m 3 x 2,08mm SJ0W 32 1
6 1 1 610 703 053 GROMMET \ Ø9,7-Ø12x90 MM 12 1
7 1 1 601 302 018 FASTENING CLAMP 11 1
9 1 1 611 110 D43 STICKER 13 1
15 1 1 616 610 102 FAN 27 1
21 1 1 613 103 004 LOCKING BOLT 40 1
22 1 1 618 045 024 RETAINING BRACKET 48 1
23 2 2 917 760 187 CLAMPING SLEEVE \ 8x55 DIN 1481 11 1
28 4 1 614 614 006 COMPRESSION SPRING 19 1
29 1 1 614 614 007 COMPRESSION SPRING 19 1
33 1 1 611 006 008 HOLDING PLATE 23 1
34 1 1 610 102 635 SUPPORTING DISC 26 1
37 1 1 615 500 380 FAN COVER 36 1
42 1 1 614 336 078 BRUSH HOLDER 38 1
42/2 2 1 614 336 017 BRUSH GUIDE 21 1
42/3 2 1 614 652 007 SPIRAL SPRING 15 1
42/6 2 1 611 390 005 CONNECTOR 11 1
42/8 4 2 912 401 412 SELF-TAPPING SCREW 11 1
43 1 1 610 508 054 SPACER 13 1
46 1 1 615 106 053 MOTOR HOUSING 33 1
47 1 1 618 000 029 BASE PLATE 27 1
48 1 1 615 500 383 HOUSING COVER 33 1
53 1 1 610 190 058 STOP DISC 24 1
54 1 1 610 312 003 SPACER TUBE 32 1
55 1 1 610 506 019 CONTROL BUSHING 34 1
56/58 1 1 610 500 023 RETAINING RING 19 1
56/70 1 1 612 001 042 CONNECTING ROD 30 1
56/71 1 1 613 101 012 PISTON PIN 17 1
60 1 1 616 317 079 CYLINDRICAL GEAR 45 1
61 1 1 616 317 080 CYLINDRICAL GEAR 47 1
72 1 1 616 110 037 ECCENTRIC SHAFT 48 1
75/74 2 1 613 060 049 SPLINED COUPLING 23 1
75/76 1 1 618 045 022 STRAP-SHAPED HANDLE 40 1
75/77 1 1 615 805 069 BEARING PEDESTAL 32 1
75/79 2 1 613 060 050 TOOTHED SHAFT 24 1
75/80 1 1 615 500 376 BEARING END PLATE 22 1
75/81 1 1 615 500 377 BEARING END PLATE 22 1
75/173 4 1 613 490 008 TORX OVAL-HEAD SCREW 10 1
75/174 2 1 613 490 009 TORX OVAL-HEAD SCREW 11 1
75/183 2 2 916 280 013 SUPPORTING DISC 10 1
75/184 2 1 613 349 021 HEXAGON NUT 12 1
84 1 1 612 025 070 CARRYING HANDLE 35 2
86 1 2 911 011 270 HEXAGON SCREW \ DIN 931-M8x130-8.8 13 2
87 1 1 611 316 024 CLAMPING BAND 28 2
88 1 1 613 349 017 STAR KNOB \ M8 \ BLACK 19 2
89 2 1 615 132 116 CLAMPING PIECE 17 2
95 1 1 614 448 038 CONNECTING CABLE 21 1
118 1 1 610 520 003 SPACER TUBE 14 1
119 2 1 610 913 020 NEEDLE-ROLLER ASSEMBLY 13 1
120 1 1 610 910 092 NEEDLE-ROLLER BEARING \ D25xD37x17 33 1
123 1 1 610 900 030 DEEP-GROOVE BALL BEARING 29 1
126 4 2 603 490 023 TORX OVAL-HEAD SCREW \ BLACK 10 1
128 1 2 916 660 021 RETAINING RING \ 47x1,75MM, DIN 472 16 1
Page 2 of 6
6/4/2007http://le11288/sid/printdirect.asp?ID_PRODUCT=3611C35010&ID_VERSION=1
Page 3
131 4 2 916 160 007 DISC SPRING 13 1
138 1 1 611 015 059 SEALING FRAME 15 1
157 1 1 610 210 191 O-RING 14 1
158 1 1 610 210 192 O-RING 14 1
159 1 1 600 210 005 O-RING \ 66x3 MM 12 1
160 2 1 610 210 008 O-RING \ 17,3x17,7 MM 18 1
161 1 1 610 210 193 O-RING 15 1
164 2 1 610 210 194 O-RING 13 1
165 2 1 610 210 195 O-RING 22 1
169 4 1 613 414 022 HEX-SOCKET-HEAD CAP SCREW 14 1
170 4 1 613 414 023 HEX-SOCKET-HEAD CAP SCREW 11 1
171 18 1 613 490 010 TORX OVAL-HEAD SCREW 11 1
172 2 1 613 490 011 TORX OVAL-HEAD SCREW 11 1
176 2 1 603 435 036 SELF-TAPPING SCREW \ 4,8x78 MM, TORX T-20 11 1
180 2 1 613 490 007 CLAMP SCREW 11 1
181 2 2 912 401 420 SELF-TAPPING SCREW \ DIN7981-ST3,9x19-F-Z 10 1
183 1 1 613 349 020 HEXAGON NUT 12 1
191 1 1 611 110 D15 WARNING PLATE 15 0
192 1 1 601 110 618 REFERENCE PLATE 12 0
661 1 1 615 430 010 GREASE TUBE \ 30 ML, RENOLIT DEP 2 18 0
808 1 1 601 106 999 NAMEPLATE \ 26x52 MM 15 1
810 1 1 617 014 143 CARBON-BRUSH SET 30 1
813 1 1 617 000 480 BEARING 27 1
814 1 1 617 000 481 BEARING 33 1
818 1 1 617 000 482 BRUSH-COVER 16 1
819 1 1 617 000 483 BRUSH-COVER 16 1
820 1 1 617 000 499 TOOLHOLDER 53 1
835 1 1 617 000 488 GUIDE TUBE 50 1
839 1 1 617 000 489 GEAR COVER 45 1
840 1 1 617 000 490 GEAR HOUSING 60 1
841 1 1 617 000 491 STRIKER PIN 44 1
844 1 1 617 000 492 HAMMER PIPE 52 1
845 1 1 617 000 493 SEALING CAP 27 1
856 1 1 617 000 494 HAMMER PISTON 32 1
857 1 1 617 000 495 STRIKER 41 1
875 1 1 617 000 496 RUBBER TORSION-BAR 38 1
896 1 1 617 000 497 SERVICE PACK 28 1
897 1 1 615 430 007 BOX \ 1000 ML, FT1 V27 42 0
898 1 1 615 430 001 GREASE TUBE \ 225 ML, FT1 V27 30 0
