Bosch FlexiDome solutions with
Dinion camera performance

FlexiDome cameras

Perfect images in any location

1

No application is too tough

Think your application is too demanding for a dome camera? Think again. From arctic

temperatures to blazing sun or heavy rain, the FlexiDome system from Bosch handles it all.

FlexiDome combines the award-winning performance of our proprietary 15-bit imaging

technology in a range of domes tough enough for almost any condition, yet stylish enough to

be mounted in any location. This combination of high-performance camera and rugged dome

provides a solution that meets the most demanding surveillance requirements.

SensUp automatically compensates

for low light levels, adjusting the

shutter speed to maintain contrast

and boost color clarity.

Bilinx control, confi gure and

update over the video cable.

Dinion’s 540 TVL high-resolution optics

generate more TV lines than conventional

CCTV cameras. That means sharper, more

detailed images and easier identifi cation.

15 Bit10 Bit3 Bit1 Bit

XF-Dynamic combines with 15-bit DSP

technology to ensure exceptional video

clarity, extending the dynamic range to a

full 90 dB and maximizing image quality.

Programmable backlight compensation,

optimizes the area of interest.

True Day / Night, 24/7 coverage,

guaranteed perfect performance,

infrared sensitive.

With default shutter the camera

uses a fast shutter speed to

capture high-speed movement

without any blurring.

FlexiDome, smart surveillance go

In the past, if you wanted the discreet, attractive appearance of

a dome, you were forced to choose between camera

performance and installation robustness. That’s what inspired

Bosch to create the new FlexiDome series. Continuing our

tradition of market-tailored innovation, we’ve expanded the

range of application possibilities by bringing Dinion image

quality to the toughest of domes.

These compact, integrated solutions take dome cameras to

places never before thought possible. What’s more, they are

extremely affordable. And as complete solutions, they make

system design and installation easier than ever. They are

fl exible too, with a wide range of options to cater for every

requirement, from protected indoor locations to diffi cult

lighting conditions and the harshest outdoor settings.

Dome solutions to beat the harshest weather

Ext

e

Always sharp, always clear

No matter how demanding the environment, FlexiDome
cameras deliver outstanding image quality under
almost any light conditions, day or night.

Ñ 540 TVL high-resolution means sharper,

more detailed images and easier identifi cation.

Ñ NightSense recognizes fading light and switches to

monochrome to boost camera sensitivity by a factor
of 3 - so when the sun goes down the picture doesn’t.

Ñ Auto Black enhances picture contrast to

counteract the effects of foggy weather, glare or
dirt on the window. With Auto Black detail stays
clear even when visibility is low.

Ñ Default Shutter combines standard and fast

shutter speeds, eliminating motion blur without
losing sensitivity to ensure you capture all the details.

FlexiDomeXF, the fi nest image quality
in a dome

FlexiDomeXF cameras deliver ground-breaking results.
The 15-bit digital video processing chip, the heart of
the camera, extends the dynamic range and provides
32 times more detail than standard 10-bit cameras.

With the IR sensitive Day/Night versions you can rely on
the best picture quality round the clock, while a range
of extra features help you cover the most complex of
lighting situations:

The Dinion advantage: high detail and perfect zoom

Extensive backlighting, fast movement – no problem for FlexiDome

Strong and stylish

Installation has never been easier

FlexiDome enclosures are built to handle severe
conditions. The proven design features a patented
dome shape that delivers the best optical performance,
even when viewing at a 90° tilt position. On the
outside, a scratch resistant coating with UV block
further improves the picture quality.

XT+

You can put our ultra-tough FlexiDome
It operates between – 50 and + 50 °C and is IP66
(NEMA4X) rated under harsh conditions, so it’s
weatherproof, watertight and corrosion-protected.
It will stand up to human attacks too, thanks to its
patented impact-resistant design, shock-resistant
mountings, protective inner liner and tamper-proofi ng.

anywhere.

Mount options

FlexiDome solutions deliver high performance straight
from the box. They may be designed for demanding
applications, but we’ve incorporated a host of features
to ensure installation, operation and maintenance are as
easy as possible.

Ñ Cover the exact fi eld of view you need with a range

of varifocal lenses from super wide-angle to telephoto

Ñ Fast, simple installation using easy pan, tilt and

horizon adjustments; a Lens Wizard to help you
obtain optimal 24 hour lens focusing, and a local
service monitor connection

Ñ Remote camera confi guration and fi rmware updates

directly over the video cable via Bilinx

Ñ Wide power range from 12 V to 28 V AC or DC
Ñ Optional UTP connectivity
Ñ Mount the domes virtually anywhere, including surface,

fl ush and suspended ceilings walls and corners

Surface mount Corner mount Pendant mount Wall mount

FlexiDome brings domes to every application, inside or out Top performance even in high contrast scenes

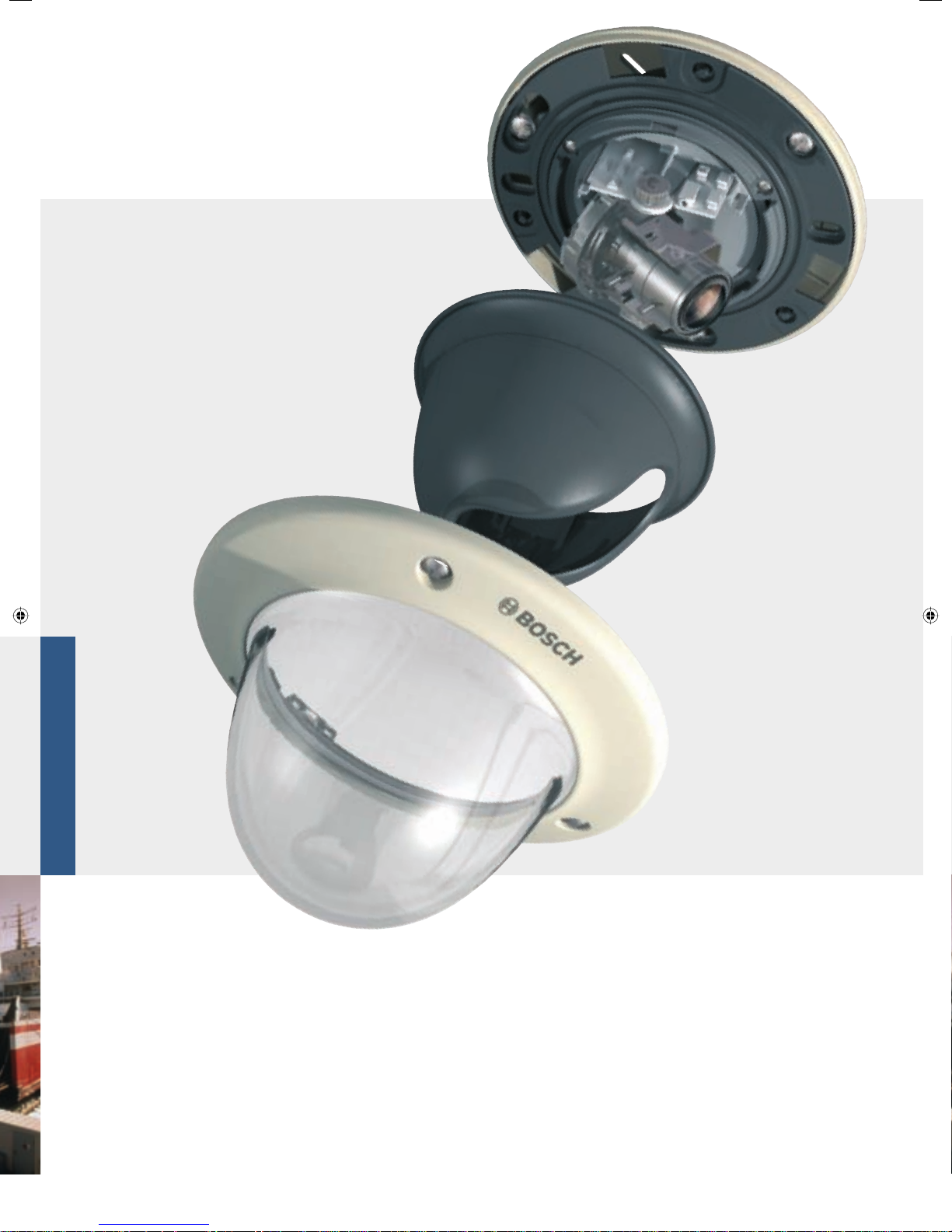

Mounting FlexiDome is simplicity itself, with only three
parts to connect. The bracket, protective camera housing
and the outer dome can be screwed in place ea sily.

Smart ideas from the leader in CCTV solutions

Committed to innovation and quality, Bosch Security Systems continually sets new standards
in surveillance solutions. Drawing on our broad CCTV experience and know-how, the new
FlexiDome family represents another milestone. By incorporating Dinion camera technology,
FlexiDome offers a unique solution – only Bosch can give you such a high level of performance
from a dome camera. And it’s not just the product you can rely on. Our world class service
means you have all the support you need.

Features VF XT+ XF DN

SensUp

Bilinx

540 T VL color resolution

XF-Dynamic

Programmable BLC

Day/Night with IR corrected lens

Default shutter

NightSense

Standard BLC

High speed lens

Heater / IP66 and Nema4X rating /
Impact-proof rated / tamper-proof

FlexiDome

Dinion system models

FlexiDome Dinion camera

••

••••

••••

••

••

•

••

•••

••

•

•••

Tradition of quality and innovation

For over 100 years, the Bosch name has stood for
quality and reliability. Bosch Security Systems
proudly of fers a wide range of fi re, intrusion, social
alarm, CCTV, management and communication
systems and components to help you fi nd the
solution for any application. We are the global
supplier of choice for innovative technolog y backed
by the highest level of service and support.
When you need solutions you can rely on, choose
Bosch.
